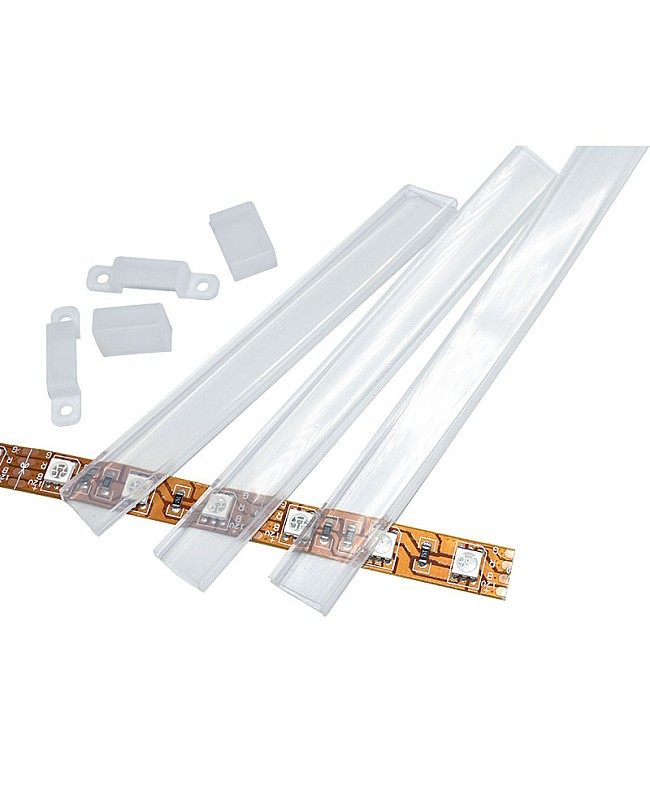

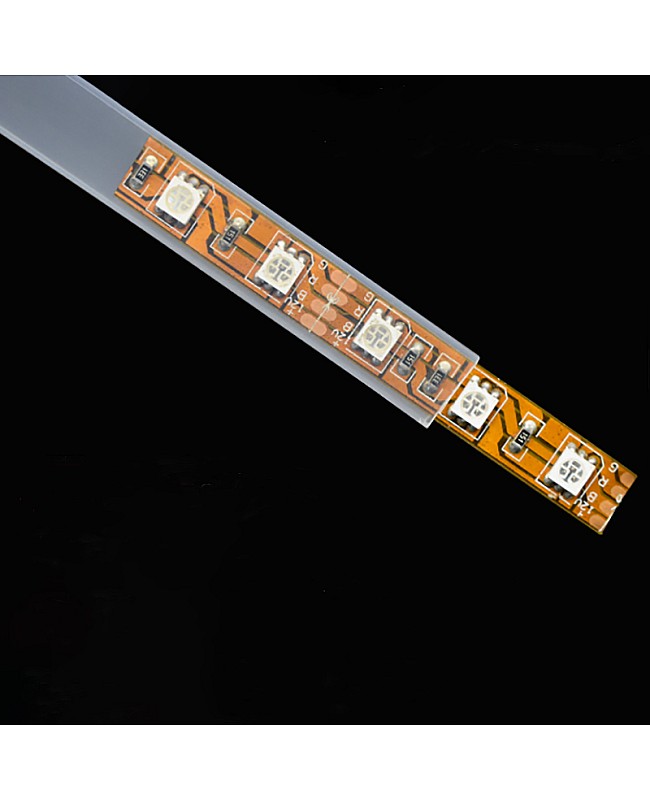

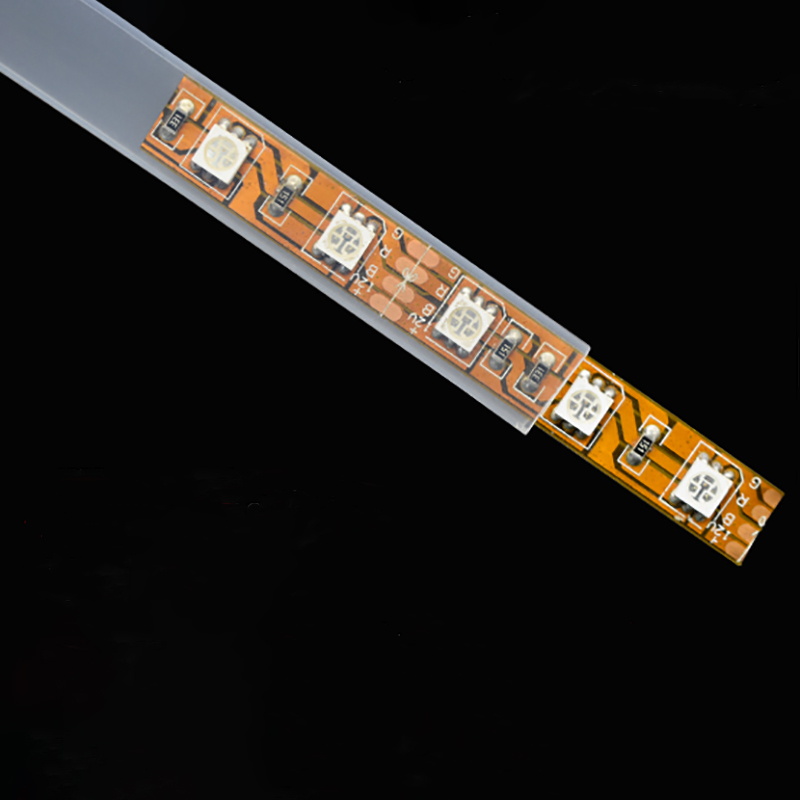

The LED silicone tubes are designed for COB or SMD LED strips. They will accommodate the bare LED strips to protect them from dust, moisture, rain, and physical damage. It will extend the lifespan of the LED lights and make the bare-board LED tapes waterproof. The waterproof rating is up to IP67, making it suitable for wet environments and outdoor applications. They are made from high-quality silicone, flexible, bendable, and cuttable. We offer three sizes of silicone tubes for 8mm, 10mm, and 12mm wide LED strips. The standard length is 5 meters, and the maximum length per roll is 200 meters. You can easily cut them to your desired length with a knife. There are three colors of LED strip tubes available: transparent, milky white, and black. With those silicone tubes, you can DIY your LED strips waterproof and use them in bathrooms, shower niches, kitchens, gardens, etc.
How to make the LED strips pass through the silicone tubes?
1. Please choose the appropriate width silicone tubes for your LED strips.

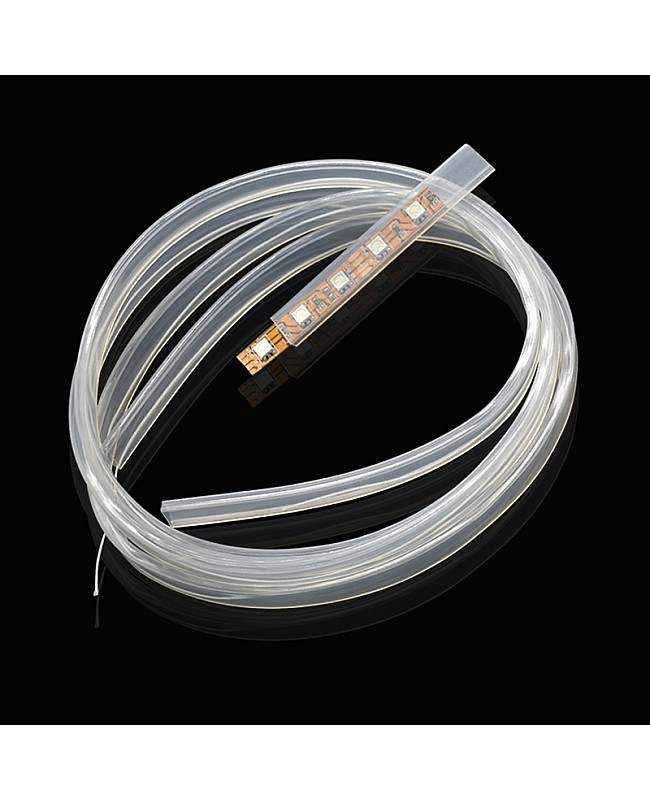

2. There is a rope in the silione tubes. Please tie it on the strip lights.

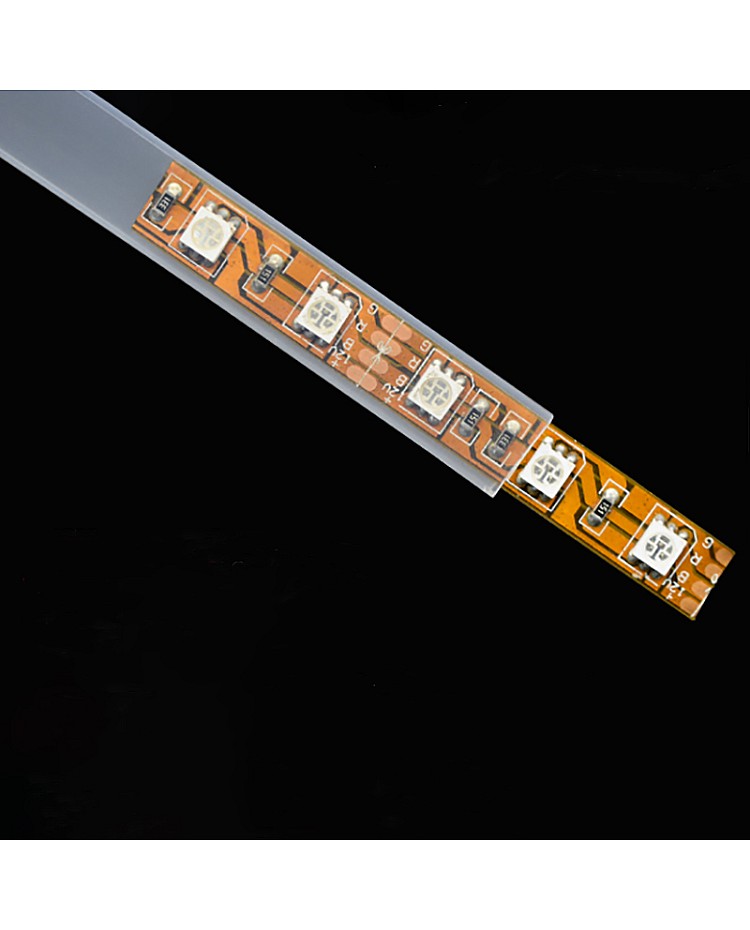

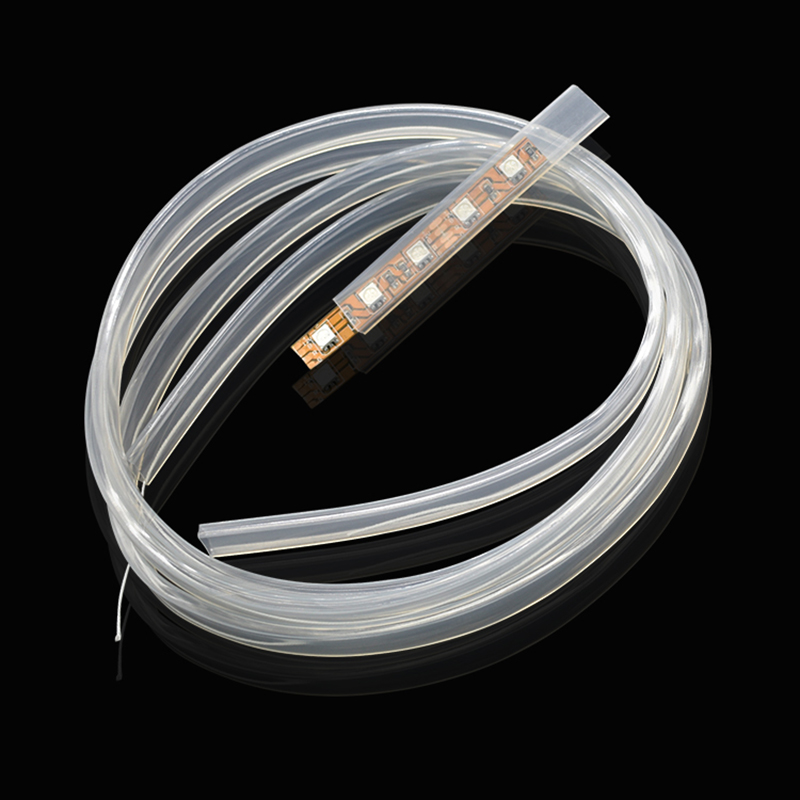

3. Keep the silicone tube straight and pull the rope from the other end to let the whole LED strip in.
4. Lead out the power cable from the end caps with wire holes.
5. Install and seal the end caps with silicone glue.

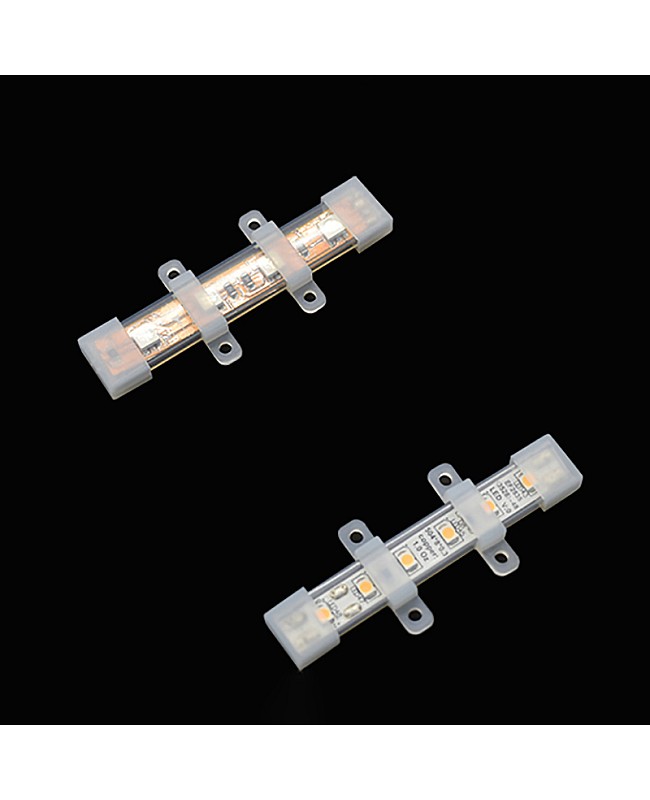

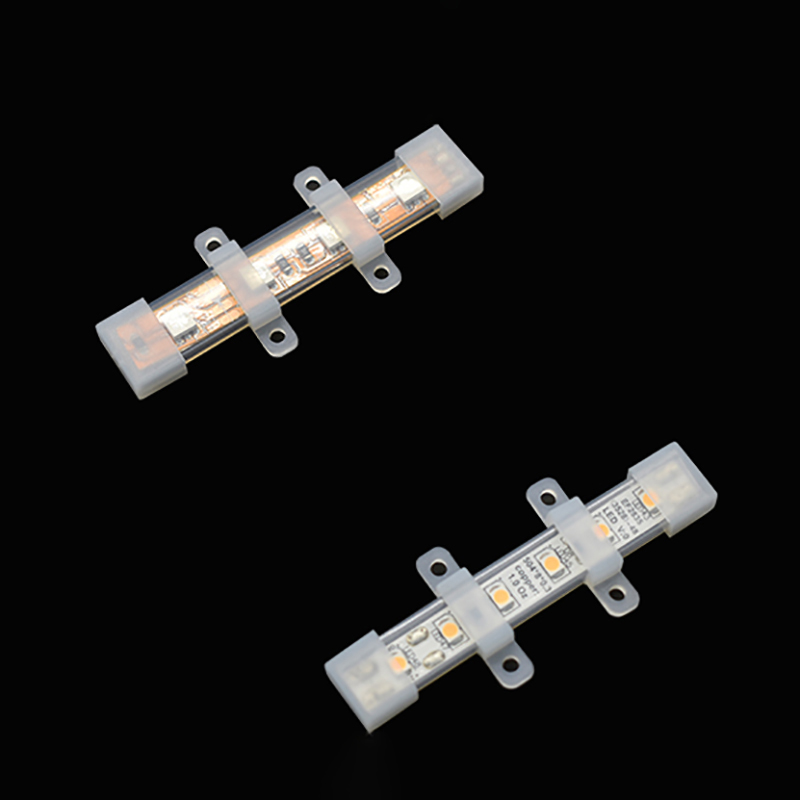

6. Use the silicone LED clips and screws to mount them on.
7. Install complete.
Specifications:
- Material: Food-grade silicone

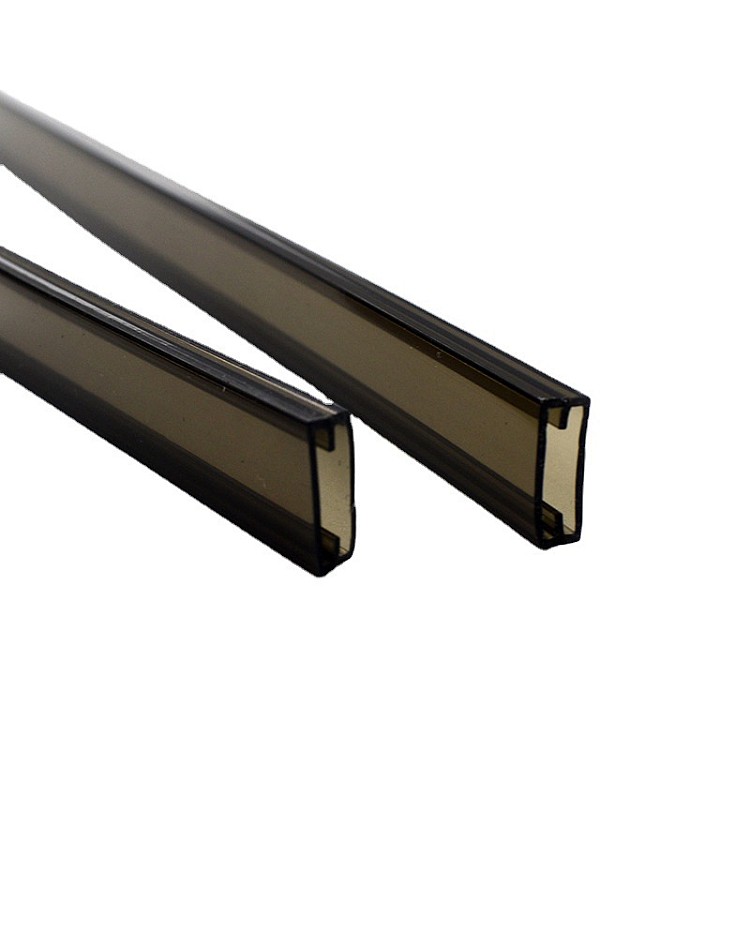

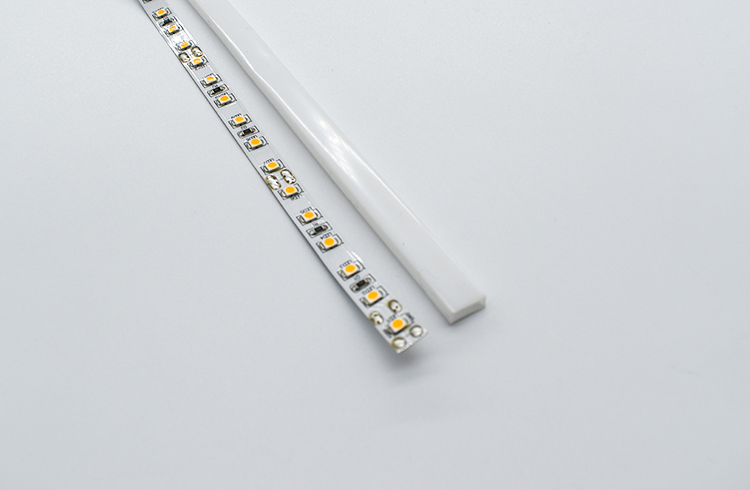

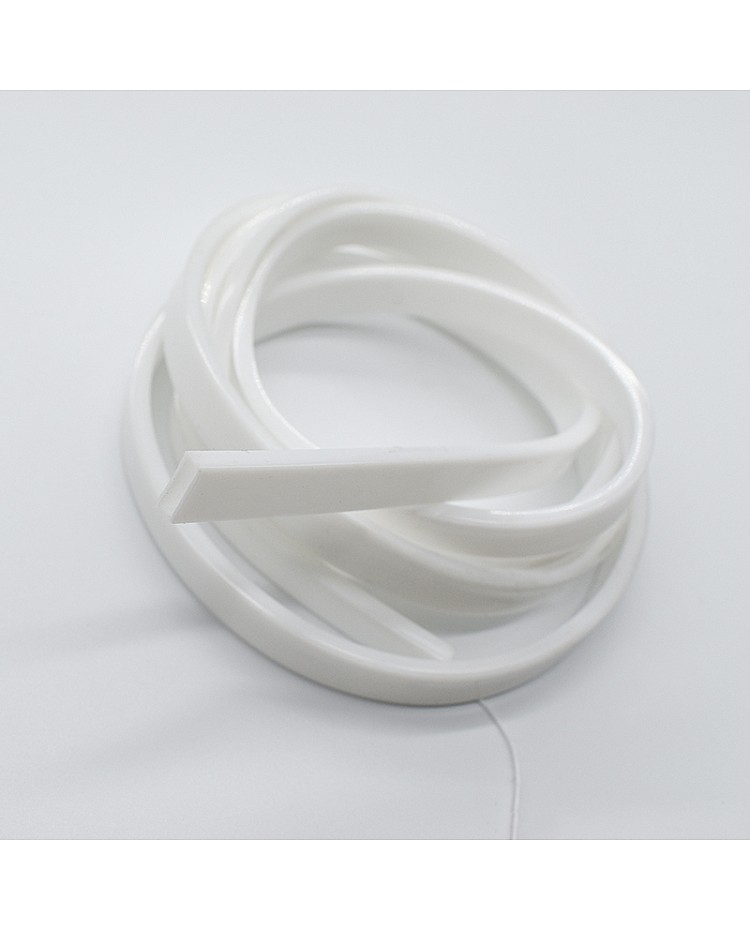

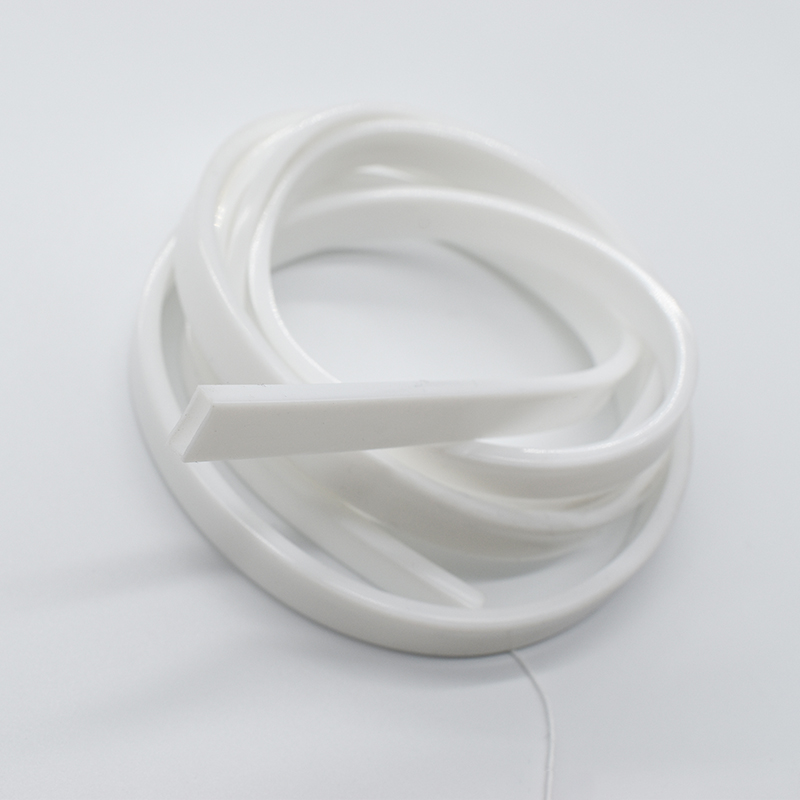

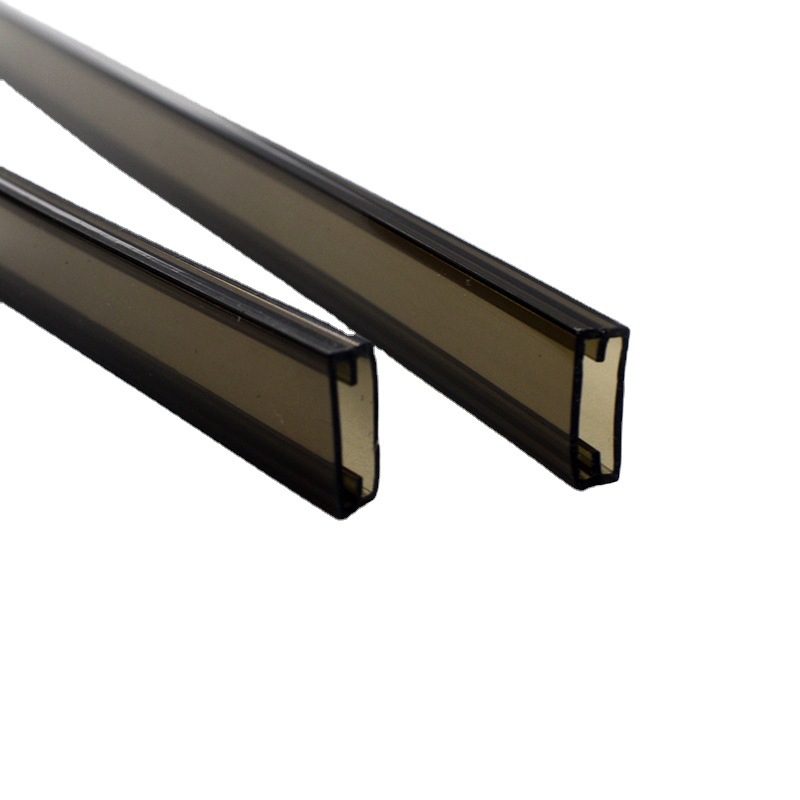

- Colors: Clear, milky, black
- Standard Length: 5 meters /16.4ft
- Maximum length: 200m/roll

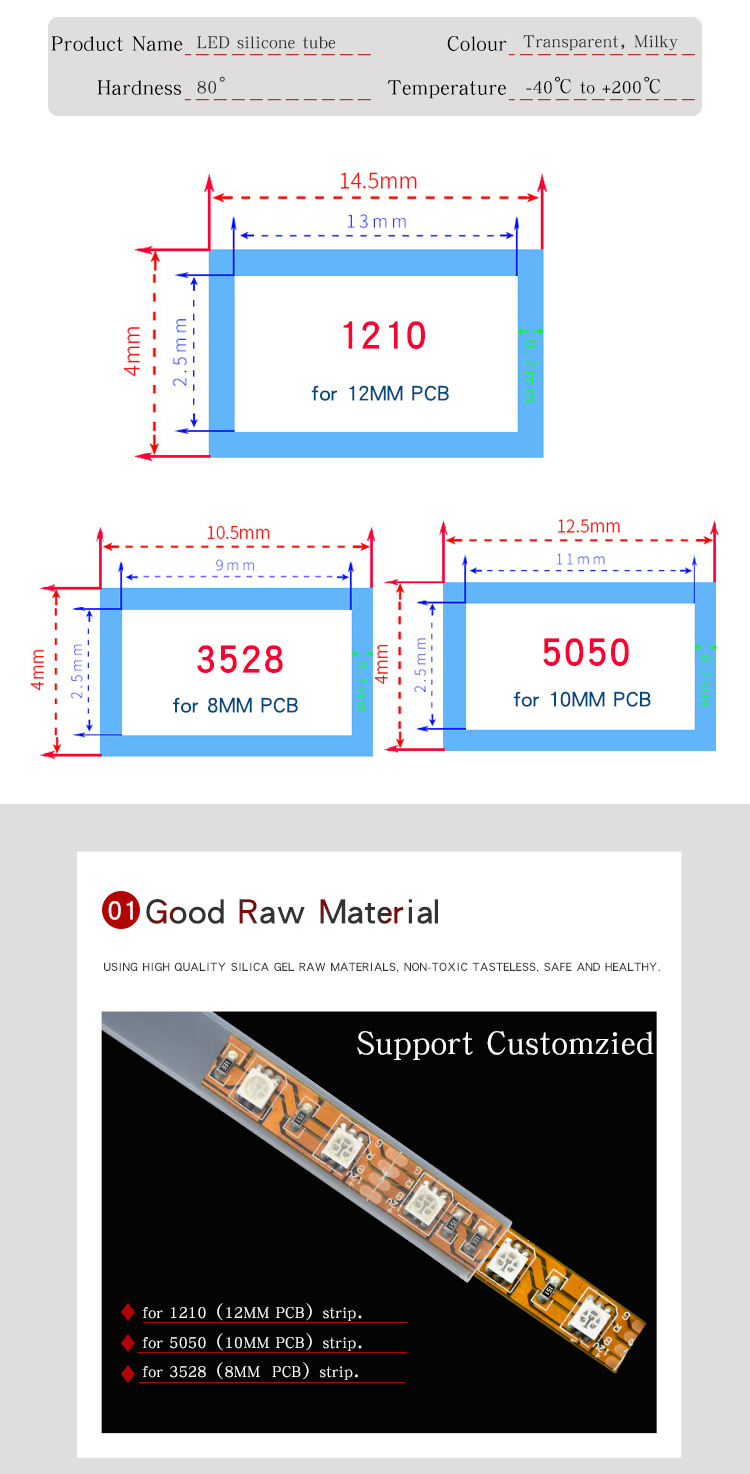

- Size ( W x H): 14.5 mm x 4 mm/ 0.57" X 0.16" ( Allow PCB board width: 12 mm ), 10.5 mm x 4 mm / 0.41" X 0.16" ( Allow PCB board width: 10 mm ), 12.5 mm x 4 mm / 0.49" x 0.16" ( Allow PCB board width: 8 mm )
- IP rating: IP67 waterproof
- High and low-temperature resistance
- Non-toxic and tasteless
- Good sealing
- High transparent
- Cuttable: YES
- Hardness: 80°
- Working Temperature: -40°-+200°
- Certifications: CE, ROHS
- 3-year warranty

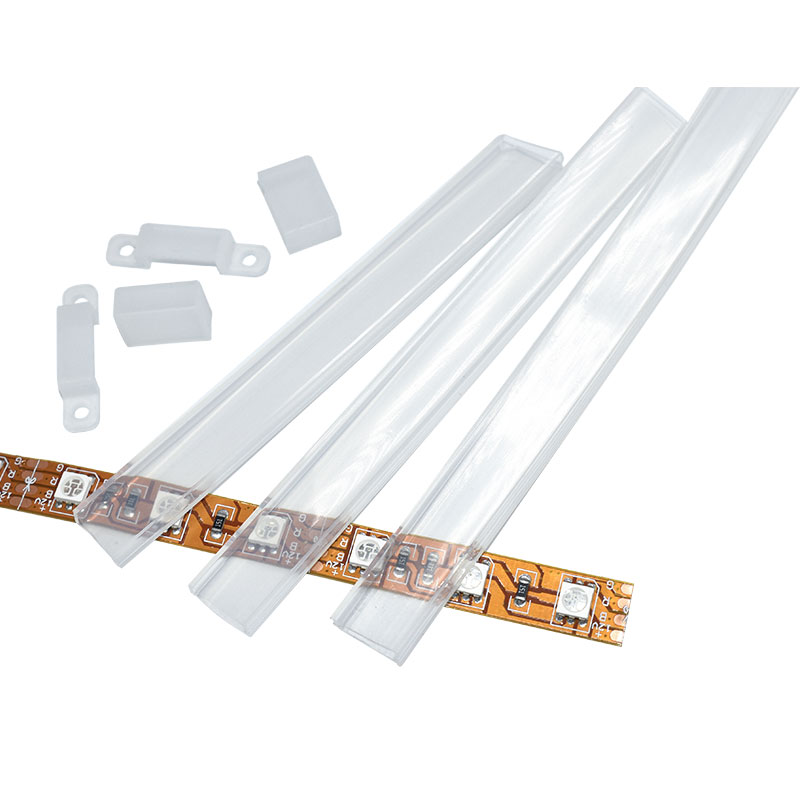

Includes:
1 * Silicone bendable tube (5 m/roll)

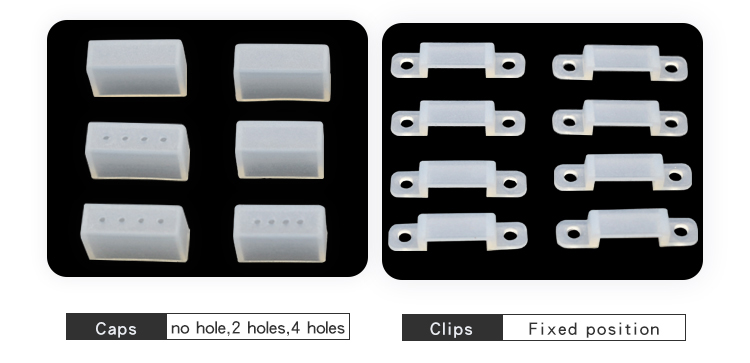

End caps (With and without wire hole)
Silicone clips
