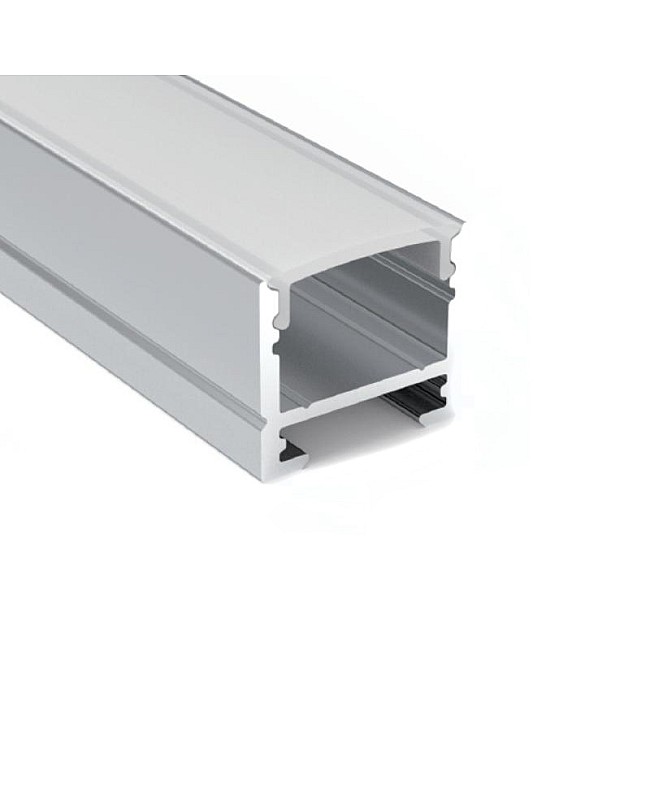

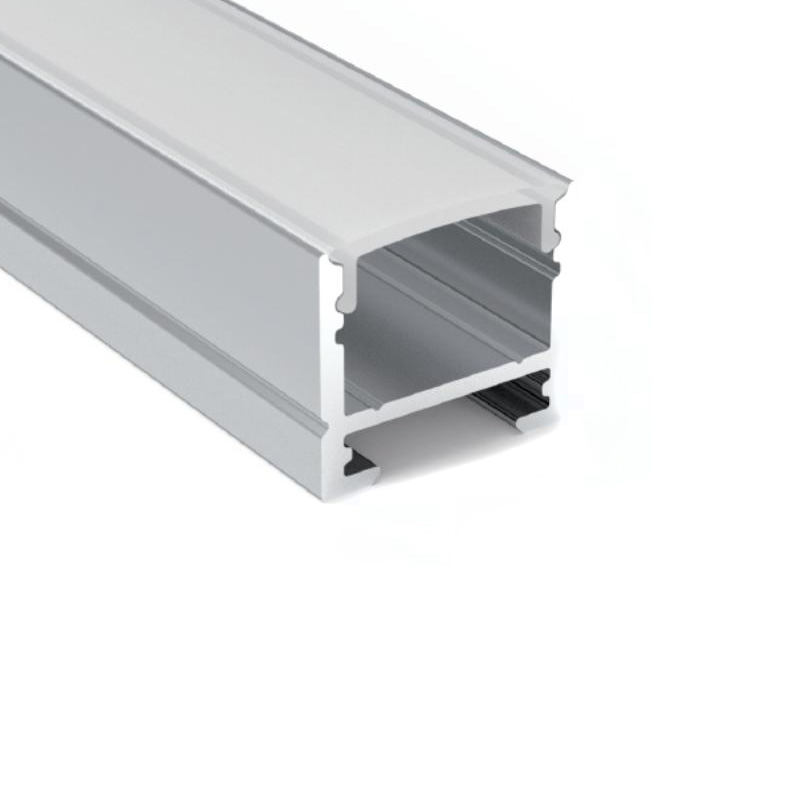

Check the LED Linear Fixtures, which can be cut to any length for indoor linear lighting projects. You can use them for linear lighting on the metal wall or metal ceiling. Lighting Fixtures are made of 6063-T5 extruded aluminum material. There are three colors available: silver, white and black. The standard length is 1M and 2M, LED Linear Fixtures with anodized surface treatment, anti-oxidation, and a longer lifespan than similar products. Various diffusers are available, and you can choose the PC diffused cover, PC semi-clear cover, PC clear cover, PC frosted cover, and prismatic cover. The Linear Light Fixture Diffusers with different light transmittance can be used for various scenes. The inner width is 15.2mm, allowing the max width of LED Strips to be 15mm. Recommend using the high-density chip-on-board COB Light Strips as the light source, with no visible light dots and dark areas, brighter and uniform lighting emission. End caps with wire holes are included, and it is easy to connect the LED Strips Dimming LED Drivers to light up and adjust the brightness. Lighting Linear Fixtures come with magnets, and you can insert the magnets into the slots and stick the Linear Fixture on the metal or magnetic wall. There is no need to drill holes or stick double-sided tapes; easy to install and use.


  • Model: ALP152
  • Material: Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: Silver(Default), Black, White

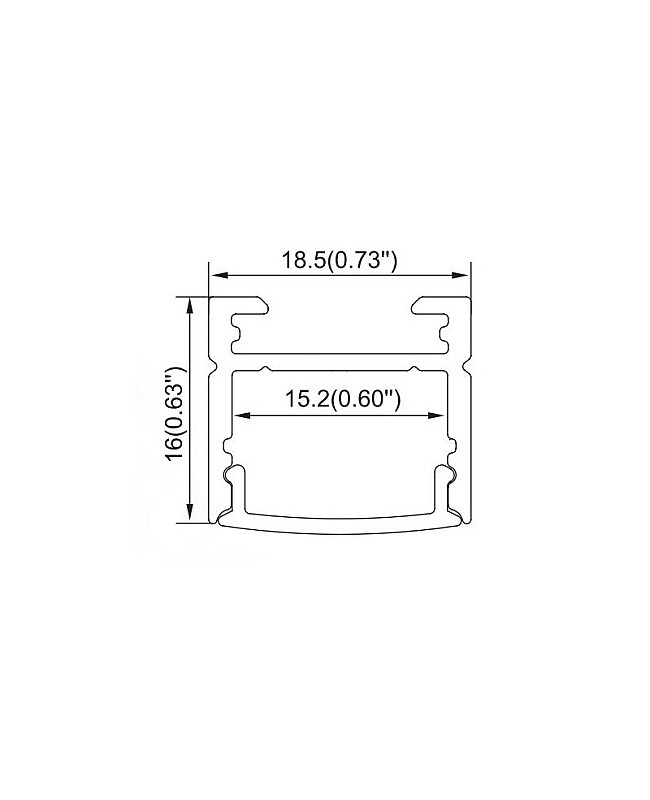

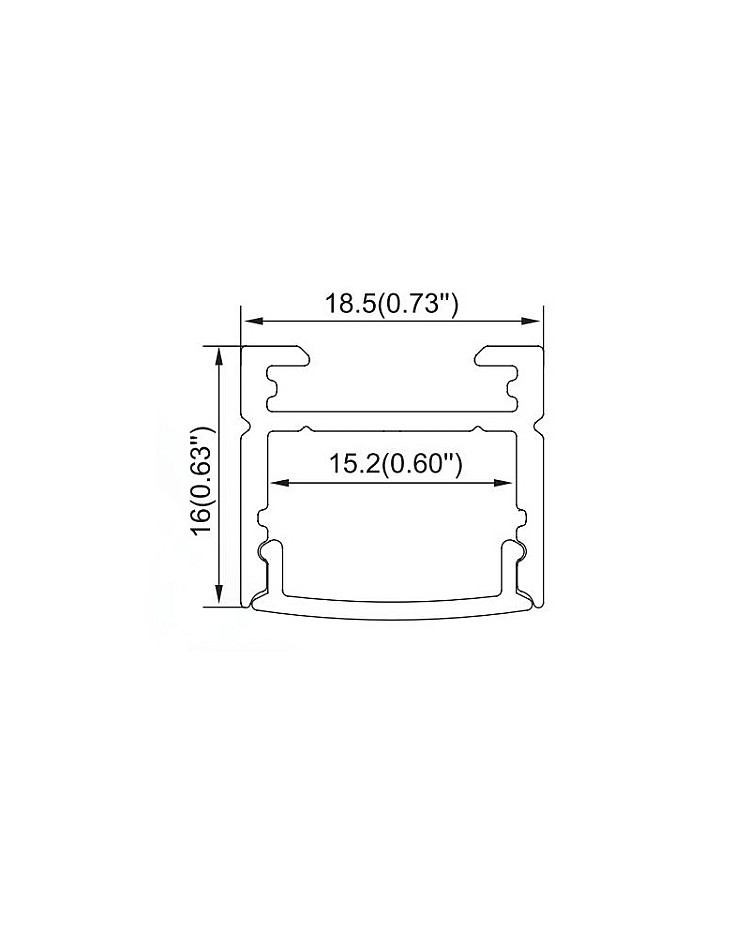

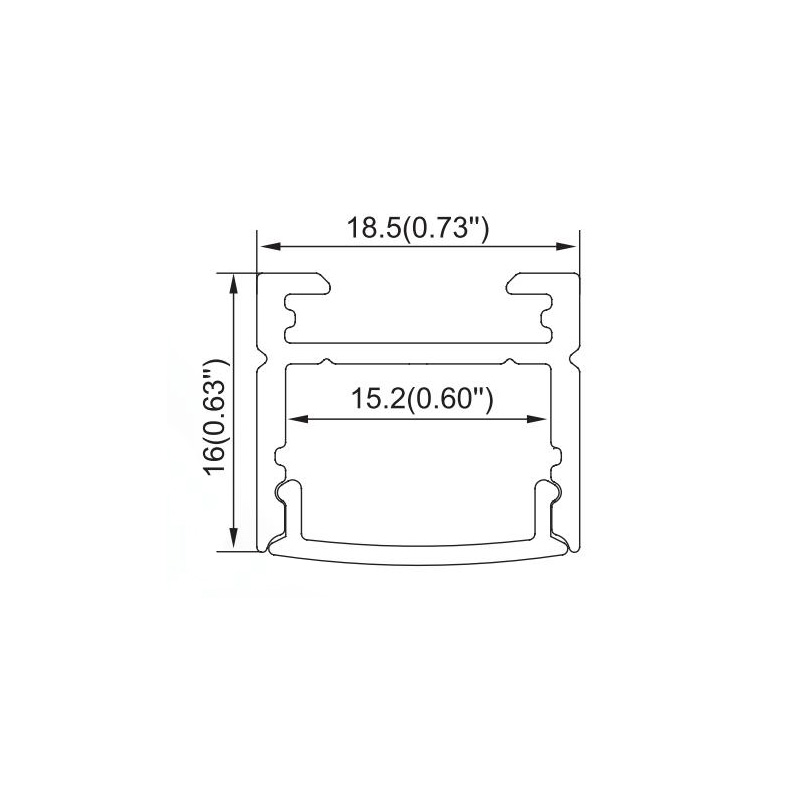

  • Size: 18.5*16mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, And Max 6M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
  • Inner Width: 15.2mm
  • Max Width Of LED Strips: 15mm
  • Max Power: 18W/M
  • Beam Angle: 100°
  • Tolerance: ±1%

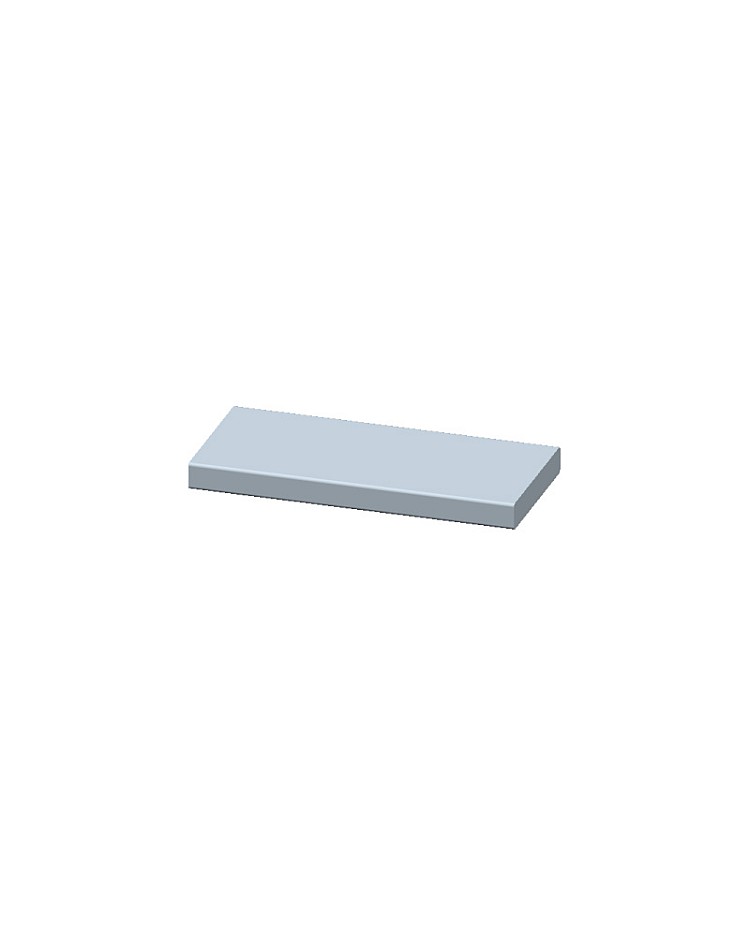

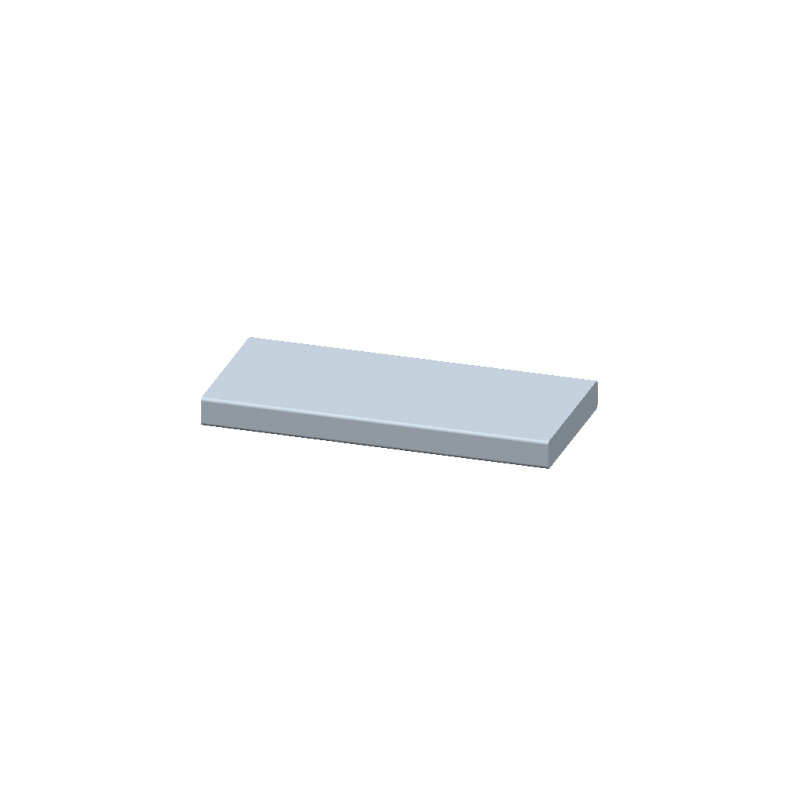

  • Magnets Included
  • End Caps With Wire Holes Included

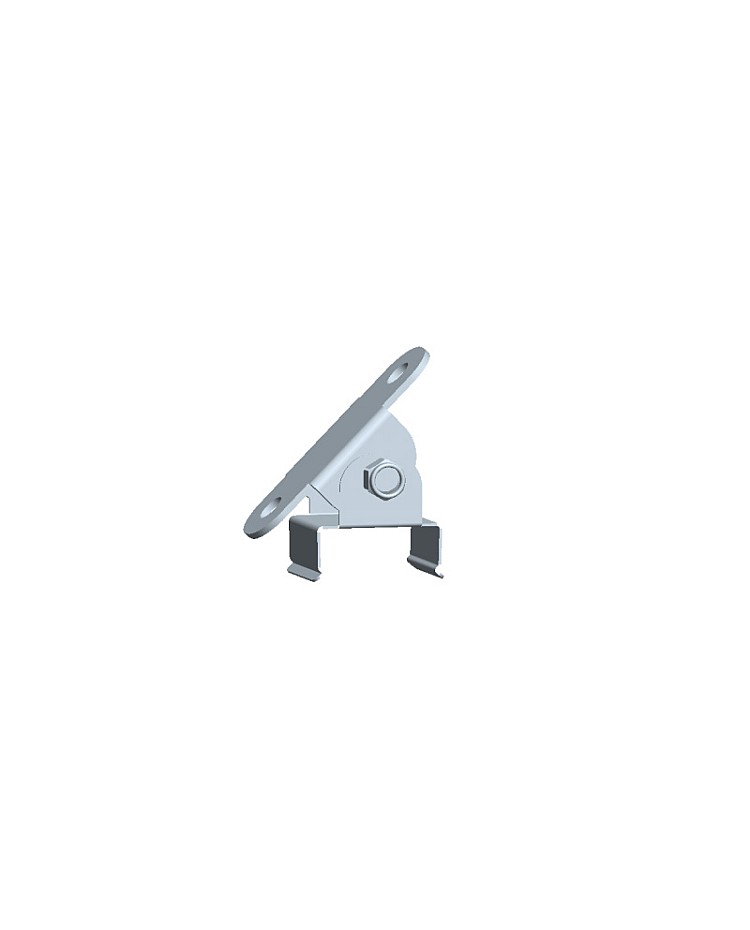

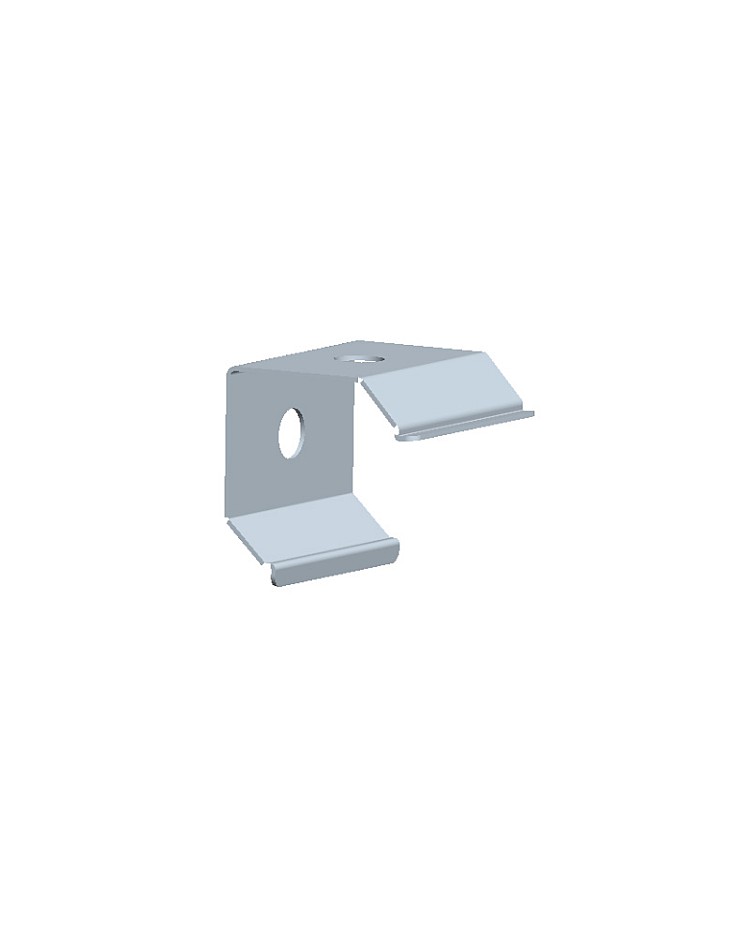

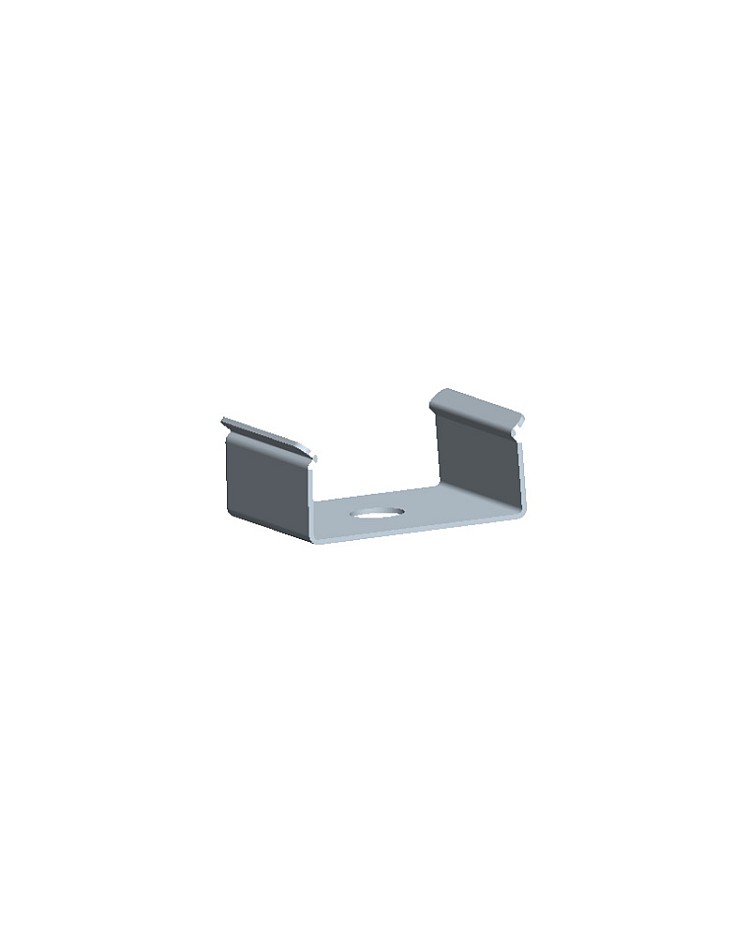

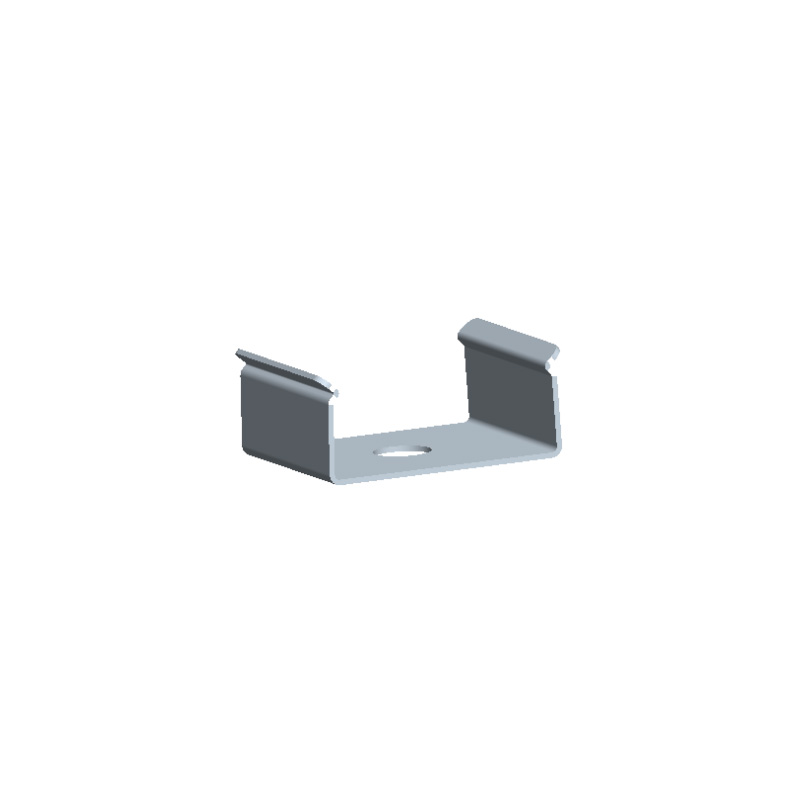

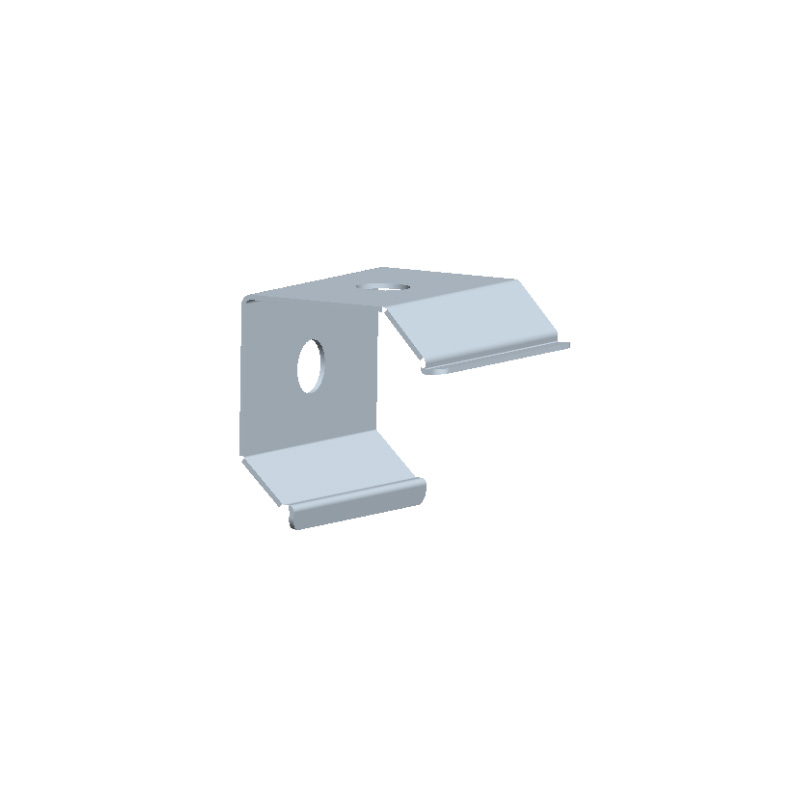

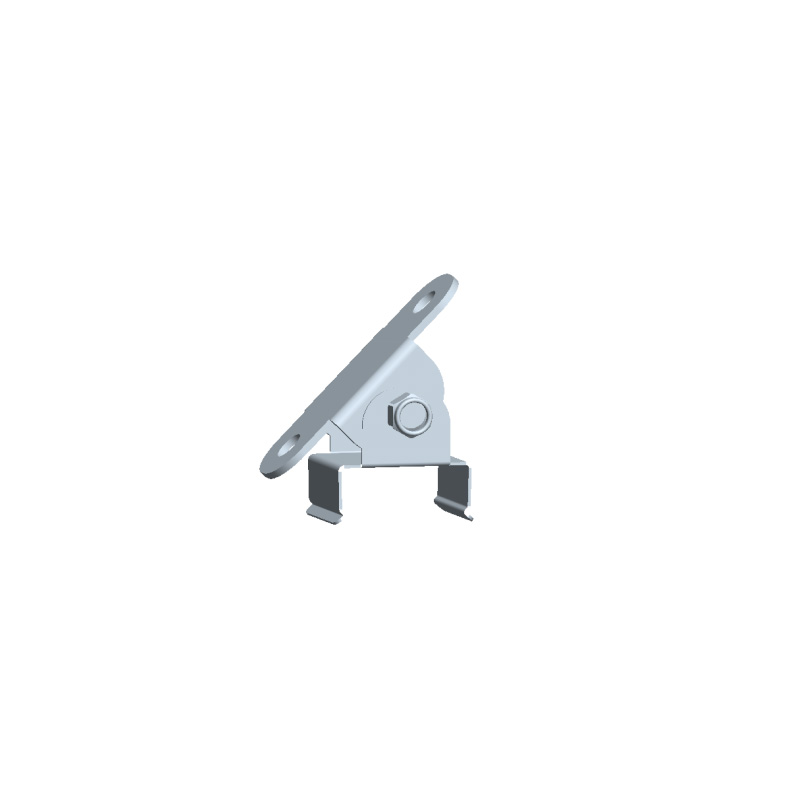

  • Adjustable Brackets Sold Separately

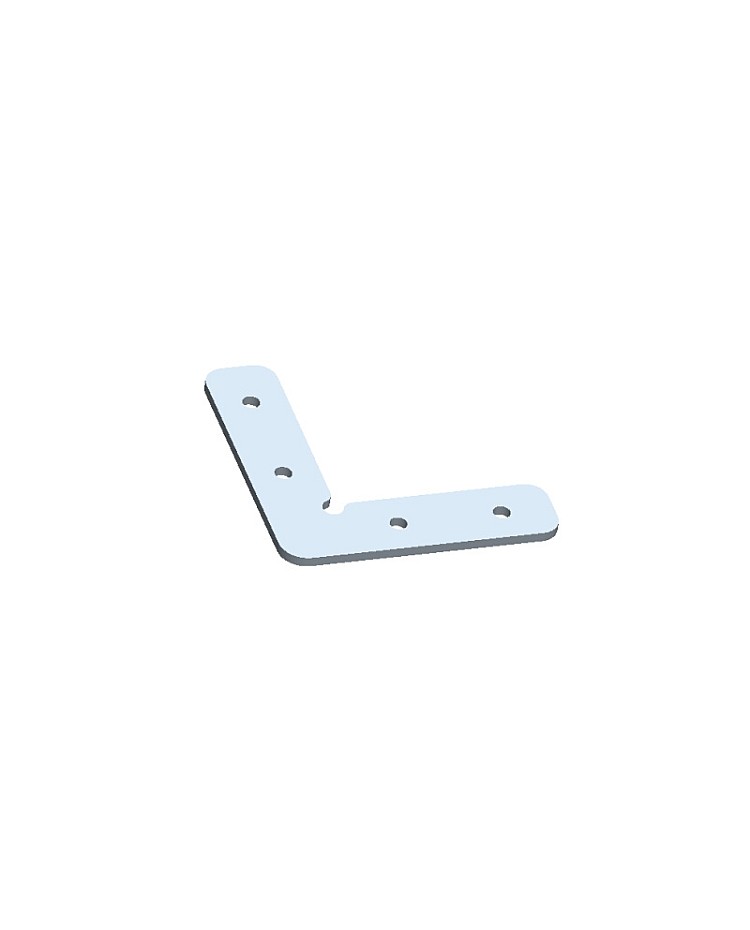

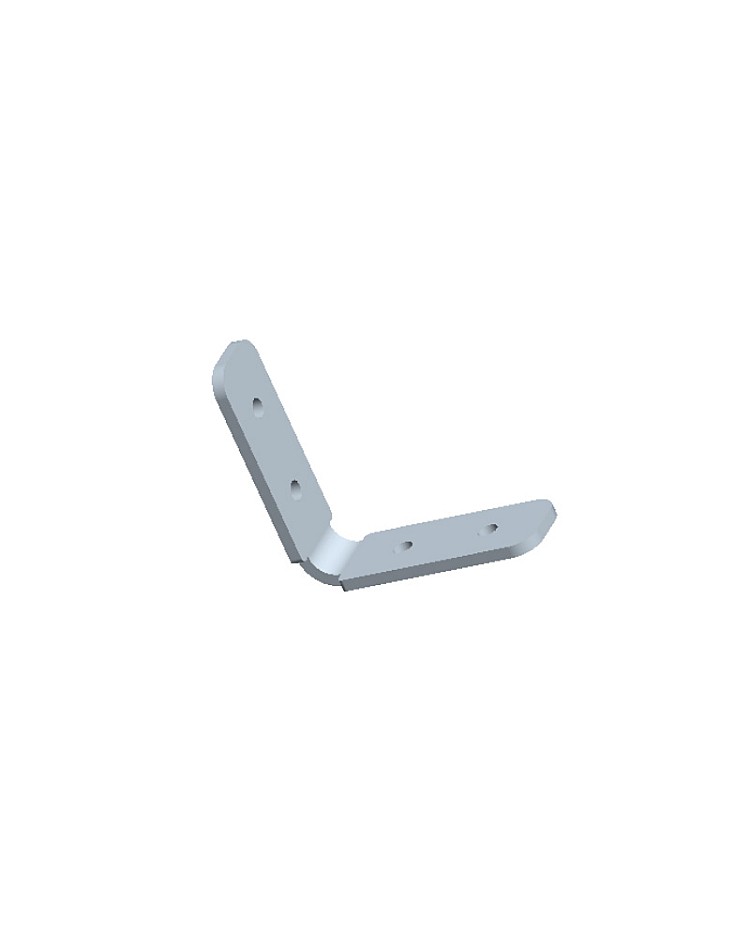

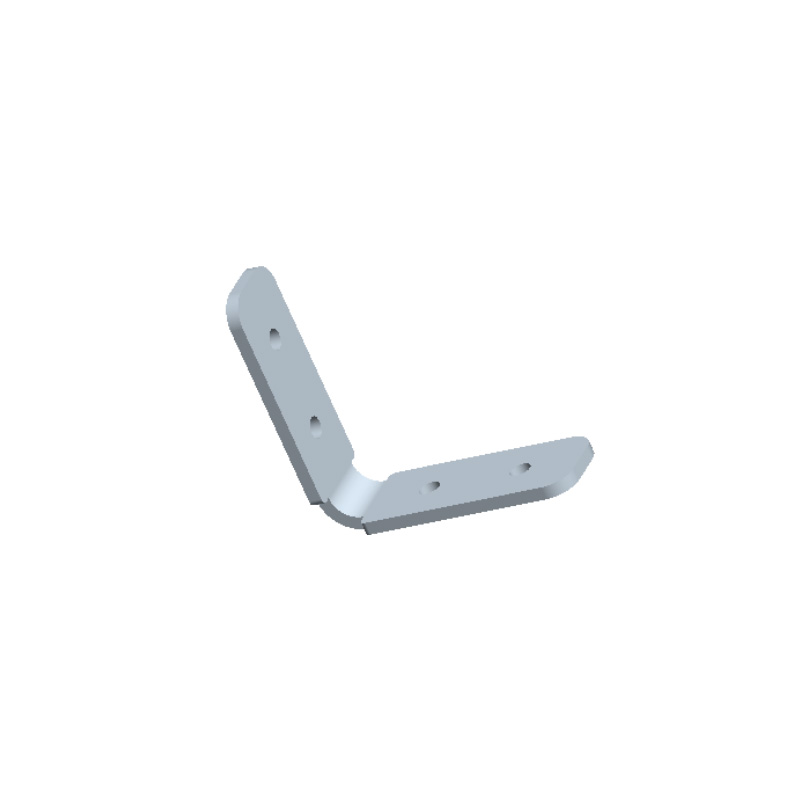

  • 180°, 90°, 90° Vertical, 135° And 135° Vertical Connectors Sold Separately
  • Installation: Surface Mounted
  • Applications: Wall Or Ceiling Linear Lighting
  • 5 Years Warranty


1*LED Linear Fixture With Diffuser

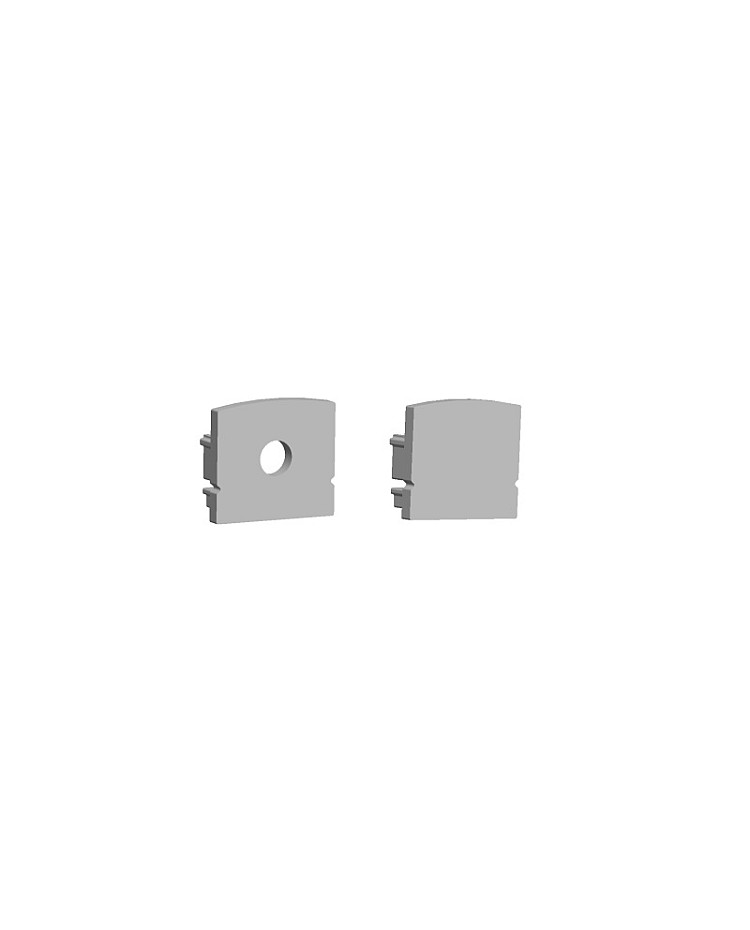

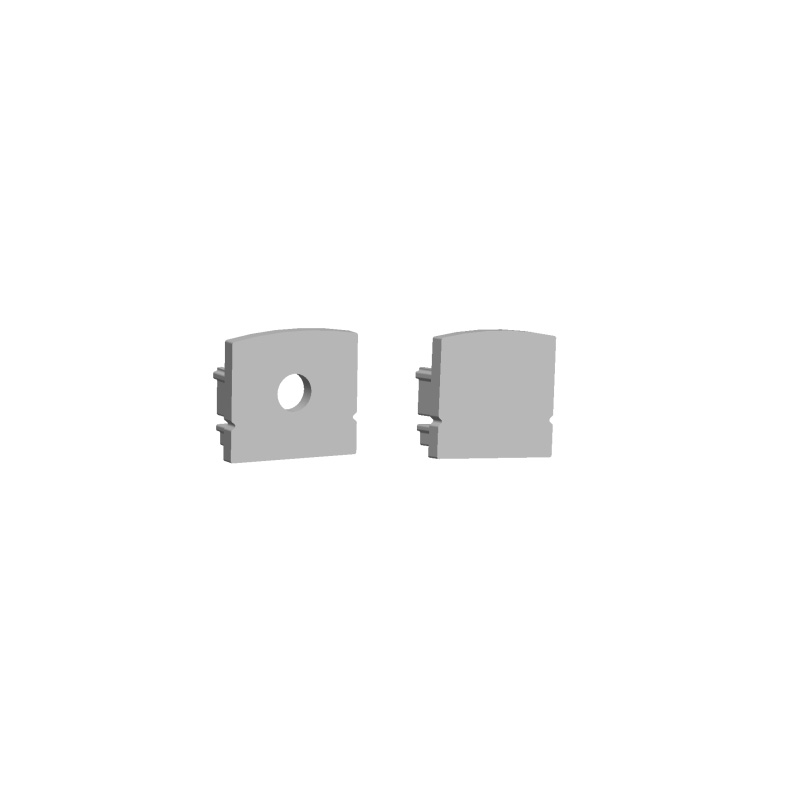

ABS End Caps With Wire Hole/Without Wire Hole

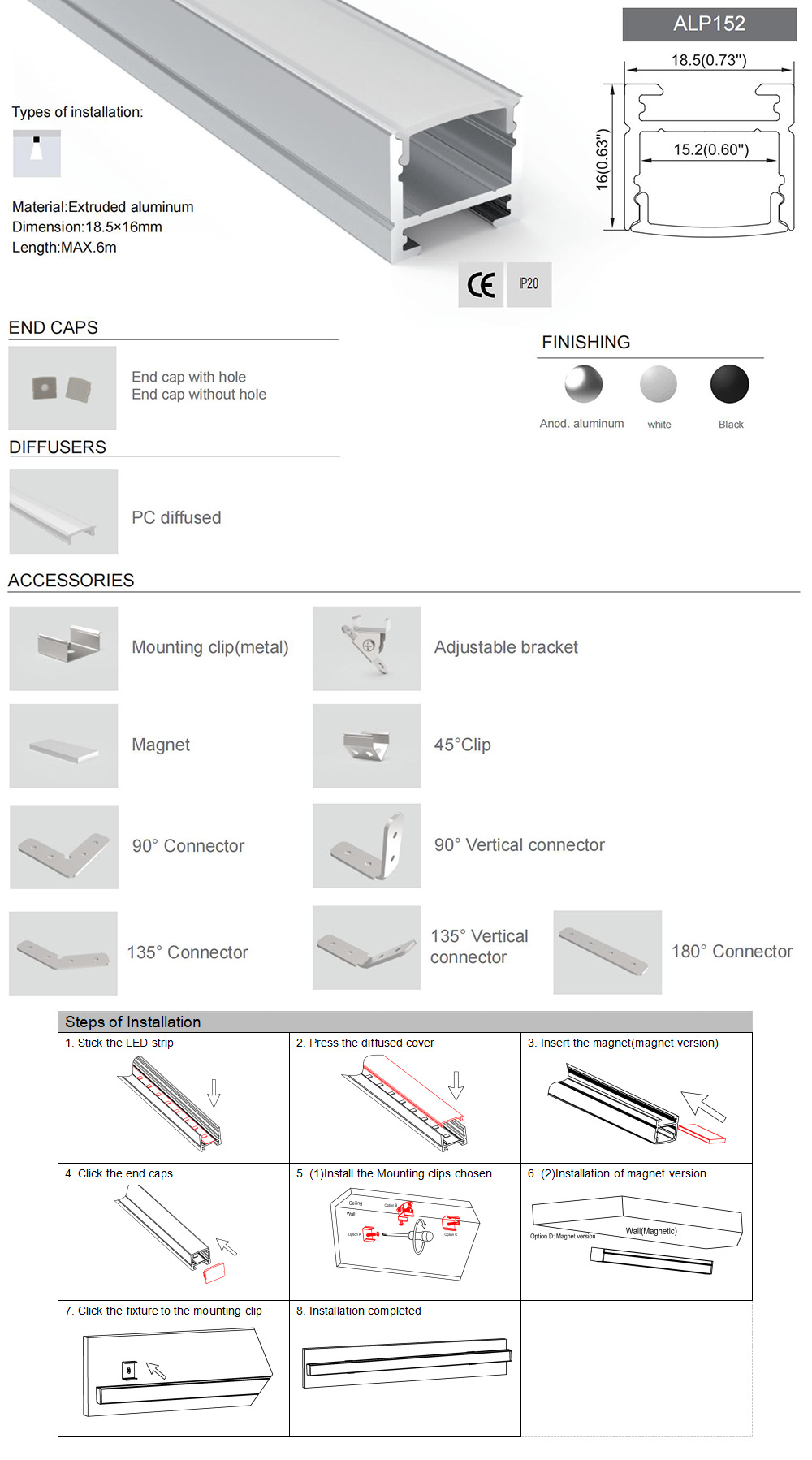

Linkable LED Linear Light Bar Fixture
