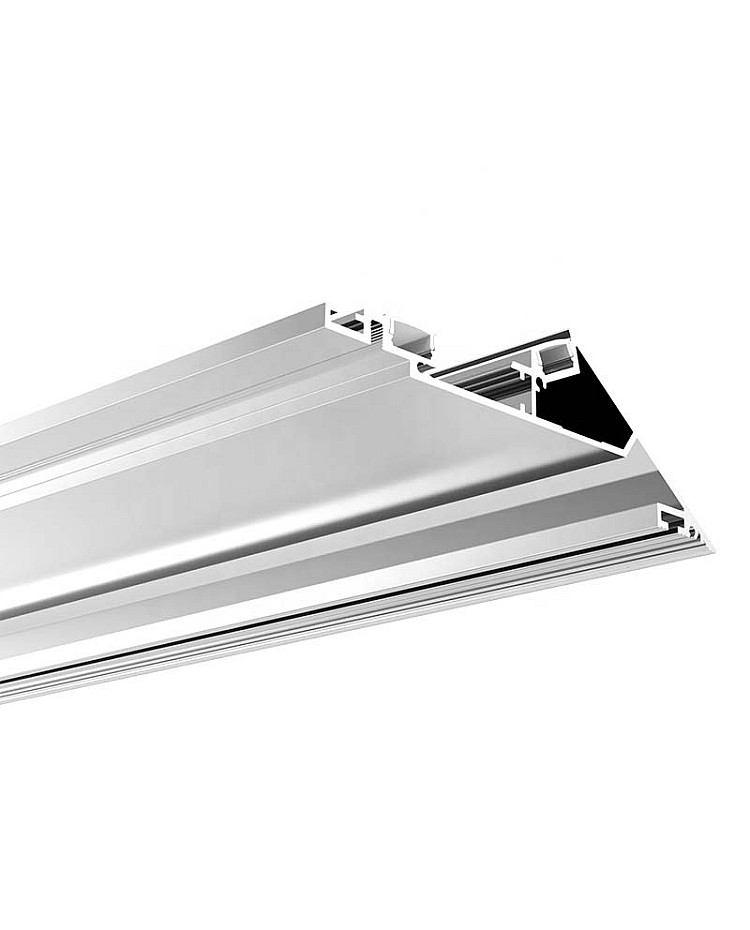

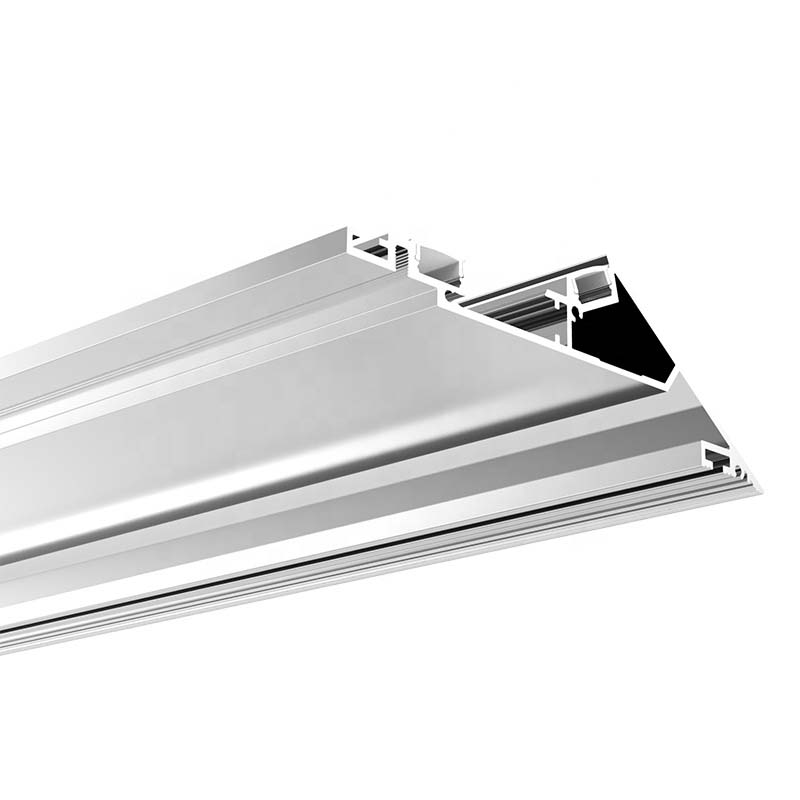

The ALP090 gypsum drywall knife-edge LED profiles are designed for creating elegant indirect cove lighting in drywall ceilings. The knife-edge shape forms a clean architectural line, allowing light to wash smoothly across the ceiling with no visible trim or hardware. They can flush mount with 5/8" gypsum boards and seamlessly integrated into drywall, providing a trimless recessed finish ideal for modern residential, commercial, and hospitality interiors. The LED edge light profiles are made of 6063-T5 aluminum alloy material, and have a white powder-coated surface treatment for anti-oxidation resistance for a longer lifespan. The standard lengths are 1 m and 2 m, and we can help to cut any size you want. They could accommodate LED strips up to 12 mm wide and support continuous linear installations for uniform, shadow-free illumination. The LED drywall reveal ensures excellent heat dissipation and durability. Only one type of diffuser is available: the PC diffused cover. They are made of brand material, anti-yellowing, and deliver soft, even light output without hotspots. There are 180° and 90° joiners are sold separately, you can use them for angled or straight connections.
Specifications:
- Type: Knife-edge style ceiling lighting LED channels
- Material: 6063-T5 aluminium alloy
- Surface treatment: Powder-coated
- Color: White
- Model: ALP090

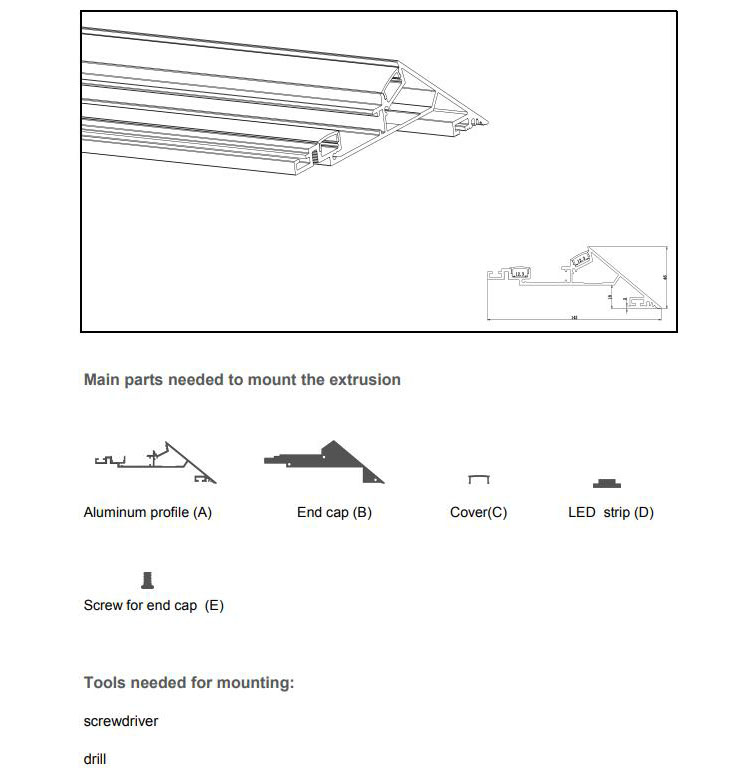

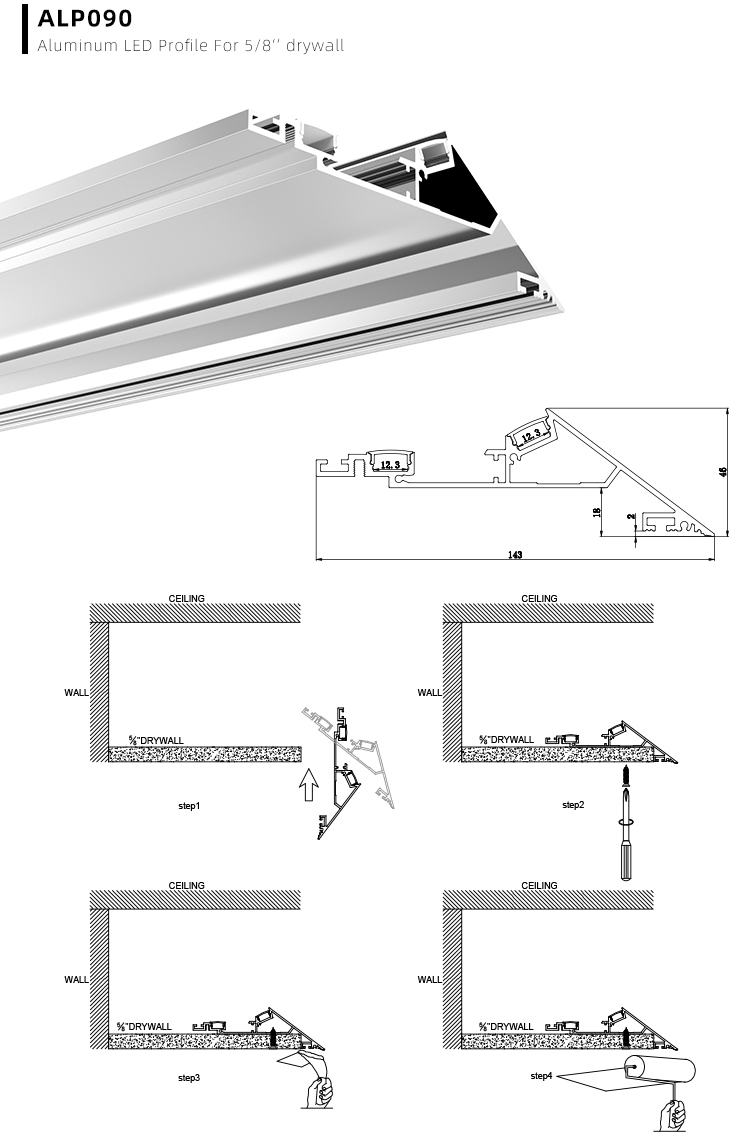

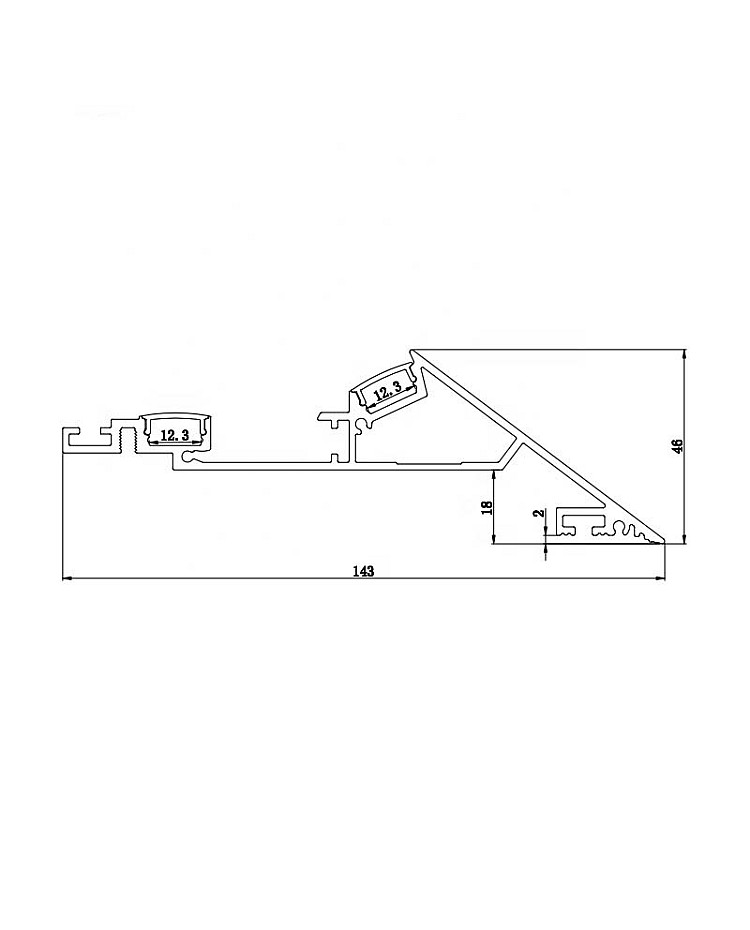

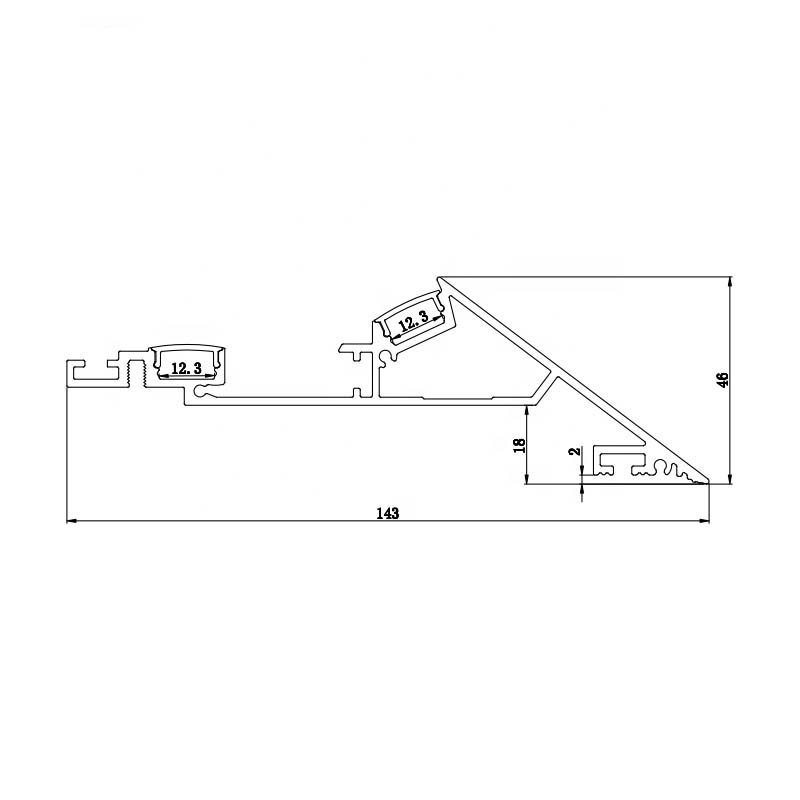

- Size ( W x H ): 142.7 x 46 mm / 5.62" x 1.81"
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffuser: PC diffused cover
- Inner width: 12.3 mm / 0.48"
- Max width of strip lights: 12 mm / 0.48"
- Max power: 28W/m
- IP rating: IP20 non-waterproof
- 180°, and 90° joiners are sold separately

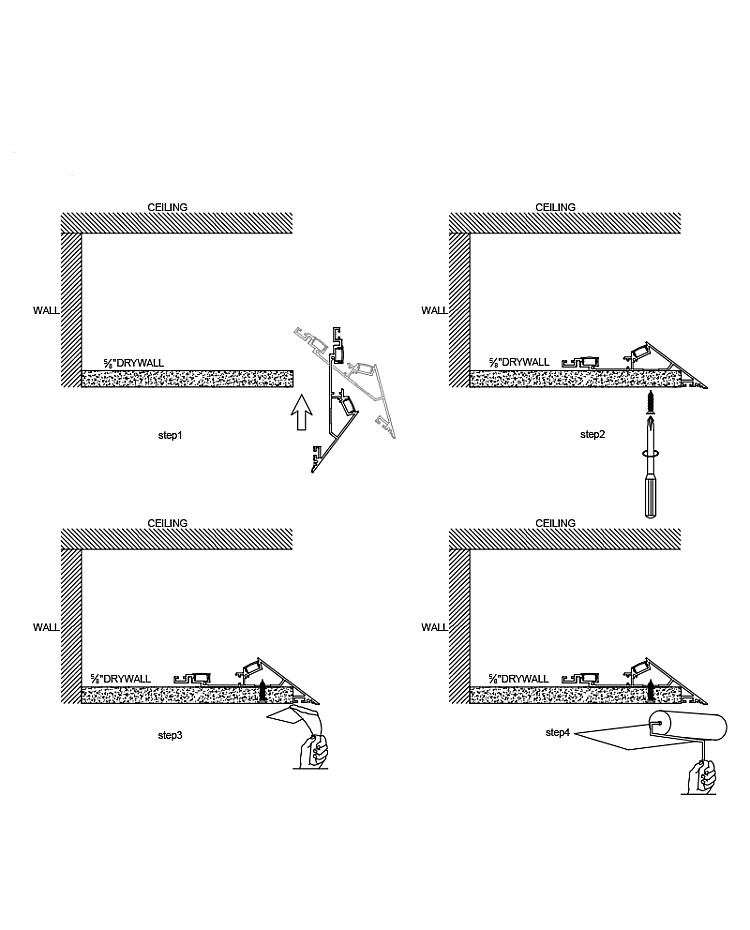

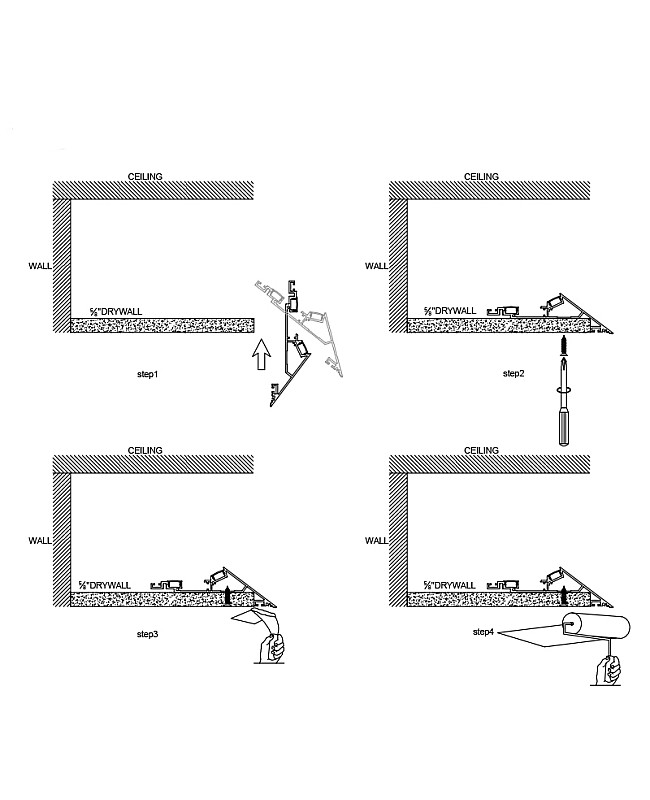

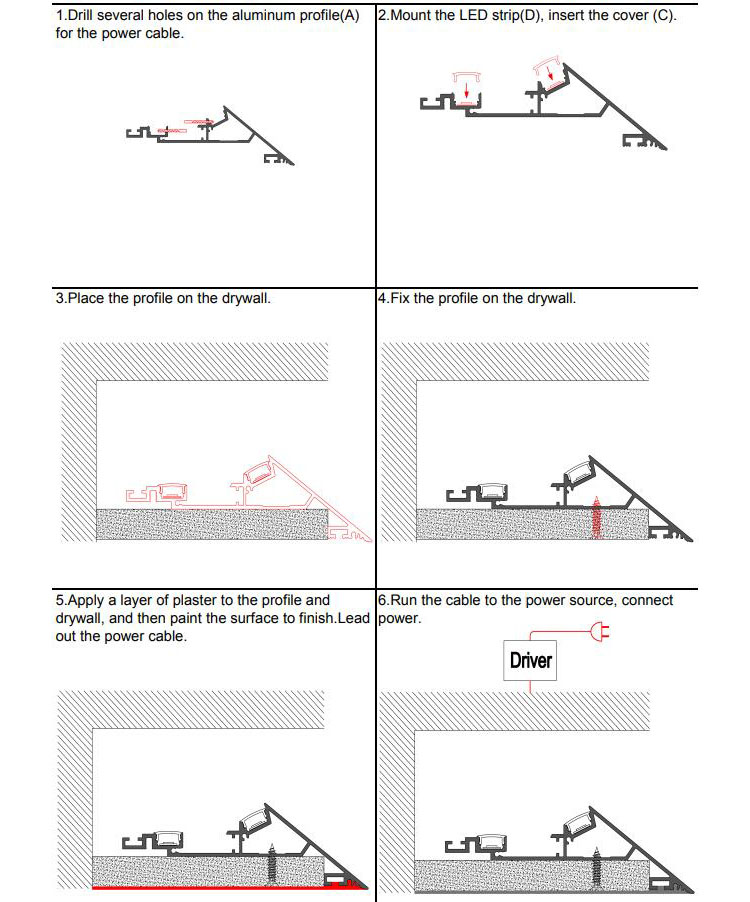

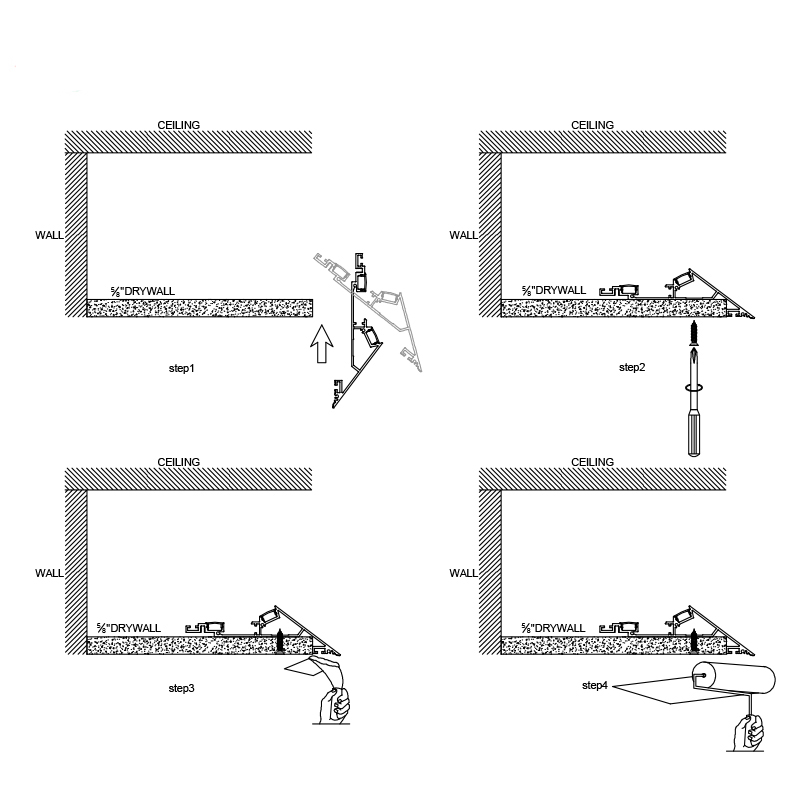

- Installation: Flush with 5/8" drywall

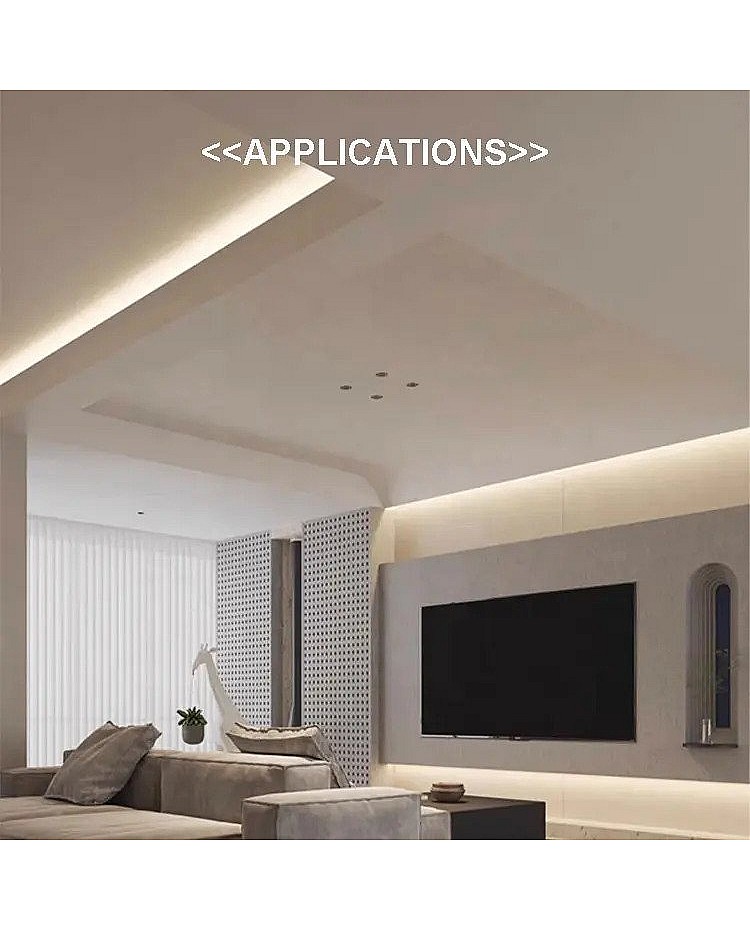

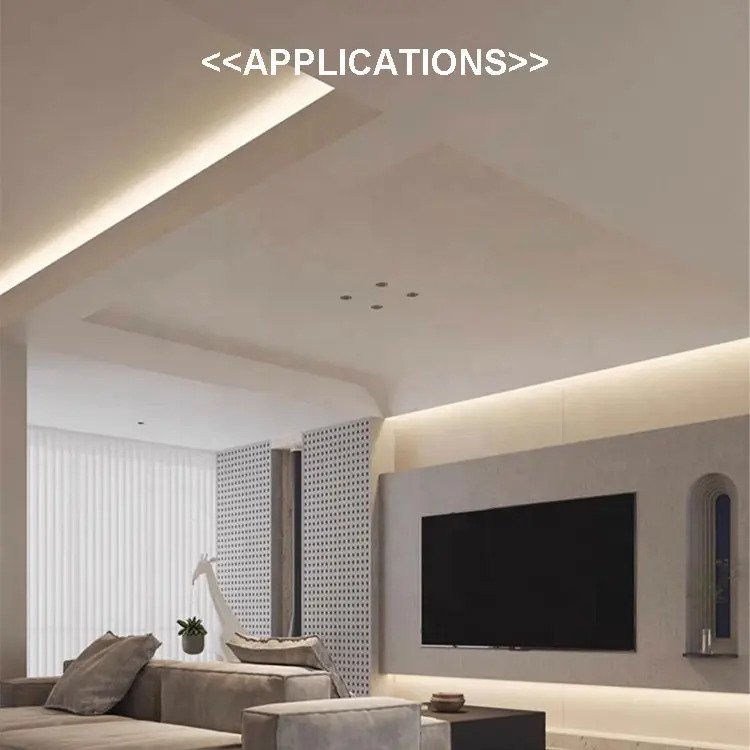

- Applications: Ceiling cove lighting(Indirect ambient)
- Warranty: 5 years
Includes:
1 * Knife-edge LED channel and diffuser

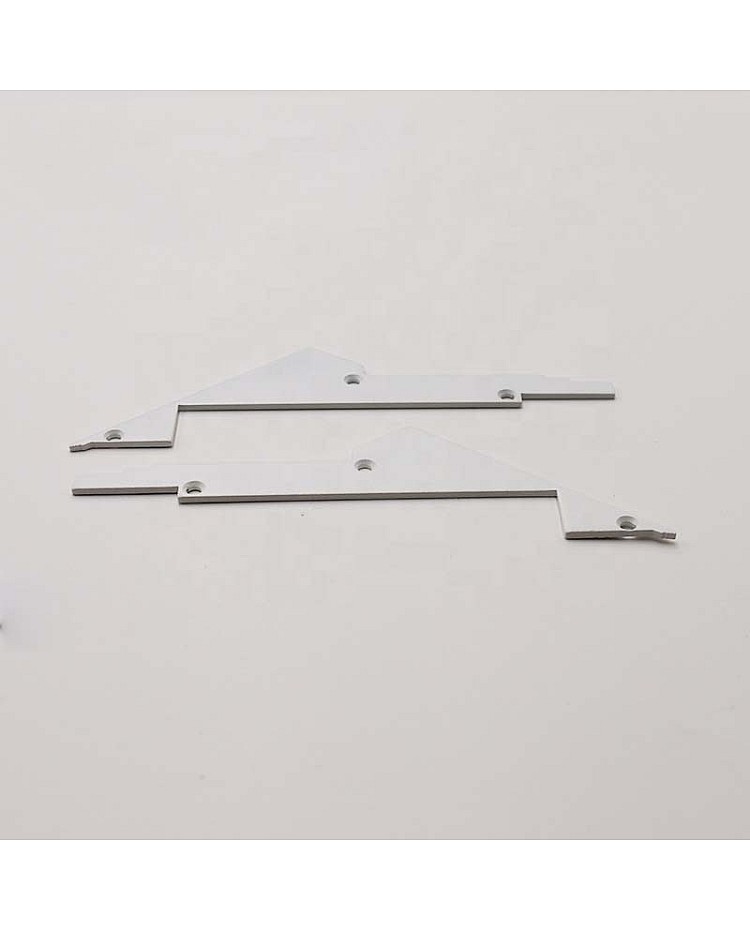

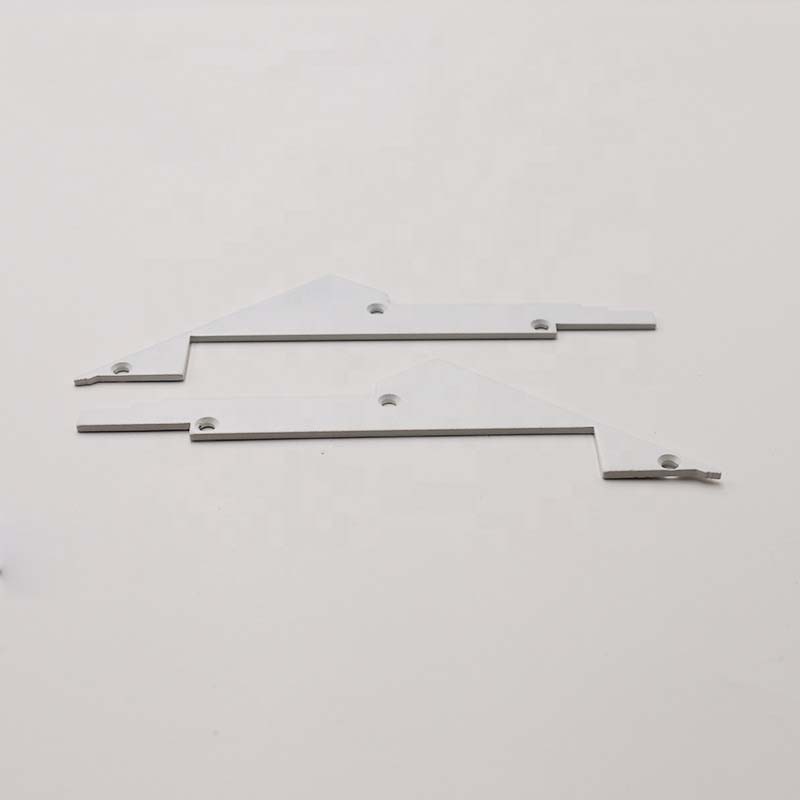

End caps(With and without wire holes)
