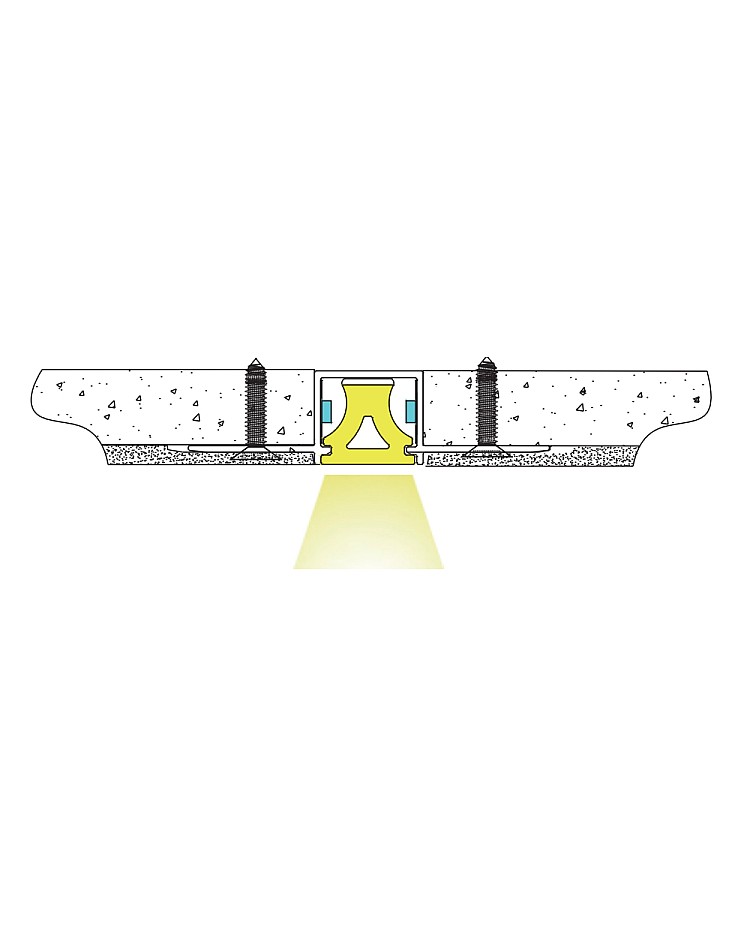

The plasterboard curved LED profiles are designed for seamless integration into 1/2" drywall for a clean, trimless finish for modern architectural spaces. The bendable aluminum construction allows them to be shaped or bent for creative interior lighting designs in ceilings, walls, and other areas.
Curve LED channels are constructed from high-quality aluminum and feature an anodized finish for a longer lifespan. The standard lengths are 1m and 2m, and custom lengths are available. The flexible strip lights can be installed on both sides and allow a maximum width of 8mm. The aluminum profiles can act as heat sinks, improving heat dissipation and thereby extending the lifespan of LED strips.
The maximum length of the silicone diffused covers per roll is 20 meters. Which can be easily pressed into the bendable LED profiles and diffuse the LED strip lighting, providing continuous, uniform illumination without gaps.
Specifications:
- Models: LB237-C / LB238-C
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

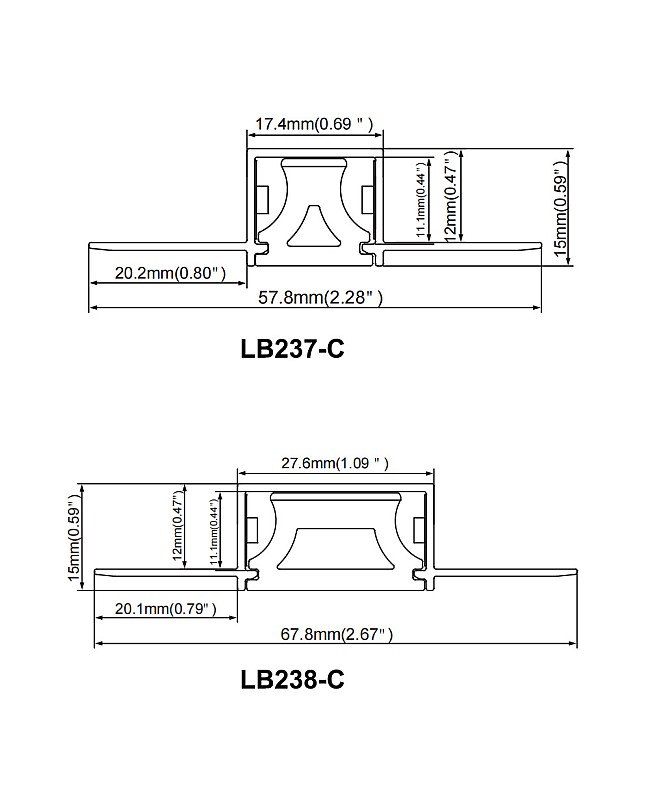

- Size ( Width x Height ): LB237-C: 57.8mm x 15mm / 2.28" x 0.59" / LB238-C: 67.8mm x 15mm / 2.67" x 0.59"
- Lengths: 1m ( 39" ). 2m ( 78")
- Custom length available: YES
- Inner width: 11.1mm/0.44"
- Maximum LED strip width: 8mm/0.31"
- Max power: 10W/m
- Diffusers: Silicone diffused cover

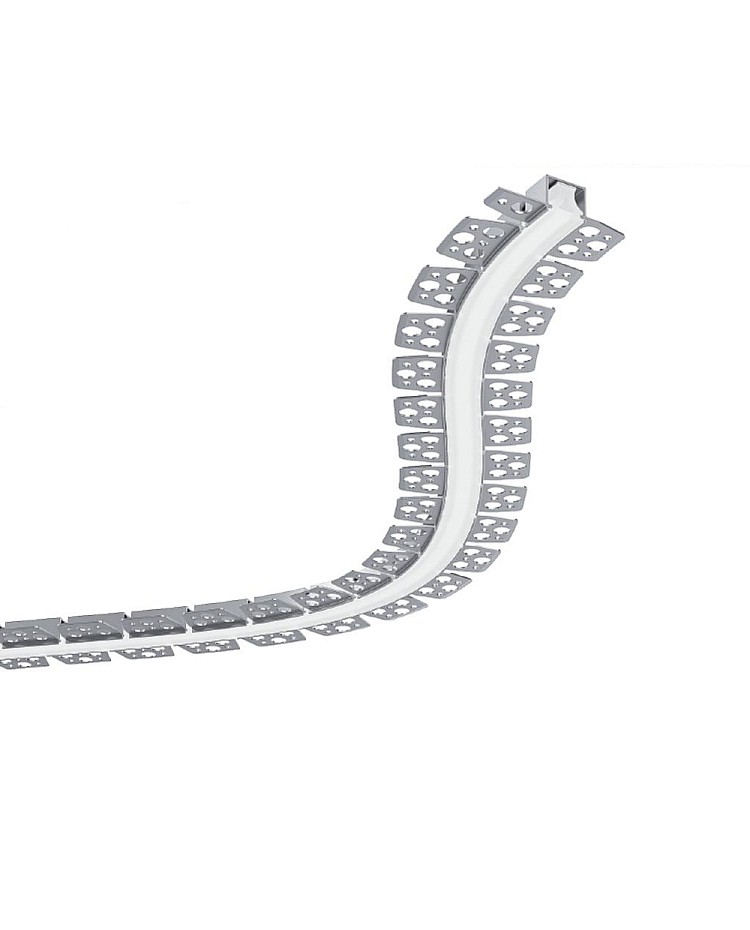

- Bendable type: Left-right side bendable
- End caps with and without wire holes are included
- Installation method: Plaster-in
- Certifications: CE, ROHS
- Warranty: 5 years
Included:
1 x Plasterboard curved LED profile
1 x Silicone diffuser
1 x End caps ( With and without wire holes )
