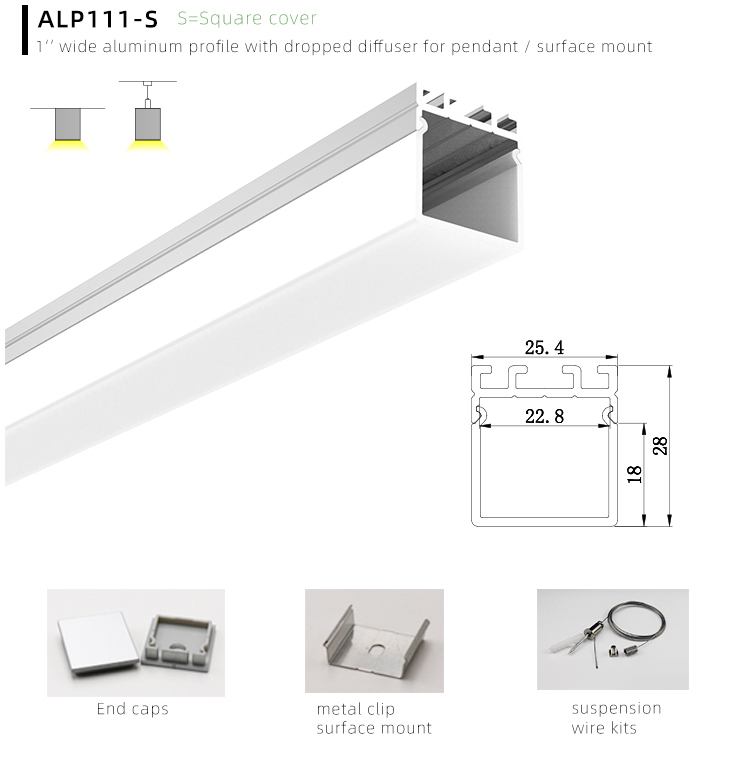

The 25mm Width Aluminum LED Profile Housing is designed to house and protect LEDs in indoor applications. A 1-inch dropped square cover makes it ideal for use in areas with limited space. The inner width is 22.8mm, allowing the max width of Strip Lights to be 22mm. They are made of 6063-T5 durable aluminum alloy with anodized silver surface treatment, anti-oxidation resistance, and a longer lifespan. The standard length is 1M and 2M and can be cut to the length you want for your LED Projects. Only one type of diffuser is available, the square PC diffused cover for the soft output lighting. End caps with wire holes are included, and it is easy to add the LED Strips and the aluminum base for better heat dissipation. The mounting brackets are included, allowing for easy installation. Please check the picture below to learn about LED Aluminum Profile Installation.


  • Model: ALP111-S
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

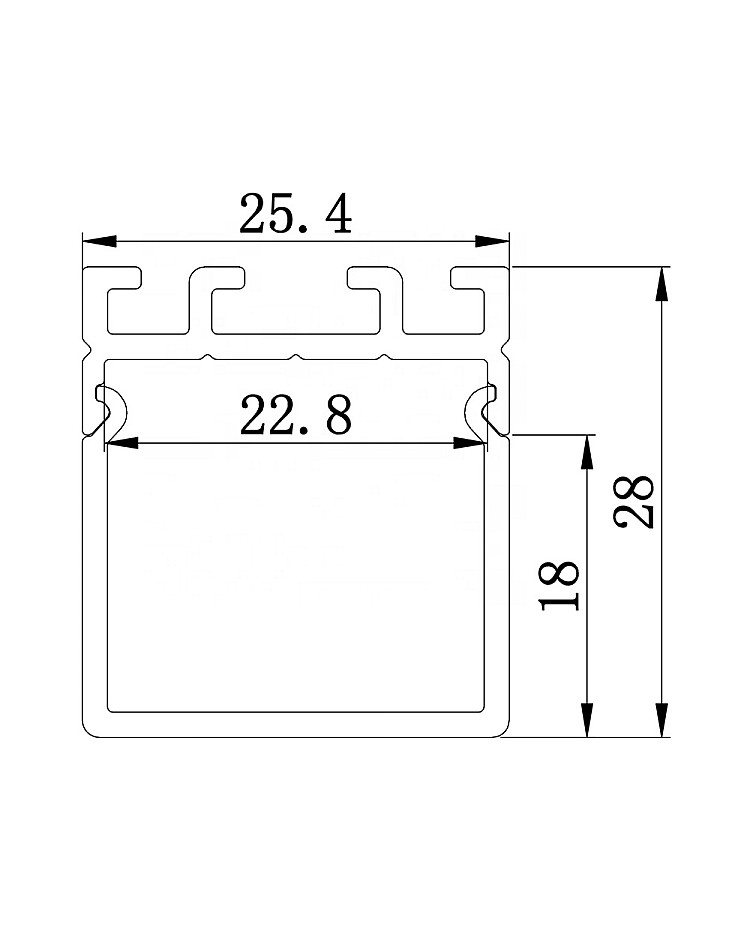

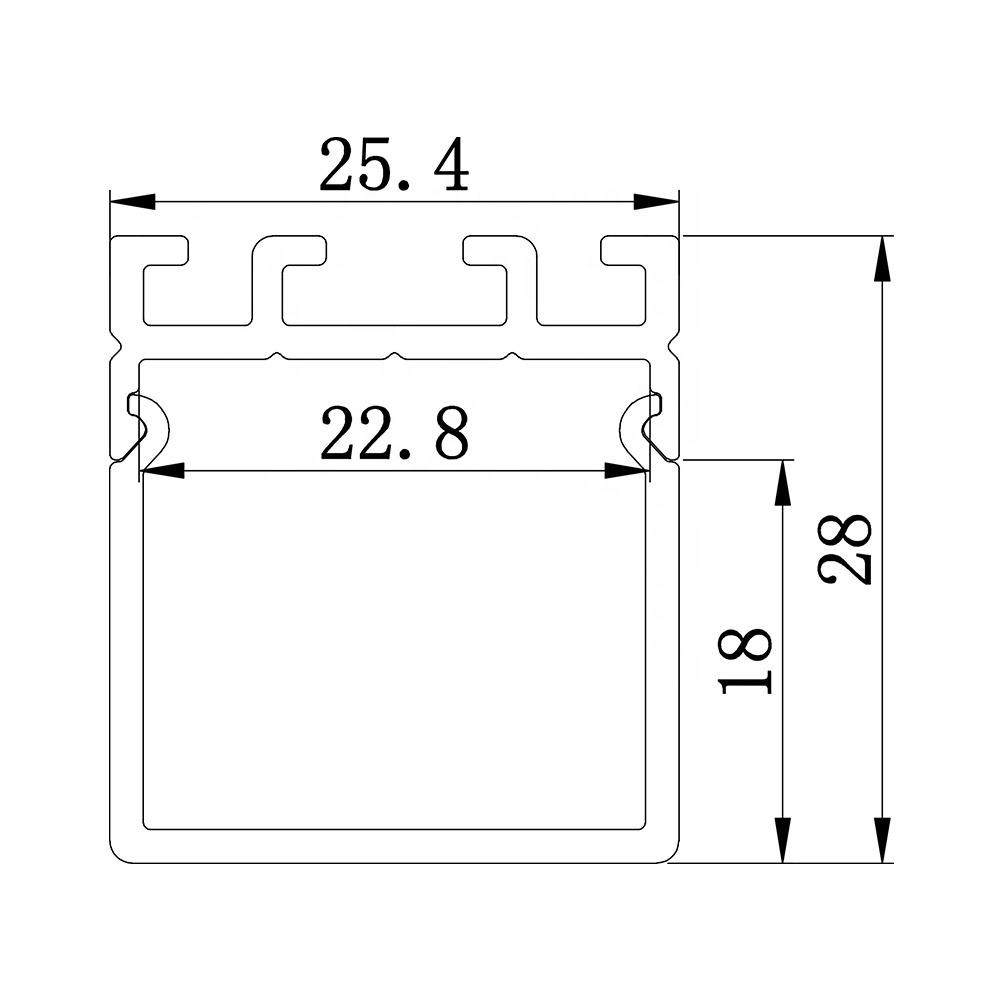

  • Size: 25.4*28mm
  • Inner Width: 22.8mm
  • Compatible With Double Rows 20mm Wide 5050/16mm 3528 LED Strips
  • Max Power: 20W/Meter
  • Diffuser: PC Diffused Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter
  • Custom Length Available: YES
  • Installation: Pendant/Surface Mounted

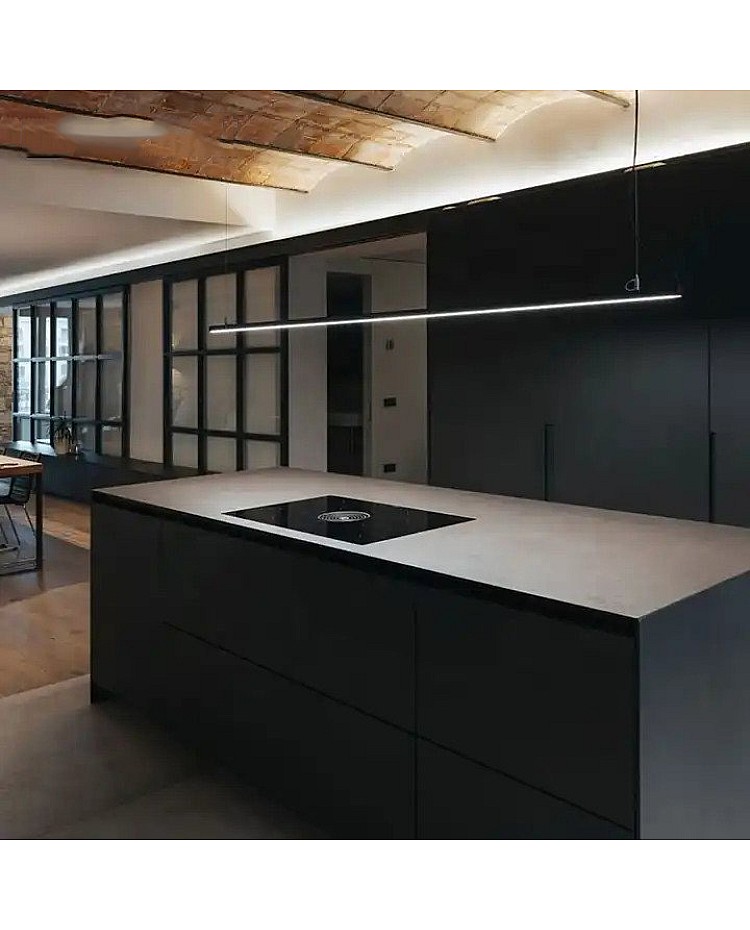

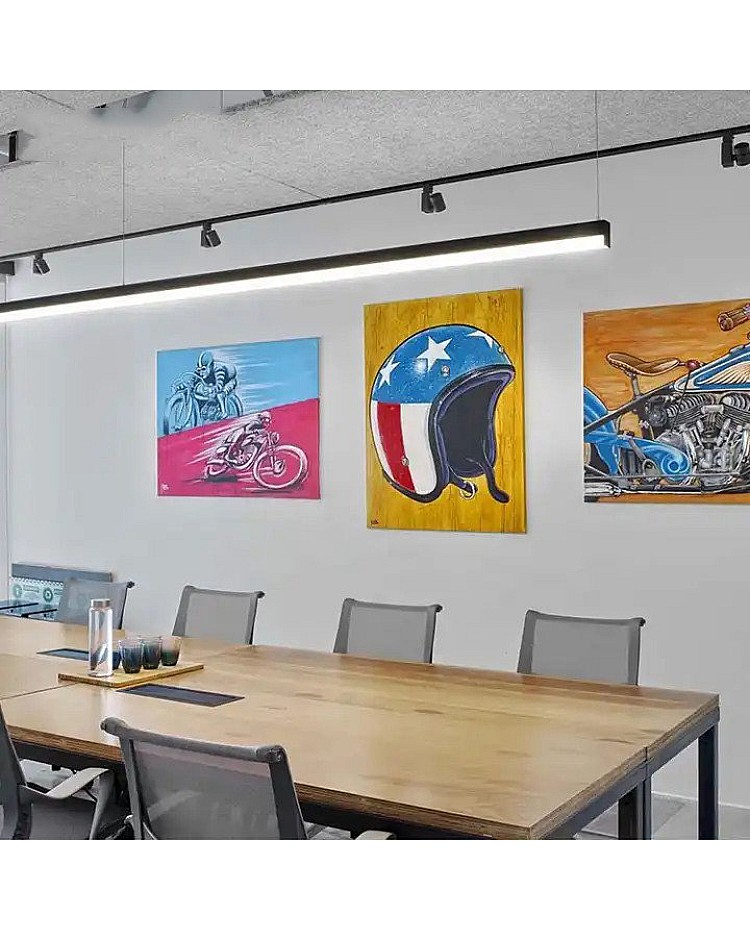

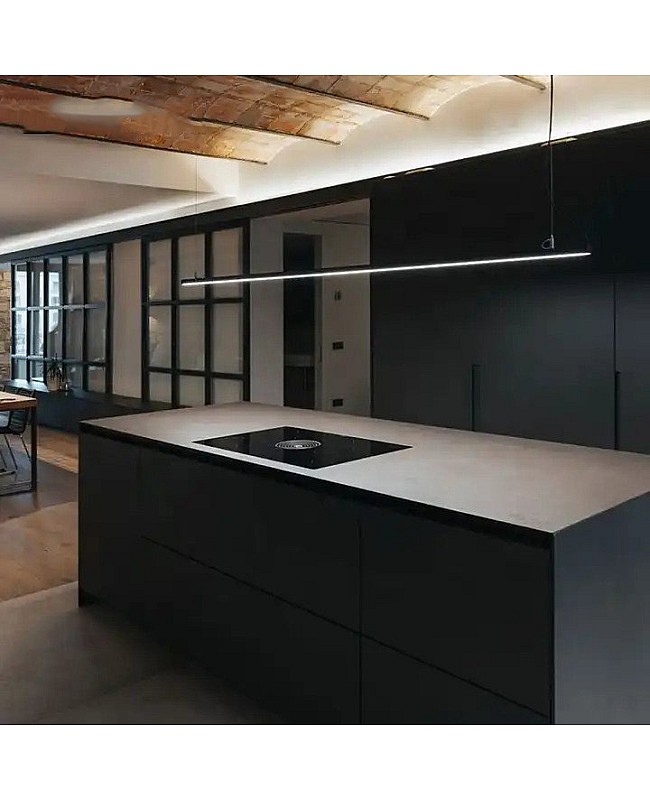

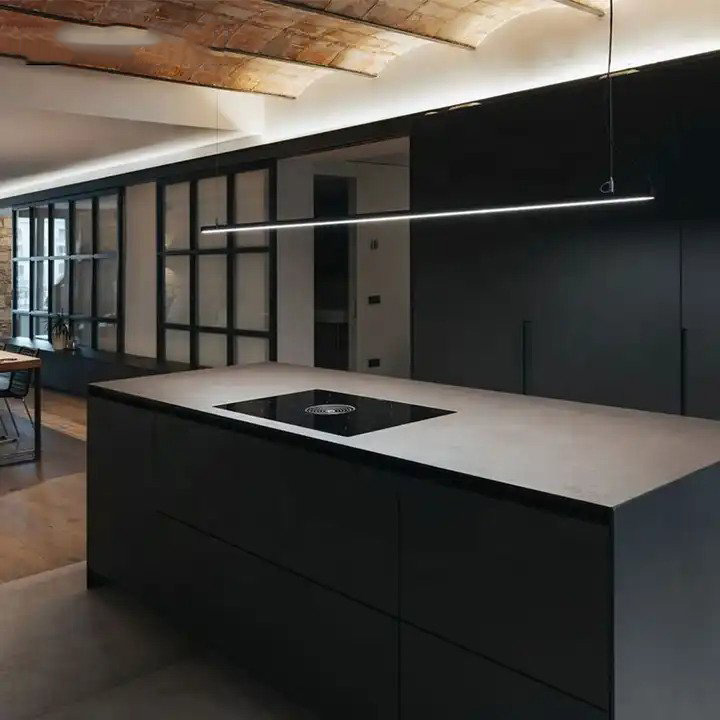

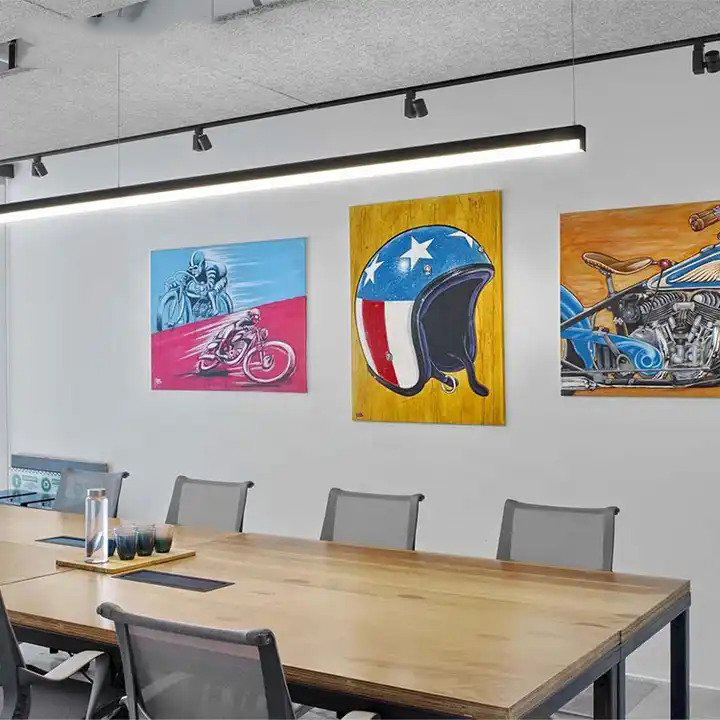

  • Applications: Ceiling Pendant/Wall Ceiling Surface Mounted
  • End Caps With Wire Holes Included

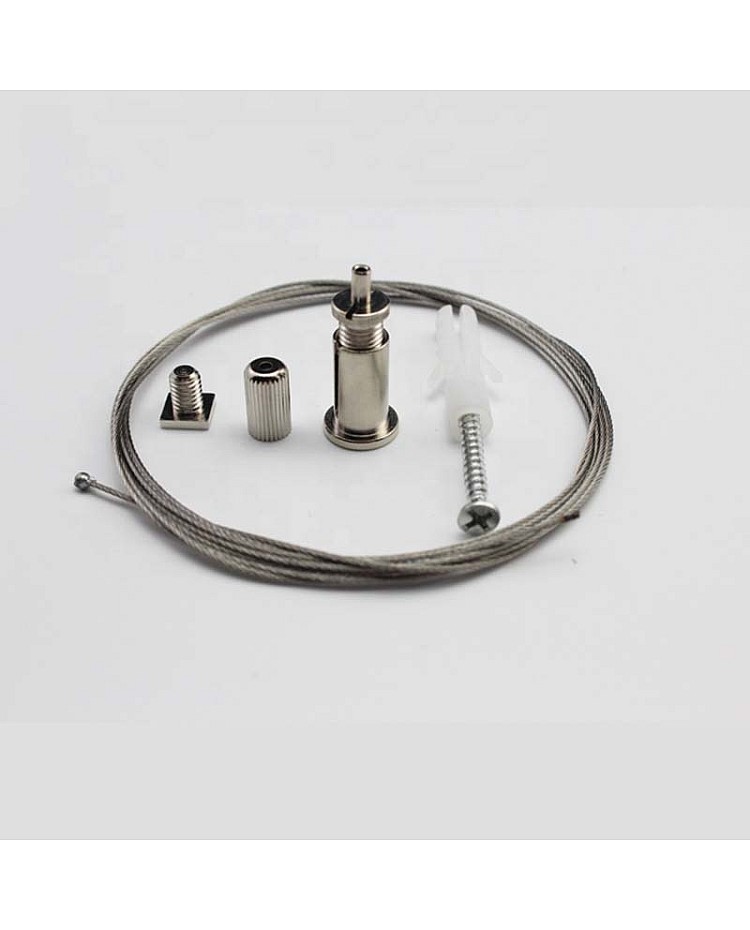

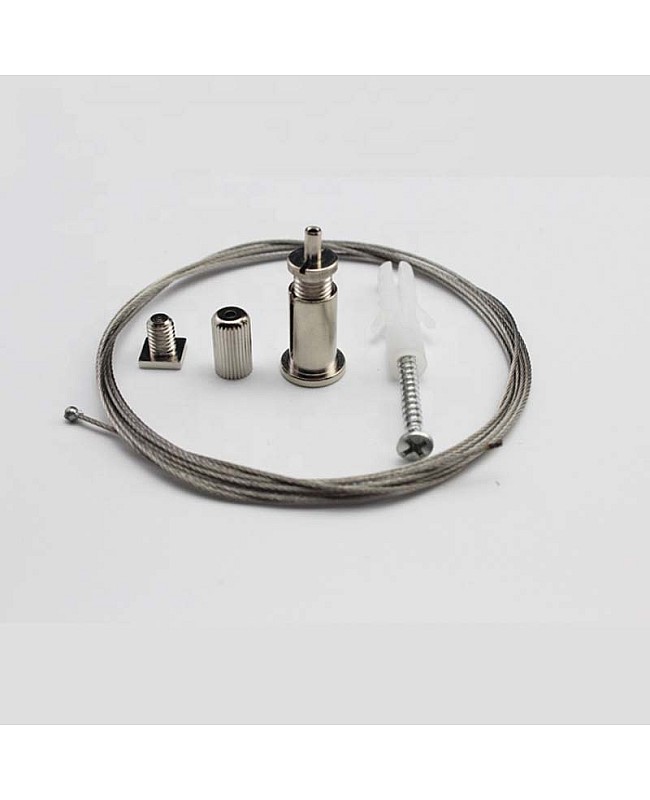

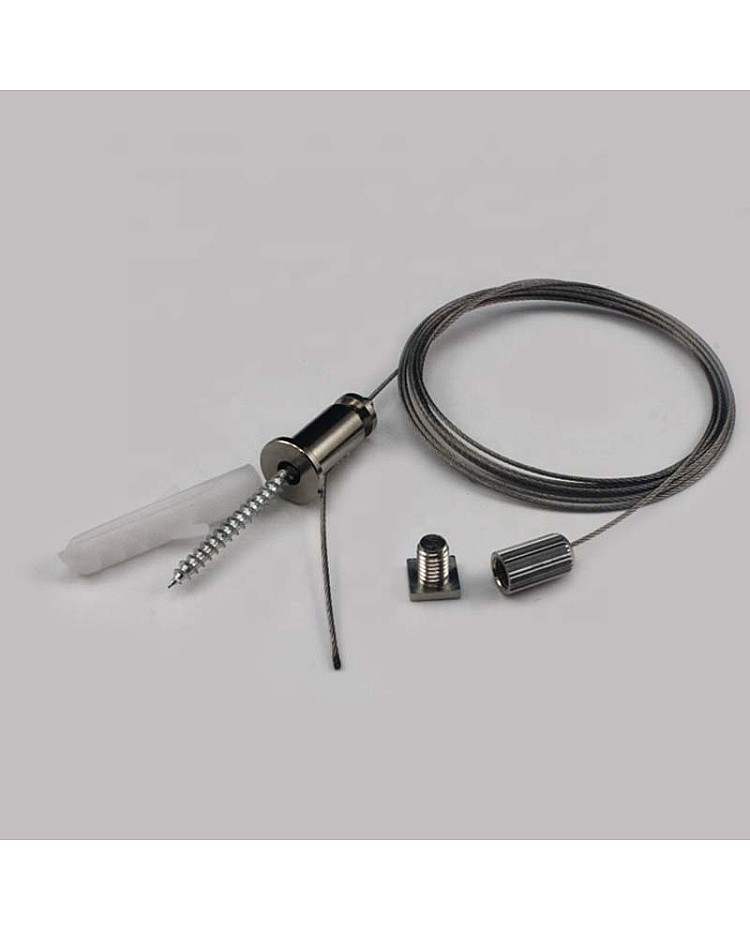

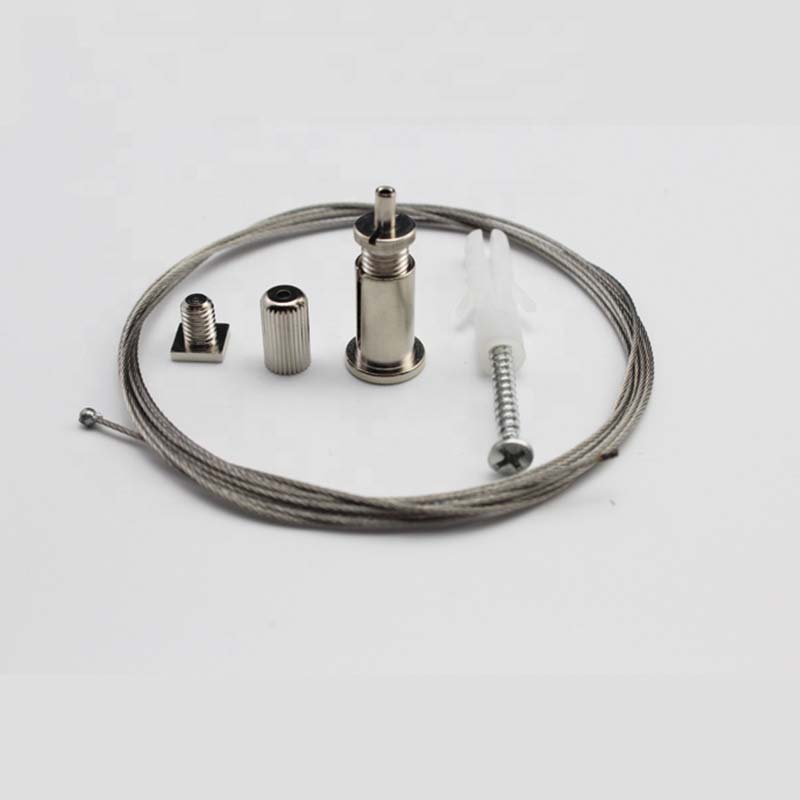

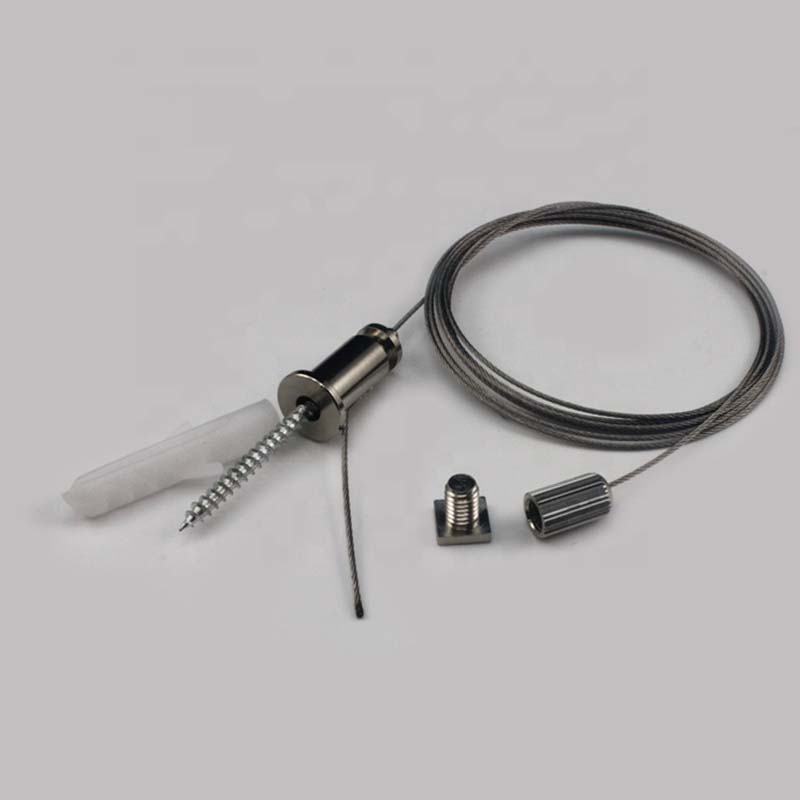

  • Suspension Wire Kit Optional
  • Warranty: 5 Years
  • Shipping Method: By Express/By Sea

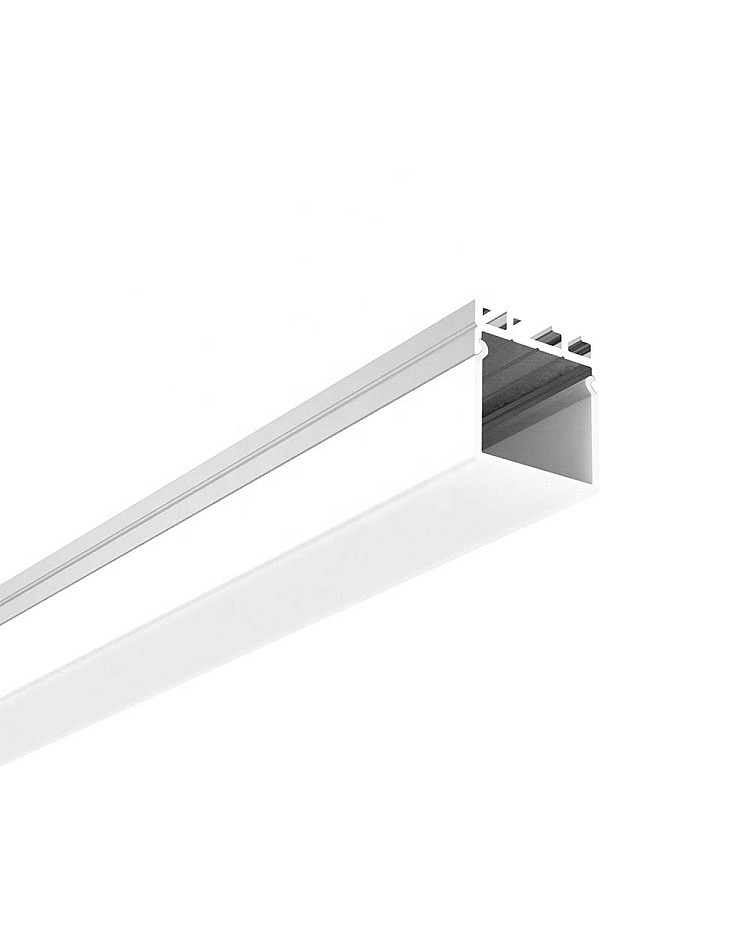

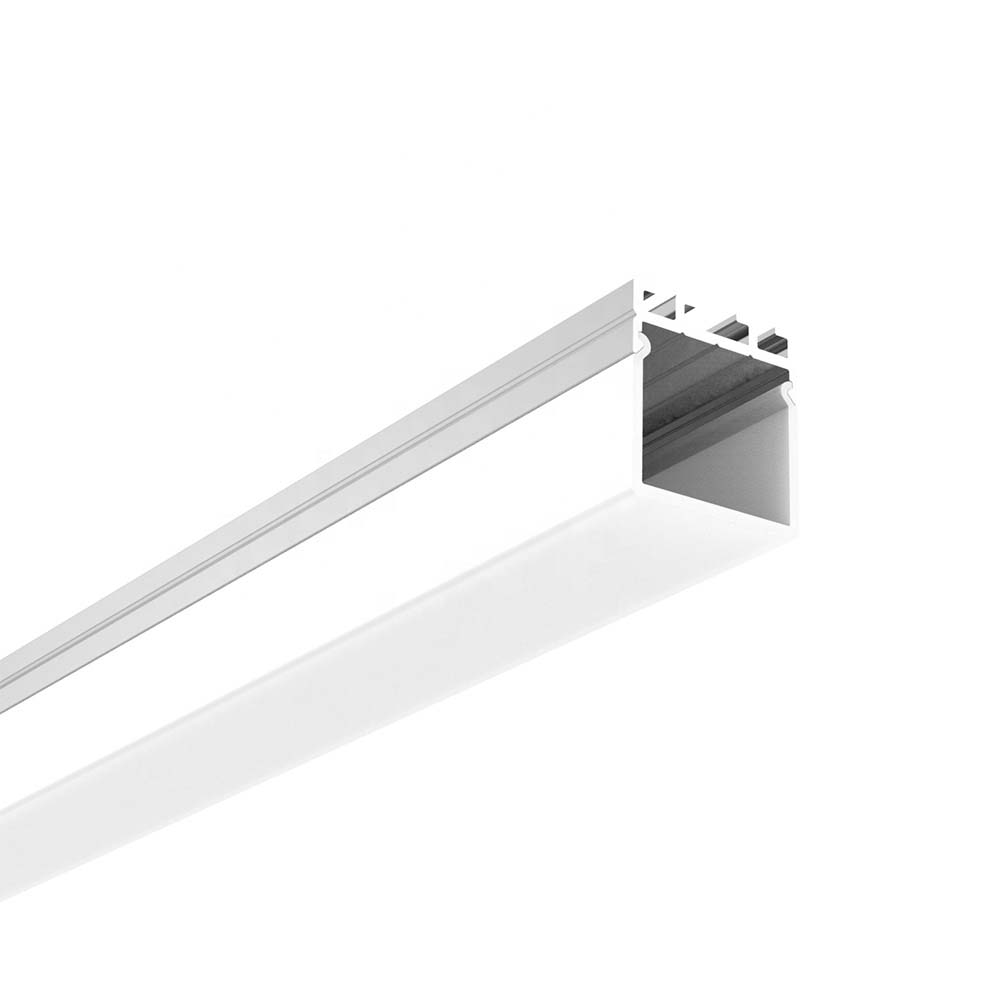

Aluminum LED Profile Housing

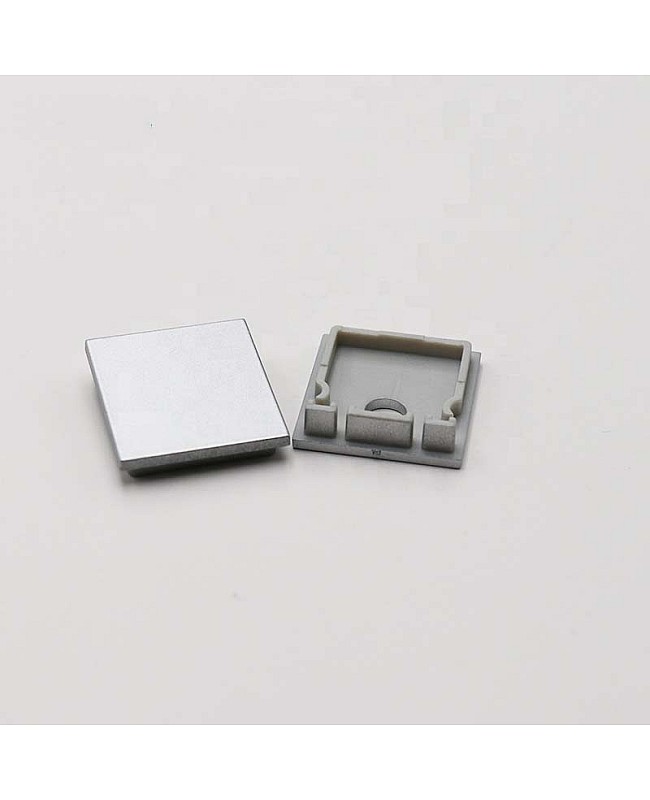

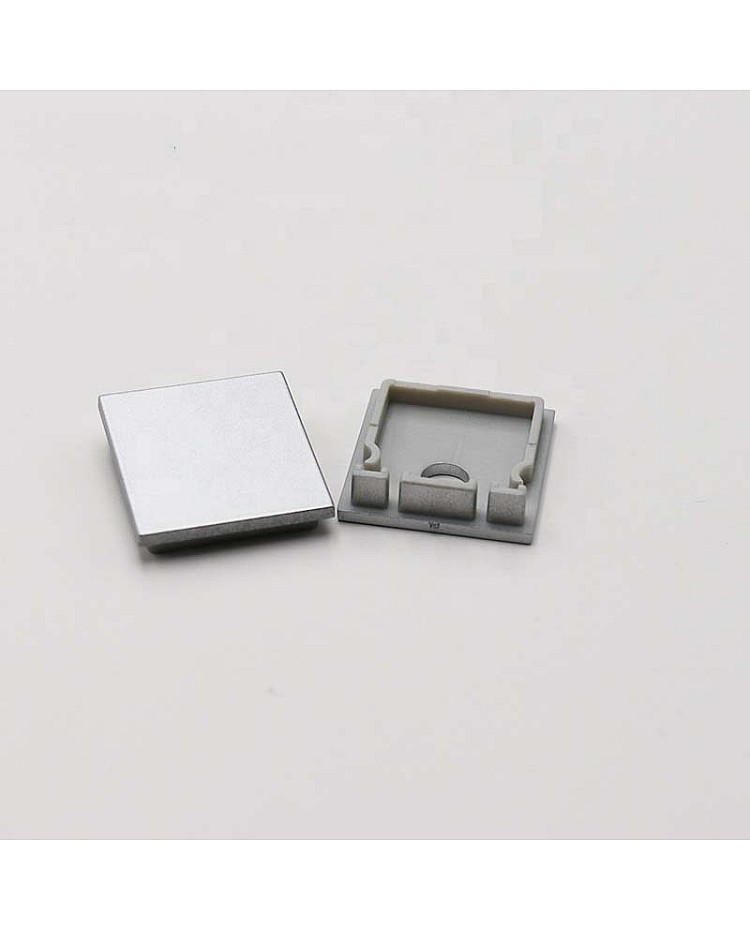

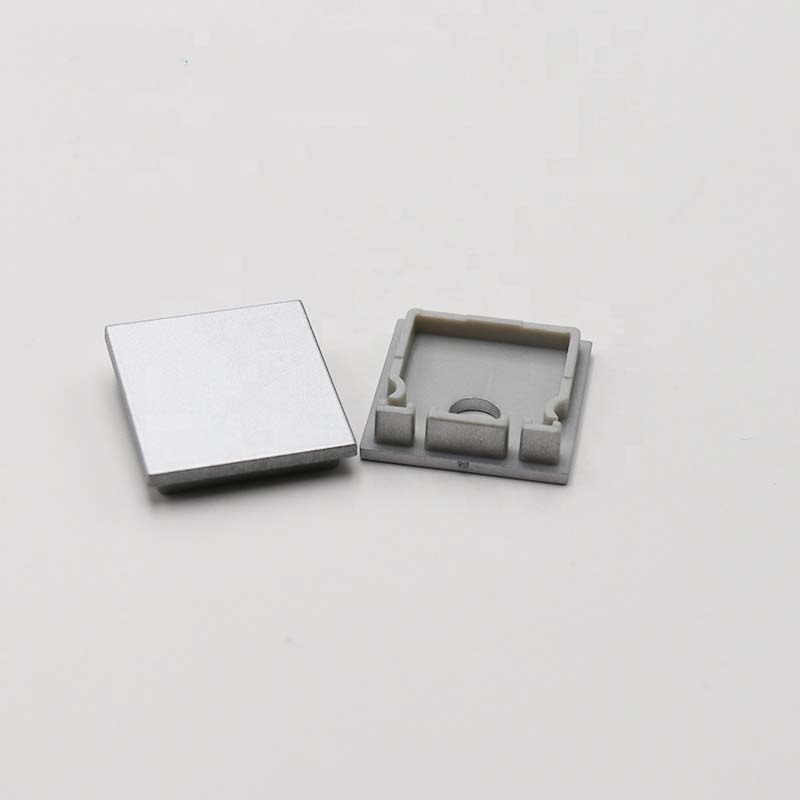

End Caps(With Wire Holes And Without Wire Holes)

Metal Clips

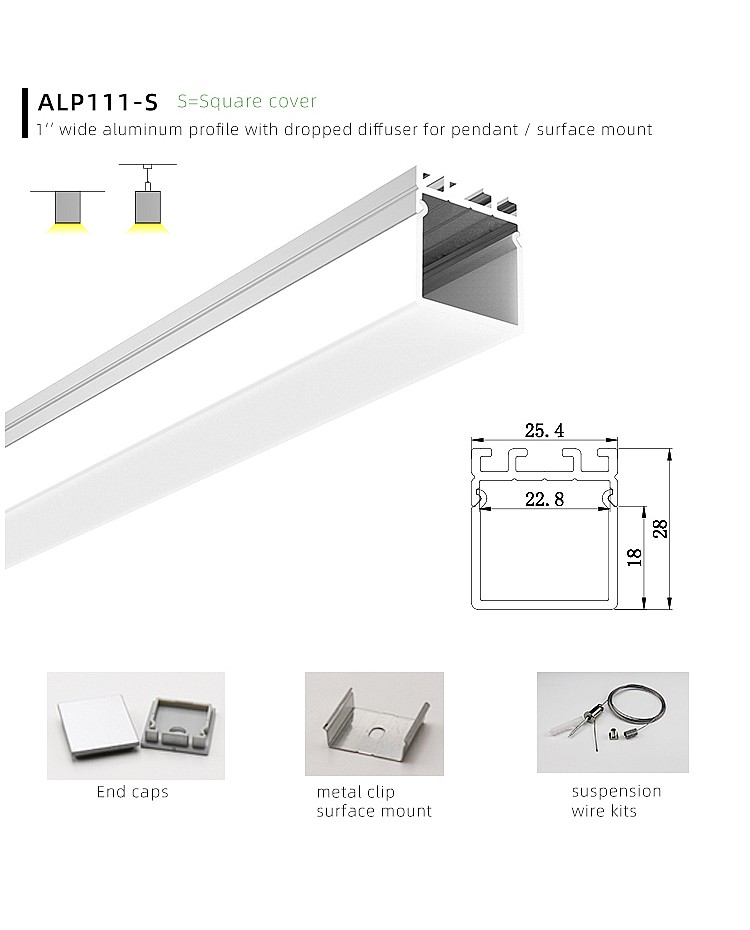

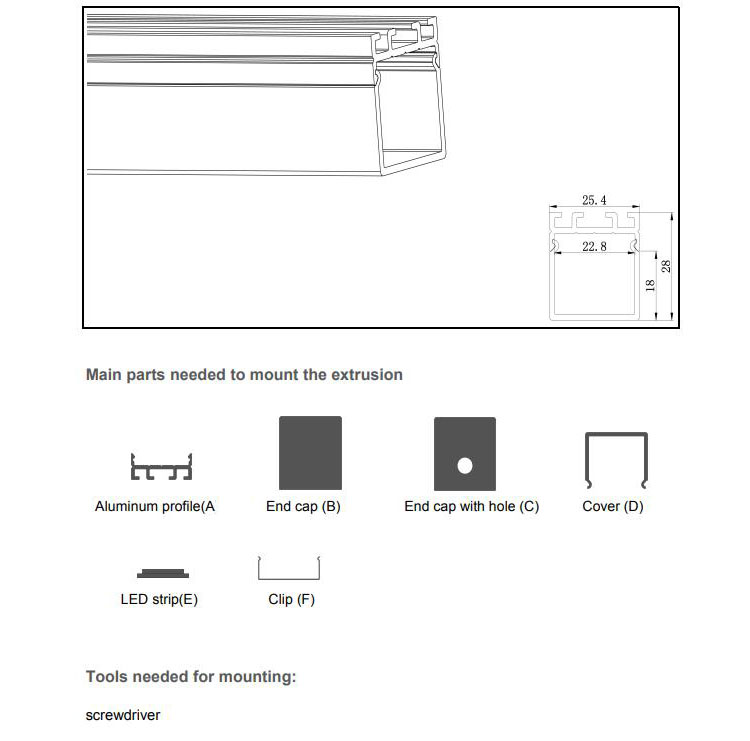

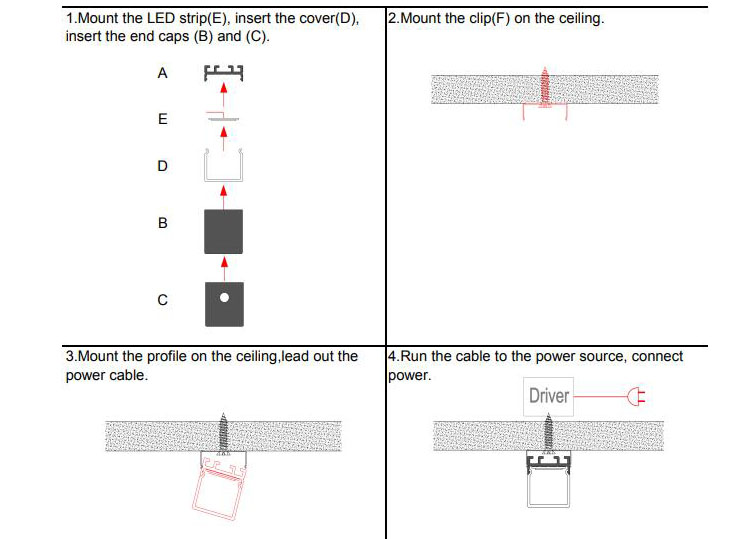

Aluminum LED Profile Housing Installation Pendant Aluminum LED Profile Housing How To Install Pendant Aluminum LED Profile Housing
