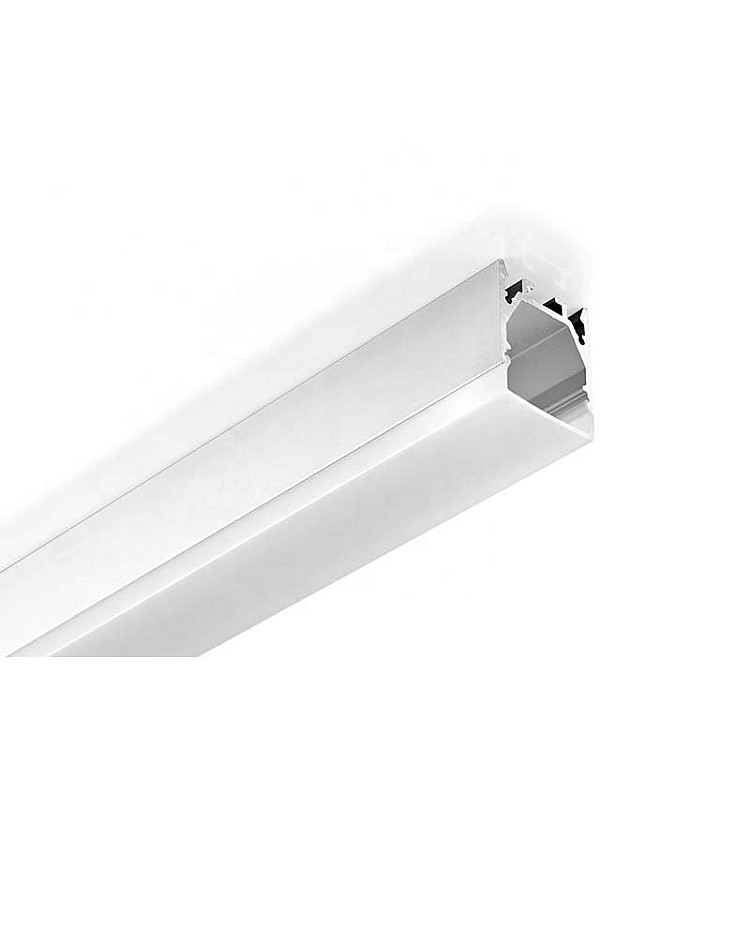

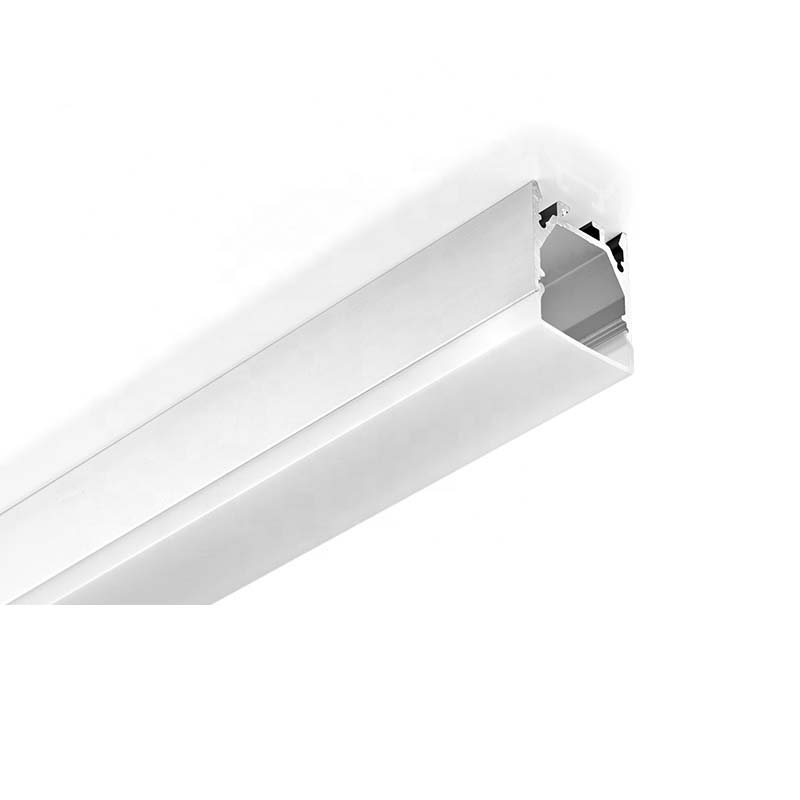

The 25MM Ushape LED Mounting Channels are designed to provide a sleek and modern look to any lighting installation, are easy to install, and are ideal for commercial, retail, and residential applications. The Mounting Channels are made of 6063-T5 aluminum alloy material with silver anodized surface treatment for superior durability and strength. The standard length is 1M and 2M and can be cut to any length fit for your projects. The inner width is 13.2mm and allows the Tape Lights to be 13mm, recommend adding the high-density COB Strip Lights as the light source to create a seamless line of lighting. The aluminum base can be used as a heat sinker for better heat dissipation, which will extend the lifespan of LED Light. The included diffuser with a dropped design, made of brand-stable material, anti-yellowing, which helps to reduce glare and provide a more uniform light distribution. End caps and metal clips are included, and easy to mount on the walls.


Features:

  • Model: ALP106-R
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Anodized Silver
  • Colors: Silver, White, Black

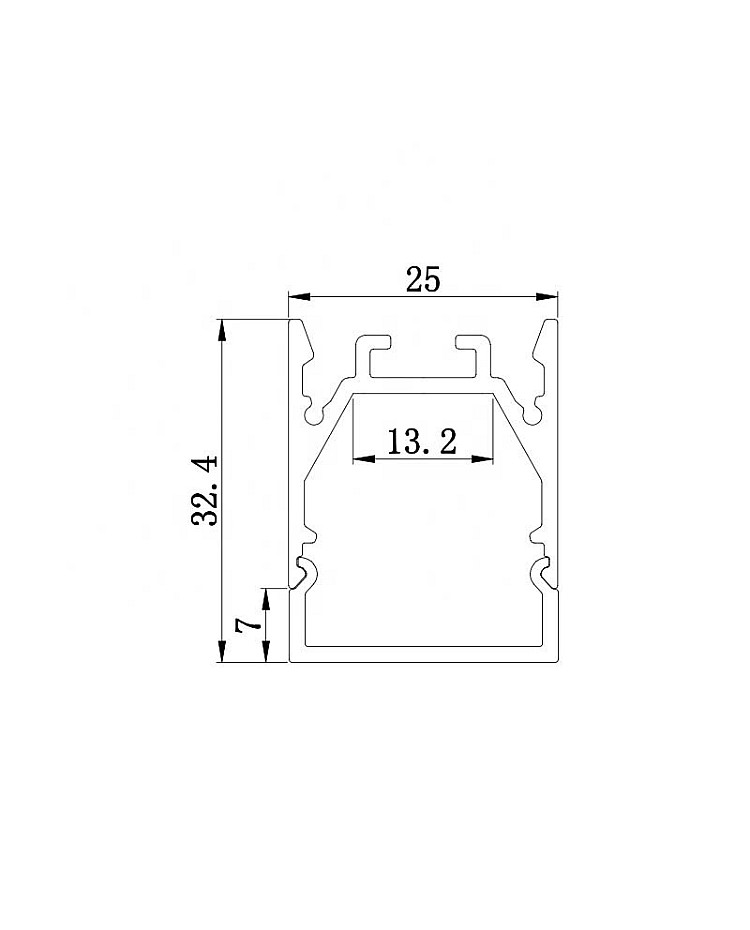

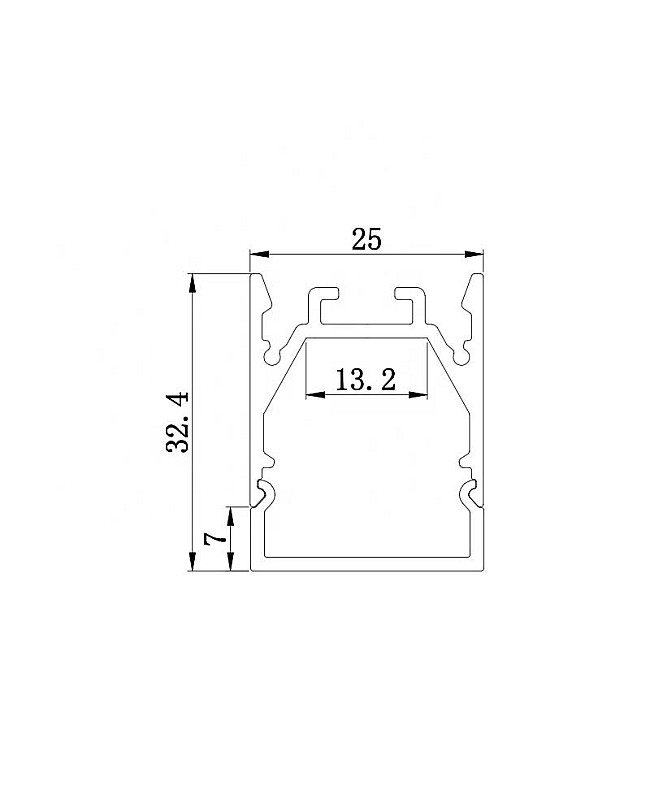

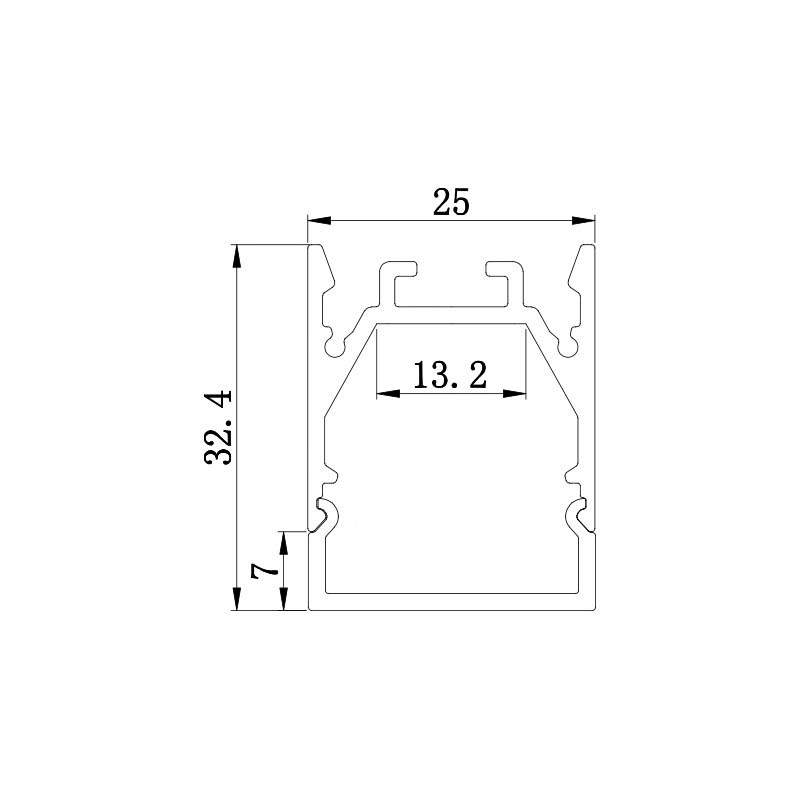

  • Size:32.4*25.4mm(H*W)
  • Inner Width: 13.2mm
  • Allows The Max Width Of Tape Lights To Be 13mm
  • Diffuser: 7mm PC Diffused Cover
  • Max Power: 18W/Meter
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter
  • Custom Length Available: YES
  • Tolerance: ±1%
  • Beam Angle: 120°
  • IP Rate: IP20 Non-waterproof
  • Installation: Pendant/Surface Mounted

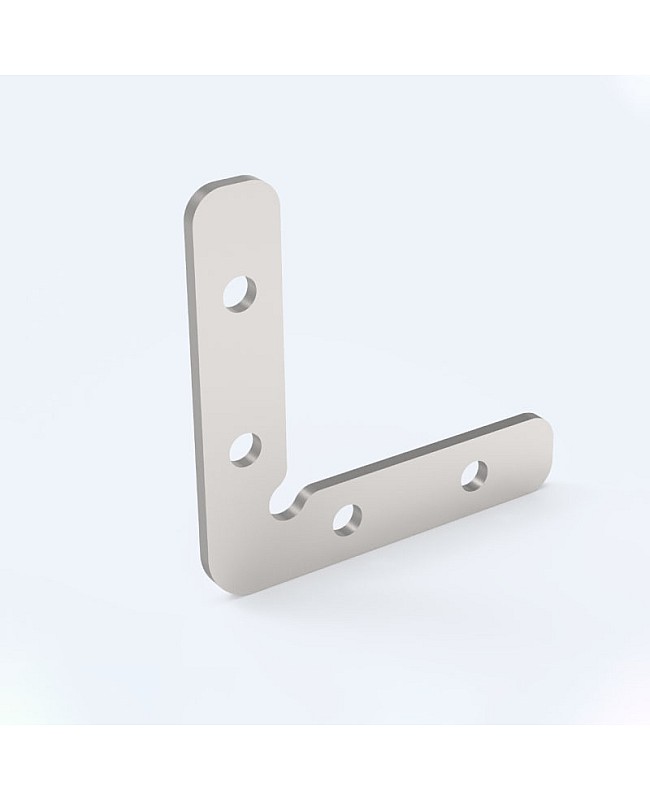

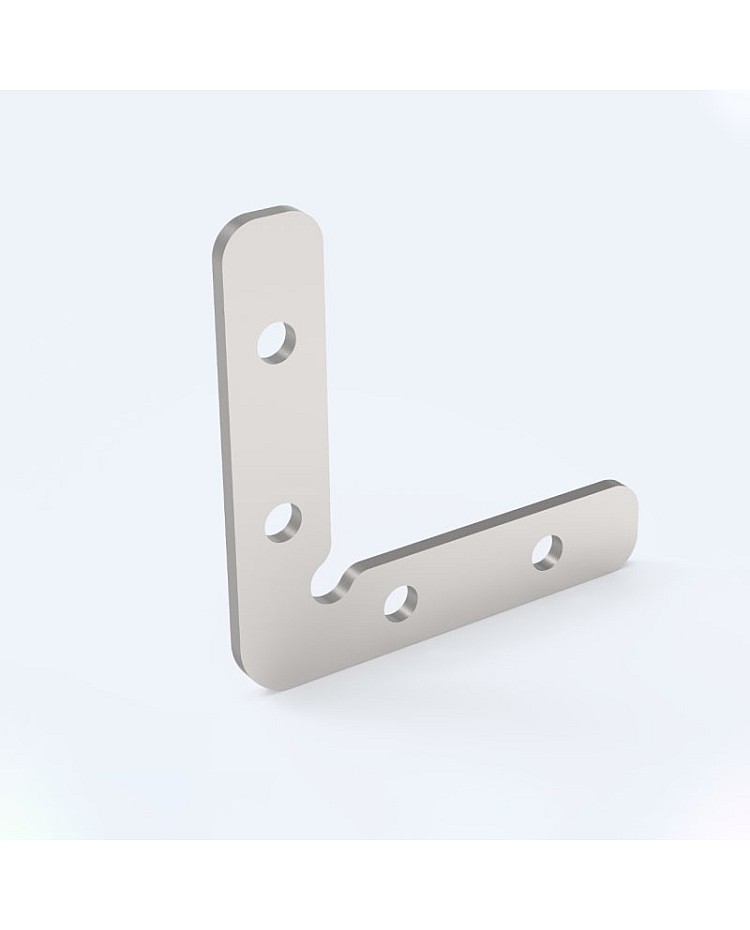

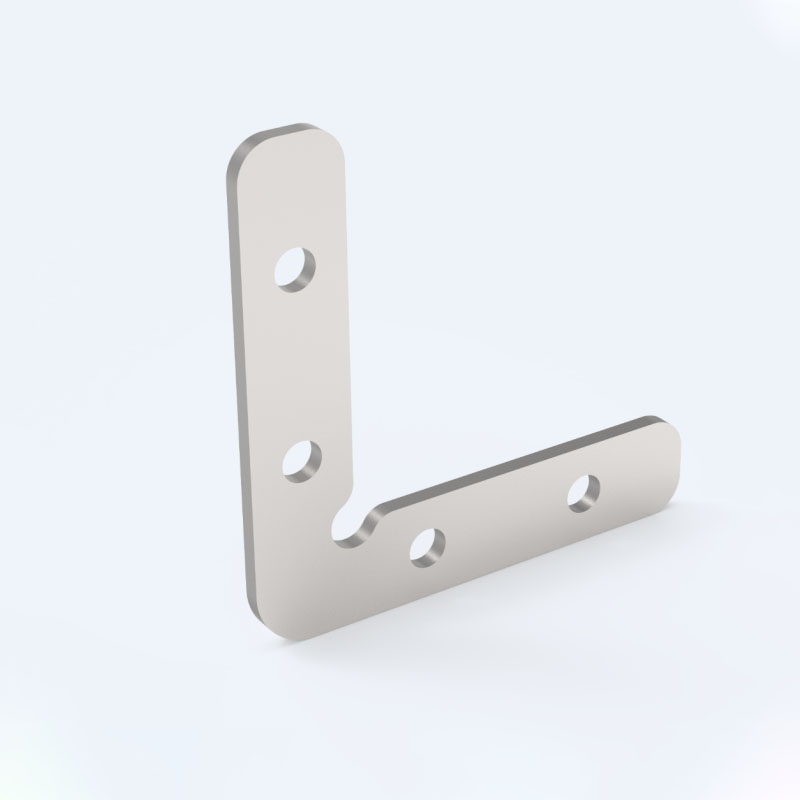

  • 90° And 180° Connectors Sold Separately
  • LED Tape Lights Not Included
  • Suspension Wire Kits Sold Separately
  • Application: Office, Kitchen, Hotel, Stores, School, Hospital
  • Warranty: 5 Years
  • Shipping Method: By Express/ By Sea(Send Inquiry)


Includes:

1*Square LED Strip Mounting Channel

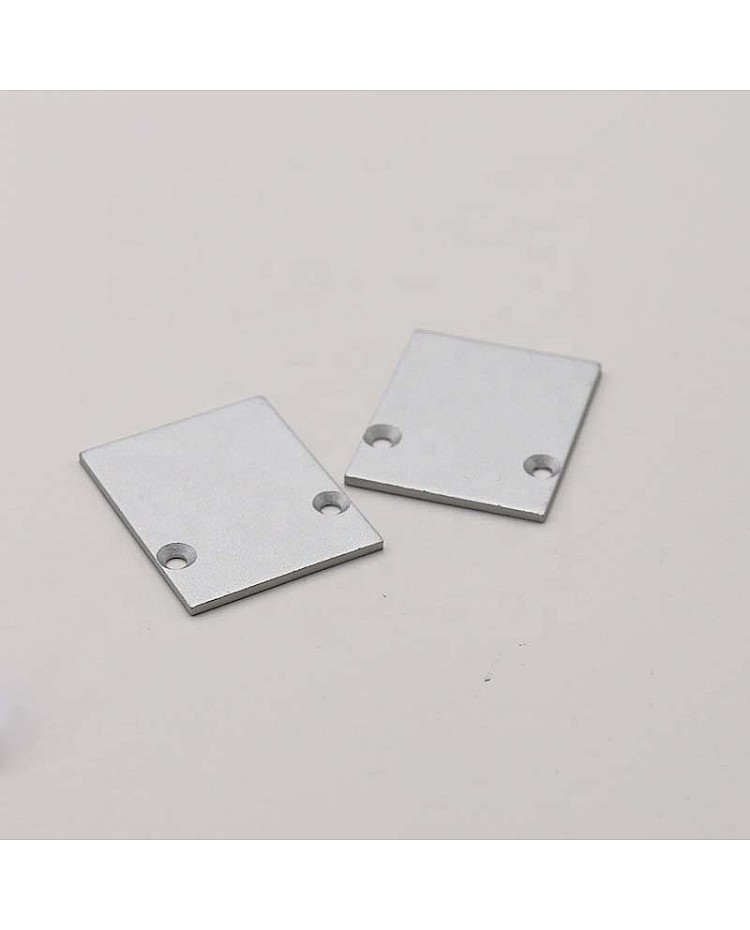

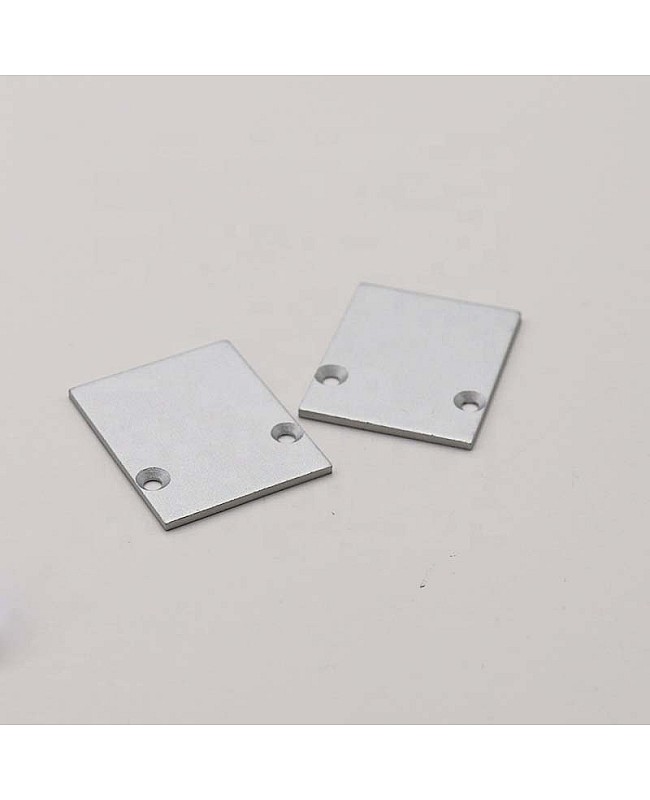

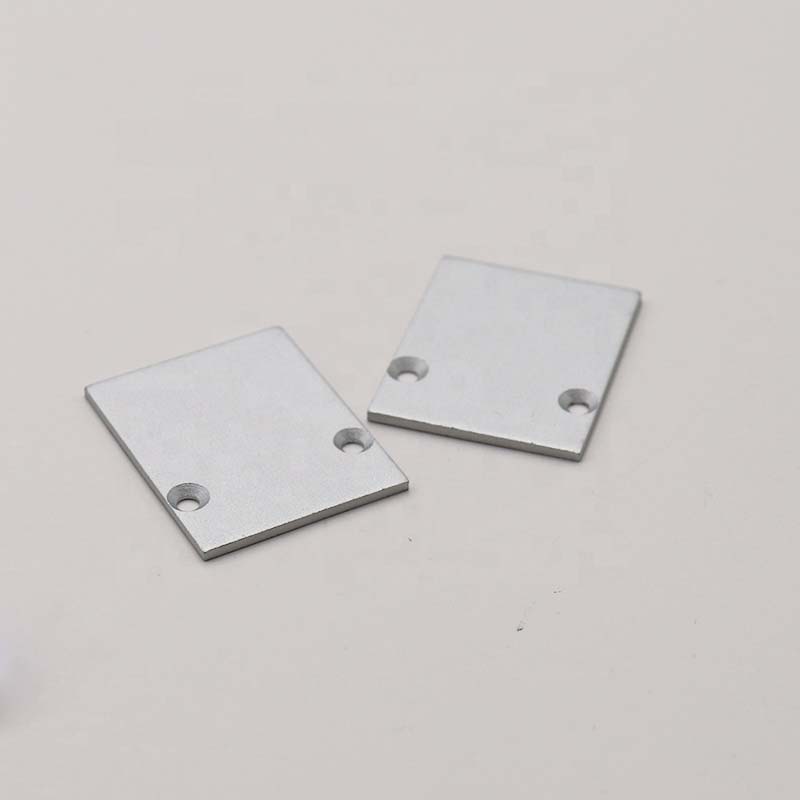

End Caps

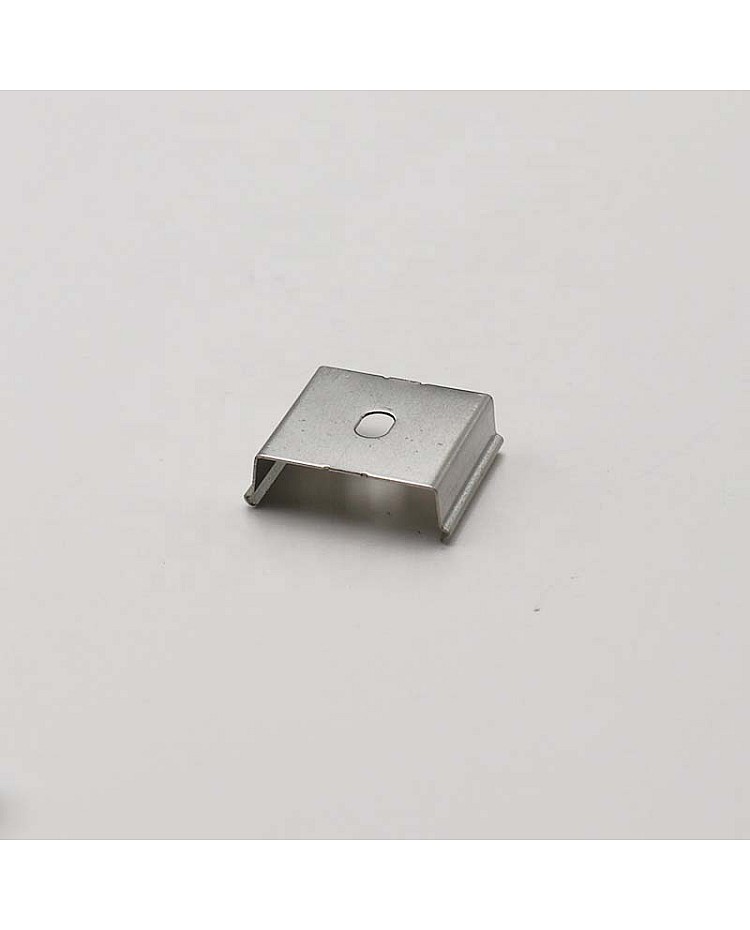

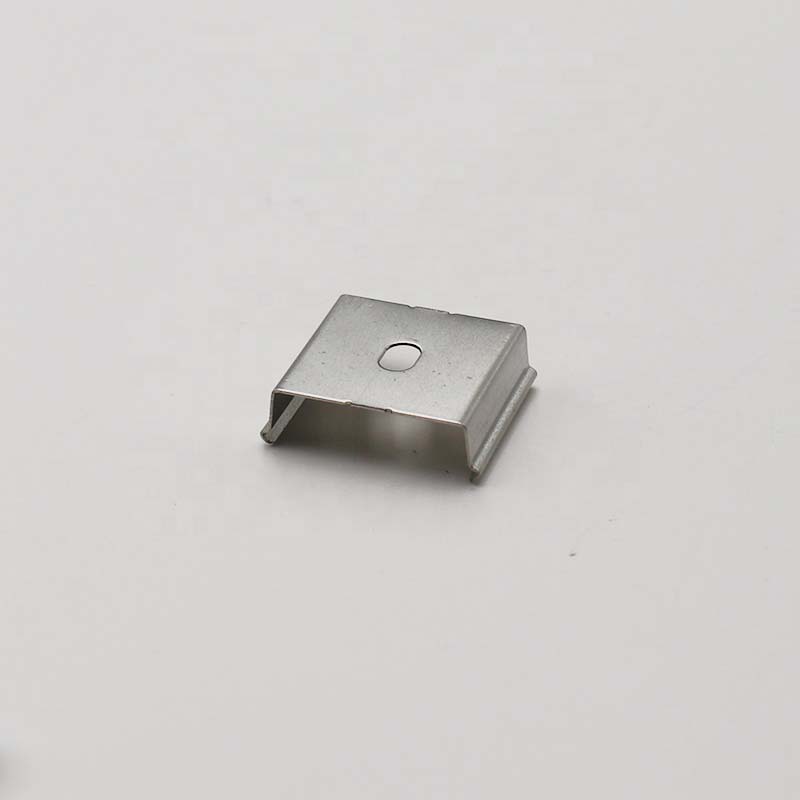

Metal Clips

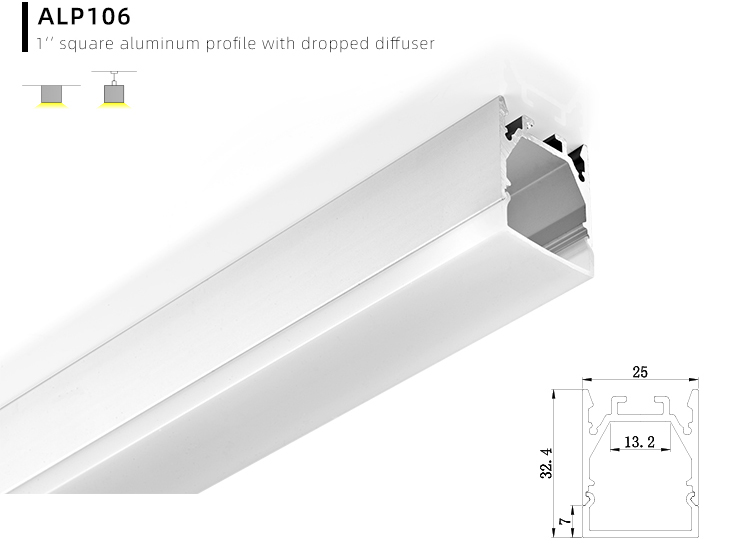

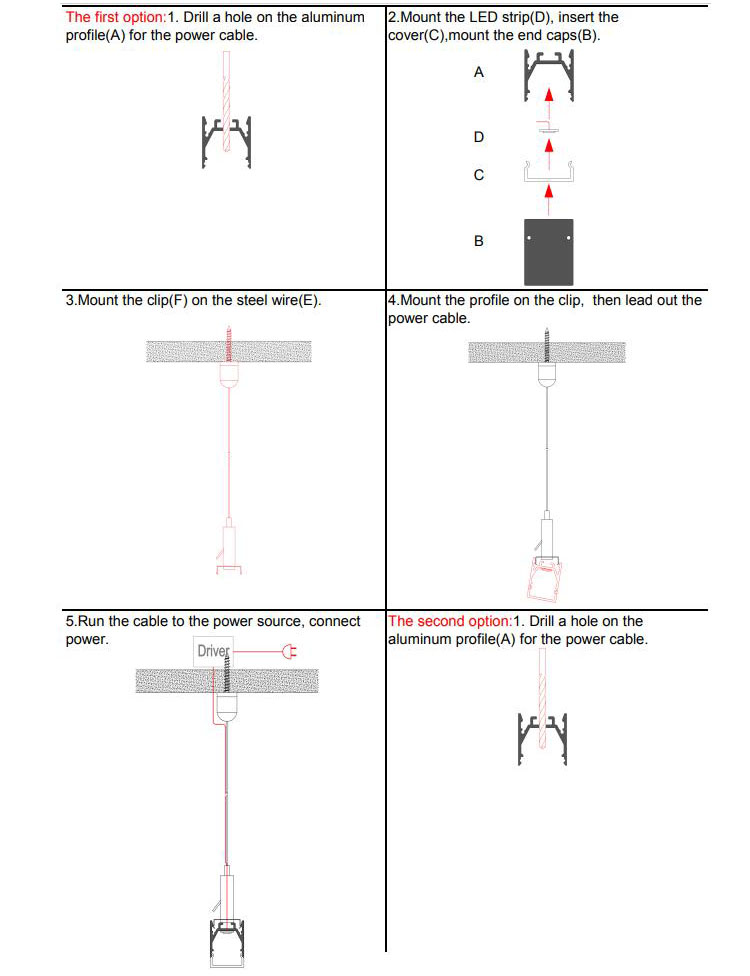

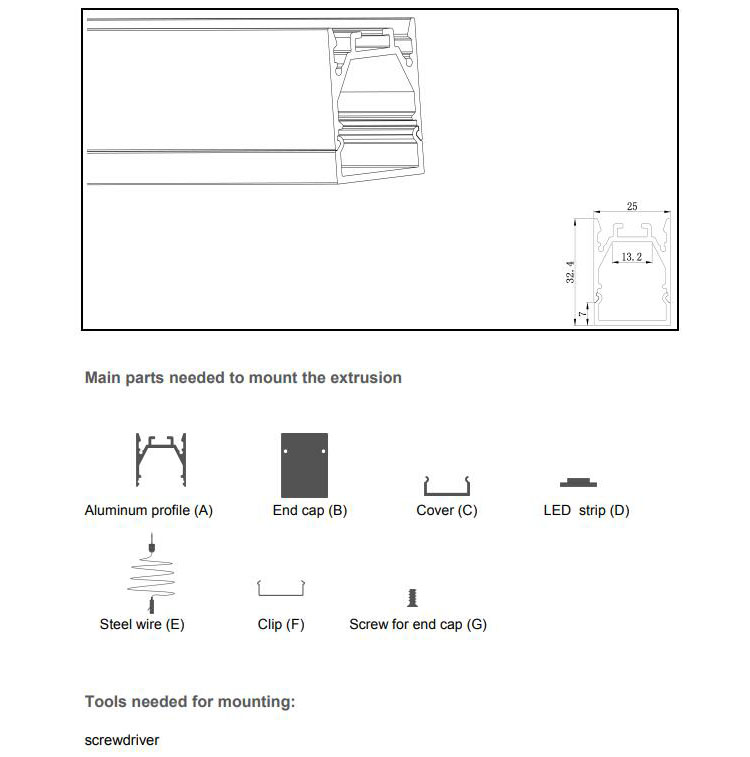

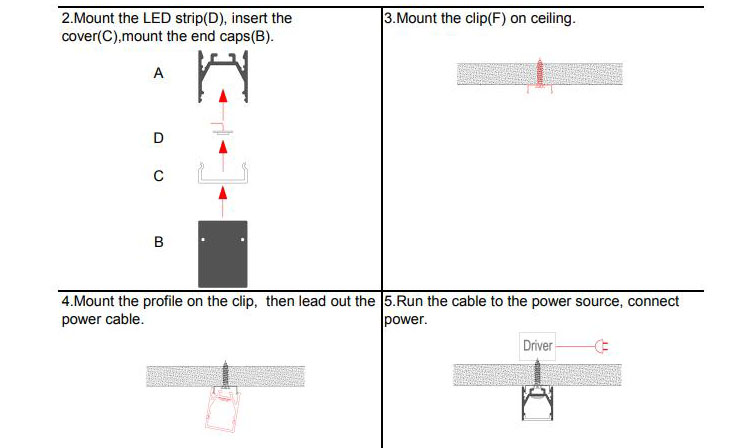

LED Mounting Channel Review Square LED Mounting Channel How To Install Mounting LED Profiles How To Install LED Mounting Extrusions
