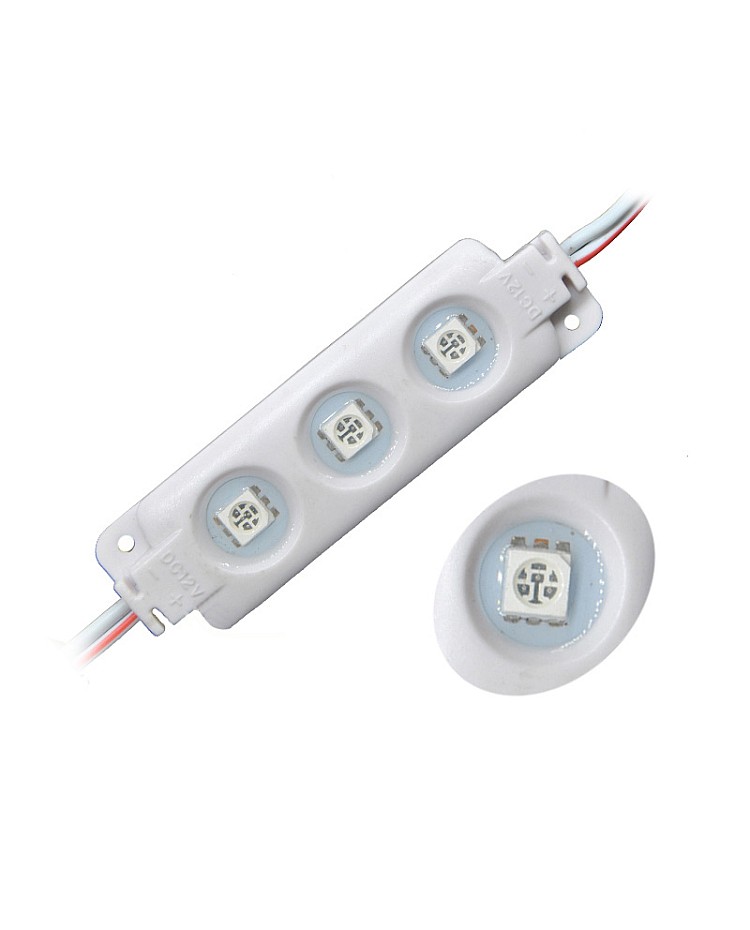

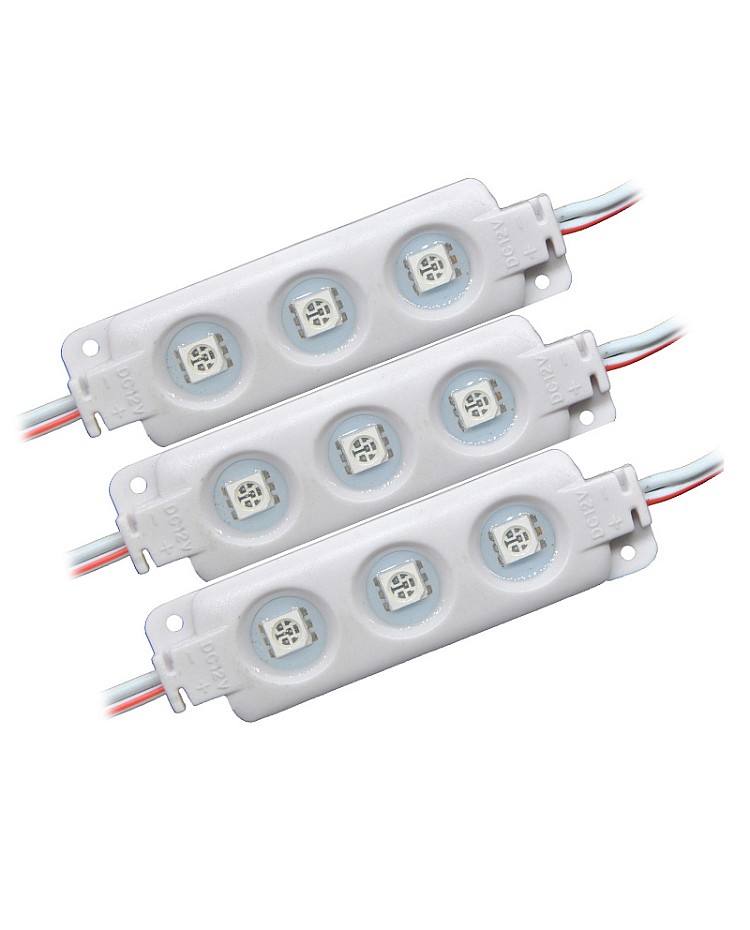

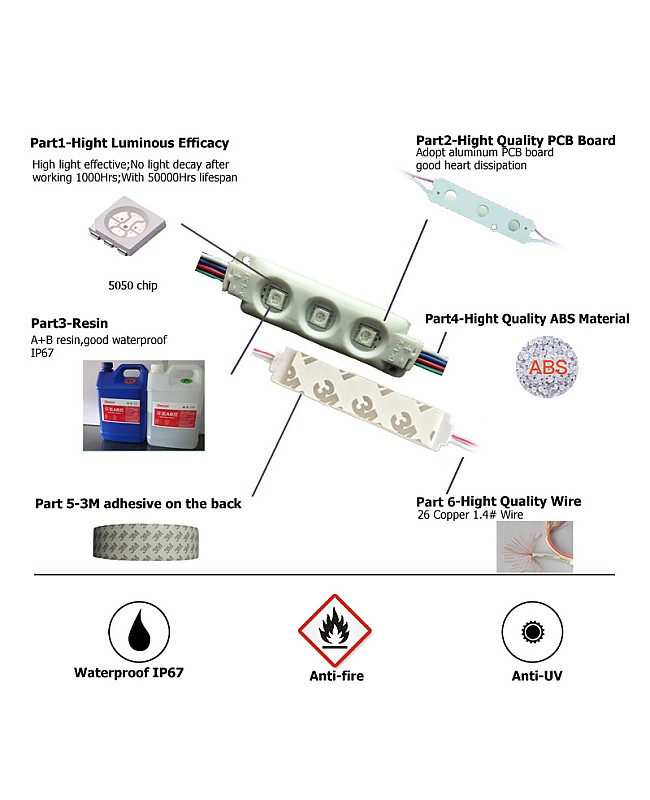

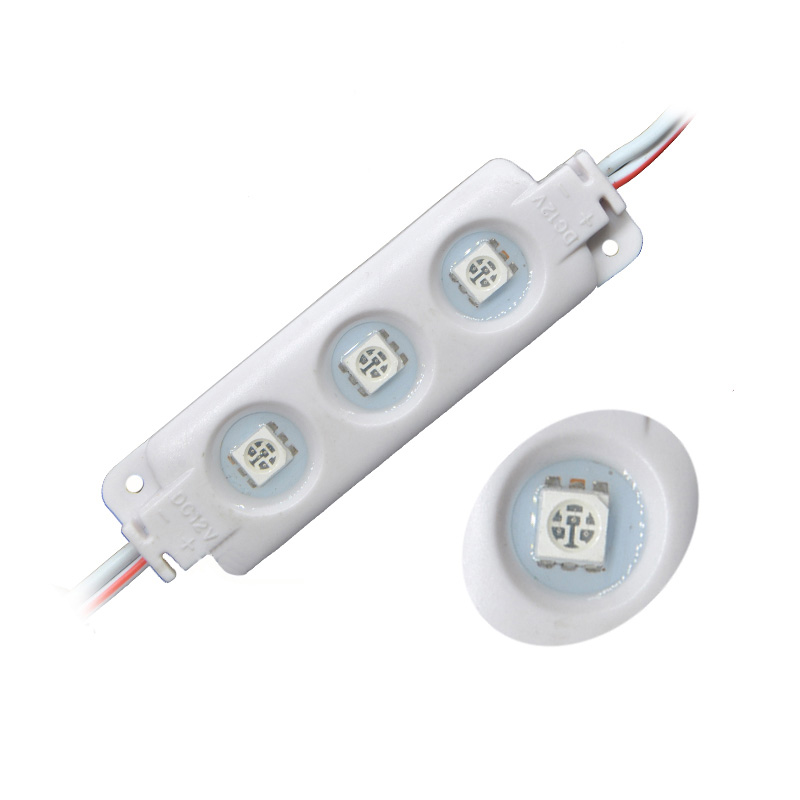

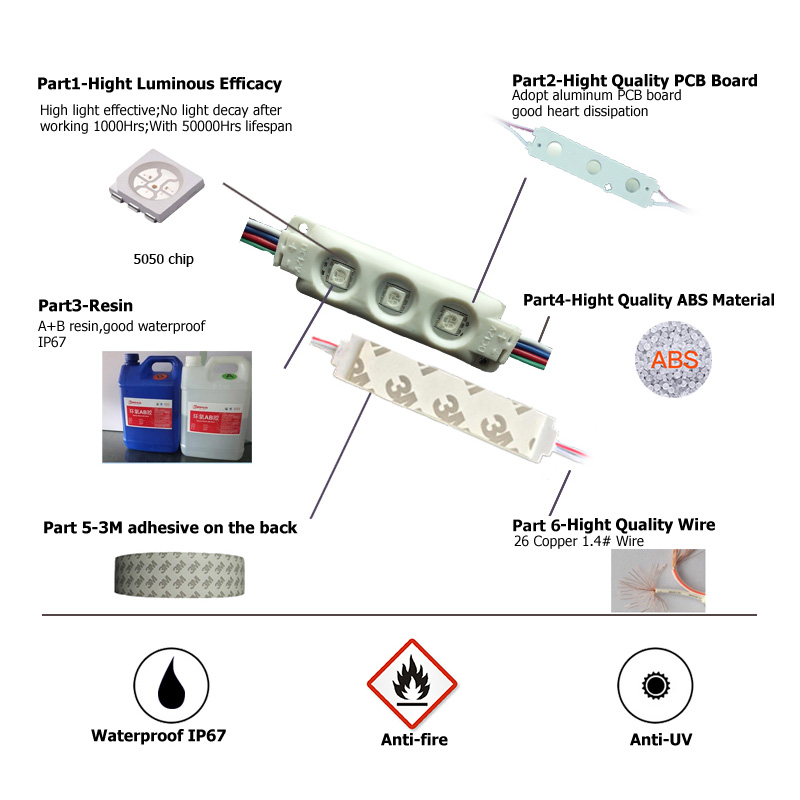

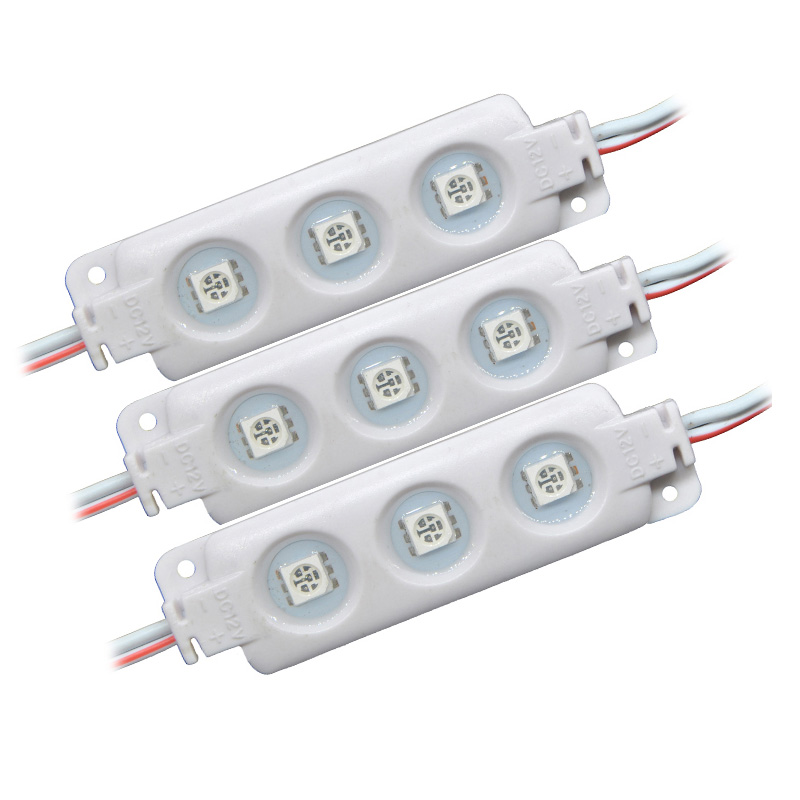

Check the Injection Waterproof LED Modules, which use the high-quality 5050 SMD LEDs as the light source, the SMD LEDs mounted on the aluminum board and in the injection shell, look fashionable and better heat dissipation, working in DC12V, easy to connect the Dimming LED Power Supply to light up or adjust the brightness. the LED Modules back with 3M double-sided tape and side and the screw holes, easy to install and fix, take off the protector on the tape and stick on the place you want to install, or use the screws to fix on the surface of your lighting projects. cuttable and reconnectable, you can cut any quantity and reconnect them for your LED project, the surface of Waterproof LED Modules with epoxy coated, IP rating reach to IP65 for indoor and outdoor applications, can use them for the signs, billboards, longer lifespan and saving energy.


  • Model: 5050-3LEDS-6819
  • Working Temperature: -40-50℃

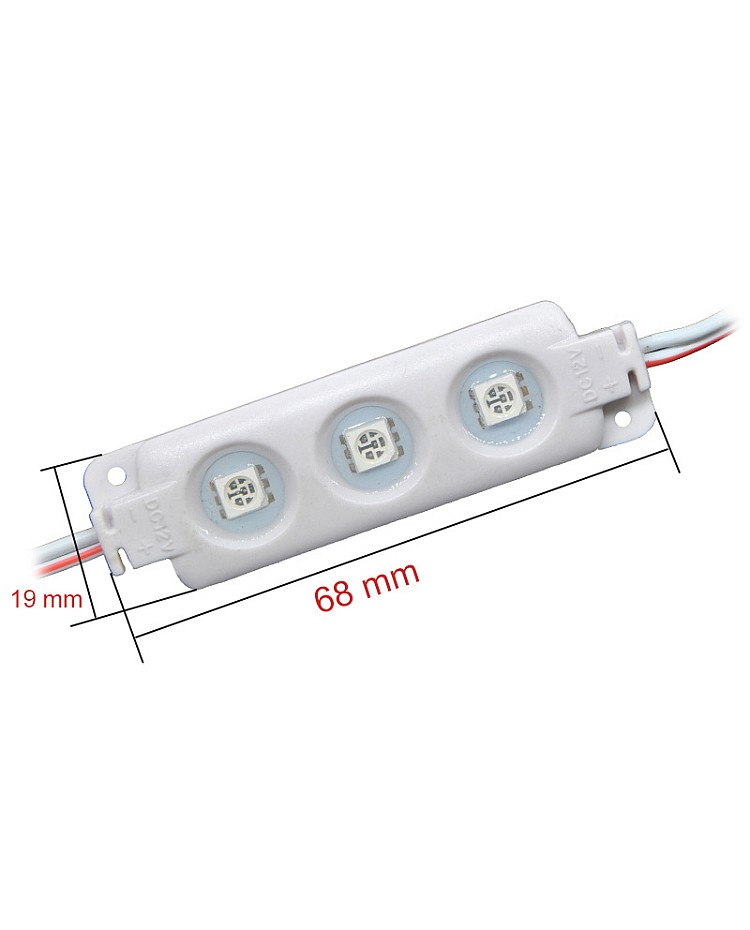

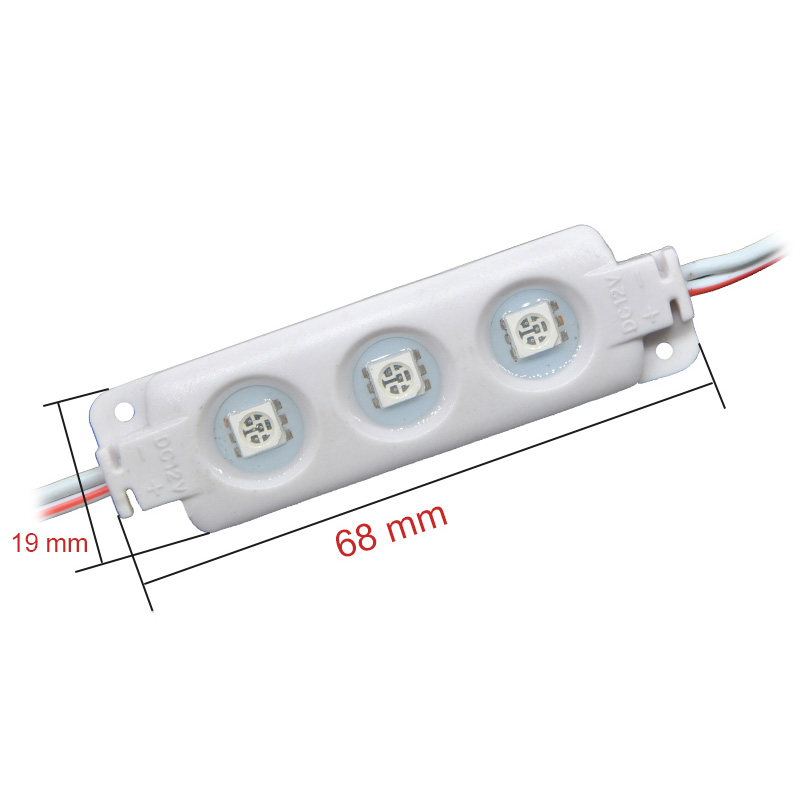

  • Size: 68*19mm(L*W)
  • LED: 5050 SMD LEDs
  • LED Quantity: 3PCS
  • Working Voltage: DC12V
  • Power: 0.72W/PC

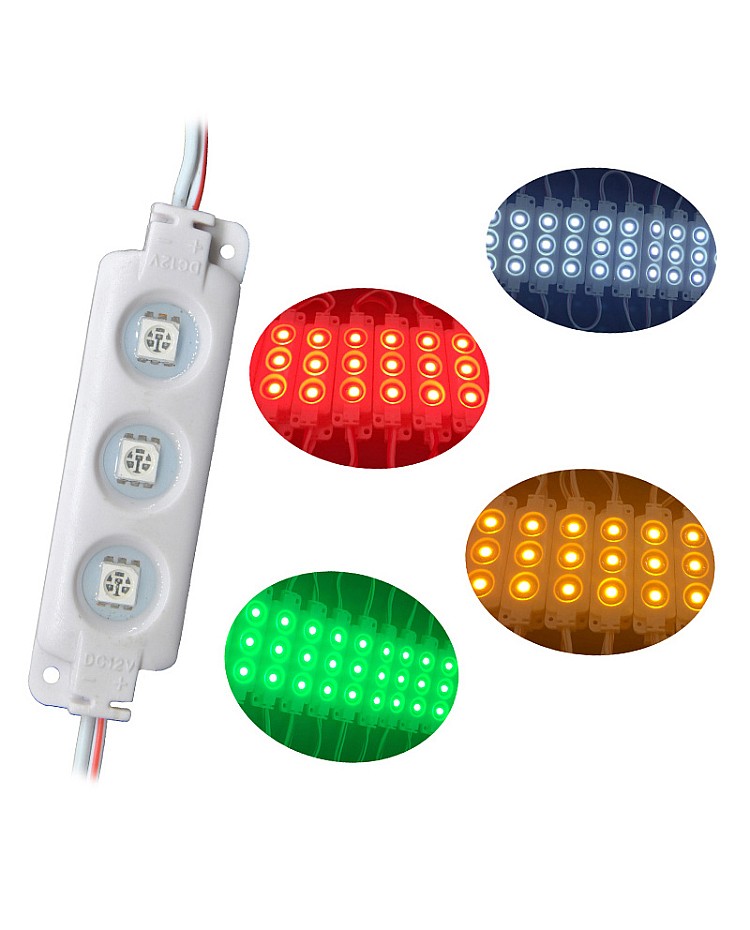

  • Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, RGB
  • Luminous Flux: Red(18-21lm)/Green(45-50lm)/Blue(13.5-15lm)/Yellow(18-21lm)/Warm White(58.2-63lm)/Cool White(58.2-63lm)/Neutral White(58.2-63lm)
  • View Angle: 120°
  • Color Rendering Index: 80Ra
  • Waterproof Level: IP65
  • Cuttable And Reconnectable

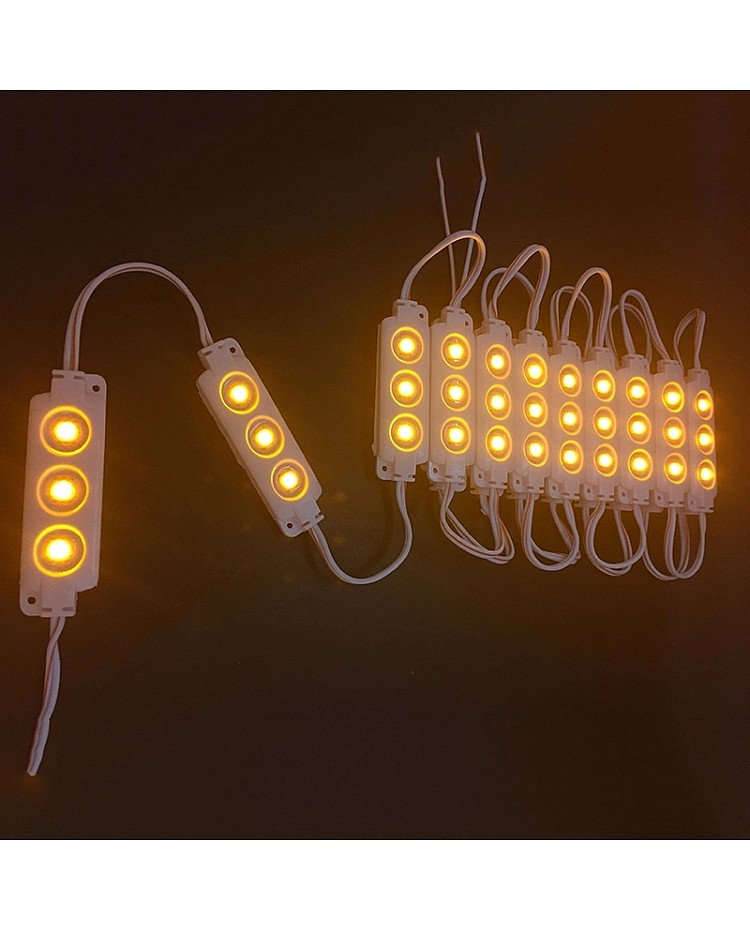

  • Wire Length Between 2PCS Modules: 5cm

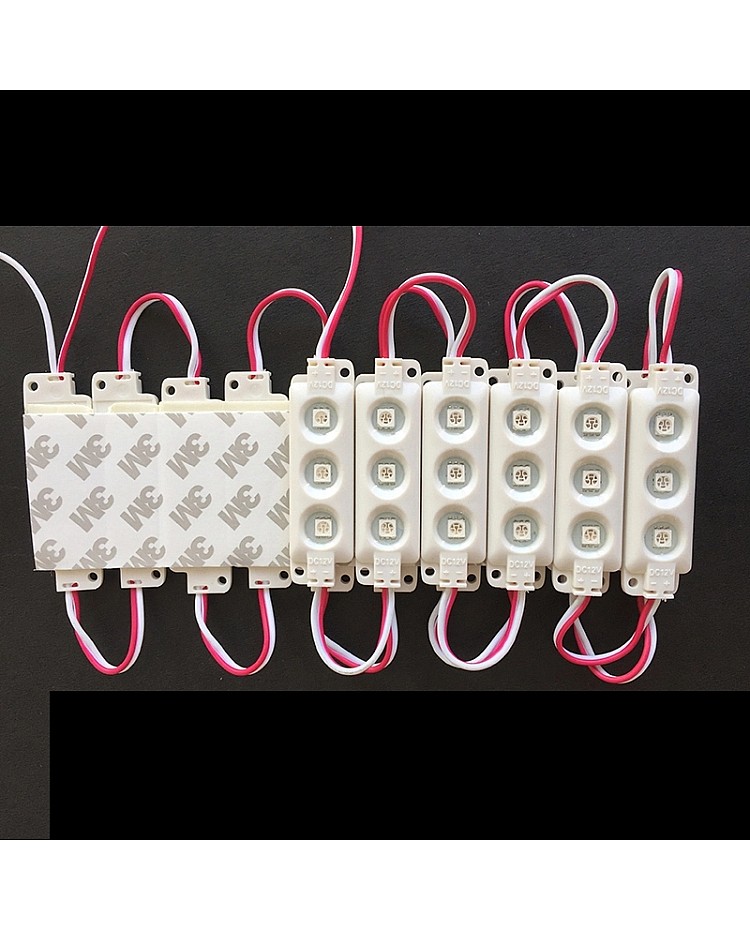

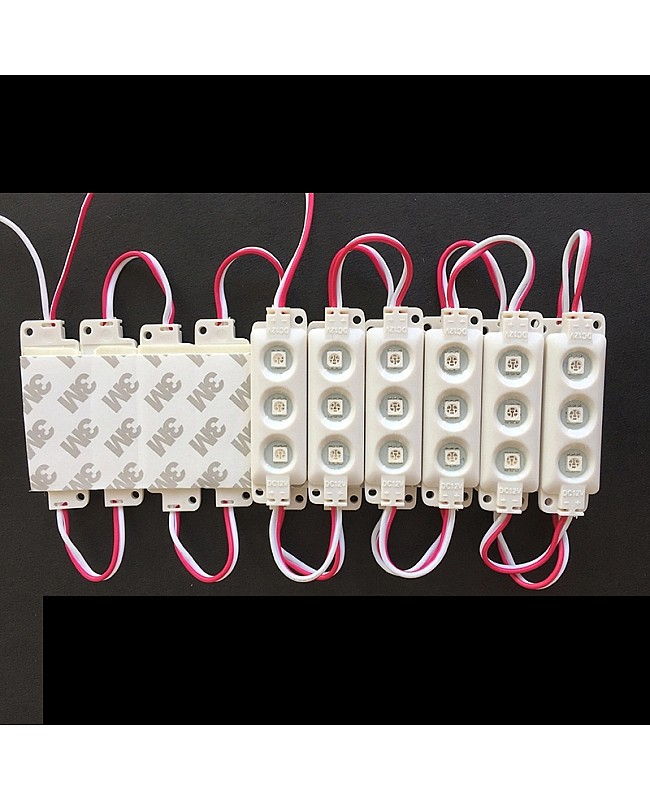

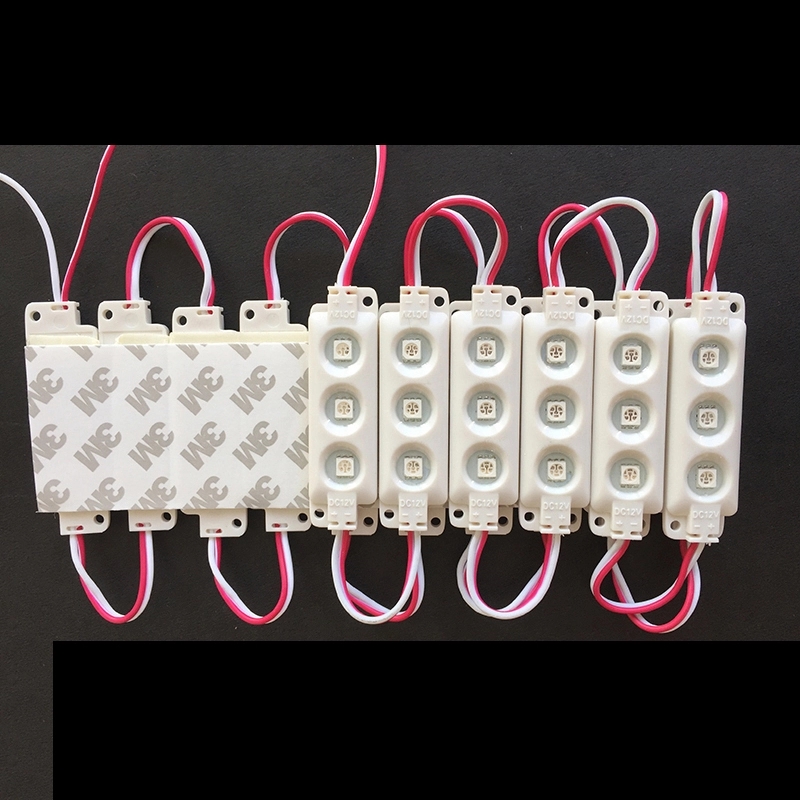

  • Back With Double Side Adhesive Tape
  • The Surface With Screw Holes
  • 2 Years Warranty
  • Weight: 200g

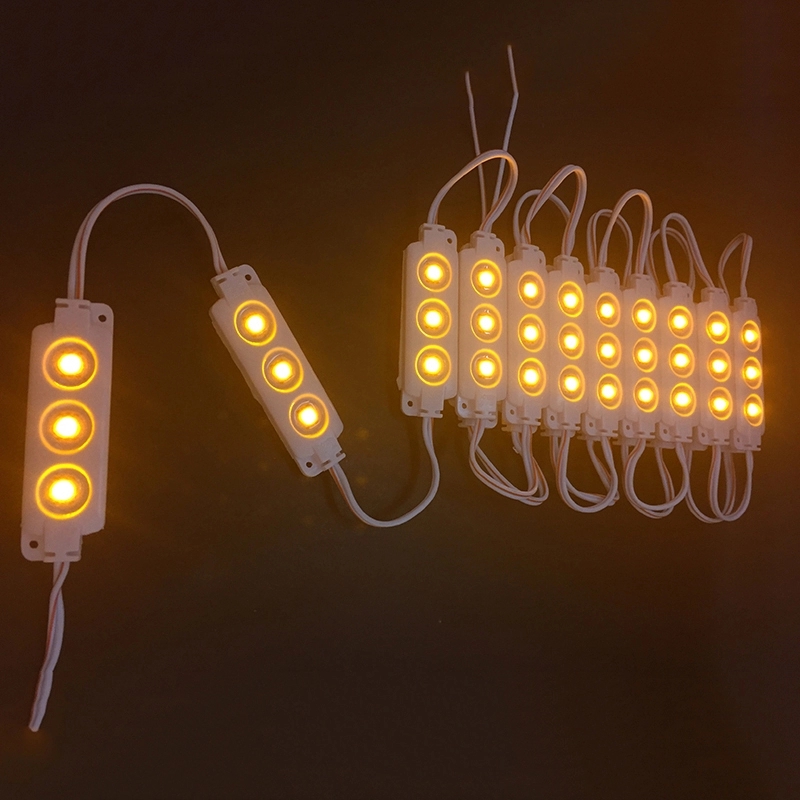

1*Waterproof LED Modules(20PCS/String)

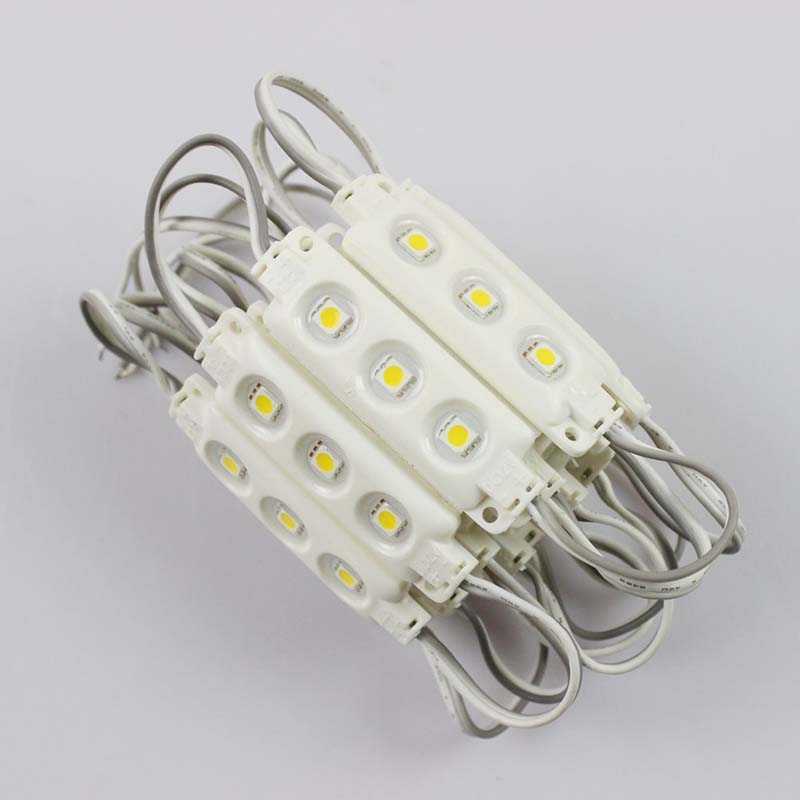

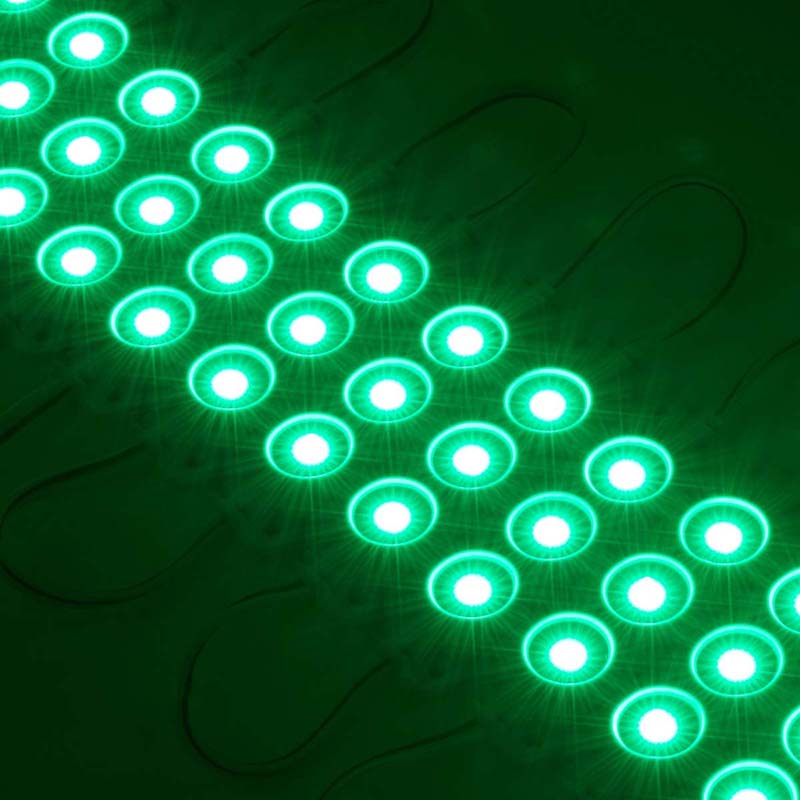

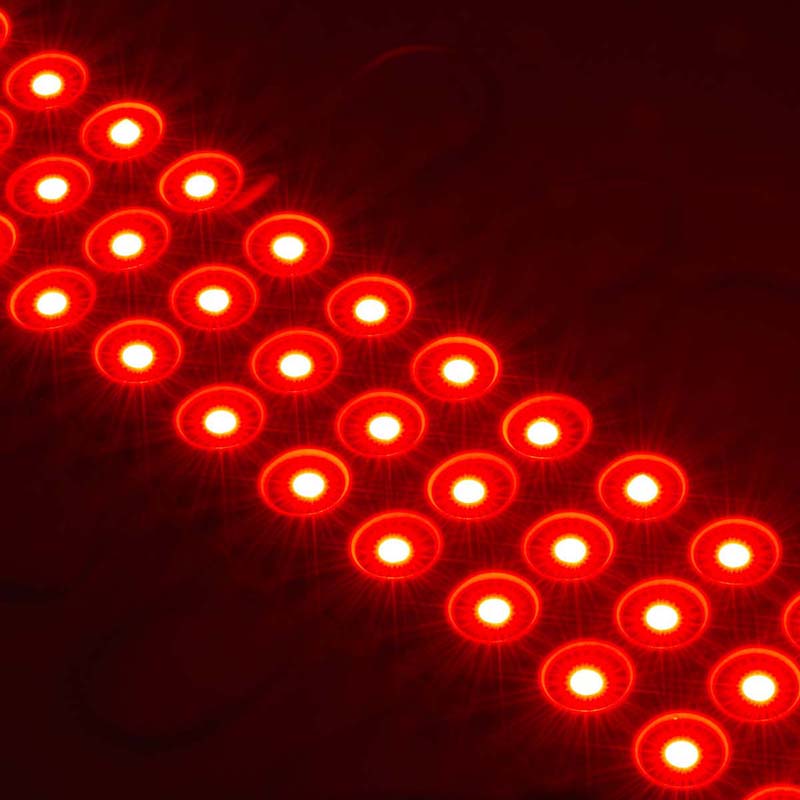

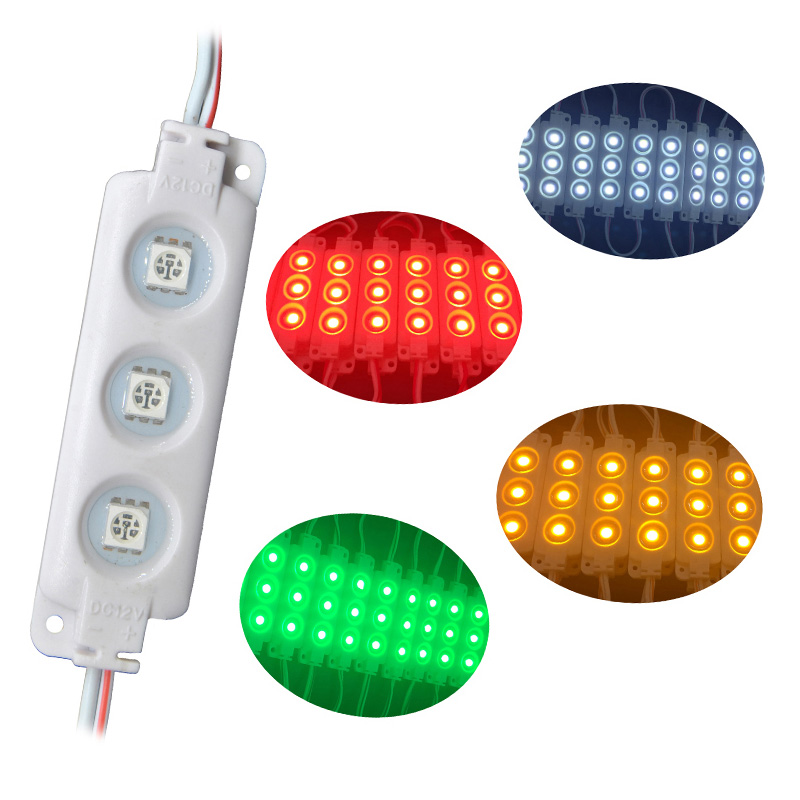

5050 Waterproof LED Modules Red LED Module Light Green Waterproof LED Modules Blue 5050 LED Modules
