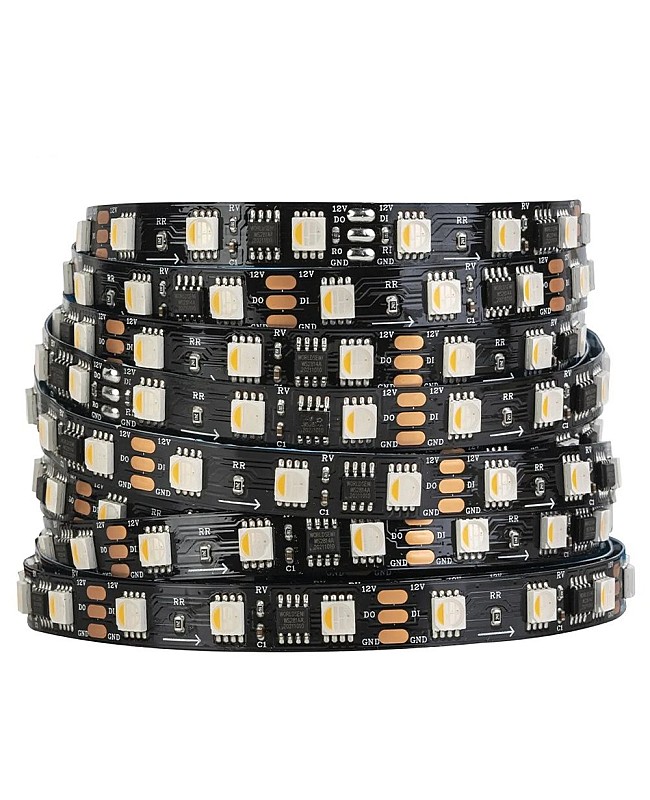

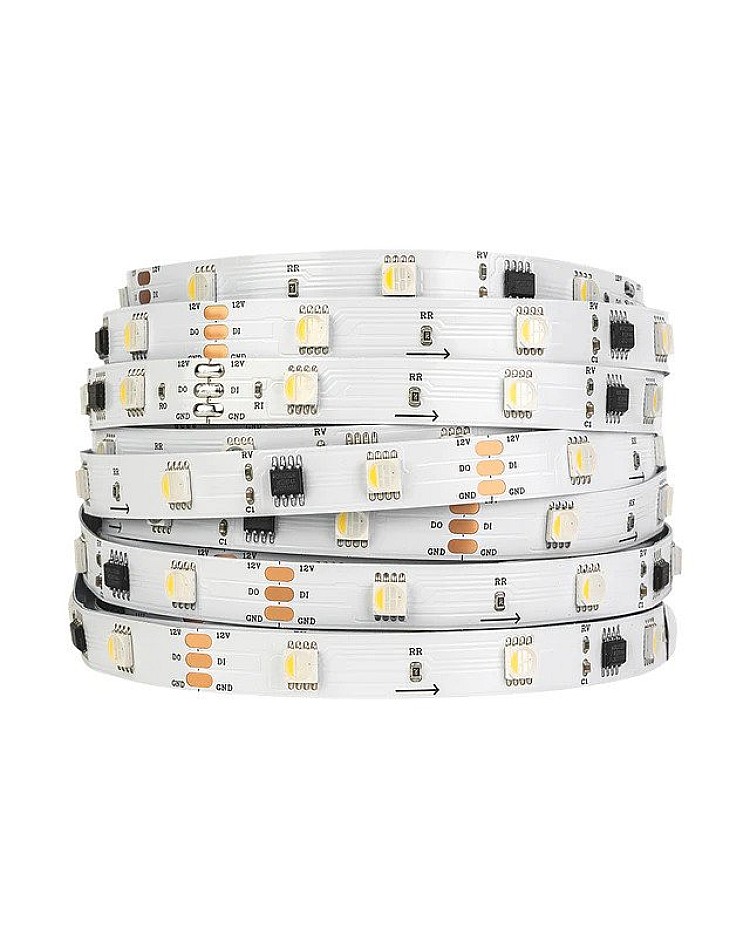

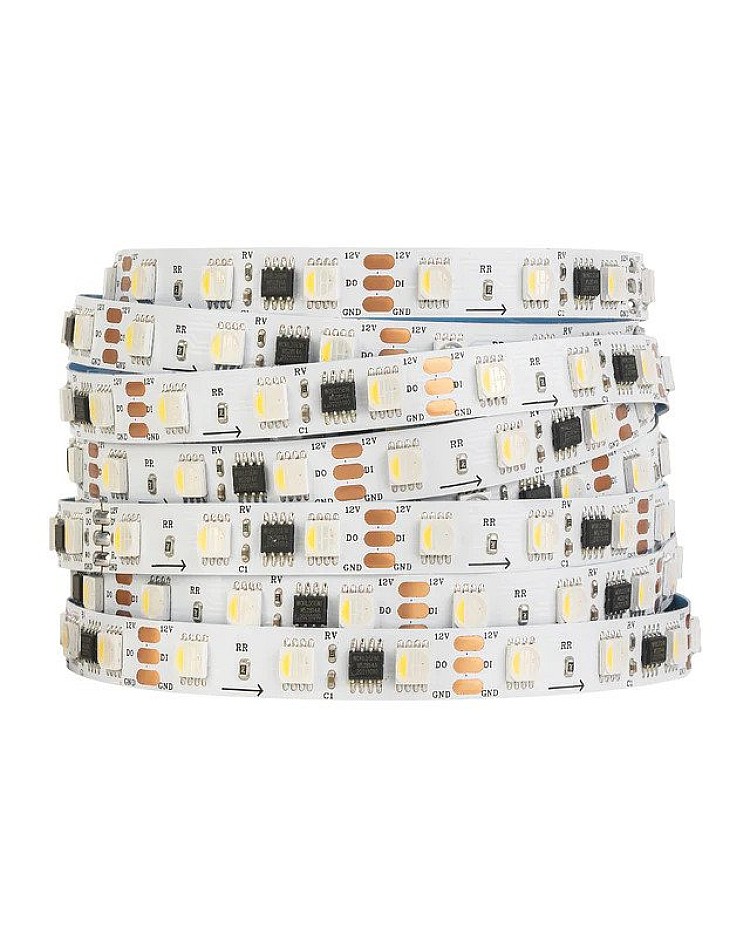

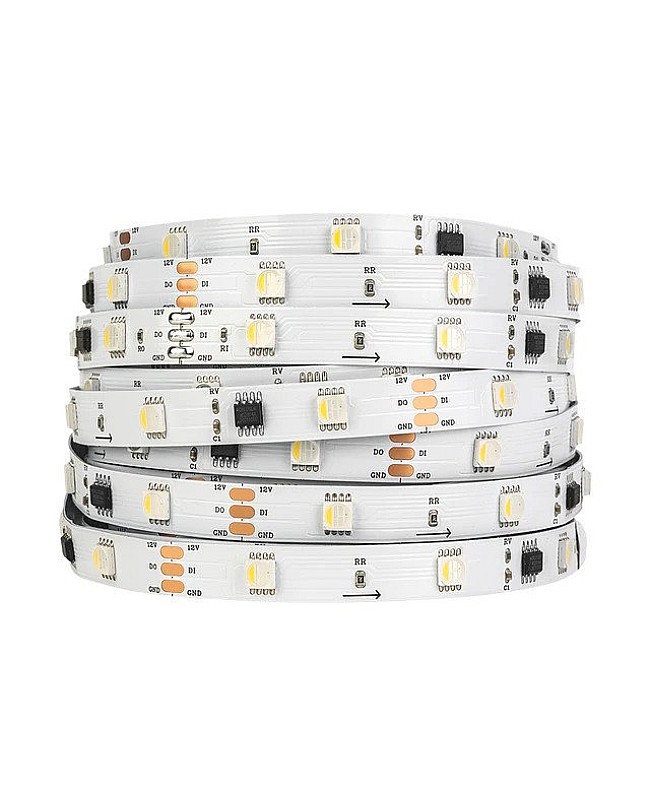

The WS2814 RGBIC LED Strips use RGBW 5050 SMD LEDs as the light source. The LED includes red, green, blue, and white LED Chips, 30LEDs or 60LEDs per meter available. The LEDs are mounted on the dual-layer PCB board, and the PCB board has white and black colors available. The RGBIC LED Strips use WS2814 smart ICs to control the LEDs, and one IC controls 3PCS LEDs to achieve 256 brightness display and 24-bit color display. Every 3 LEDs can be cut off. There are two white products available, warm white and cool white. The presence of white can make the RGBIC LED Strips more perfect, more energy-efficient, and less heat consumption. It can work with SP617E Bluetooth Controller, Raspberry PI 3, UNO R3, etc., to light up RGB rainbow color, pure white light chasing, or pure white static effects. Both ends have 3P JST-SM connectors, and you can continue to extend or cut at both ends. Three types of waterproof products are available: IP20 non-waterproof, IP65 coated waterproof, and IP67 silicone tube waterproof. The back of IP20 and IP65 with double-sided adhesive tape makes it easy to remove the protector paper and stick it on where you want to install it. IP67 products should use screws and clips to mount for indoor and outdoor applications. You can use the WS2814 RGBIC LED Strips to make LED screens and advertising Boards for Hotels, KTV, Bars, Signs, Christmas Or Weddings, etc.


  • Model: WS2814-RGBW

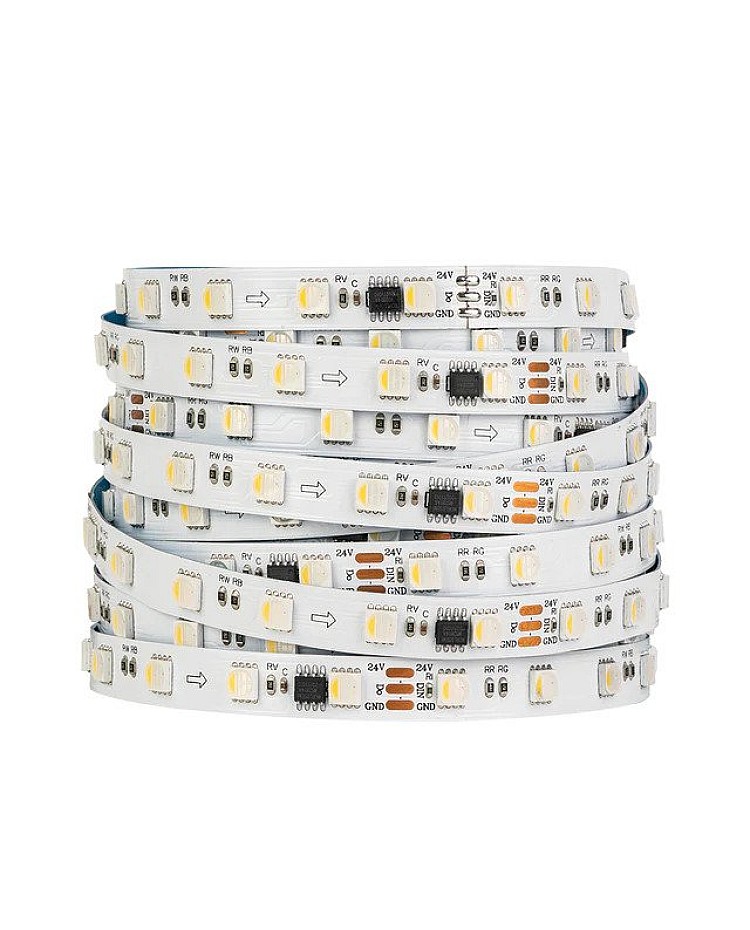

  • Working Voltage: DC12V/DC24V
  • PCB Board Colors: White, Black
  • Width: 10mm
  • Length: 5 Meters/Rell(16.4FT)
  • LED Chip: San An

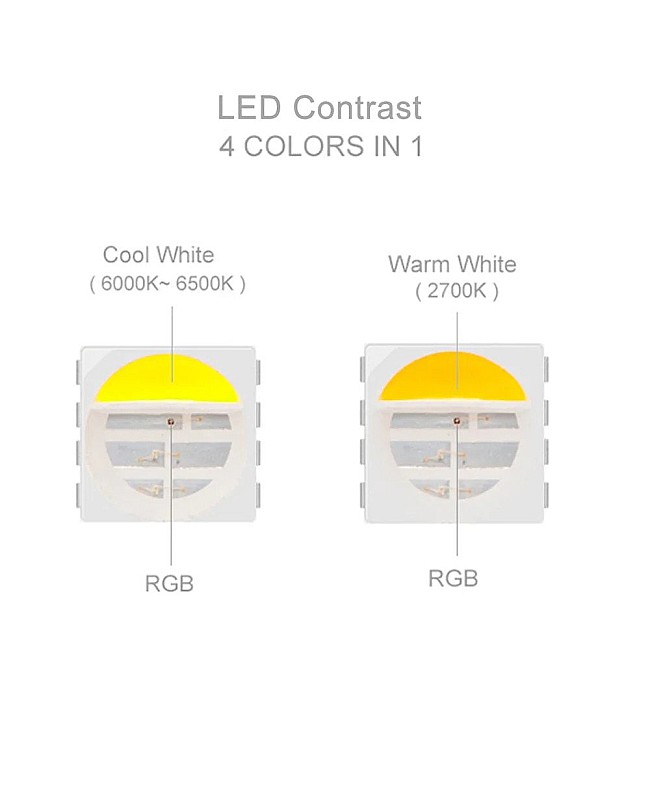

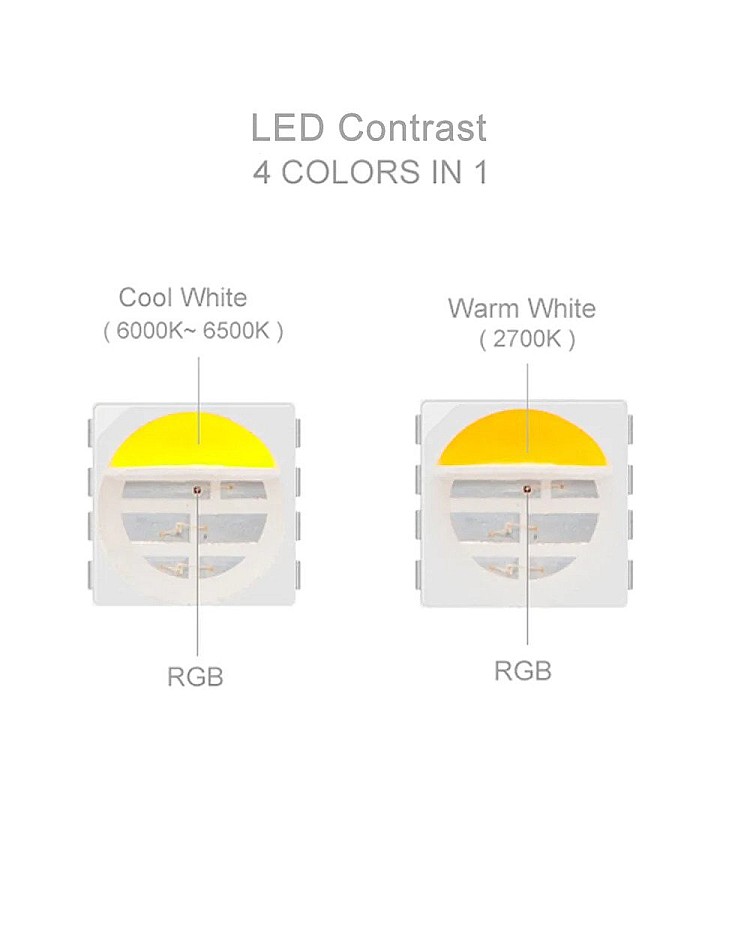

  • LED Type: 5050 SMD LEDs(RGB+Warm White(2700K-3000K) / RGB+Cool White(6000K-6500K))
  • LED Quantity: 30LEDs/M, 60LEDs/M
  • IC Type: WS2814
  • Power: 0.4W/LED
  • IC Quantity: 10PCS/M(30LEDs/M), 20PCS/M(60LEDs/M)

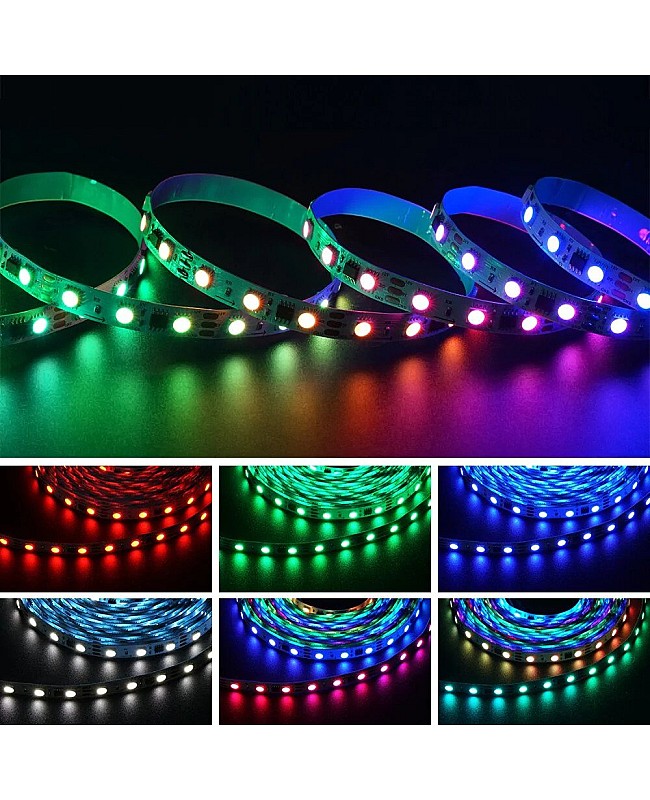

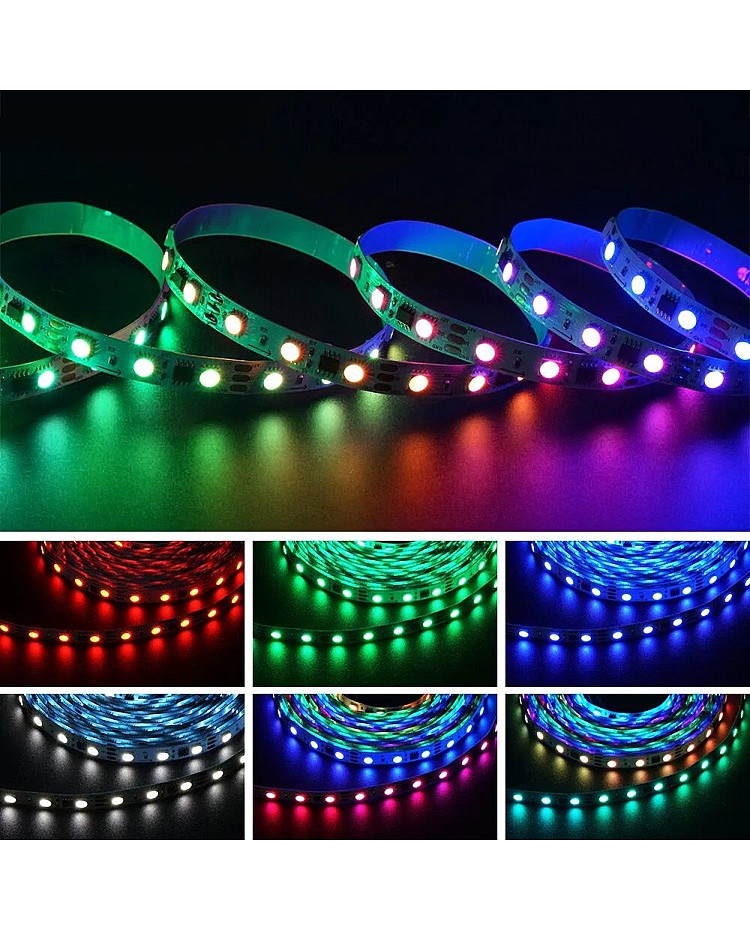

  • Colors: Dreamcolor 24-Bit
  • Grayscale Levels: 256
  • View Angle: 120°
  • Waterproof Levels: IP20 Non-Waterproof, IP65 Coated Waterproof, IP67 Silicone Tube Waterproof

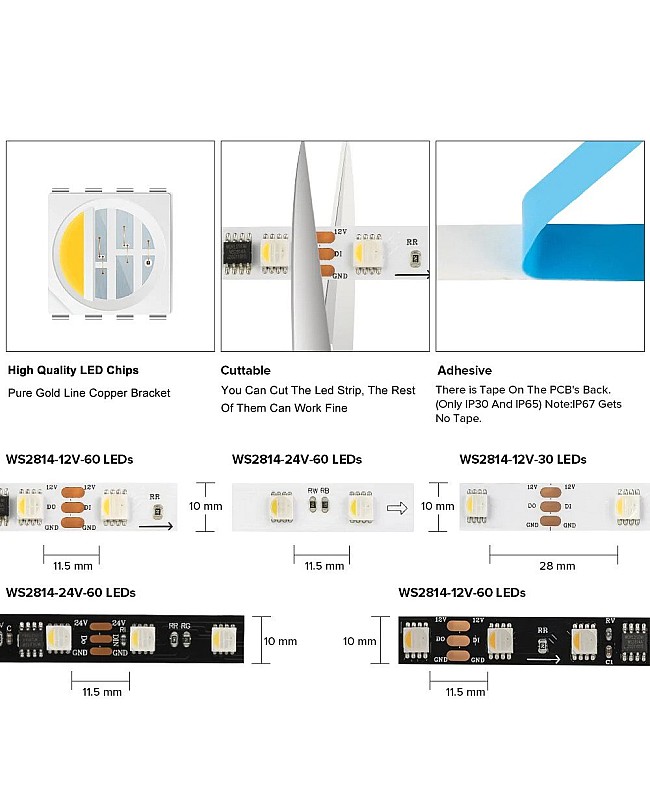

  • Minimum Cutting Length: Every 3 LEDs
  • Both Ends With 3 Pin JST-SM Connectors
  • Working Temperature: -20℃-40℃
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


1*WS2814 RGBIC LED Strips(16.4FT/Reel)

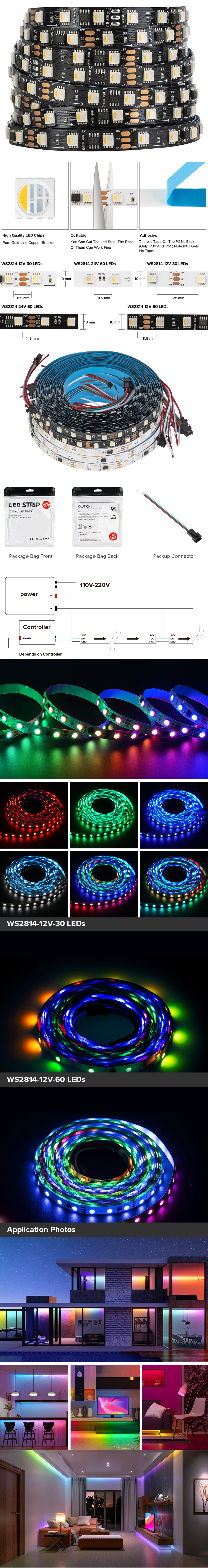

RGBIC LED Strip Cuttable
