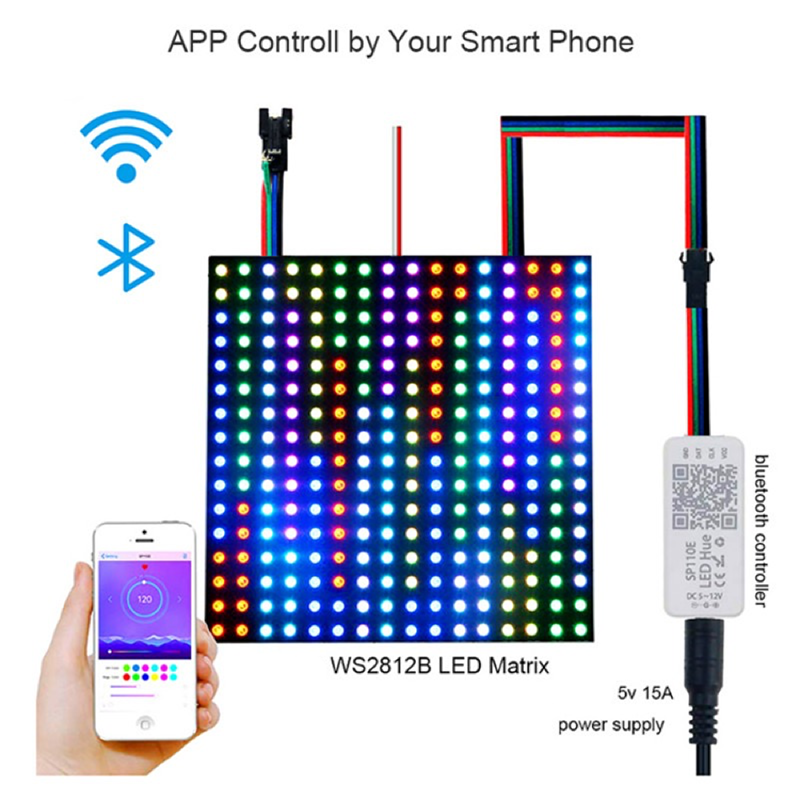

The SP110E Bluetooth-Compatible Mini Pixel LED Light Controller, which is designed for the Pixel LED Strip Lights and max loading number of pixels up to 1024PCS, compatible with almost all types of smart ICs: WS2811, WS2812B, SK6812, SK6812 RGBW, etc. you can download the APP and use your mobile phone to control the Mini Magic LED Controller by connecting through Bluetooth, adjust the speed and brightness of the Smart LED Strips, 120 kinds of fantastic lighting effects switchable. The SP110E Light Controller has two working modes: auto and manual. Under the auto mode, the Controller will select the lighting effect automatically. It comes with JST Connectors, which is easy to connect to the Digital LED Strip Lights.

Quick Links:

SP110E Instructions


Features:

  • Model: SP110E
  • Size: 85*45*22mm(L*W*H)
  • Working Voltage: DC5-12V
  • Working Current: 20mA-40mA
  • Max Load Power: 3W
  • Remote Control Distance: 20 meters

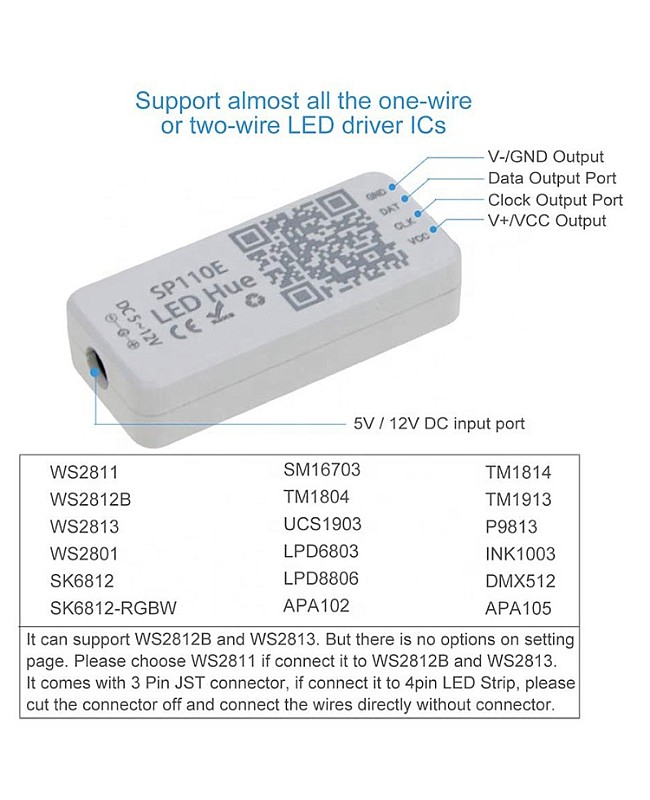

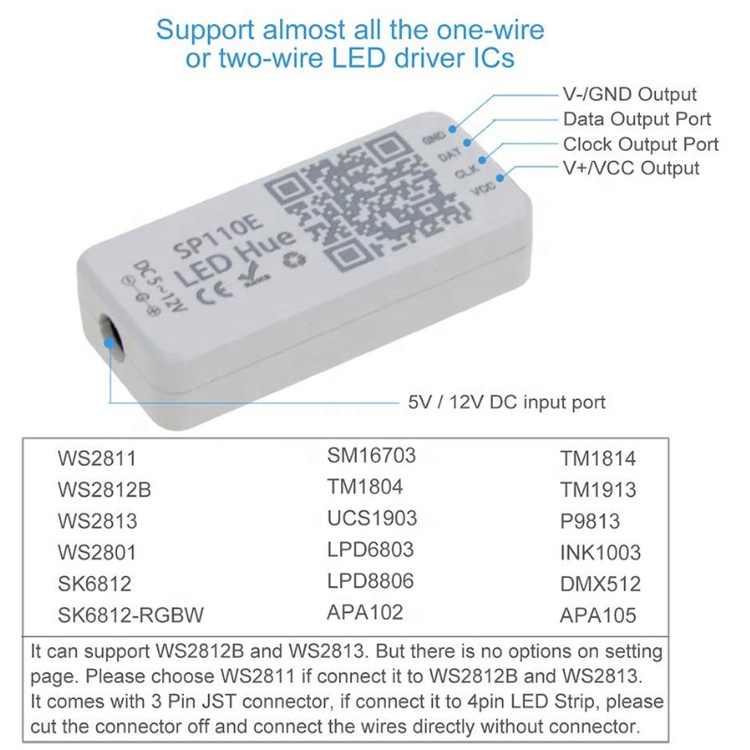

  • Compatible With The Types Of ICs: WS2811, WS2812B, WS2813, WS2801, SK6812, SK6812-RGBW, SM16703, TM1804, UCS1903, LPD6803, LPD8806, APA102, TM1814, TM1913,P9813, INK1003, DMX512, APA105
  • Mobile Operating Systems Support: IOS 10.0 Above And Android 4.4 Above

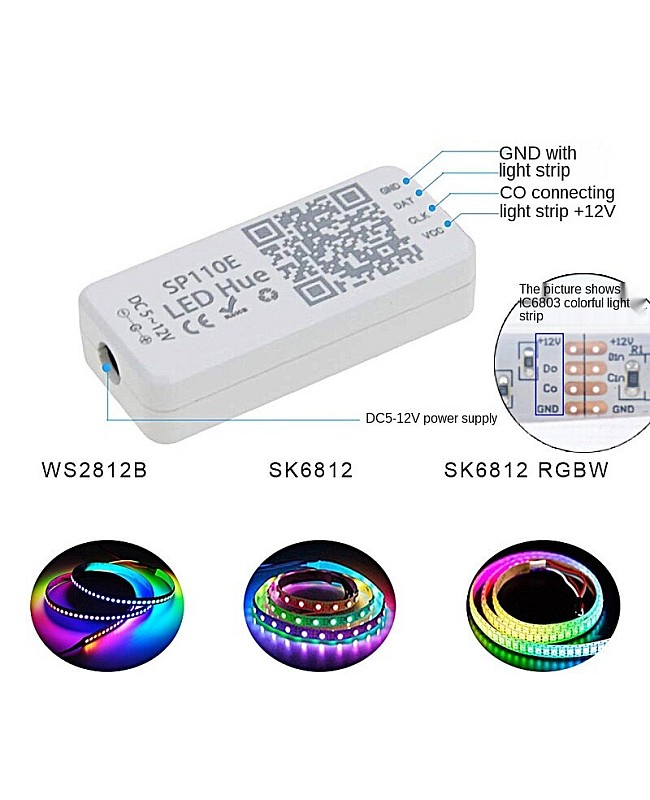

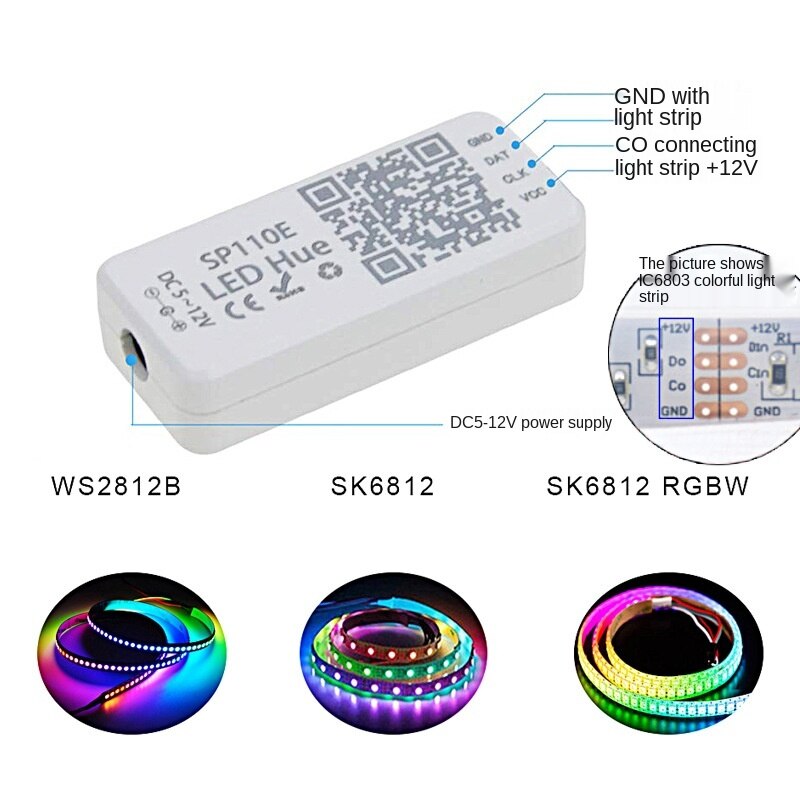

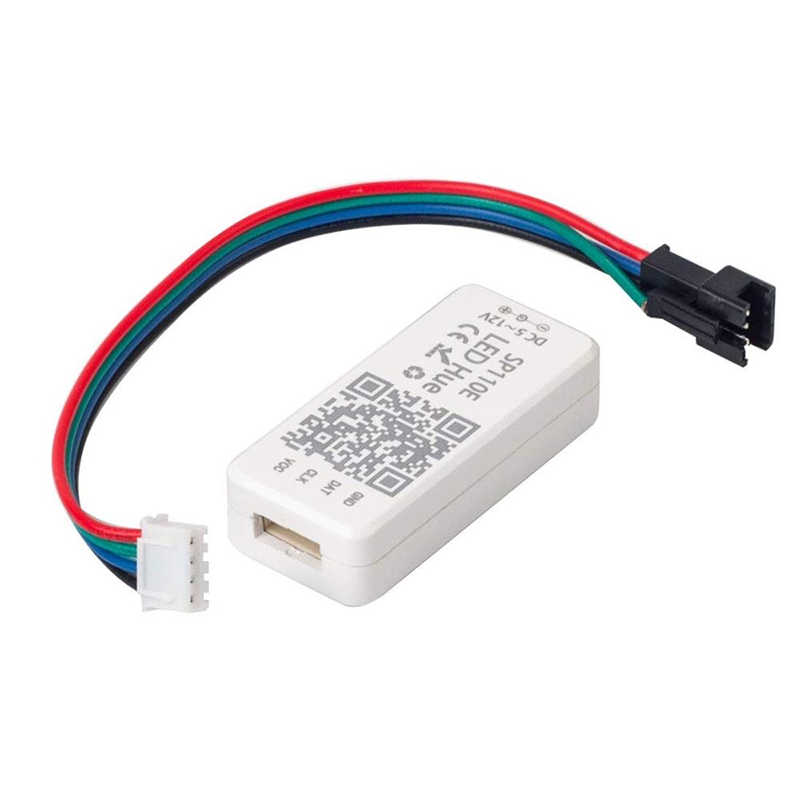

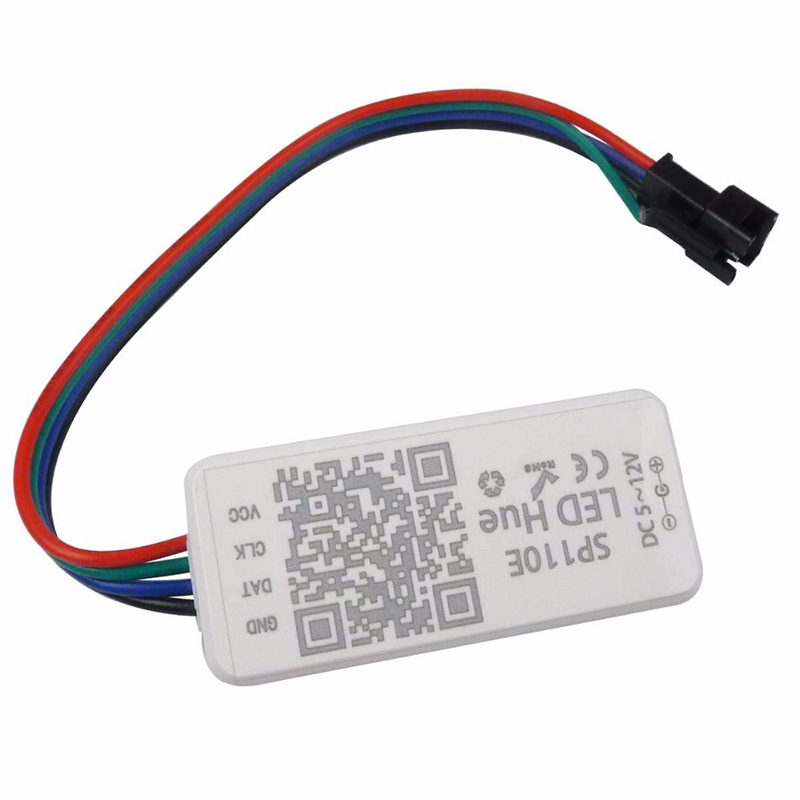

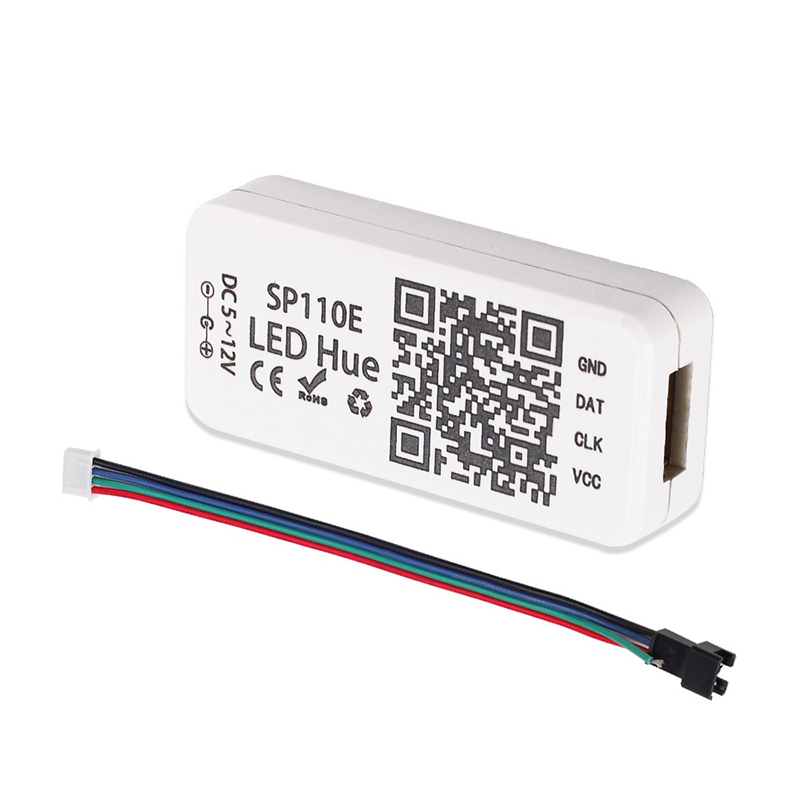

  • Connection Mode: JST Connector
  • Max Loading Numbers Of Pixels: 1024PCS
  • Working Modes: Auto Mode/Manual Mode
  • Dimmable: YES
  • 120 Kinds Of Lighting Effect Available
  • IP Rating: IP20 Non-waterproof
  • Color: White
  • APP Name: LED HUE
  • Working Temperature: -20℃-+60℃
  • Download APP: Scan the QR Code on the LED Controller or search "LED HUE" on APP Stores to download the APP
  • 2 Years Warranty


Includes:

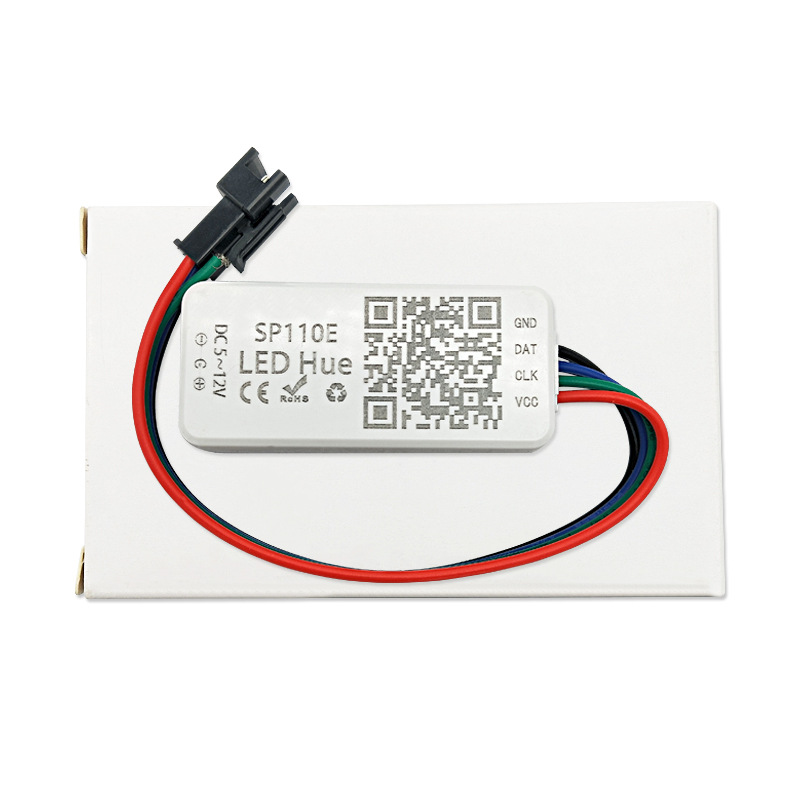

1*SP110E Pixel Light Controller

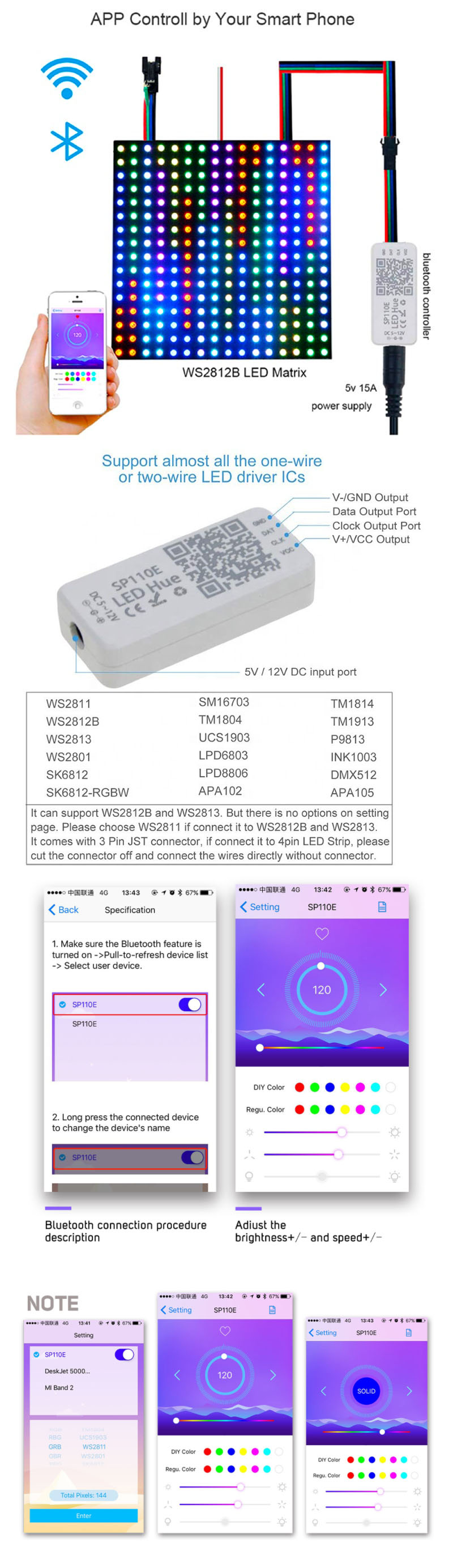

SP110E LED Hue
