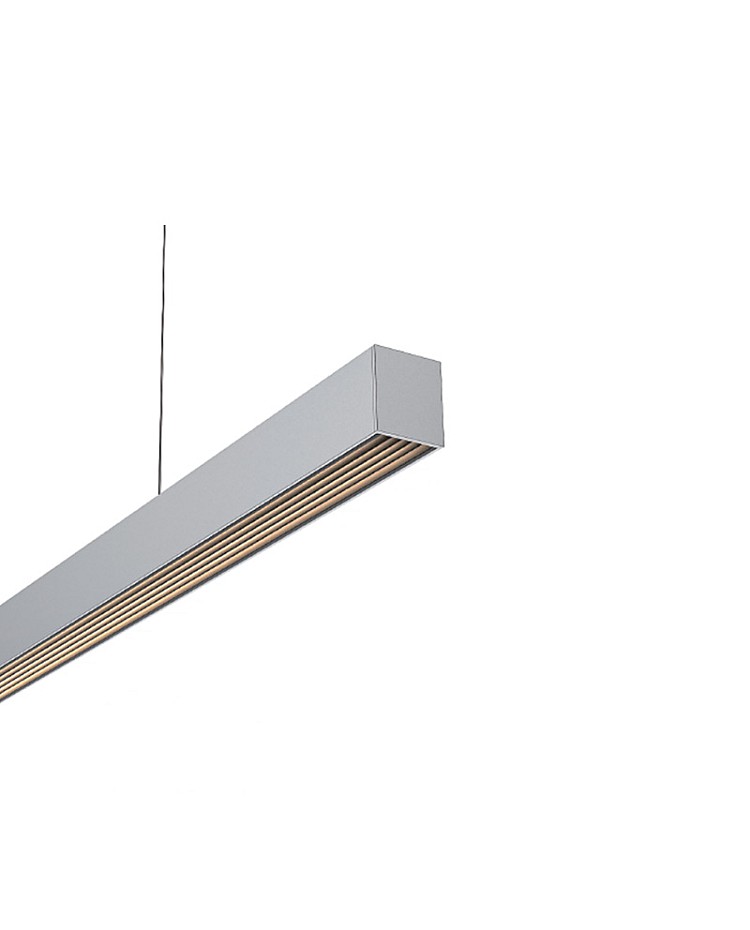

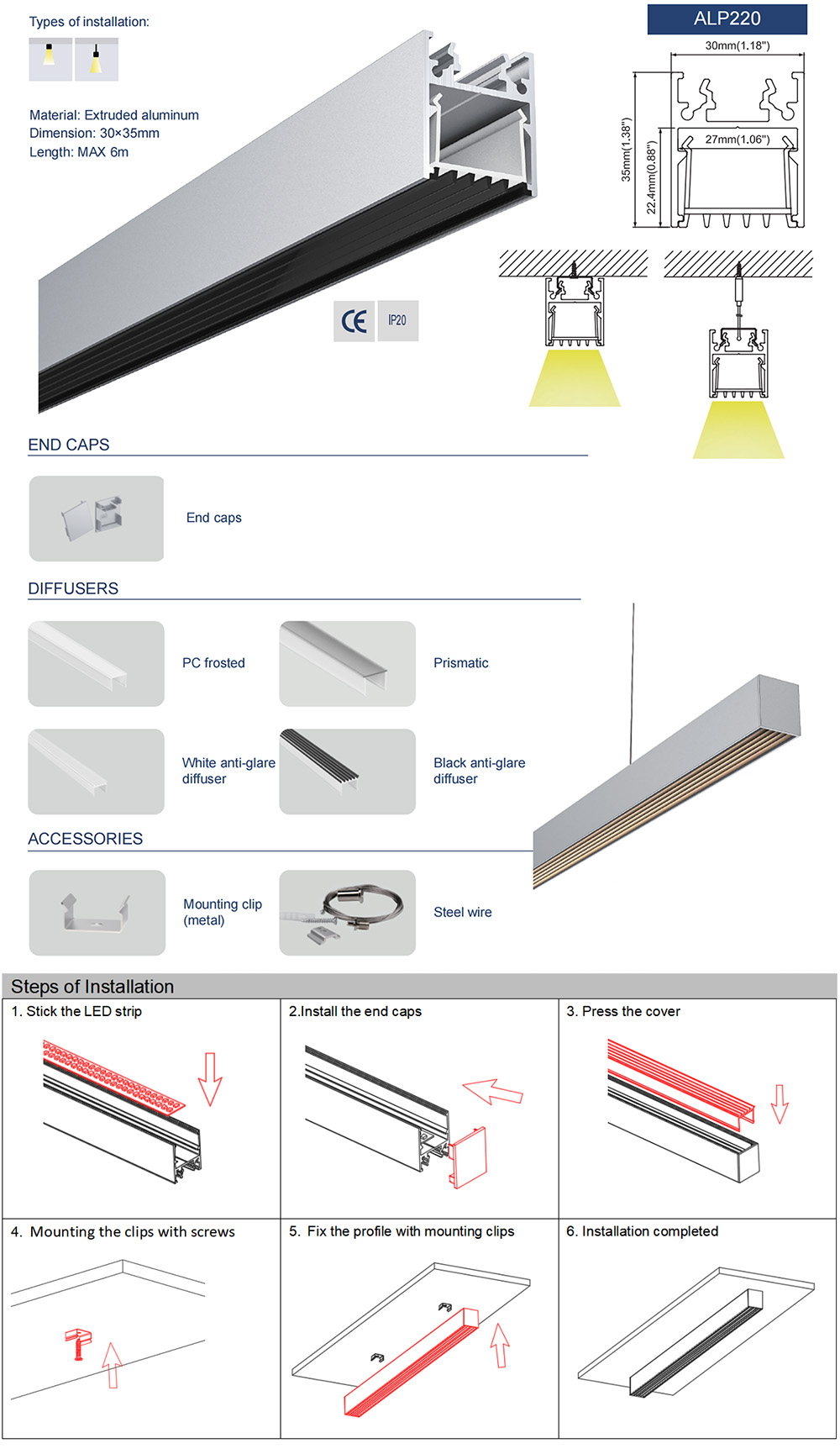

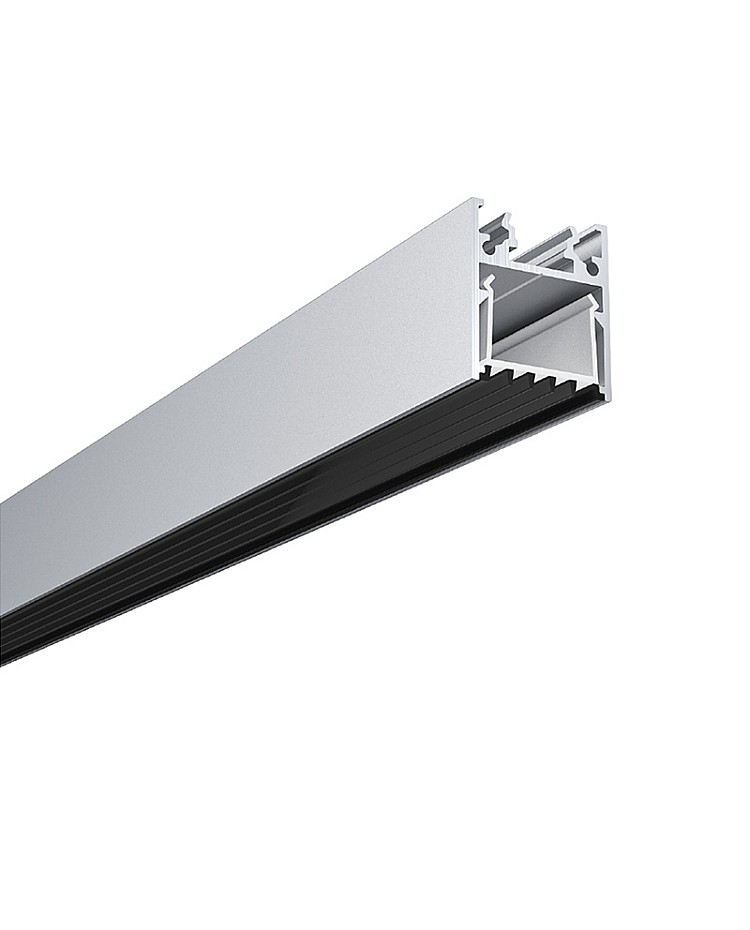

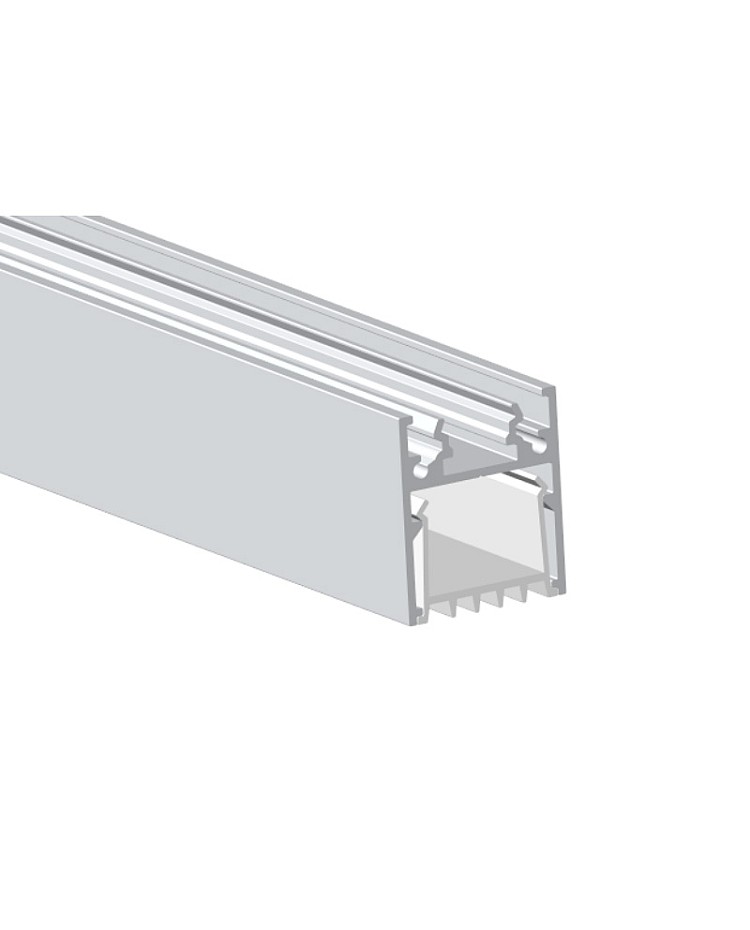

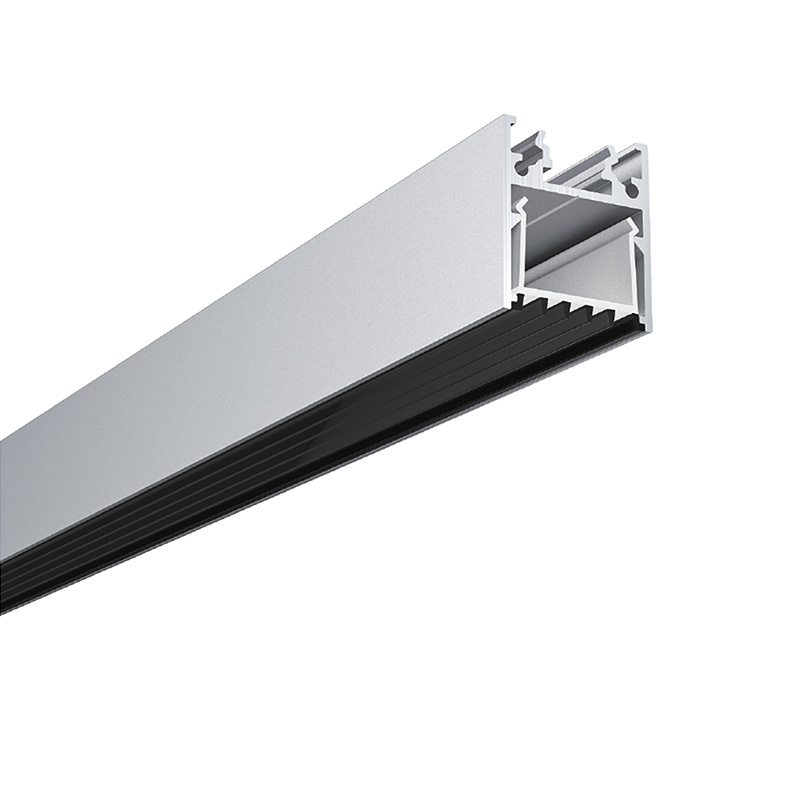

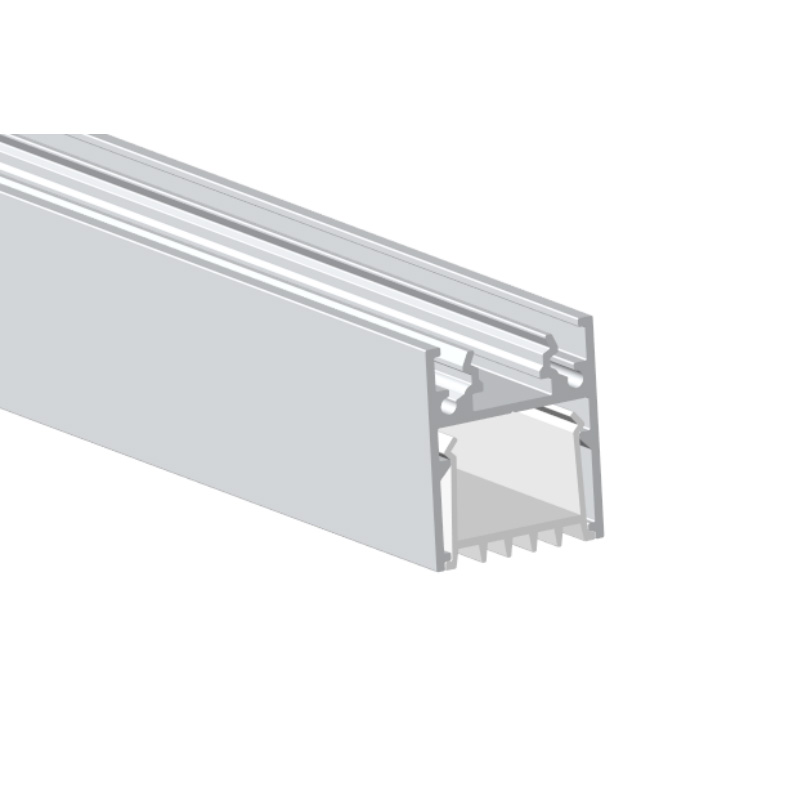

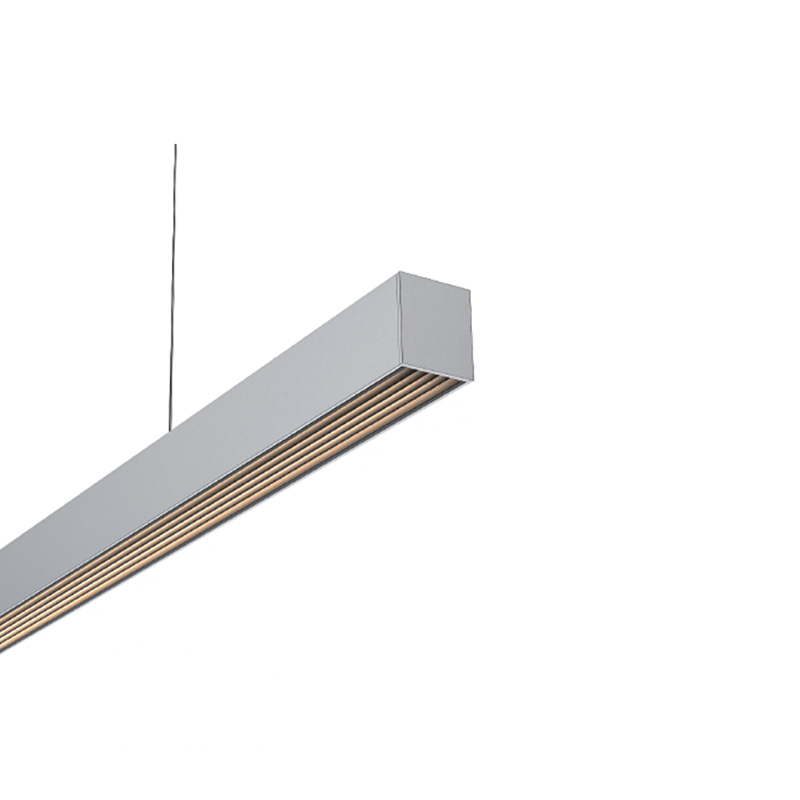

The LED strip aluminum channels come with accessories that support both surface-mounted and suspended installations. They provide durable, stylish housing for LED strips, ensuring even, eye-friendly light distribution that is perfect for modern pendant fixtures. Four types of diffusers are available: white and black anti-glare covers with ribs, PC frosted covers, and prismatic covers. The anti-glare diffused covers will soften light output, reducing hotspots and glare for comfortable hanging lighting. Ideal for offices, retail spaces, showrooms, and modern interiors. The ceiling LED channels are made of 6063-T5 extruded aluminum alloy and feature a silver anodized or white/black powder-coated finish for oxidation resistance and long-lasting performance. The inner width is 27 mm, allowing a maximum LED strip width of 26 mm. Recommend adding high-density LED COB strips as the light source to create a consistent line of light without hot spots and dark areas. Surface-mounted LED channels can act as heat sinks, improving heat dissipation and extending LED light lifespan. The stock length is 2 meters per piece and can be cut to any size for your needs. Accessories include end caps, mounting clips, and steel suspension wires for easy installation.
Specifications:
- Type: Pendant light LED channels
- Model: ALP220
- Material: 6063-T5 extruded aluminium alloy
- Surface treatment: Anodized / powder-coated
- Colors: Silver, black, white

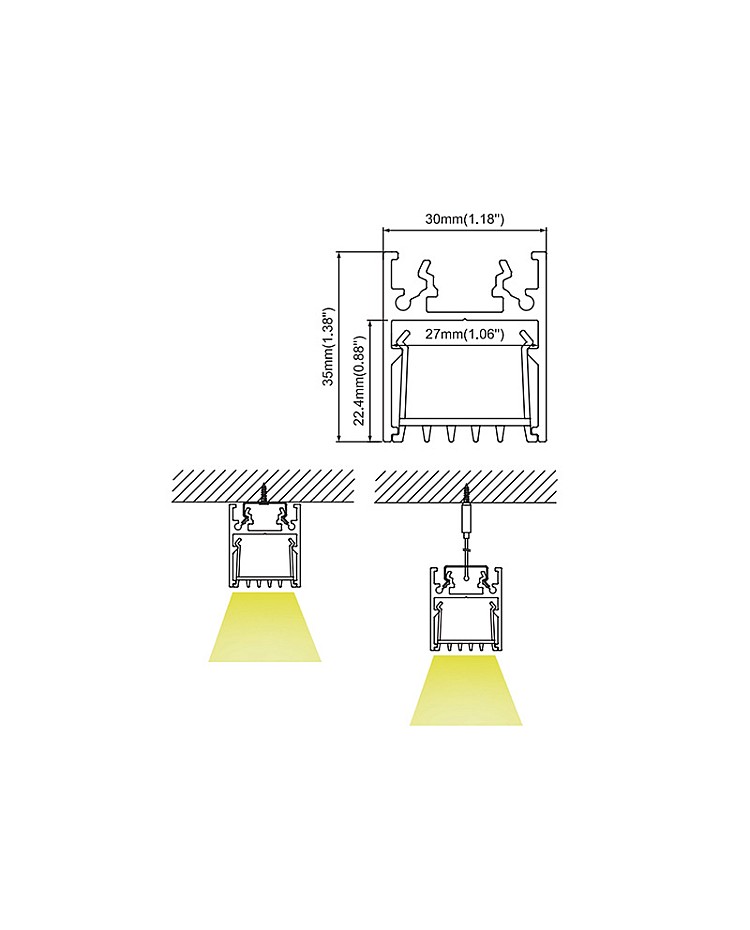

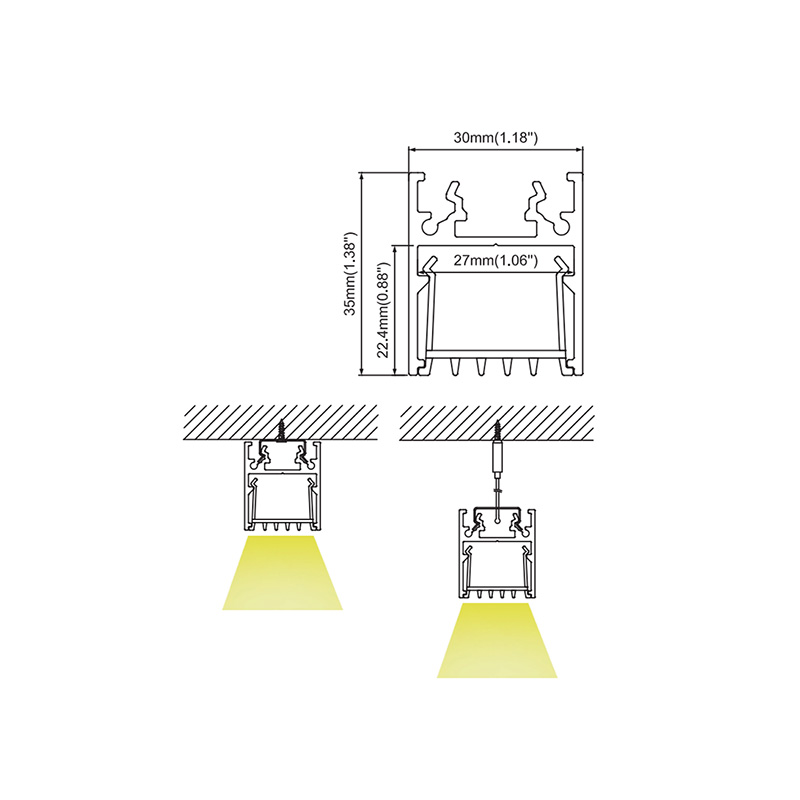

- Size( W x H ): 30 mm *35 mm ( 1.18" x 1.38" )
- Lengths available: 1 m ( 39" ) / 2 m ( 78" )
- Custom length: YES
- Inner width: 27 mm ( 1.06" )
- Maximum LED strip width: 26 mm ( 1.02" )
- Max power: 20W/m

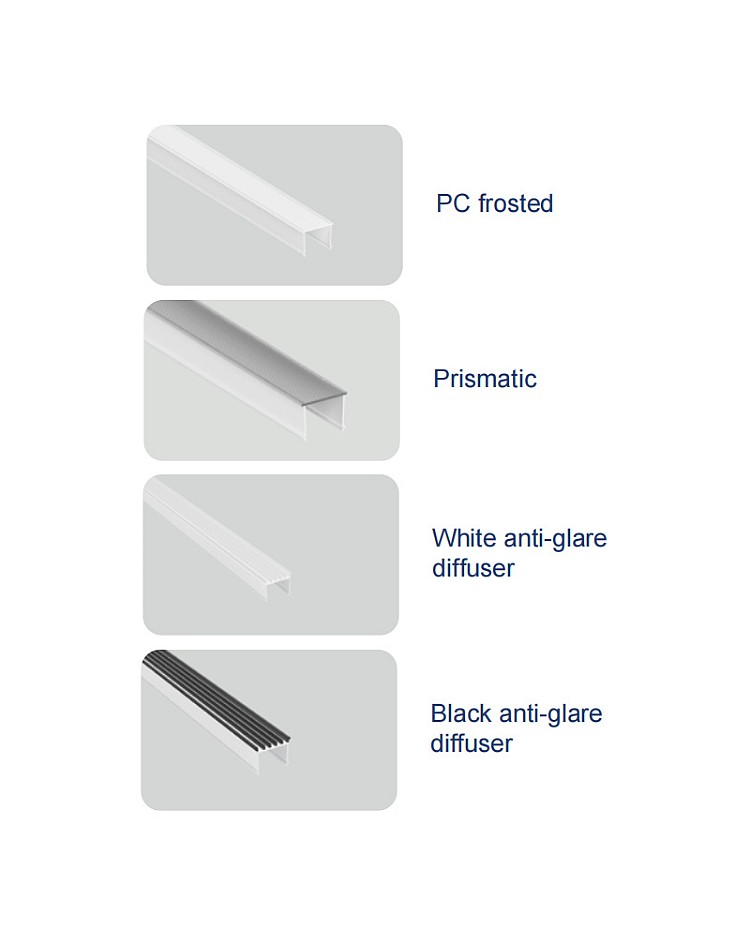

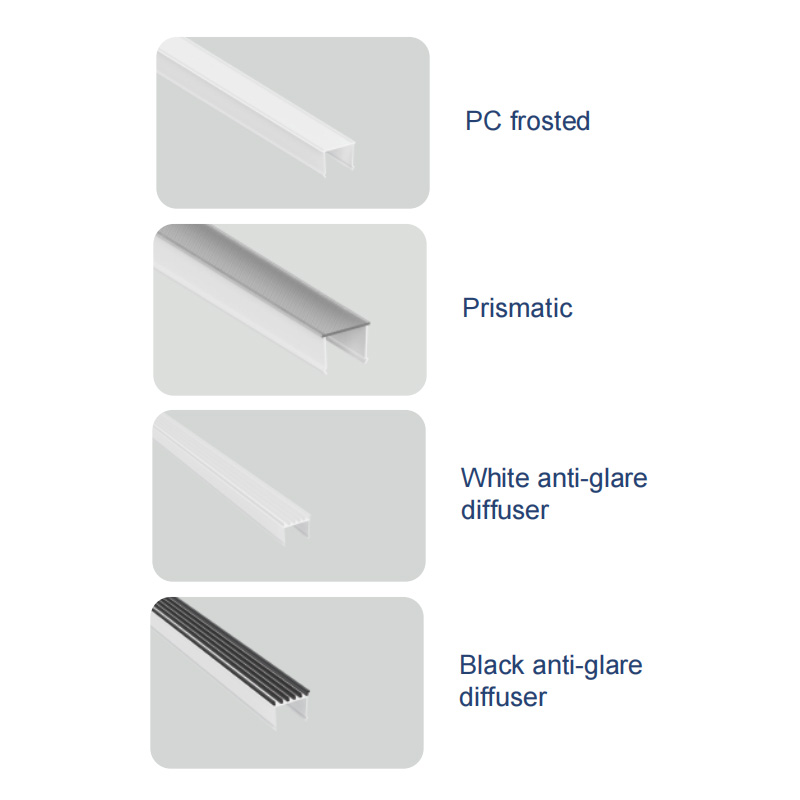

- Diffusers available: White PC anti-glare covers(with ribs) / black PC anti-glare covers(with ribs) / PC prismatic covers / PC frosted covers
- End caps included
- Mounting clips, hanging clips, and suspension wire kits are included
- Installation: Surface-mounted / pendant
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Suspended linear lighting
- Surface-mounted ceiling lighting
- Architectural accent lighting
- Task lighting
- Retail display lighting
- General ambient lighting
Includes:
1 * Aluminum channel for LED strip lights with cover
End caps
Mounting clips
Hanging clips
Suspension wires
