Out Of Stock
$7.60
Reward Points: 8
-
+
  • Brand: Hoion
  • Product Code: HX-SZ600-IR24K

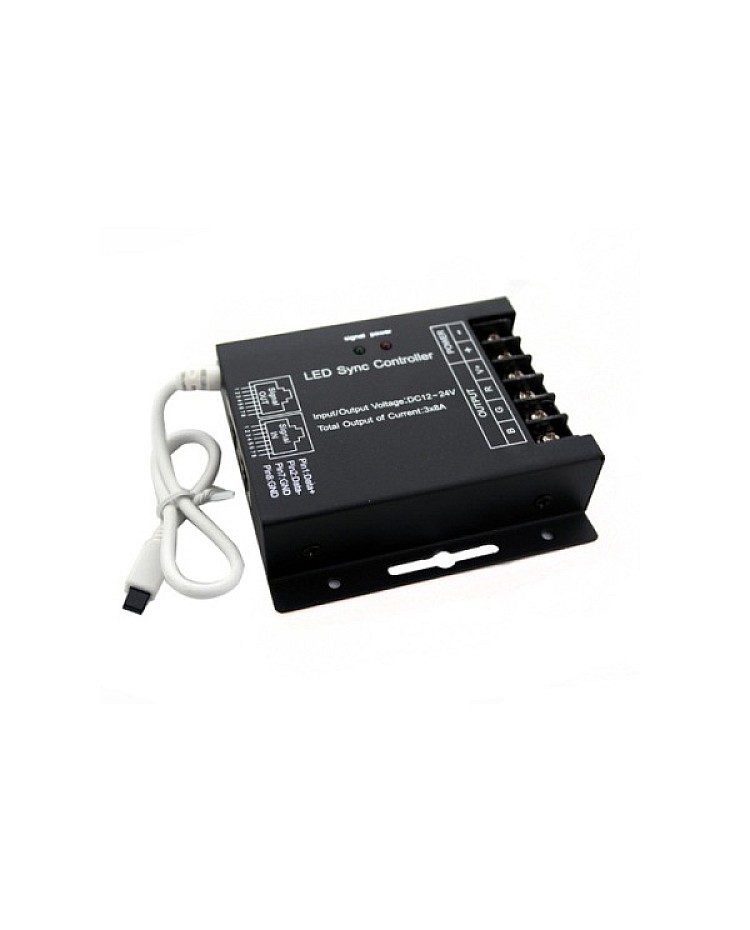

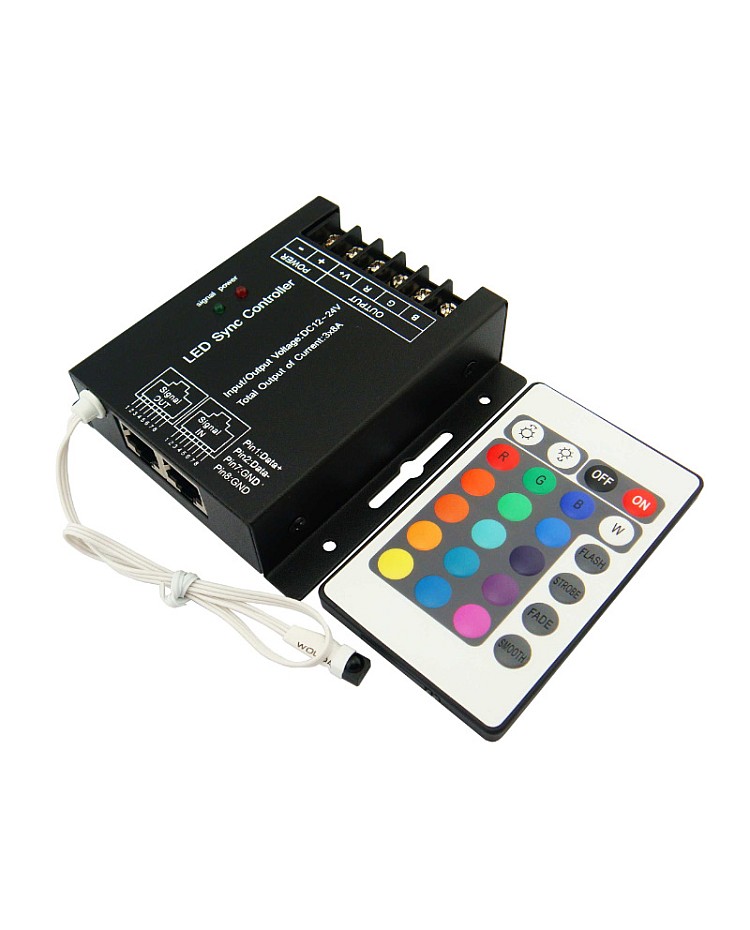

The 12V LED strip light controller with a 24-key IR remote has a metal shell for better heat dissipation. It works on DC12V or DC24V, with a common anode connecting mode, three output channels, and the maximum output current of each channel can reach 8A. It adopts the advanced micro control unit, which is suitable for all kinds of constant voltage LED lights. You can use the 24keys IR remote to adjust the brightness, static colors, and dynamic changes in lighting effects for various LED lamps, point source light, and LED modules. There are 20 modes in total, 16 static colors, and four dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable. The LED light controller has two RJ45 network cable ports for LED lights synchronization work.


Specifications:

  • Material: Metal + Plastic
  • Size: 130*64*24mm
  • Working Voltage: DC12V-DC24V
  • Output: 3 Channels
  • Max Output Current: 8A Each Channel
  • Output Power: 5V: <120W, 12: <288W, 24V: <576W
  • Connecting Mode: Common Anode
  • Static Power Consumption: <1W
  • Adopts Dual RJ45 Network Cable Ports
  • 24 Keys IR Remote Control Included
  • 20 Modes In Total, 16 Static Colors And 4 Dynamic Modes
  • Brightness Of Static Color And Speed Of Dynamic Modes Adjustable
  • 2 Years Warranty


Includes:

1 * LED Strip Light Controller

1 * 24 Keys IR Remote Control

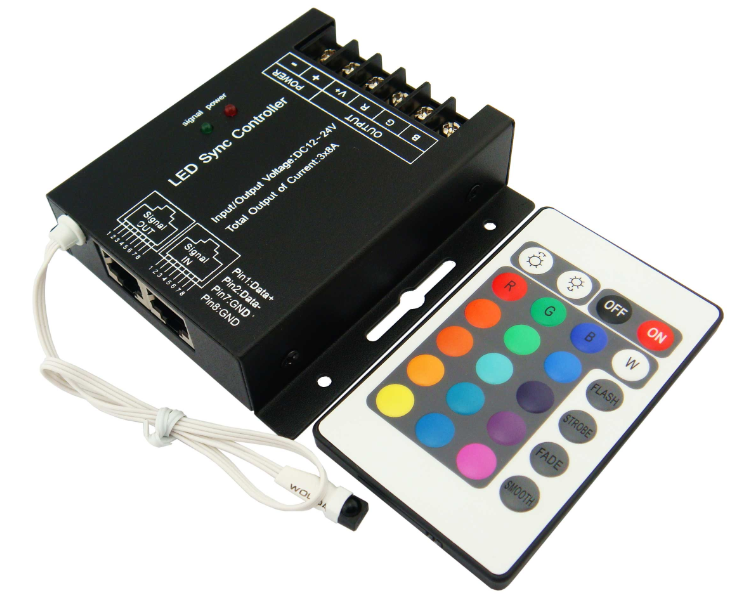

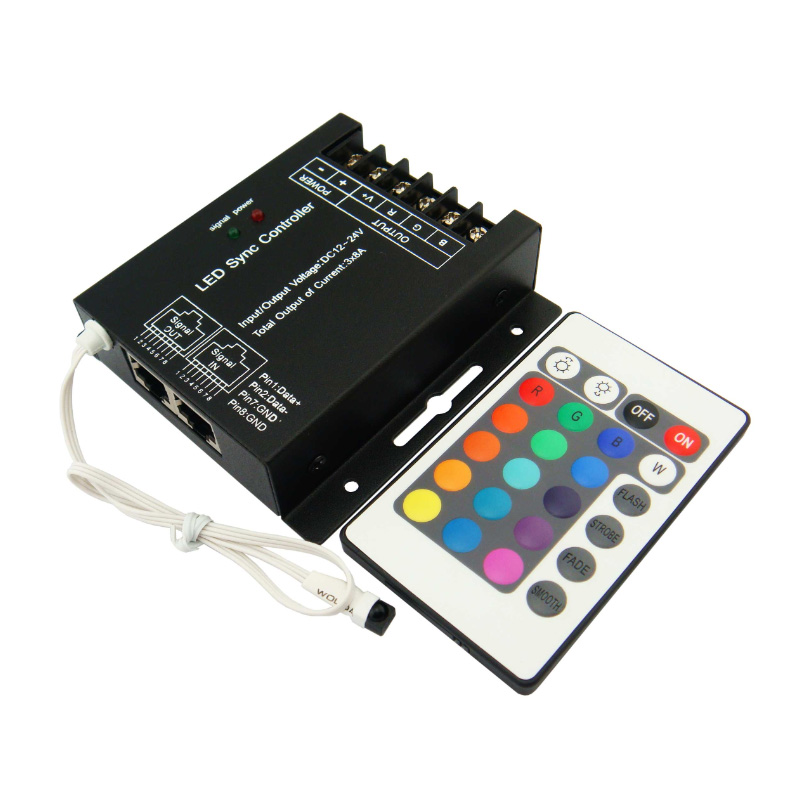

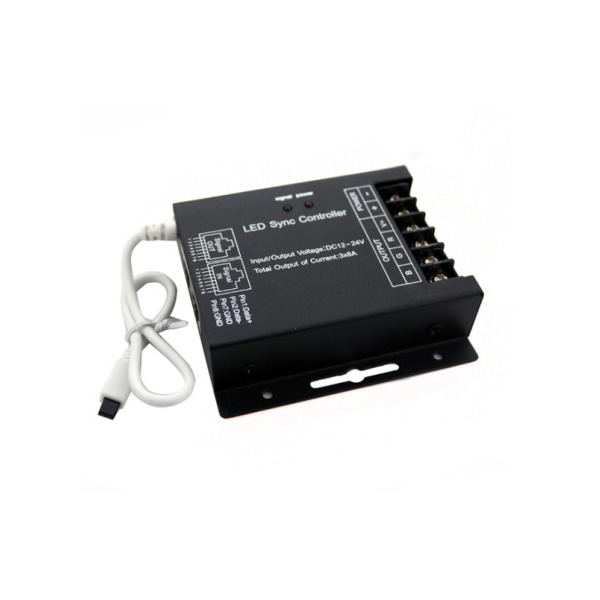

LED Strip Light Controller Review

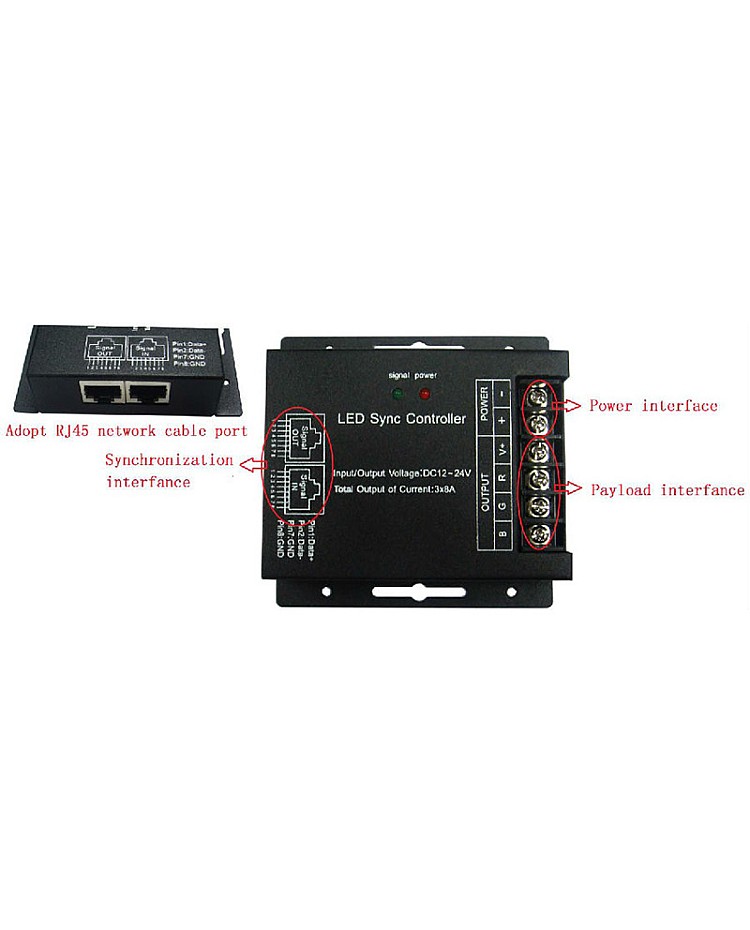

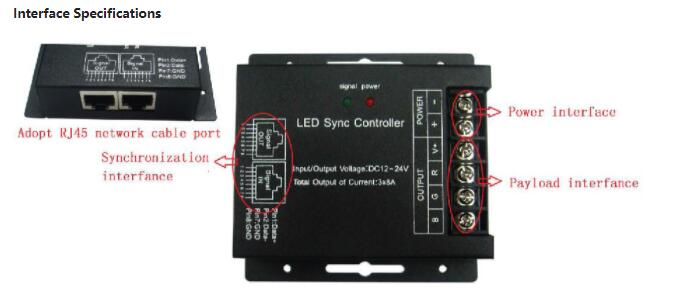

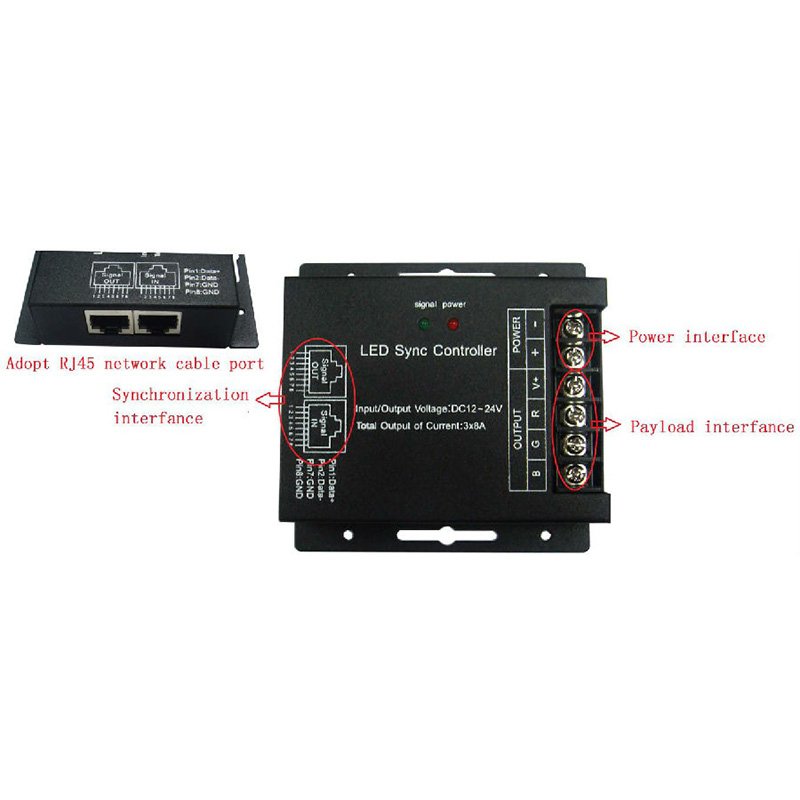

LED Strip Light Controller With RJ45 Port

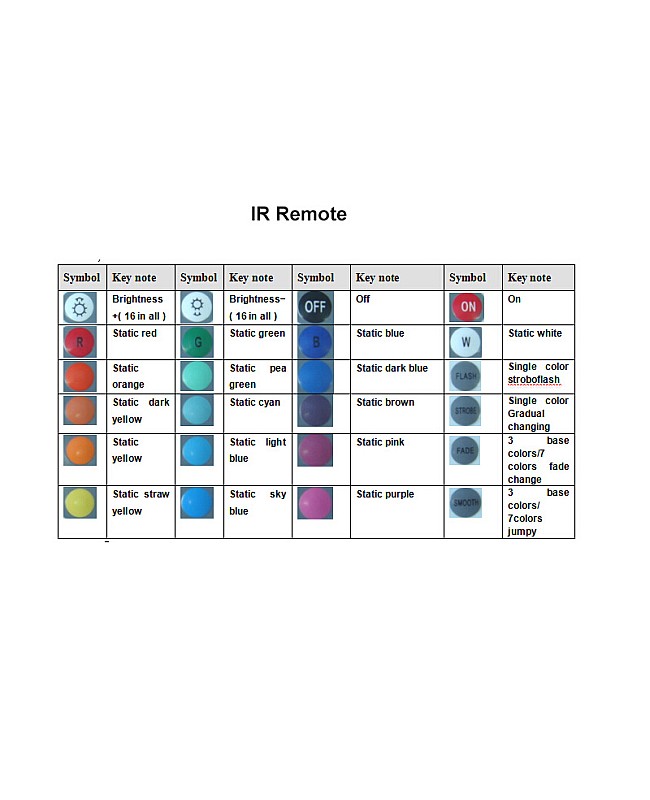

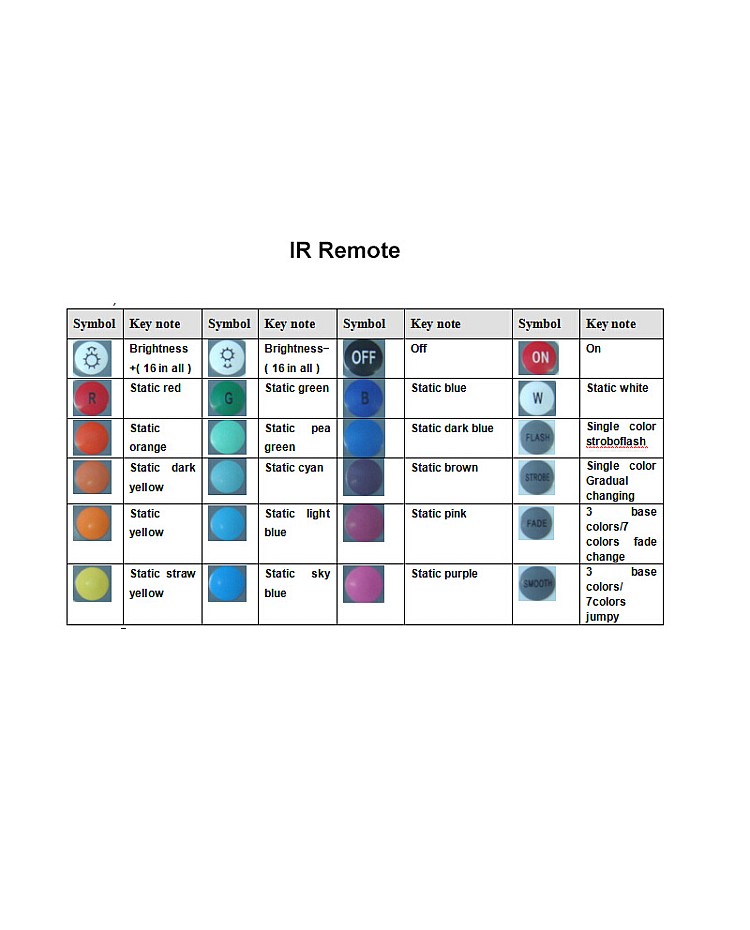

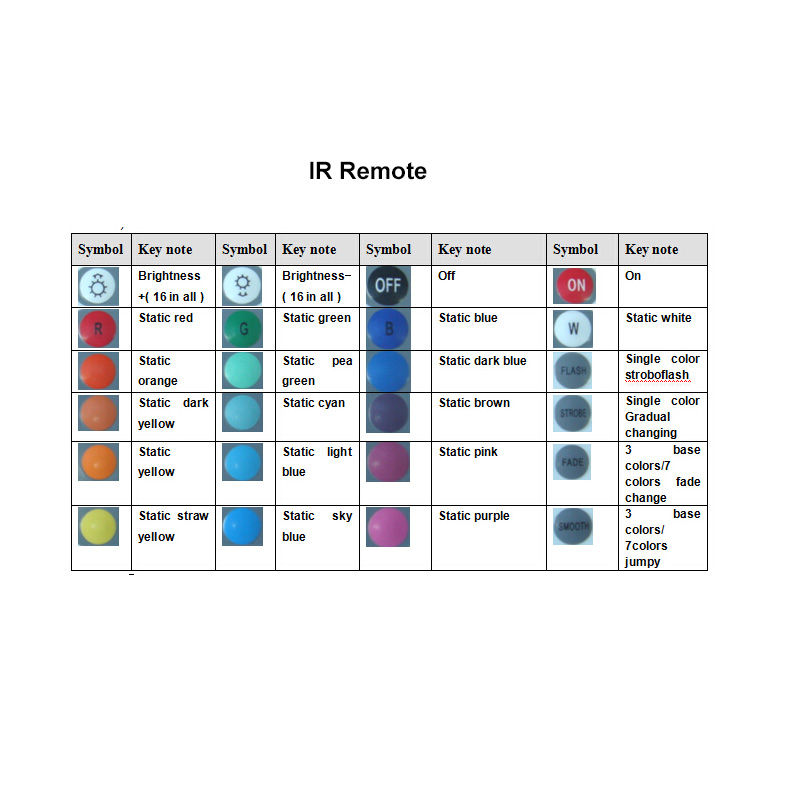

LED Light Strip Remote Function

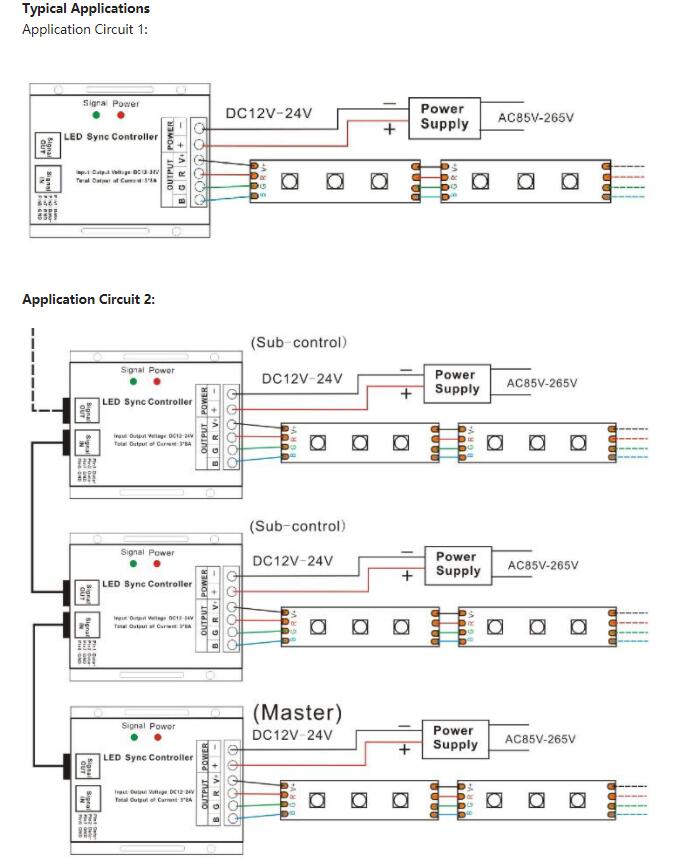

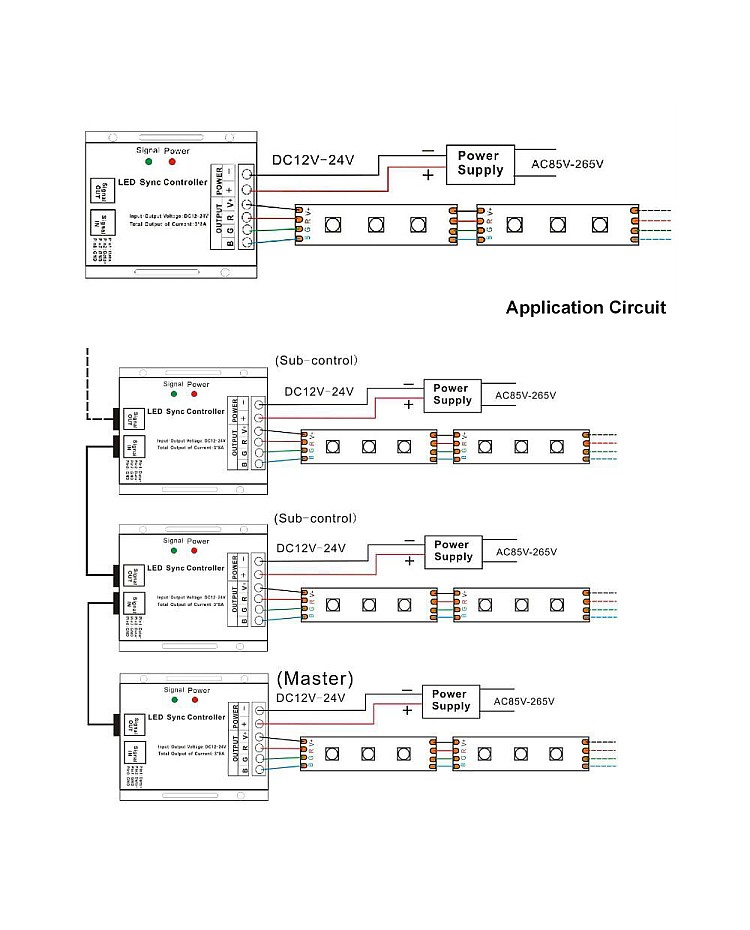

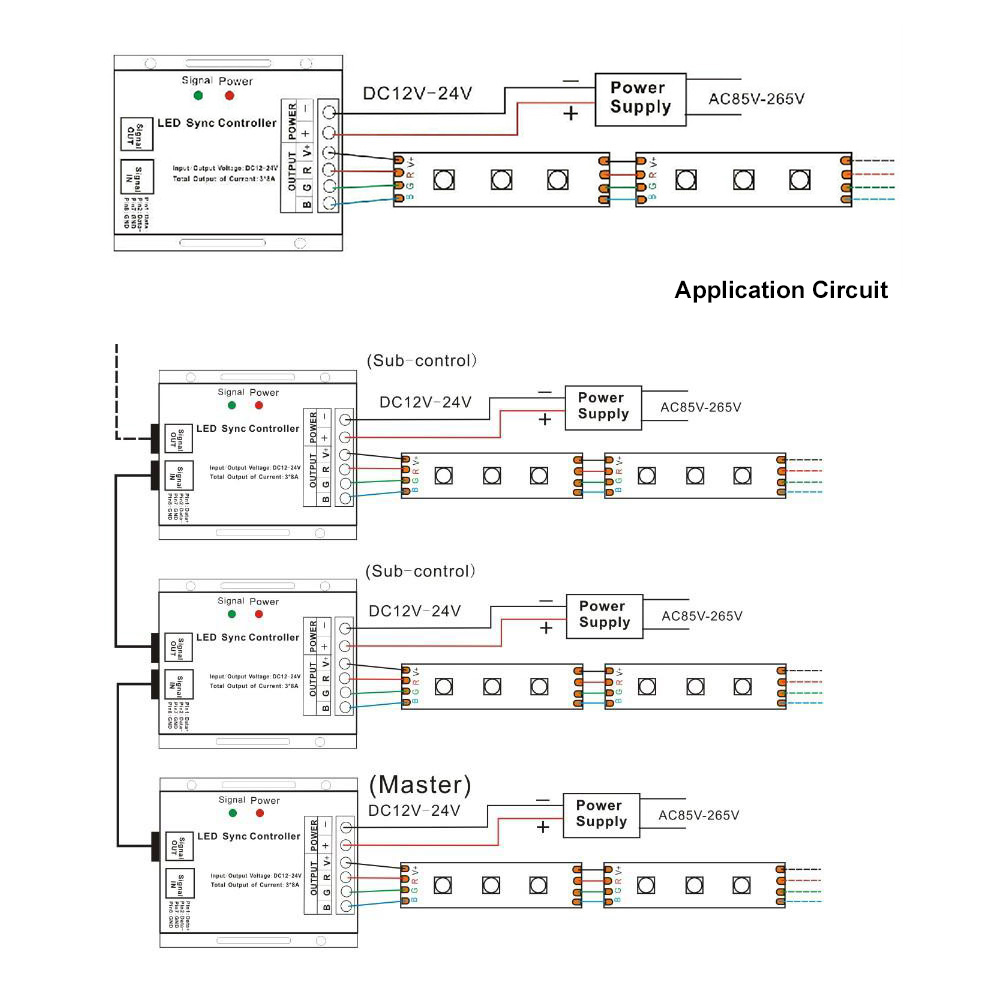

LED Strip Light Controller Application
