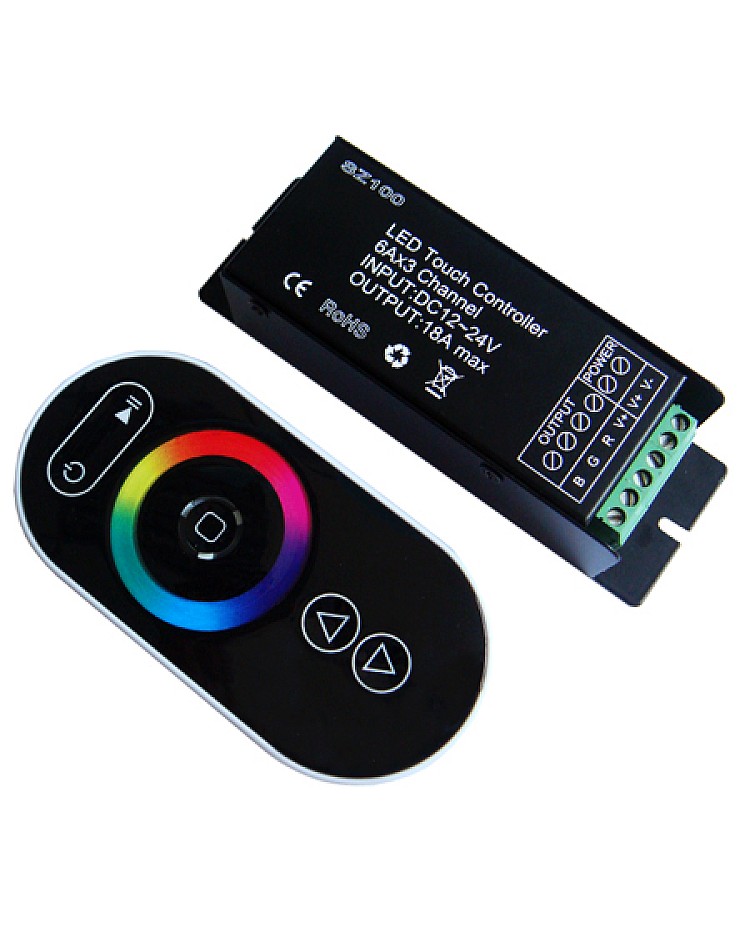

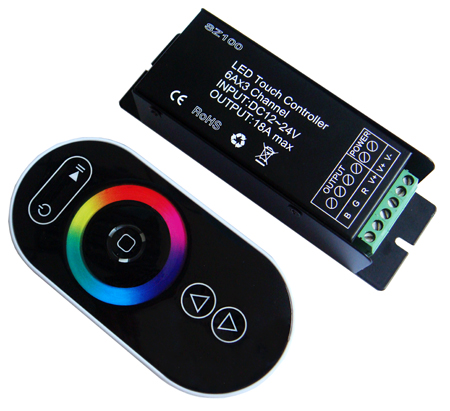

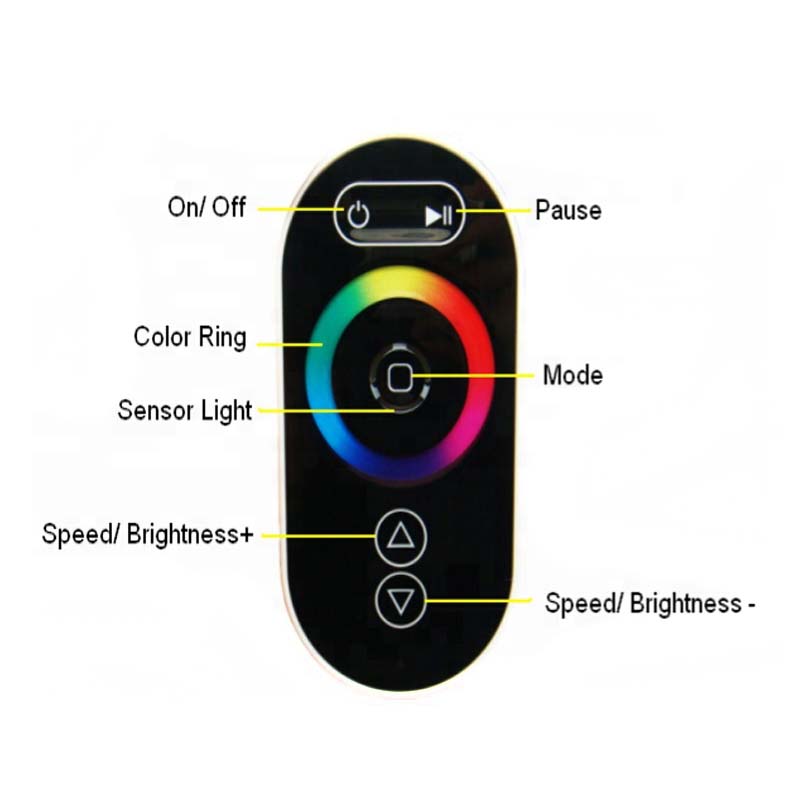

The SZ100 RGB LED touch controller adopts the advanced micro control unit, designed for controlling a variety of RGB LED lights, point source lights, LED strip lights, wall washer lamps, etc. The touch controller has a 3-output-channel design, with a max output current of up to 6A, and a max loading power of up to 432W when working in DC24V. The RF remote control with touch buttons included, which has five functions, 1 color ring, and one color sense lamp in the center, the color ring has 128 levels in different colors. A small light ring in the remote control's center shows the color when different colors are touched. There are 10 working modes, including the white static colors and 9 dynamic modes. The speed of static colors' brightness and dynamic modes is adjustable. It works with the RGB amplifiers so that you can achieve the synchronization of more RGB LED lights.
Specifications:
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Supply Voltage: DC12V~24V
- Connecting Mode: Common Anode
- Output: 3 Channels
- Output Current: <6A(Each Channel)
- Output Power: 12V: ＜216W; 24V: ＜432W
- Output Gray: 256 Levels ( RGB each）
- Frequency Of RF Remote Control: 433.92MHz
- Weight: 340g

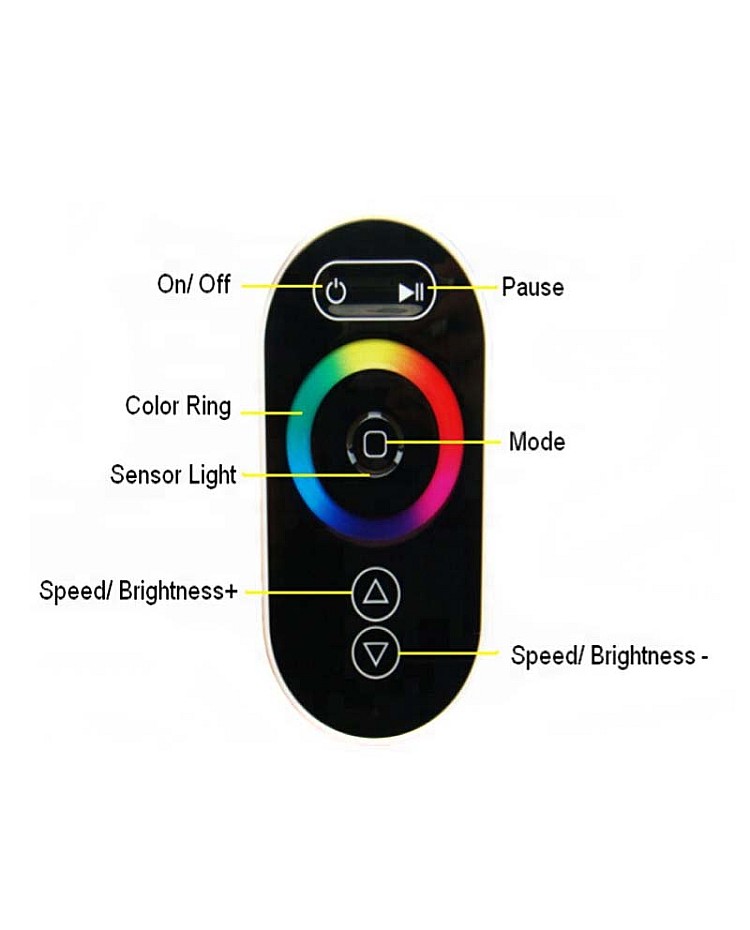

- 5 Functions, 1 Color Ring, And 1 Color Sense Lamp Touch Remote Control Included
- 10 Working Modes In Total, White Static Color, And 9 Dynamic Modes
- Brightness Of Static Colors And Speed Of Dynamic Modes Are Adjustable

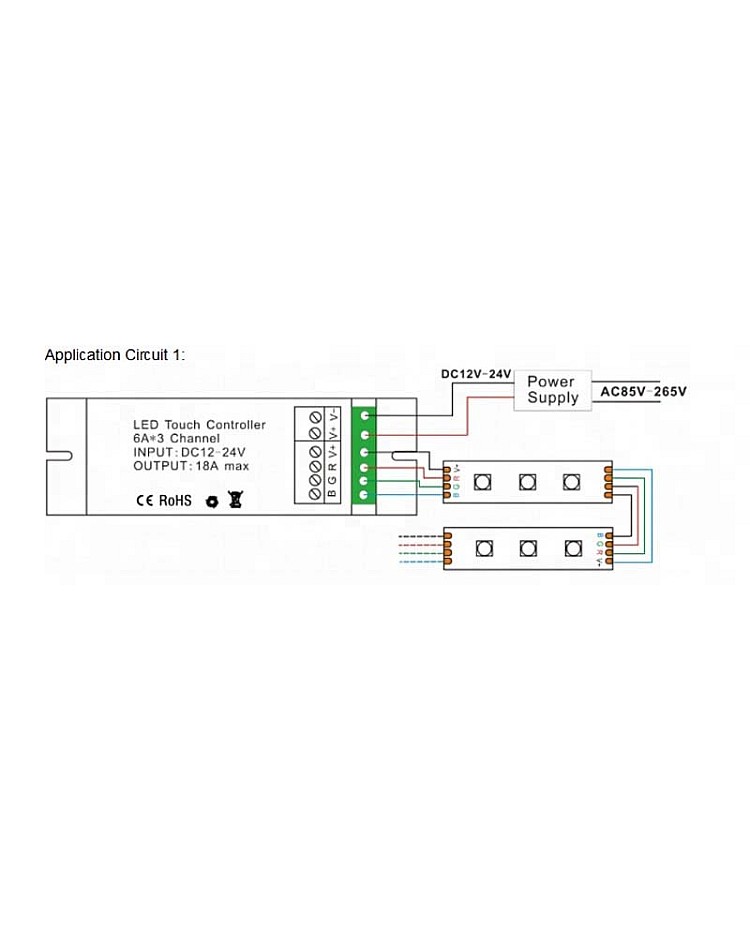

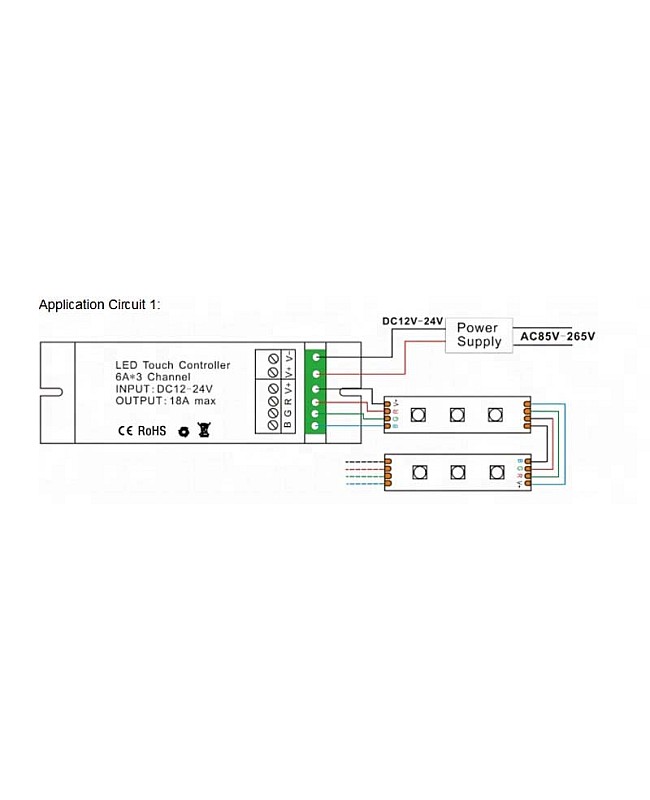

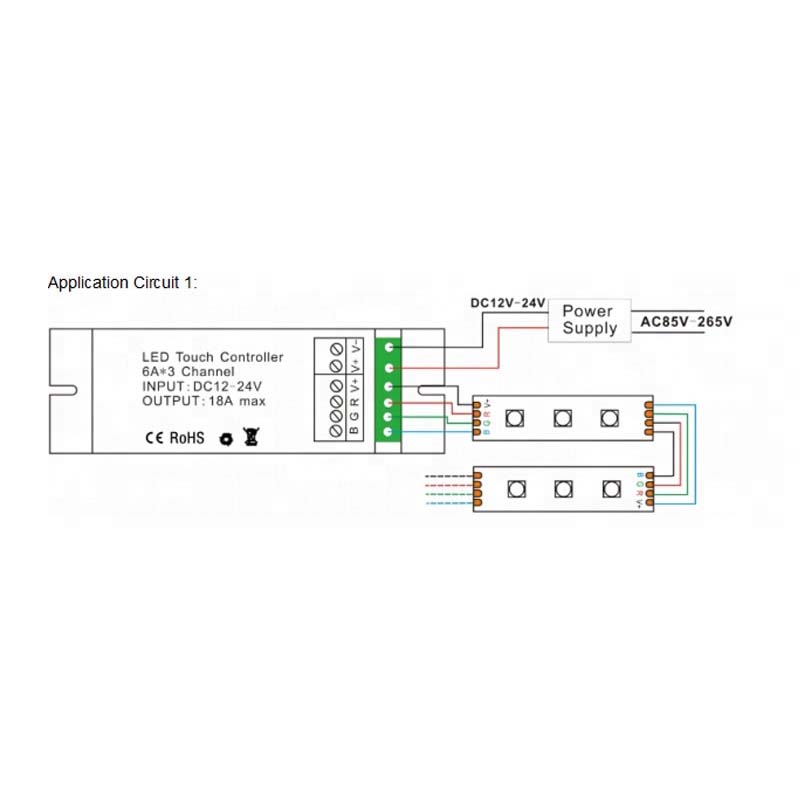

- Can Work With RGB Amplifiers To Achieve The Synchronization Of More LED Lights
- 2 Years Warranty
Package:
1 * LED Light Controller
1 * Touch Remote Control
