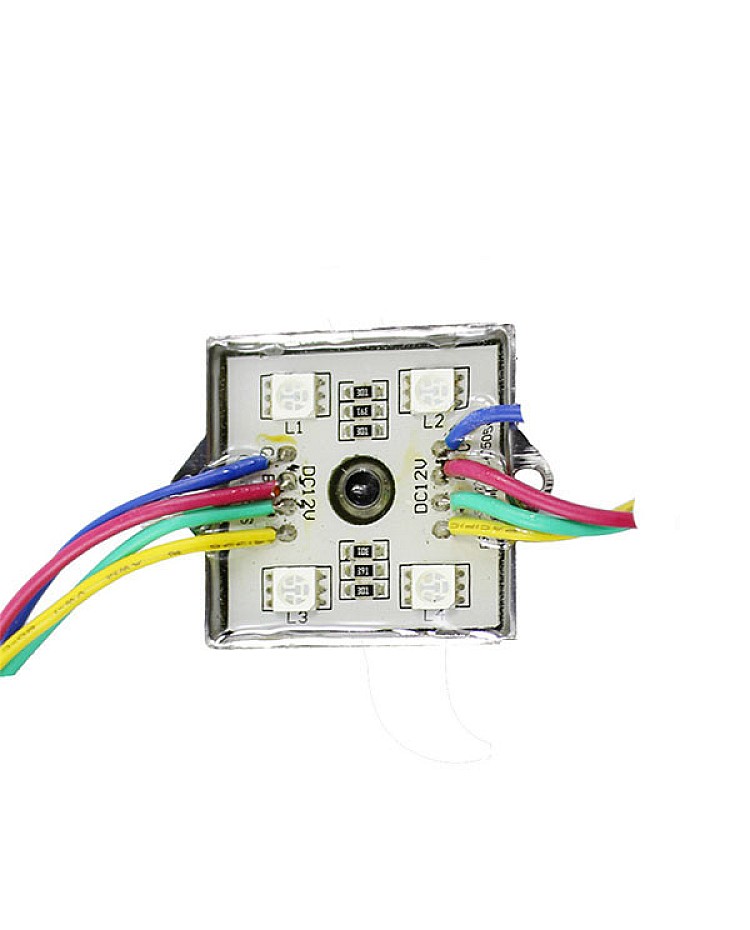

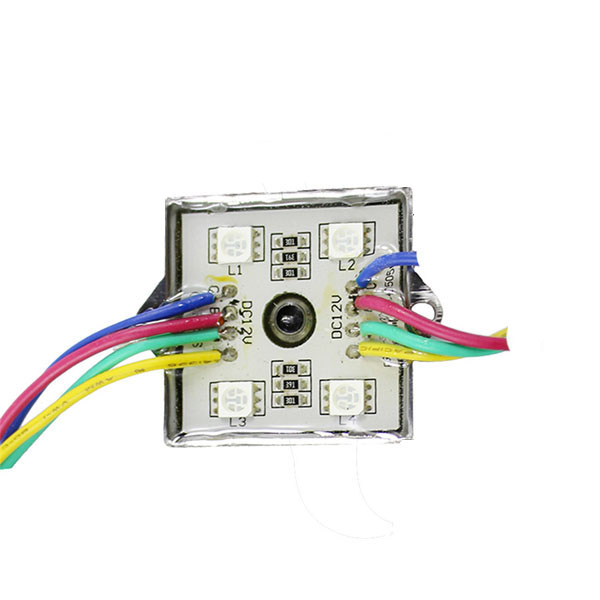

Check the RGB 5050 LED Modules with metal shell, which uses the 4PCS 5050 SMD LEDs as the light source, the LEDs mounted on the aluminum board and in the metal shell for the better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications. the RGB 5050 LED Modules are 20PCS per string, cuttable and reconnectable, you can cut to any quantity for your project and reconnect them. the RGB LED Modules working in DC12V, easy to connect to the LED Driver and RGB Controller to light up or adjust the static colors or the dynamic modes. the back with double side adhesive tape, take off the protector on the tape and stick on the place you want to install. the center of the metal shell with the screw hole, you also can use the crews to fix them on the surface of your lighting projects. the RGB LED Light Moduls widely used for holiday decorations, backlight for the channel letters, signs, billboards, etc.


Features:

  • Item NO: TY-5050-M006
  • Manufacturer: TYoung

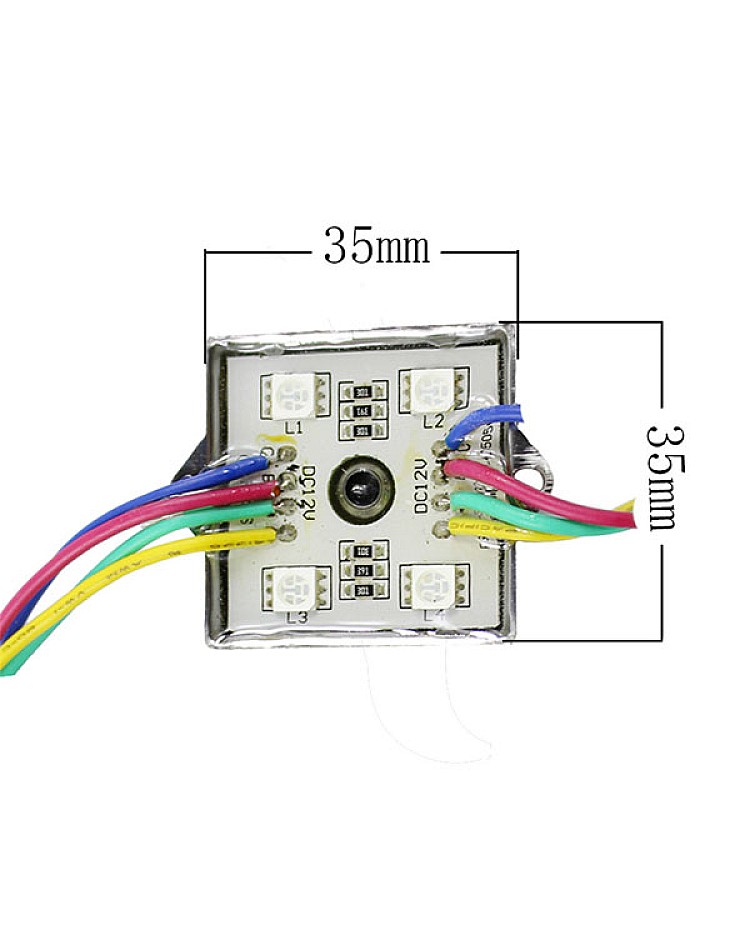

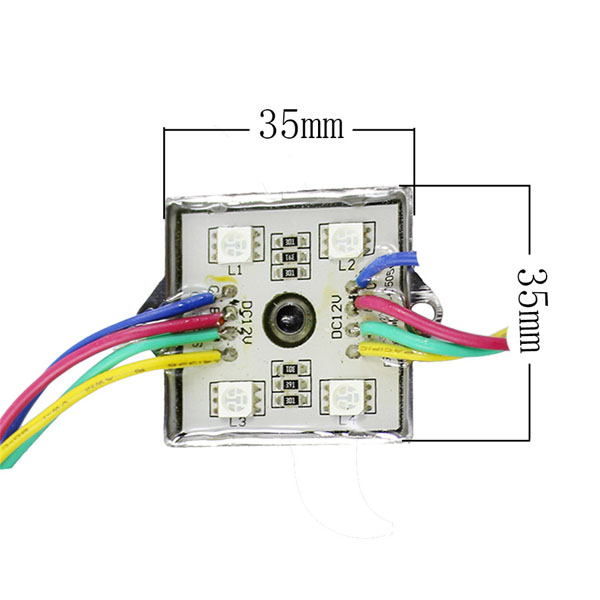

  • Size: 35*35mm(L*W)
  • Color: RGB
  • LED: 5050 SMD LEDs
  • LED Quantity: 4PCS/PC
  • Voltage: DC12V
  • Power: 0.96W/PC
  • IP Rating: IP65
  • Luminous Flux: 60-75lm/PC
  • Wave Length: Red(619-635nm), Green(512-528nm), Blue(463-475nm)
  • Beam Angle: 120°
  • Back With Double Side Adhesive Tape
  • The Center Of The Metal Shell With Screw Hole
  • Dimmable: YES
  • Color-Changing: YES
  • LED Driver And LED Controller Sold Separately
  • Cuttable And Reconnectable
  • Weight: 15g
  • Certificate: CE, ROHS
  • Lifespan: 35000-50000hours


Package:

1*RGB 5050 LED Modules(20PCS/String)


Applications:

Outdoor/Indoor Use,Cove Lighting

Path and contour lighting

Backlight for signage/ letters

Architectural lights for Canopy, Corridor, Window, Archways

DIY Lights for home use

Marine light, Task lighting

Replacement of Fluorescent light

Decorative lights for holiday, event, show, exhibition
