In Stock
$10.99
Reward Points: 11
-
+
  • Brand: Ledbe
  • Product Code: HX-SZ200(0-10V)

The 12V PWM LED dimm controller works between DC12V and DC24V, adopts the advanced micro control unit, and can receive the 0- 10V analog control signal widely used internationally. It will change the signal into the PWM control signal to actuate the LED lamp. Dimming ranges from 0-100%, stable and soft. We recommend working with our LED amplifier to achieve all units' work synchronization. Recommend works with knob wall panel LED dimmer to adjust the brightness.


Specifications:

  • Working Temperature: -20-60℃
  • Size: 127*42*33mm(L*W*H)
  • Working Voltage: DC12V-24V
  • Output: 1 Channel
  • Output Gray: 4096 Levels
  • Output Current: <25A
  • Control Standard: 0- 10V Analog Signal
  • Dimming Range: 0-100%
  • PWM Frequency: 2 KHz
  • 0- 10V Signal Consumption: <0.1A
  • Weight: 170g
  • 2 Years Warranty


Includes:

1 * LED Dimming Controller

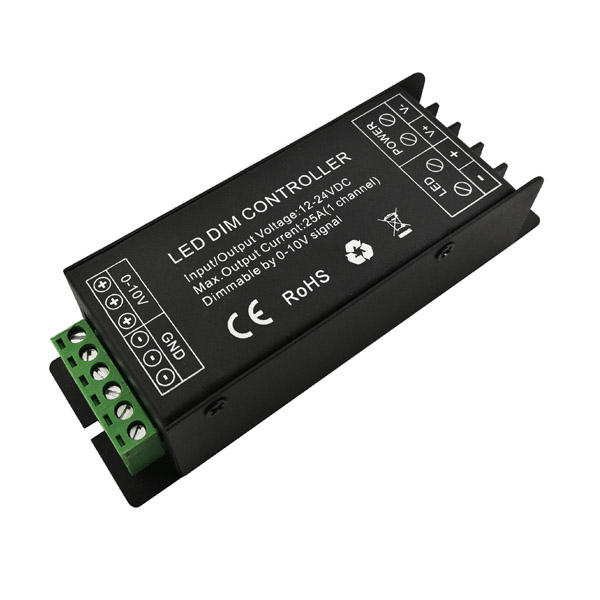

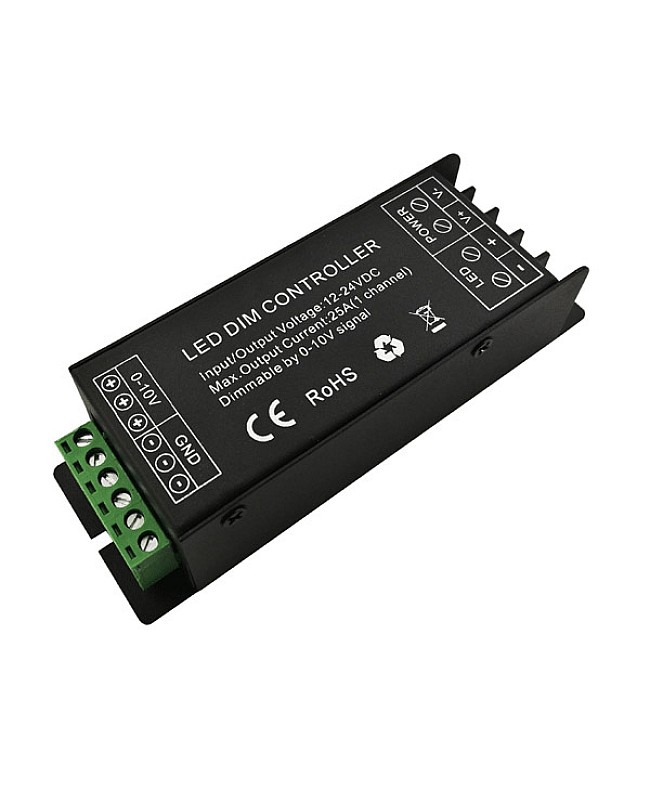

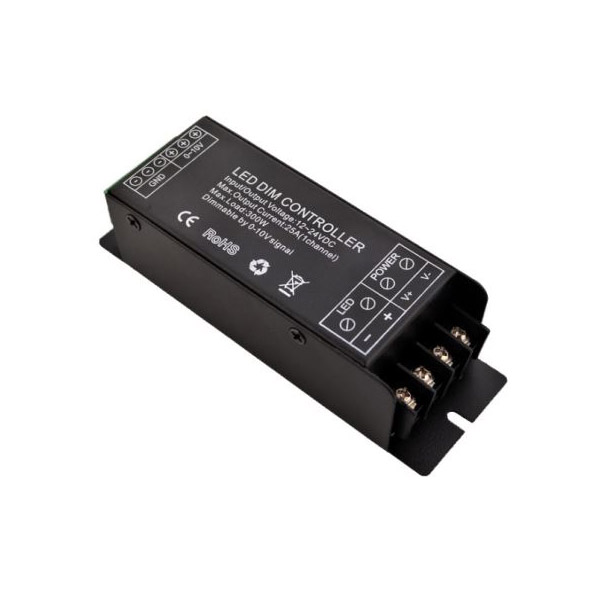

PWM LED Dimm Controller

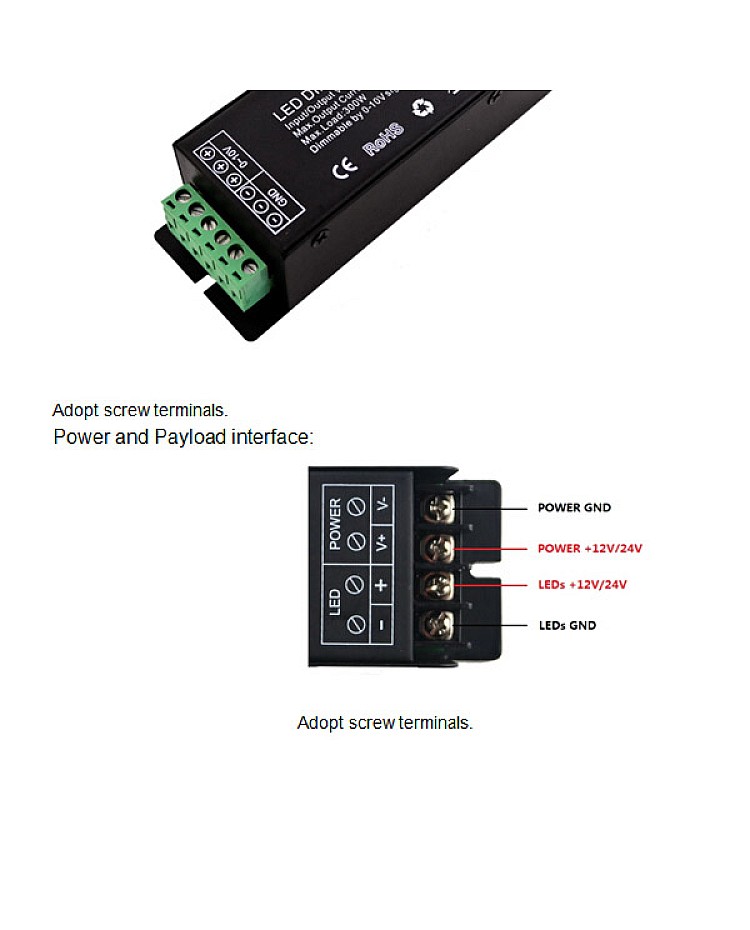

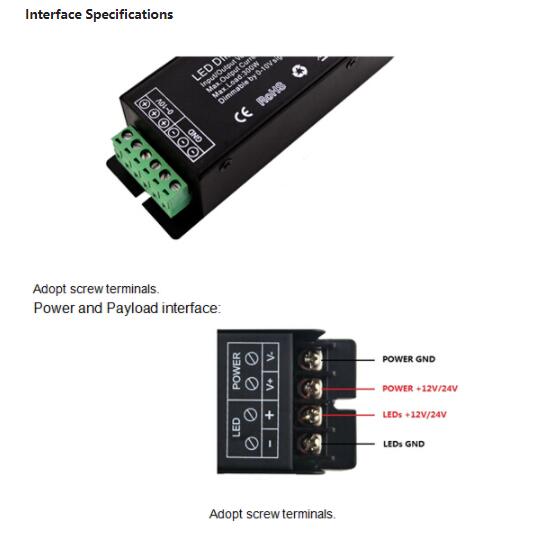

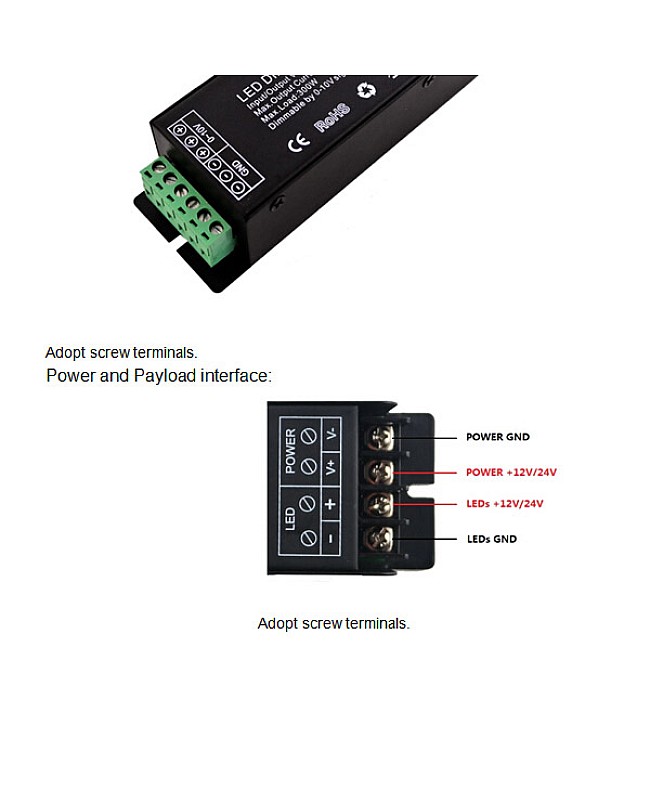

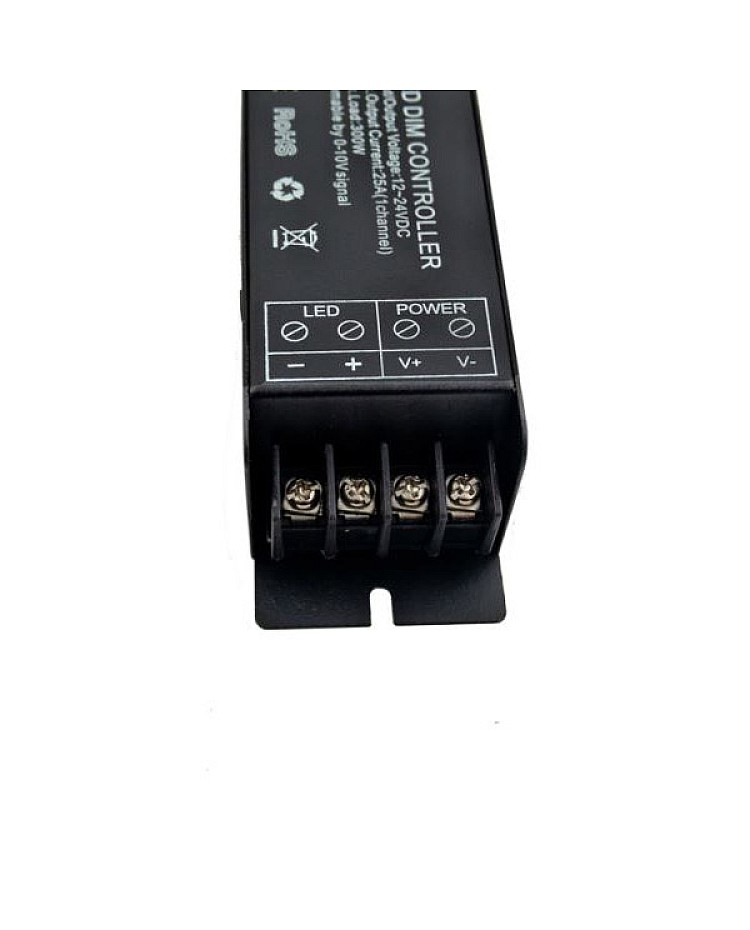

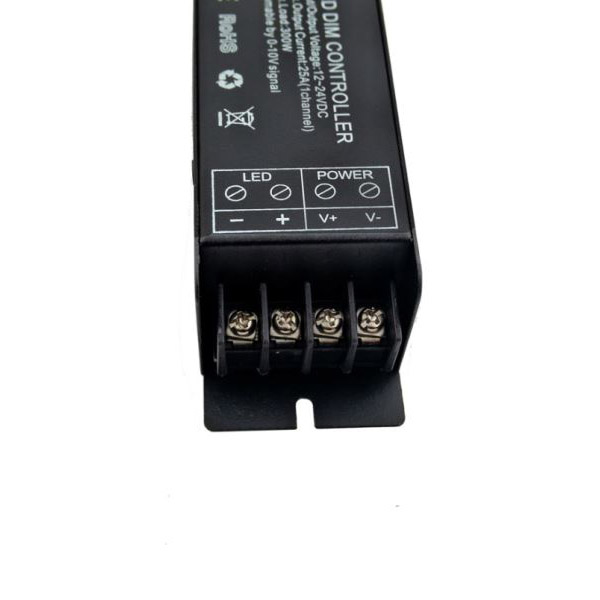

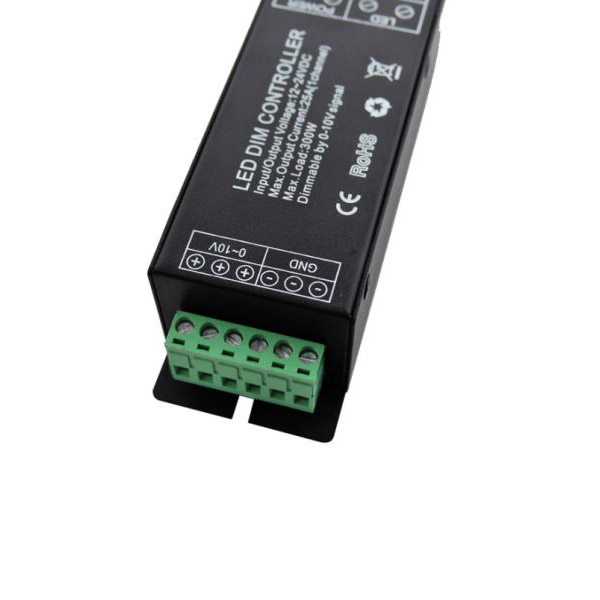

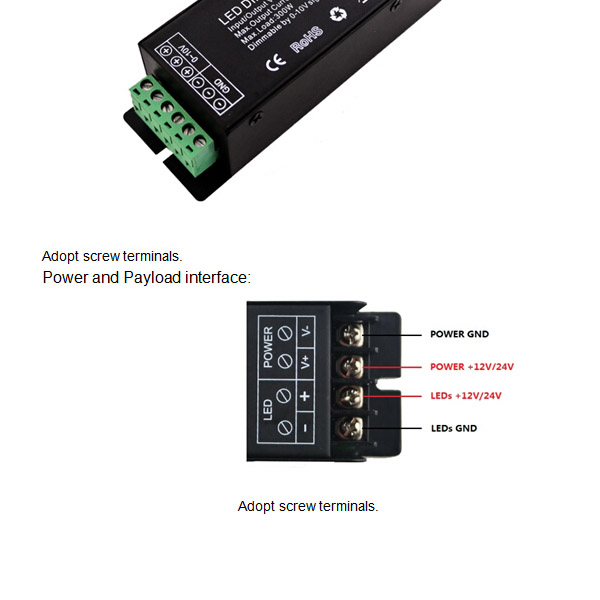

PWM LED Dimmer Interface

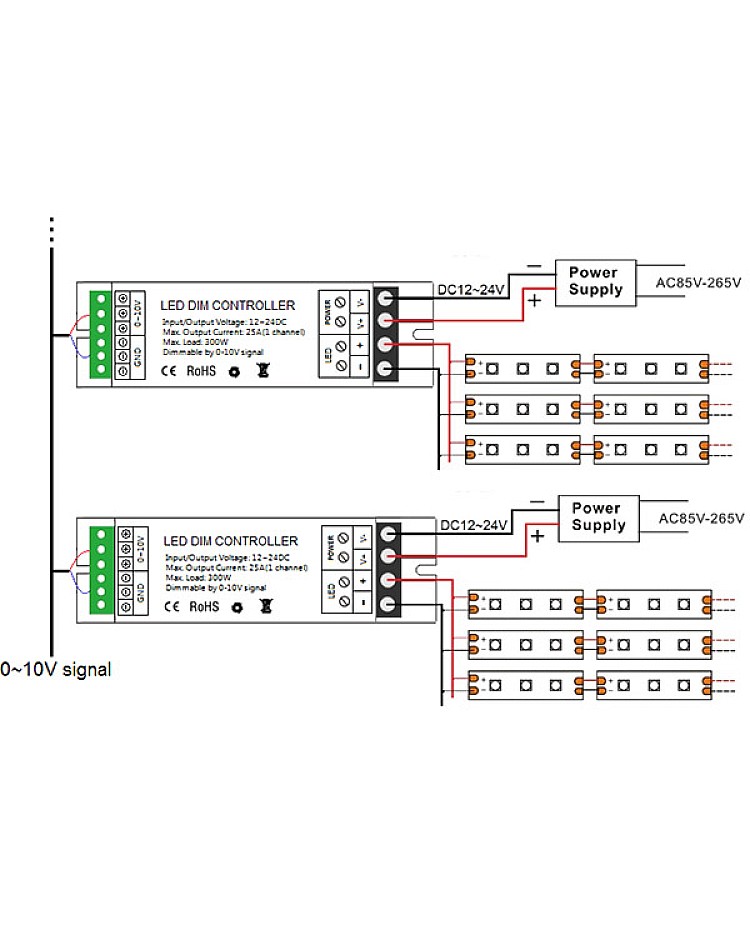

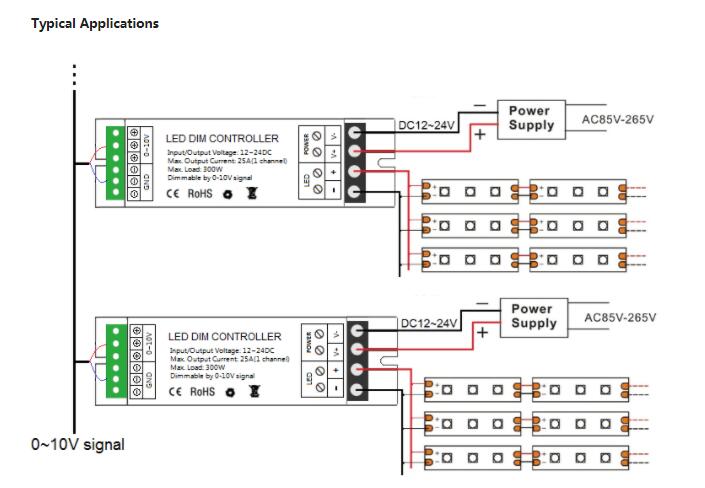

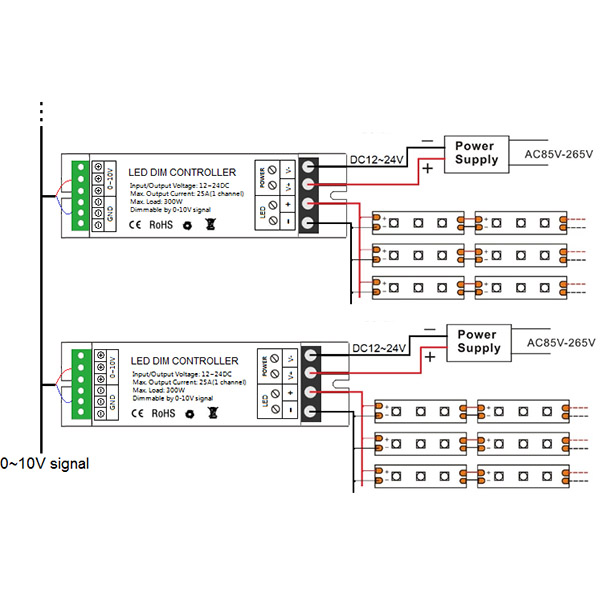

PWM LED Dimmer Application
