In Stock
$1.99
Reward Points: 2
-
+
  • Brand: Ledbe
  • Product Code: TY-L-D-08

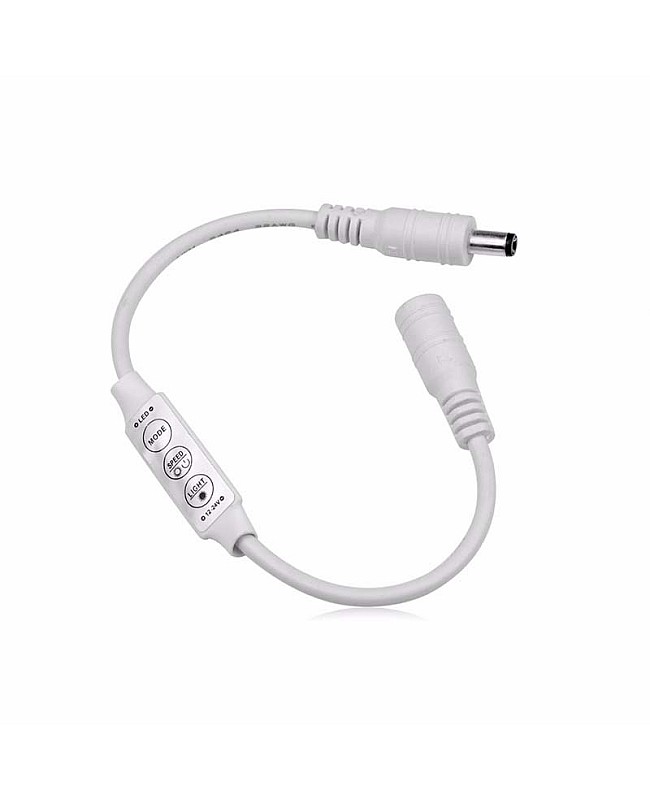

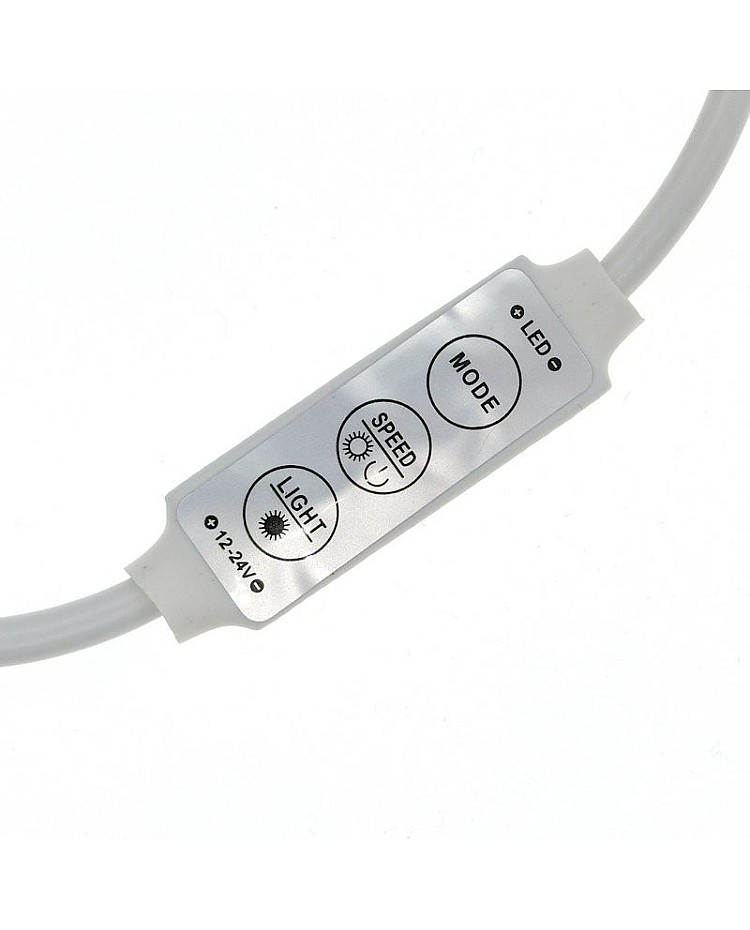

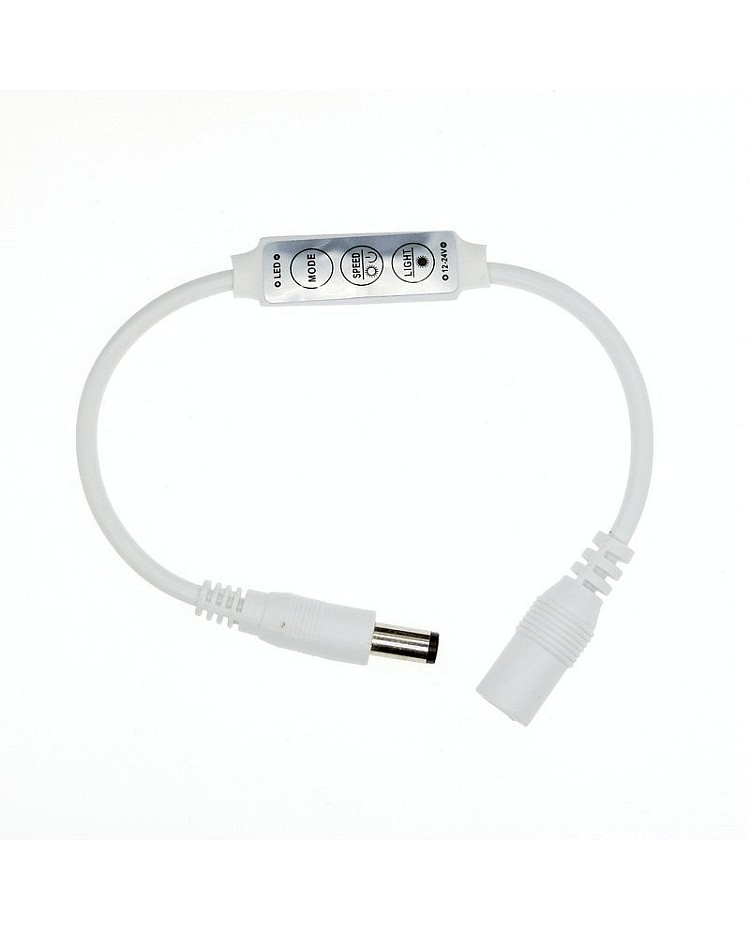

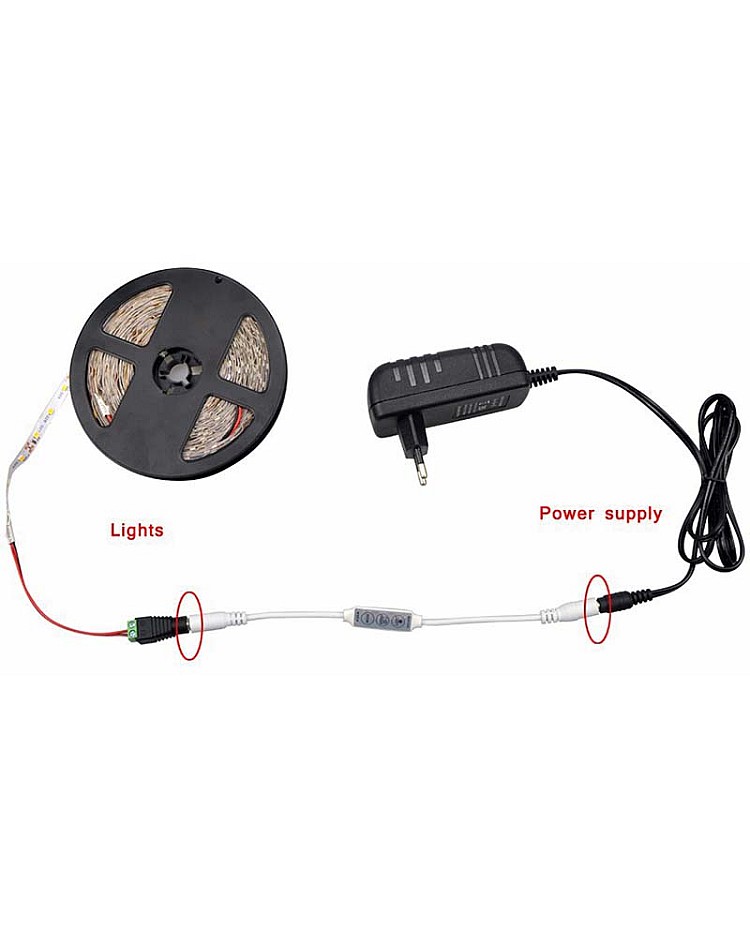

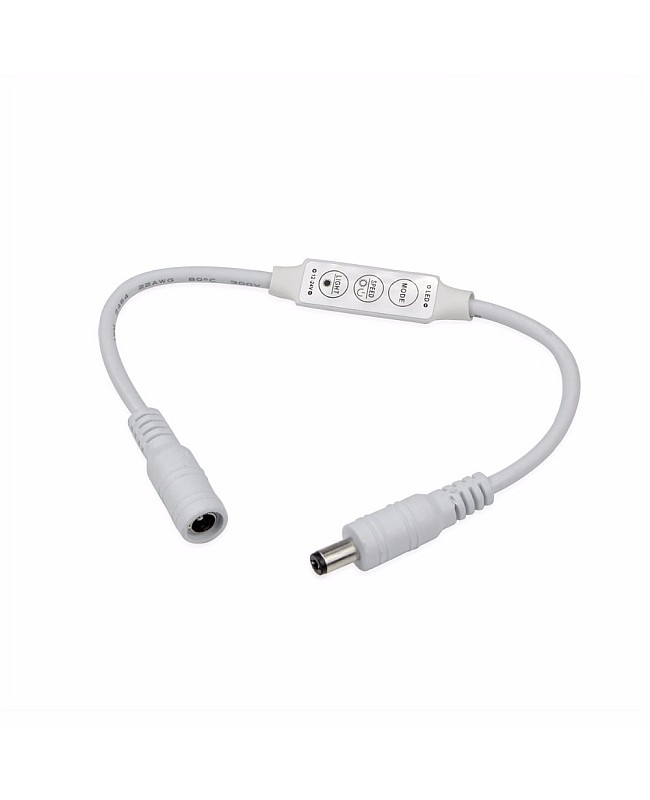

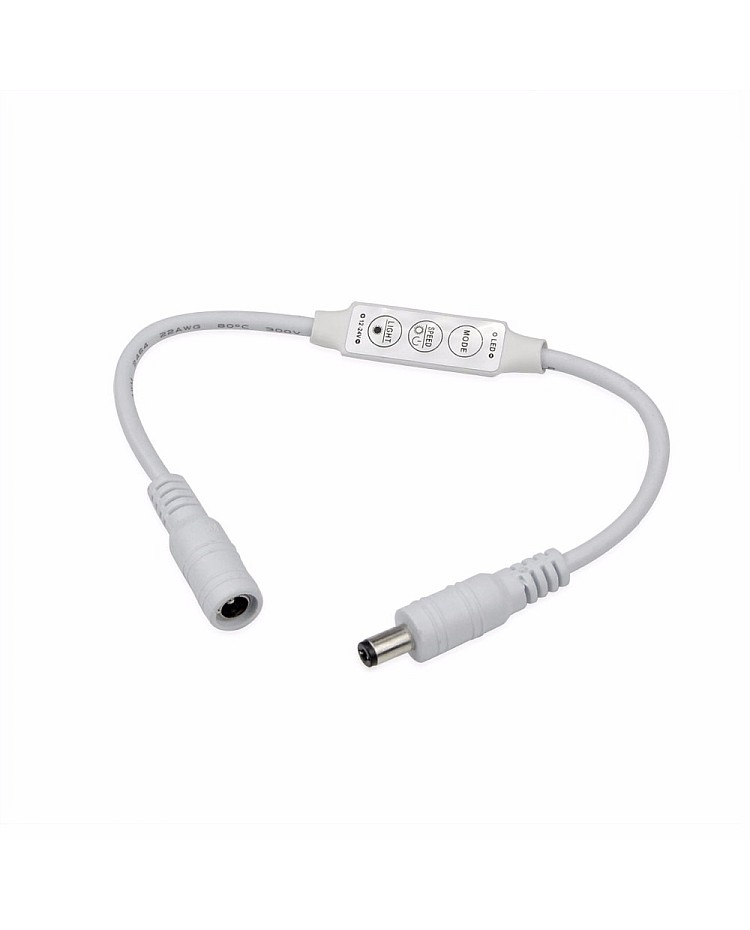

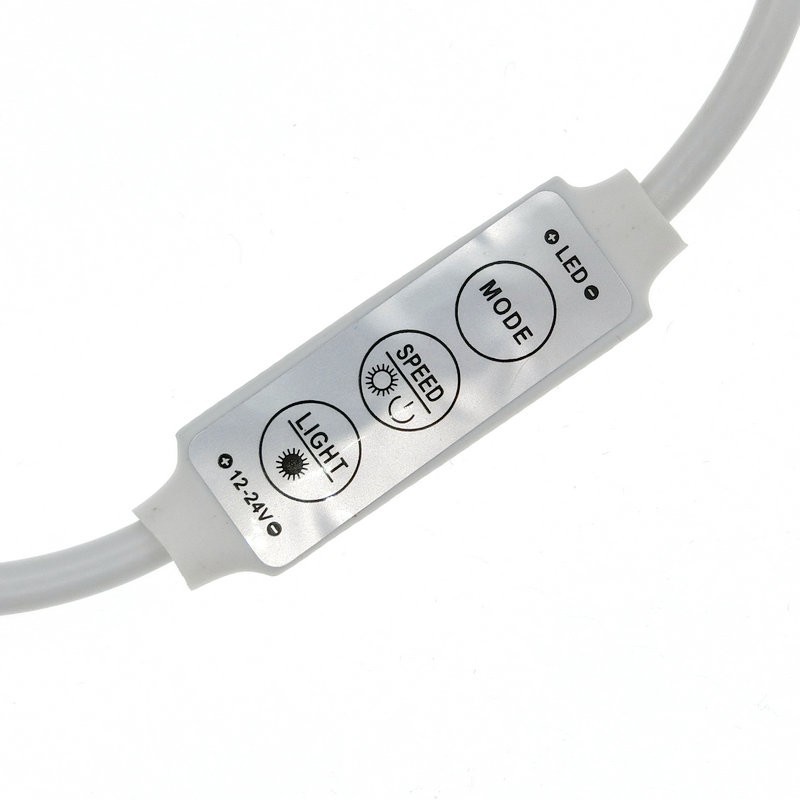

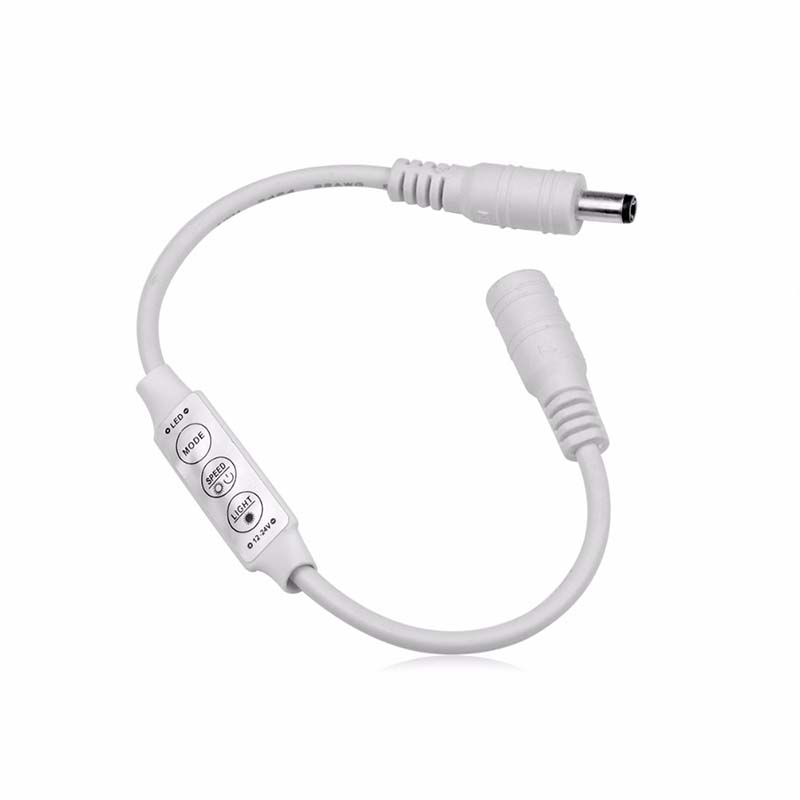

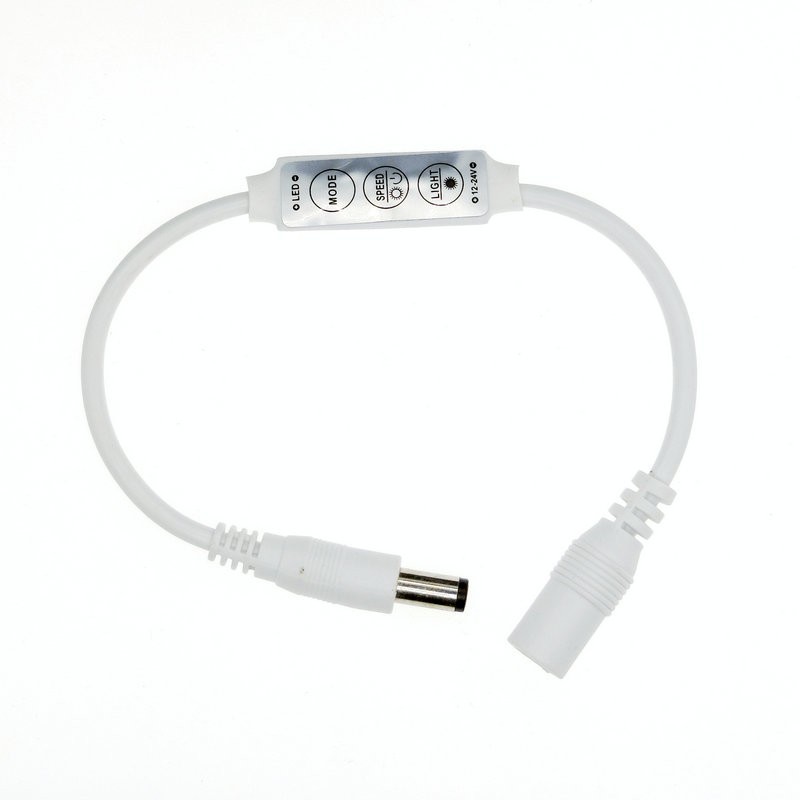

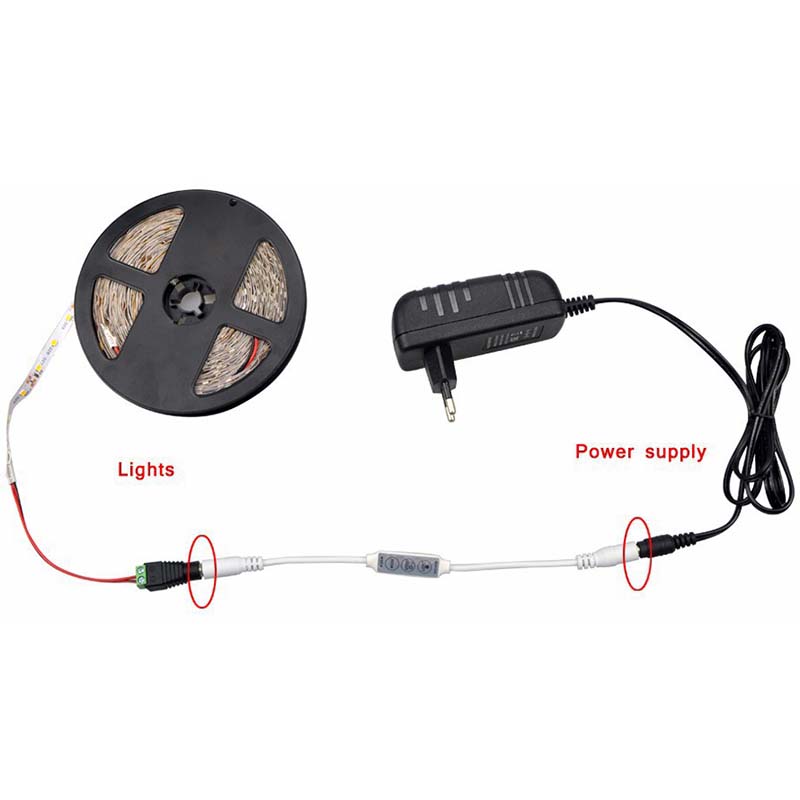

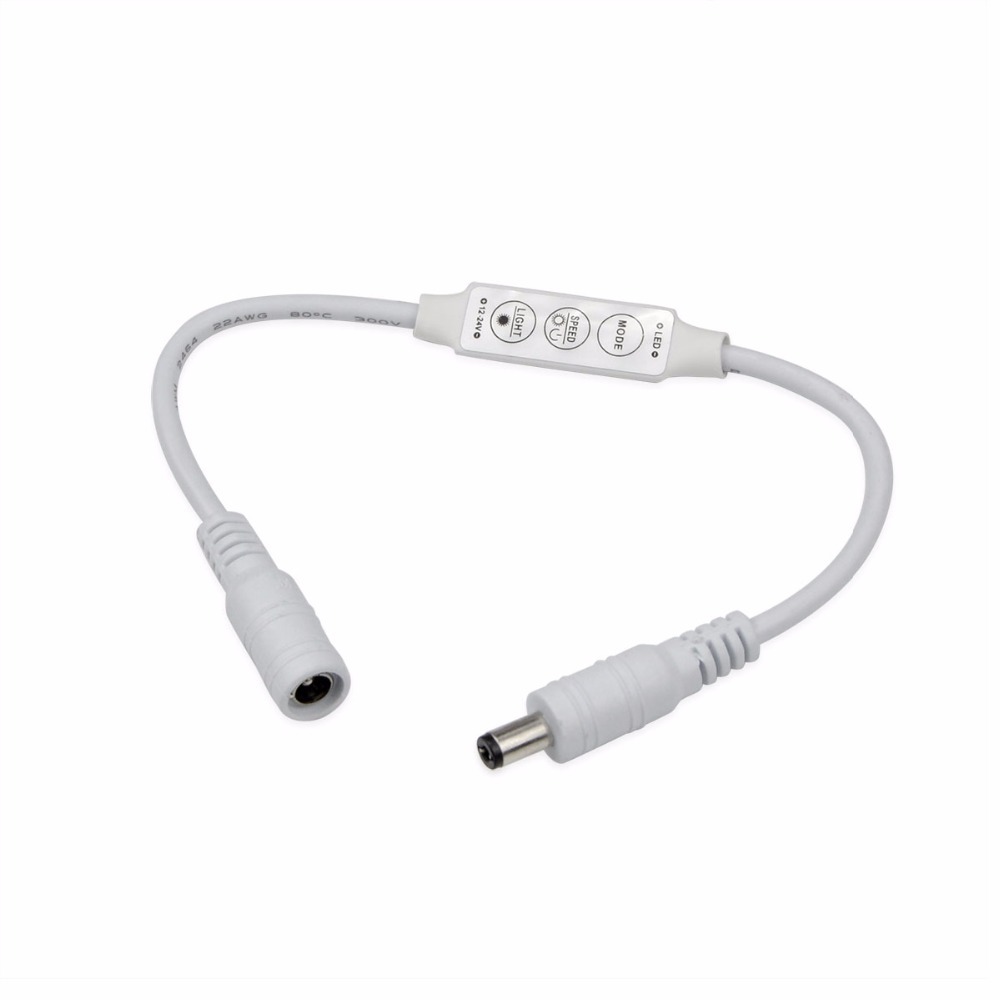

With a one-output-channel design, the LED mini dimmer with male and female DC connectors works with single-color LED strips. The max output current is 6A, which can work in DC12V or DC24V. In DC12V, the max output is 72W; in DC24V, the max output is 144W. The Inline LED dimmer has 3 buttons: mode, light, and speed buttons, 10 levels of brightness adjustable for static colors, and 10 speeds adjustable for 8 dynamic modes. The single-color mini LED dimmer is small in size and compact in structure, making it ideal for use in narrow spaces. It comes with female and male DC Connectors, making connecting to the LED power supply and strips easy.


Specifications:

  • Item NO: TY-L-D-08
  • Manufacturer: TYoung
  • Working Temperature: -20-60℃
  • Size: 40*12*5mm(L*W*H)
  • Connecting Mode: Common Anode
  • Static Power Consumption: <1W
  • Working Voltage: DC12V-DC24V
  • Output Channel: 1
  • Max Output Current: 6A
  • Max Output Power: DC12V: <72W; DC24V: <144W
  • Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
  • Weight: 20g


Package:

1 * LED Mini Dimmer
