Out Of Stock
  • Brand: Ledbe
  • Product Code: TY-L-D-11

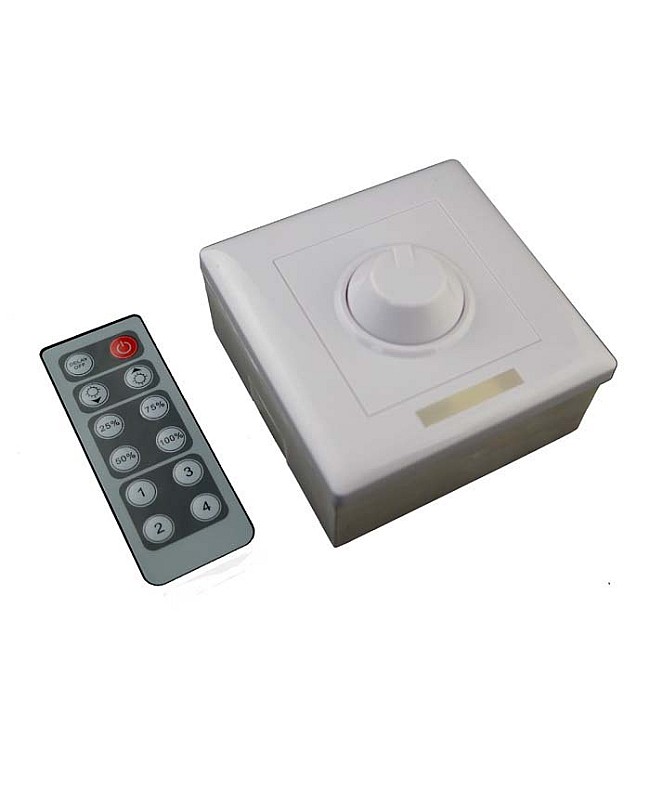

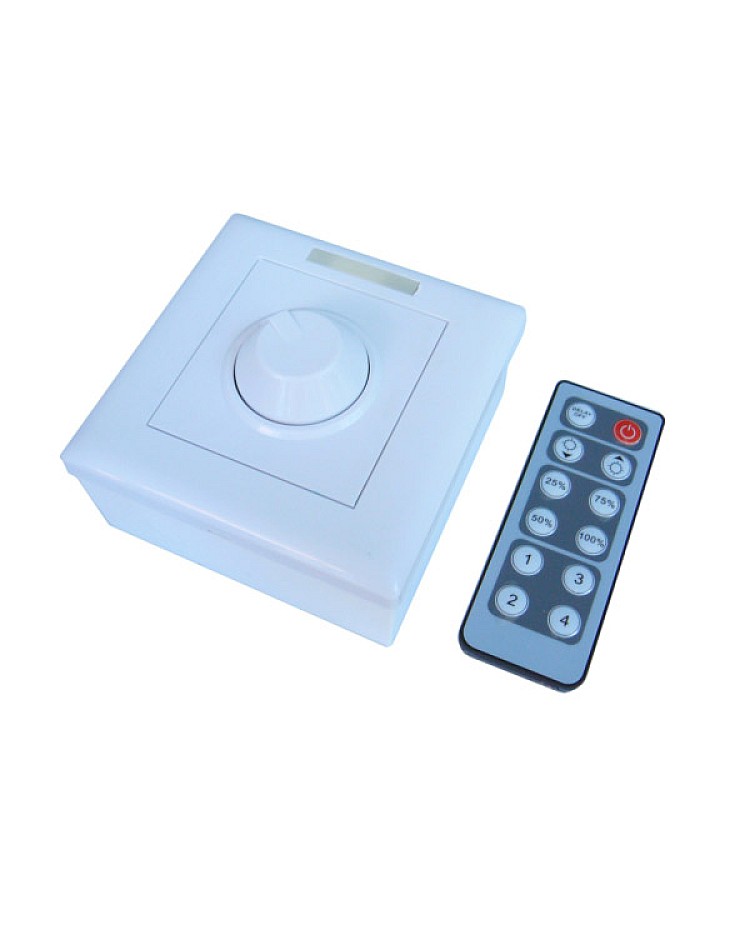

IR LED dimmer, working in DC12V, one output channel, max output current 8A, adopt the advanced PWM digital dimming technology, can manually adjust the brightness of LED lights. the LED Single Color Dimmer comes with 12keys IR remote, standards for commercial or home low 86-type switch socket box installation, LED dimmer switches can be installed to meet the needs of commercial or home lighting in different time and environments, can be used to control a variety LED lamps, point LED light, LED modules, LED strip light, through the infrared remote control and the knob of dimmer to adjust the brightness, gray level max 256.



  • Size: 87*87*53mm(L*W*H)
  • Working Temperature: -20-60℃
  • Working Voltage: DC12V-24V
  • 1 Output Channel
  • Output Current: <6A
  • Output Power:<30W(12V), <72W(12V), 144W(24V)
  • Static Power Consumption:<1W
  • 12Keys Remote Control
  • 256 Gray Level
  • Dimming Range: 0%-100%
  • Weight: 300g
  • 2 Years Warranty

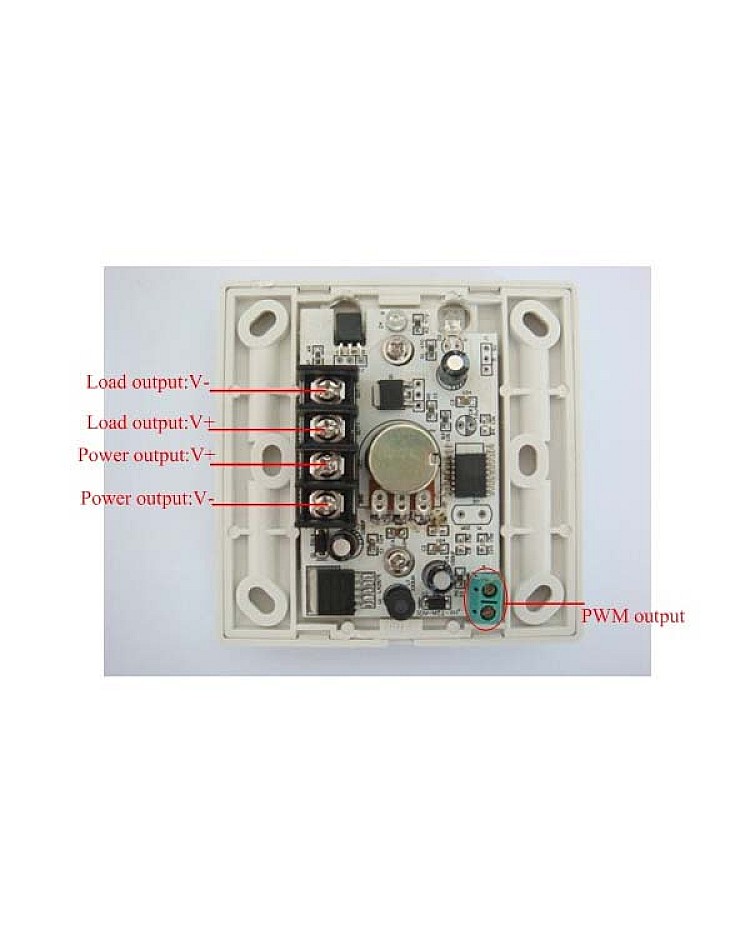

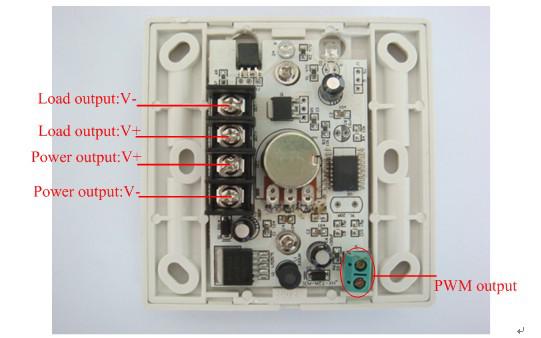

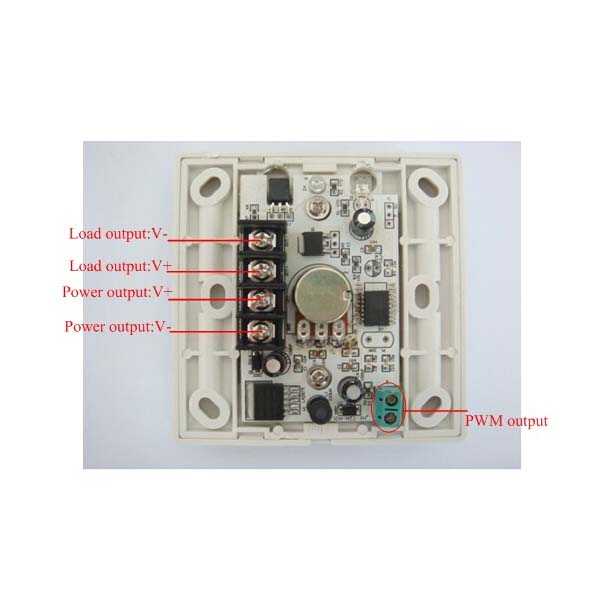

IR LED dimmer

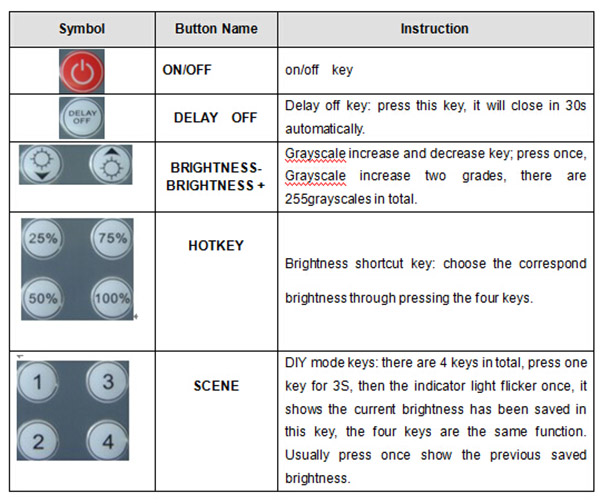

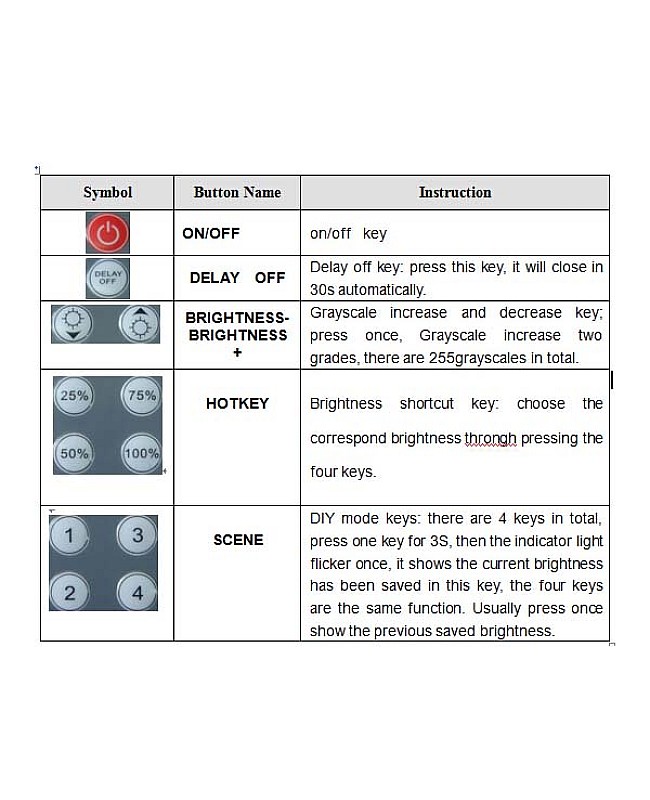

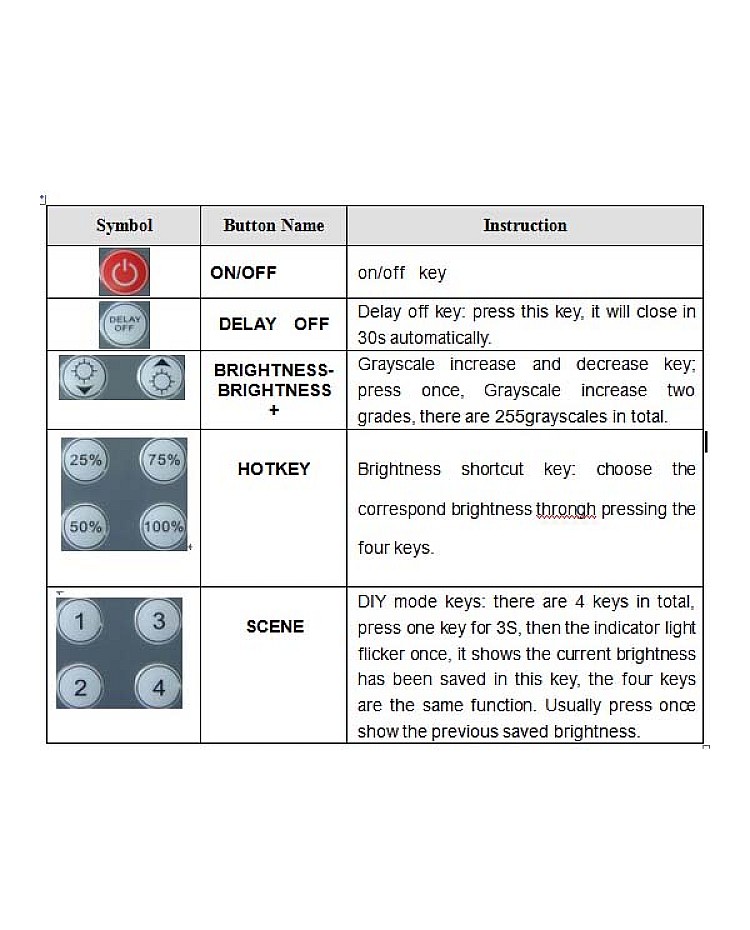

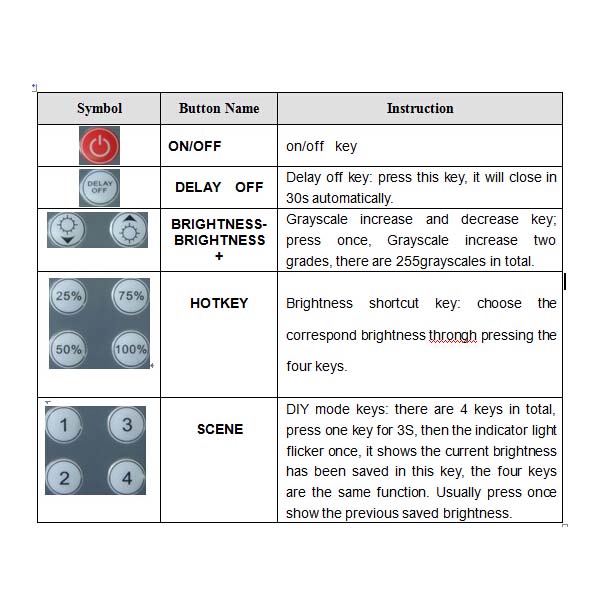

Functions of IR remote:

infrared LED dimmer

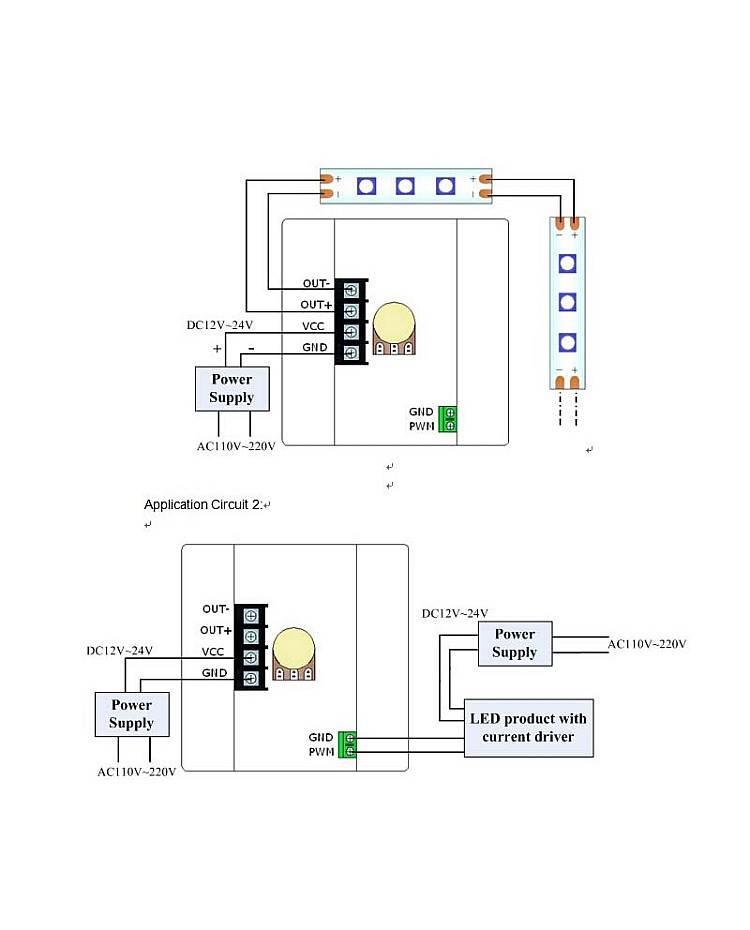

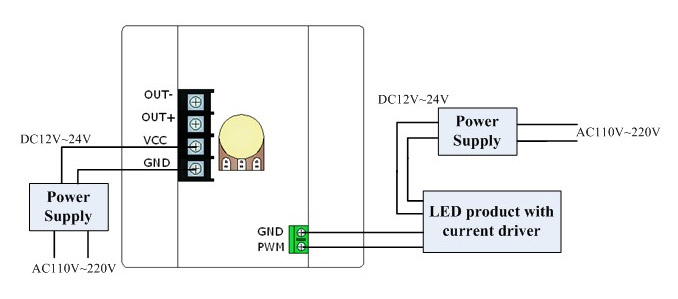

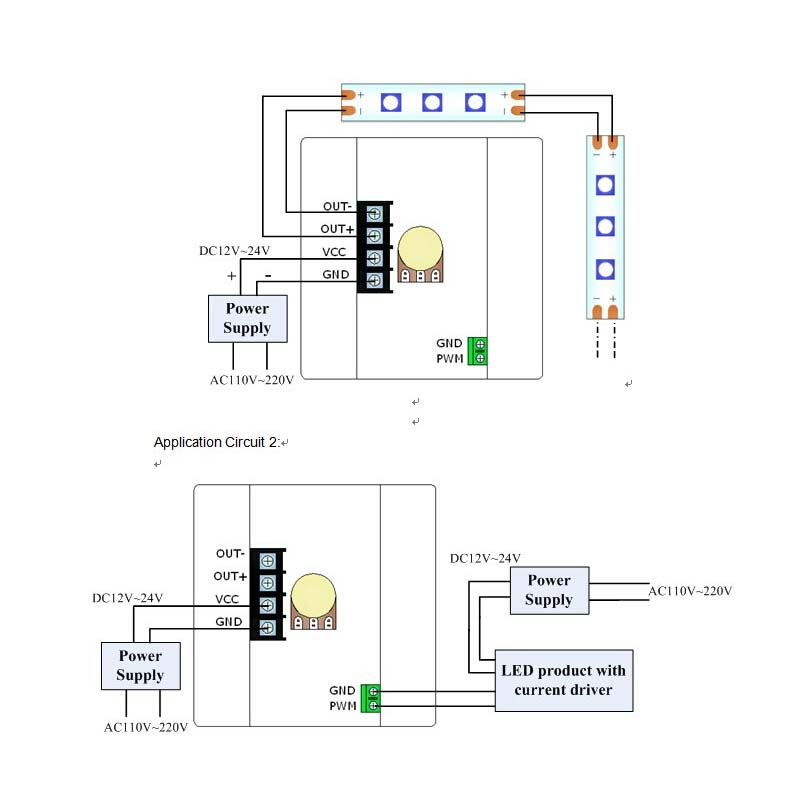

LED dimmer application

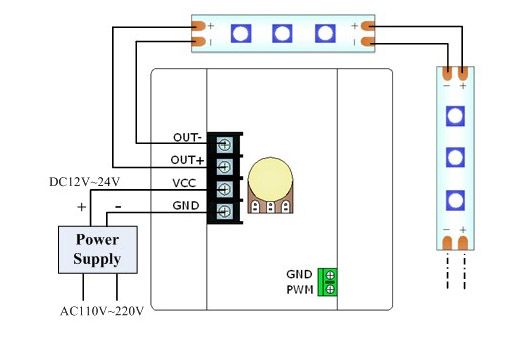

infrared LED light dimmer

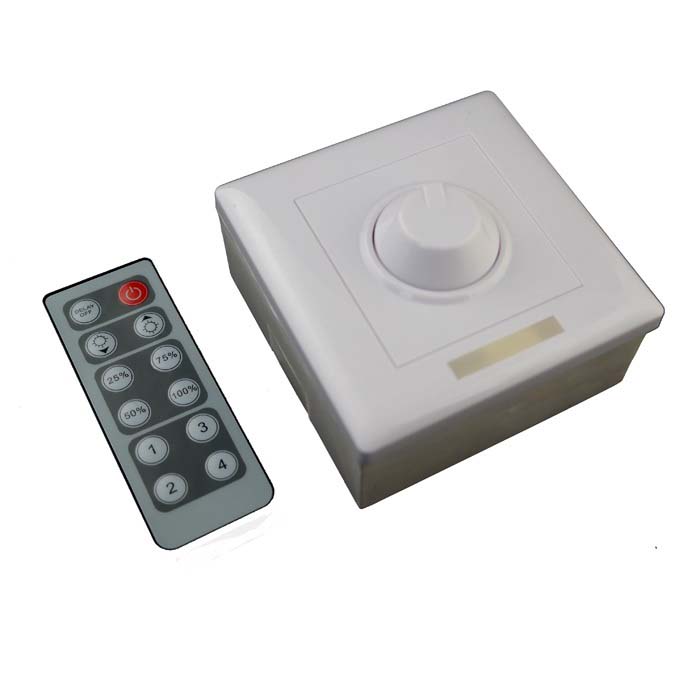

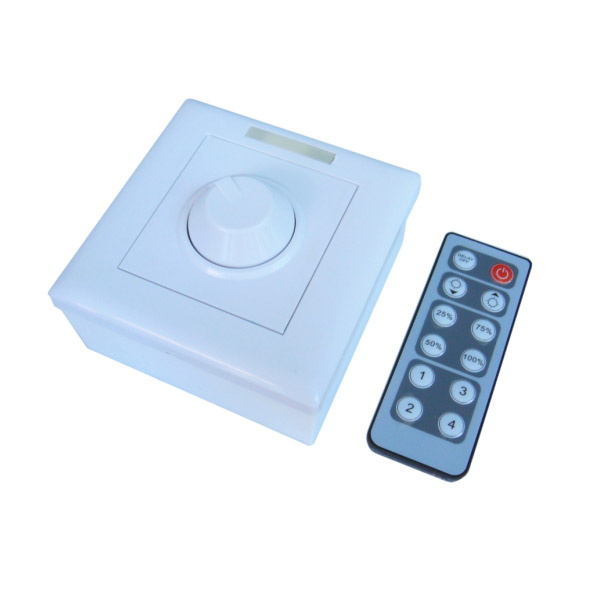

1*IR LED Dimmer

1*12 Keys Remote
