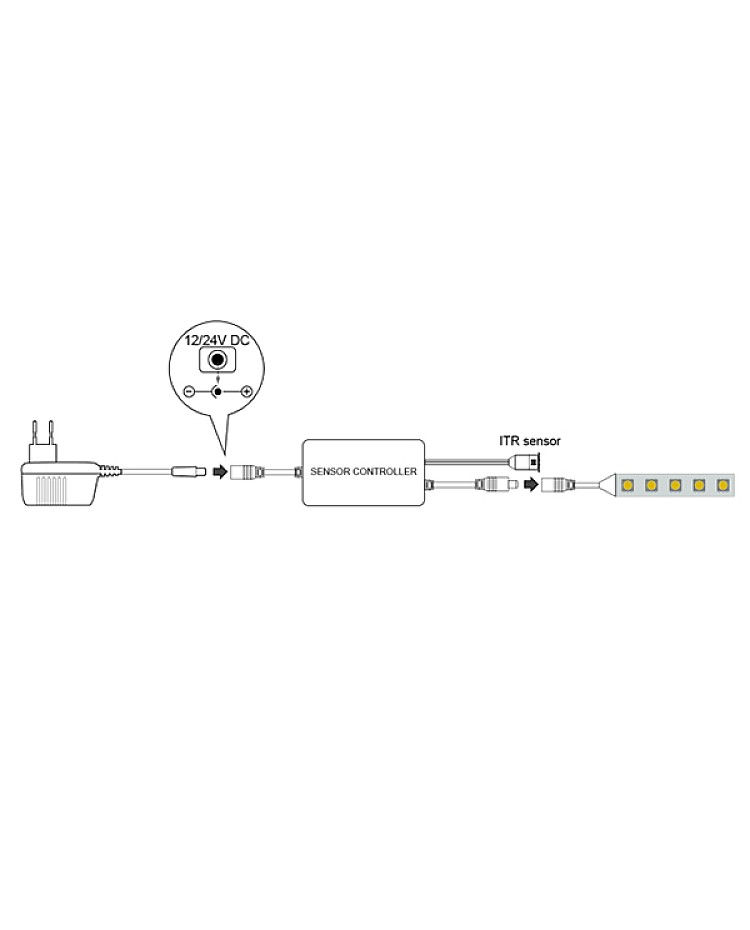

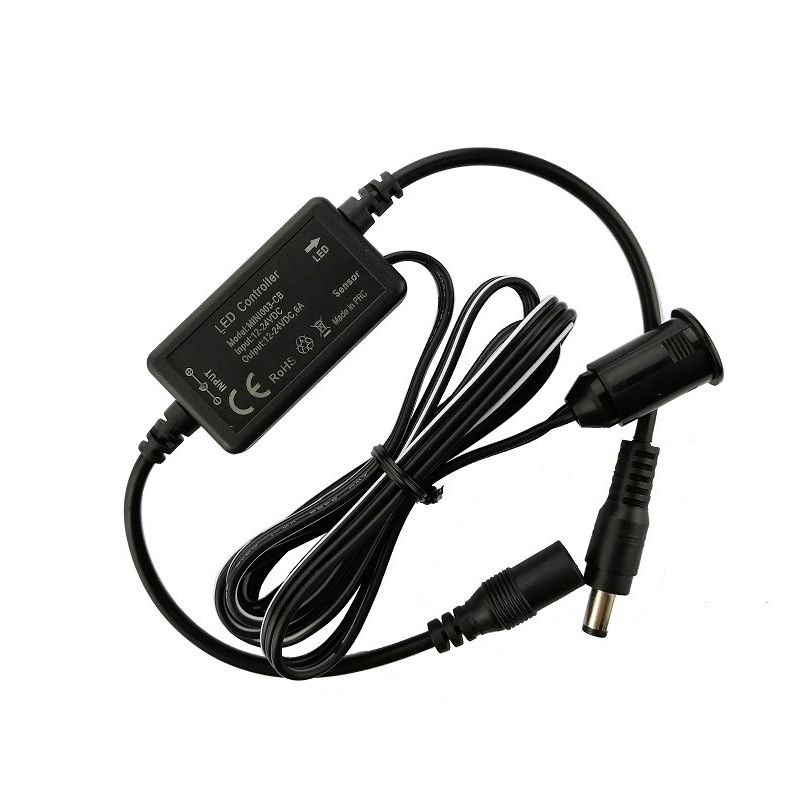

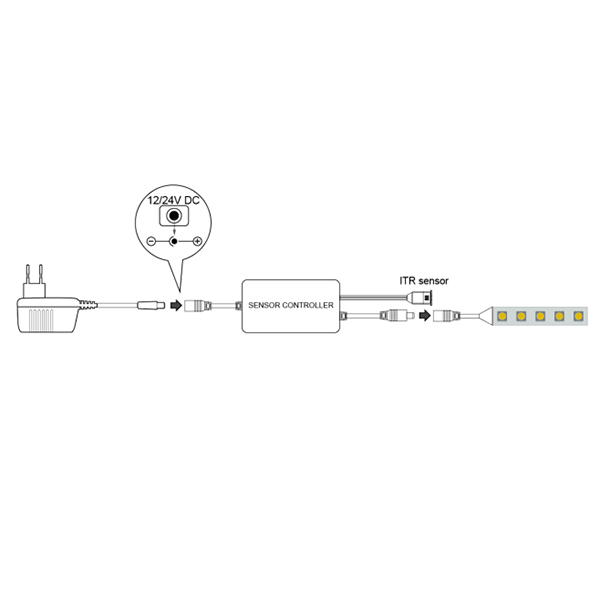

Check the Mini Cabinet LED Dimmer Controller with sensor, working in DC12-24V, with one channel output design, the max loading power up to 144W when working in 24V. This Mini LED Dimmer adopts the advanced PWM digital technology to control the constant voltage single color LED Lights, comes with the ITR sensor, and will automatically switch on/off the LED Light Strips by the operation close the door to block the ITR sensor or opening the door to release the blocking. You can use them under the cabinet or on the furniture.


Features:

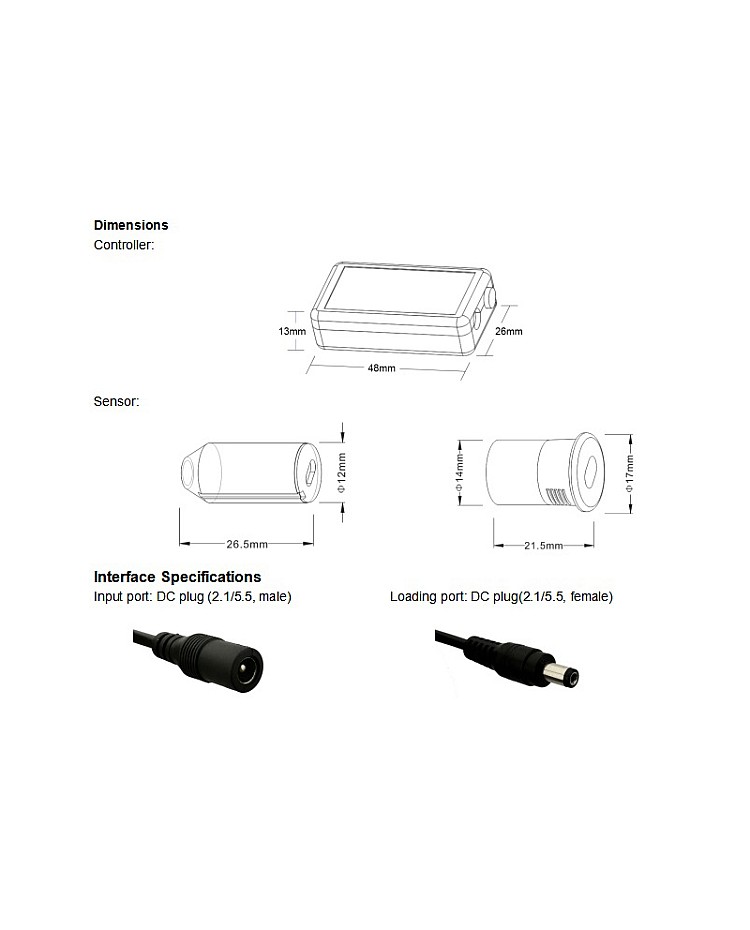

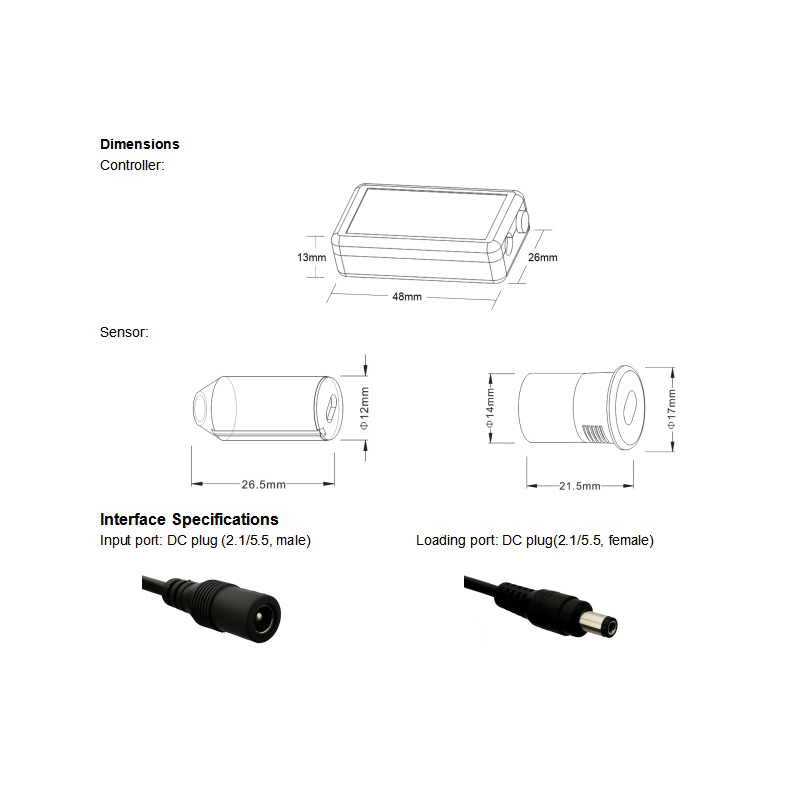

  • Size: 48*26*13mm(L*W*H)

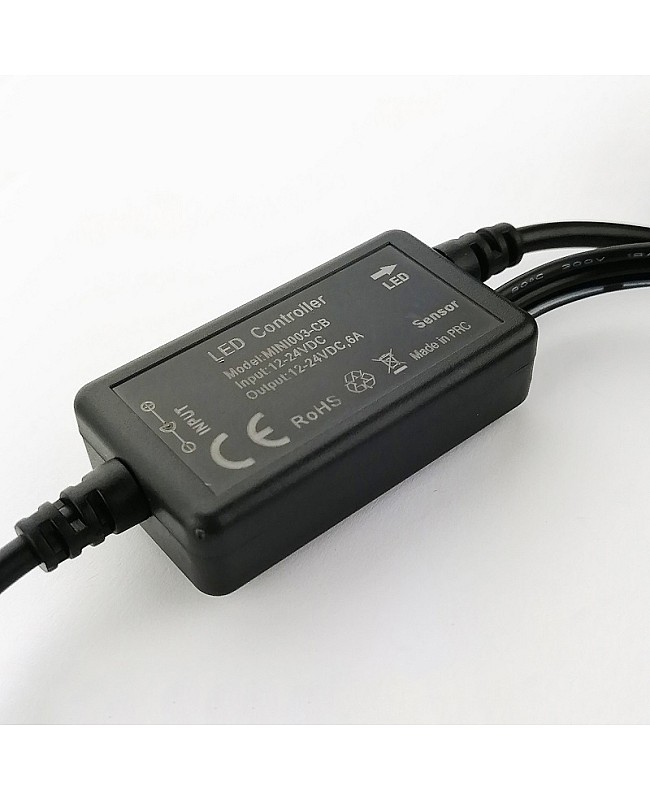

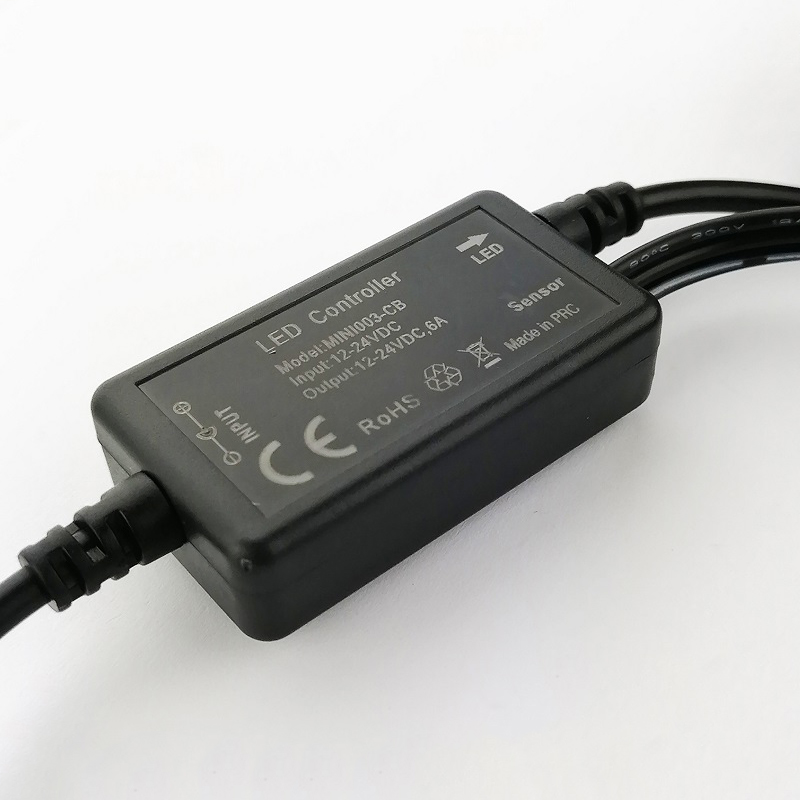

  • Model: HX-Mini003-CB
  • Working Temperature: -20-60℃
  • Working Voltage: DC12-24V
  • Static Power Consumption: <1W

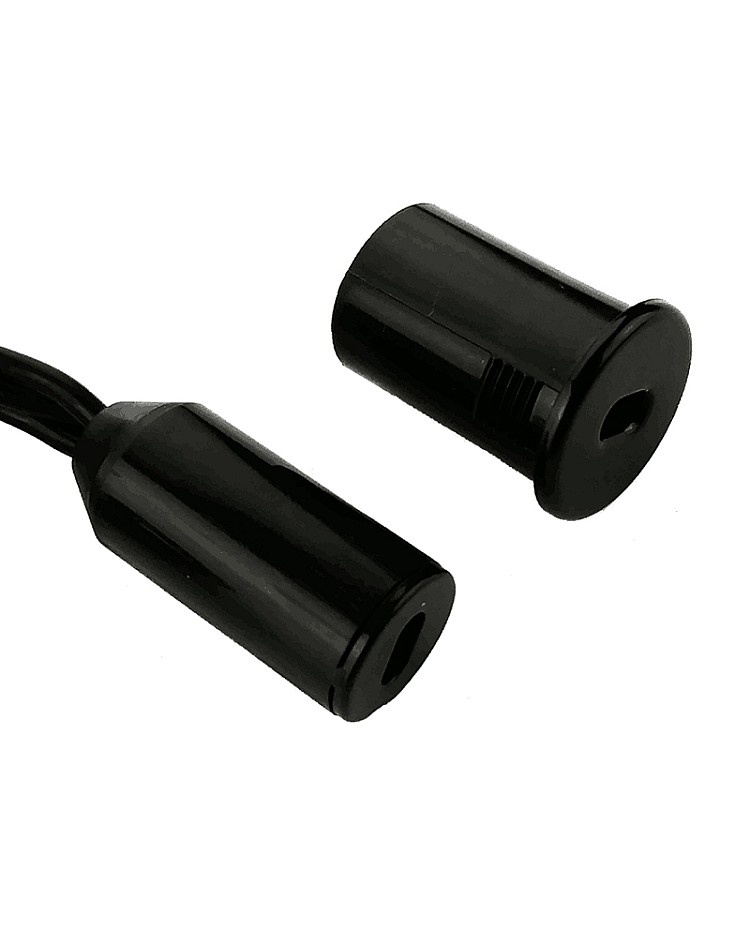

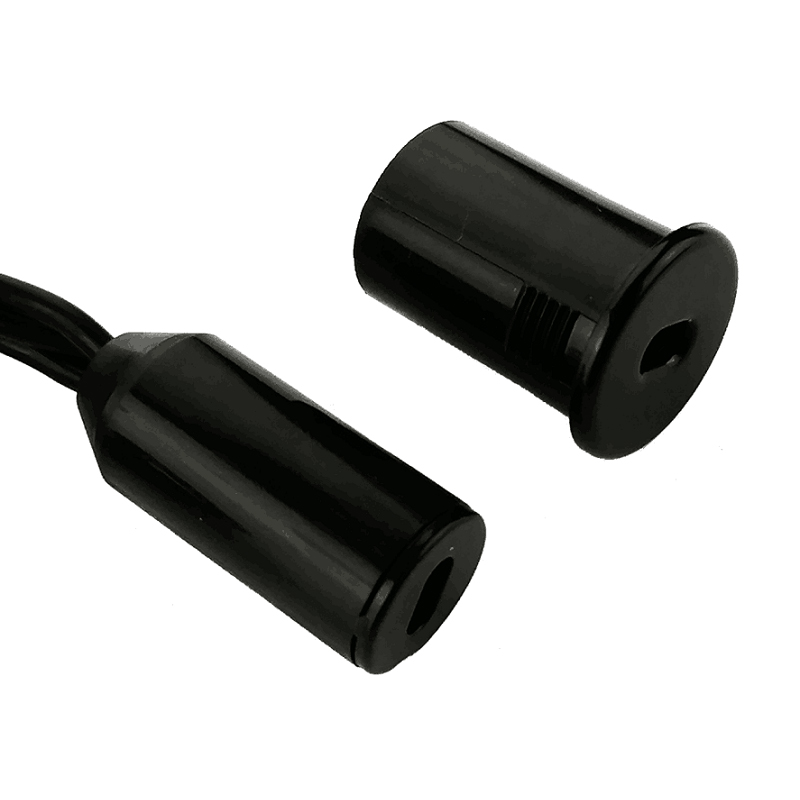

  • Sensor: ITR
  • Sensor Range: 0-8CM
  • Sensor Cable Length: 1Meter
  • Output Channel: 1
  • Output Current: ≤6A
  • Max Loading Power: 72W(12V)/144W(24V)
  • PWM Frequency: 490Hz
  • Stable Sensitivity With ITR Sensor, Soft Light Up And Down
  • Designed For Single Color Constant Voltage LED Lights In Cabinet/Furniture
  • Short Time(<1.5S) Blocking The Sensor In 0-8cm Range, The Lighting Will Gradually Light On/Off
  • Short Time(>1.5S) Blocking The Sensor In 0-8cm Range, The Lighting Will Gradually To Light Up/Dim Down In Turn
  • 3 Years Warranty


Includes:

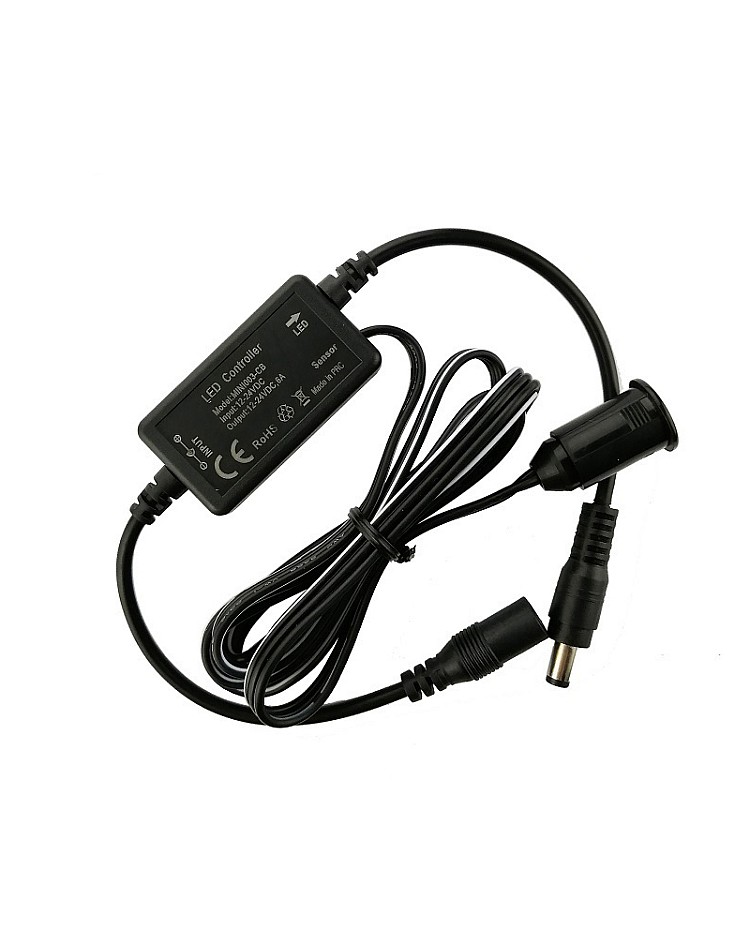

1*Cabinet LED Dimmer Controller

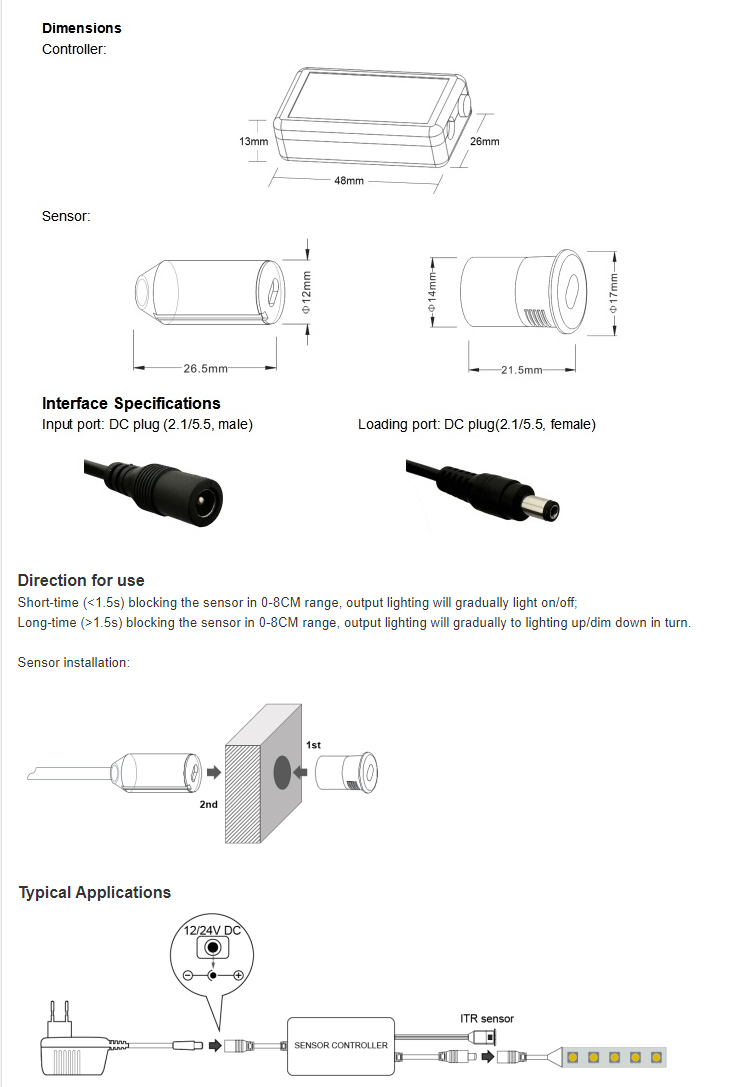

Mini Sensor Dimmer 6A 12V
