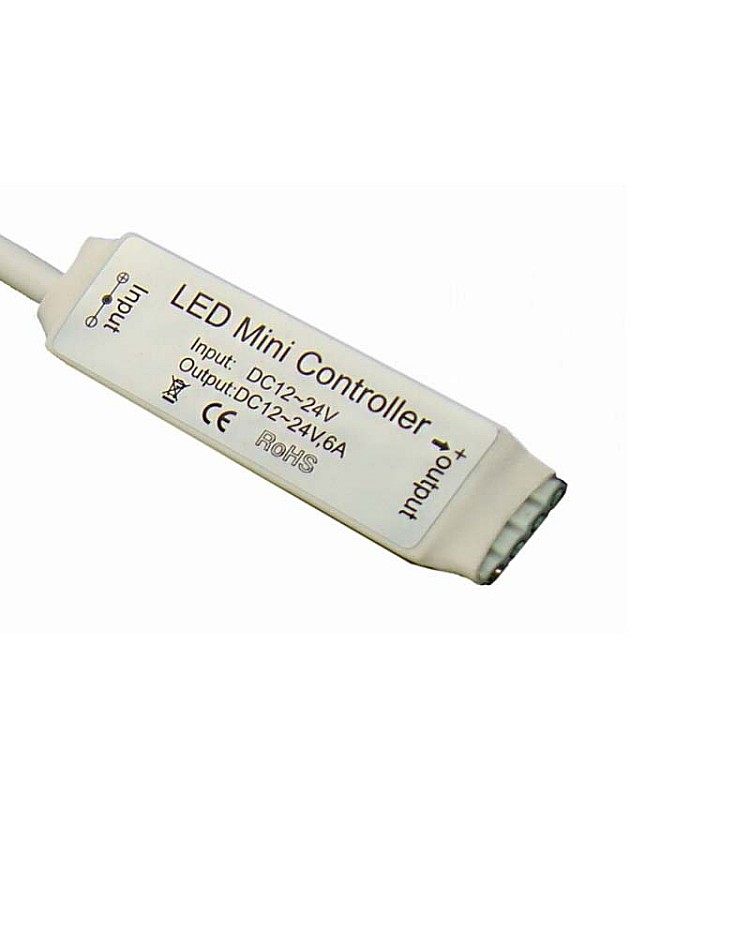

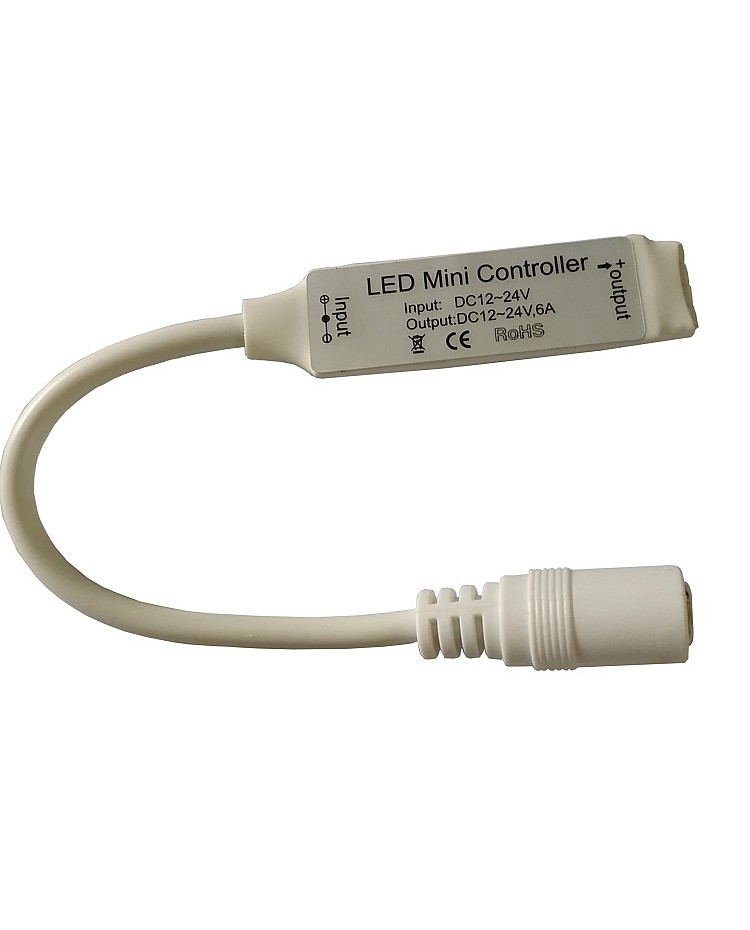

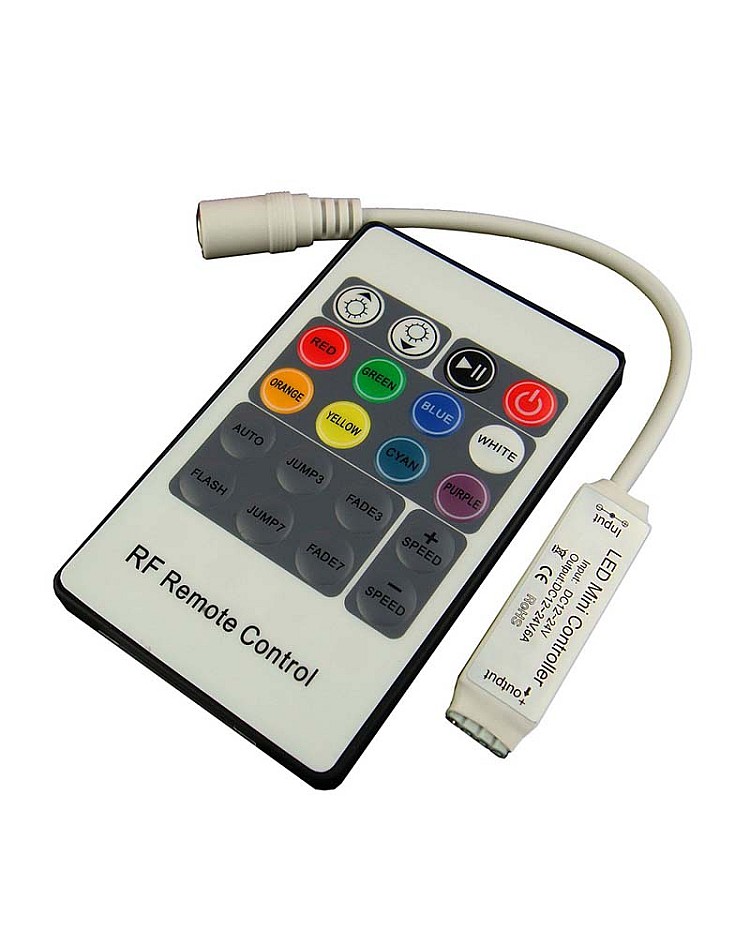

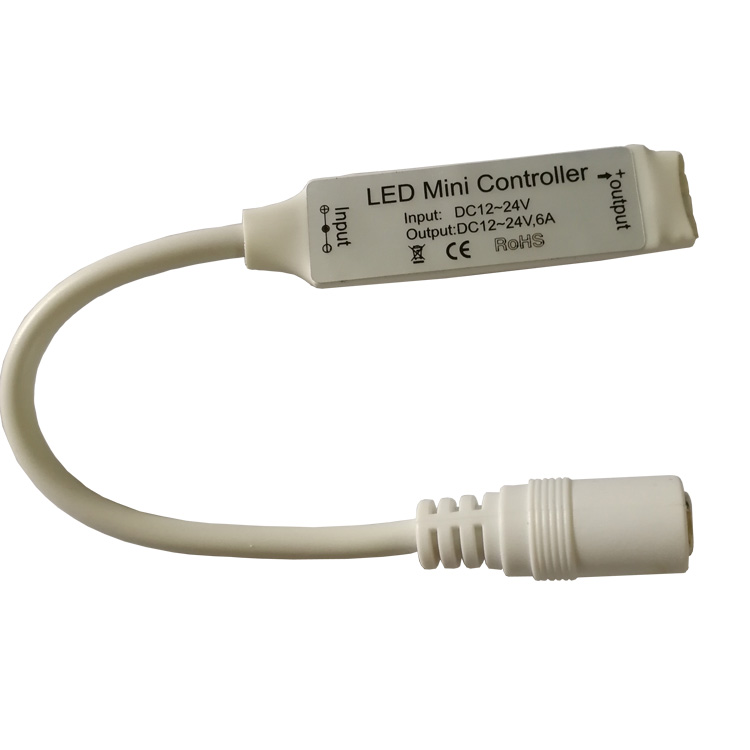

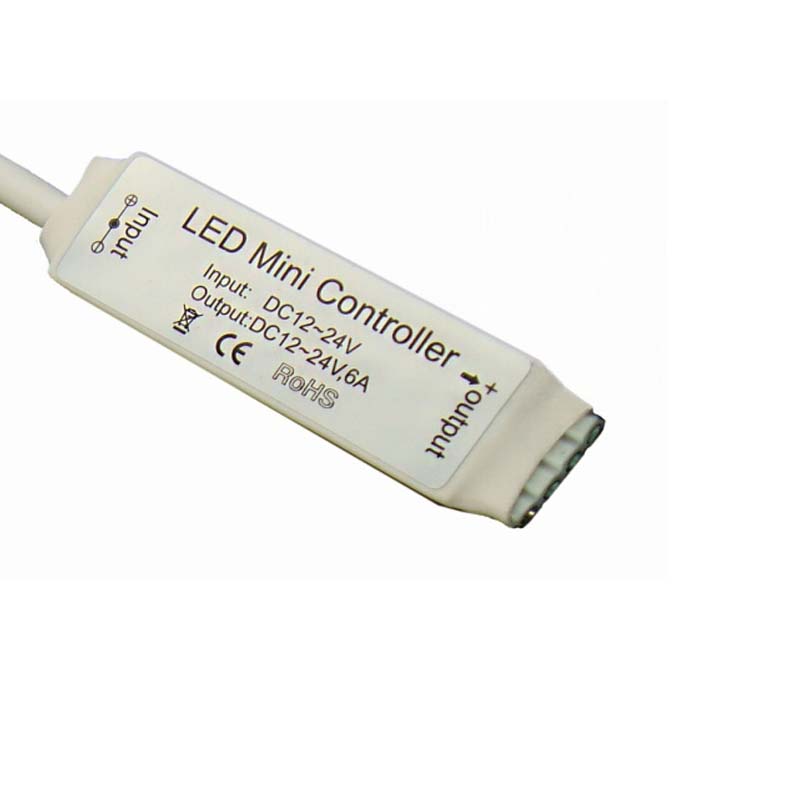

The mini RGB LED controller with a mini size and compact structure has a 3-output channel design; the output current of each channel is only 2A, and the maximum loading power is up to 144W when working in 24V. The mini RGB controller with a female DC connector and a four-pin RGB connector allows you to connect to the LED driver easily and RGB LED strips. The 20 Keys RF remote control includes turning on/off the LED Light, setting the static color or dynamic mode, and adjusting the brightness of static color or the speed of dynamic mode. The RF mini controller supports three color orders: +RGB, +GRB, and +BRG. You can continuously press the " Red ", " Green ", or " Blue" buttons to change the color order.

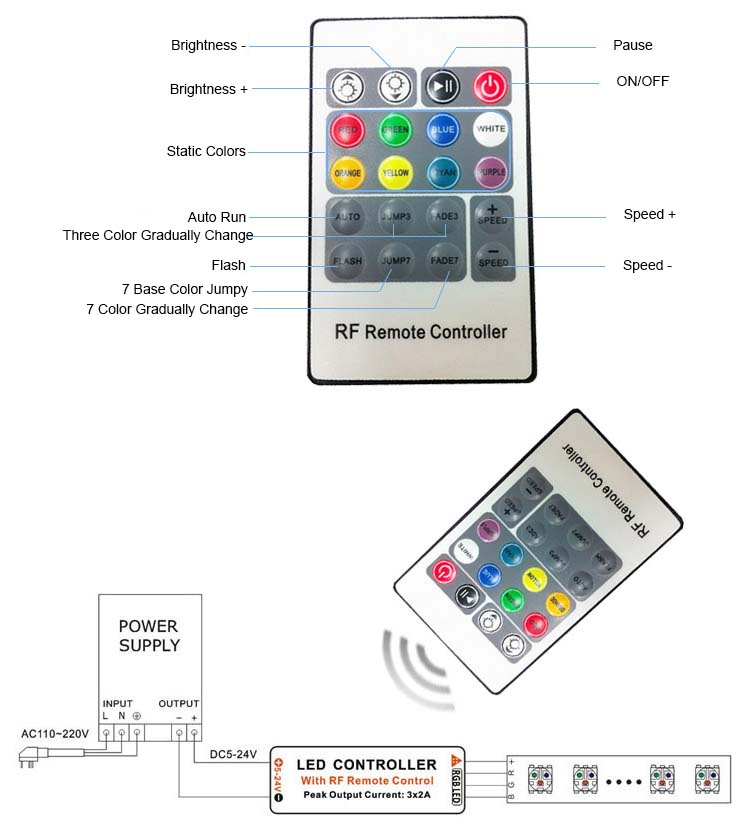

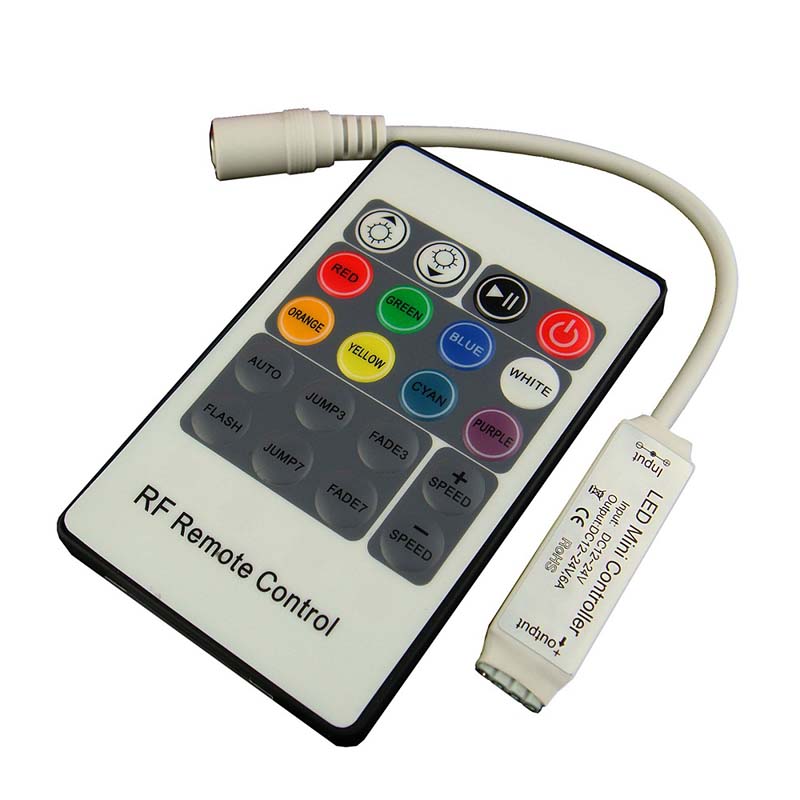

![RF RGB LED Controller With 20 Keys Remote Control]()
Specifications:
- Working Temperature: -20-60℃
- Size: 40*12*4mm(L*W*H)
- Static Power Consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Output Channels: 3
- Output Channel: ≤2A Each Channel
- Power: DC12V: 72W; DC24V: 144W
- Female DC Connector And 4 Pins RGB Connector Included
- 20 Keys RF Remote Control Included
- 8 Static Colors And 6 Dynamic Modes
- 3 Color Order Supported: +RGB, +GRB, +BRG
- RF Distance: ≤15M
- Weight: 60g

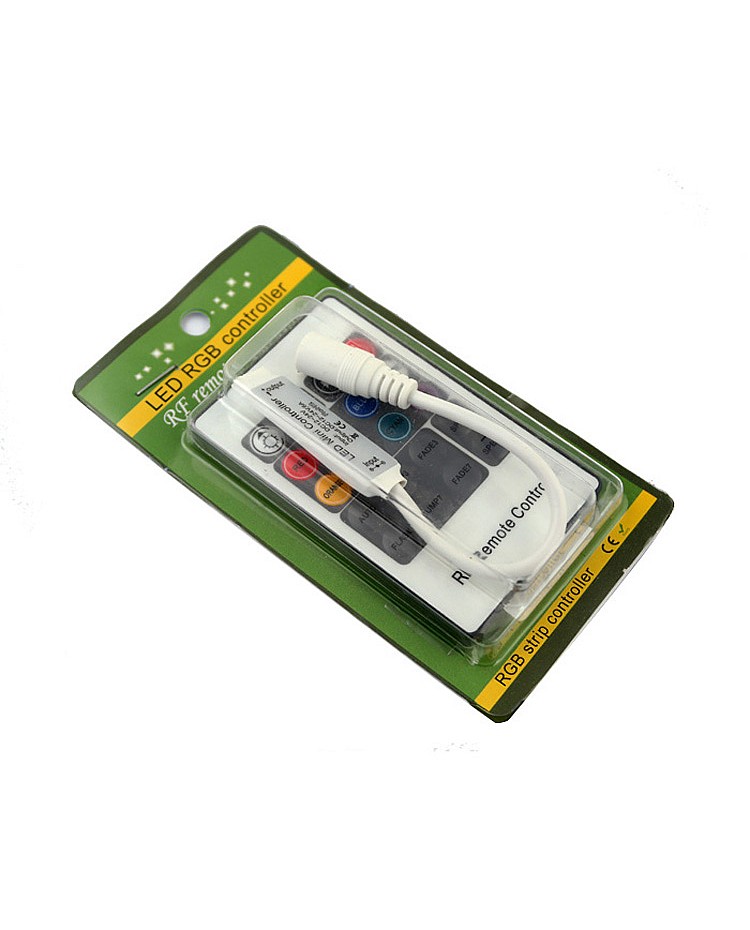

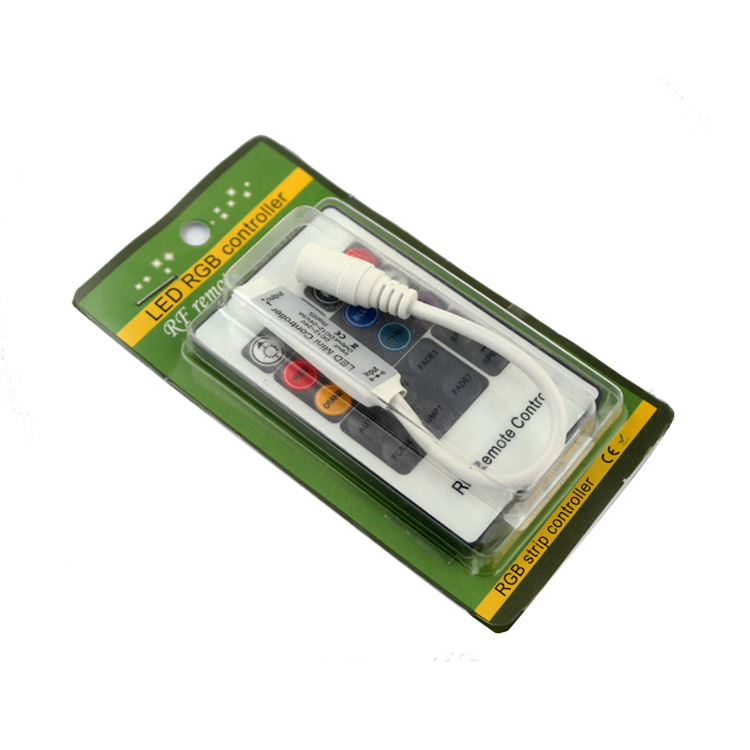

Package:
1 * RF Mini RGB LED Controller
