Out Of Stock
$18.99
Reward Points: 19
-
+
  • Brand: Ledbe
  • Product Code: TY-L-C-039

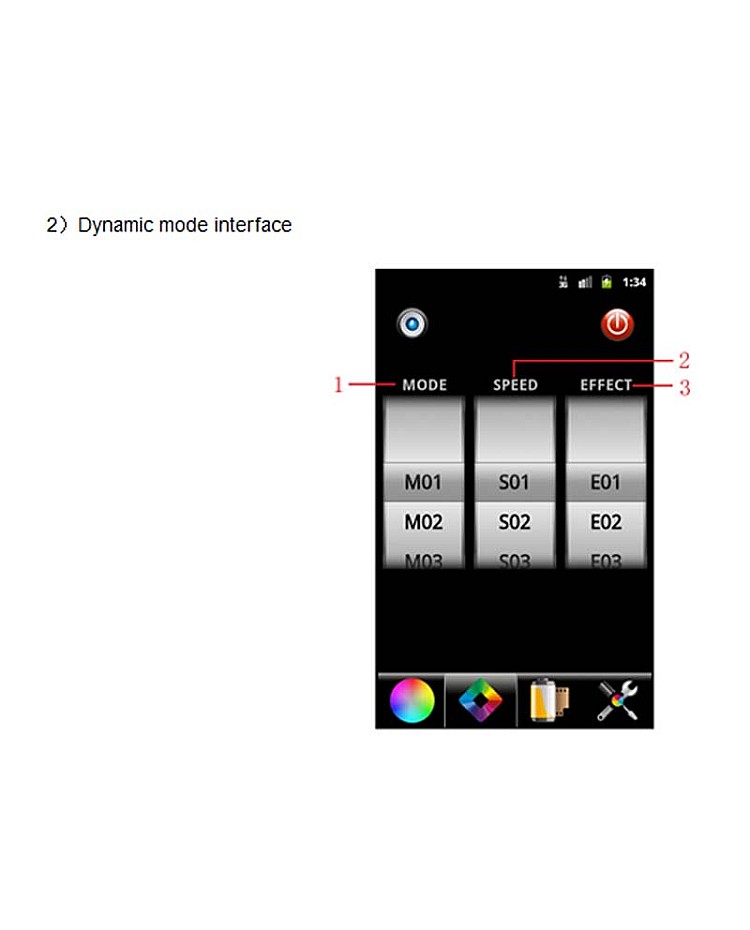

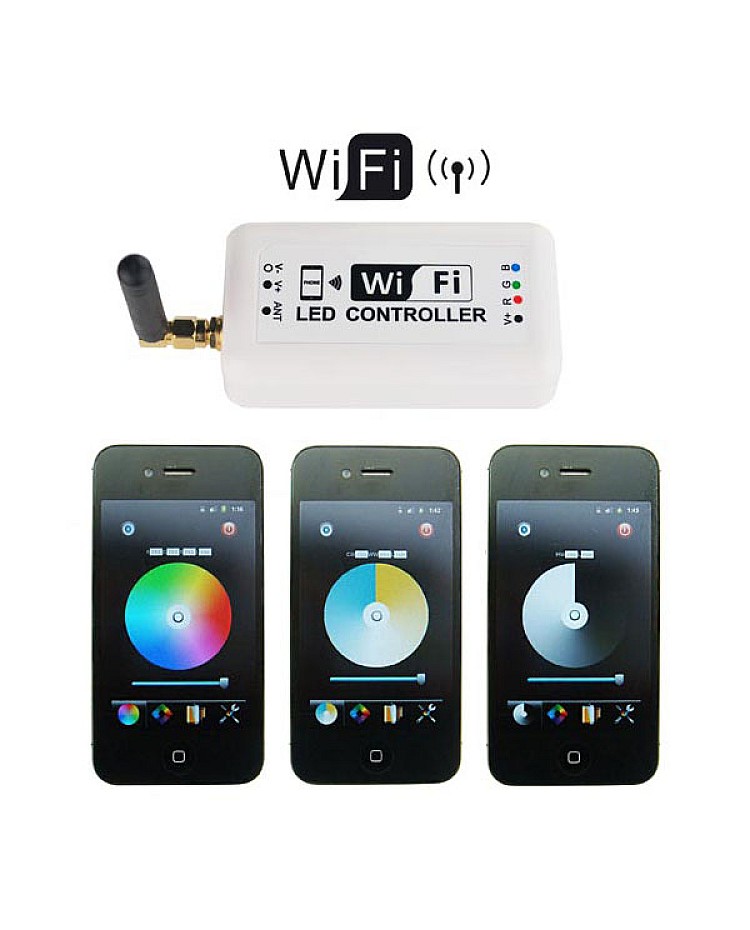

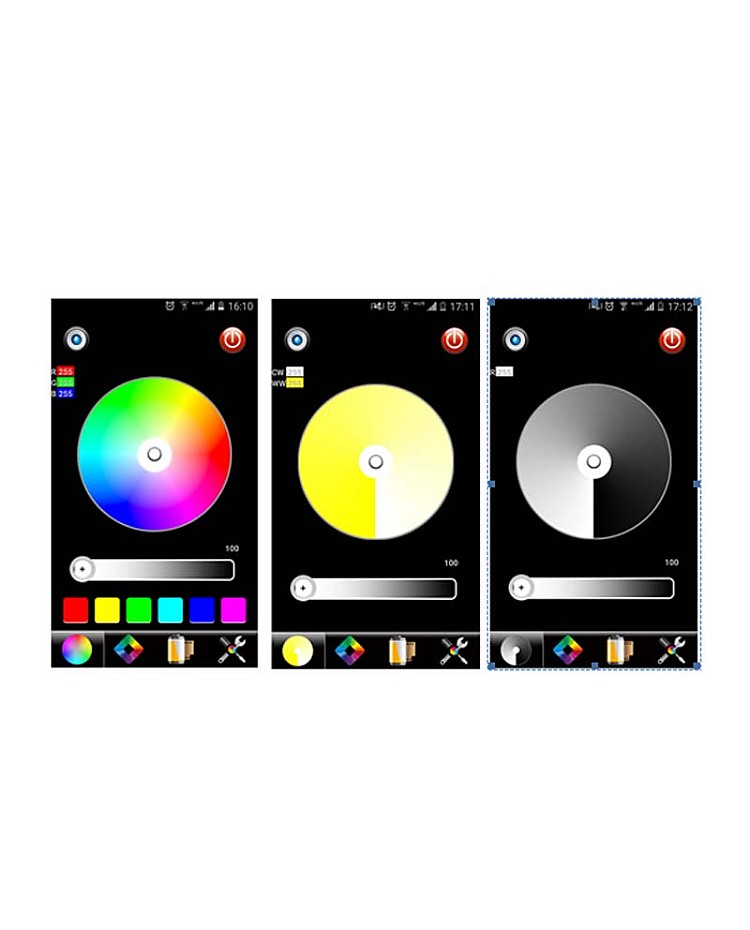

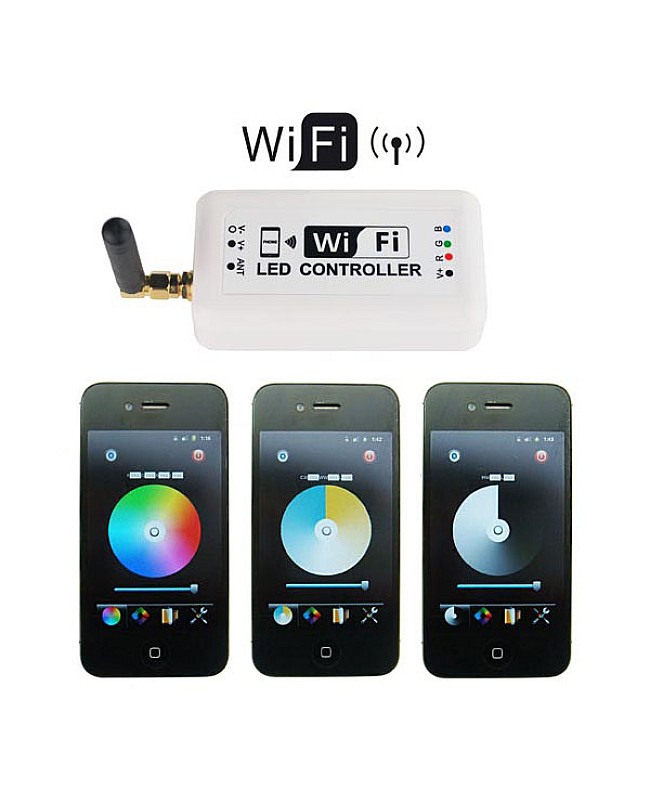

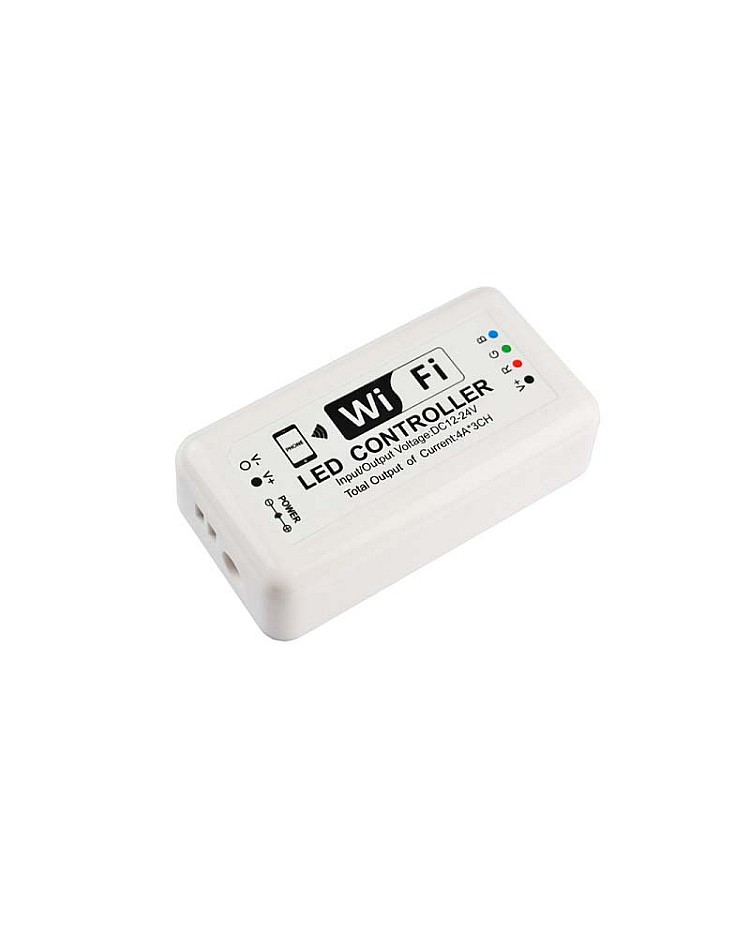

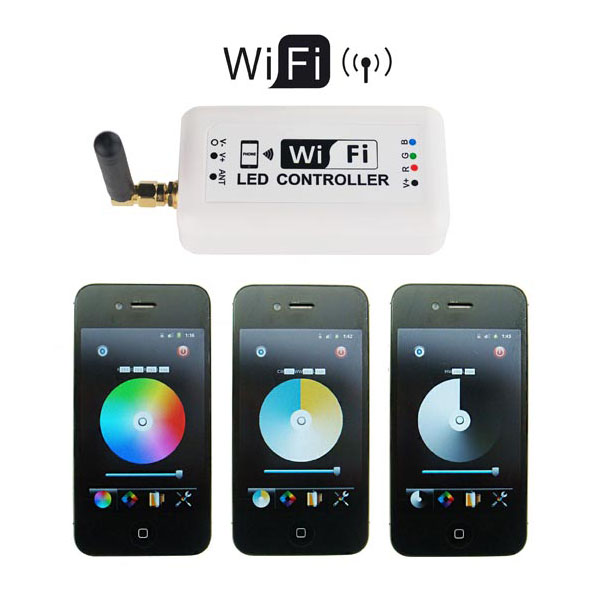

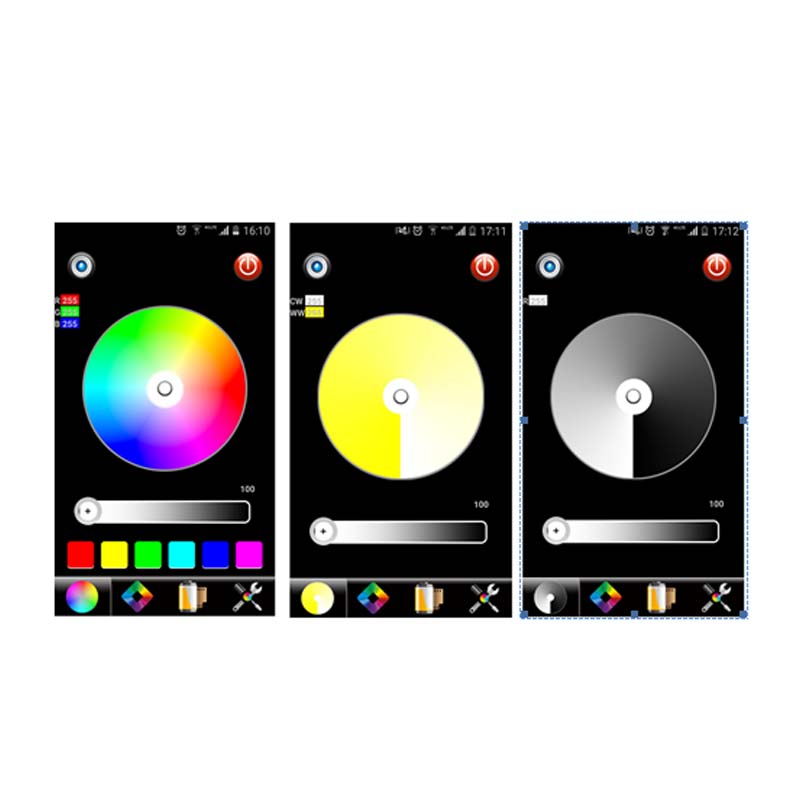

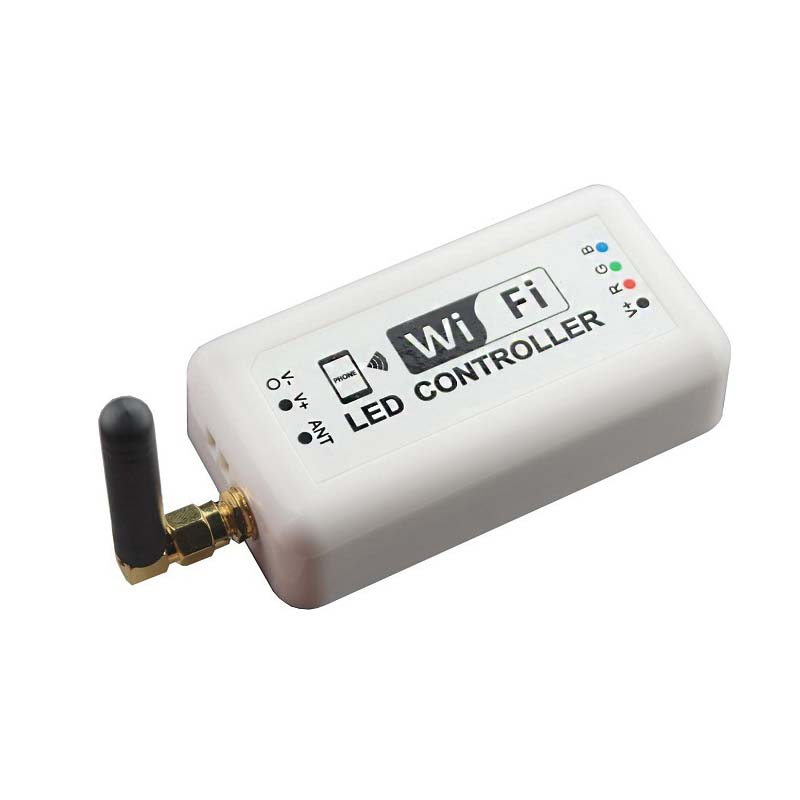

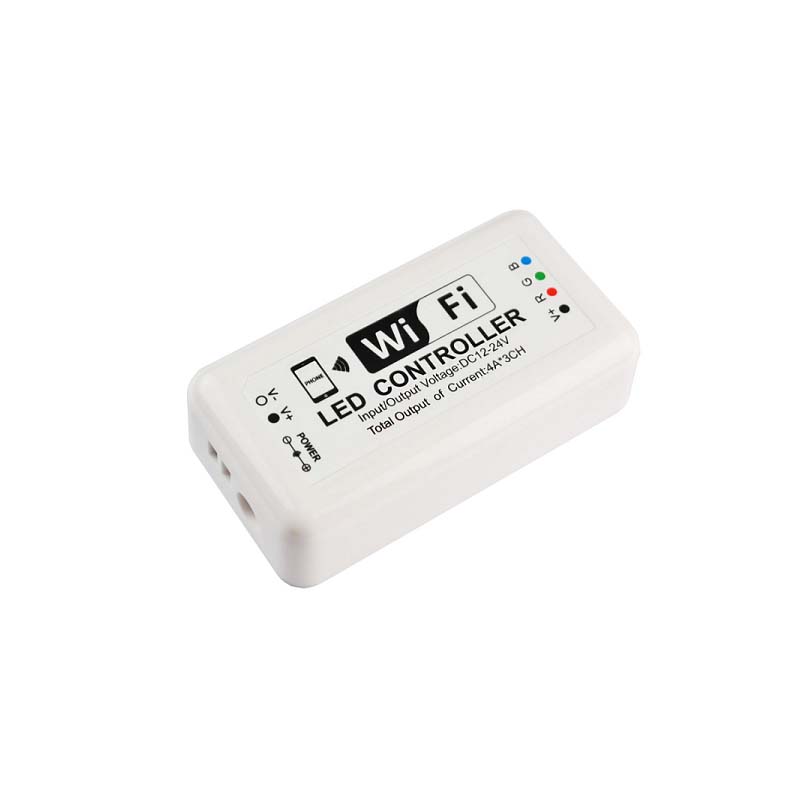

The mini LED WiFi light controller supports Android and IOS platform, like phone, tablets, PC, it controls LED products through WiFi, you can install the software on them, which makes LED control more intelligent and humanization, with 3 in 1 function design, the mini LED WiFi controller can be used as A dimmer, CCT controller and RGB controller, only need to select the right control interface in the software, the mini WiFi controller with DIY function, user can set the function and save. This WIFI LED light controller can work with constant voltage, LED strips, LED modules, and other LED products. Order the extra LED light amplifier if you want to control more LED products. You can also purchase the 2.4G RF remote control separately for the LED WiFi controller. The WiFi controller with a 3-output-channel design, the max output current of each channel is 4A, the max loading power is up to 288W when working in DC24V.



Specifications:

  • Size: 106*45*23mm(L*W*H)

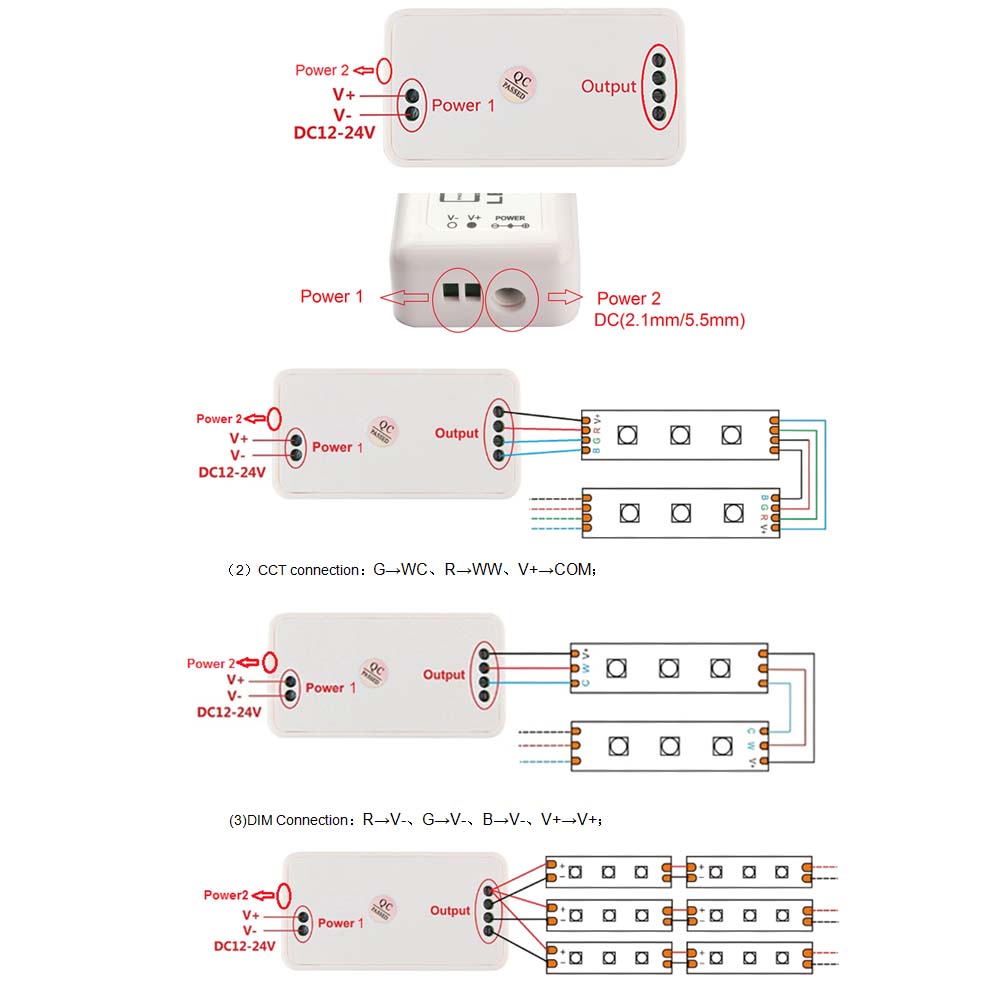

  • Connecting Method: Common Anode
  • Working Voltage: DC12V-DC24V
  • Output Channels: 3
  • Output Current: ≤4A(Each Channel)
  • Output Wattage: DC12V:≤144W; DC24V:≤288W
  • Power Consumption: <3W
  • WIFI Working Frequency: 2.4G
  • Output Gray Level: 256
  • Working Temperature: -20- 60 °C
  • WIFI Brightness level: 100
  • WIFI Speed Level: 100
  • Receiving Sensitivity: 802.11b:DSSS(-5dBm)802.11b:CCK(-10dBm)802.11g:OFDM(-15dBm)
  • Working Platform: Android/IOS(With wifi function)
  • Weight: 100g



Package:

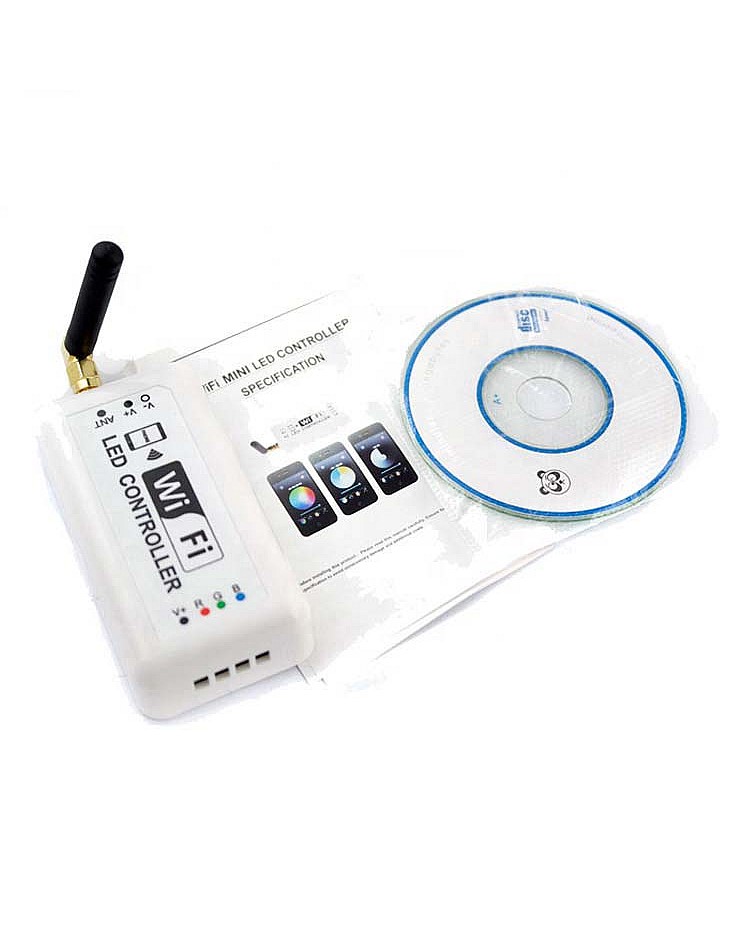

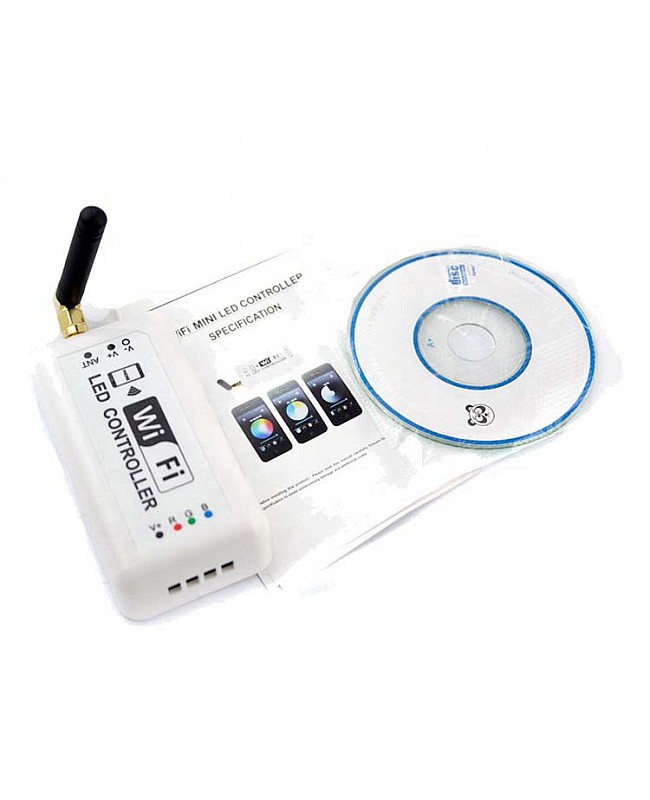

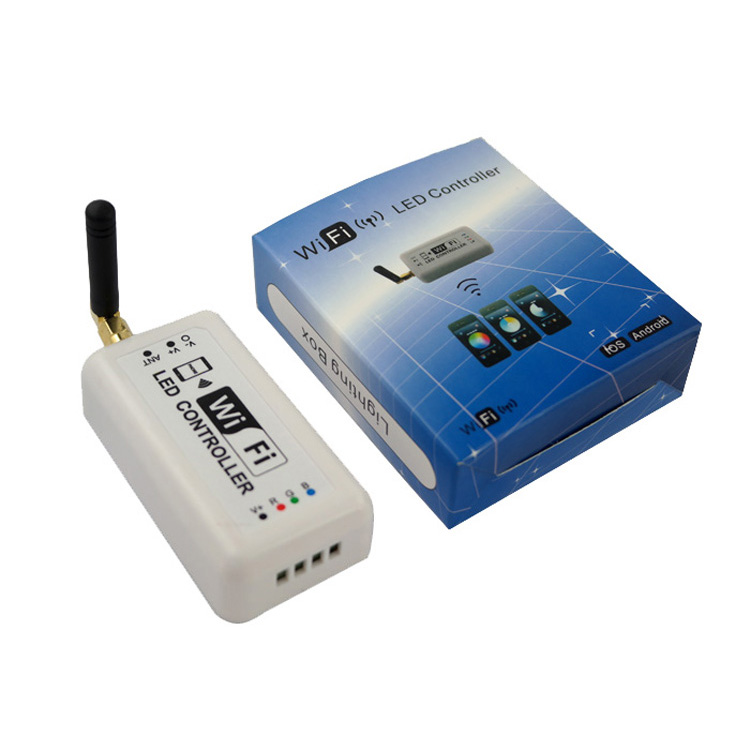

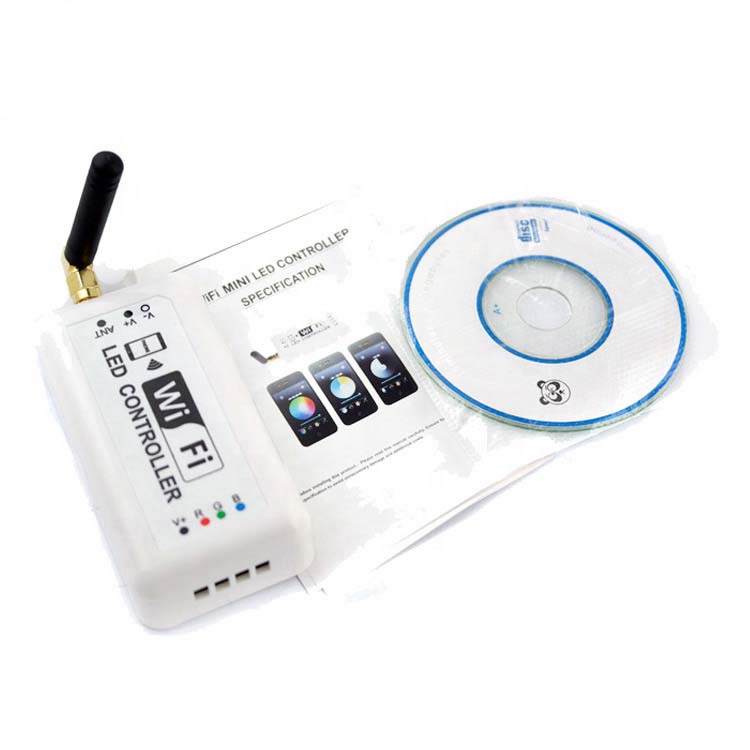

1 * LED WiFi Light LED Controller

WIFI LED Light Controller LED Lights WIFI Controller
