IR LED dimmer power supply, controller and LED power supply all in one design, working in DC12V, adopts advanced micro control unit, used to control the single color LED lamps, LED bulbs or other variety of constant voltage LED lights, simply to connect and use, the IR LED dimmer power supply comes with 12 keys remote, eight modes available, can adjust the brightness, static color and various dynamic changes in light effects, 8 modes in total.



  • Working Temperature: -20-60℃
  • Size: 114*64*25mm(L*W*H)
  • Input Voltage: AC85-265V
  • Output Voltage: DC12V
  • Output Current: 6A
  • Output Channel: 1 Channel
  • Brightness Level: 0-100%
  • Output Wattage: 72W
  • Output: one CMOS Drian-Open
  • Static Power Consumption: <1W
  • Control Modes: 8
  • Remote Control Distance: <10m
  • Can Achieve Stepless Dimming
  • The IR Remote Control With 12 Buttons Included
  • Weight: 350g
  • 2 Years Warranty

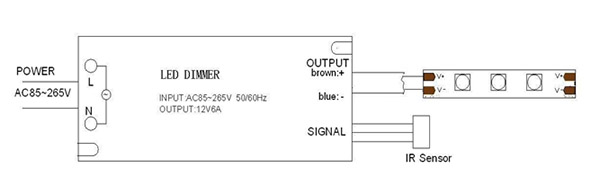

LED dimmer power supply

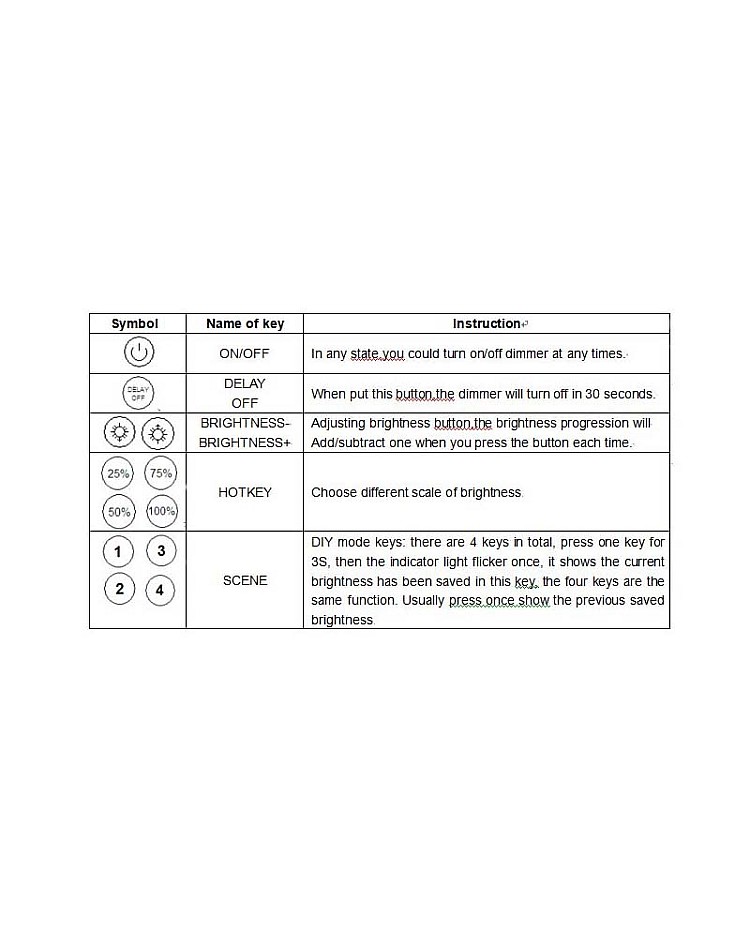

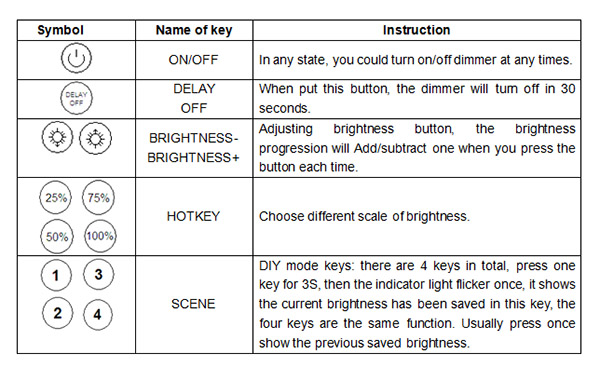

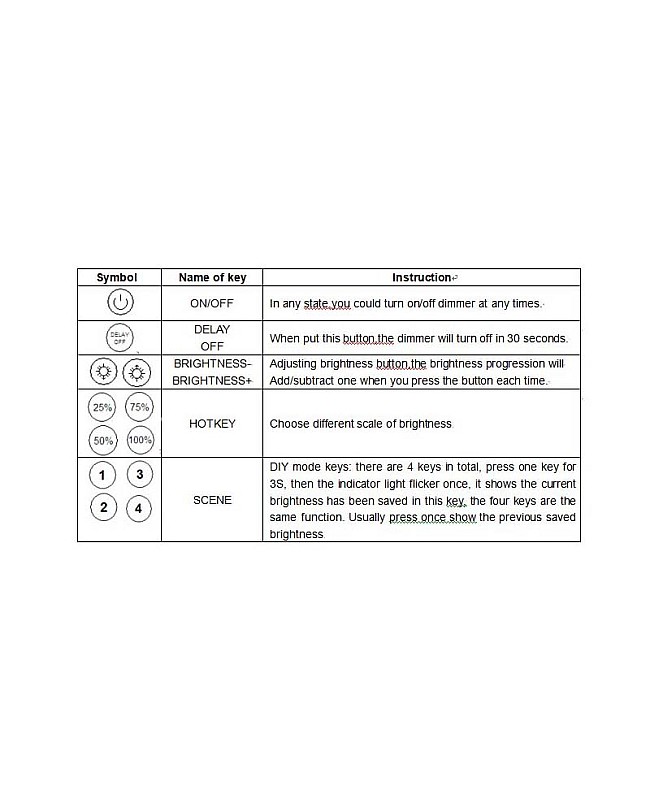

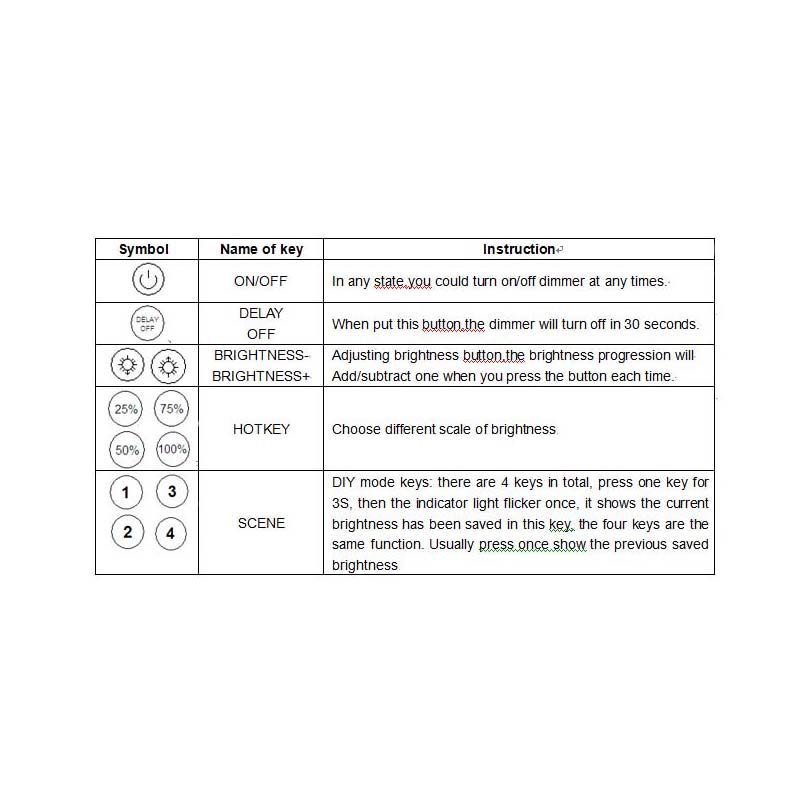

Remote functions:

LED dimmer power supply

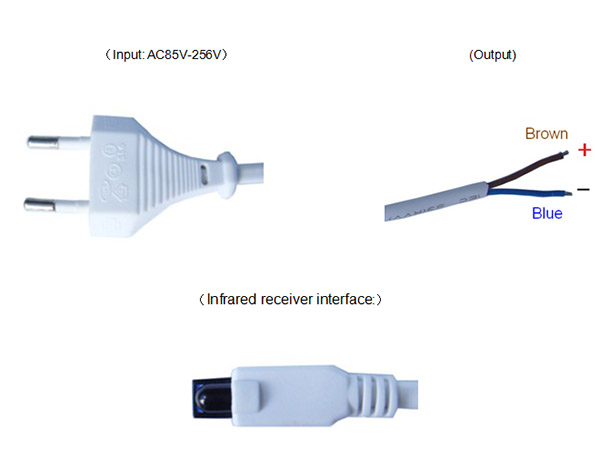

LED dimmer power supply

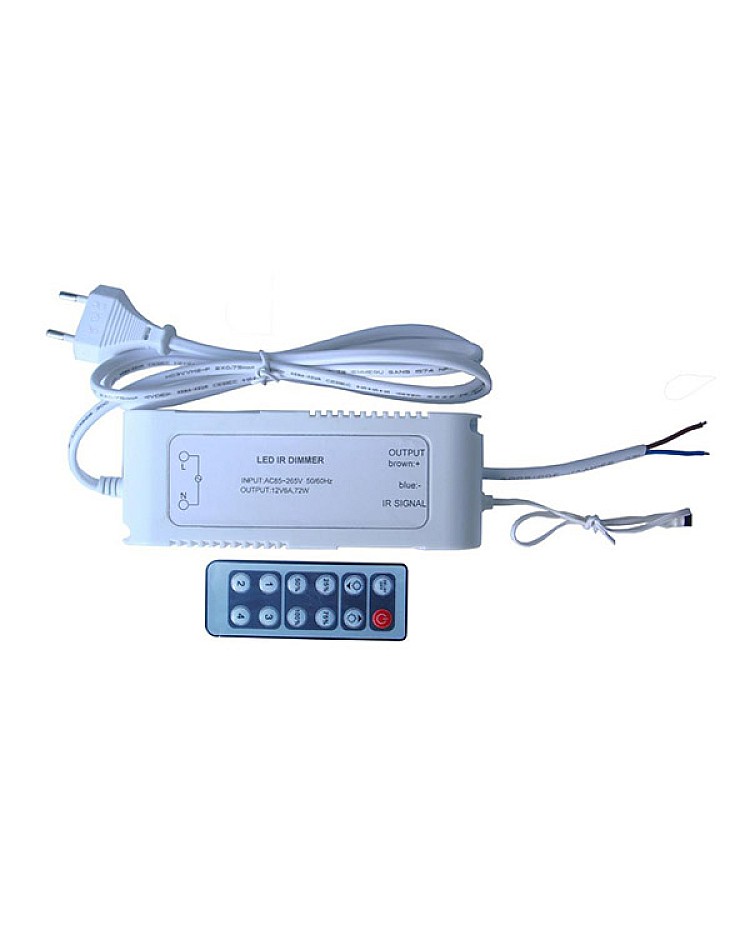

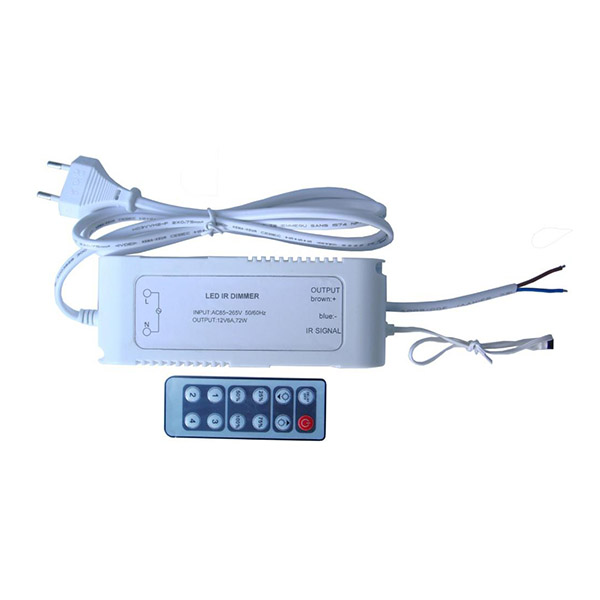

1*IR LED Dimmer Power Supply

1*12 Keys Remote
