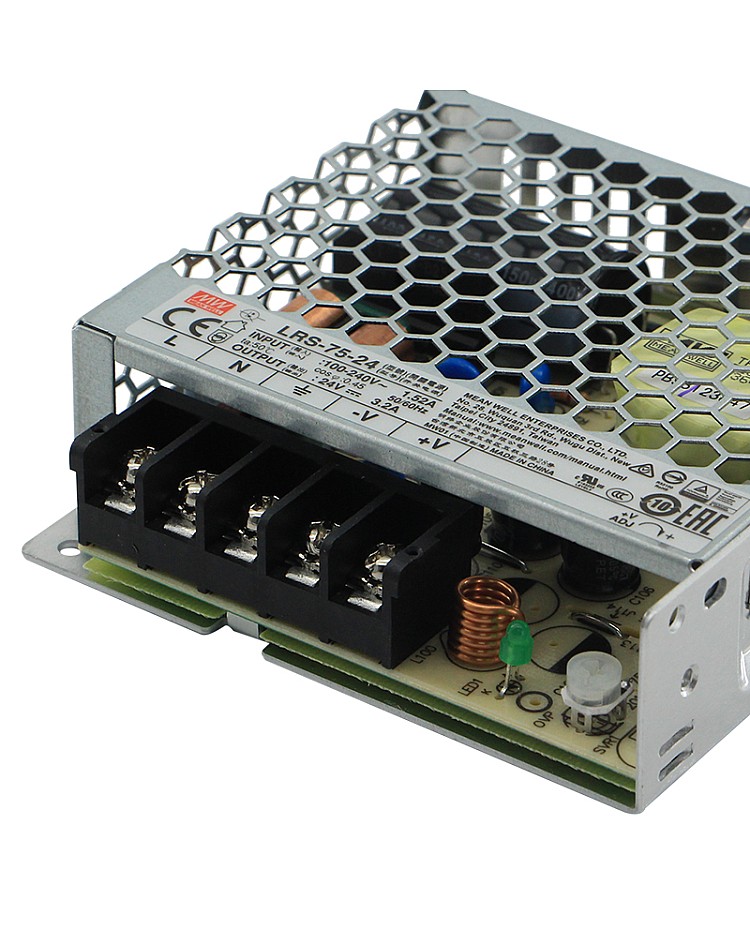

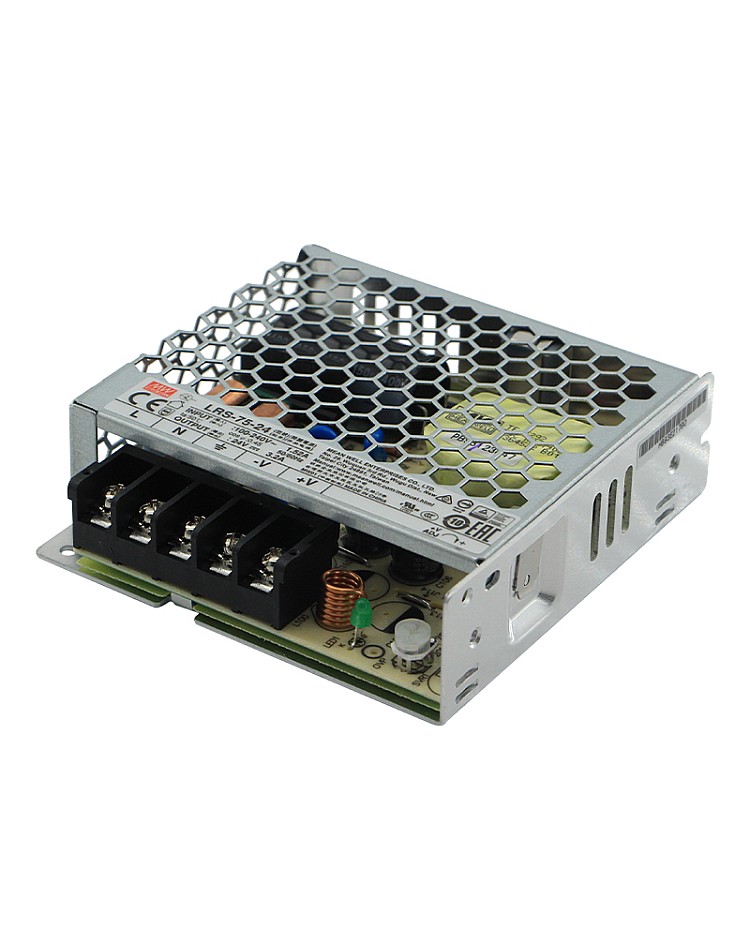

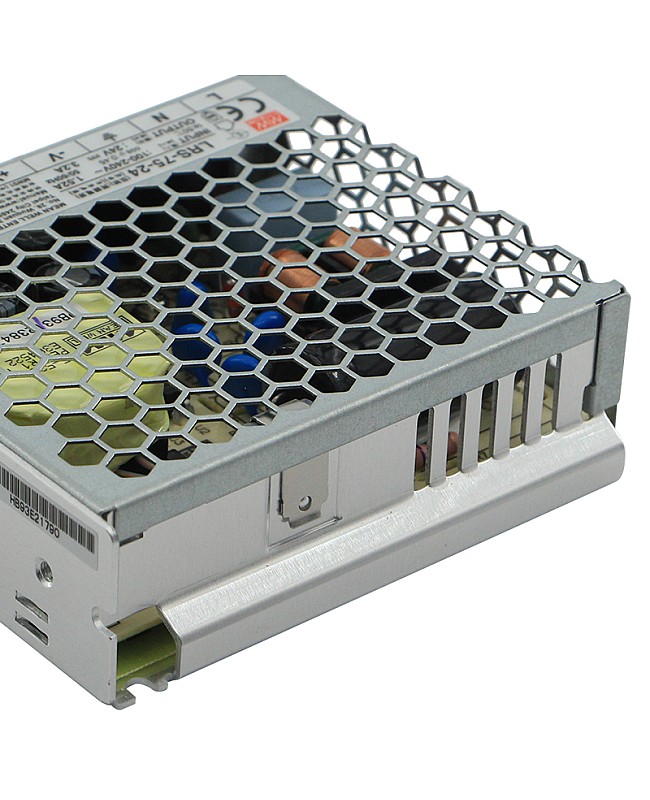

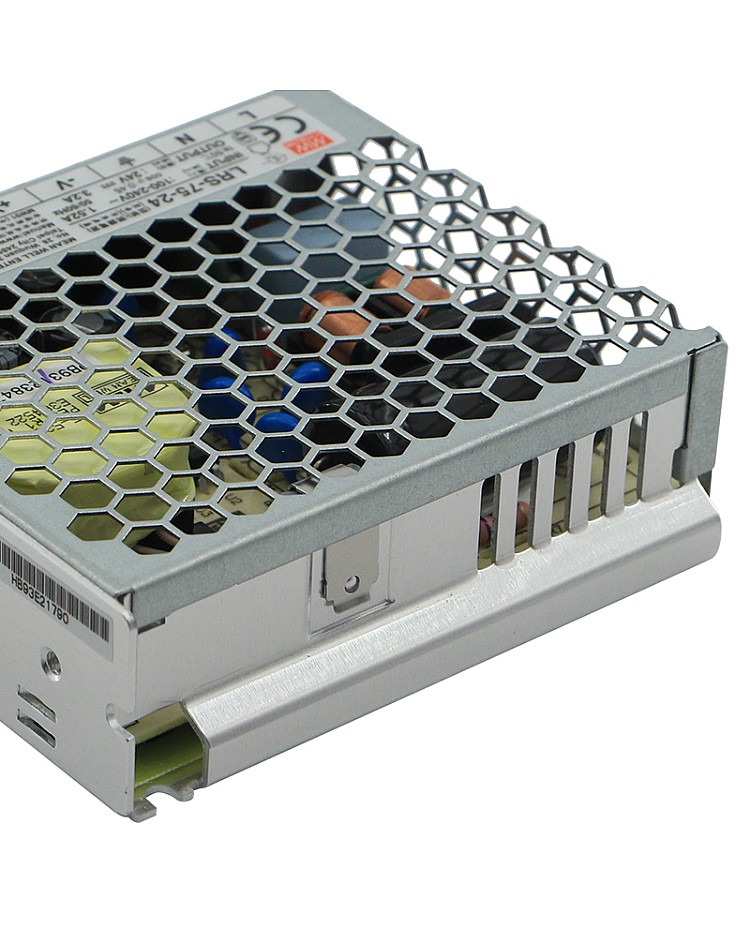

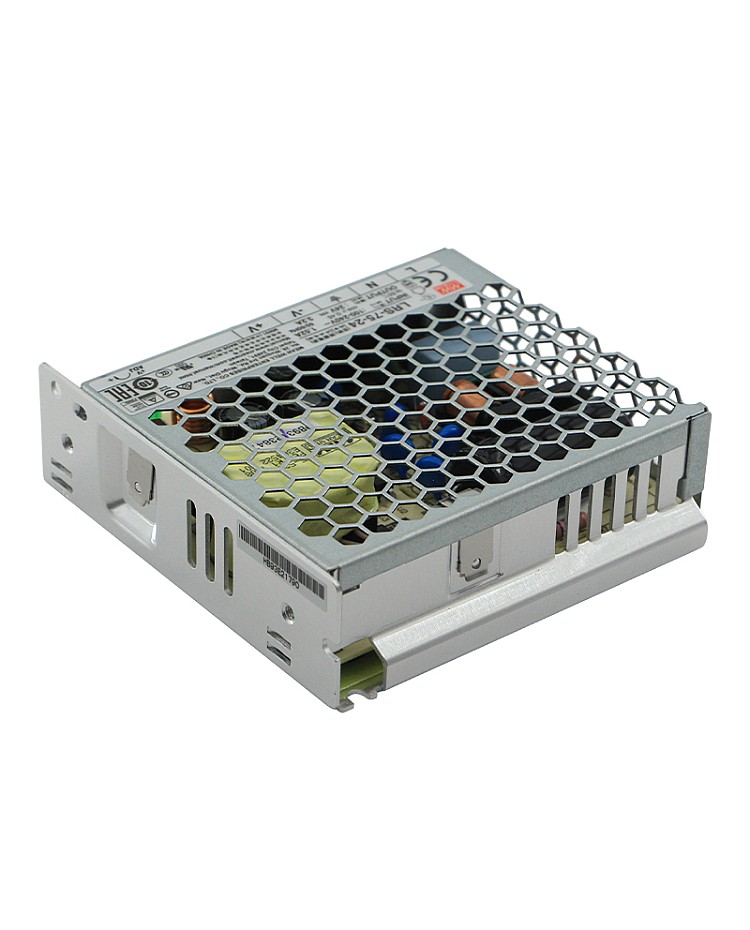

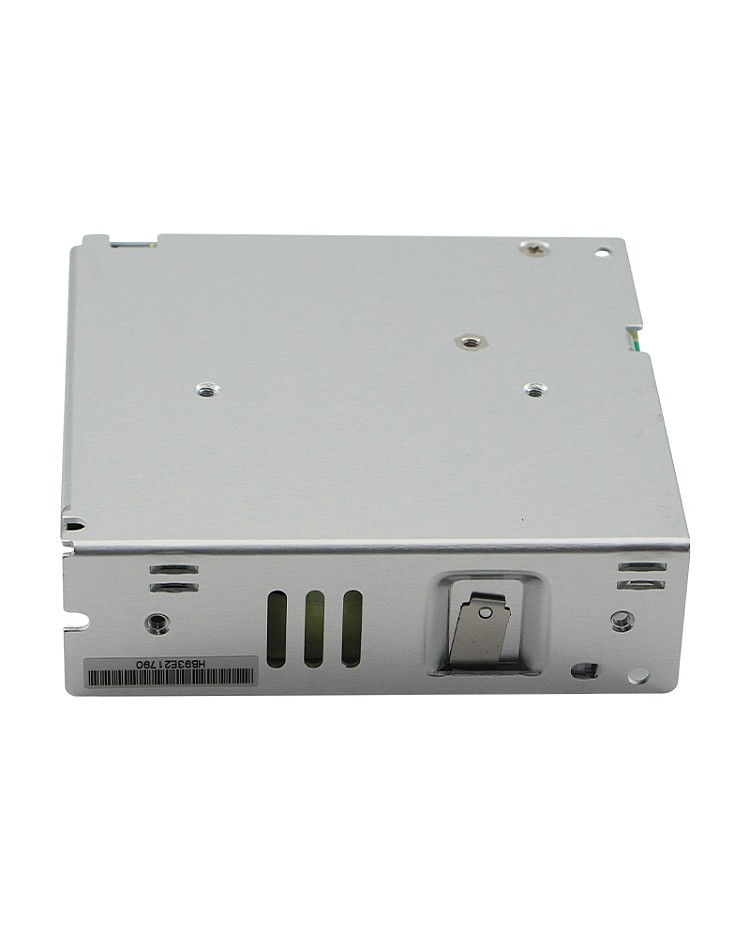

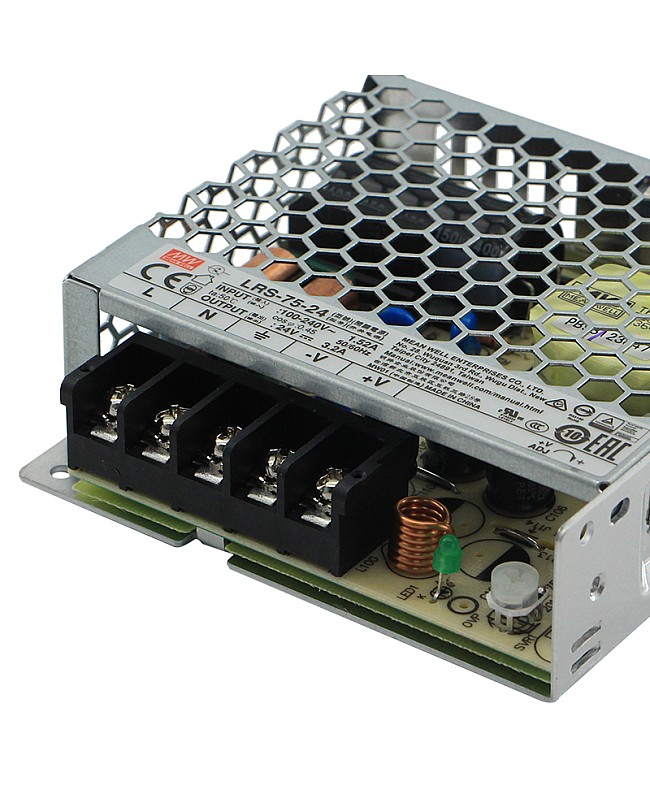

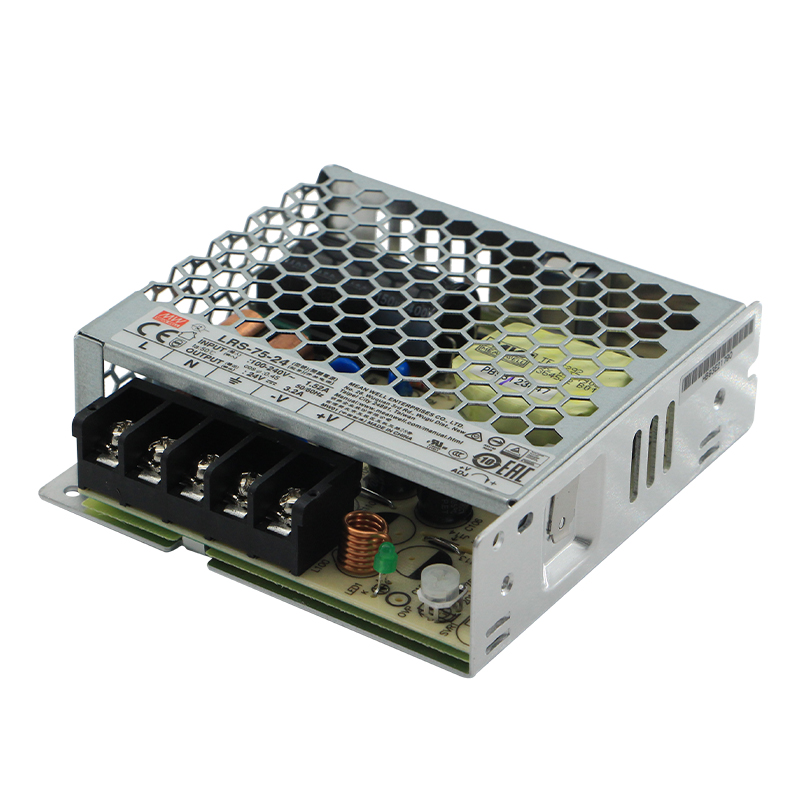

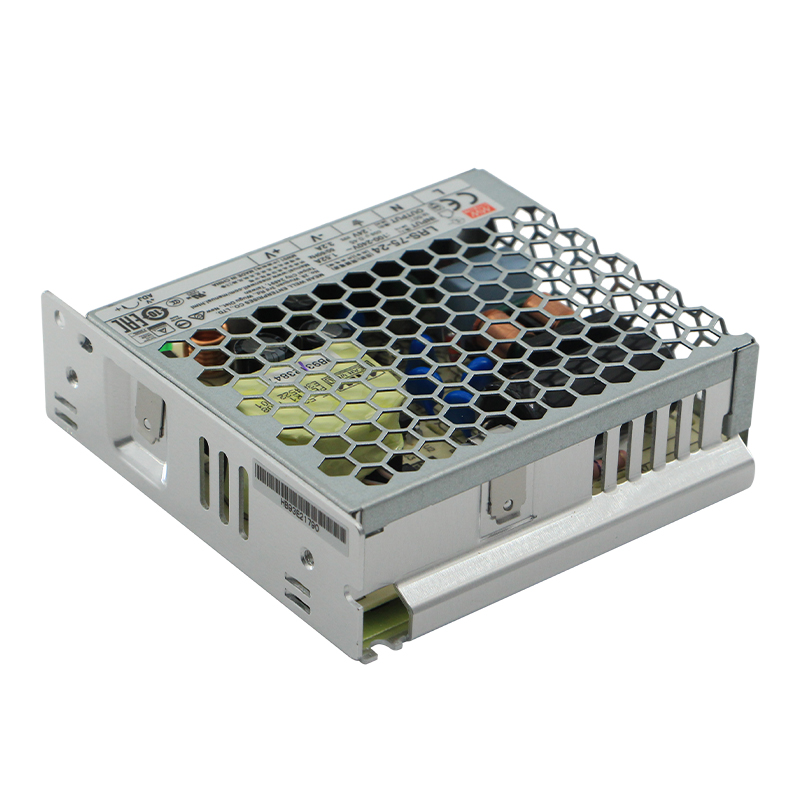

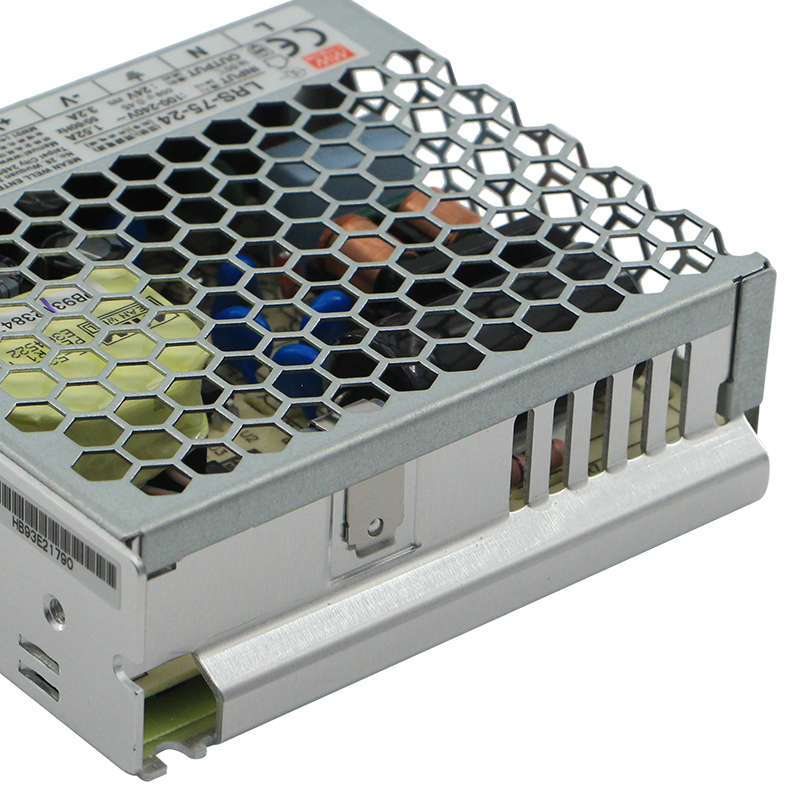

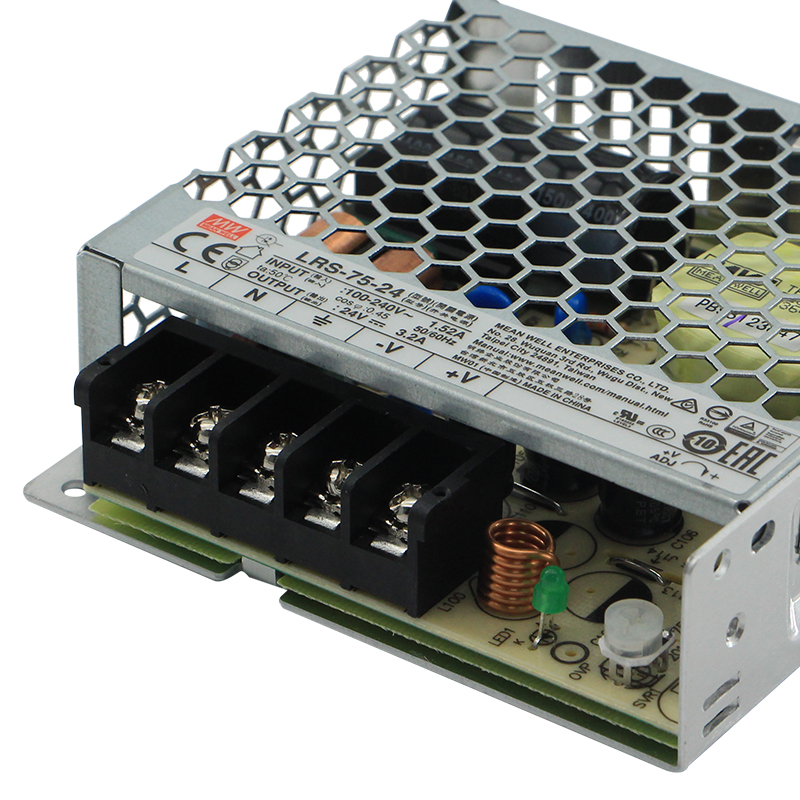

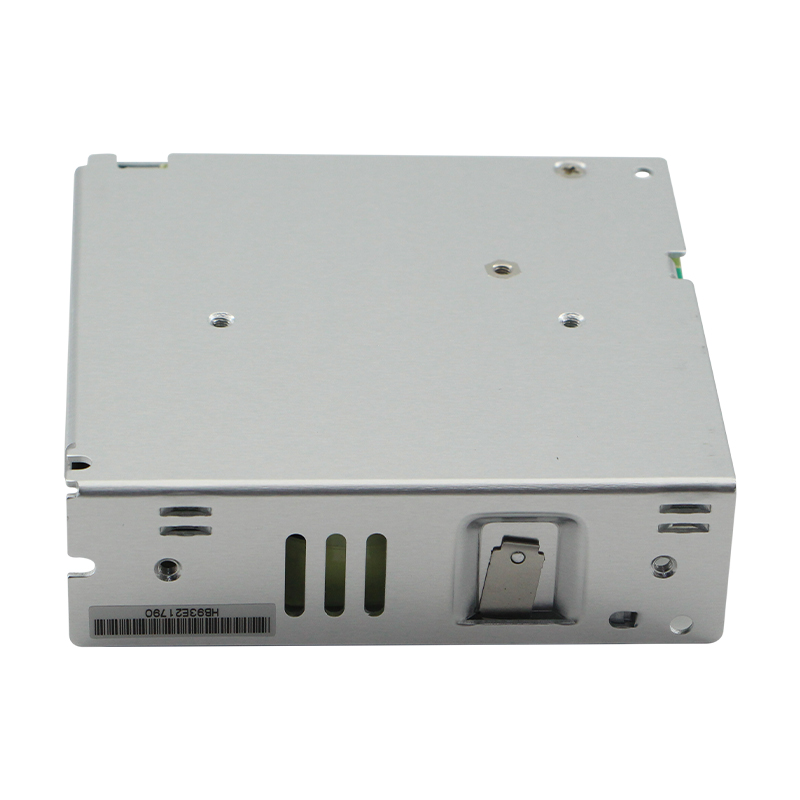

The Mean Well LRS-75 series switching adapter with single output design, the universal AC input range from AC85V to AC264V allows to be connected to the public power system directly without an adapter, the enclosed type LED adapter with 30mm of low profile design, the metallic mesh case enhances the heat dissipation and operate from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no-load power consumption of less than 0.3W, the loading system allows it to meet the worldwide energy requirement easily. The LRS-75-12 has complete protection functions and 5G anti-vibration capability, and you can use it for the LED lamps or LED strip lights indoors.
- Universal AC Input / Full Range
- Withstand 300VAC Surge Input For 5 Seconds
- No Load Power Consumption<0.3W
- Miniature Size And 1U Low Profile
- High Operating Temperature Up To 70℃
- Protections: Short Circuit / Overload / Over Voltage
- Cooling By Free Air Convection
- Compliance To IEC/EN 60335-1(PD3) And IEC/EN61558-1, -2-16 For Household Appliances
- Operating Altitude Up To 5000 Meters
- Withstand 5G Vibration Test
- High Efficiency, Long Life, And High Reliability
- Intuitive LED Indicator For Power On
- Over Voltage Category III
- 100% Full Load Burn-in Test
- 3 Years Warranty
Quick Links:
Mean Well LRS-75 Series Specification Document

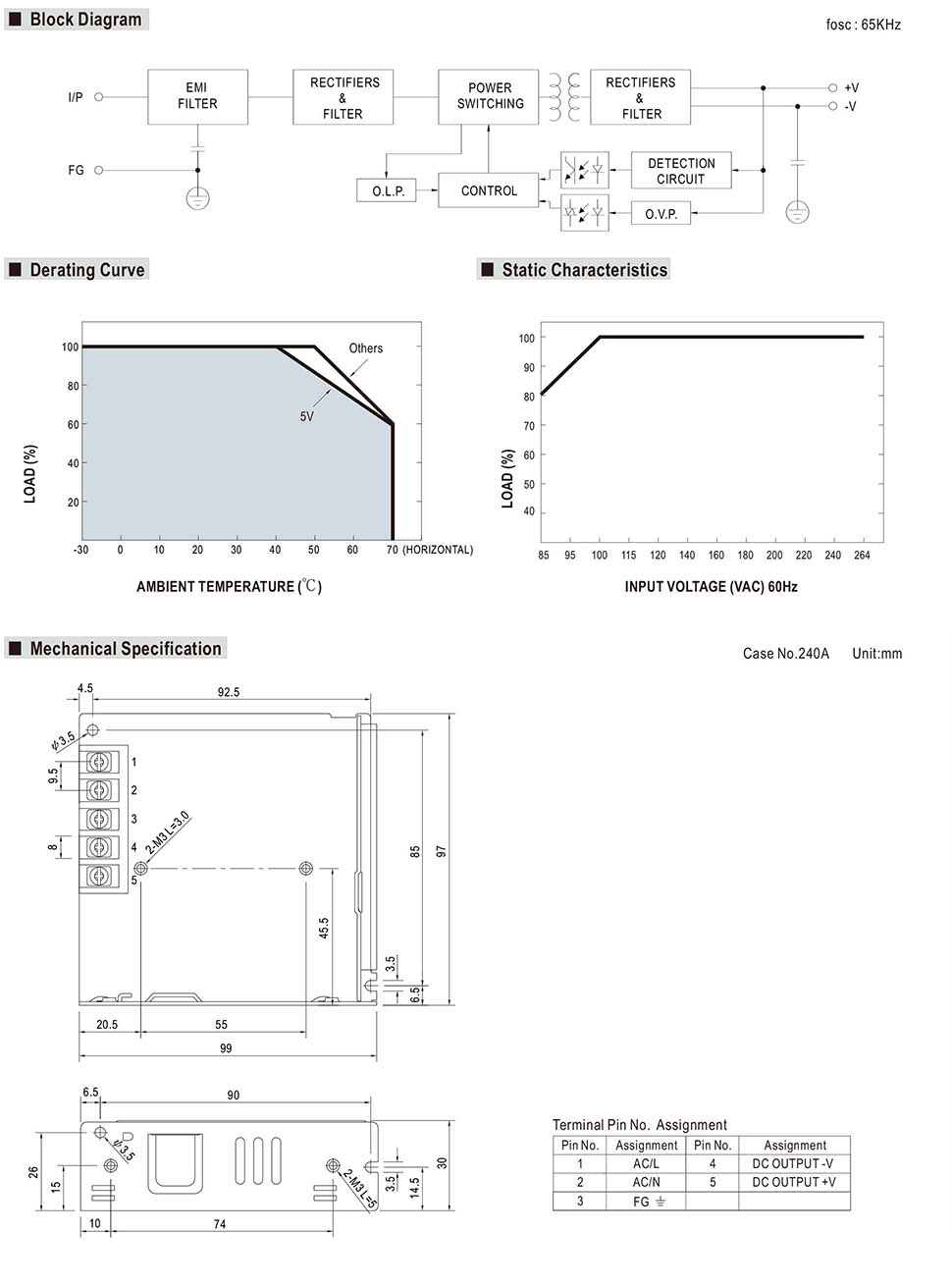

Specifications:
- Model: LRS-75
- Size: 99*97*30mm(L*W*H)
- Input Voltage: 85- 264VAC
- Frequency Range: 47- 63Hz
- Efficiency: 86.5%(DC5V), 89%(DC12V), 89%(DC15V), 90%(C24V), 91.5%(DC36V), 91.5%(DC48V)
- AC Current: 1.4A/115VAC 0.85A/230VAC
- Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
- Rated Current: 14A(DC5V), 6A(DC12V), 5A(DC15V), 3.2A(DC24V), 2.1A(DC36V), 1.6A(DC48V)
- Rated Power: 70W(DC5V), 72W(DC12V), 75W(DC15V), 76.8W(DC24V), 75.6W(DC36V), 76.8W(DC48V)
- Working Temperature: -30℃-+70℃
- Vibration: 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
- Safety Standards: UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16, CCC GB4943.1, etc
- Overload Protection
- Over-Voltage Protection
- Over Temperature Protection
Includes:
1 * Mean Well LRS-75 Switching Adapter
