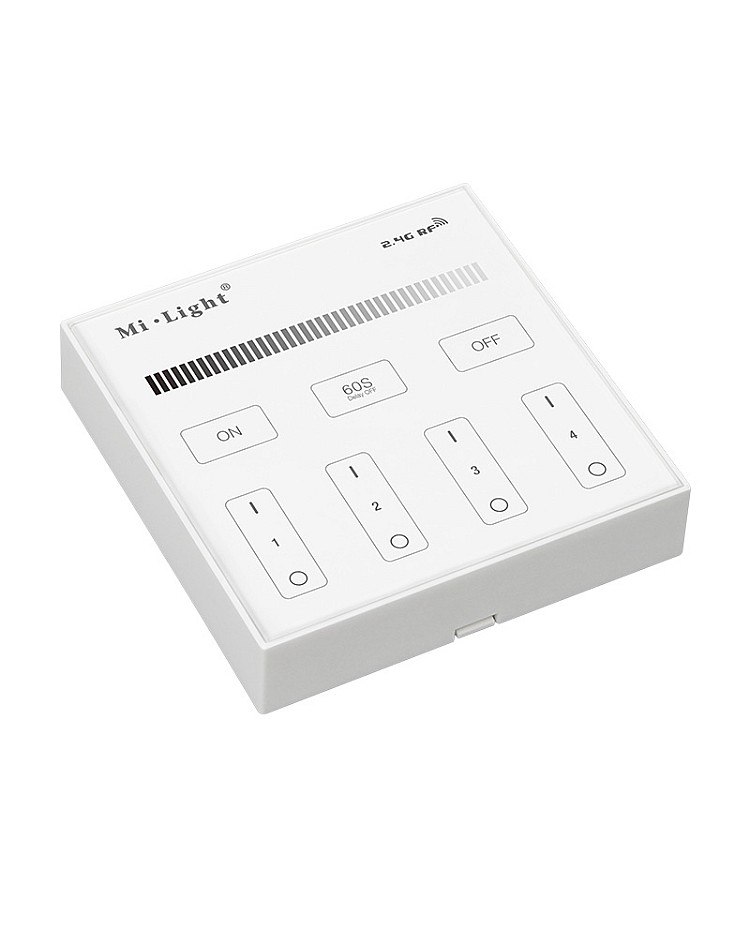

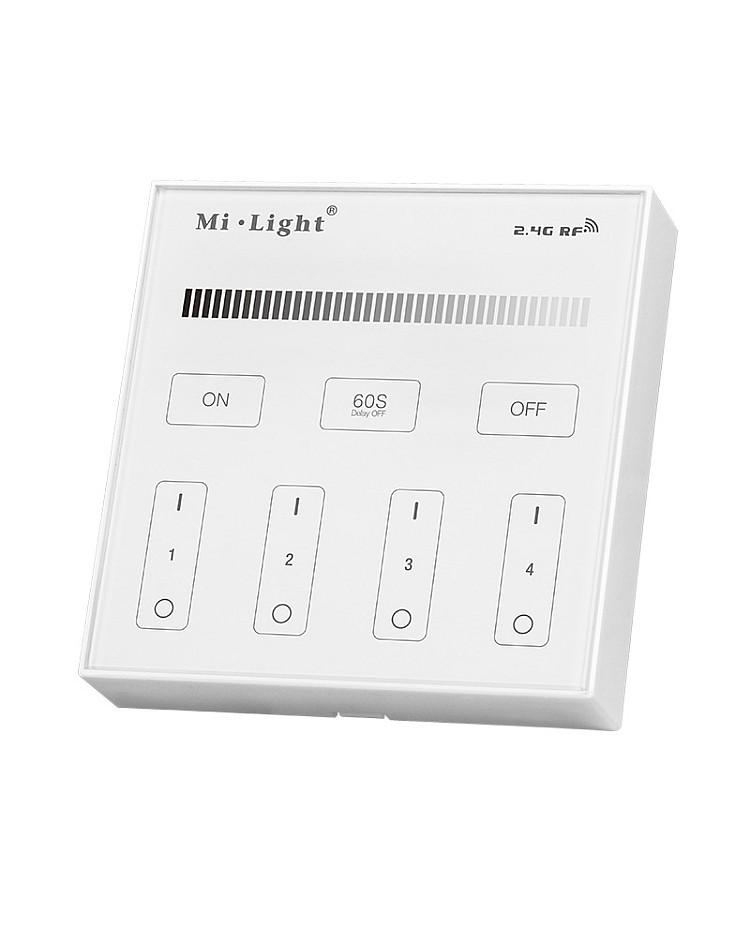

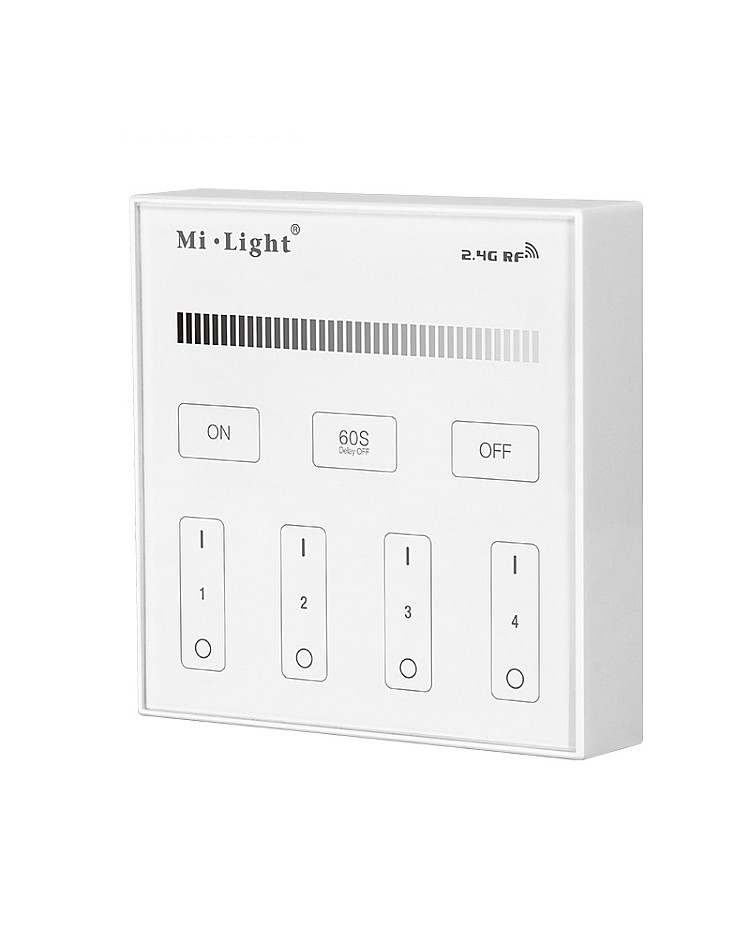

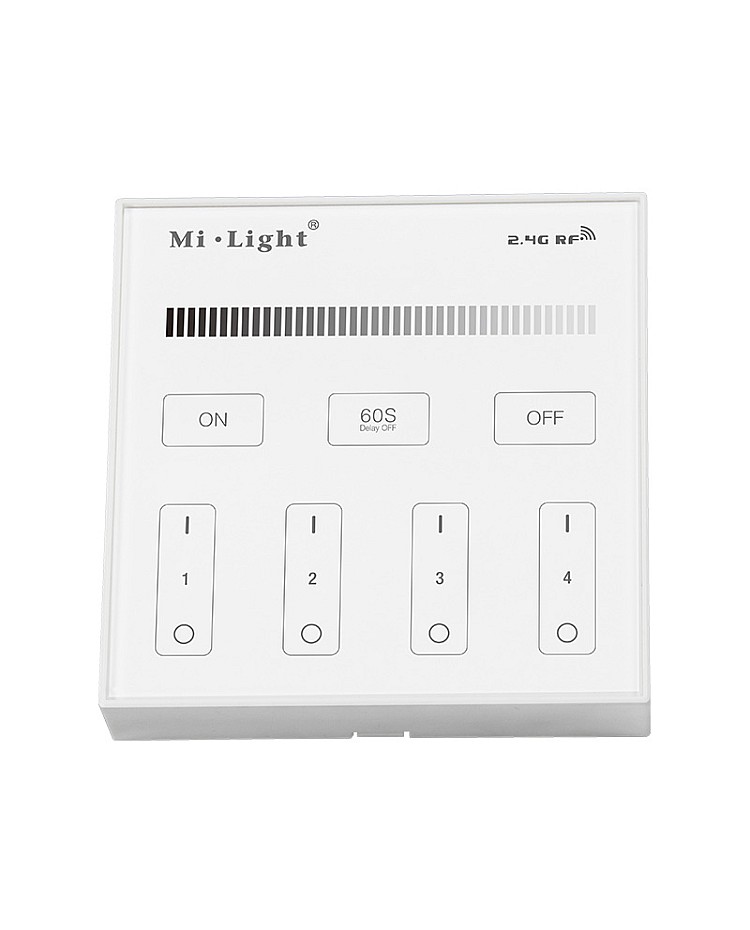

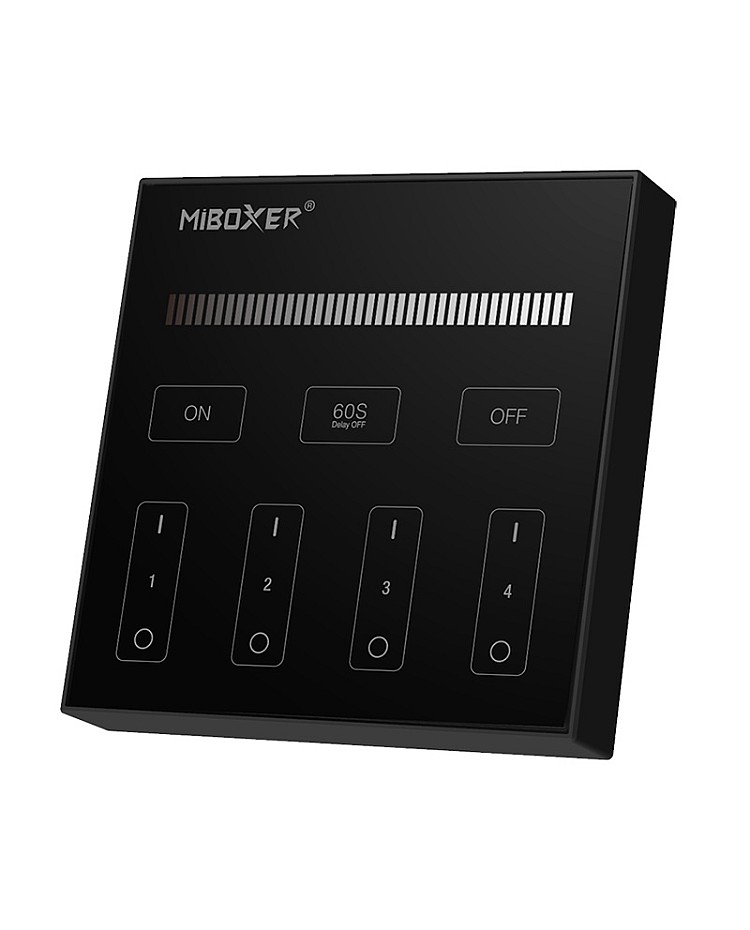

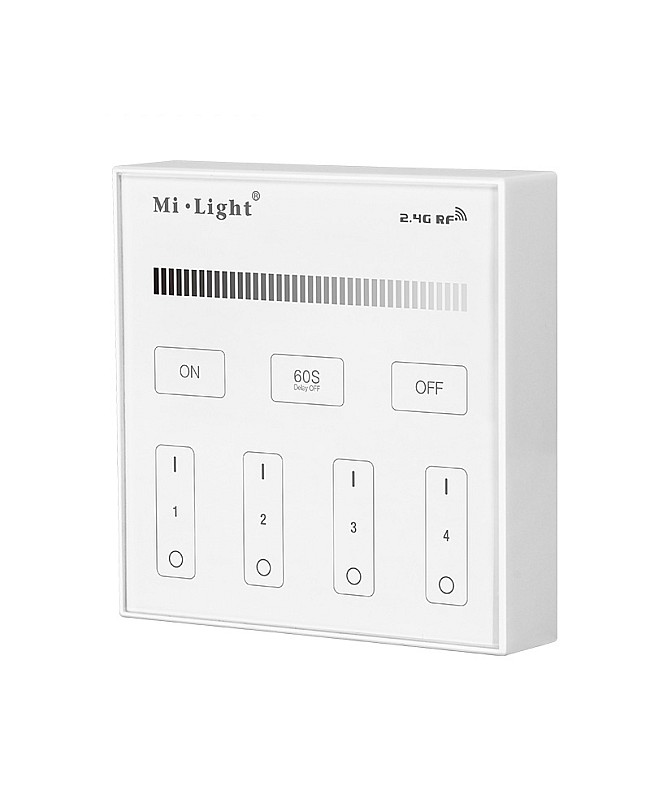

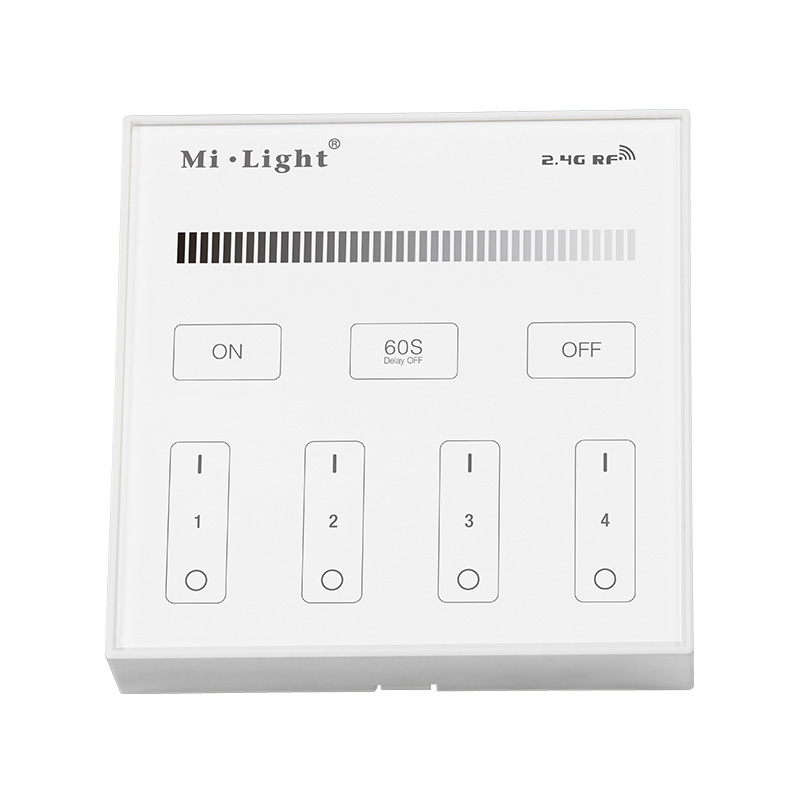

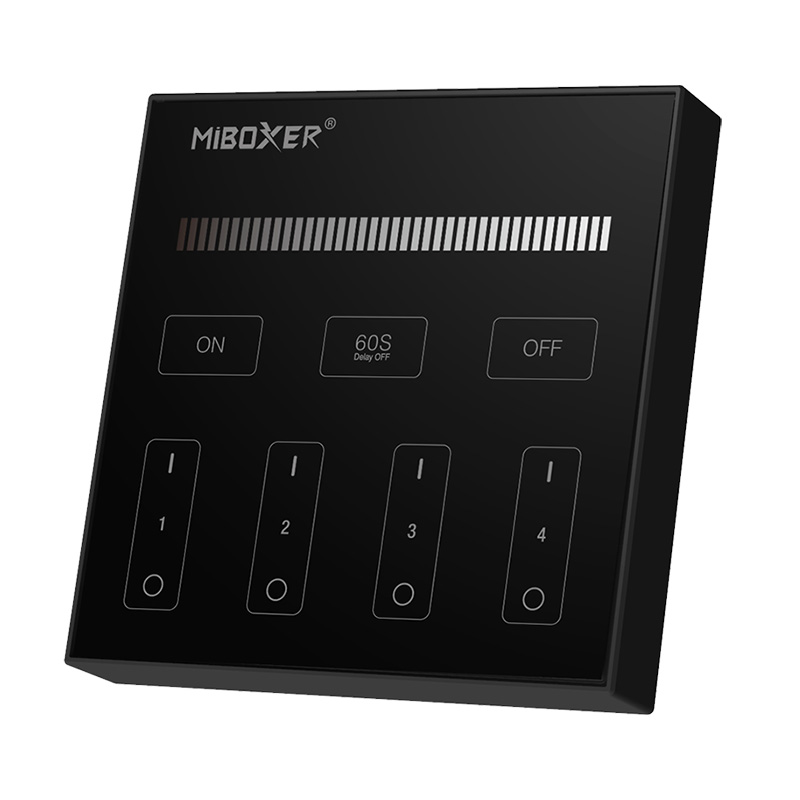

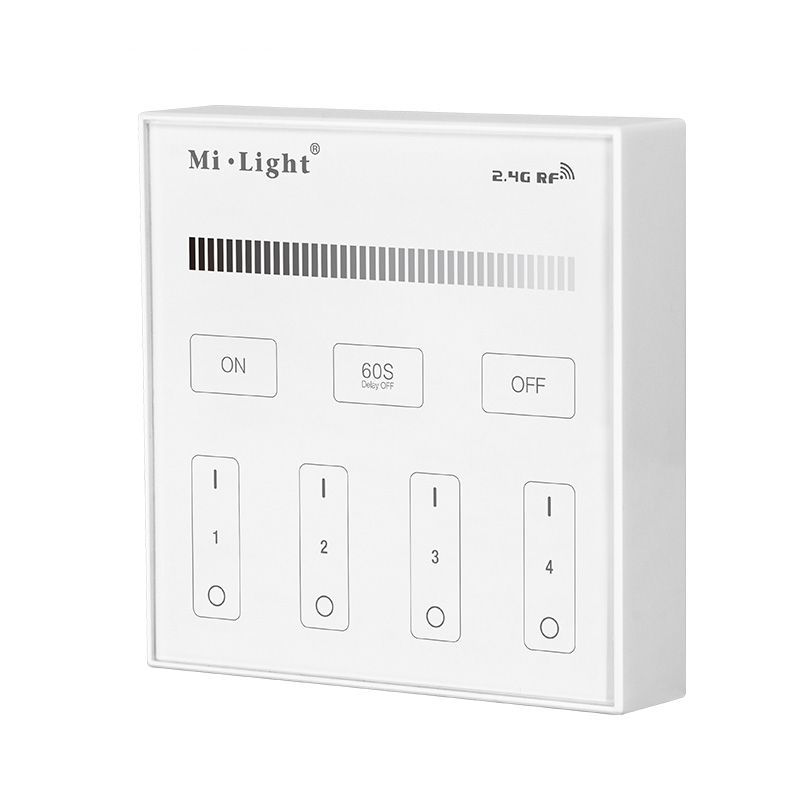

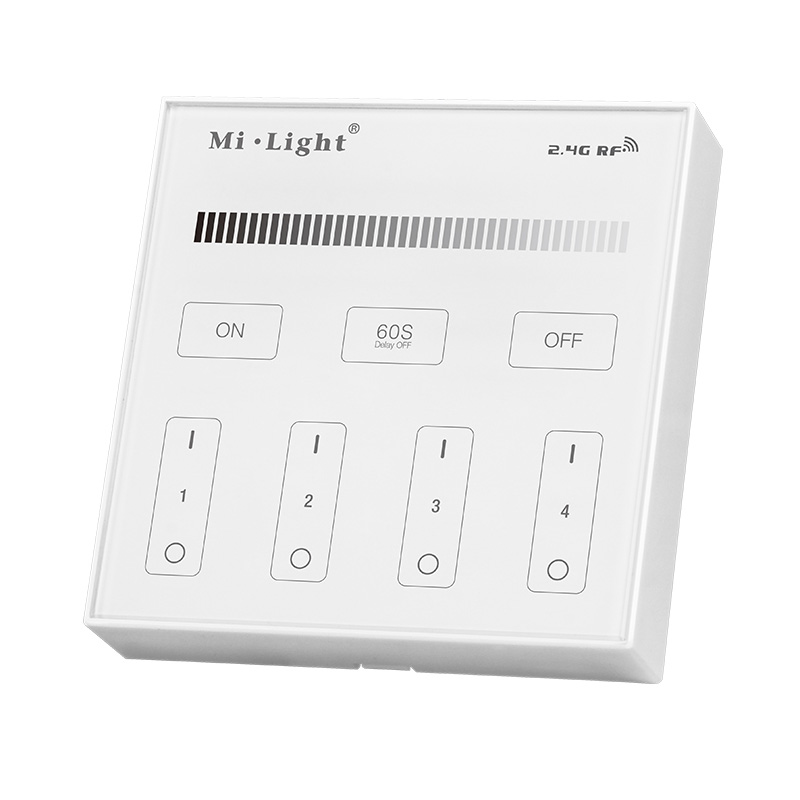

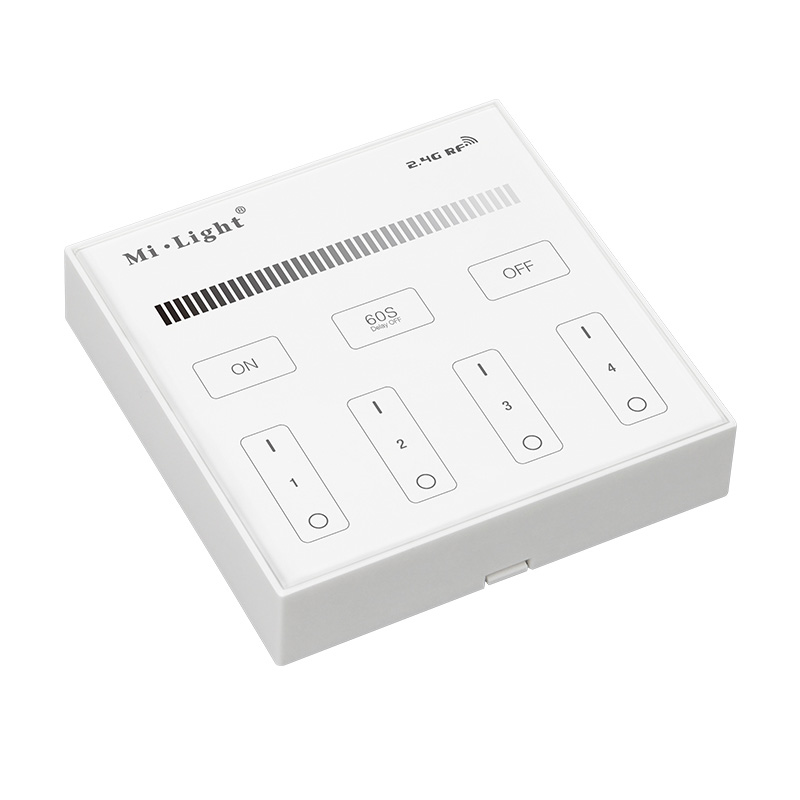

The MiBoxer B1 dimming remote control panel can control Mi-Light and MiBoxer single-color LED controllers. With a 4-zone individually controlled design, each zone controls countless lamps or controllers. The MiBoxer B1 has a sensitive touch panel design and a high-precision capacitive touch screen IC. The touch screen is very stable; you can touch the panel to adjust the brightness from 1% to 100%. With the 60S delay-off function, touch the 60S button, and the LED light will be turned off automatically after 60 seconds. The dimming remote control adopts a 2.4 G communication module that can control the LED light within 30 meters. With a magnetic holder, the powerful magnets can attach the panel remote control to the base.
Quick Links:
MiBoxer B1 Dimming Panel Remote Manual
Specifications:
- Size: 86*86*16mm(L*W*H)
- Working Voltage: DC3V
- Powered By 2*AAA Batteries(Sold Separately)
- Transmission Frequency: 2400- 2483.5MHz
- Modulation Method: GFSK
- Transmitting Power: 6 dBm
- Control Distance: 30m
- Standby Power: 20uA
- 0-100% Brightness Dimming
- 2.4G Wireless Transmitting Control Distance 30M
- 4 Zones Individually Controlled
- Compatible With Mi-Light And MiBoxer Single Color LED Lights And Controllers
- 60S Delay-Off Function
- Magnetic Holder
- Sensitive Touching Panel
- Compatible With MiBoxer LS2, Mi-Light WL5
- Working Temperature: -10℃-+40℃
- 2 Years Warranty
Includes:
1 * B1 Dimming Remote Control Panel
1 * User Manual
