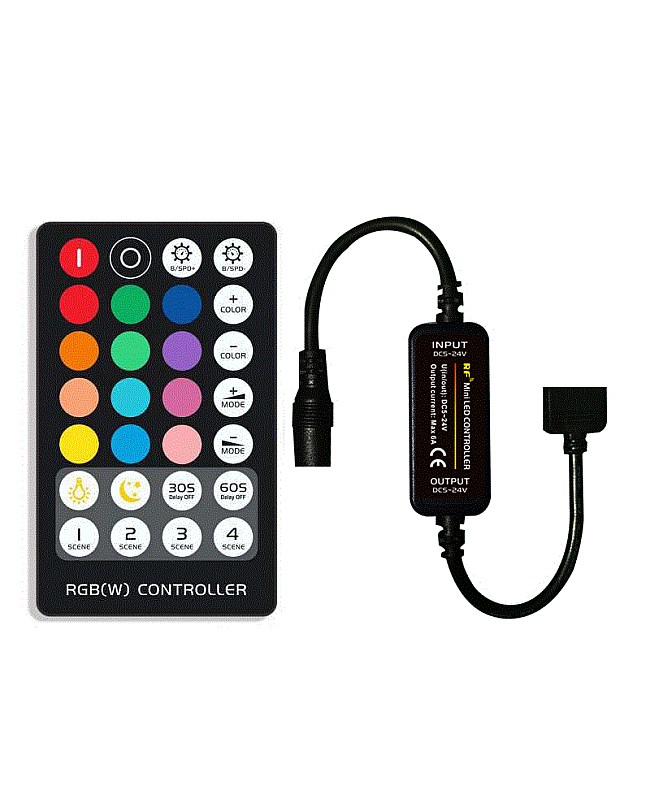

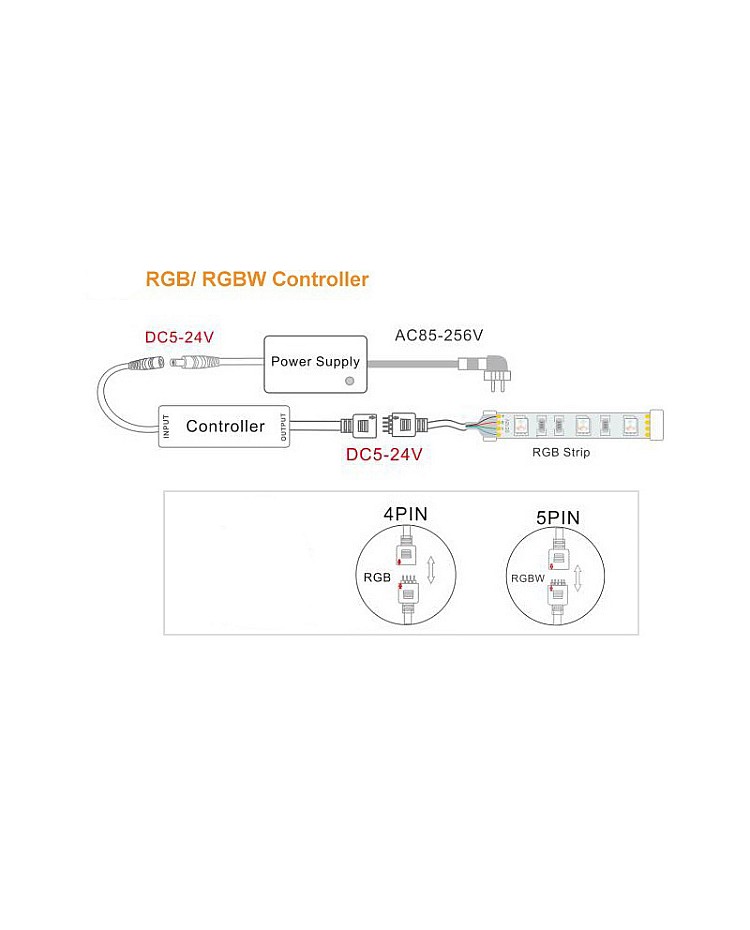

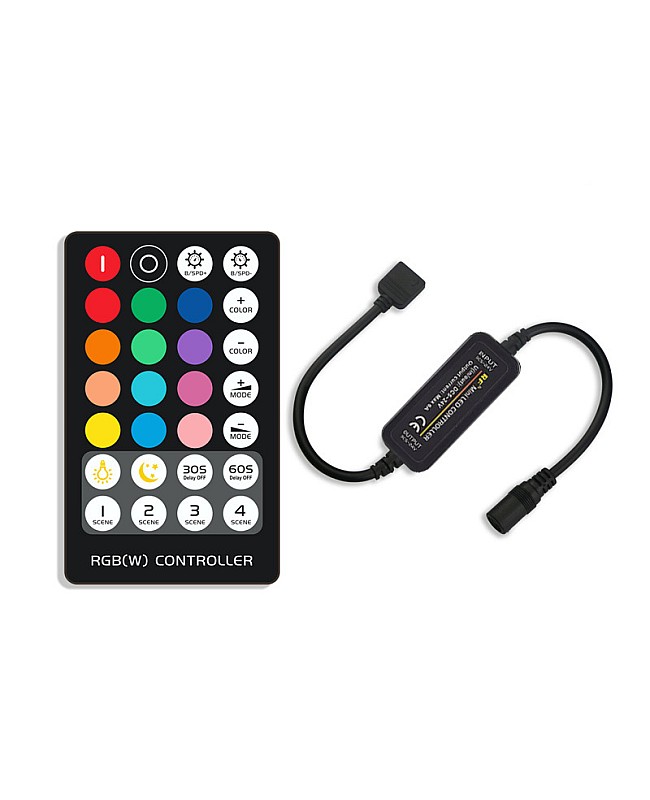

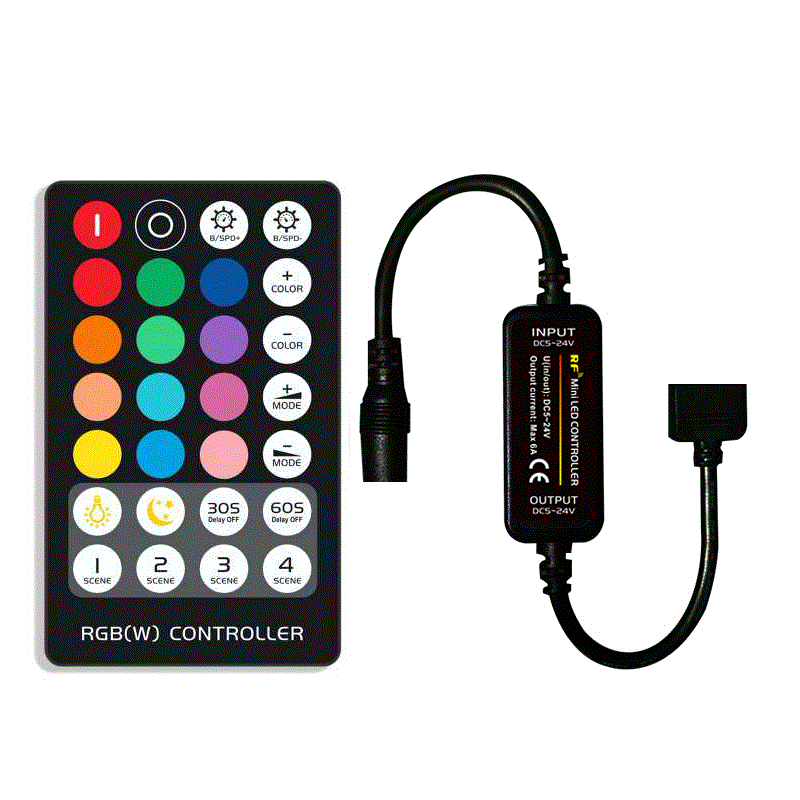

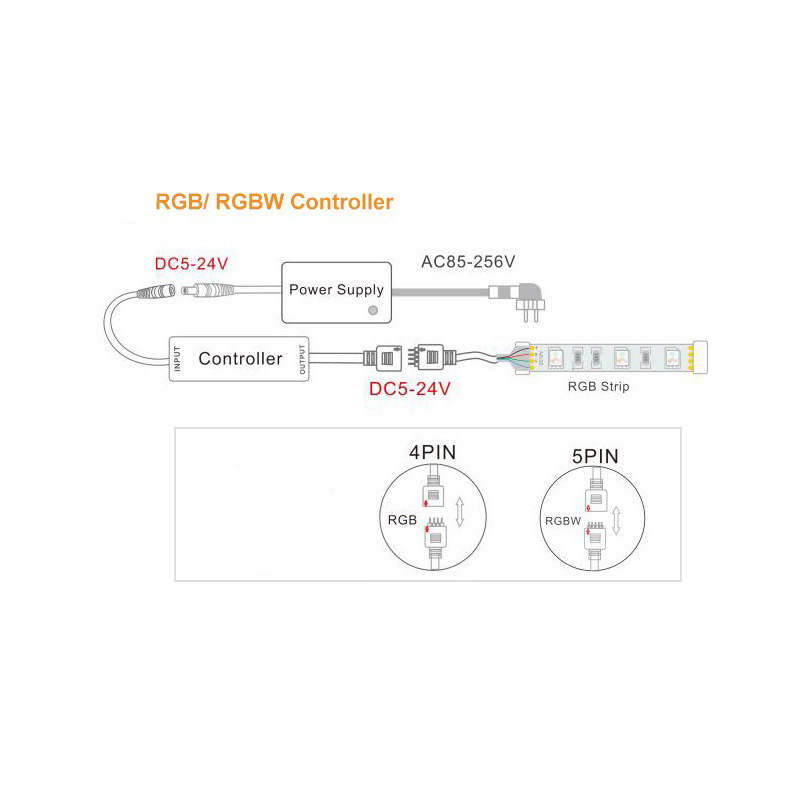

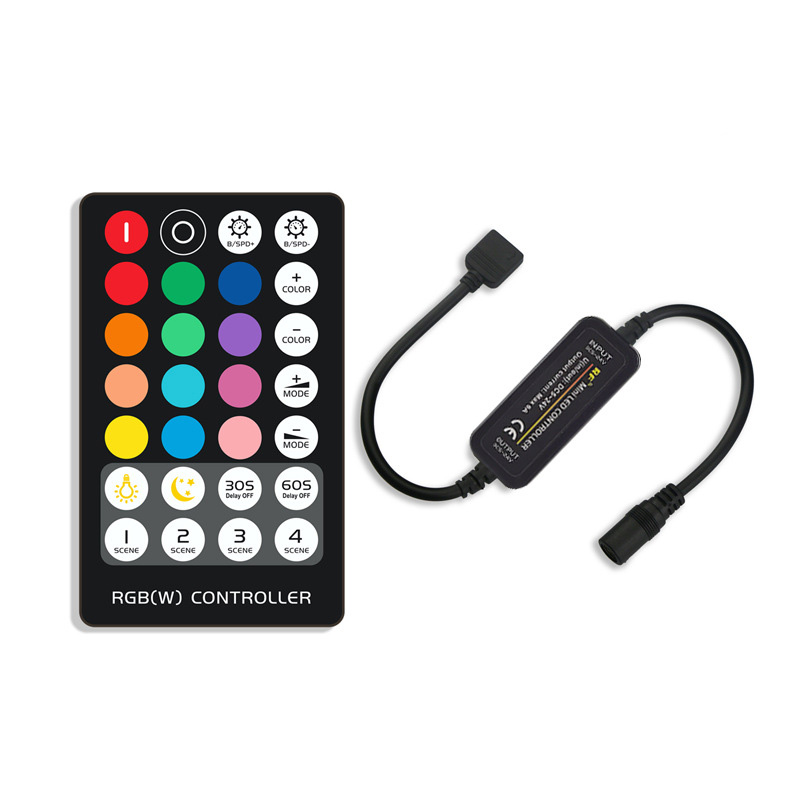

Check the mini inline RGB Light Controller, with the mini size to allow installing in a narrow or small place, working in DC5V to DC24V, comes with DC Female Connector and 4Pin Female Connector, easy to connect to the LED Power Supply and RGB LED Strips, with 3 output channels and max output current of each channel is 2A, the 28 keys RF remote control included, you can use it to control the COB RGB LED Light Strips remotely, turn on/off, adjust the brightness of static colors or the speed of dynamic modes, 7 static colors and 5 dynamic modes available, there are 4 DIY Scene buttons allow you to DIY the working mode or static color. there are 2 buttons on the remote control that allow to delay the LED Light off in the 30S or 60S.

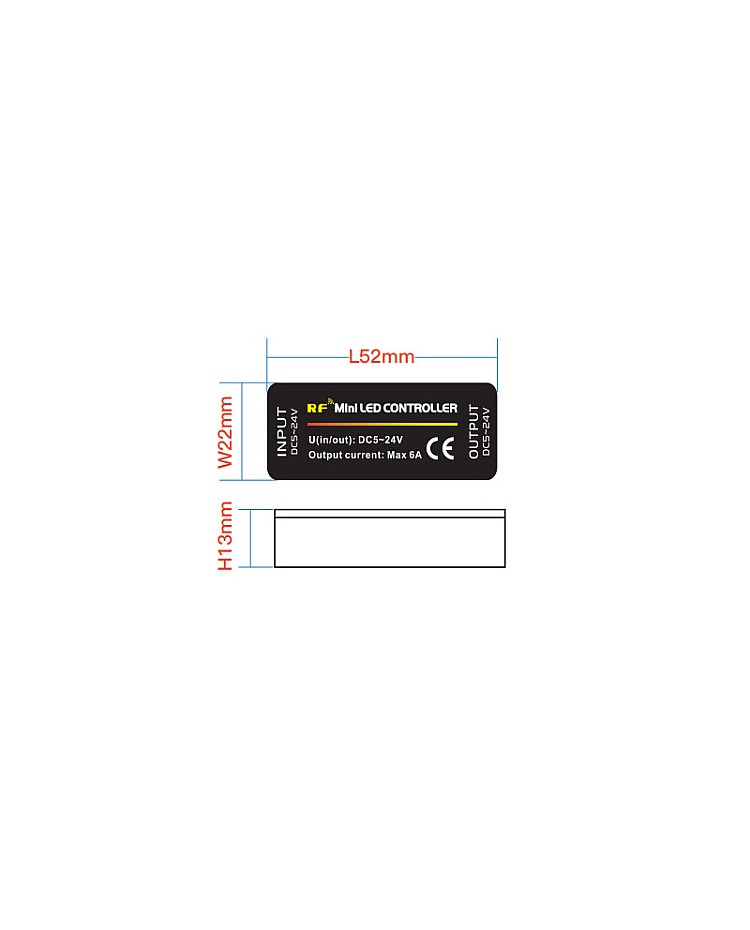

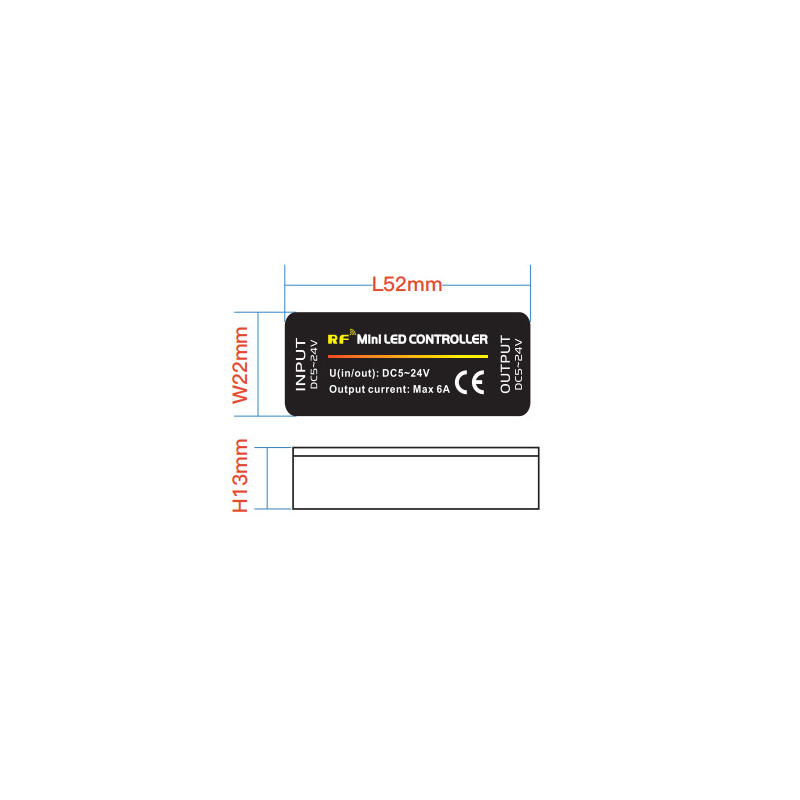

  • Size: 55*22*13mm(L*W*H)
  • Colors: Black
  • Working Voltage: DC5-24V
  • Connecting Method: Common Anode
  • Static Power Consumption: <0.5W
  • Output Current: Total: 6A: 3*2A(RGB)/4*1.5A(RGBW)
  • Max Output Power: <30W(DC5V), <72W(DC12V), <144W(DC24V)

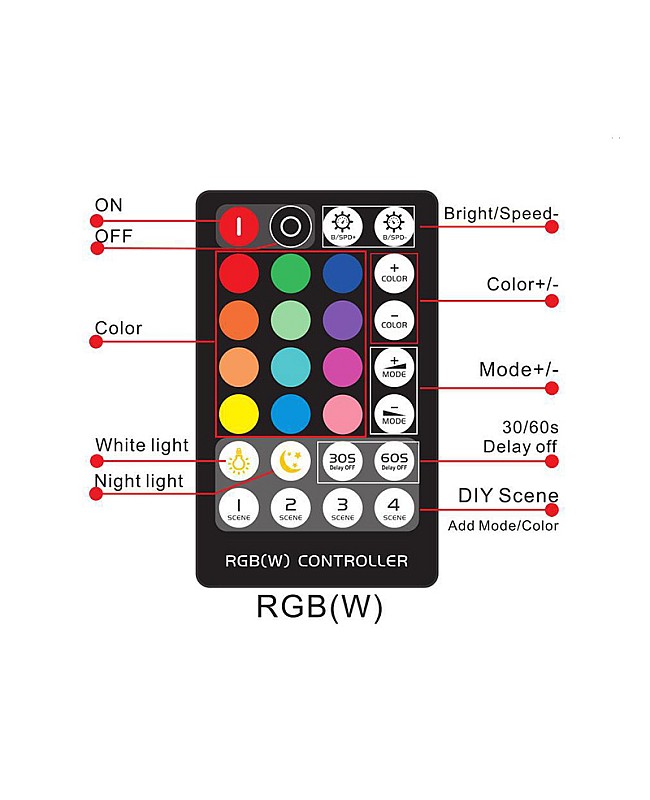

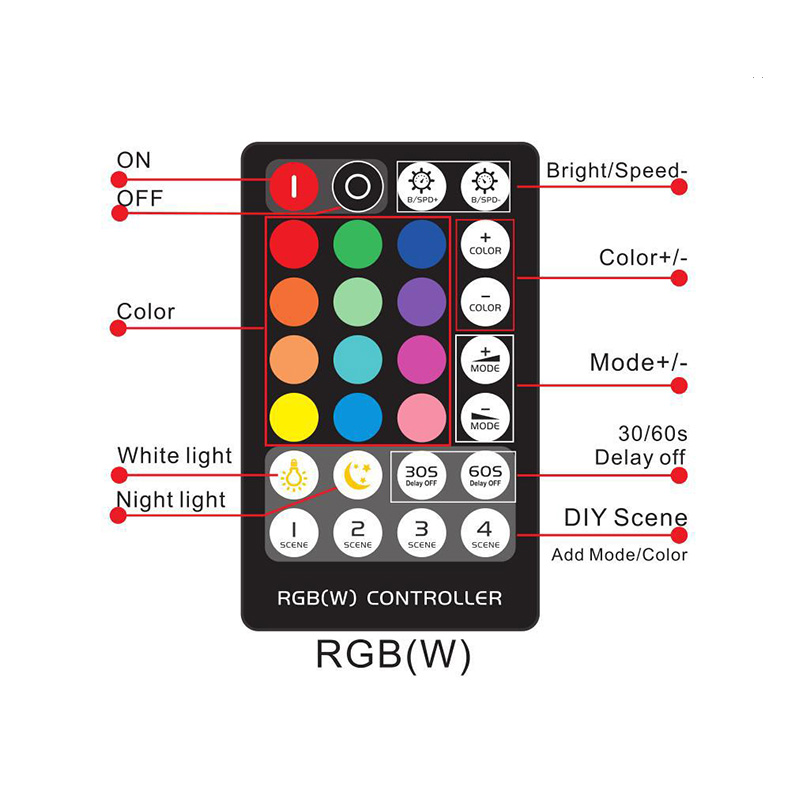

  • 28 Keys RF Remote Control Included
  • 5.5*2.1mm Female DC Connector And 4Pin Female Connector Included(RGBW With 5Pin Female Connector)
  • RF Control Distance: <20M
  • 0-100% Dimmable
  • 7 Static Colors And 5 Dynamic Modes
  • 30S And 60S Delay-Off Function
  • 4 DIY Scene Design
  • Color Order: +GRB
  • 2 Years Warranty


1*RGB Light Controller

1*28 Keys RF Remote
