In Stock
Reward Points: 7
  • Brand: Ledbe
  • Product Code: SK6812 RGBW

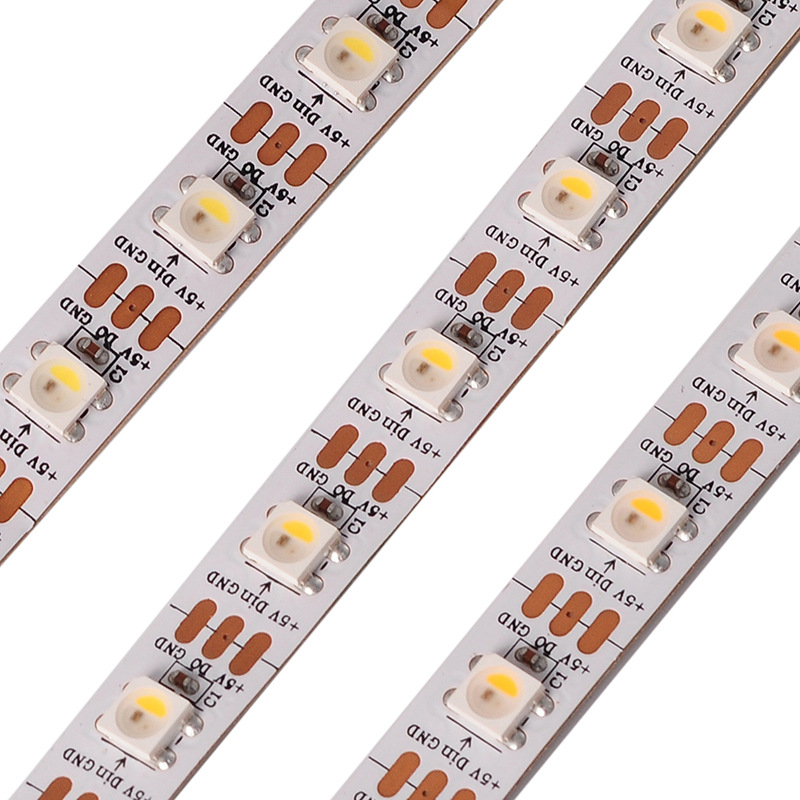

Check the RGBW SK6812 LED Strips, which use the high-quality RGBW 4-in 1 SMD LEDs as the light source, there are red, green, blue, and white LED Chips in one LED, and the LEDs built-in SK6812 IC, which is the upgraded version of WS2812B, every LED has its own IC chip for individually addressable, has a richer color change and color combination possibilities, works great with SP110E, SP105E, SP108E, SP107E, SP110E or K-1000C LED Controllers, 32-bit colors and pure white display. You can control the LEDs to any color or animation you want. It can appear the curtain-up/flow water/raindrop/jump flash and other hundreds of amazing lighting effects. You can edit the animation effect with Coreldraw/Flash/LedEdit software for DIY effects. Various LED per meter and various waterproof levels products are available, and you can choose 30LEDs/Meter, 60LEDs/Meter, or 144LEDs/Meter. Three waterproof levels products are available: IP30 non-waterproof, IP65 coating waterproof, and IP67 silicone tube waterproof. You can use the IP30 and IP65 for indoor applications, and the back of both with double-sided adhesive tape is easy to install and use. The IP67 SK6812 LED Strips are for outdoor projects; you can install them in a wet, damp, or water location. Every LED is cuttable; you can cut to any length for your project. It comes with 3 Pin JST-SM Connectors on both ends, which are easy to install and use.

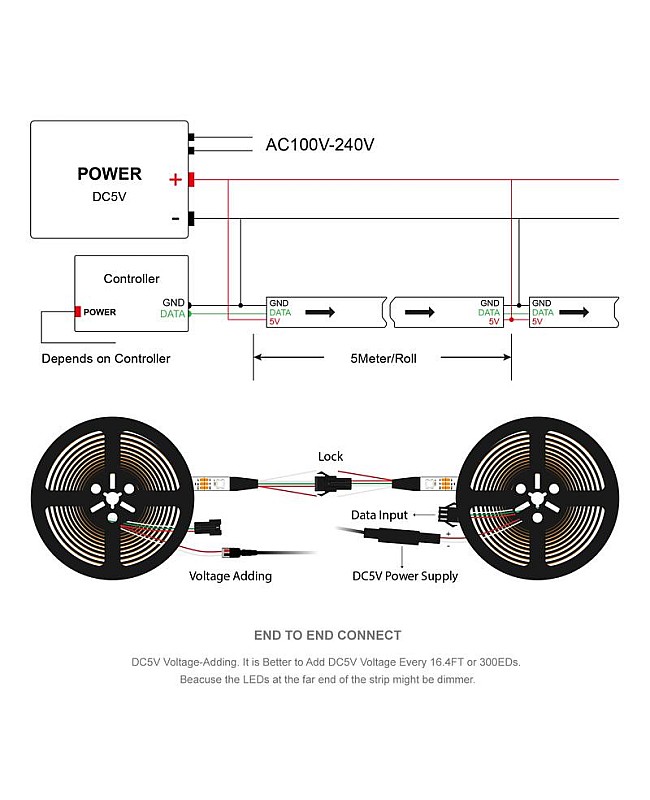

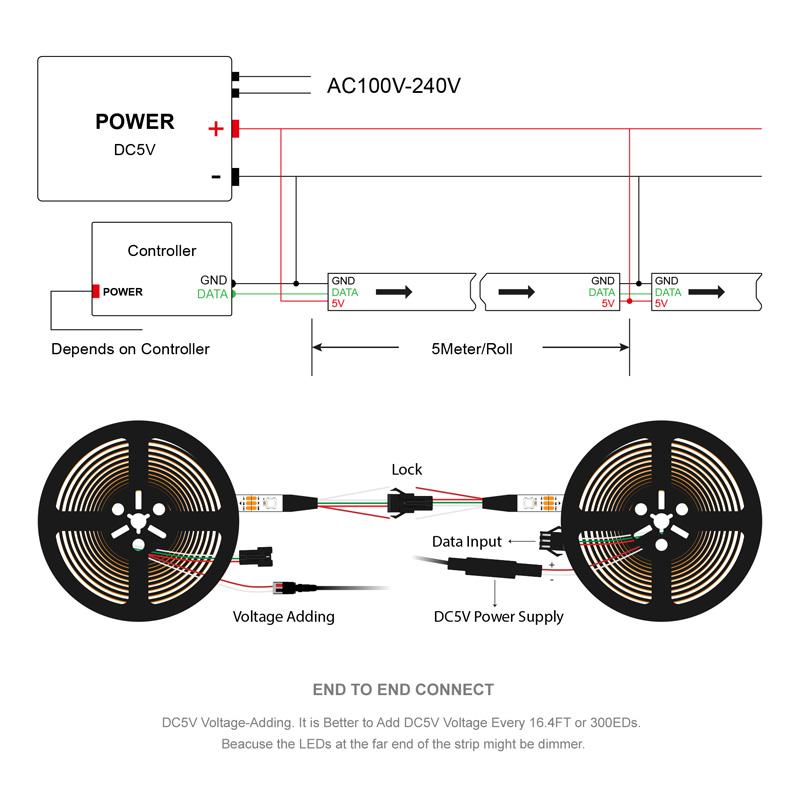

The LEDs at the far end might be dimmer because of the added resistance and working voltage drop. We recommend adding the same working voltage every 5 meters (16.4FT) according to the actual situation to keep them with the same brightness.


  • Working Voltage: DC5V

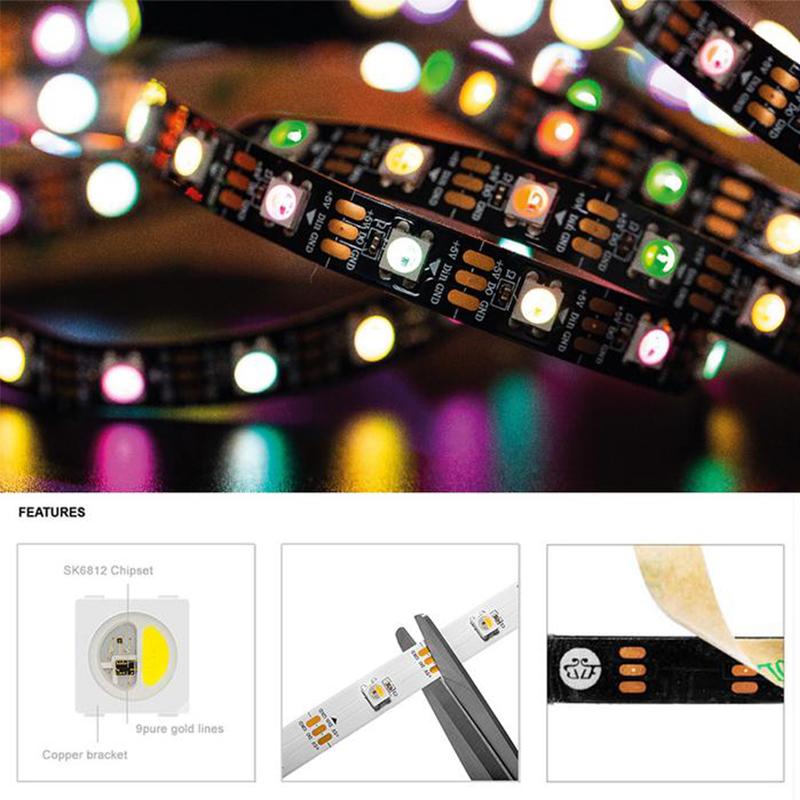

  • IC Type: Built-in SK6812 IC(Upgraded Version Of WS2812B)
  • LED Type: 5050 RGBW SMD LEDs

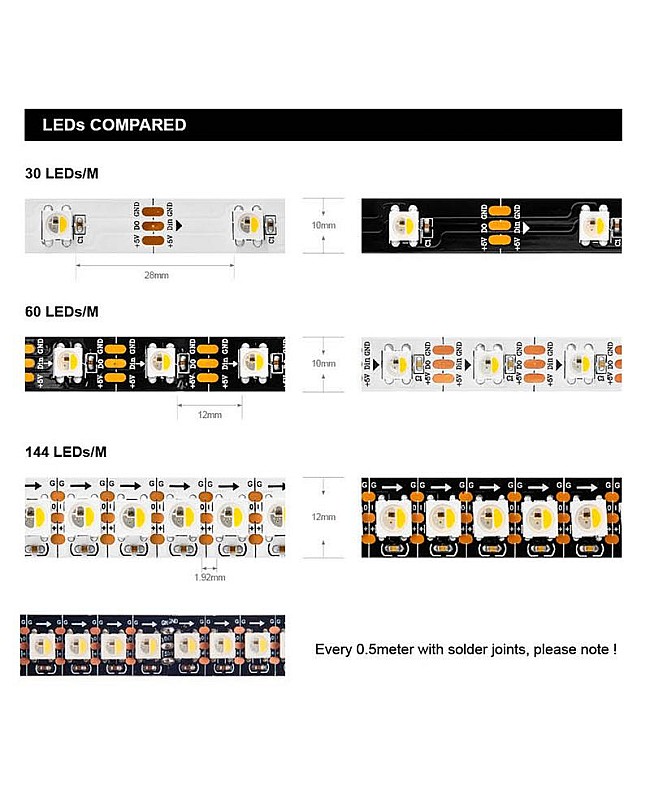

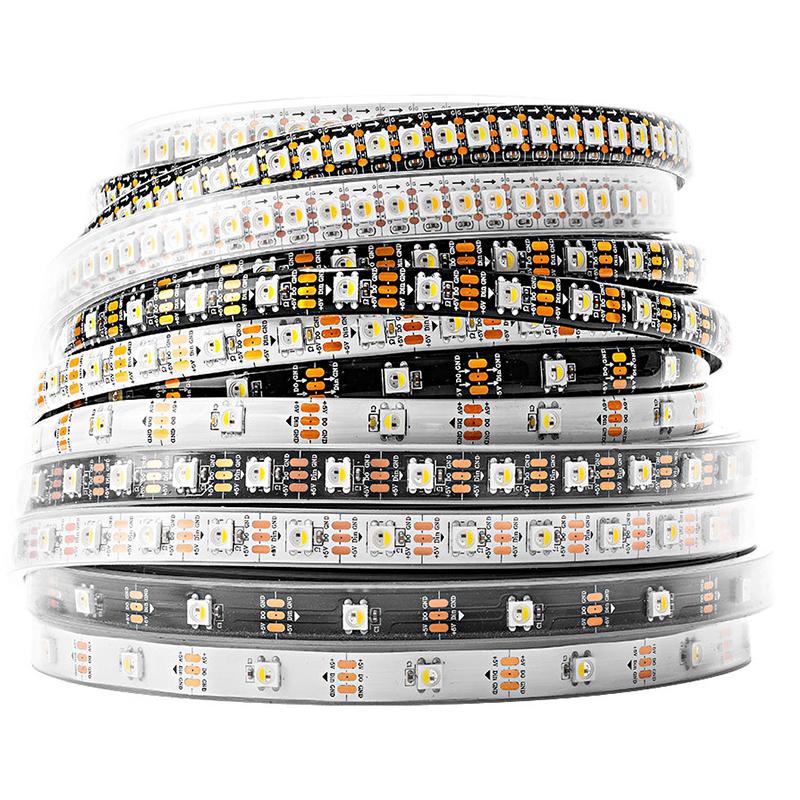

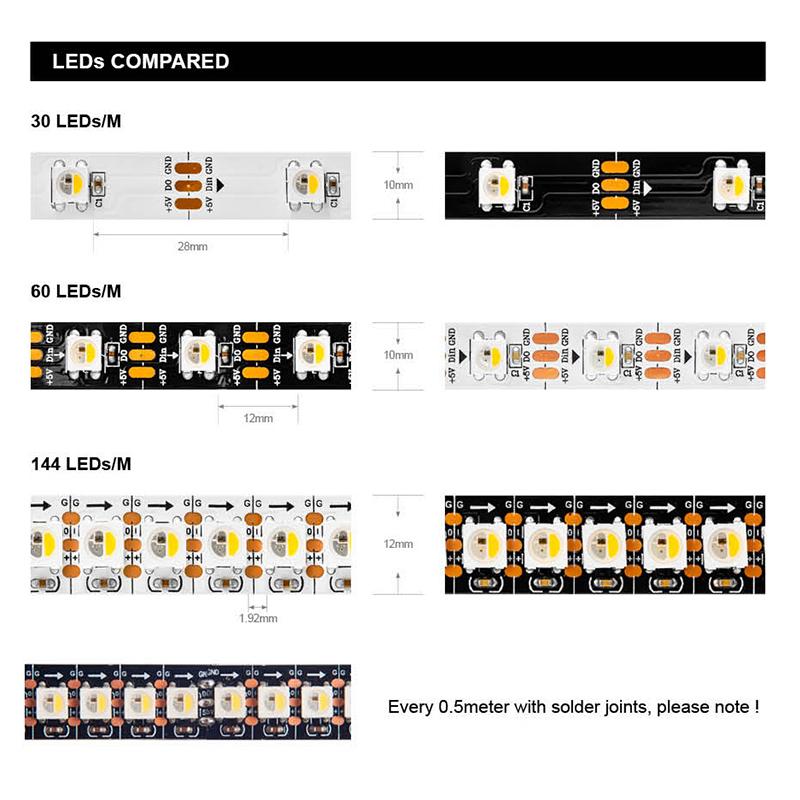

  • LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M
  • IC QTY: 30PCS/M, 60PCS/M, 144PCS/M
  • View Angle: 120°
  • Grayscale Levels: 256
  • Dimmable: YES
  • Color Order: G R B W

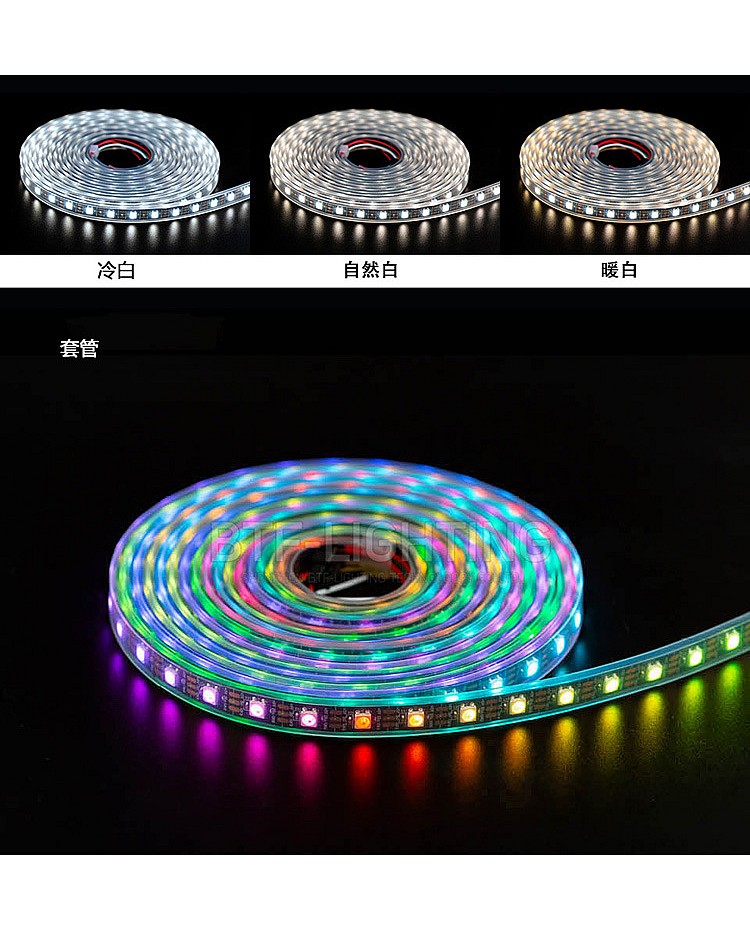

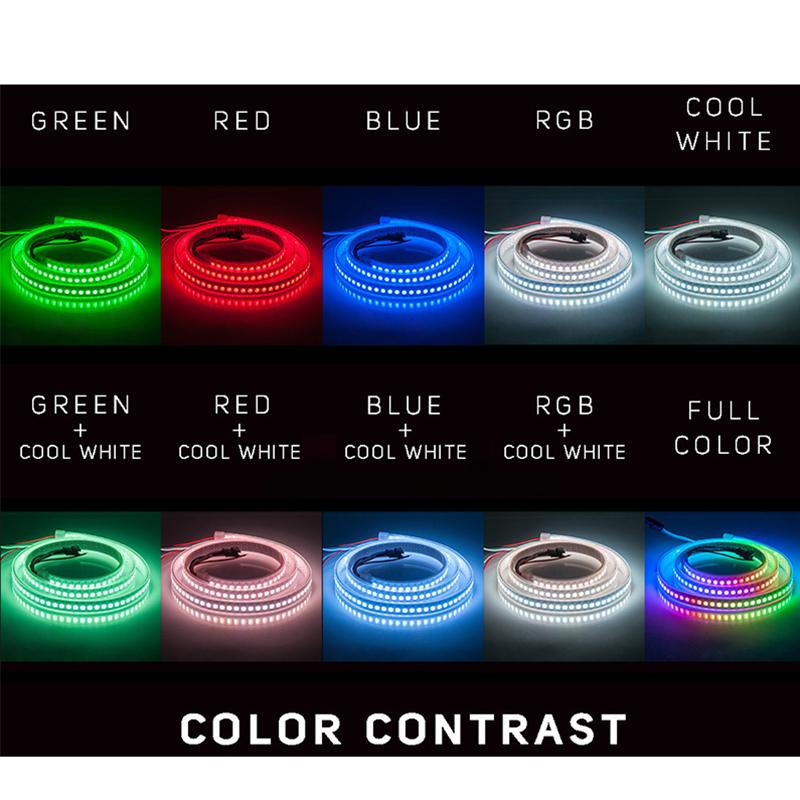

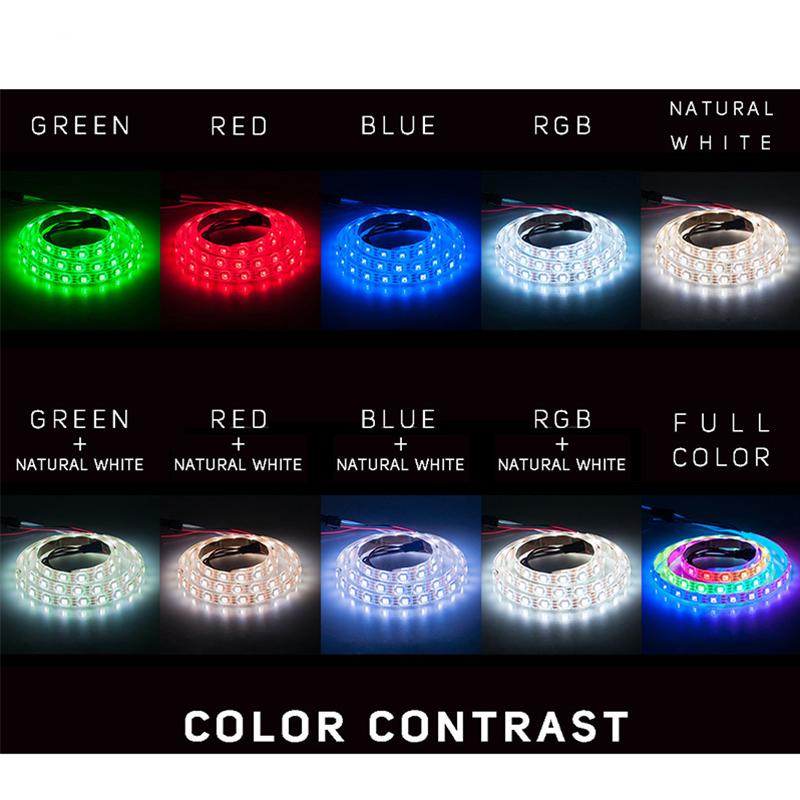

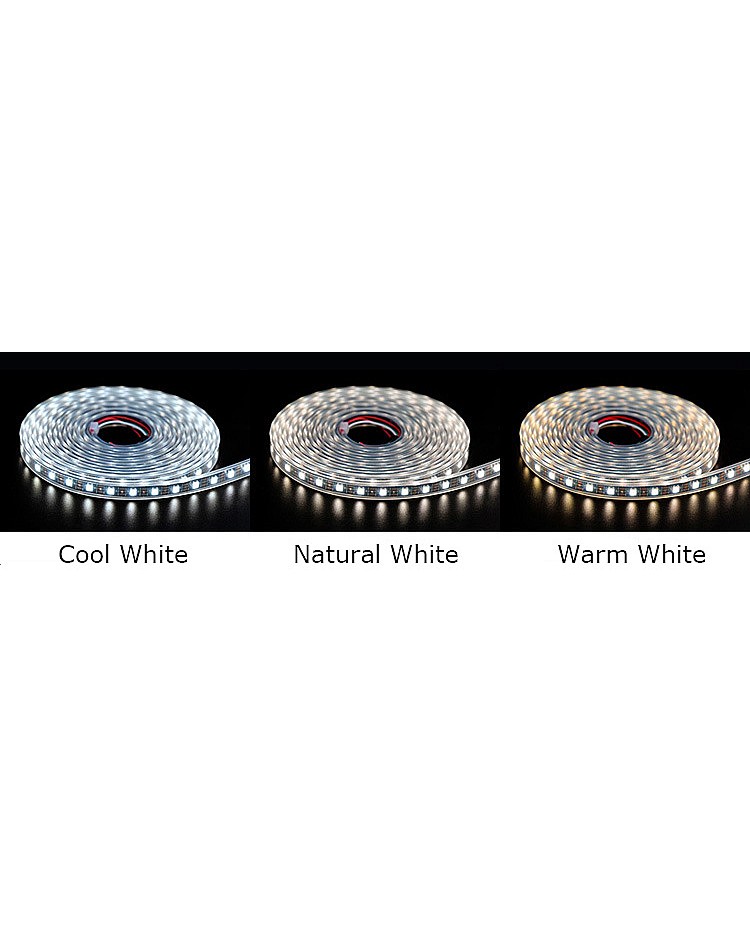

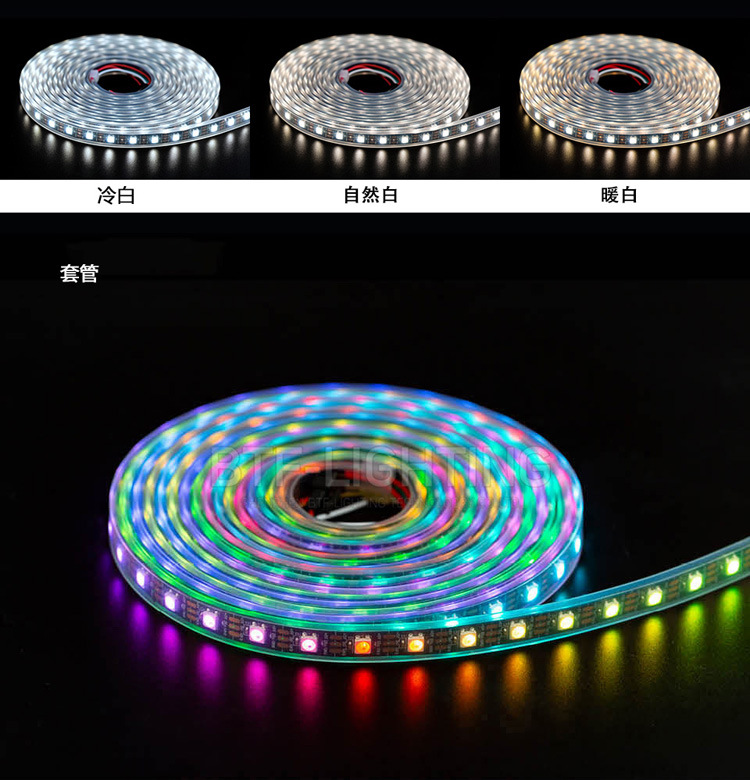

  • Emitting Colors: RGB+Cool White(6000K-7000K)/RGB+Natural White(4000K-5000K)/RGB+Warm White(2700K-3000K)
  • Power: 0.4W/LED
  • Length: 1M, 5M
  • Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(144LEDs/M)
  • Colors Of PCB Board: White/Black
  • Working Temperature: -20℃-+50℃
  • Wave Length: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm
  • Luminous Flux: Red: 0.5-1.0lm; Green: 2-3lm; Blue: 0.5-1.0lm; White: 5-7lm

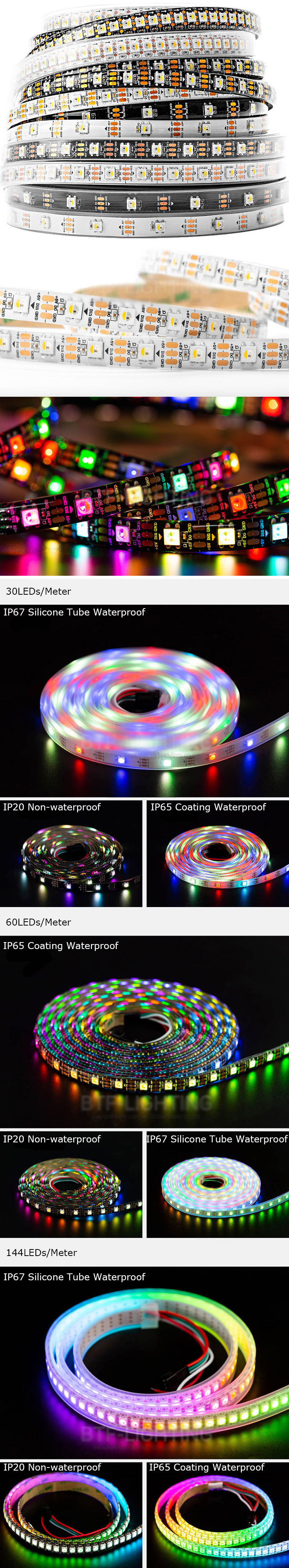

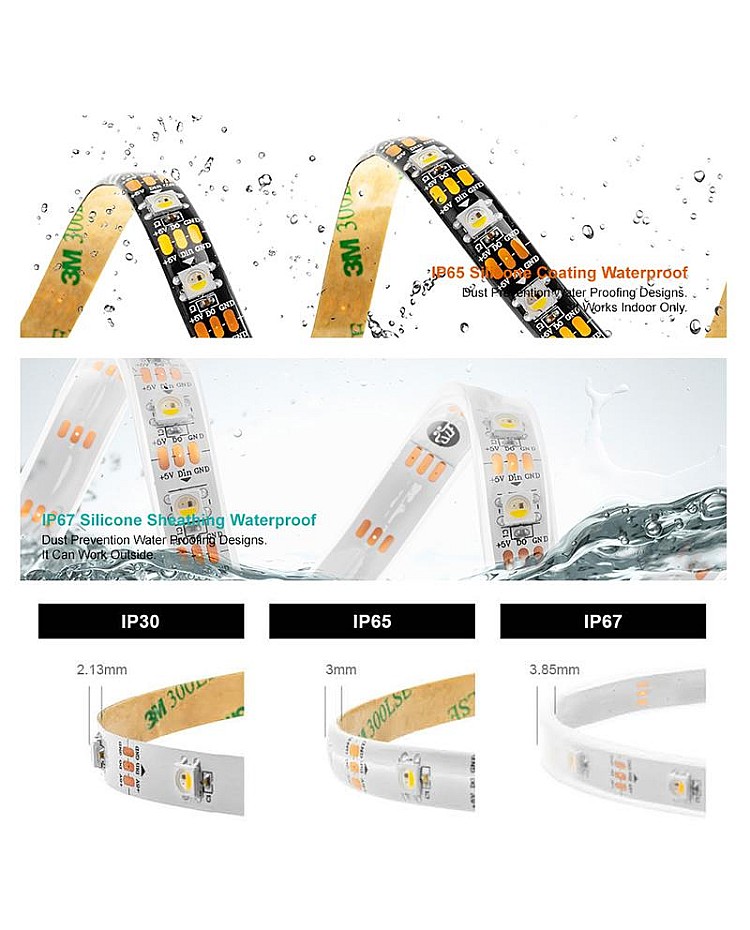

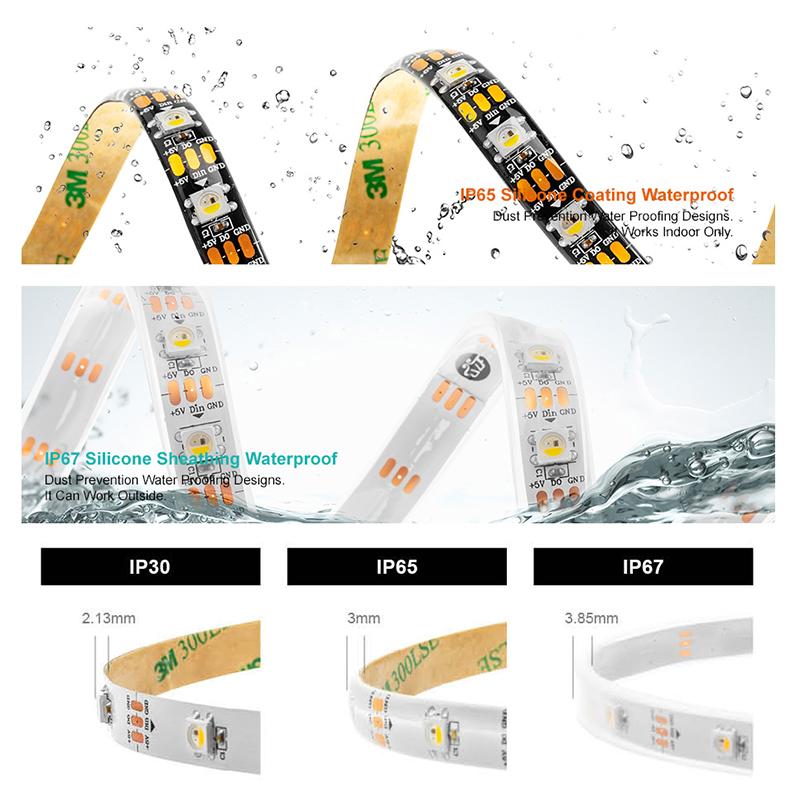

  • Waterproof Level: IP30 Non-waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof

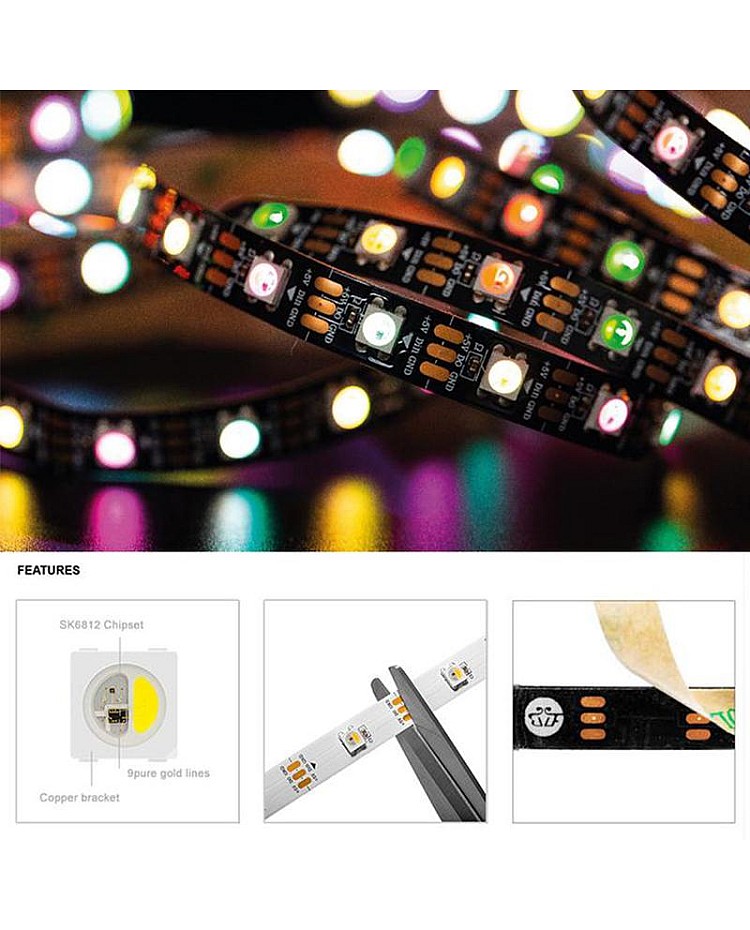

  • Every LED Is Cuttable

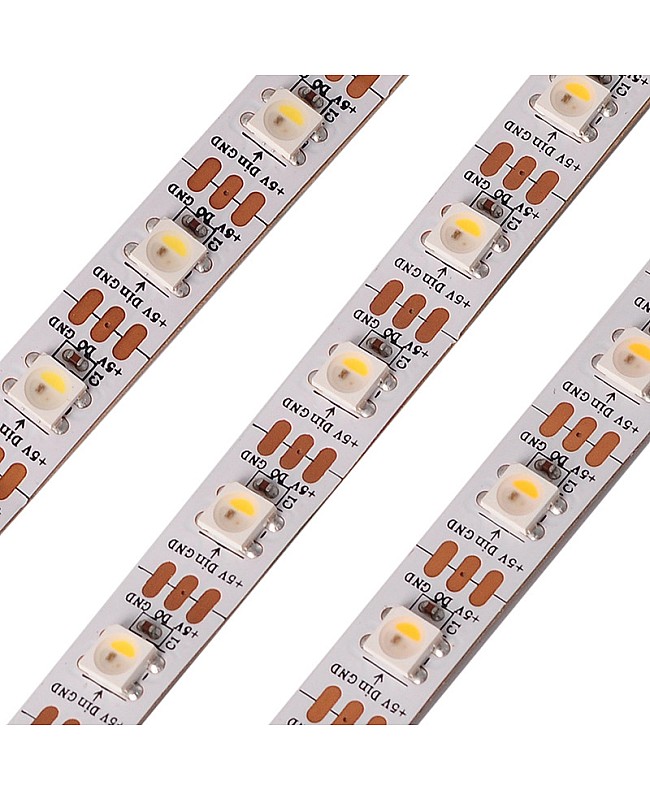

  • 3 Pin JST-SM Connectors On Both Ends
  • Compatible With SP110E, SP105E, SP108E, SP107E, SP110E, K-1000C LED Controllers
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


1*RGBW SK6812 LED Strip With 3 Pin Connector

SK6812 LED Strip 5m SK6812 LED Strip 5V SK6812 RGBW LED Strips
