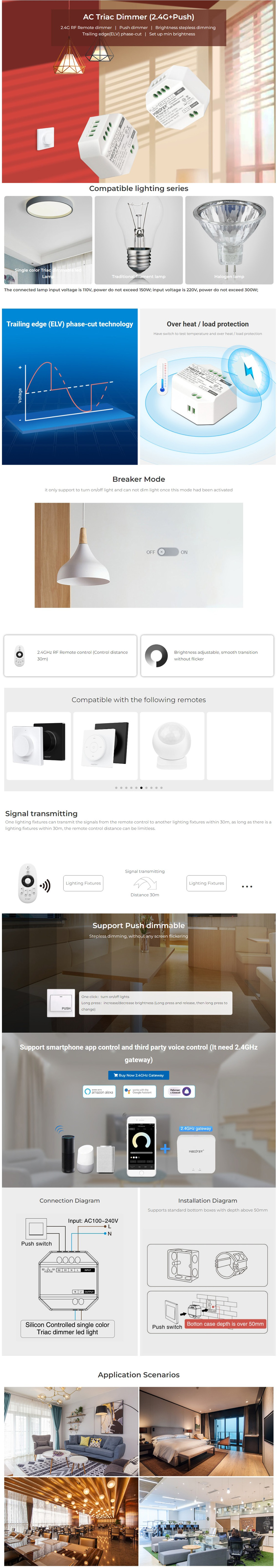

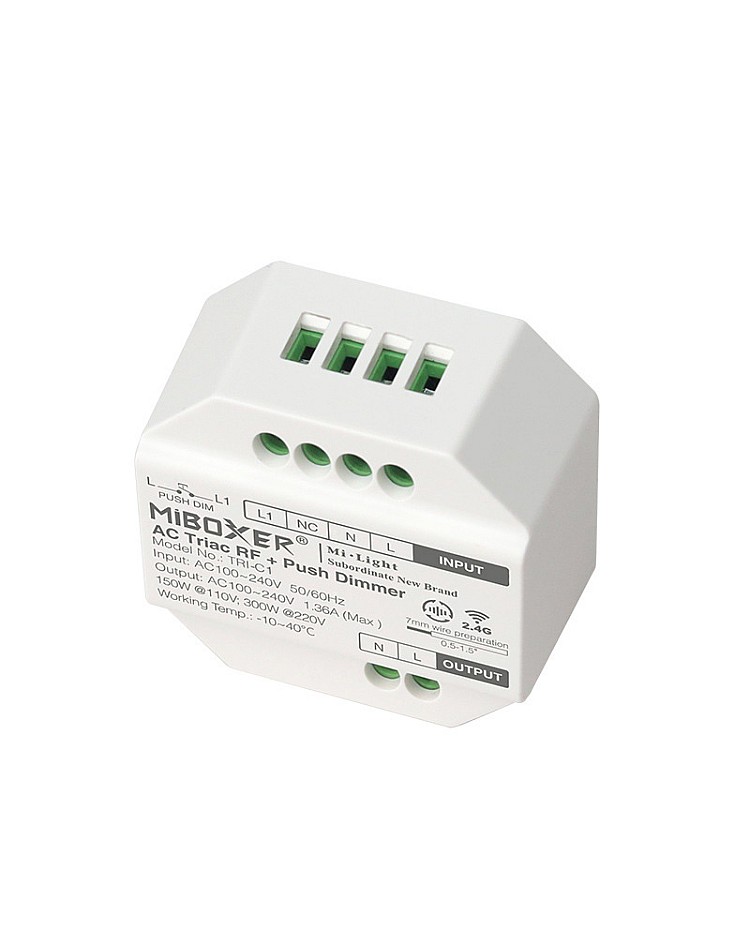

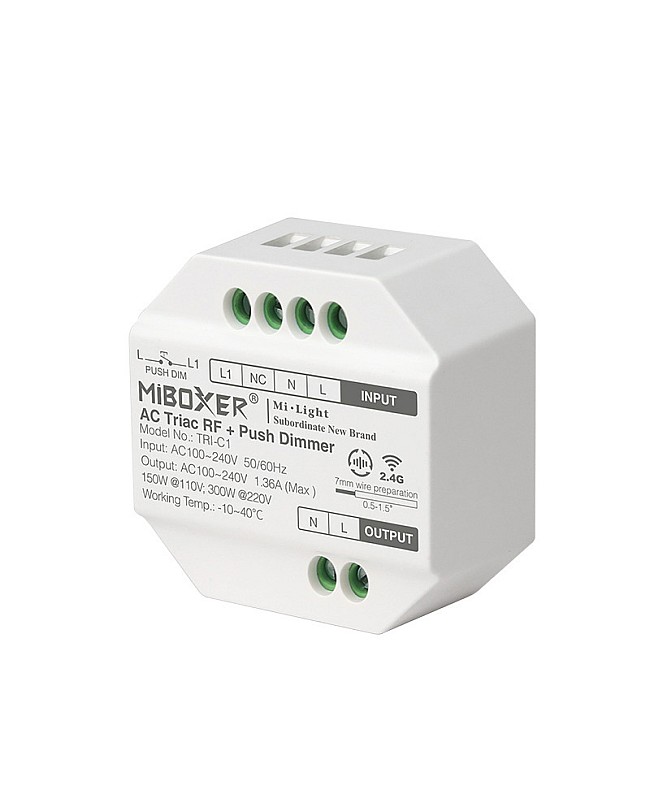

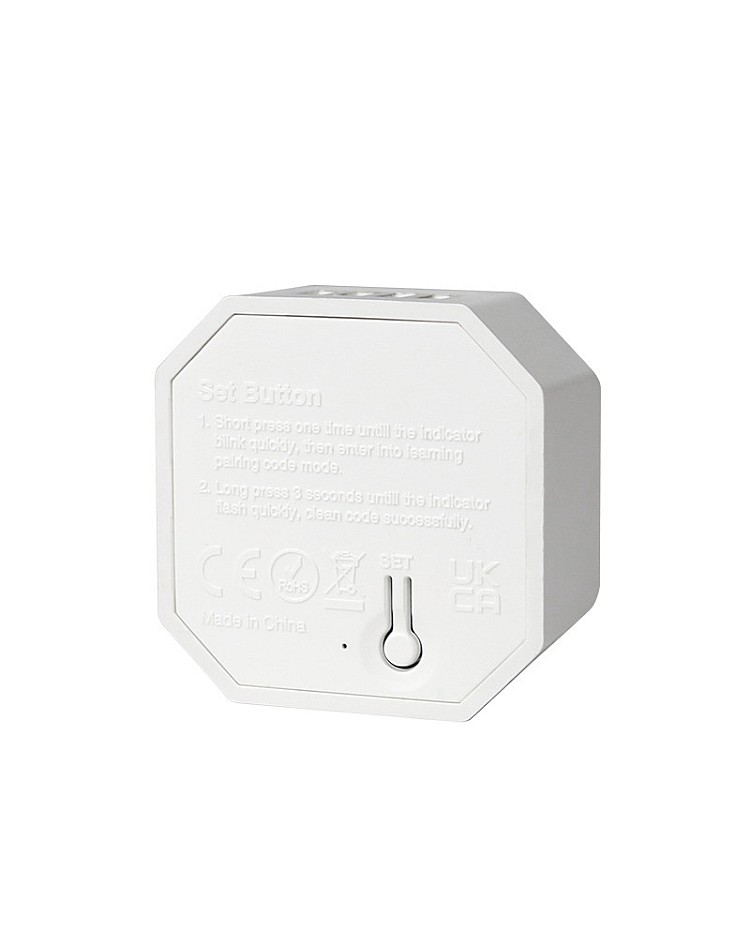

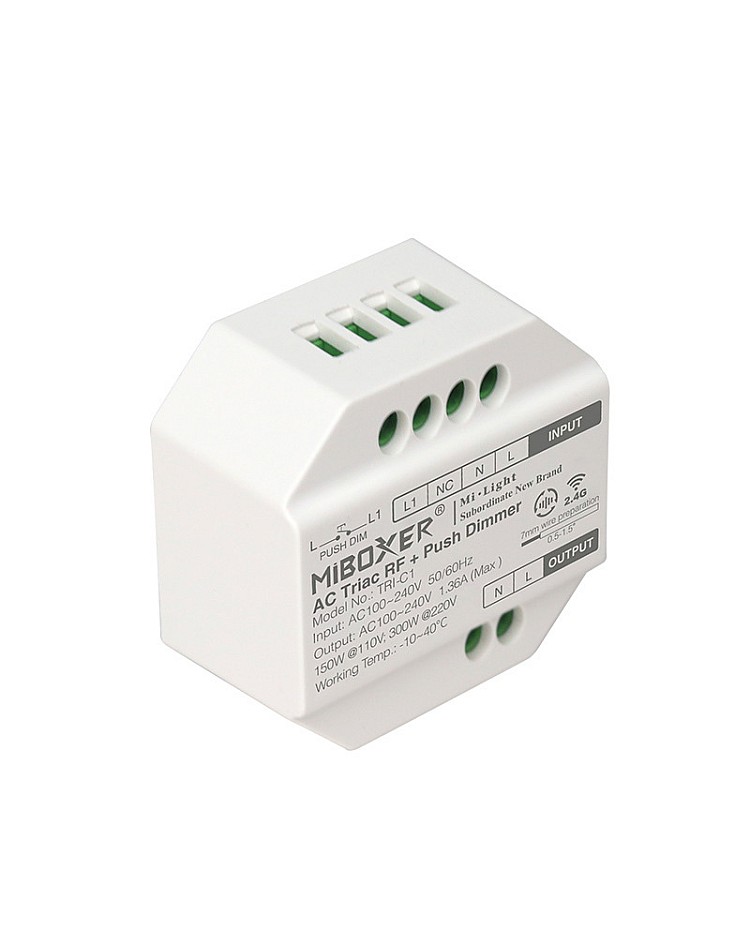

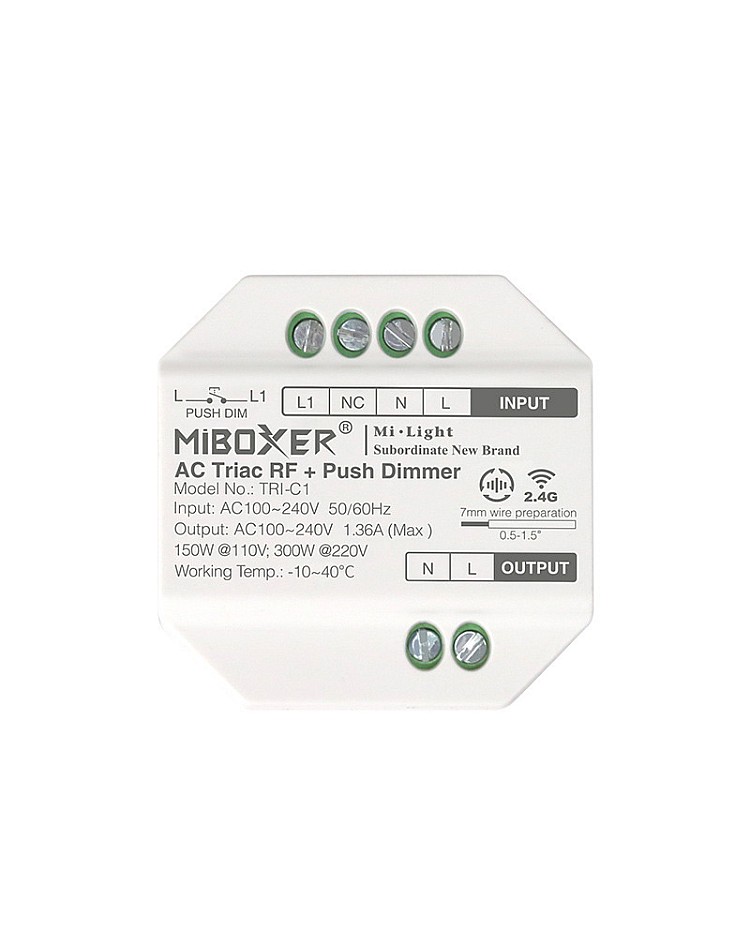

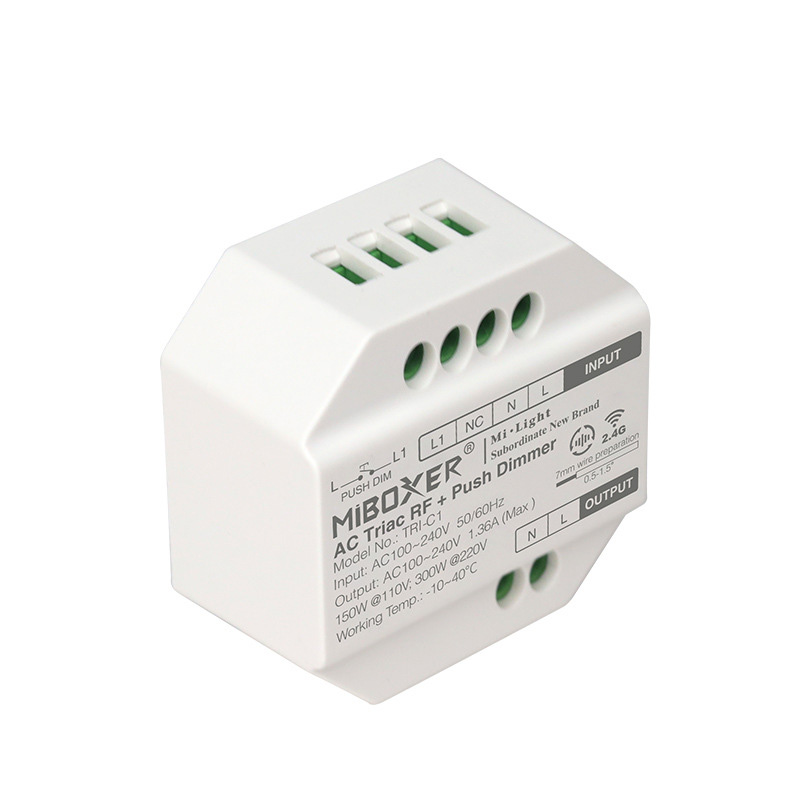

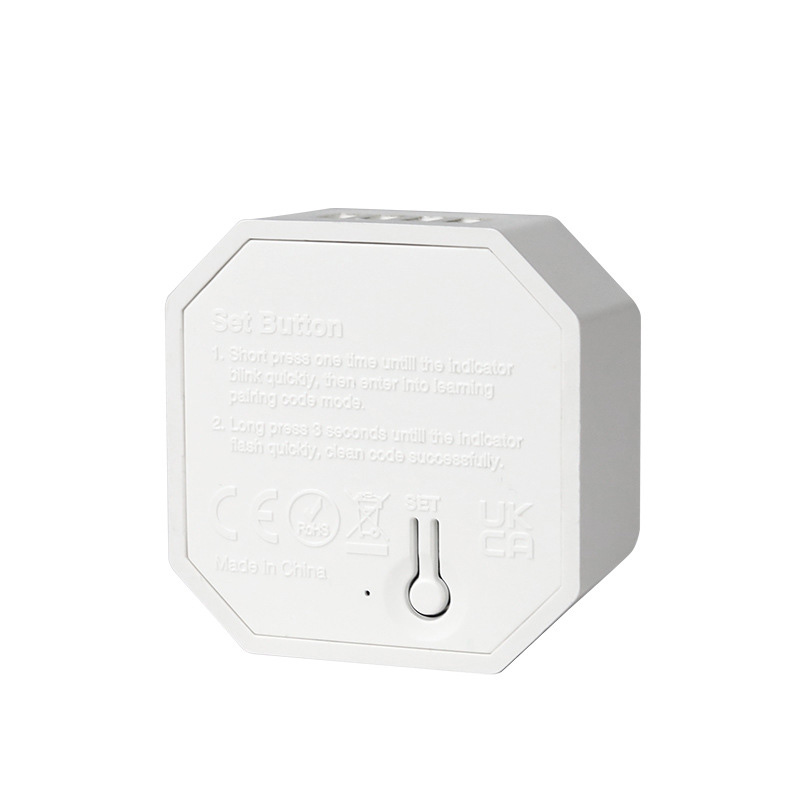

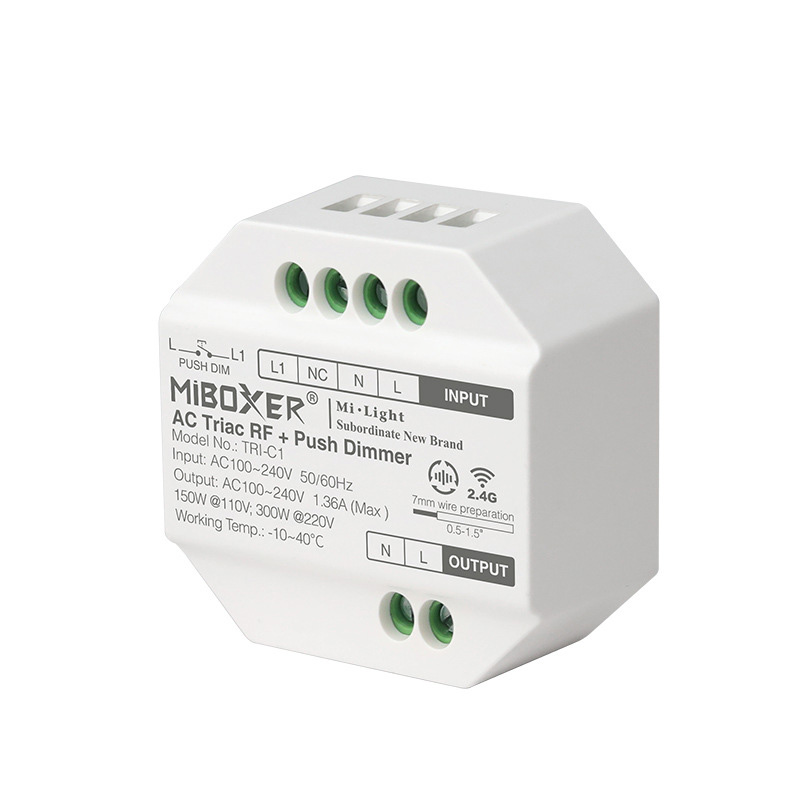

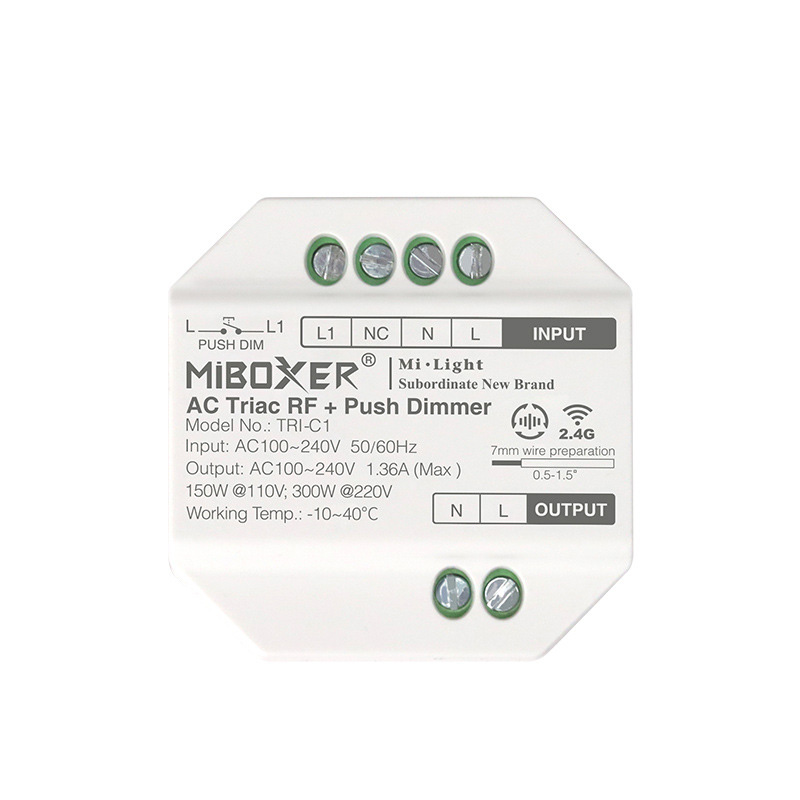

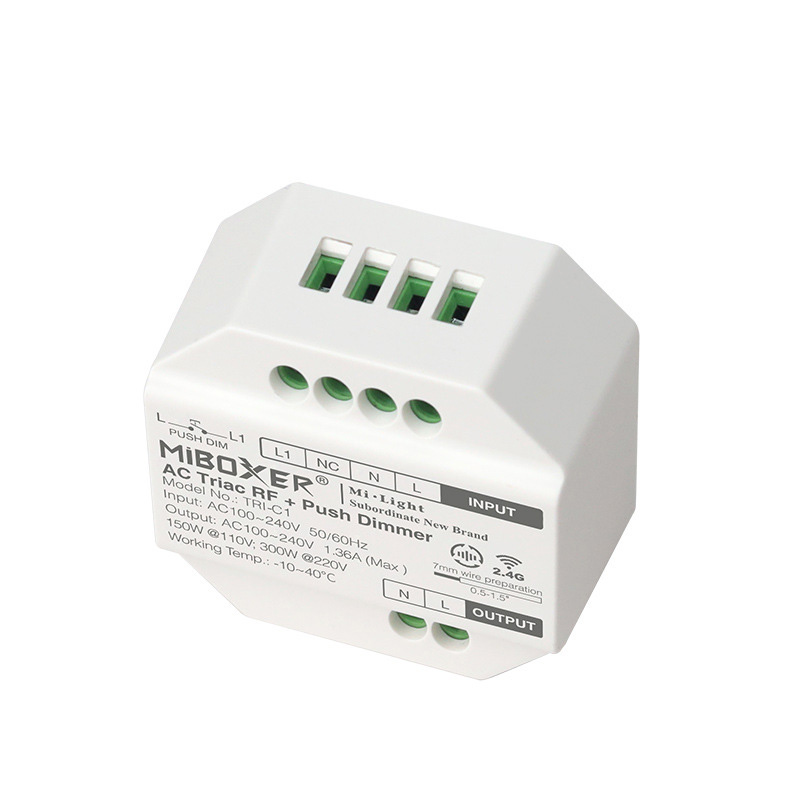

The 2.4G RF MiBoxer TRI-C1 Triac Dimmer can control the Single Color Triac Dimmer LED Light, Traditional Filament Lamps, and Halogen Lamps. If the Connected Lamp input voltage is AC110V, the power does not exceed 150W; if the input voltage is 220V, the power does not exceed 300W. The MiBoxer Triac Dimmer has a small size and is easy to install. It can be input into European and American standard junction boxes. Convenient to wire and easy to install. It can work with Push Switch and 2.4G RF Remote Controls to achieve 0-100% stepless dimming without screen flickering. You can see the minimum brightness value by the remote, which can set the minimum brightness of all connecting dimmers on time. MiBoxer Single Color Remote Controls can control the Triac Dimming and support smartphone APP and third-party voice control after adding a 2.4GHz Gateway. The Dim Triac will transmit the signal to the other same Dimmers within 30 meters.
Features:
- Model: TRI-C1
- Size: 49*49*25mm(L*W*H)
- Input Voltage: AC100-240V, 50/60Hz
- Output Voltage: AC100-240V
- Output Current: Max 1.36A
- Output Power: 150W(110V); 300W(220V)
- Dimming Method: RF Wireless Dimming/Push Dimming
- Control Distance: ≤30m
- 0-100% Stepless Dimming
- Set The Minimum Brightness Value By Remote
- Fit For Single Color Triac Dimmable LED Lights, Traditional Filament Lamps, Halogen Lamps
- Can Be Put Into European/America Standard Junction Box
- 2.4G RF Remote Controllable: FUT006, FUT007, B1, T1, B2, T2, K1, FUT087, WL-Box1
- Remote Controls Sold Separately
- Support Smartphone APP Control And Third-Party Voice Control(Amazon Alexa And Google Assistant)
- Auto Transmitting Function
- Trailing-Edge(ELV) Phase-Cut Technology
- Working Temperature: -10℃-+40℃
- Over Heat Protection
- Over Load Protection
- 2 Years Warranty
Includes:
1*MiBoxer RF Triac Dimmer
