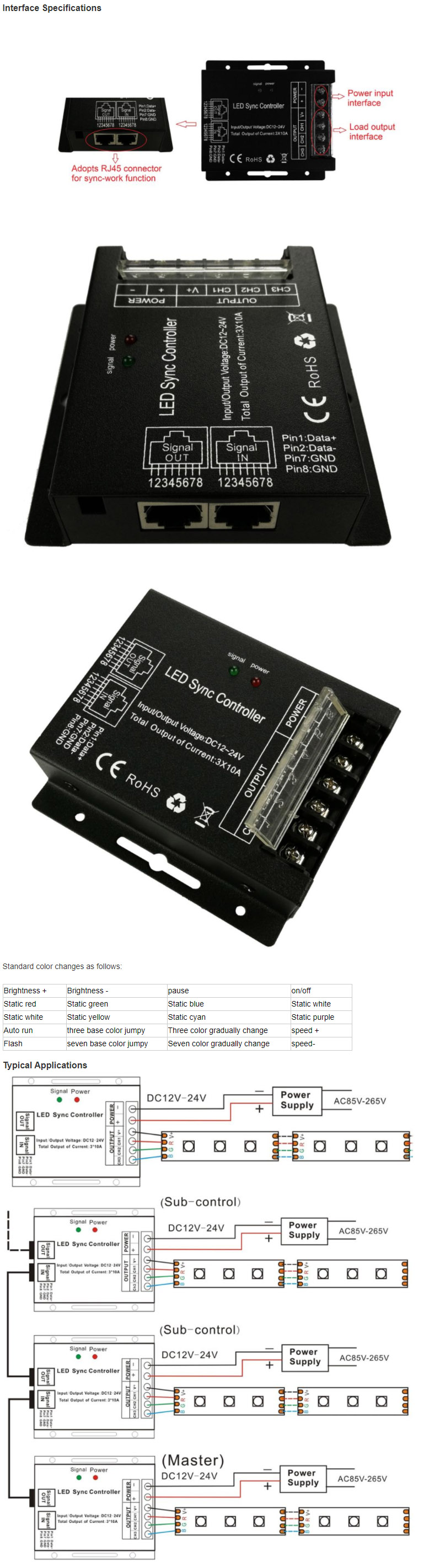

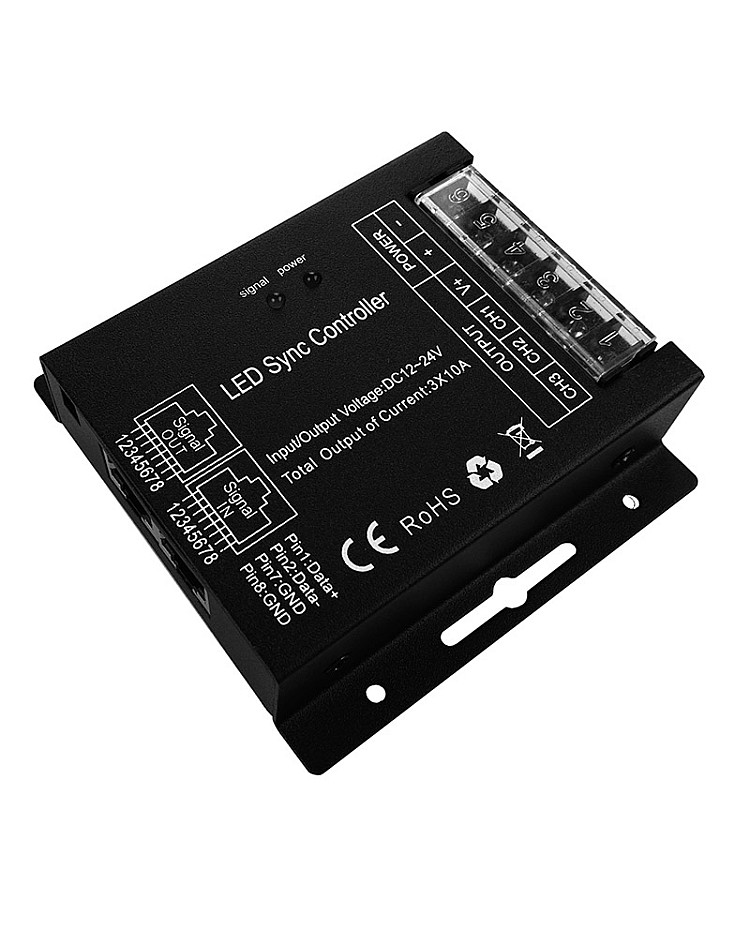

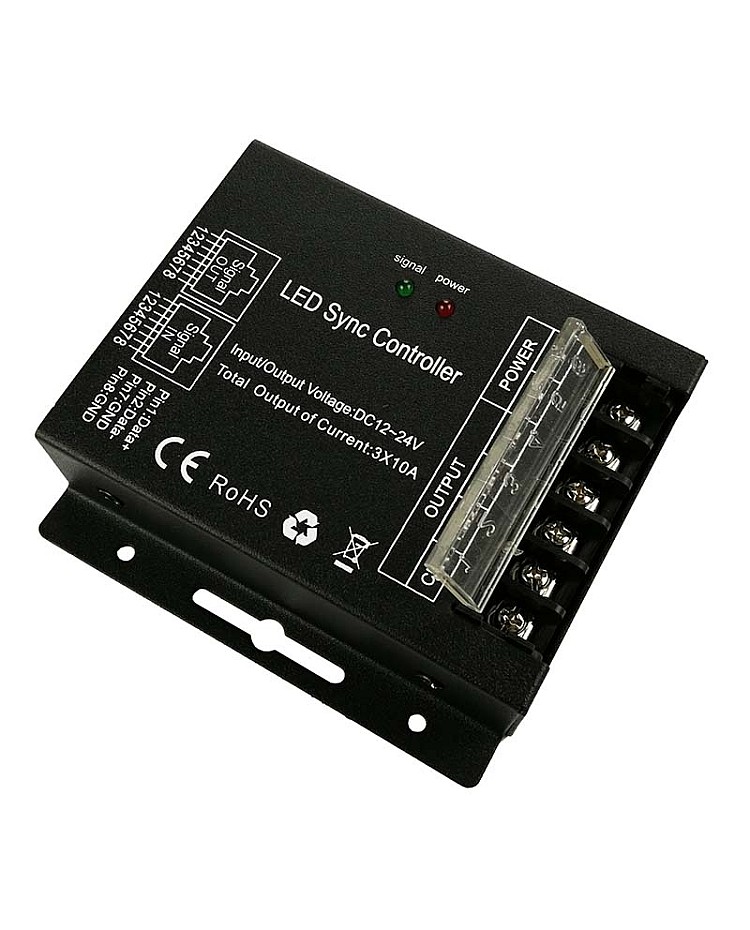

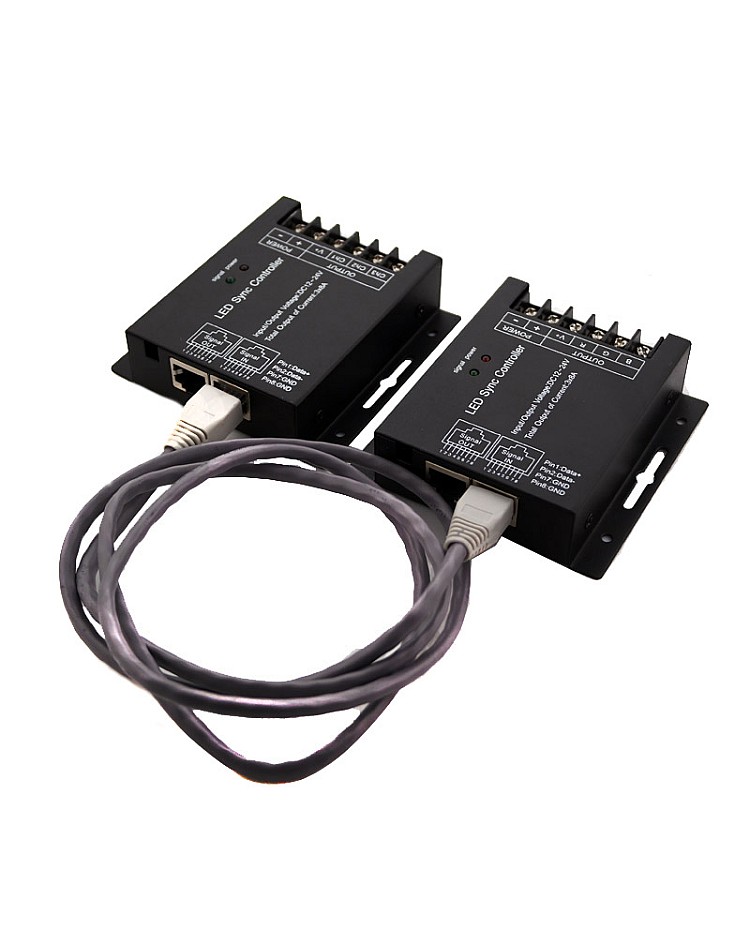

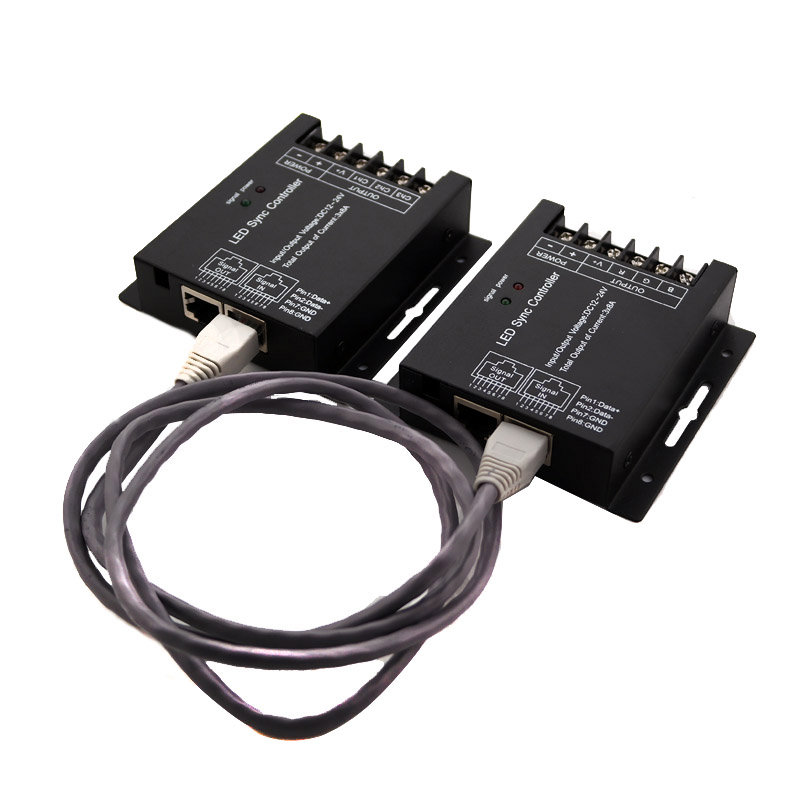

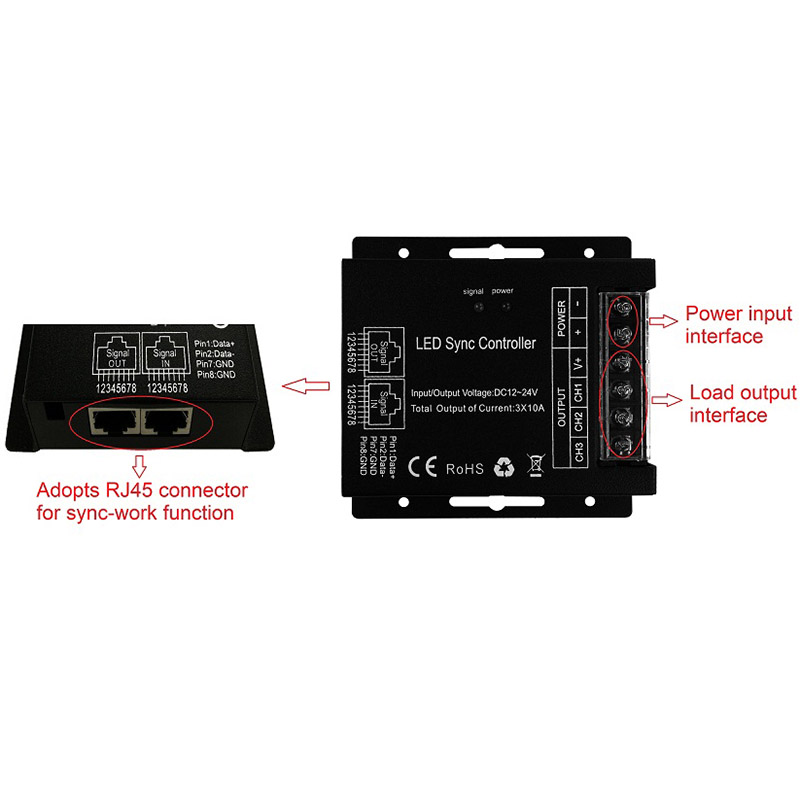

The RGB light controller is enclosed in a black metal shell for better heat dissipation. It works on DC12V or DC24V, with a 3-channel output design. The max output current of each channel can reach 8A, and the max loading power is up to 720W when working in DC24V. The LED RGB controller with the advanced micro control unit can control various LED lights, point source lights, LED light strips, etc. Comes with 20Keys RF remote control, which has 14 modes in total, 8 static colors, and 6 dynamic modes, and can use the remote to adjust the brightness of the static colors and speed of dynamic modes. The LED RGB control adopts dual RJ45 network cable ports, which makes it convenient to use the RJ45 port to connect multiple controllers together to achieve the synchronization function of many RGB LED lights.
Specifications:
- Size: 91*88*24mm(L*W*H)
- Working Temperature: -20-60℃
- Working Voltage: DC12V-24V
- Output: 3 Channels
- Output Current: <10A ( Each Channel )
- Output Power: 360W ( 12V ) / 720W ( 24V )
- Connecting Mode: Common Anode
- Static Power Consumption: <1W

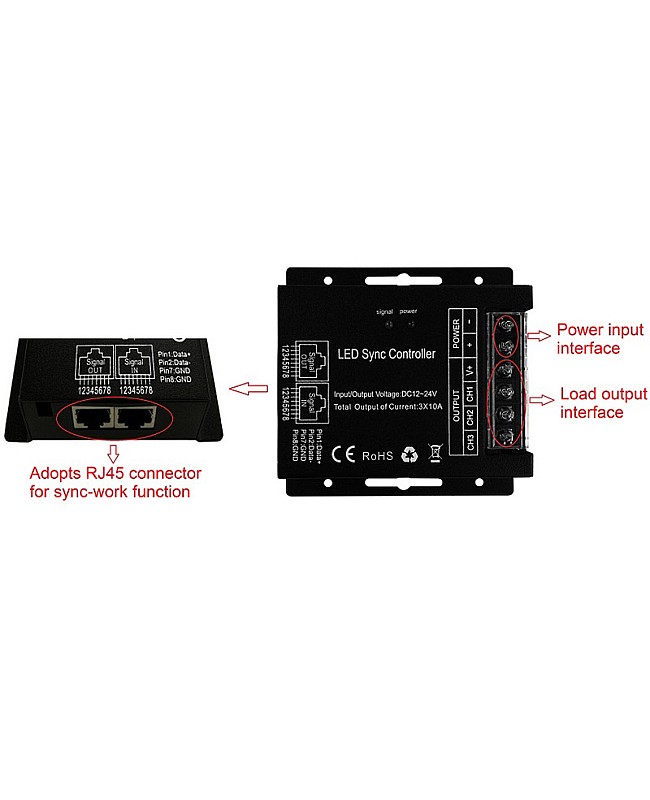

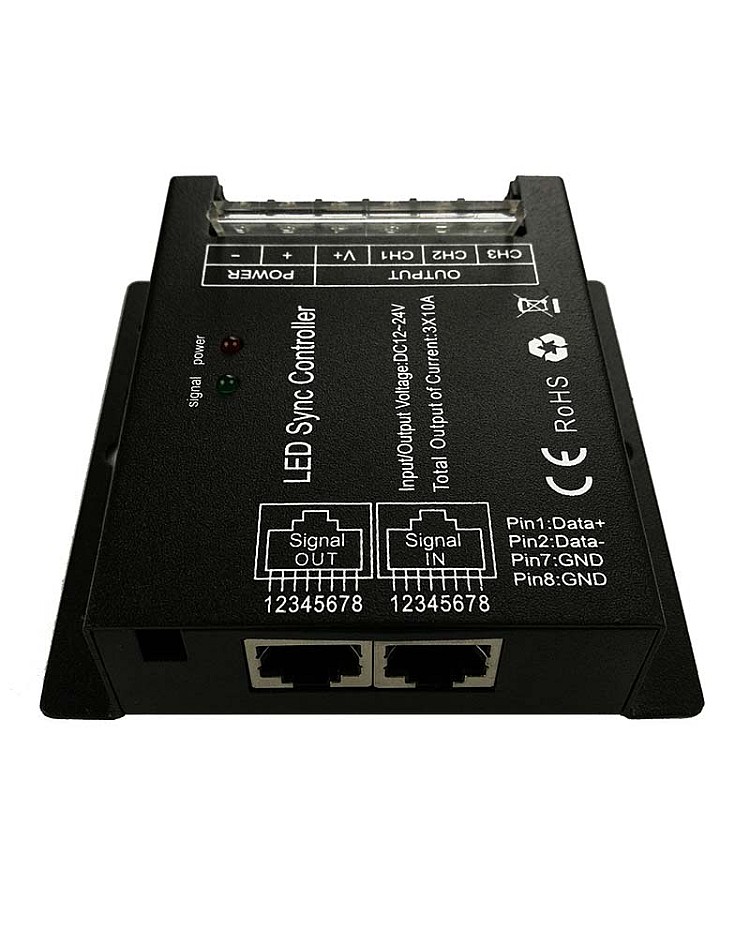

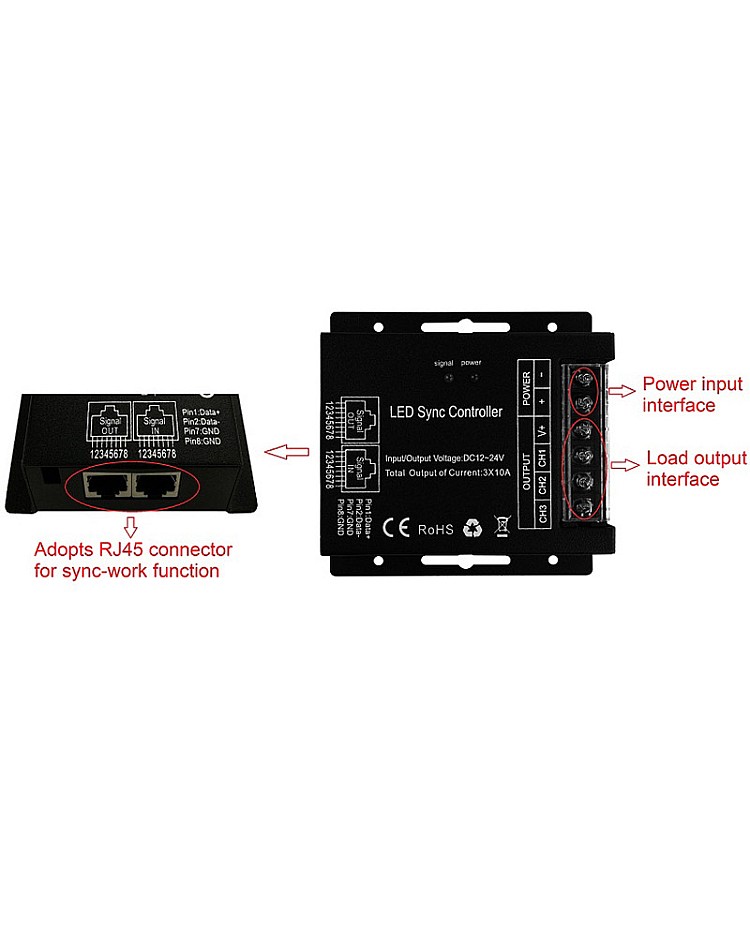

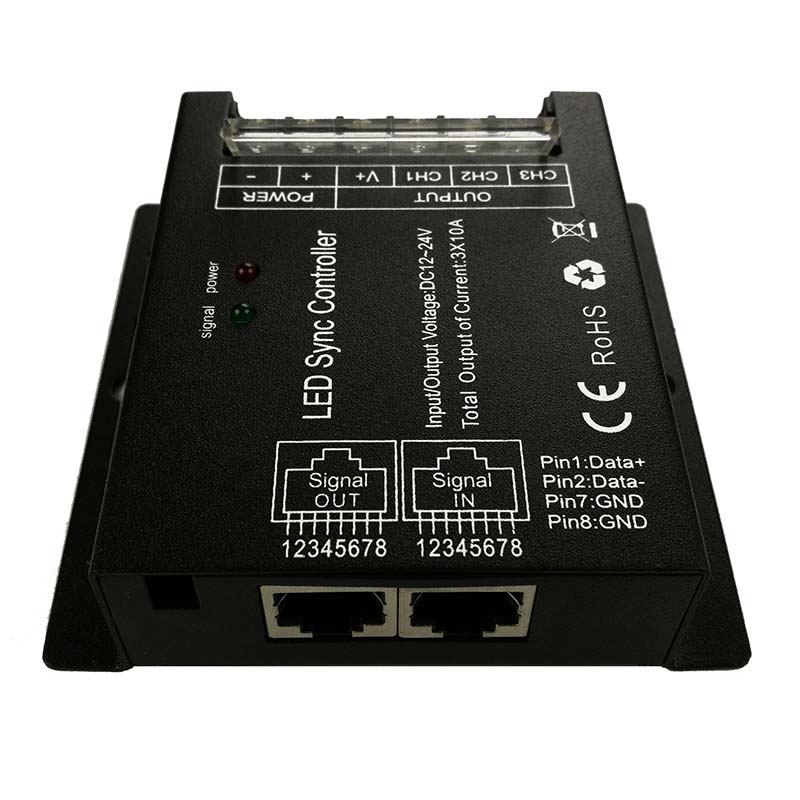

- Adopts Dual RJ45 Network Cable Ports

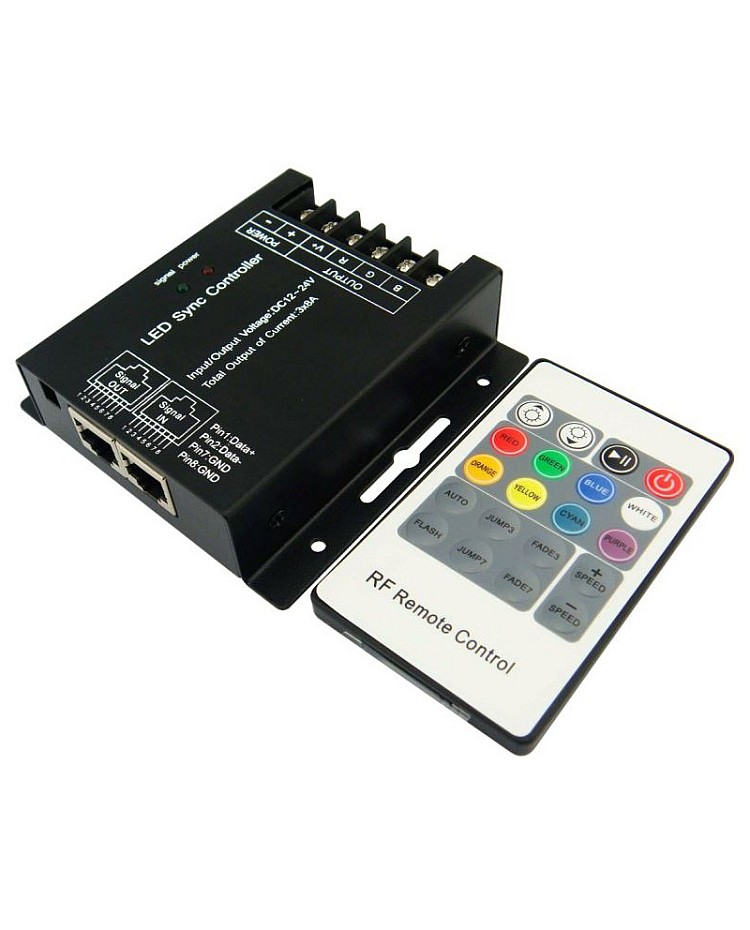

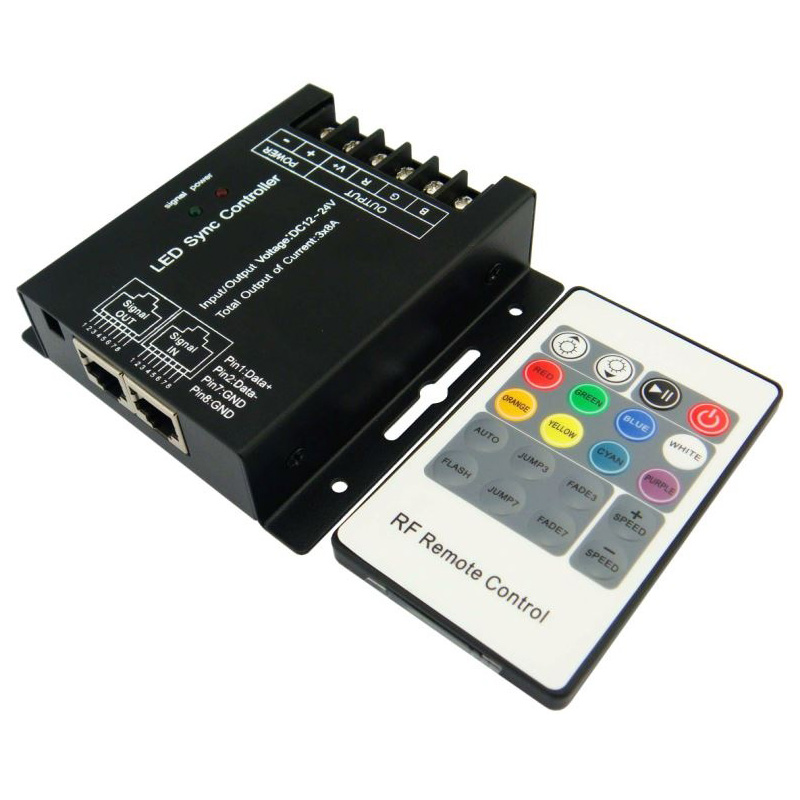

- 20Keys RF Remote Included
- RF Frequency: 433.92MHz
- 14 Modes In Total, 8 Static Colors And 6 Dynamic Modes
- Weight: 270g
- 3 Years Warranty
Includes:
1 * RGB Light Controller
1 * 20 Keys RF Remote Control
