The 23.5mm Recessed Bendable Aluminum LED Tracks offer a sleek and versatile solution for seamlessly integrating LED Strip Lighting into architectural spaces. They are flexible and bendable, allowing them to recess into curved or irregular surfaces easily. Vertical and horizontal bending products are available. You can use them to design and make bending linear lighting for residential and commercial buildings. The Flexible LED Tracks are made of 6063-T5 extruded aluminum material and have a silver anodized surface treatment for anti-oxidation resistance and a longer lifespan. The stock lengths are 1M, 2M, and 3M, and they are available in customizable lengths to accommodate different project requirements; these Lighting Tracks can be easily cut to size to fit specific installation needs, ensuring a tailored lighting solution. The inner width is 20.6mm, and the max width of Strip Lights is 20mm. For the 2312-LR, you can install the 5mm/6mm LED Strips on the side of 2312-LR and allow the max width of 20mm S Shape LED Strips on the bottom installation. For 2312-UD, the max width of LED Tape Lights is 20mm. They are designed to accommodate various LED Strips: single color, RGB, tunable white, etc. Combined with LED strips, these tracks offer versatile lighting solutions that can be customized to achieve different effects, such as accentuating architectural features, creating mood lighting, or providing functional illumination for specific tasks.


Features:

  • Type: 23.5mm Recessed Bendable LED Tracks

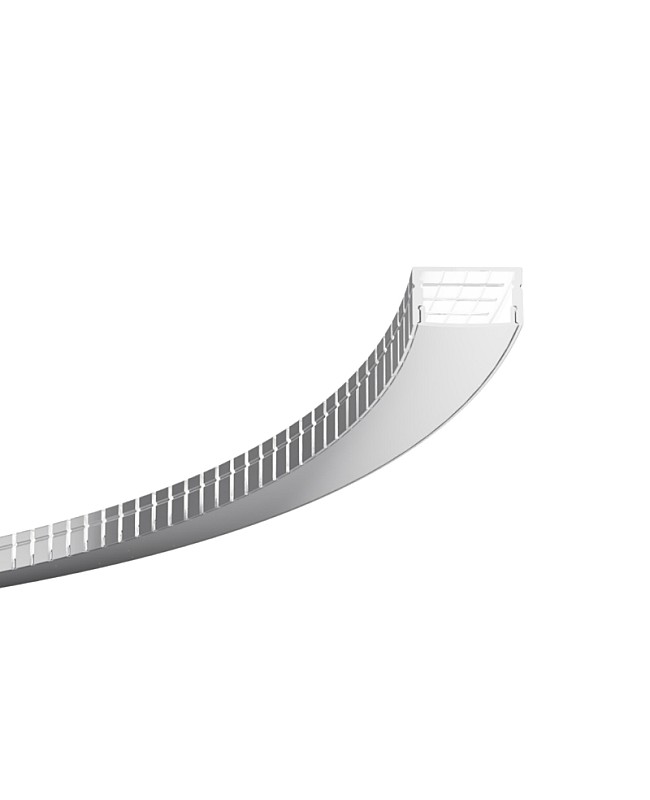

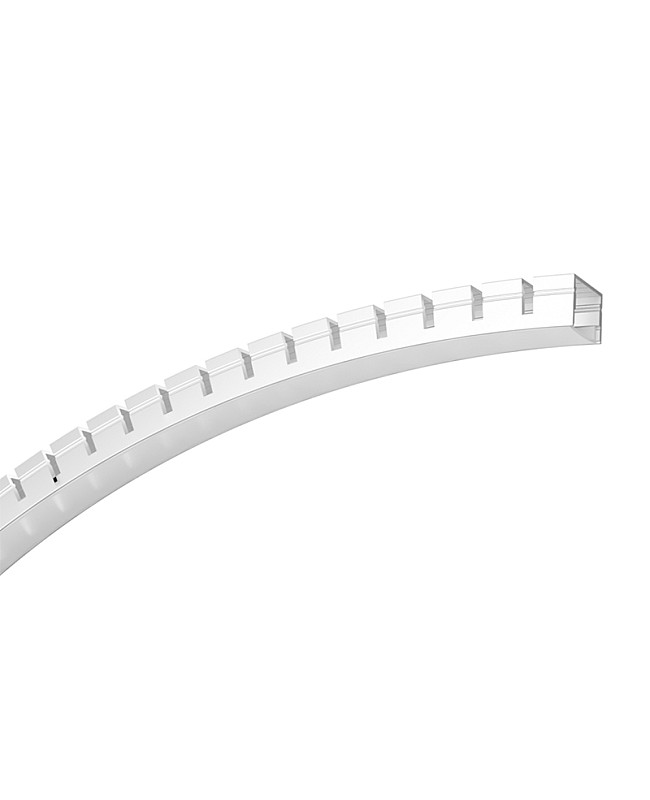

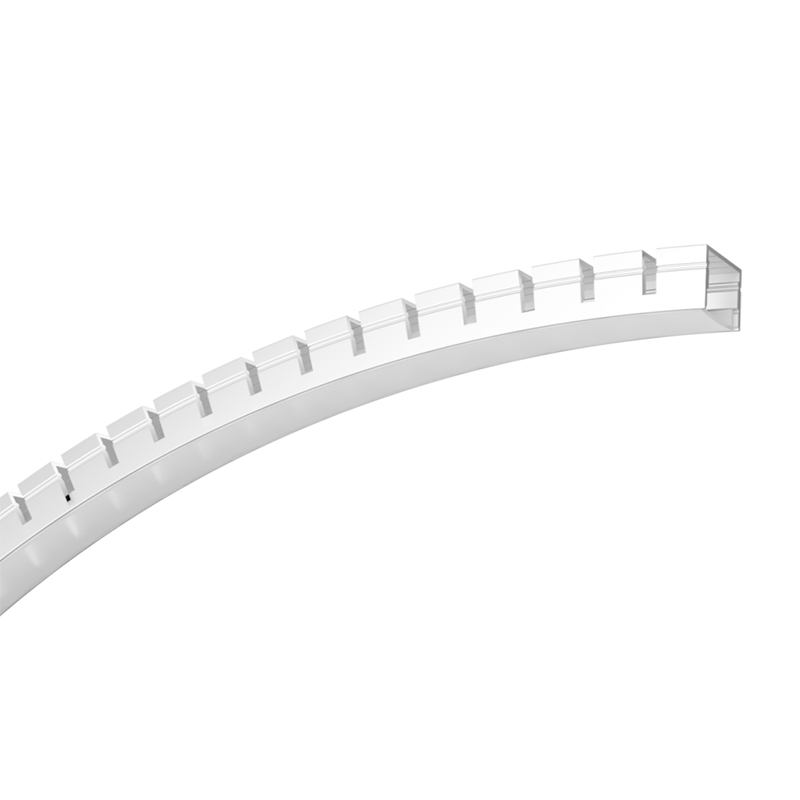

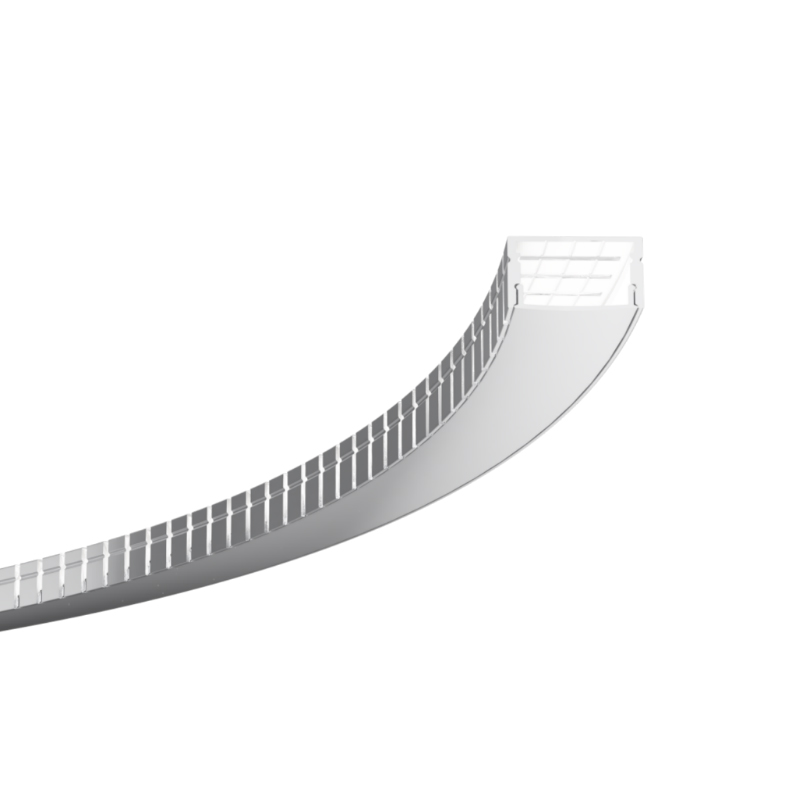

  • Models: 2312-LR(Left And Right Bending) / 2312-UD(UP And Down Bending)
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: Silver(LED Track) / Milky(Silicone Cover)

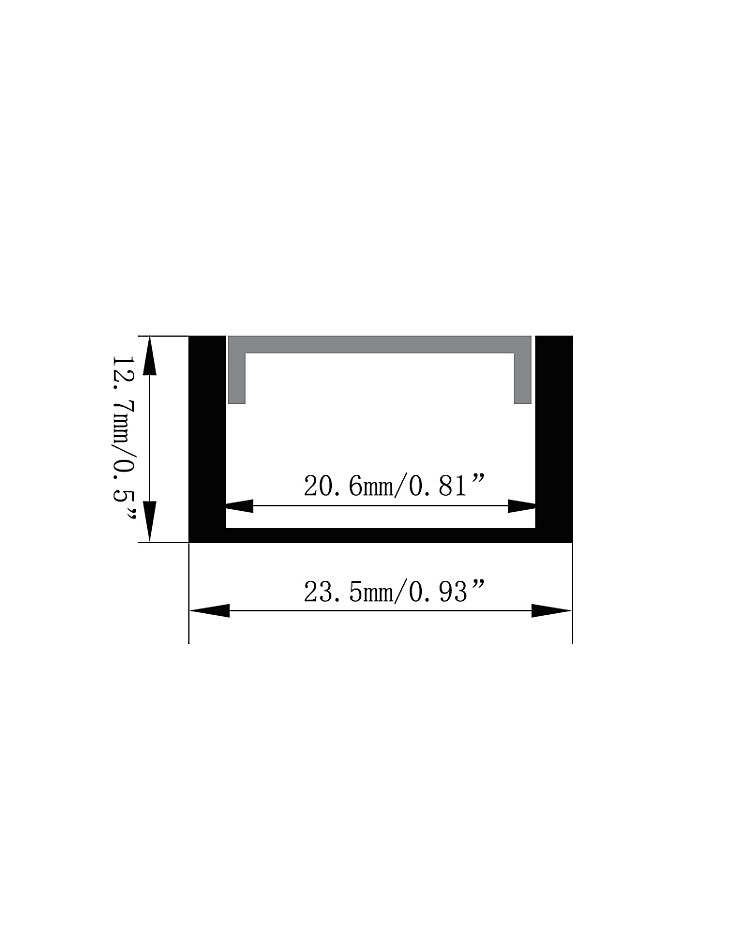

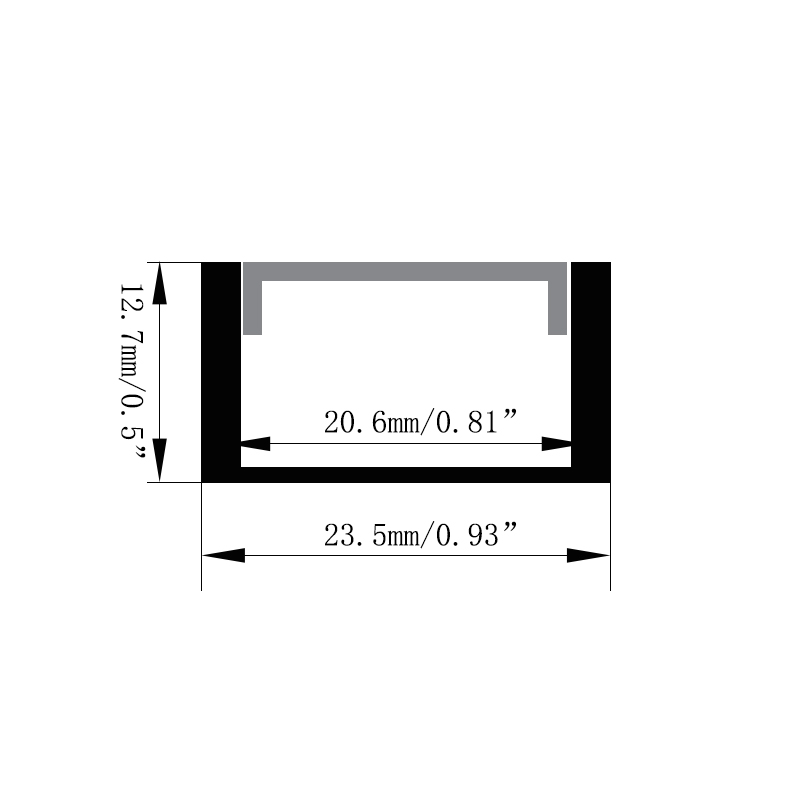

  • Size(W*H): 23.5mm/0.93"*12.7mm/0.5"
  • Lengths Available: 1M, 2M, 3M
  • Custom Lengths: YES
  • Silicone Cover Types: Semi-clear
  • Inner Width:20.6mm/0.81"
  • Max Width Of LED Tapes: 5mm/6mm LED Tapes On Side Installation/20mm Zig Zag(S Shape) LED Strips(2312-LR); 20mm Regular LED Strips(2312-UD)
  • Mini Bending Diameter: 300mm
  • End Caps With/Without Wire Holes Included

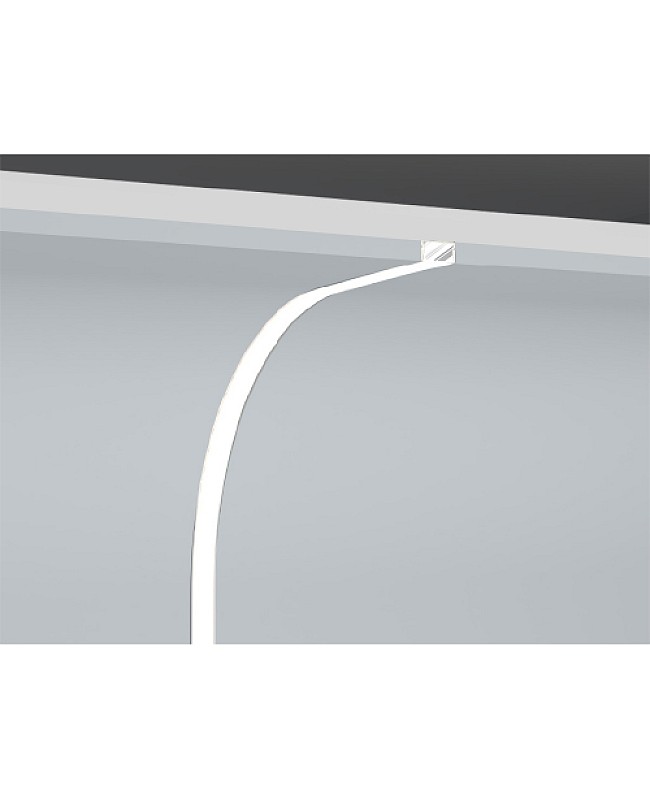

  • Installation: Recessed

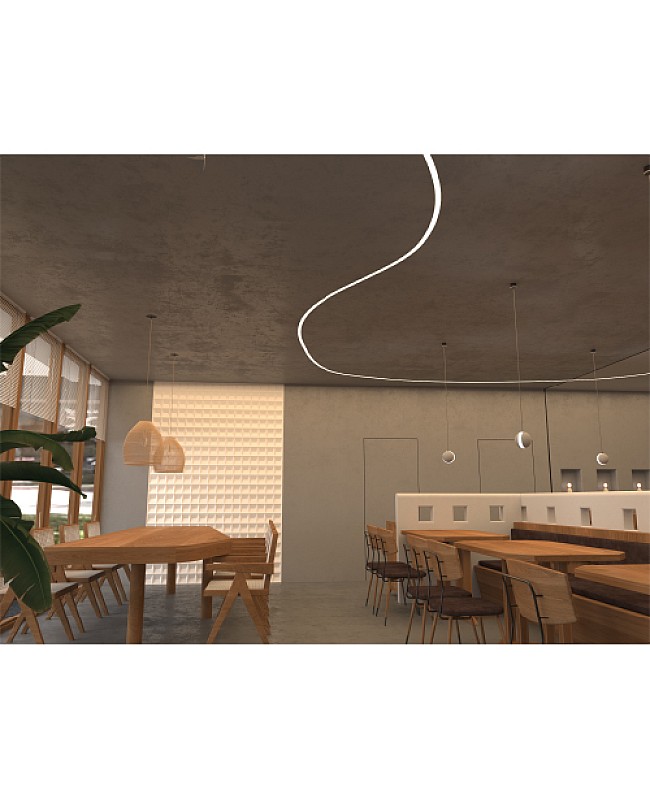

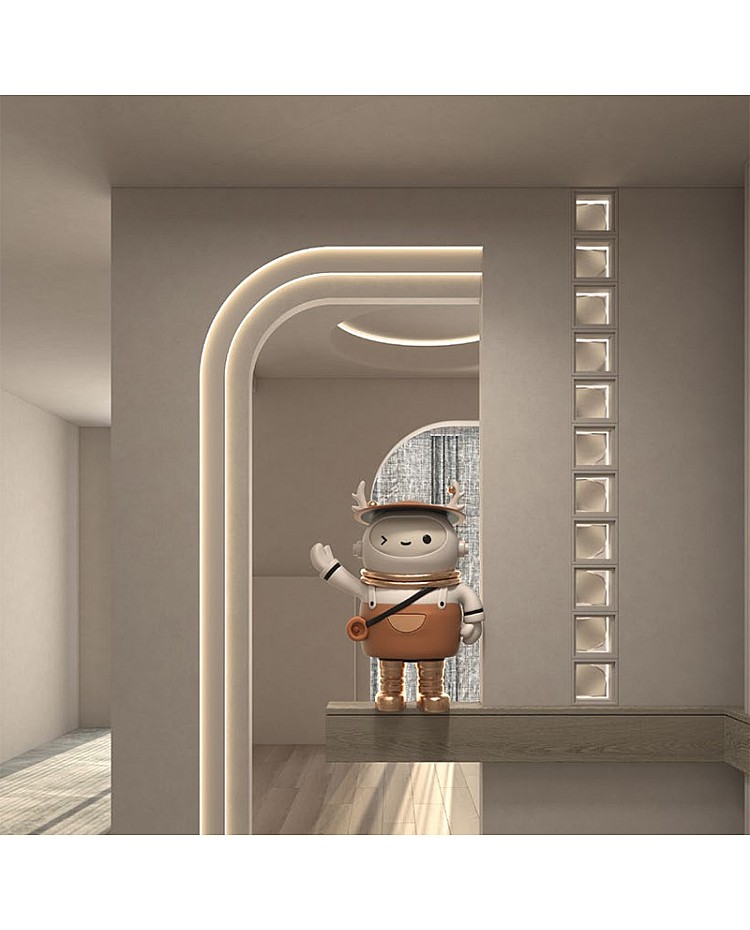

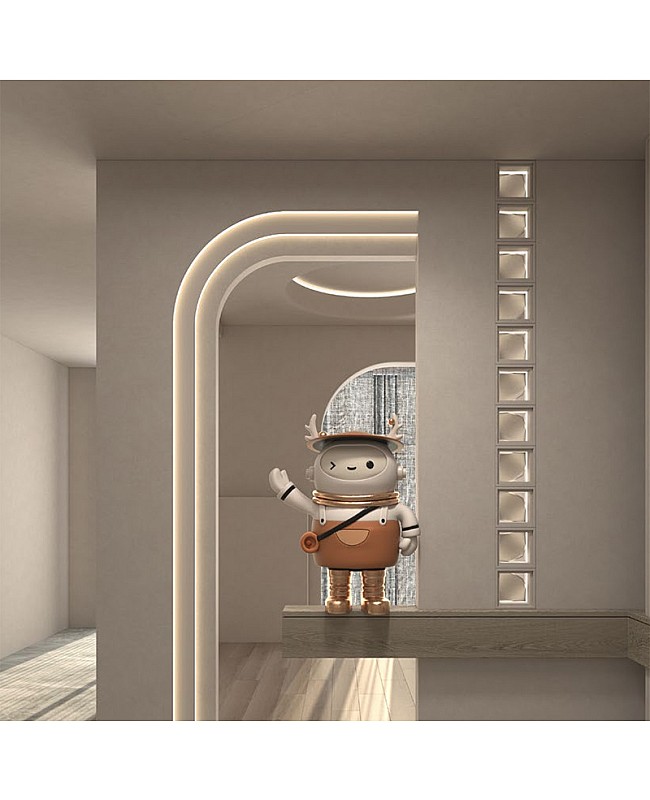

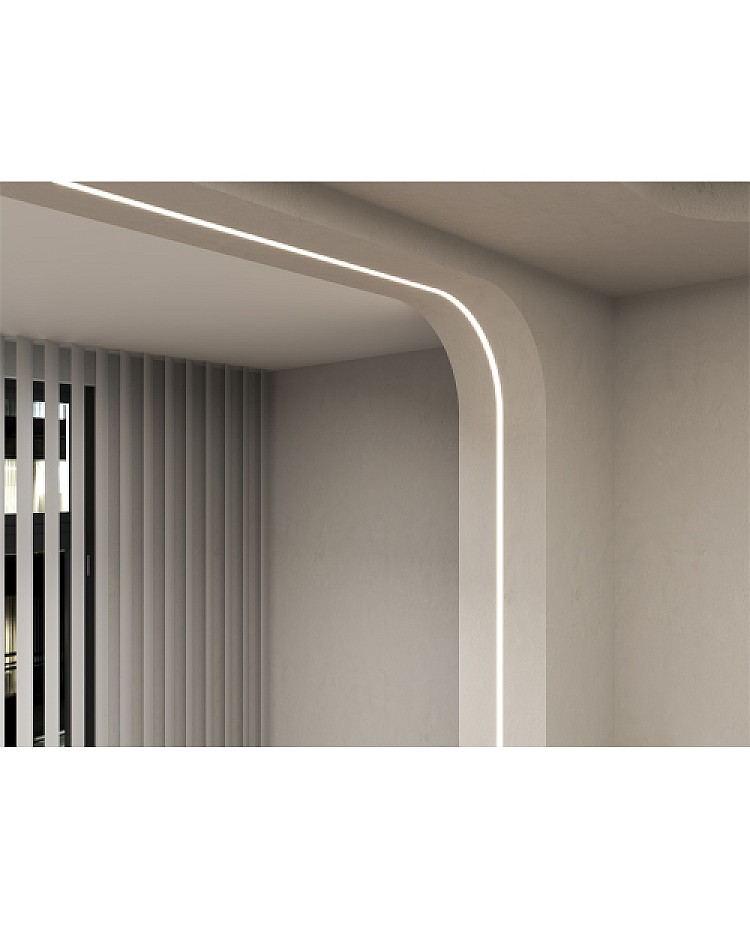

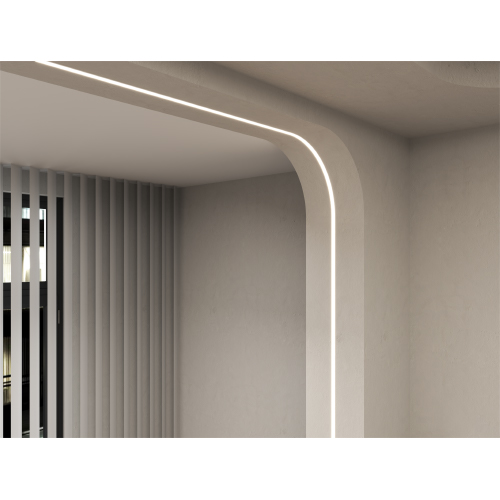

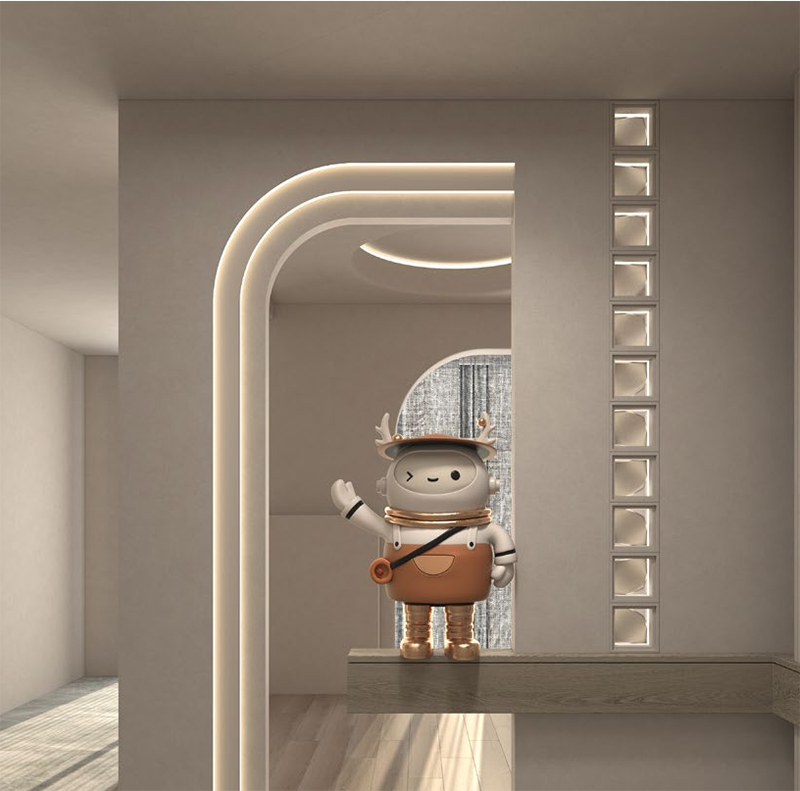

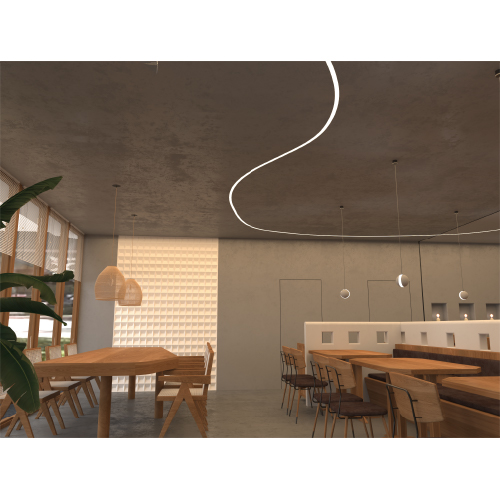

  • Applications: Bending Linear Lighting On Walls, Ceilings, Entrances, etc
  • 3 Years Warranty


Includes:

1*Bendable LED Track

1*Silicone Cover

End Caps(With/Without Wire Holes)

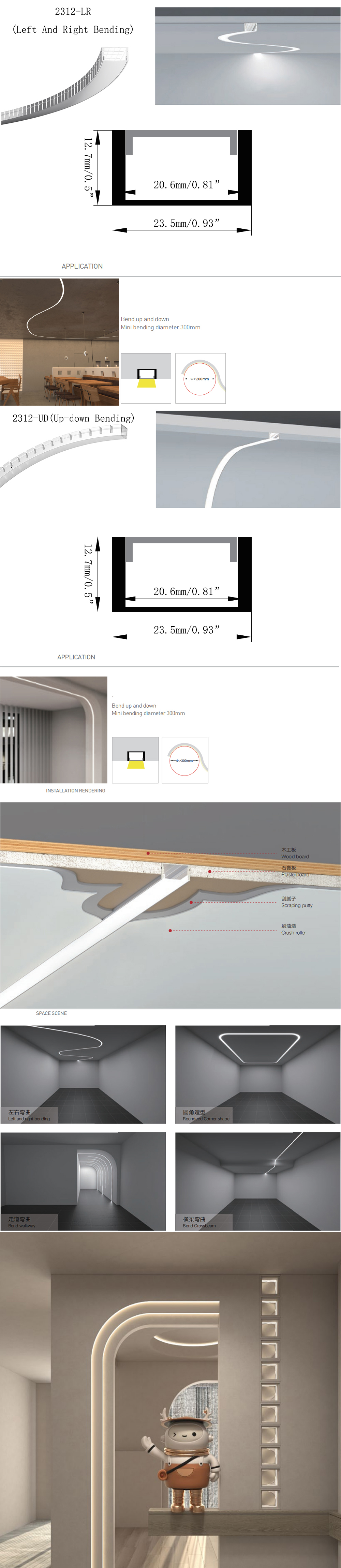

Flexible LED Tape Tracks
