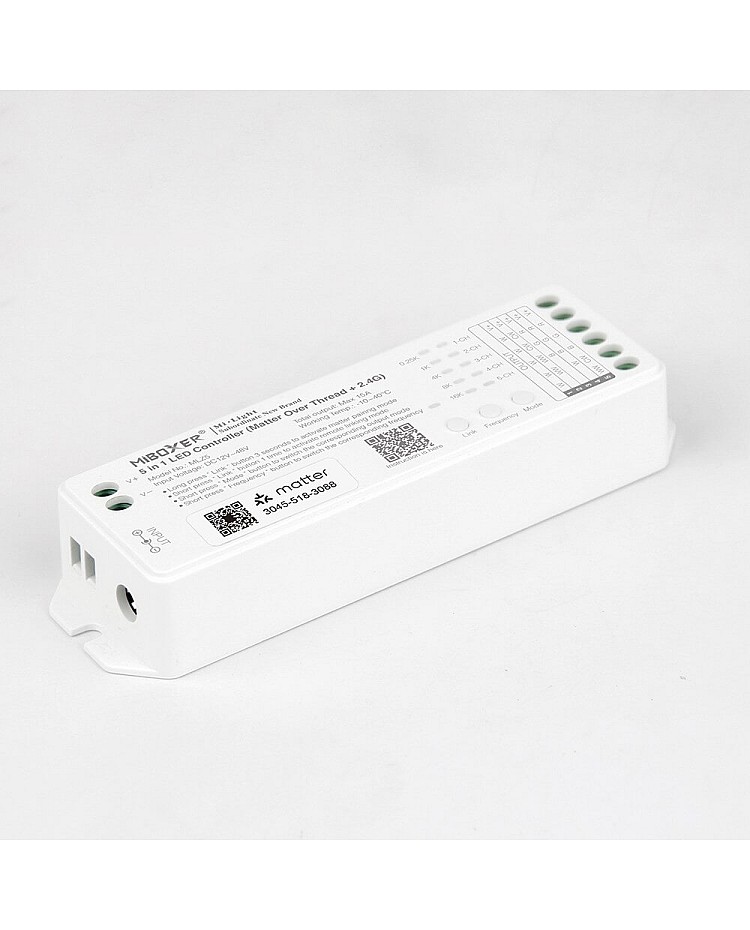

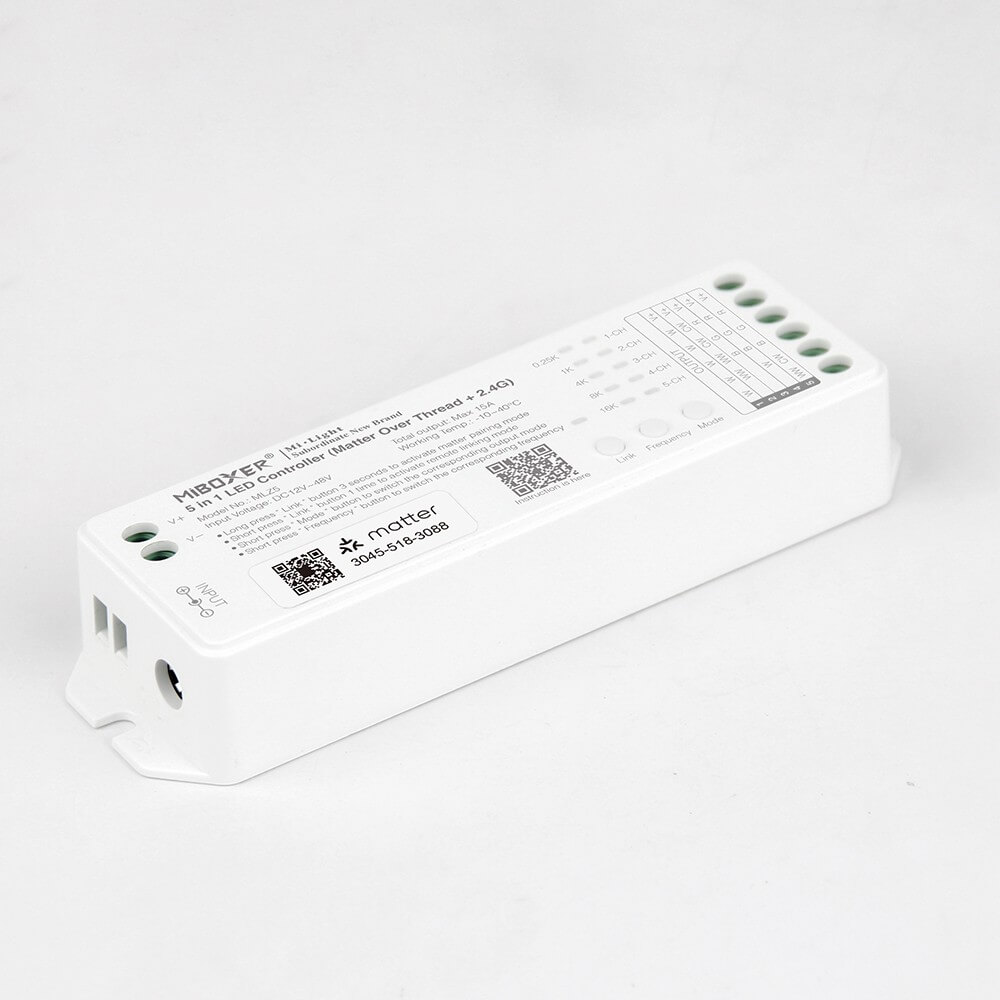

The MiBoxer MLZ5 LED controllers are designed for true cross-platform smart control of your LED strips. Built on the latest Matter over Thread and 2.4G RF protocols, they ensure seamless interoperability across major ecosystems, including Apple Home, Google Home, Amazon Alexa, and SmartThings.

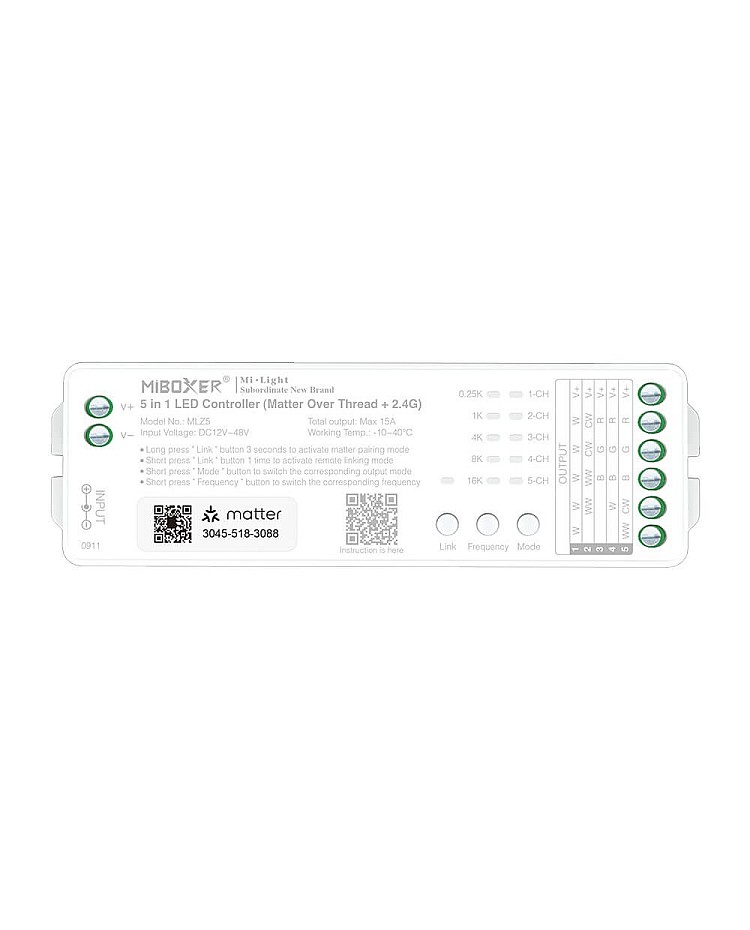

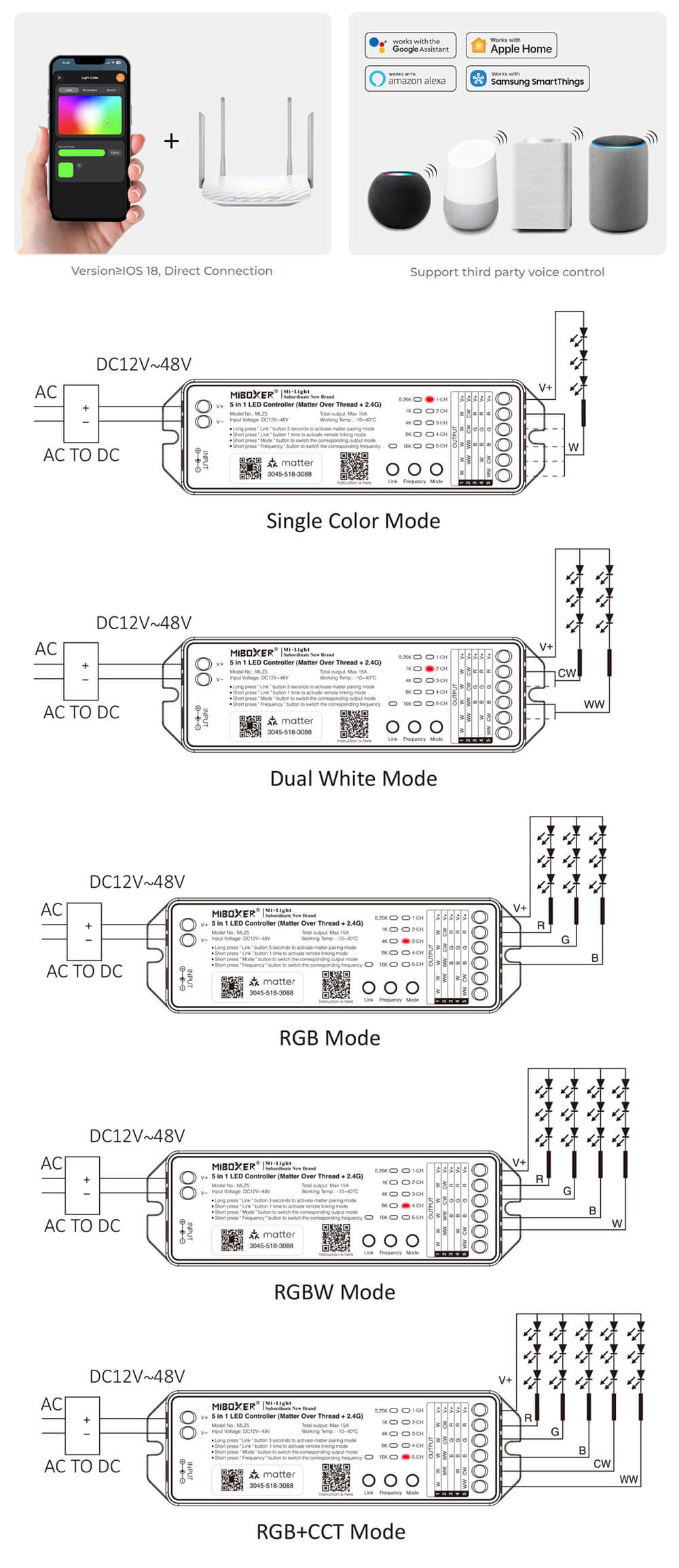

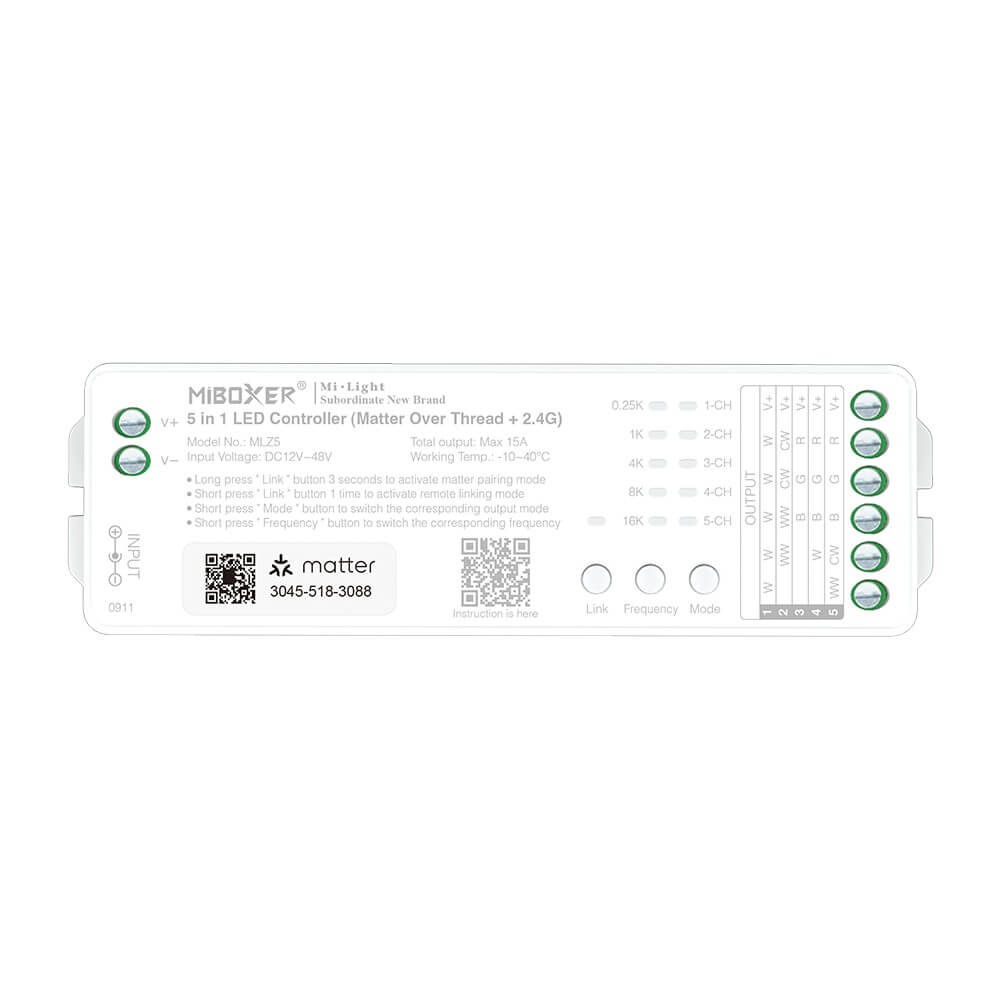

The MLZ5 has a 5-in-1 design that supports multiple standard LED strip types: single-color, tunable white, RGB, RGBW, and RGB+CCT (does not include addressable ones). There are three buttons on the controller for link, frequency, and mode. You can press the "link" button for 3 seconds to activate Matter pairing mode; press the "Frequency" button to switch to the corresponding frequency; press the "Mode" button to switch the output mode for various strip lights.
Powered by Thread technology, the MiBoxer Matter controller offers faster response times, lower latency, and improved network reliability compared to traditional WiFi or Zigbee ones. It also enhances energy efficiency and extends network coverage through mesh connectivity, ensuring consistent performance even in larger installations.
- Simple configuration, easily pairing via QR code
- Support to collaborate with multiple platforms: Apple Home Kit, Amazon Alexa, Google Home, SmartThings, Tuya Smart
- 5 In 1 design suit for regular single color, tunable white, RGB, RGBW, RGBCCT LED strips ( not for addressable ones)
- Wide compatibility with products from different brands that comply with the Matter ecosystem
- Voice control, compatible with Siri, Google Assistant & Alexa portable control
- Support to set up forecast scenes and select scenes based on different lighting requirements
- Max works with 12PCS remote control
- Built-in 18 dynamic modes
- Auto transmitting: transmit signals to another automatically and extend to countless distances
- Auto synchronization: the same dynamic mode can synchronize together
- Support DND mode, usually used in a power failure area to save power

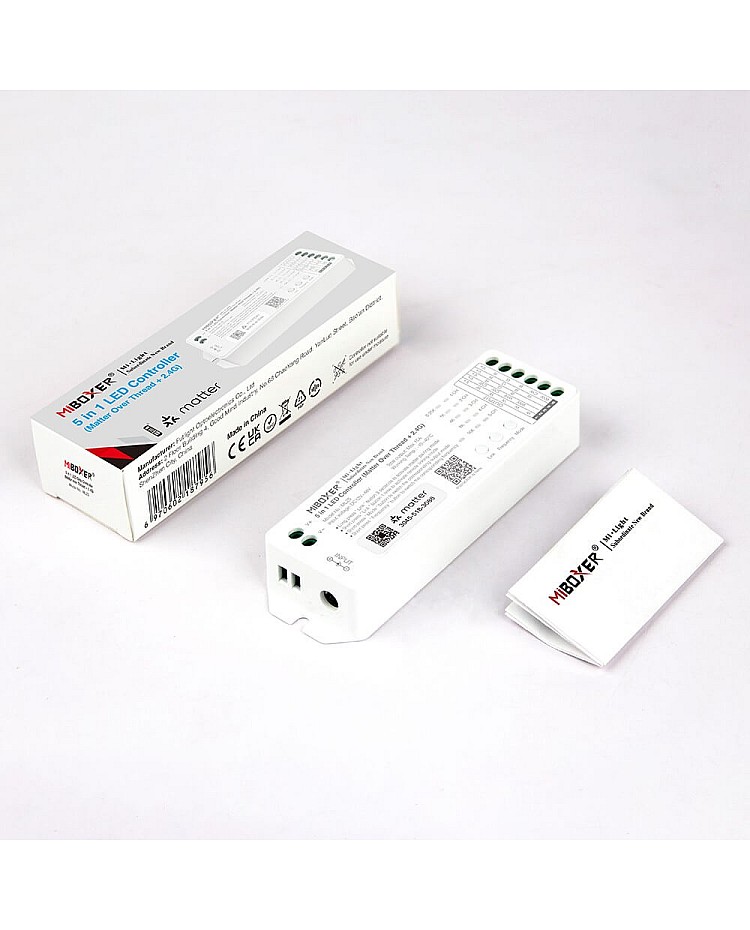

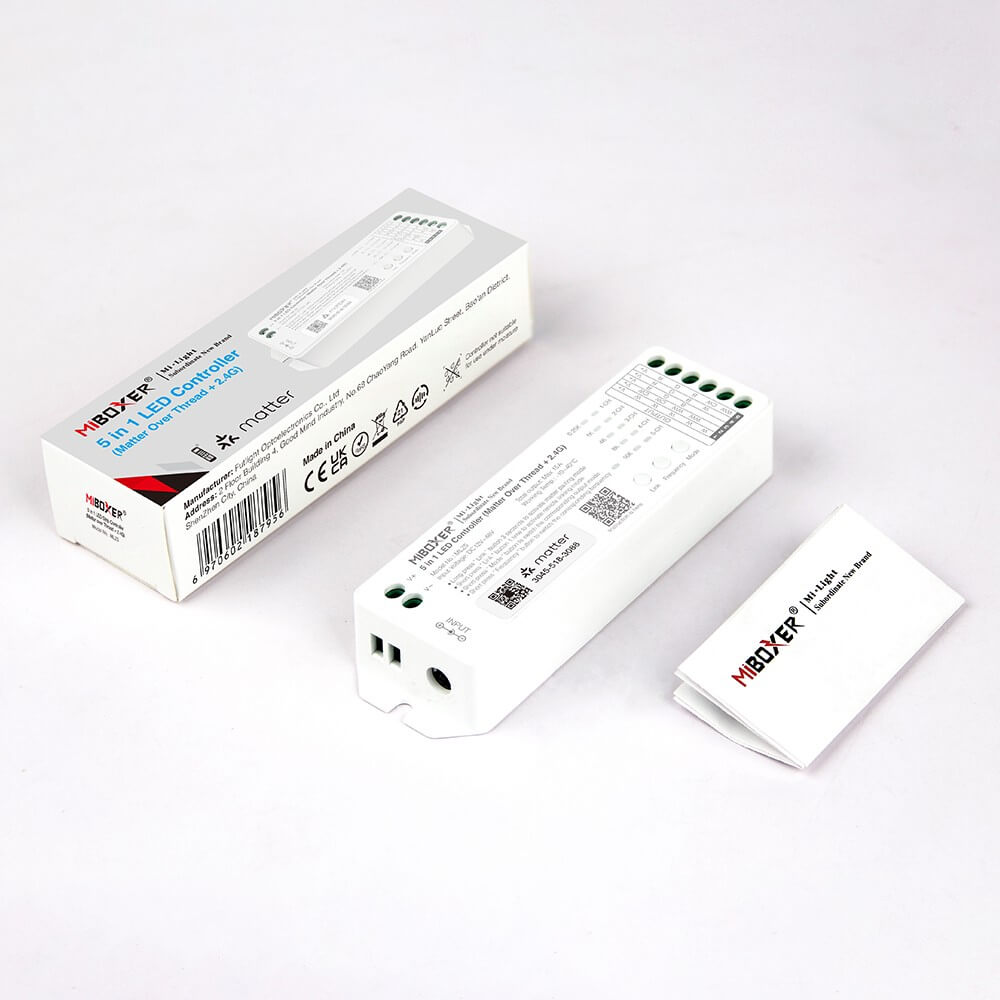

- User manual
Specifications:

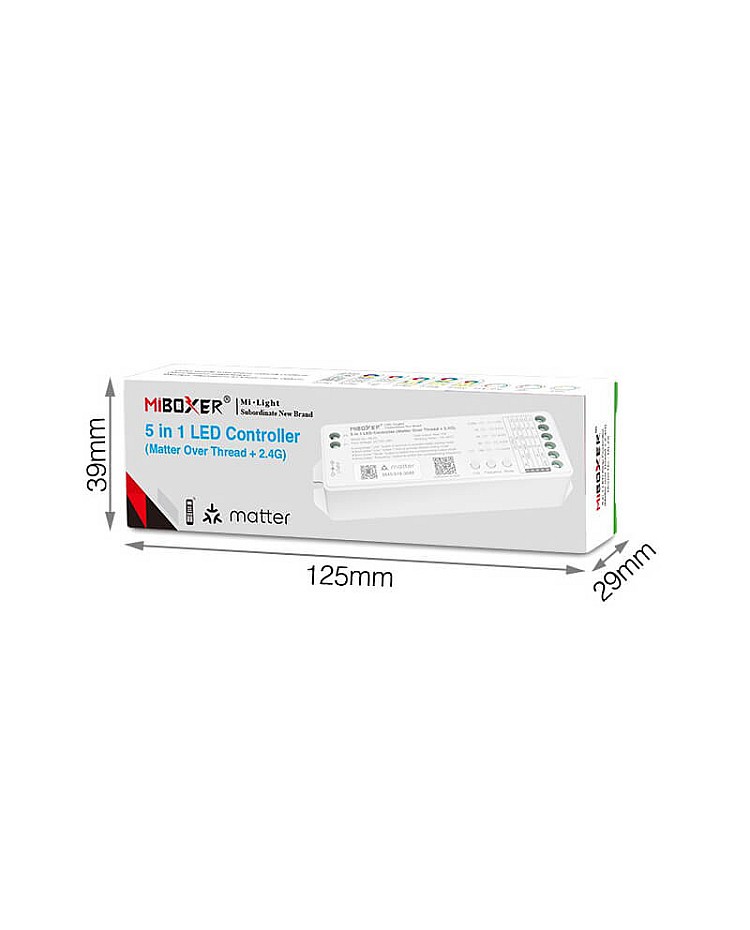

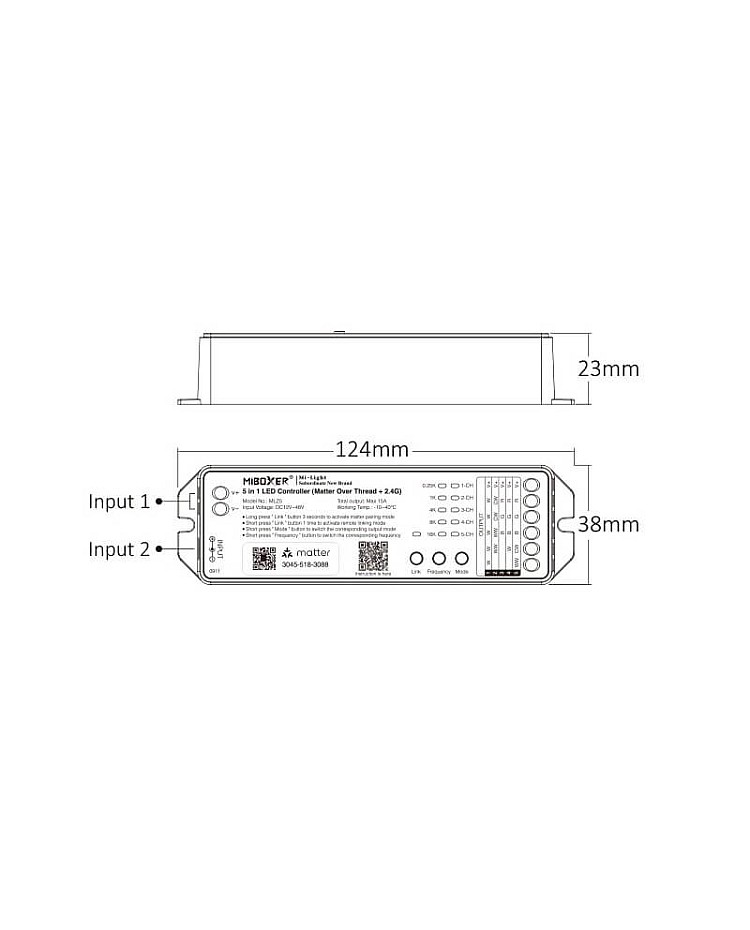

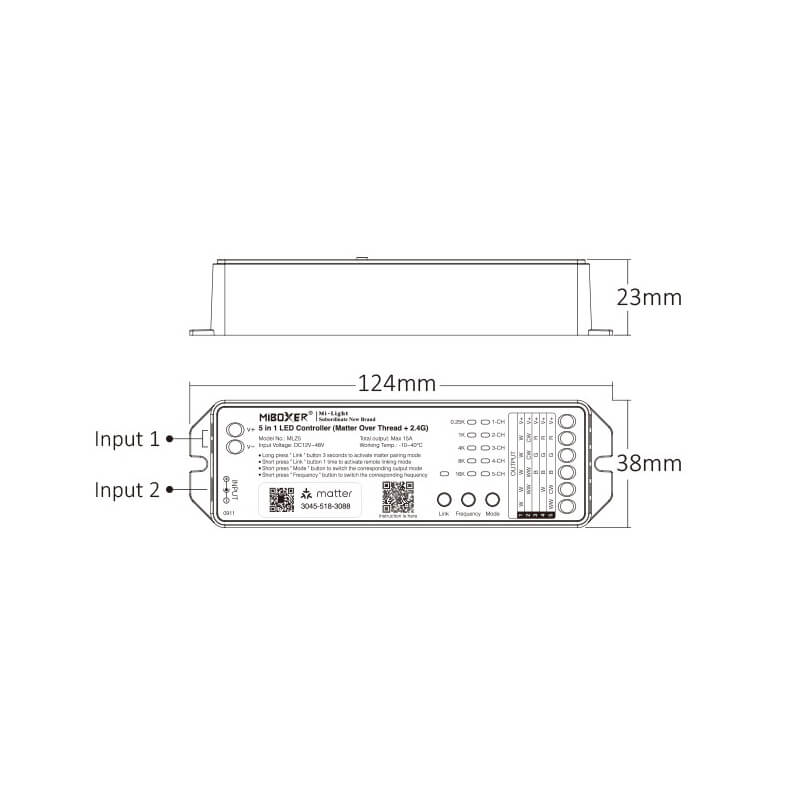

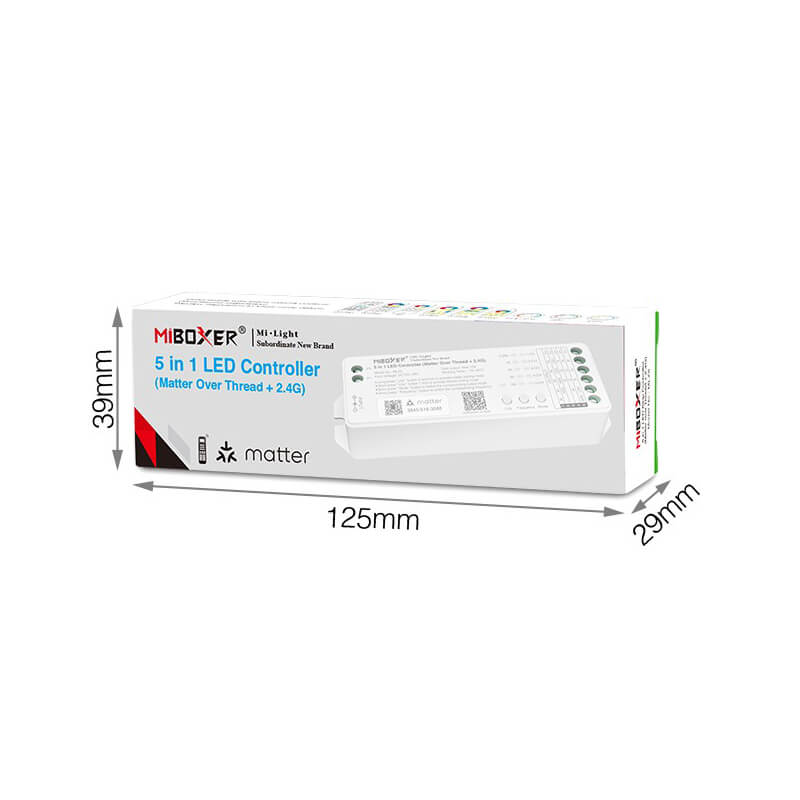

- Size ( L x W x H): 124mm x 38mm x 23mm / 4.88" x 1.49" x 0.9"
- Input voltage: DC12-48V
- Output current: 6A/single channel
- Maximum output current: 15A
- Protocol: Matter over Thread + 2.4G RF
- 5-in-1 design for single-color, tunable white, RGB, RGBW, and RGB+CCT LED strips
- Support multiple platforms like Apple Home, Amazon Alexa, Google Home, SmartThings, and Tuya Smart
- Remote control distance: ≤30m ( 2.4G RF)
- Compatible with remotes: B8, B0, B3, T3, B4, T4, S2, S2W+, FUT100, FUT089, C5, FUT092, FUT088, FUT096
- IP Rate: IP20 non-waterproof
- EMC standard (EMC): ETSI EN 301 489-1 v2.2.3 （ (2019-11); ETSI EN 301 489-3 v2.3.2 (2023-01)
- Safety standard (LVD): EN 61347-2-11: 2001+A1:2019; EN 61347-1: 2015+A1:2021; EN 62493: 2015+A1:2022
- Radio equipment ( RED ): ETSI EN 300 440 V2.2.1
- Certification: CE, EMC, RED
- Working temperature: -10℃-+40℃
- Warranty: 2 years
