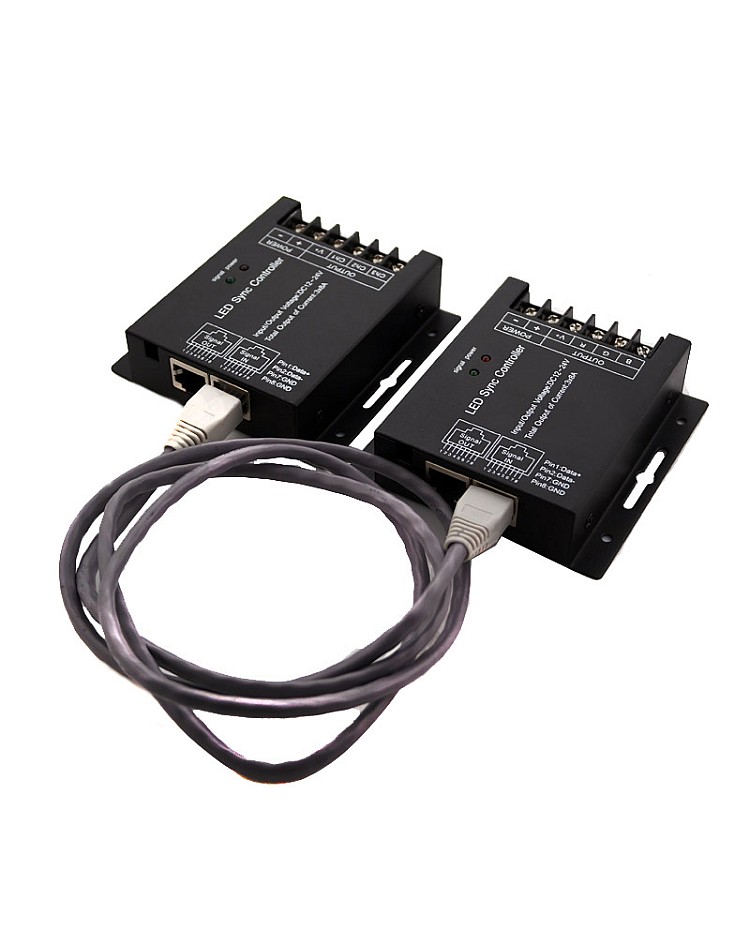

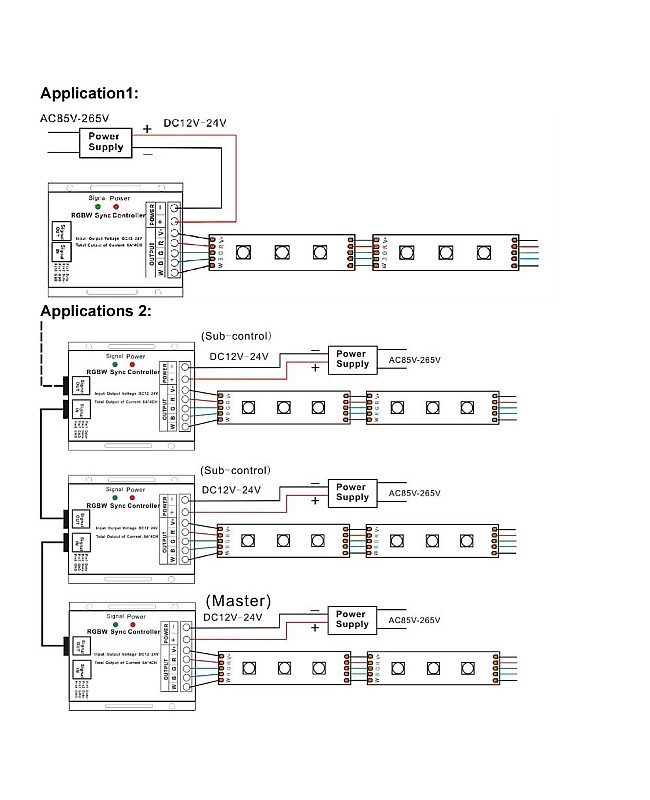

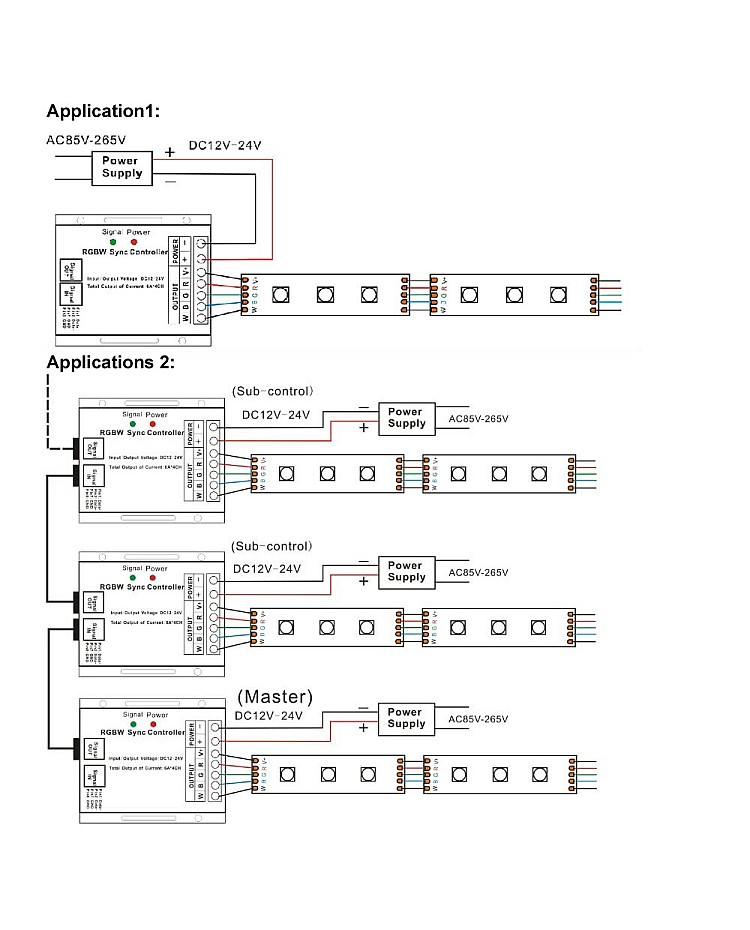

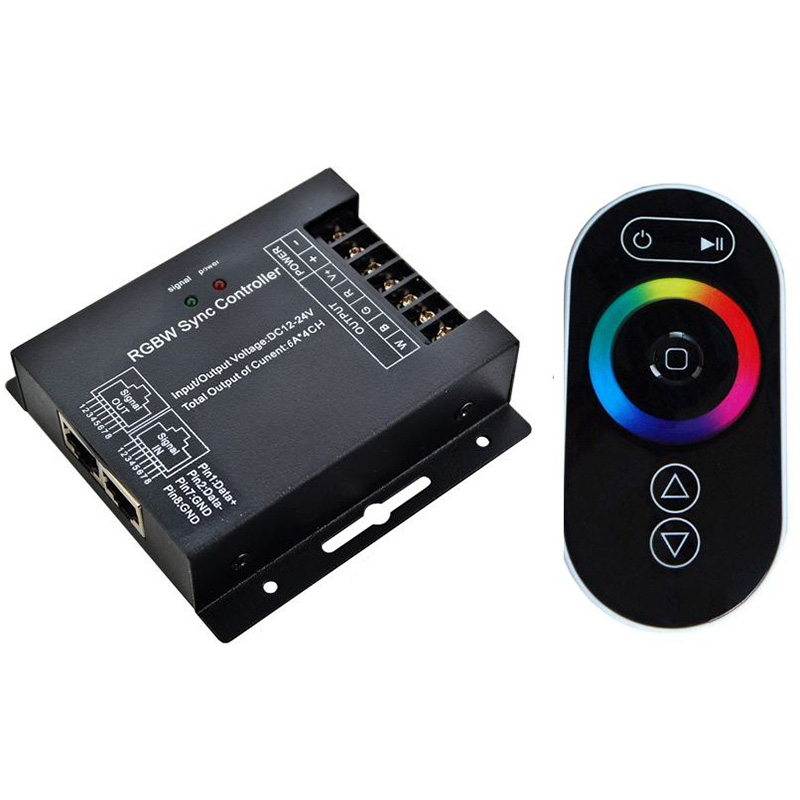

The RGBW LED controller with RF touch remote control, which has a 4-output-channel design, is suitable for all kinds of constant voltage RGB and RGBW LED Lights. The RF LED controller has a 4-channel output design, with a max output current of up to 8A for each channel. Working on DC12V or DC24V, max loading power up to 768W when working in DC24V. It adopts dual RJ45 internet cable sync interfaces, and can use the RJ45 Ports to connect multiple controllers and achieve the synchronization function of thousands of LED lamps or LED strips. The RF touch remote control has one color ring and a sensor light in the center. All the buttons are in the touch form, and the color ring has 128 levels in different colors. There are 9 working modes in total, 2 white static colors and 7 dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable.
Specifications:
- Size: 91*88*24mm(L*W*H)
- Connecting Mode: Common Anode

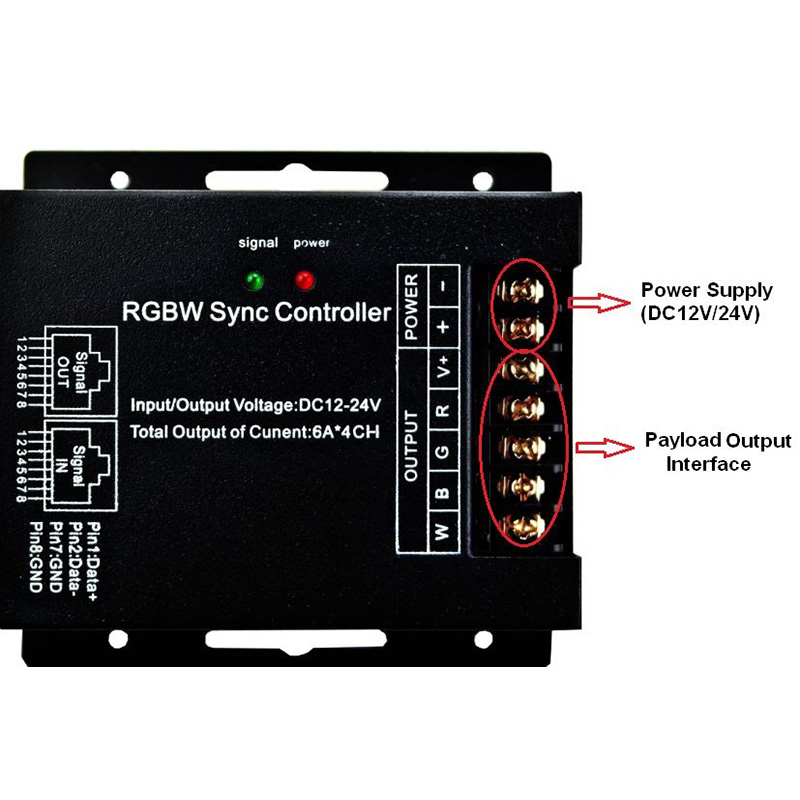

- Working Voltage: DC12V-24V
- Output Channels: 4 Channels
- Output Current: <8A ( Each Channel )
- Output Power: 384W ( 12V ) / 768W ( 24V )
- Output Gray: 256 Levels (RGB Each)
- RF Frequency: 433.9MHz

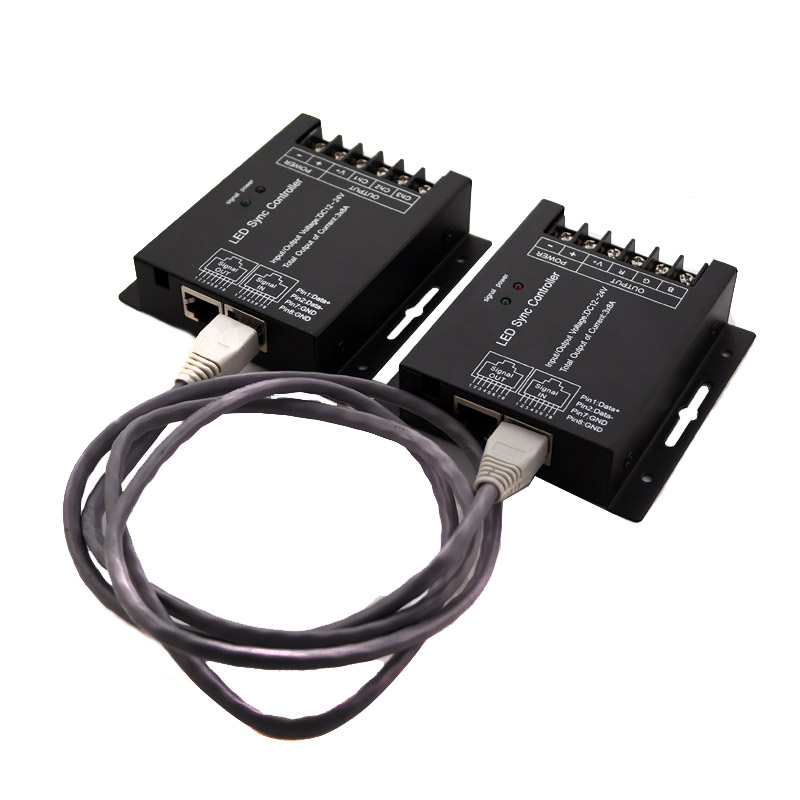

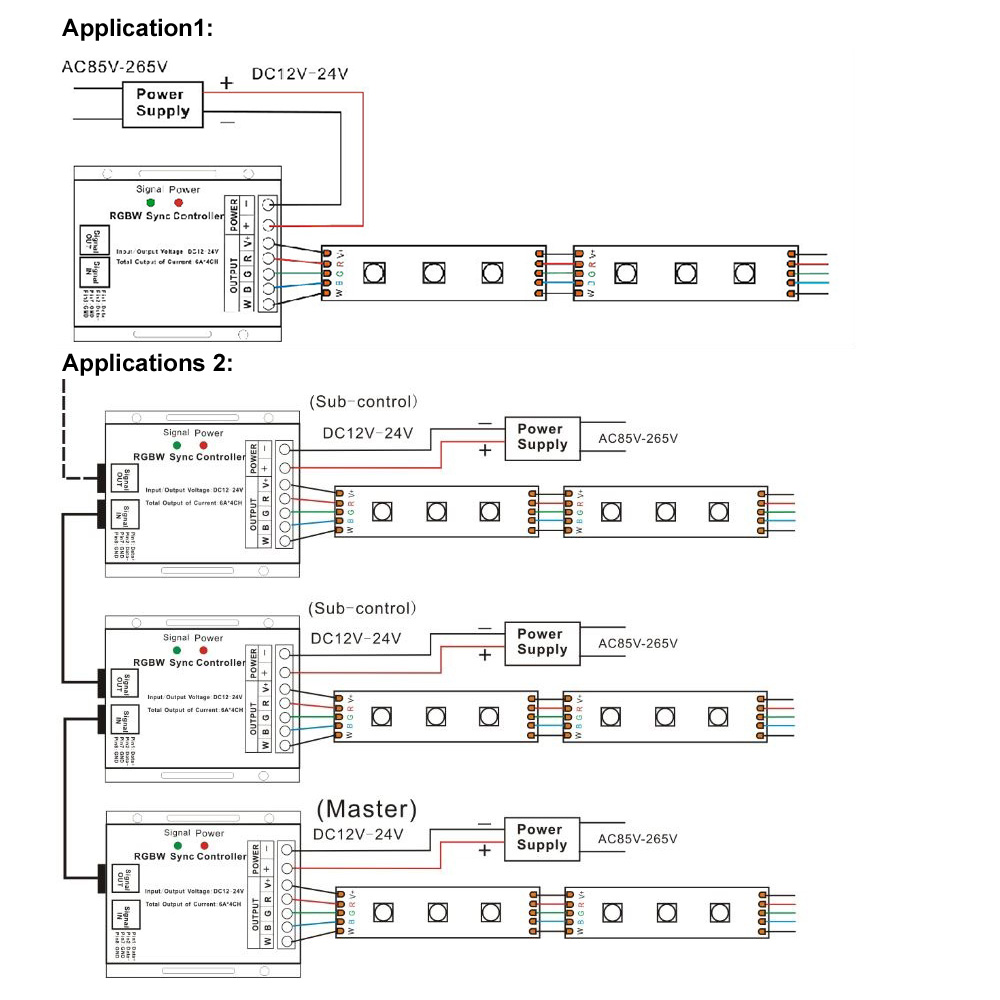

- Dual RJ45 Internet Cable Sync Interface

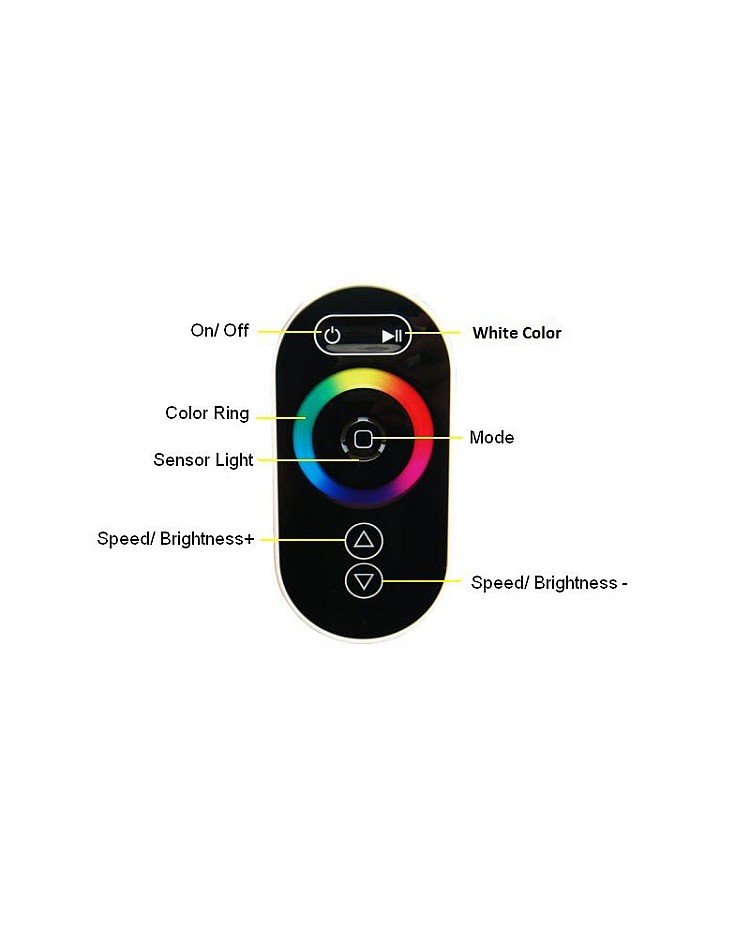

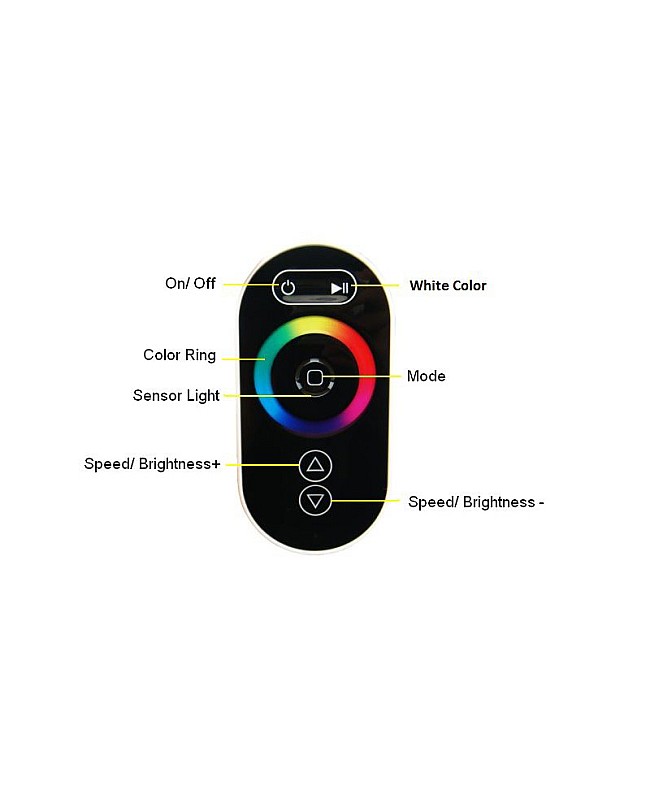

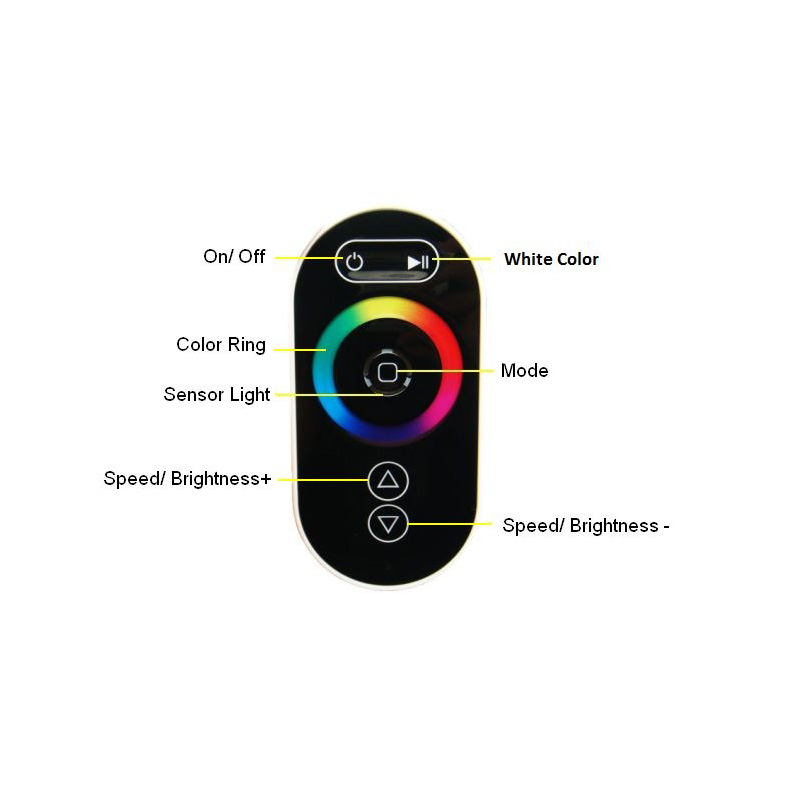

- RF Touch Remote Control With 5 Functions, 1 Color Ring, And 1 Color Sense Lamp In The Center Included
- 9 Working Modes In Total, 2 White Static Colors And 7 Dynamic Modes
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- Weight: 350g
- 3-Year Warranty
Includes:

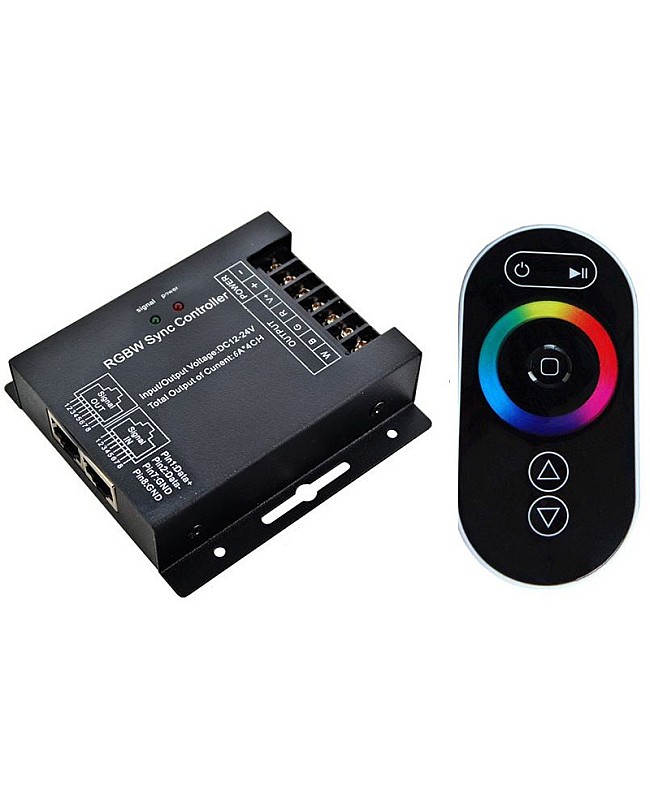

1 * RF LED Controller
1 * RF Touch Remote Control
