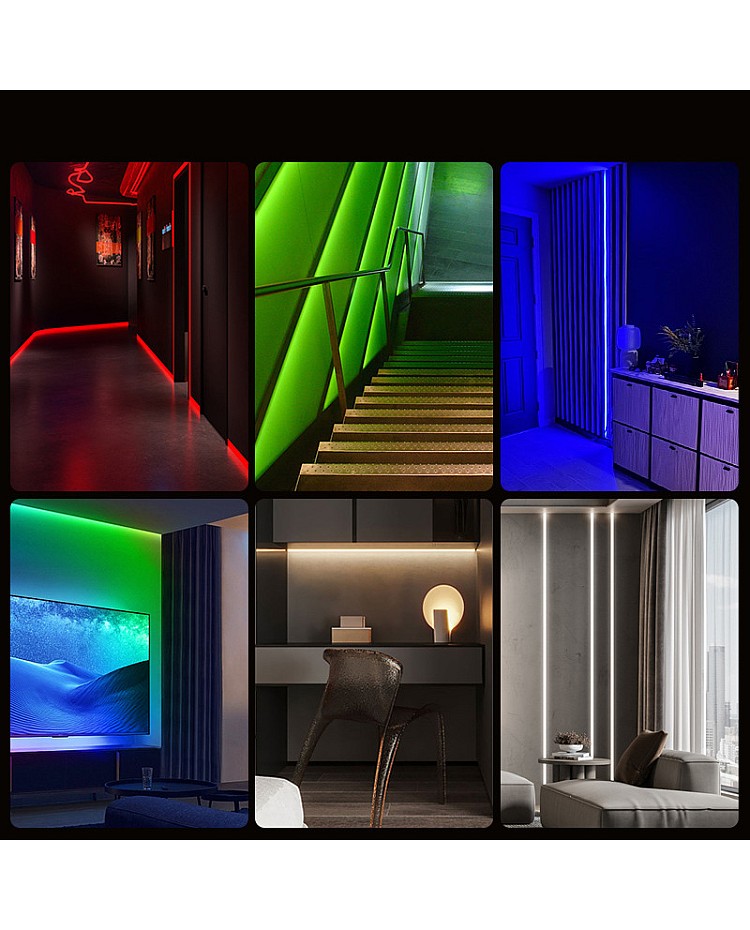

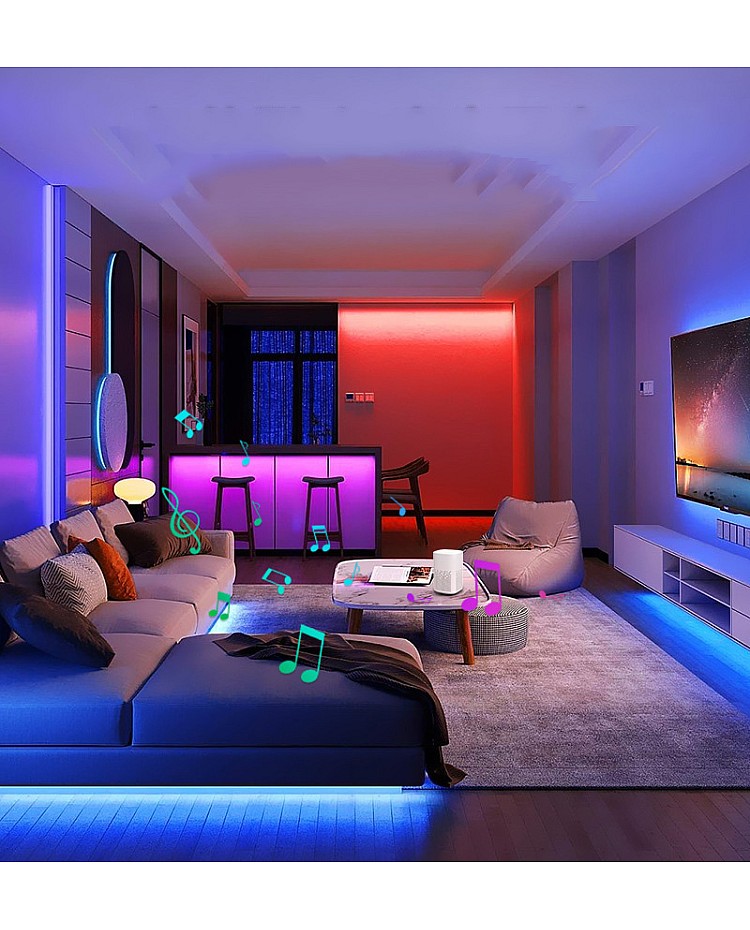

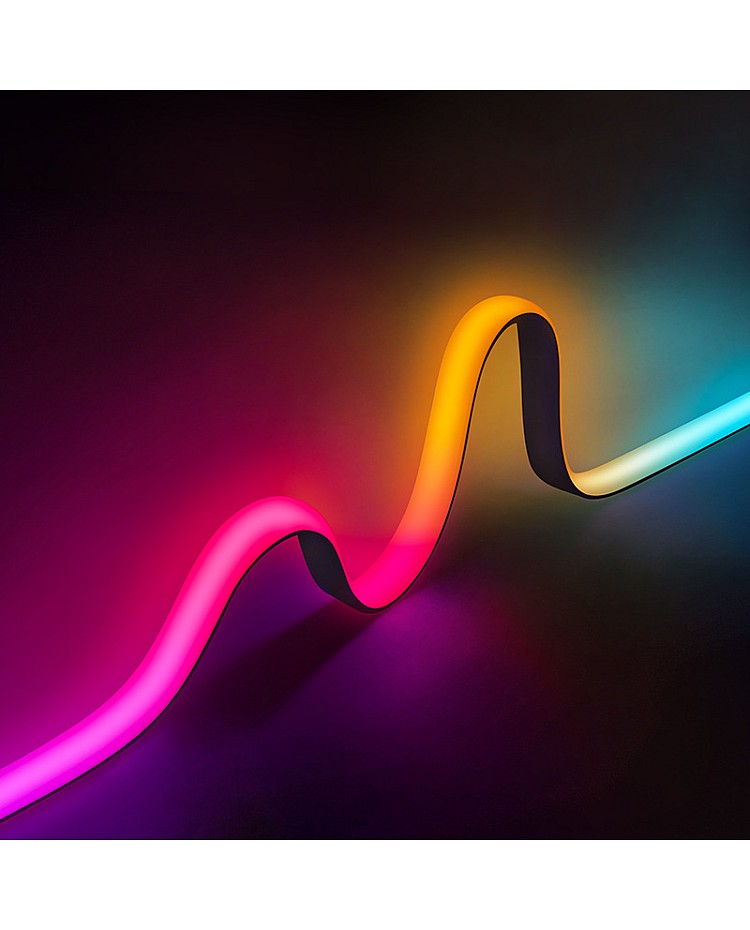

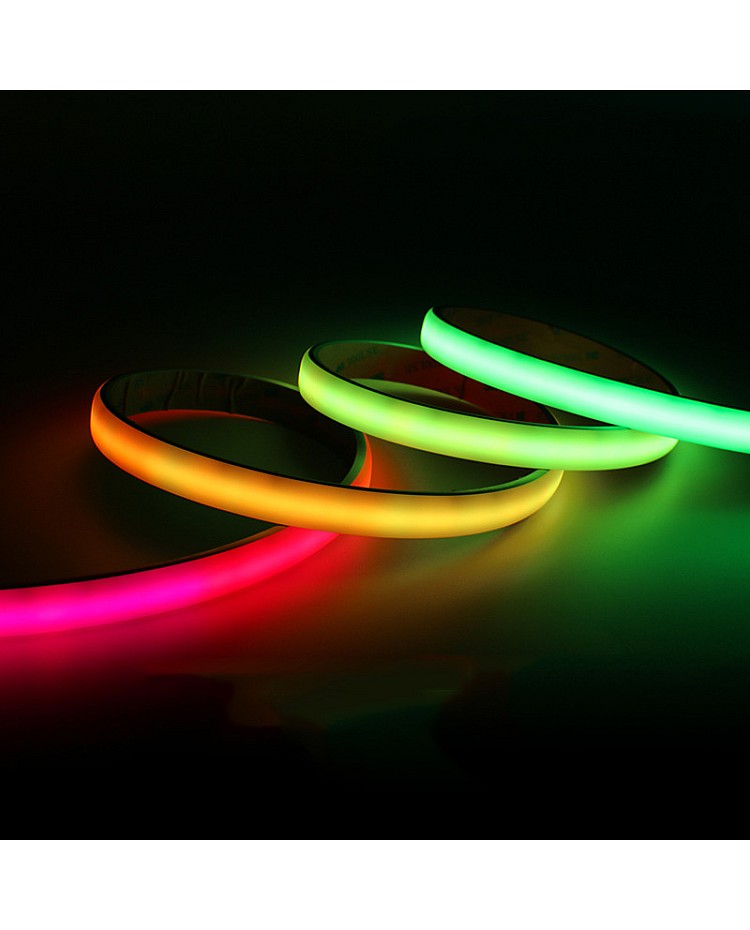

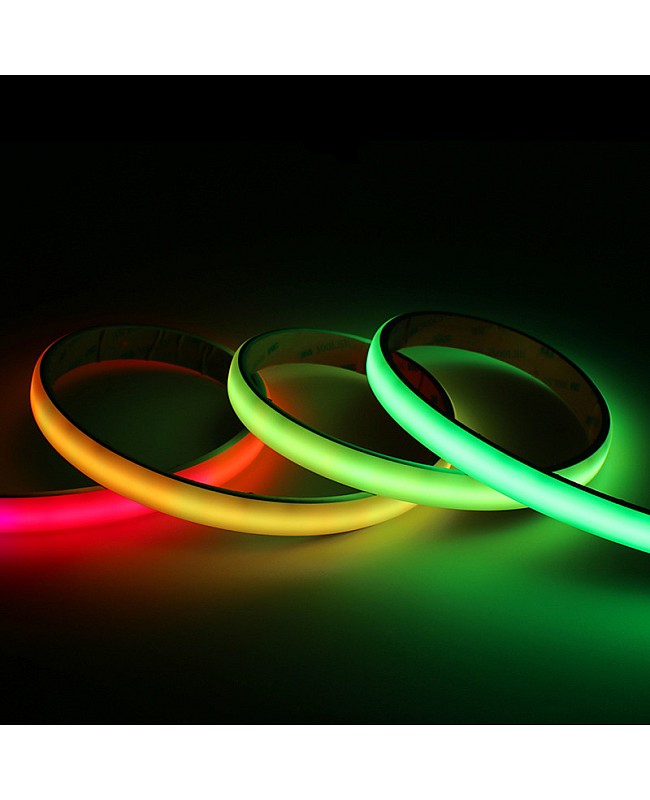

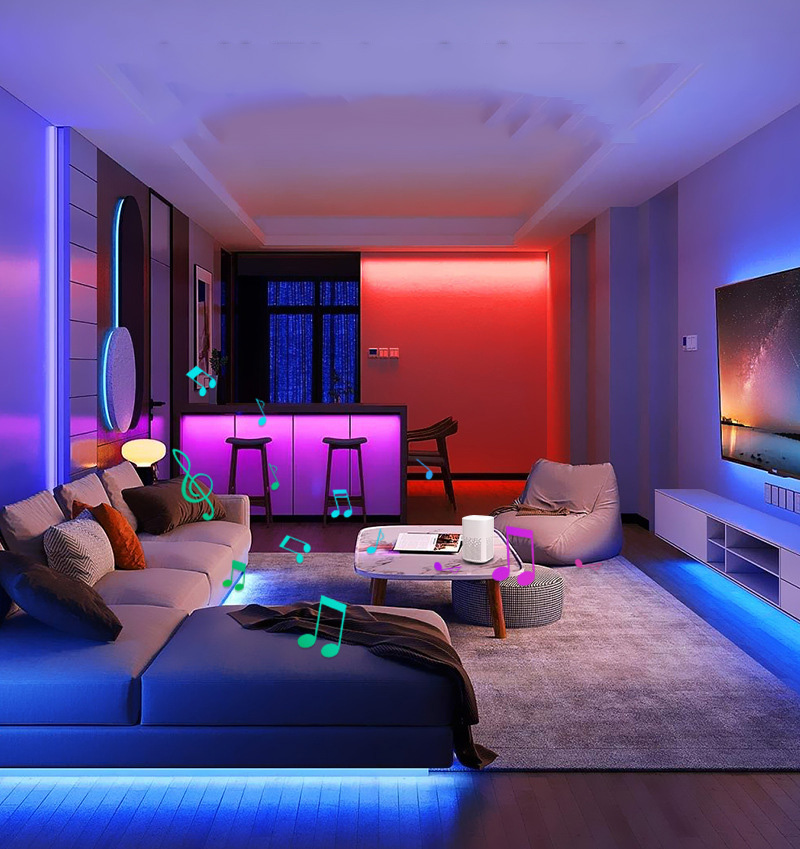

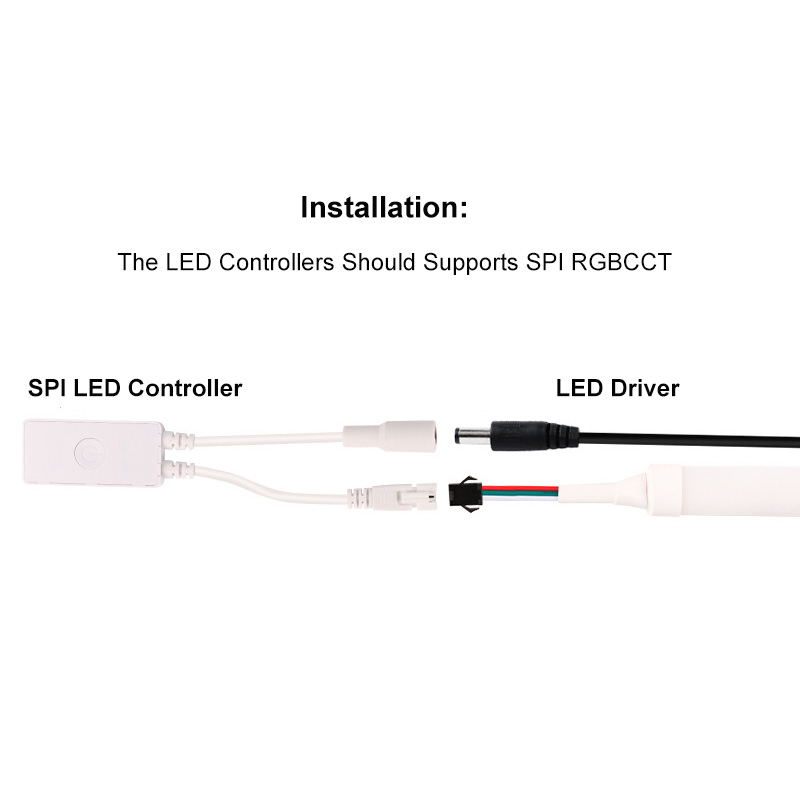

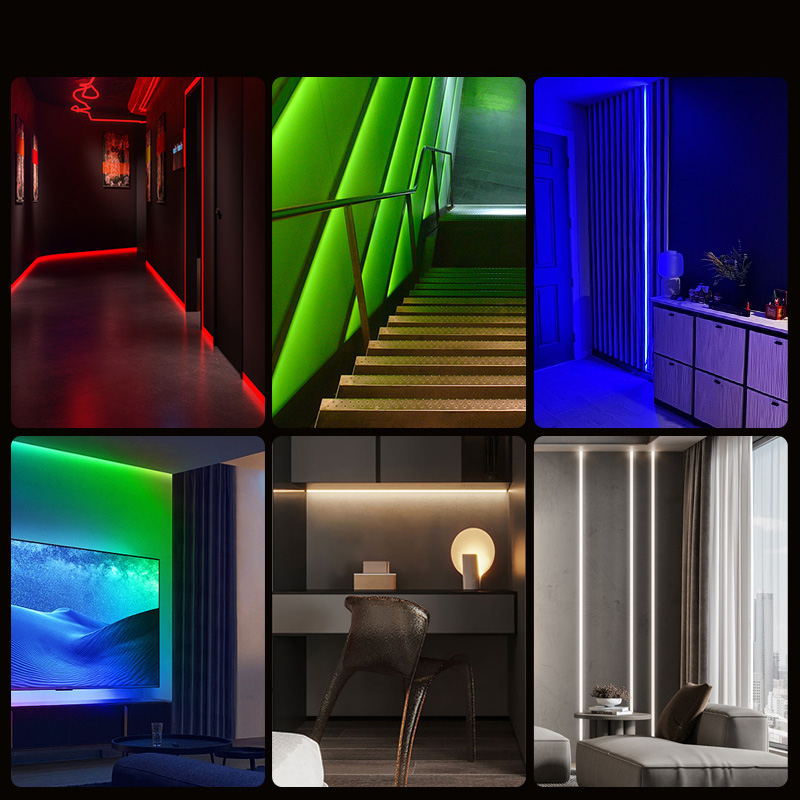

The RGBCCT addressable COB LED strips will deliver seamless and dot-free illumination with vibrant colors and adjustable white tones. It features chip-on-board ( COB ) technology, which allows 1428PCS LED chips on one meter PCB board, eliminating visible LED dots and delivering a smooth, uniform glow. They are perfect for accent lighting, home decor, and commercial displays. The WS2811 COB strip lights feature a 3P JST SM connector on one side and a second side with black and red voltage adding wires. You can easily connect them to digital LED controllers that support SPI RGBCCT 5 channels. We recommend working with SP630E LED controllers to achieve millions of vibrant colors or dynamic lighting effects. You can use the phone APP or 2.4G remote controls to select the colorful modes, white modes, static colors, music modes, and custom modes. The length is 16.4ft per roll, and the minimum cutting length is 83mm. You can cut to your desired length from the copper dots. The back has double-sided adhesive tape for easy installation. There are two waterproof level products available: IP30 (non-waterproof) and IP65 (weatherproof). You can install IP65 products in a wet environment to prevent water and dust ingress.
Key Features:
1. RGB+CCT (Tunable White) Addressable: Can work with pixel LED controller to achieve the vibrant lighting effects, such as magic color + pure white, meteor, chase, water drop, horse racing, etc.
2. Addressable (WS2811 IC): Enable group control LEDs via SPI controllers that support SPI RGBW 5-channel mode.
3. High-Density COB LEDs: 1428PCS per meter for ultra-smooth, bright light without hotspots.
4. Cuttable and Extendable: The minimum cutting length is 83mm, allowing for the connection of multiple pieces to achieve custom lengths.
5. 24V Low Voltage: Safer, more stable performance than 24V, and with less voltage drop over long runs.
Specifications:

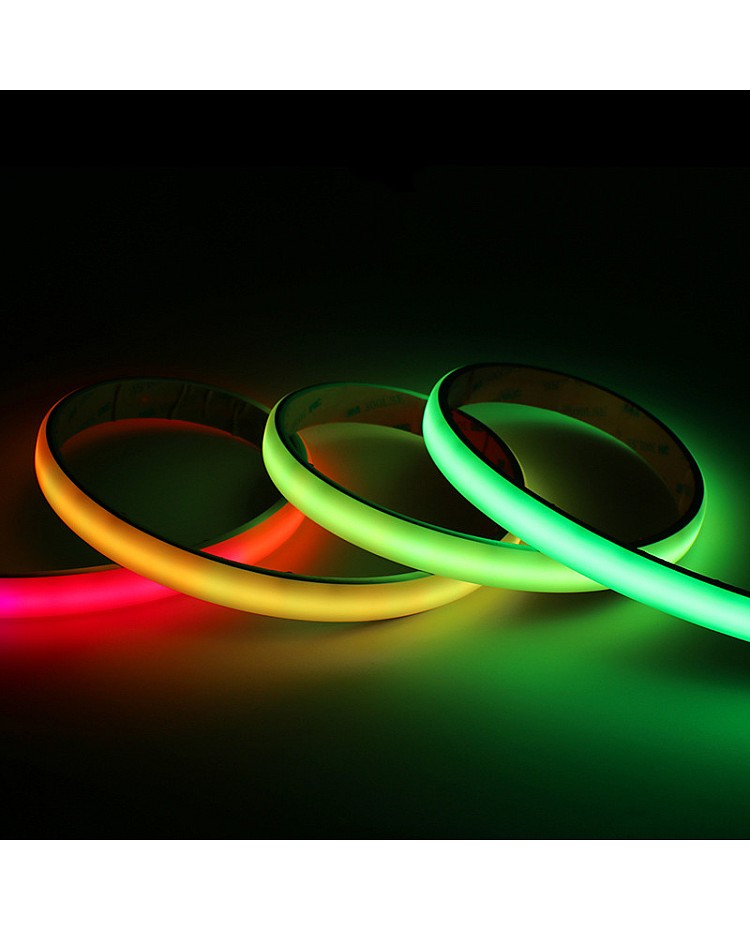

- Type: Addressable RGB+CCT COB Strip Lights

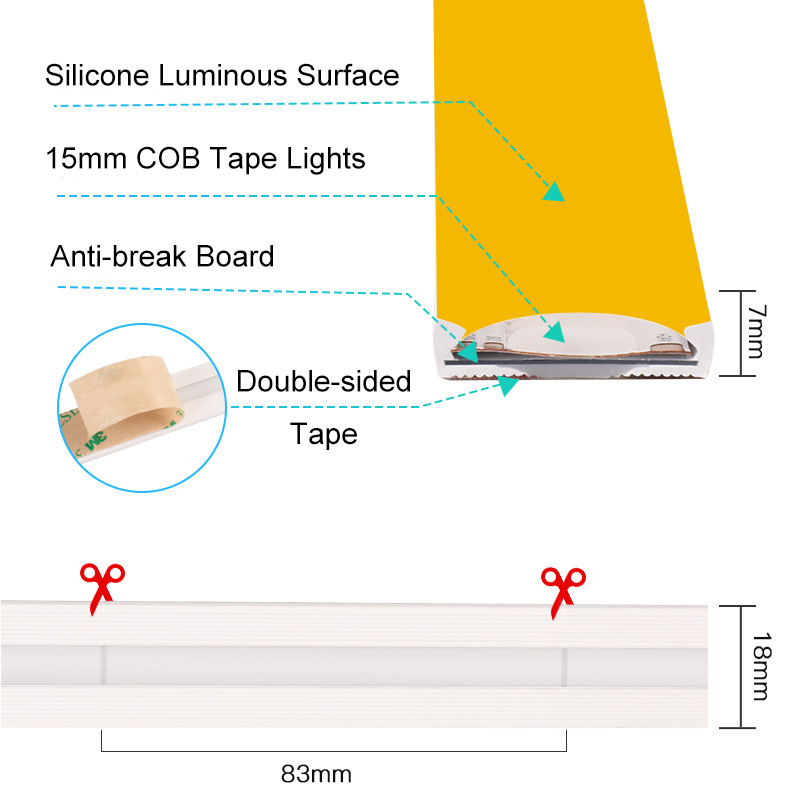

- PCB Board Width: 15mm / 0.59"
- IC Type: WS2811
- IC QTY: 24PCS/M
- LED QTY: 1428PCS/M
- Length: 5M (16.4 ft) Per Roll
- Input Voltage: DC24V
- Power: 26W/M

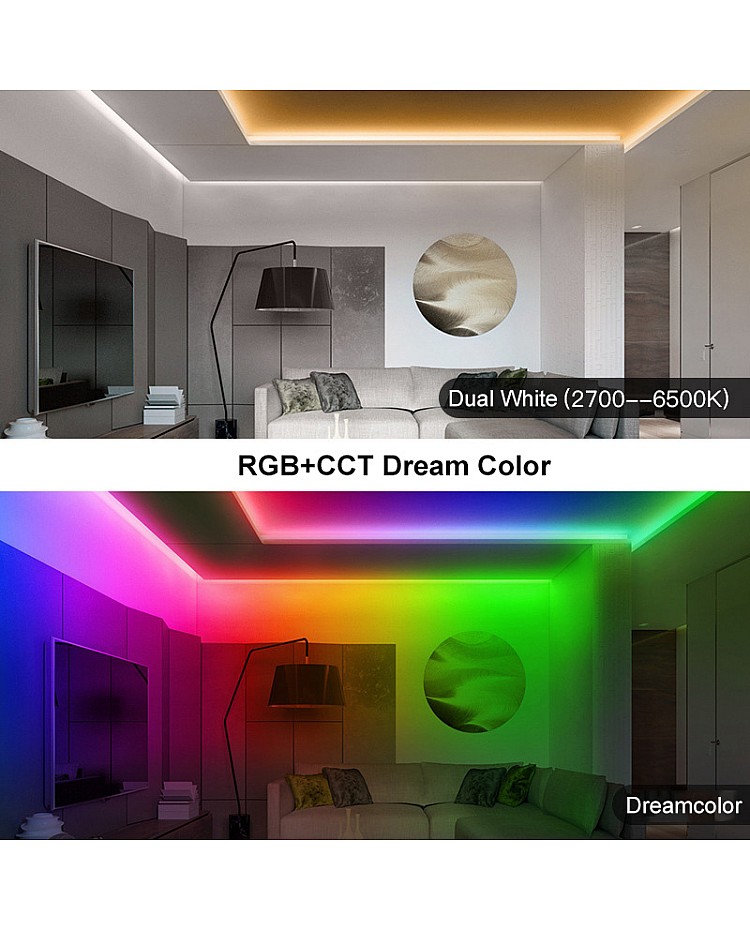

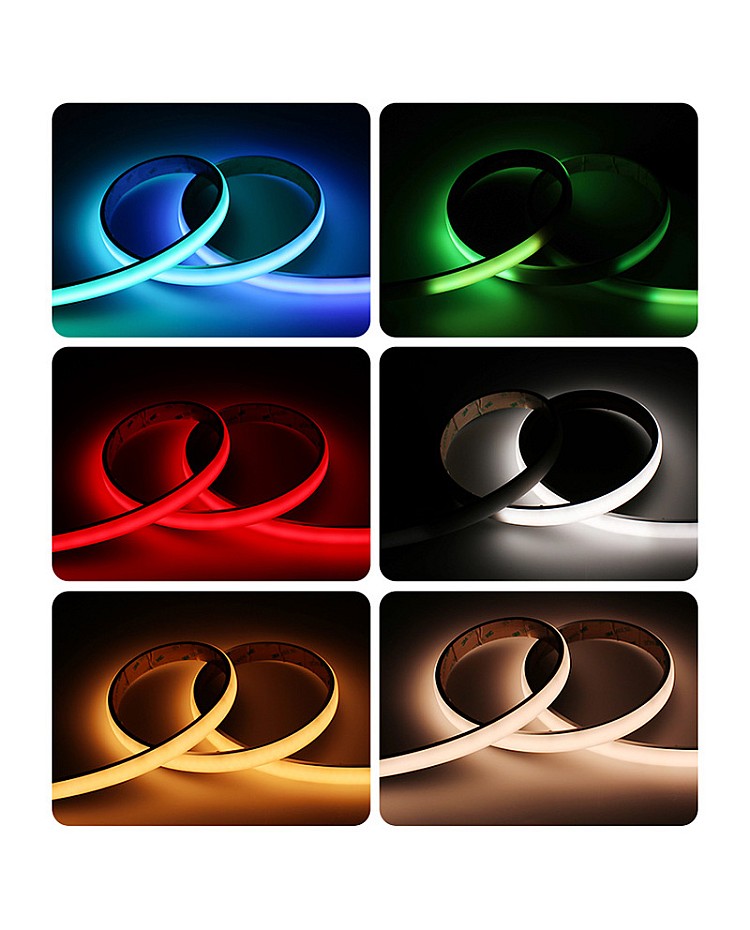

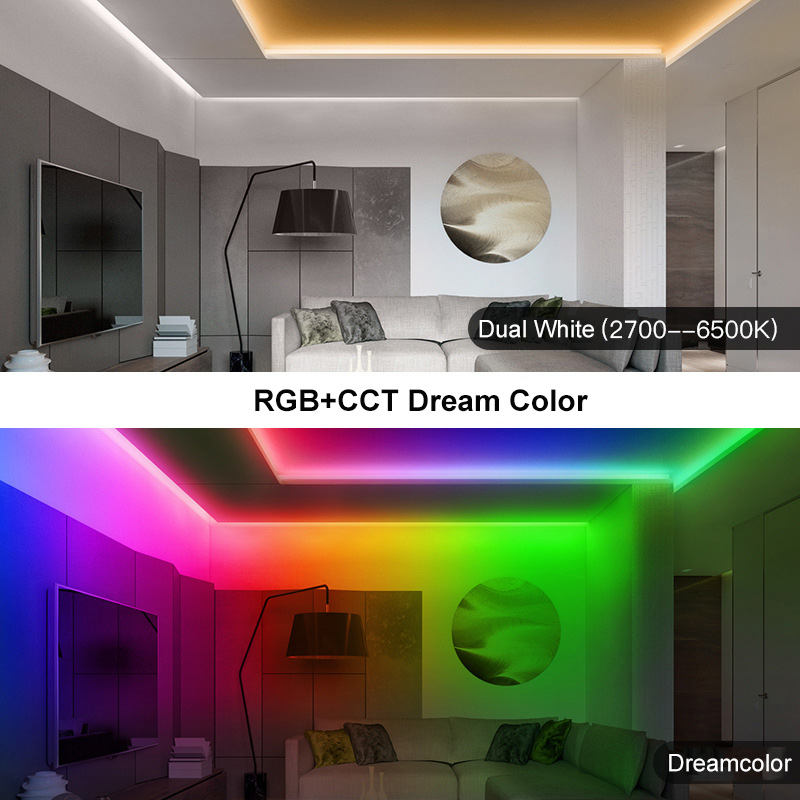

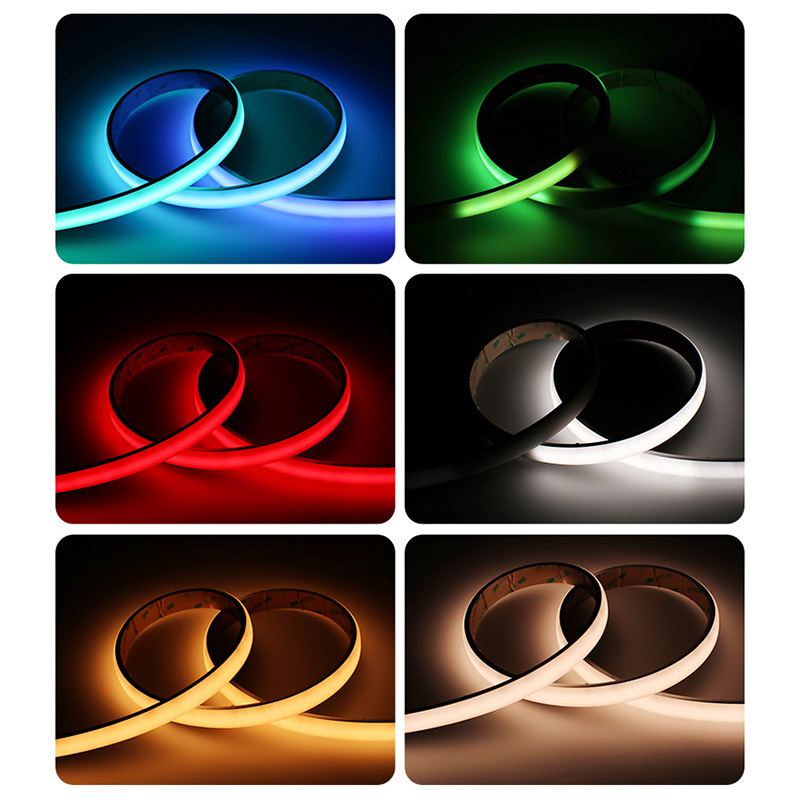

- Color: Addressable RGB+CCT (2700K-6500K)
- Dimmable: YES
- Color Temperature Adjustable: YES
- Color Rendering Index: 90Ra
- Angle View: 120°

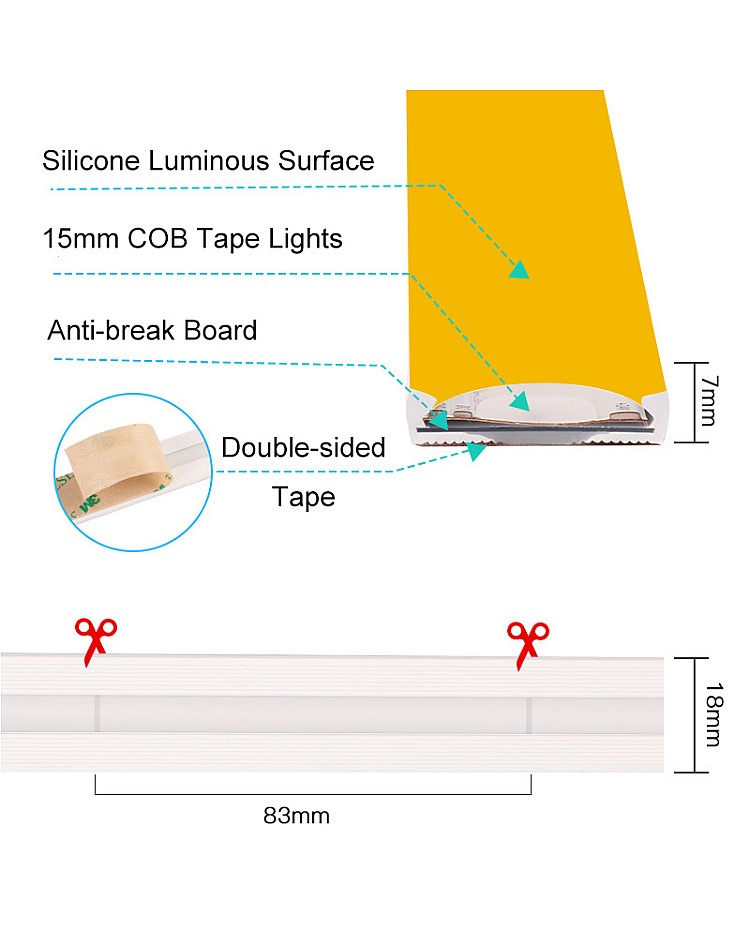

- Minimum Cutting Length: 83mm / 3.27"

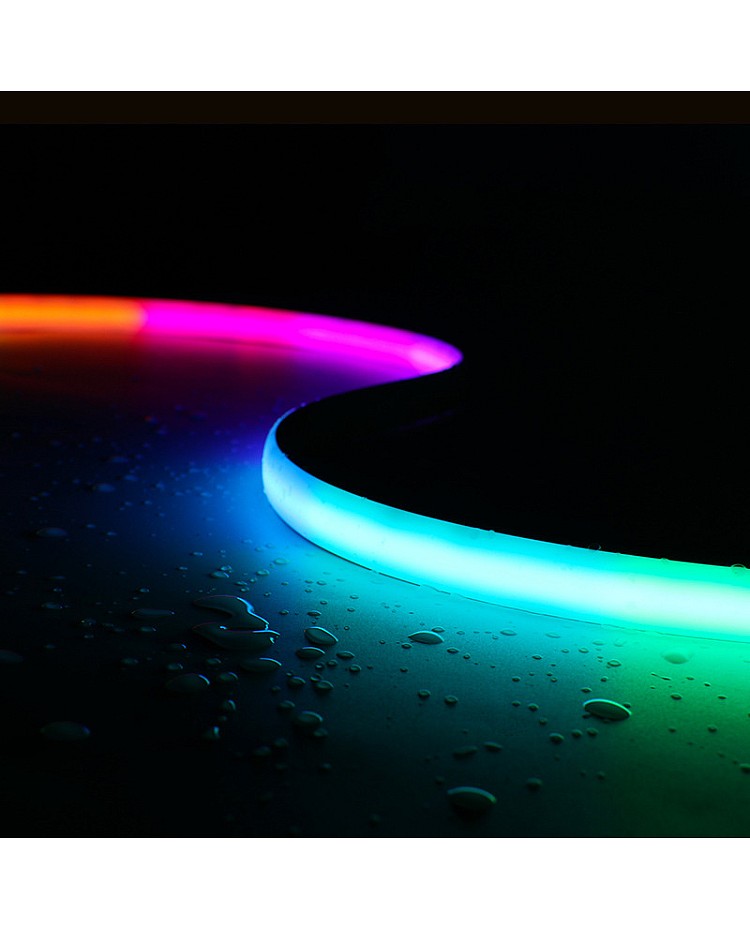

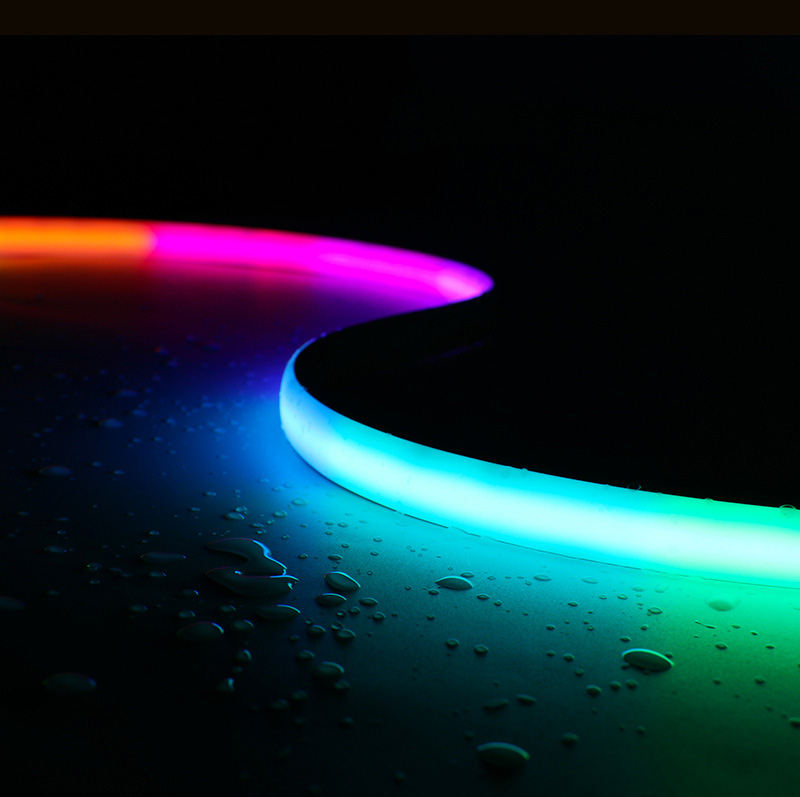

- IP Rating: IP30 Non-waterproof, IP65 Weatherproof

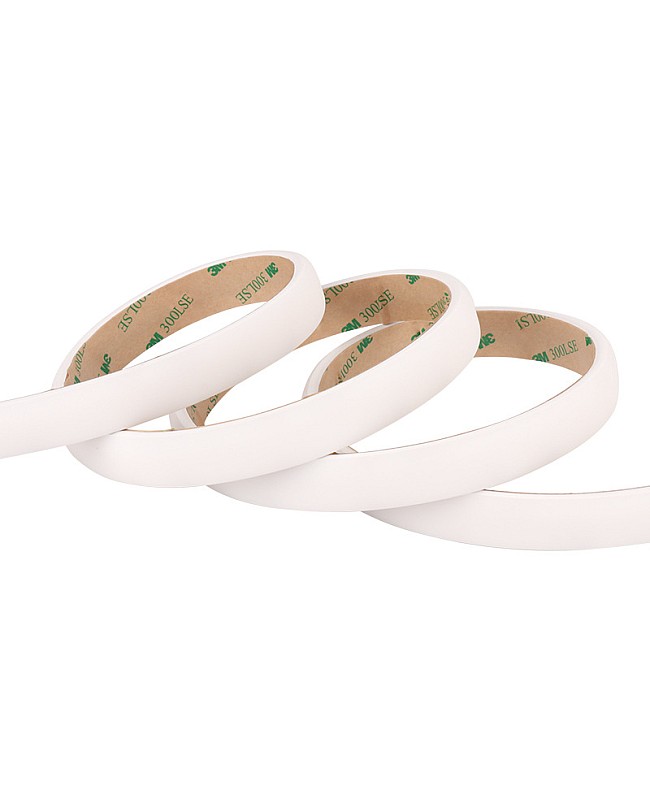

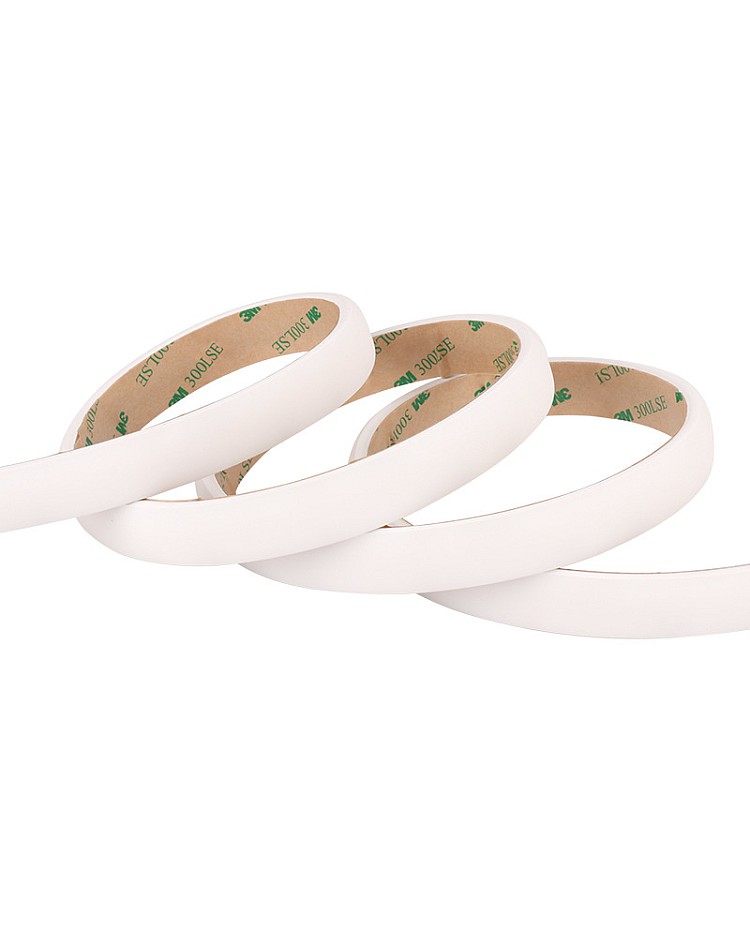

- The Back Has Double-sided Adhesive Tape

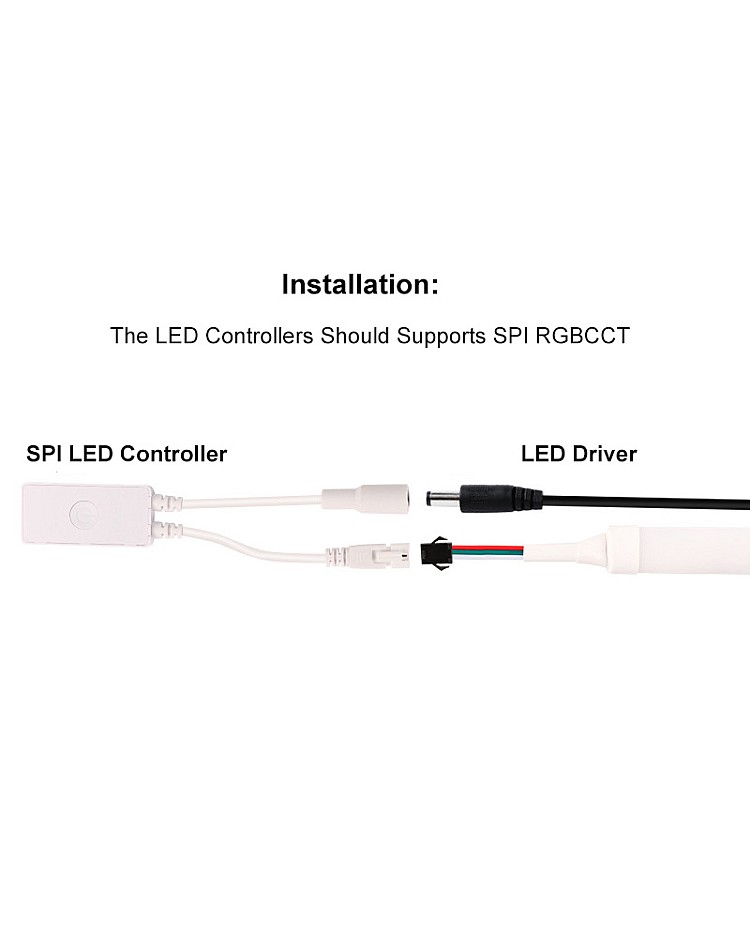

- One Side Has 3P JST-SM Connectors And Another Has Black & Red Voltage-Adding Wires
- Lifespan: >35,000 Hours
- Certifications: CE, ROHS
- 2 Years Warranty
Includes:
1*WS2811 Programmable COB LED strips ( 16.4ft / 5 meters long)
