The SP630E Bluetooth LED Light Controller adopts SPI and PWM technology and can be compatible with regular and Addressable Smart LED Strips. With five output channels designed and the max output current of each channel is 6A. The PWM technology allows the SP630 to control the regular LED Strips without ICs, like single color, dual white, RGB, RGBW, and RGB+CCT. And SPI technology allows controlling the Addressable LED Strips like WS2811, WS2812B, WS2813, WS814, WS2815, SK6812, etc. It also supports SPI and PWM LED Strips simultaneously, and you can connect WS2805 Smart LED Strips and Regular LED Strips to the Controller to achieve various lighting effects. APP, 2.4G RF Remotes can control the SP630E Controller, the Remote Control and 86-type Control Panel can be set up for zone-control(can be divided into four zones), or overall control, you can control the color-changing modes, static colors, color temperature, and brightness freely. It supports three music capture modes: built-in mic, phone mic, and player streaming; the lighting effects will change simultaneously to follow the music's rhythm. It comes with a user-friendly APP that makes it easy to adjust the parameters and settings of the system. You can download the APP " Balance X" to your cellphone, which supports IOS 10.0 or higher and Android 4.4 or higher. The APP has five major control pages: dynamic, static, music, custom, and setting. You can select different types of LED corresponding to different APP page content.


  • Type: All-In-One Bluetooth Music Controller
  • Model: SP630E

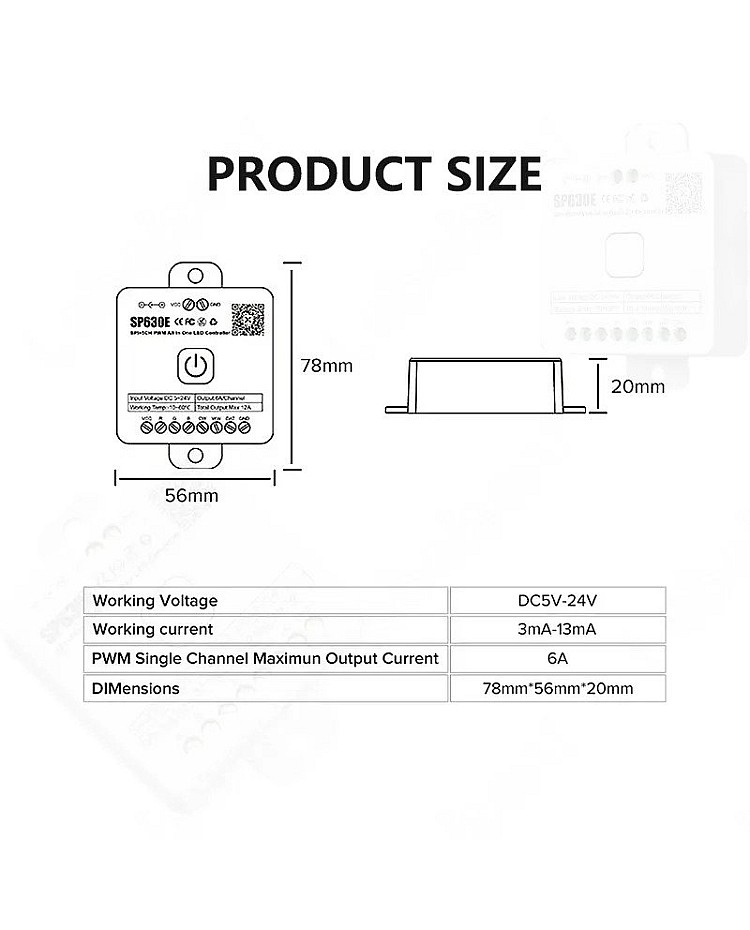

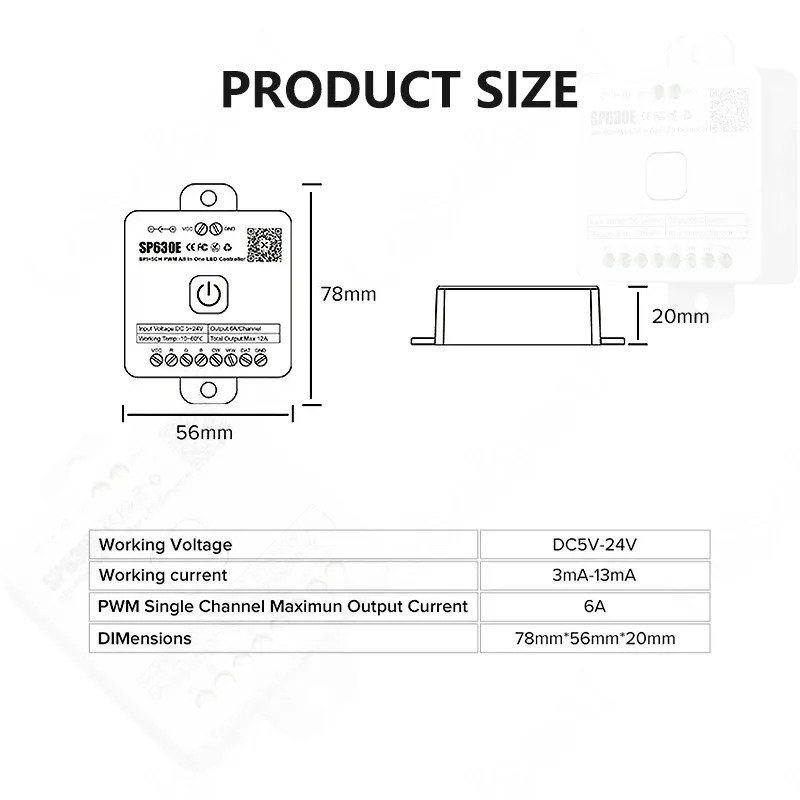

  • Size: 78*56*20mm(L*W*H)
  • Working Voltage: DC5V-24V
  • Working Current: 3mA-13mA
  • Maximum Output Current: 6A/Channel
  • Total Output Current: 12A

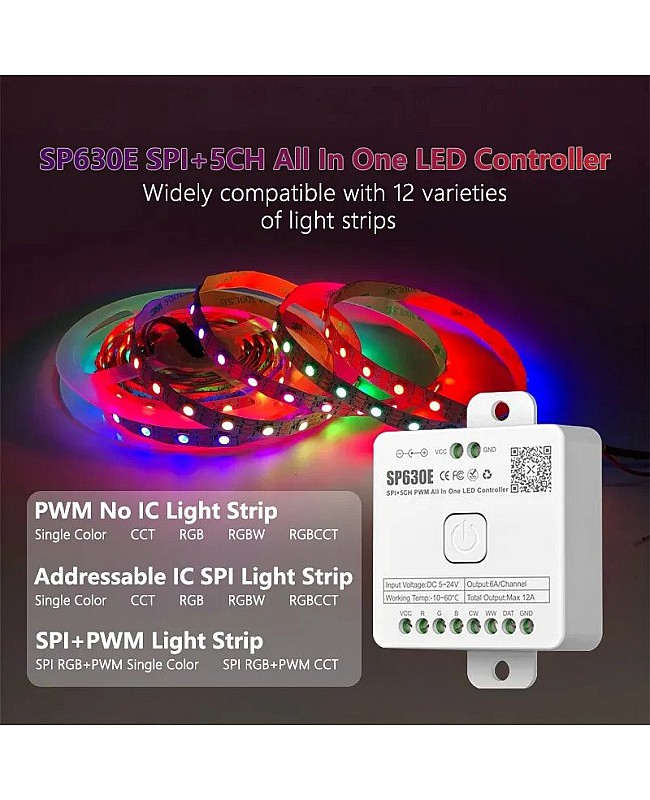

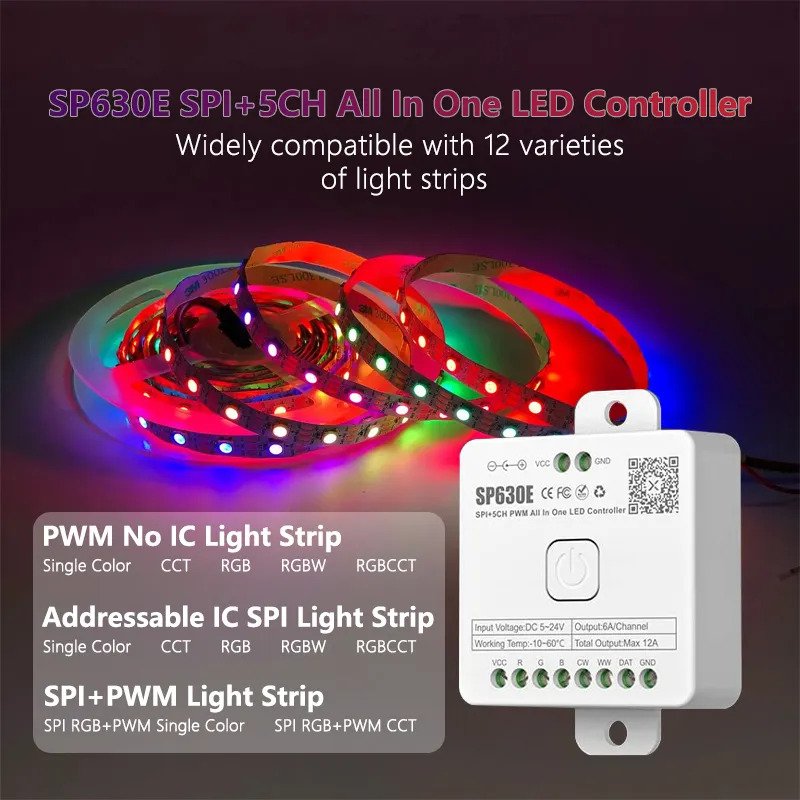

  • Support Type Of LED Strips: Single Colors, Dual White, RGB, RGBW, RGB+CCT, Addressable LED Strips

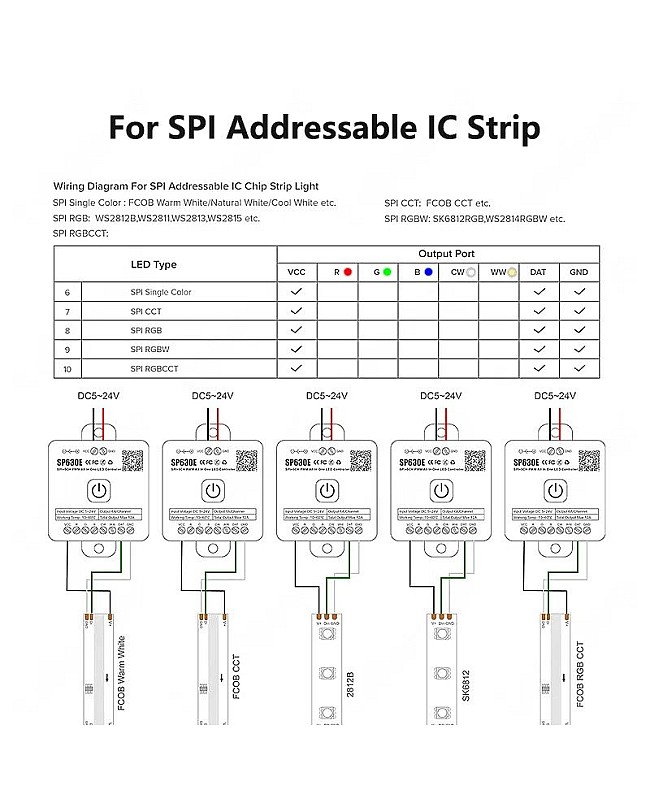

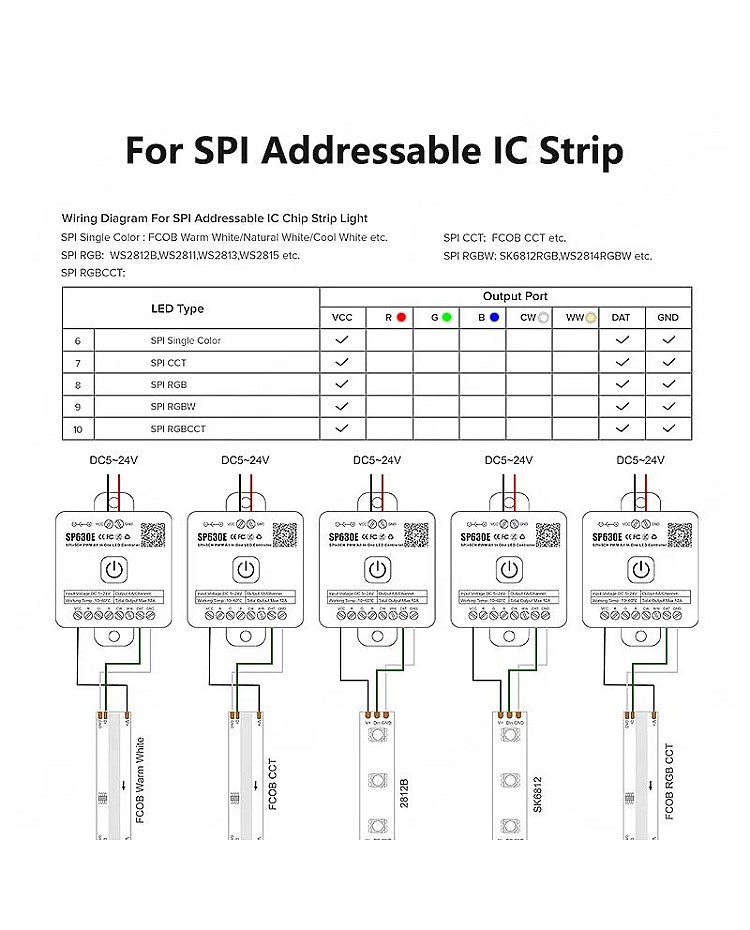

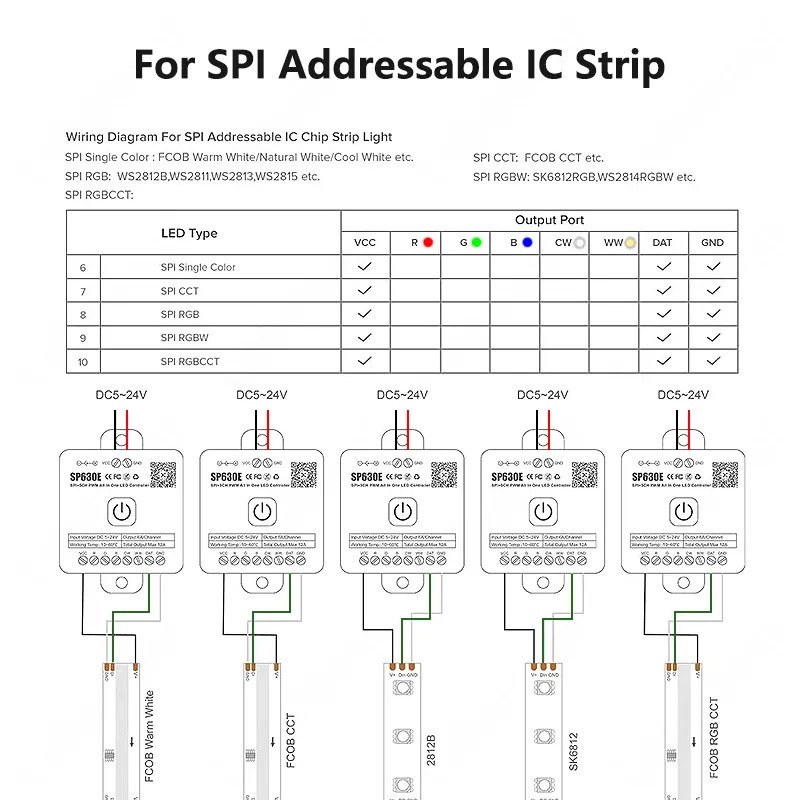

  • Support ICs Of Addressable LED Strips: WS2811, WS2812, WS2813, WS2814, WS2815, TM1804, TM1812, 1903, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, etc

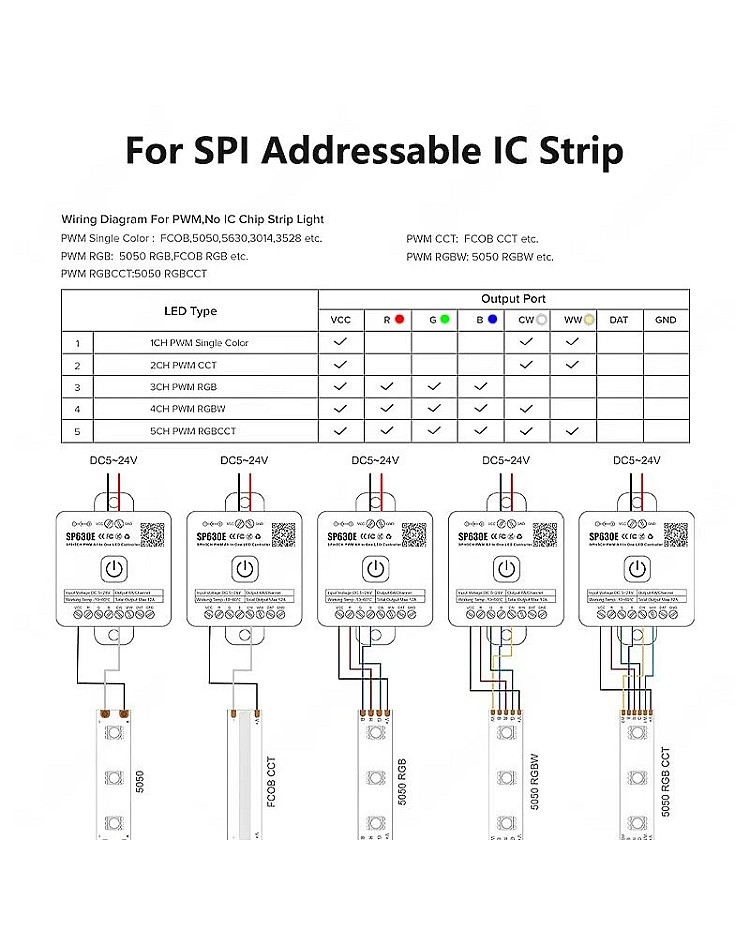

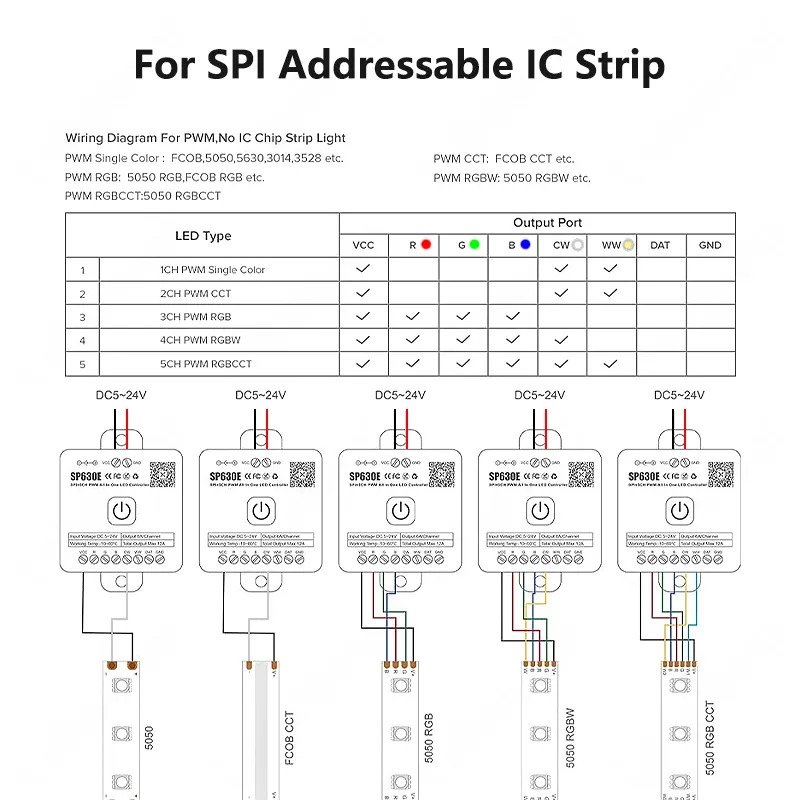

  • Support Regular LED Strips: COB, 5050, 3014, 3528, 5730, CCT(Dual White),  RGB, RGBW, RGB+CCT

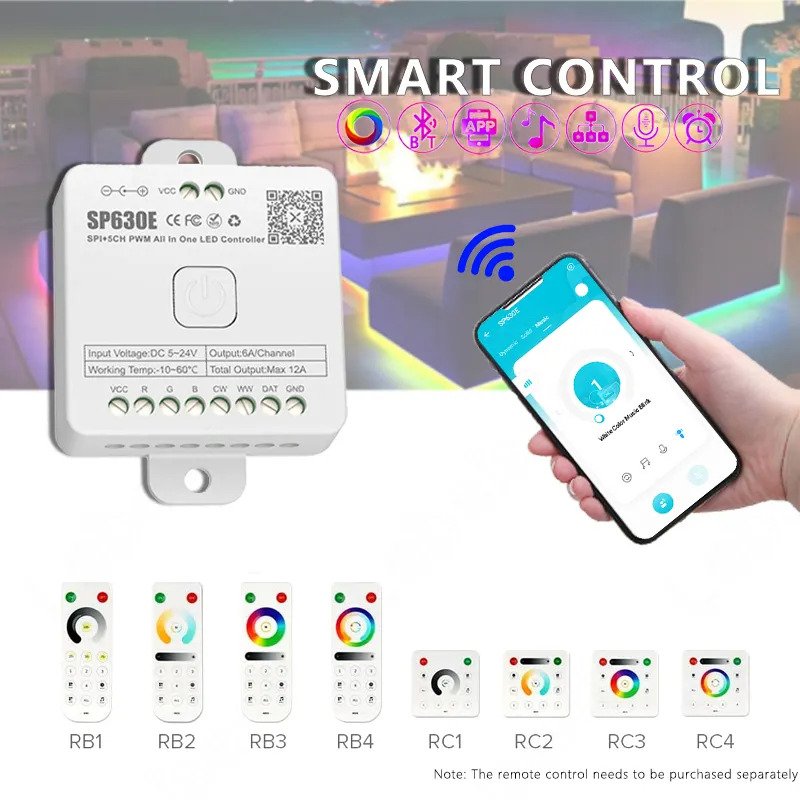

  • APP Controllable Via Bluetooth
  • Supports Mobile Operating Systems: IOS 10.0 Or Higher And Android 4.4 Or Higher
  • APP Name: BanlanX
  • 5 Major Control Pages In The APP: Dynamic, Static, Music, Custom, And Setting
  • Timer Function: YES
  • Music Sync Function: YES ( Built-in Mic / Phone Mic / Player Streaming)

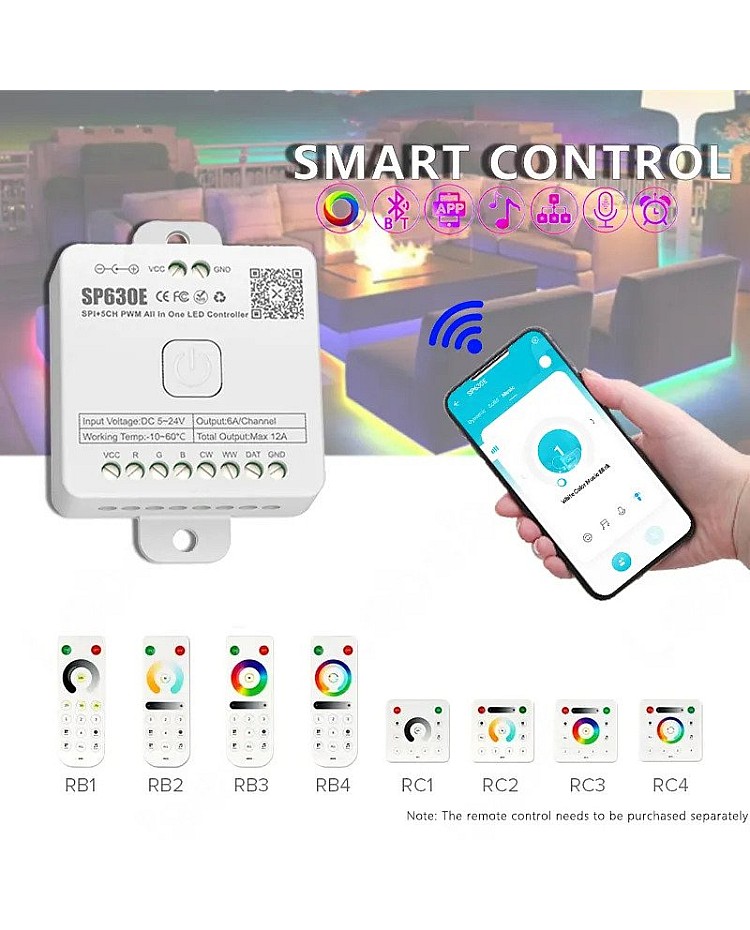

  • 2.4G RF Remote Controllable
  • Supporting Modify Device Names, Color Order Correction, And Setting Timers
  • Supporting To Set Kinds Of On/Off Animations And The Default Power-On State.
  • Waterproof Level: IP20 Non-waterproof
  • Working Temperature: -10-60℃
  • 3 Years Warranty

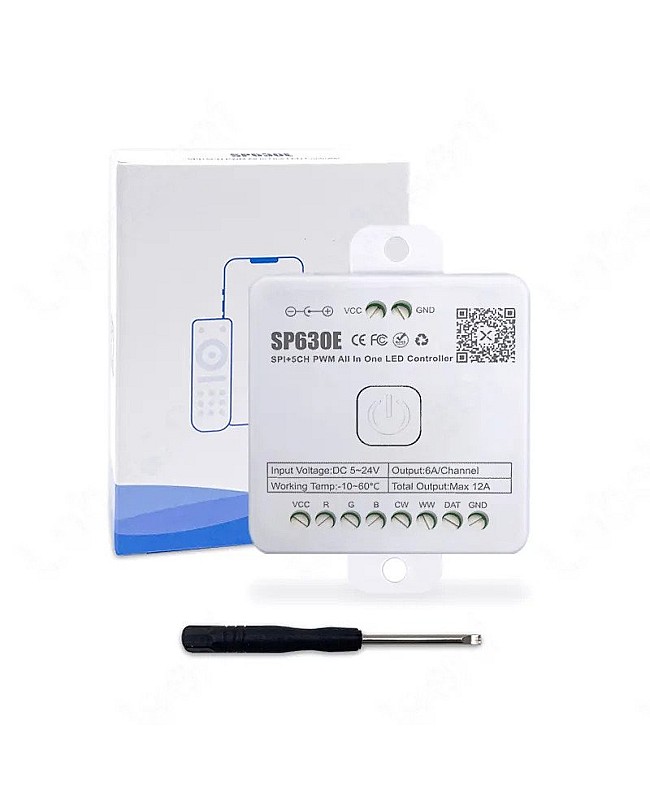

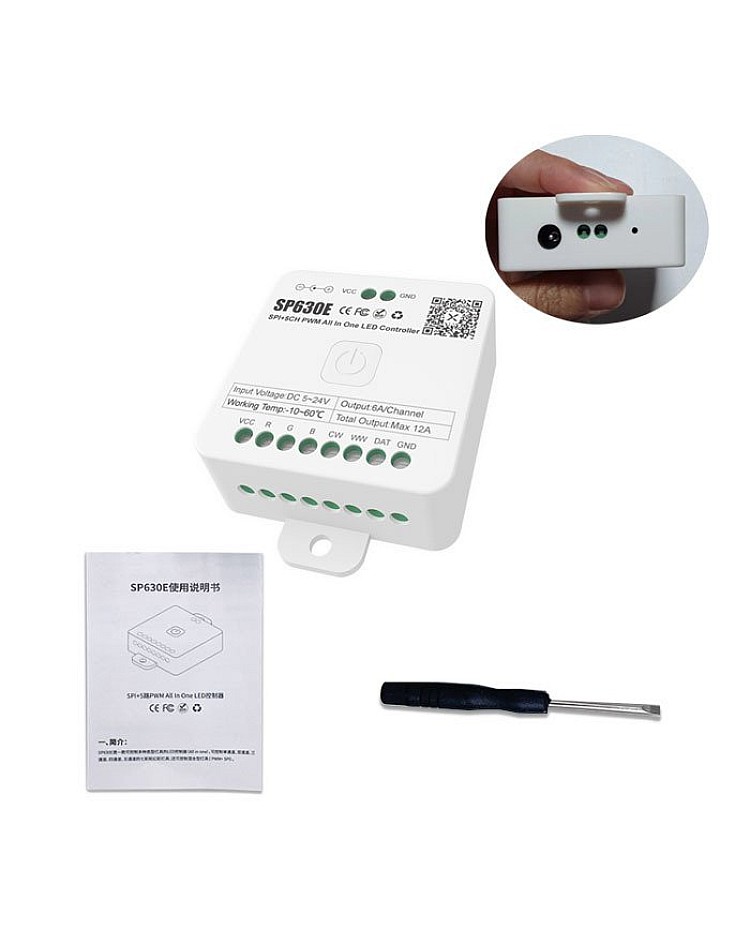

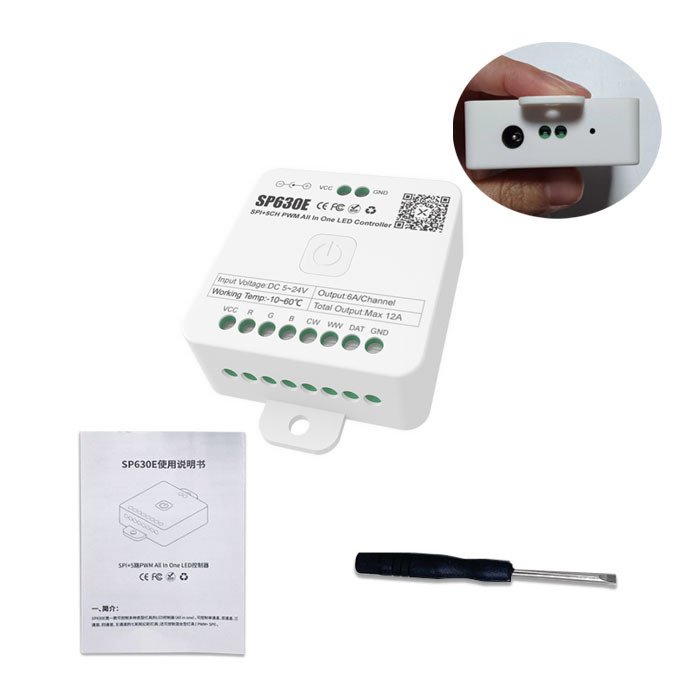

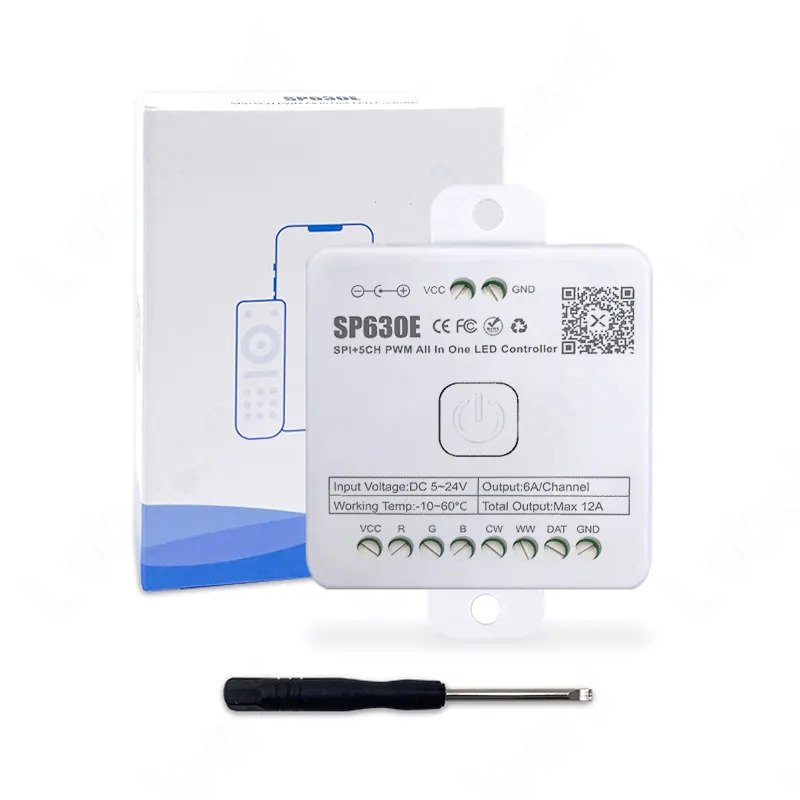

1*SP630E LED Controller


1*User Manual

SP630 Bluetooth Light Controller
