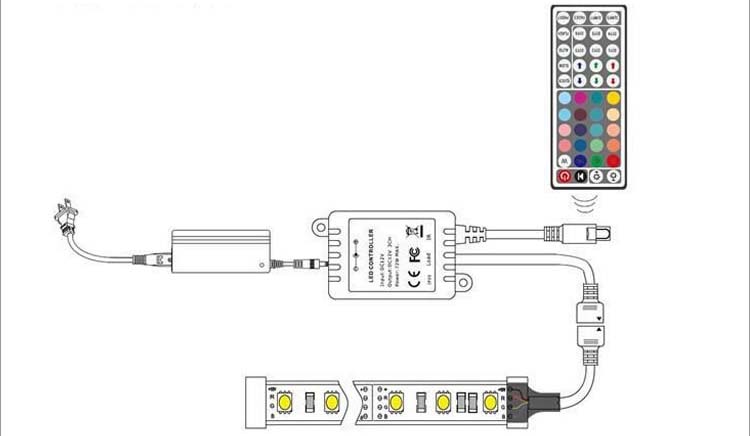

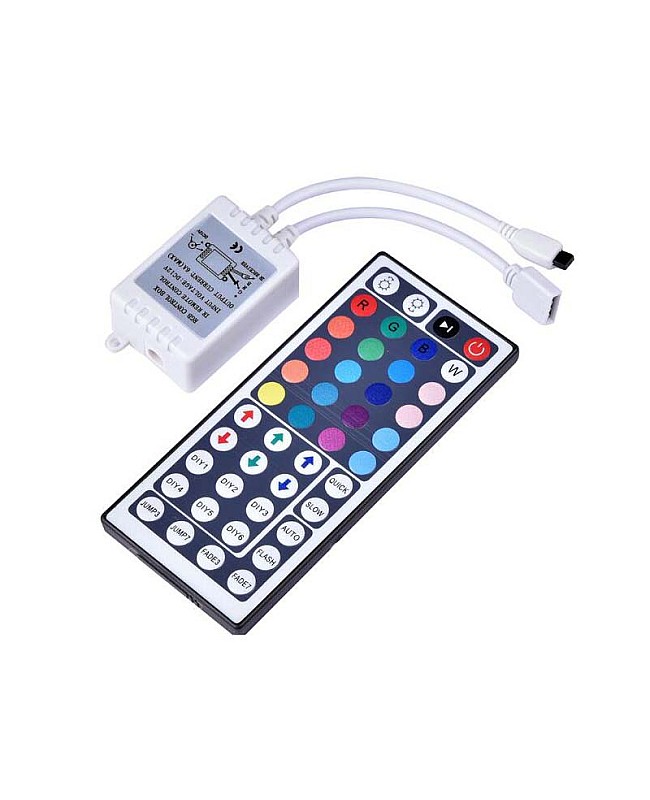

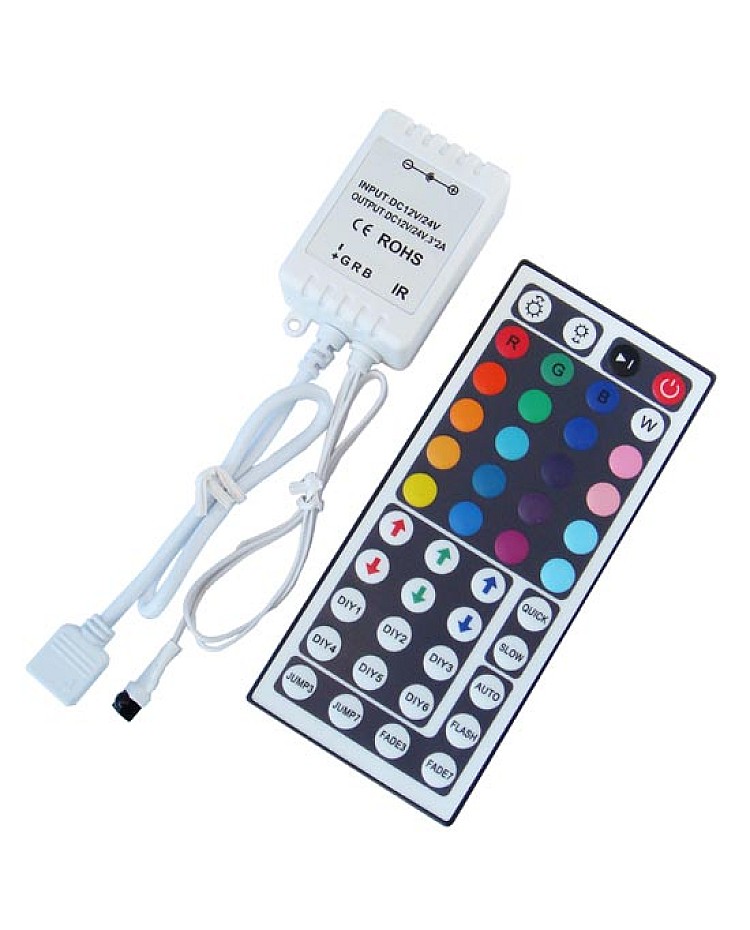

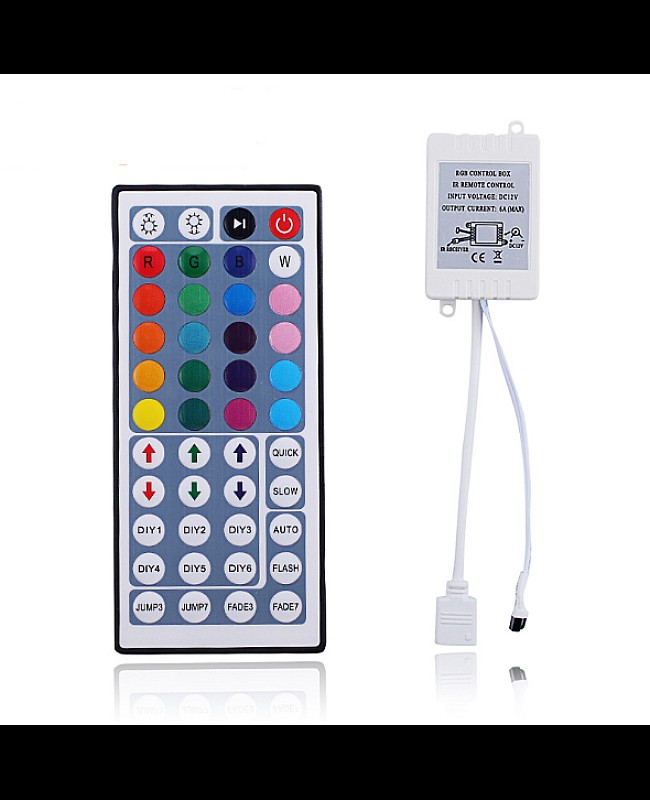

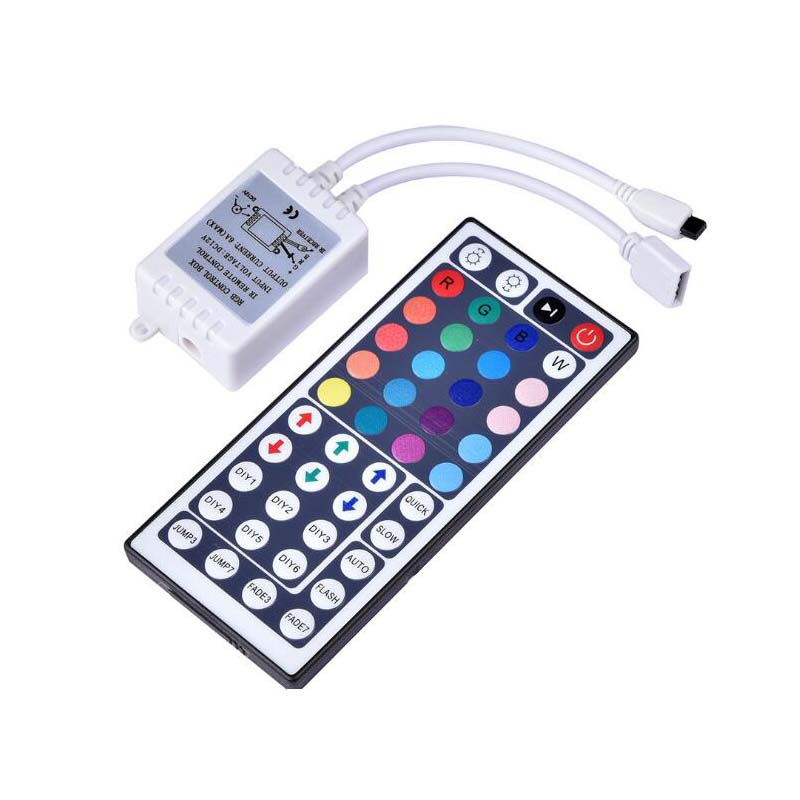

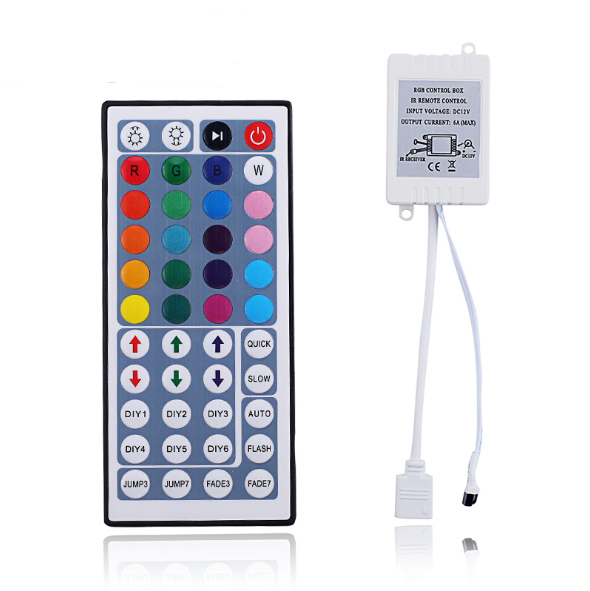

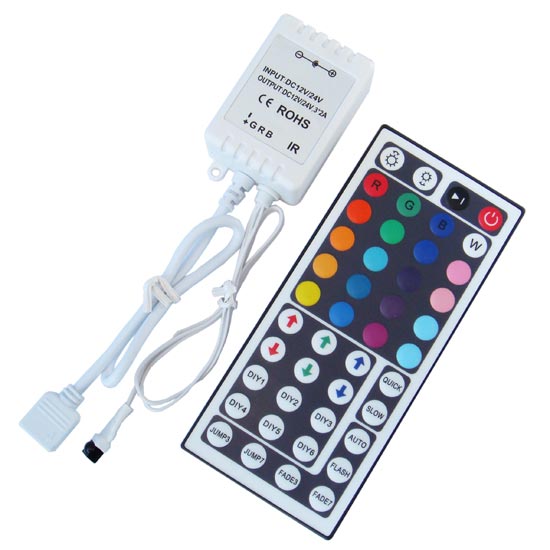

The IR LED RGB controllers with 44 keys infrared LED remote adopt the advanced micro control unit, which you can use to control various constant voltage RGB LED lights. The working voltage is between DC5V and DC24V, with 3 3-output channel design, the max output current of each channel is 2A. The LED RGB controller comes with a 44-key infrared remote, which you can use to adjust the brightness of static colors or make dynamic changes in lighting effects. There are 28 modes, 20 static colors, and 8 dynamic changes. The brightness of static colors and the speed of dynamic changes are adjustable. You can use it for the 3528 or 5050 RGB LED strip lights.
Specifications:
- Item NO: TY-L-C-003

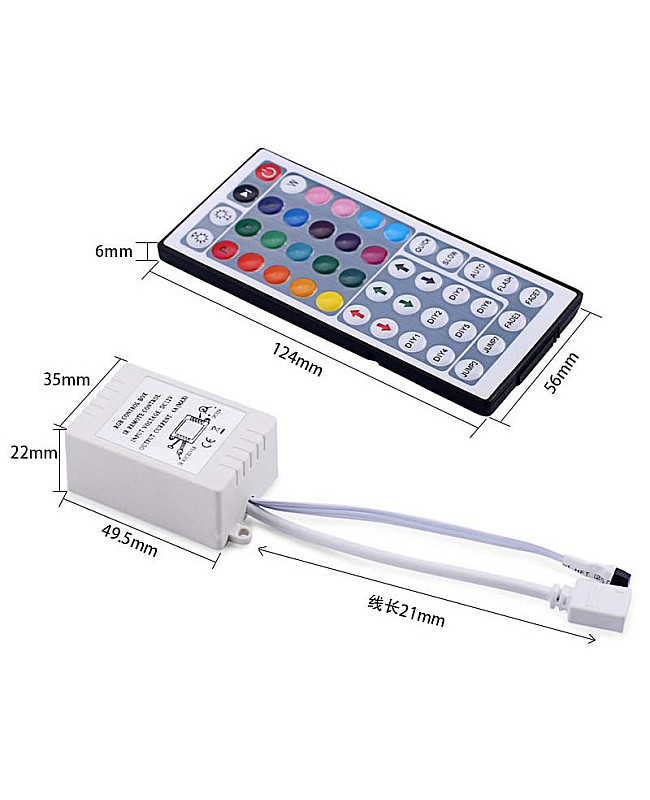

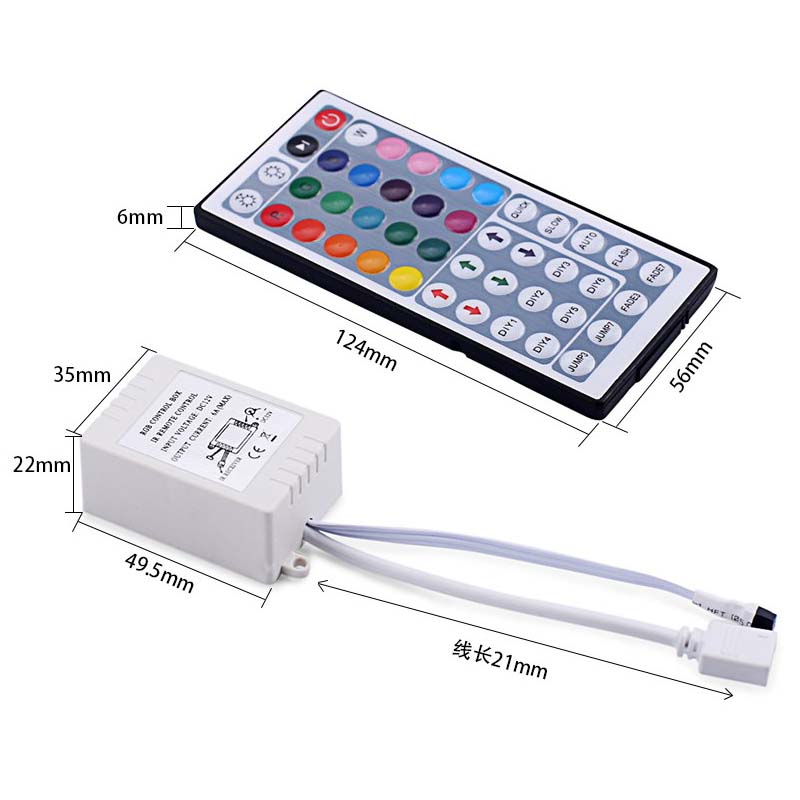

- Size: 61mm*35mm*22mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Working voltage: DC12V-DC24V
- Output Channels: 3
- Static power consumption: <1W
- Max Output Current: ≤3*2A
- Power: DC12V: ≤72W / 24V: ≤144W
- Weight: 85g
- Infrared LED Remote With 44 Keys Included
- 28 Modes In Total, 20 Static Colors And 8 Dynamic Modes
- 3 Years Warranty
Package:
1 * IR LED RGB Controller
1 * 44Keys Remote
