In Stock
$25.30 $15.99 Sale -37% OFF
Reward Points: 14
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP046

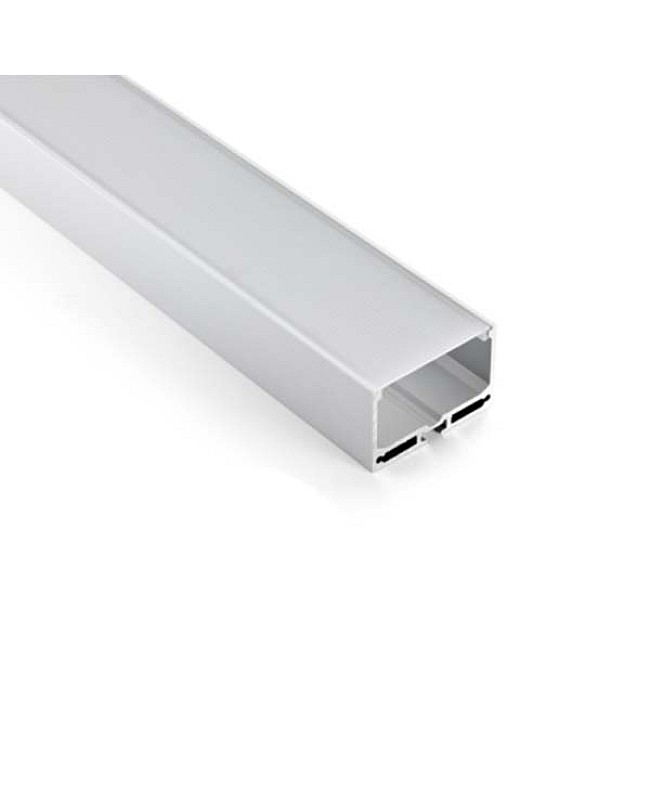

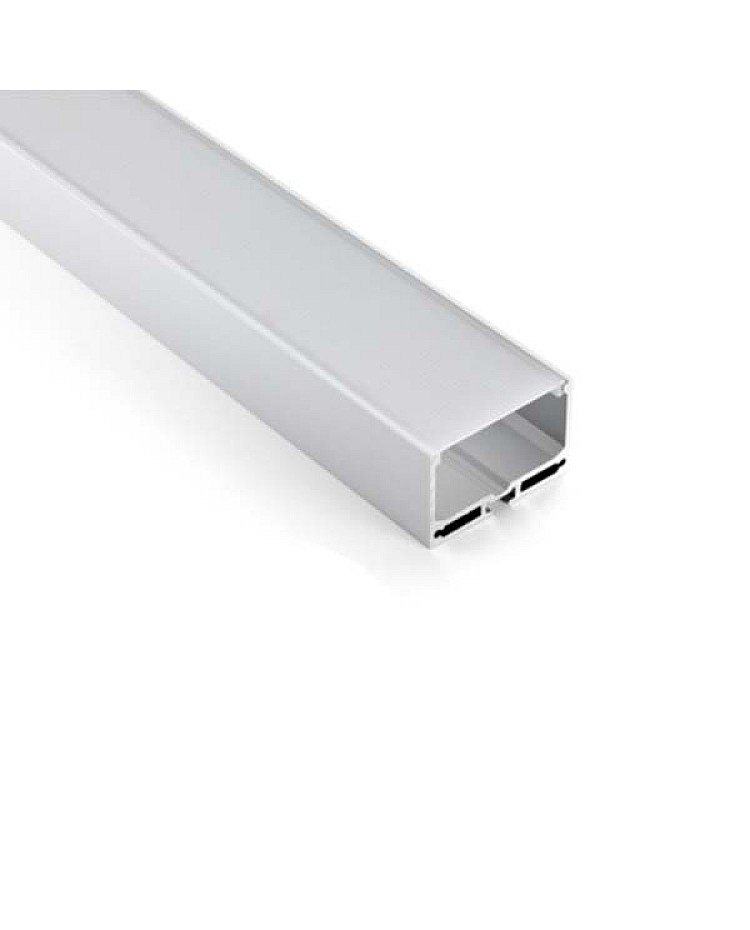

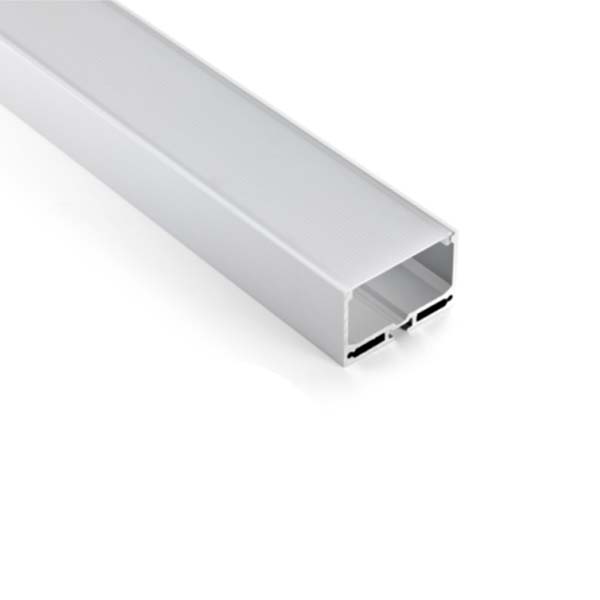

The LED Strip Aluminium Extrusion for the big surface mounted or pendant mounted installation, the width is 50mm without flange and compatible with the Flexible LED Strips, the width of LED Strips up to 39mm, you can install the 5630, 5050, 2835, 3528 in multi rows as the light source, the aluminum base can be used as a heat sinker for the better heat dissipation allows the longer lifespan for your LED Strips, the LED Strip Extrusion made of 6063-T5 aluminum alloy material and with silver anodized surface treatment with the better anti-oxidation feature and the longer lifespan than other similar products, there are 3 different diffusers available for the different lighting effects, you can choose the PC Opal Matte Diffuser, PC Semi-Clear Diffuser, PC Clear Diffuser, the diffusers made of brand material with stable quality, anti-yellowing and perfect light distribution, the end caps with wire holes and suspension wire kits included, you can connect the LED Light Strip with Power Supply to light them up, with the help of suspension wire kit, you can hang the Aluminium Profiles on the ceiling on the roof as the main lighting in office, school, bar, airport, supermarket, hotel, etc.


  • Model: ALP046
  • Material: Aluminium Alloy(6063-T5)
  • Surface Treatment: Silver Anodized
  • Color: Silver, White, Black

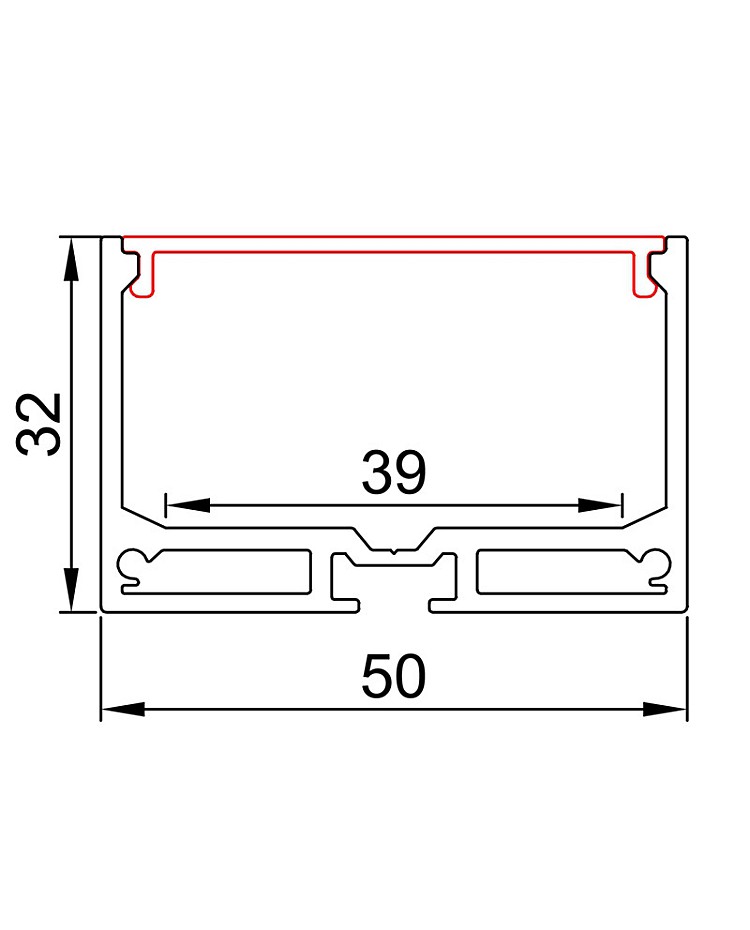

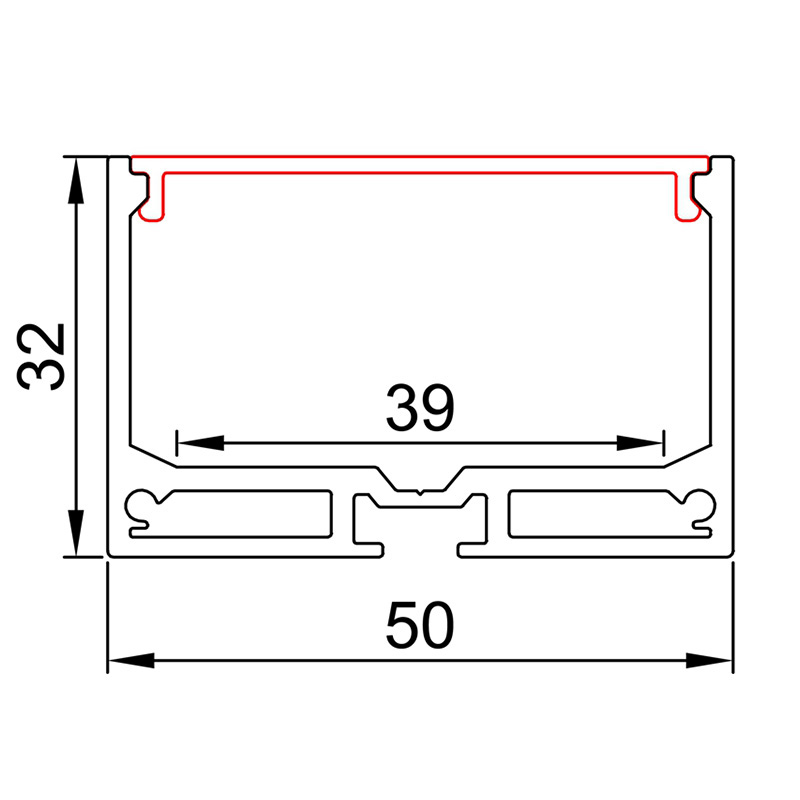

  • Size: 50*32mm
  • Covers: PC Opal Matte Diffuser, PC Semi-Clear Diffuser, PC Clear Diffuser
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Inner Width: 39mm
  • Recommend LED Strip: 5630, 5050, 2835, 3528 Multi Rows
  • Max Power: <35W/Meter

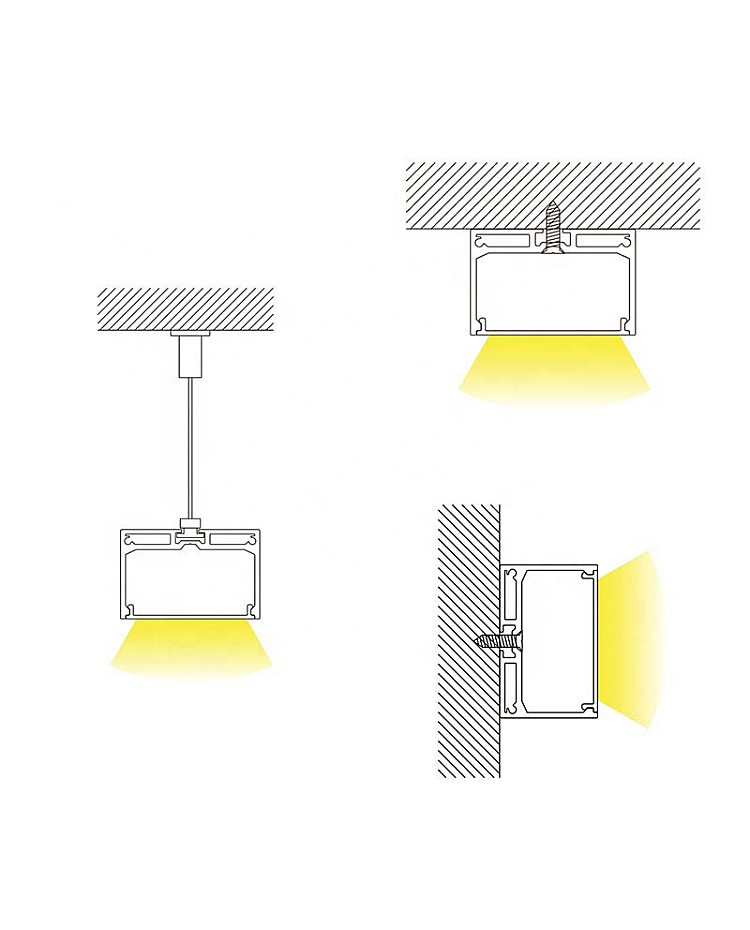

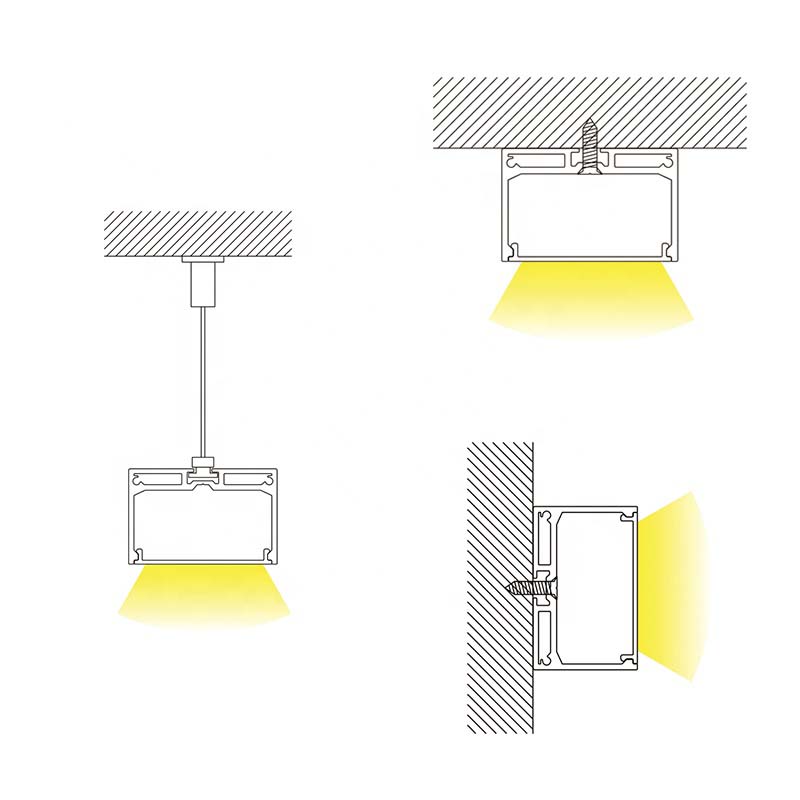

  • Installation: Surface Mounted Or Pendant Mounted
  • Aluminum End Caps With Wire Holes And Suspension Wire Kits Included

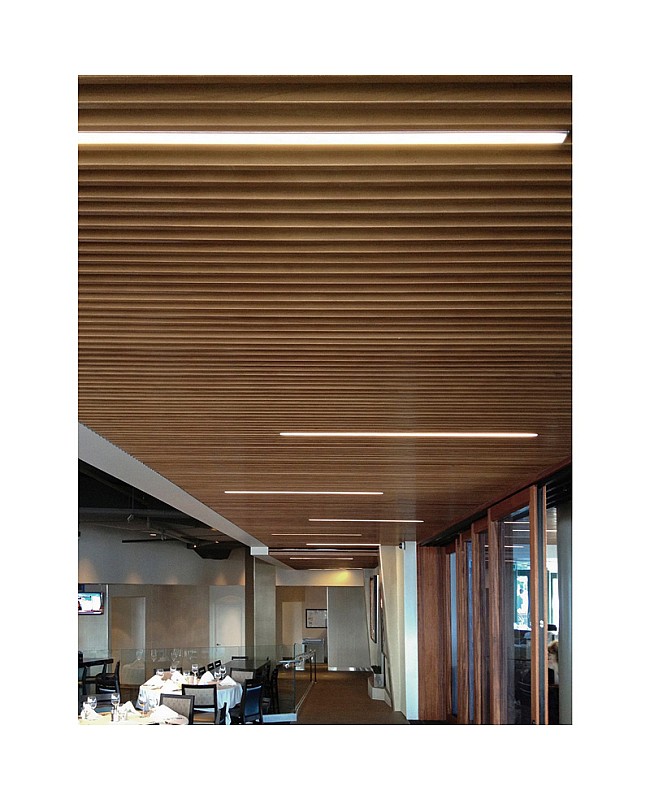

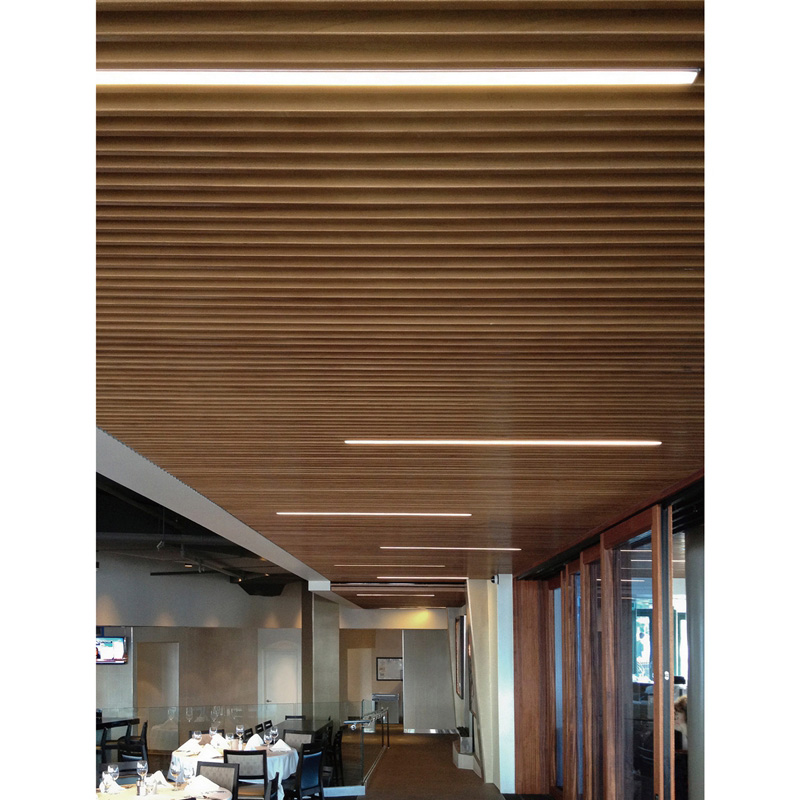

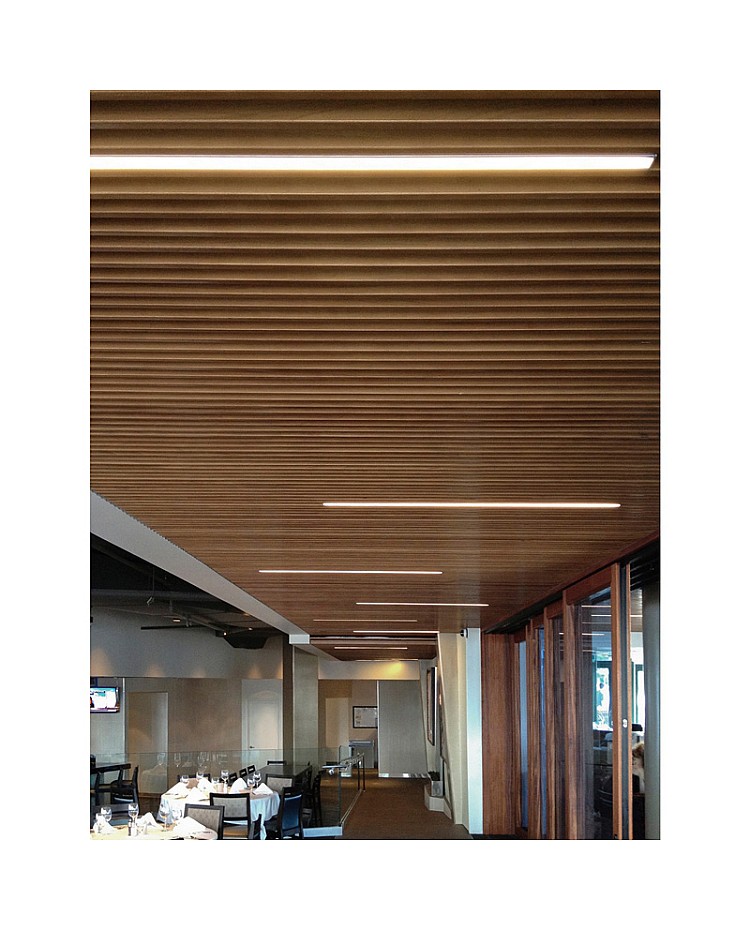

  • Application: Office, Shop, Retail, Hotel, etc
  • 5 Years Warranty


1*LED Strip Aluminium Extrusion With Cover

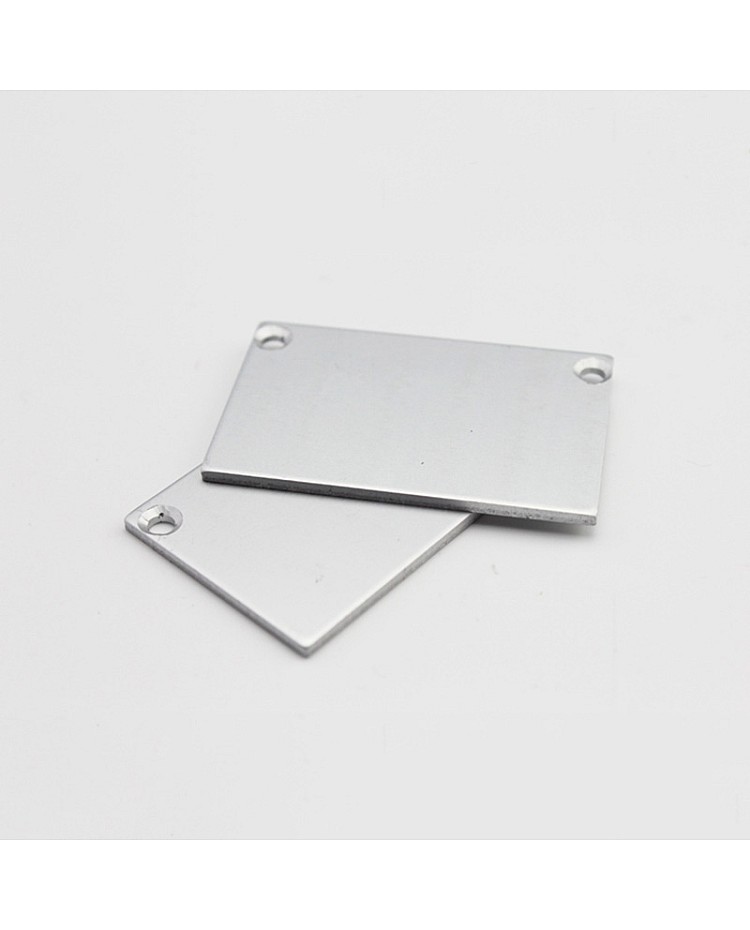

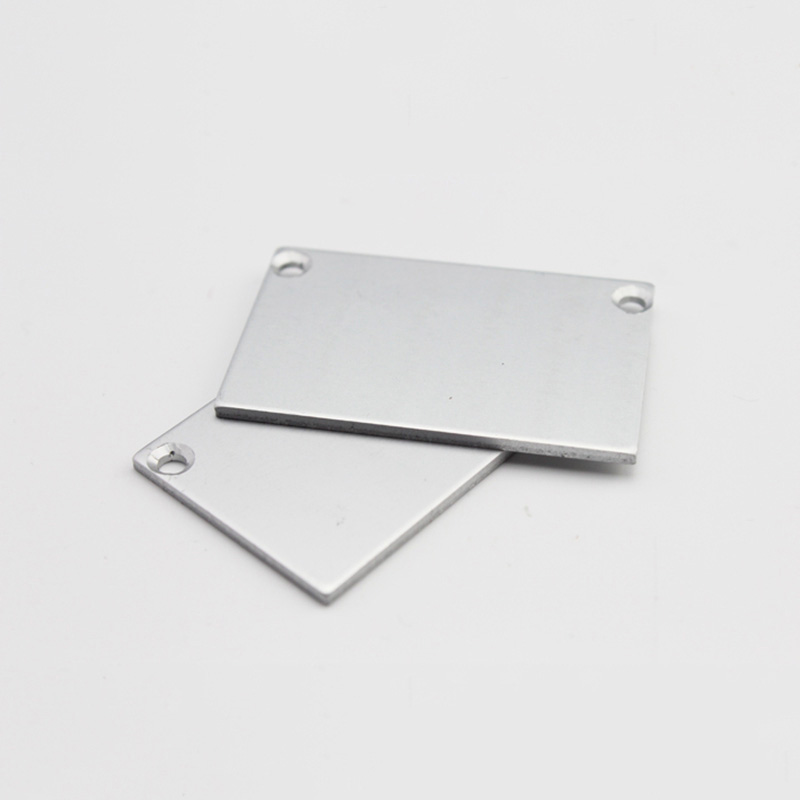

End Caps(With Wire Hole/Without Wire Hole)

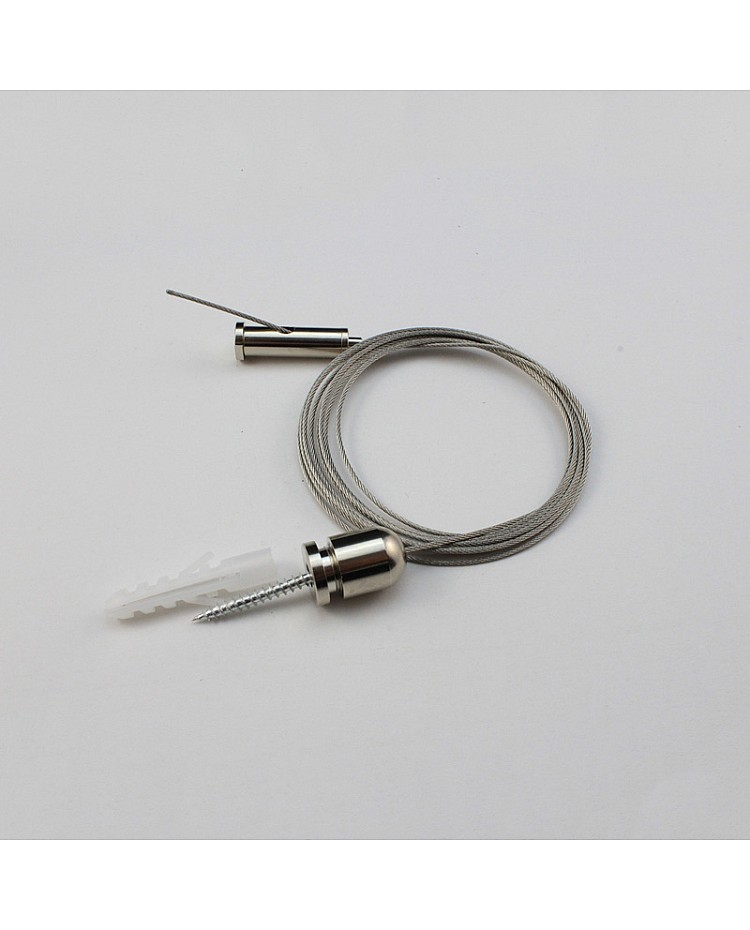

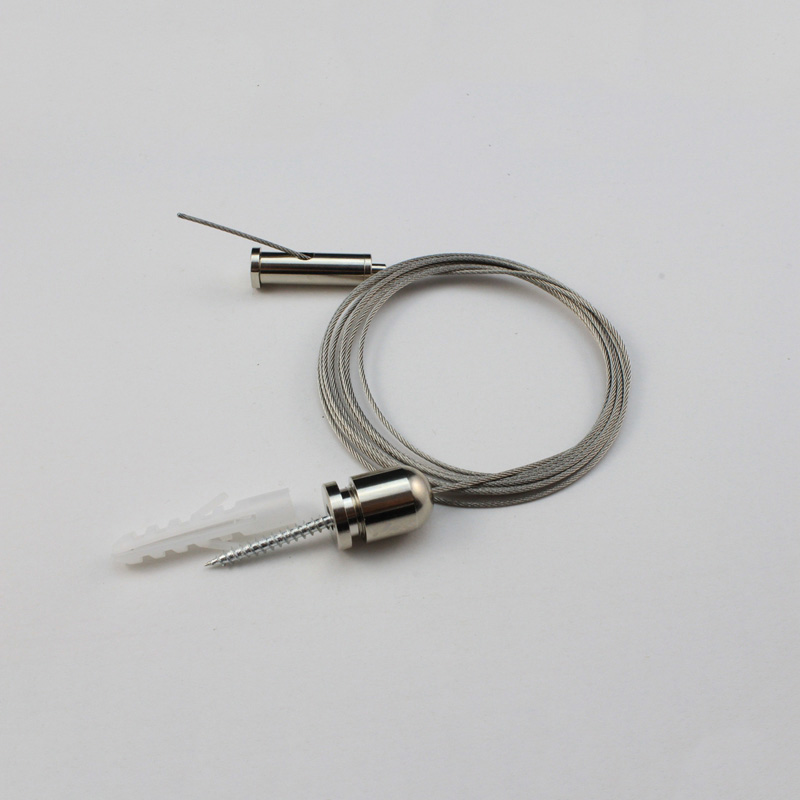

Suspension Wire Kits

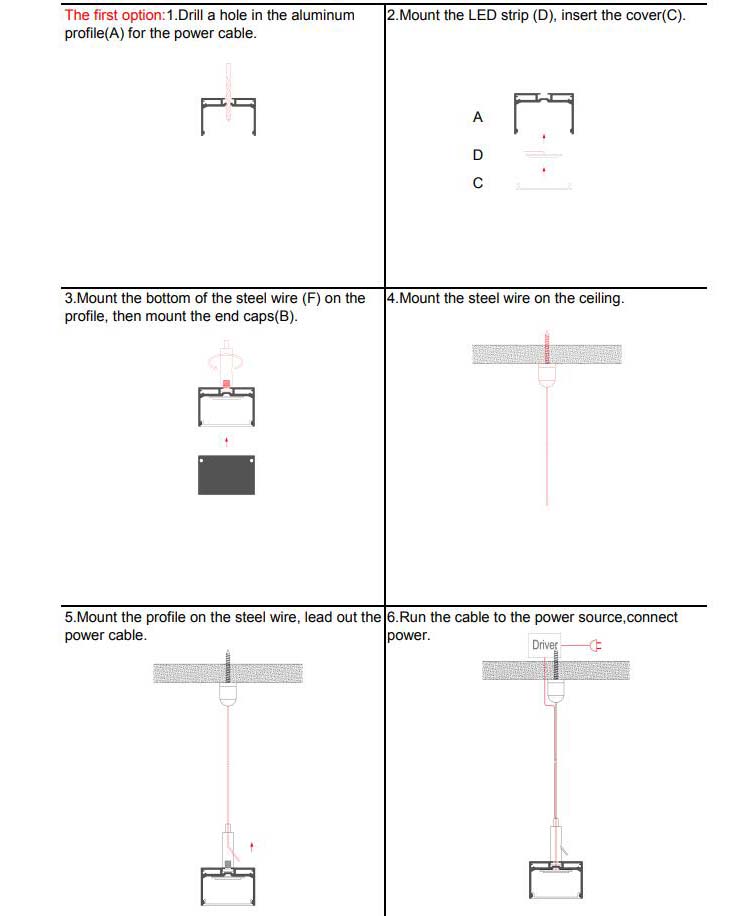

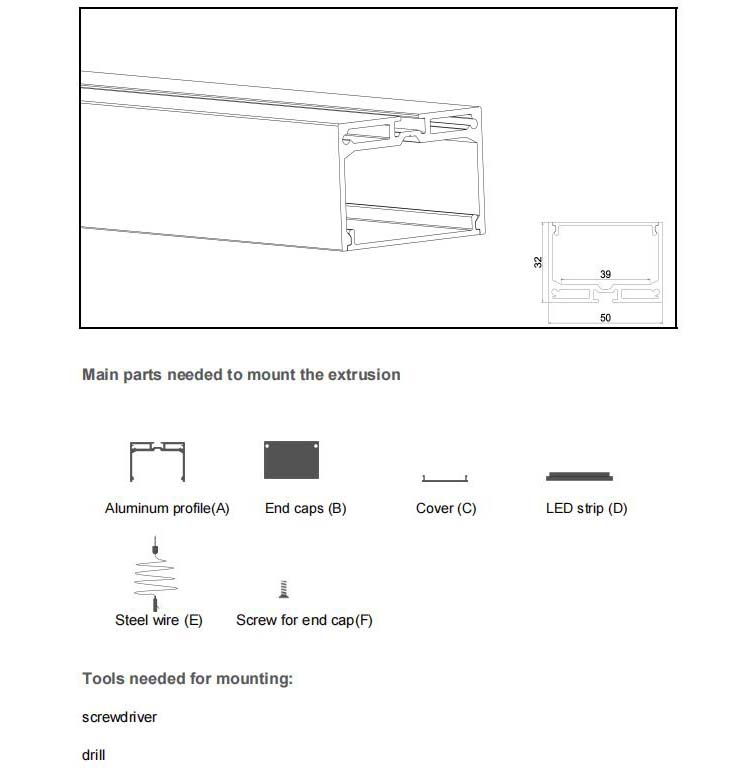

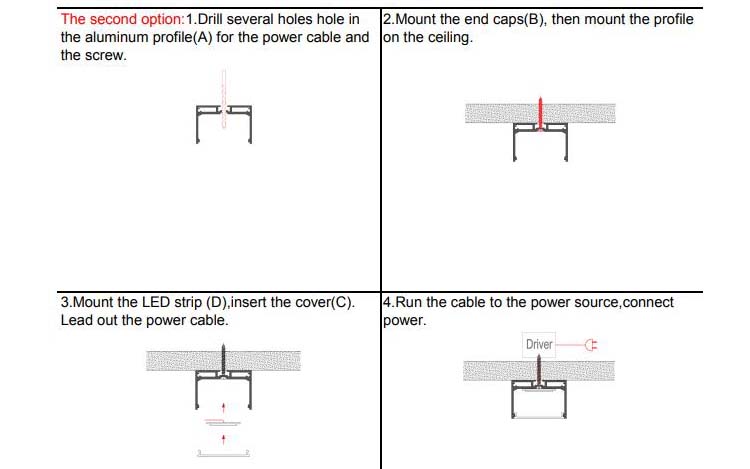

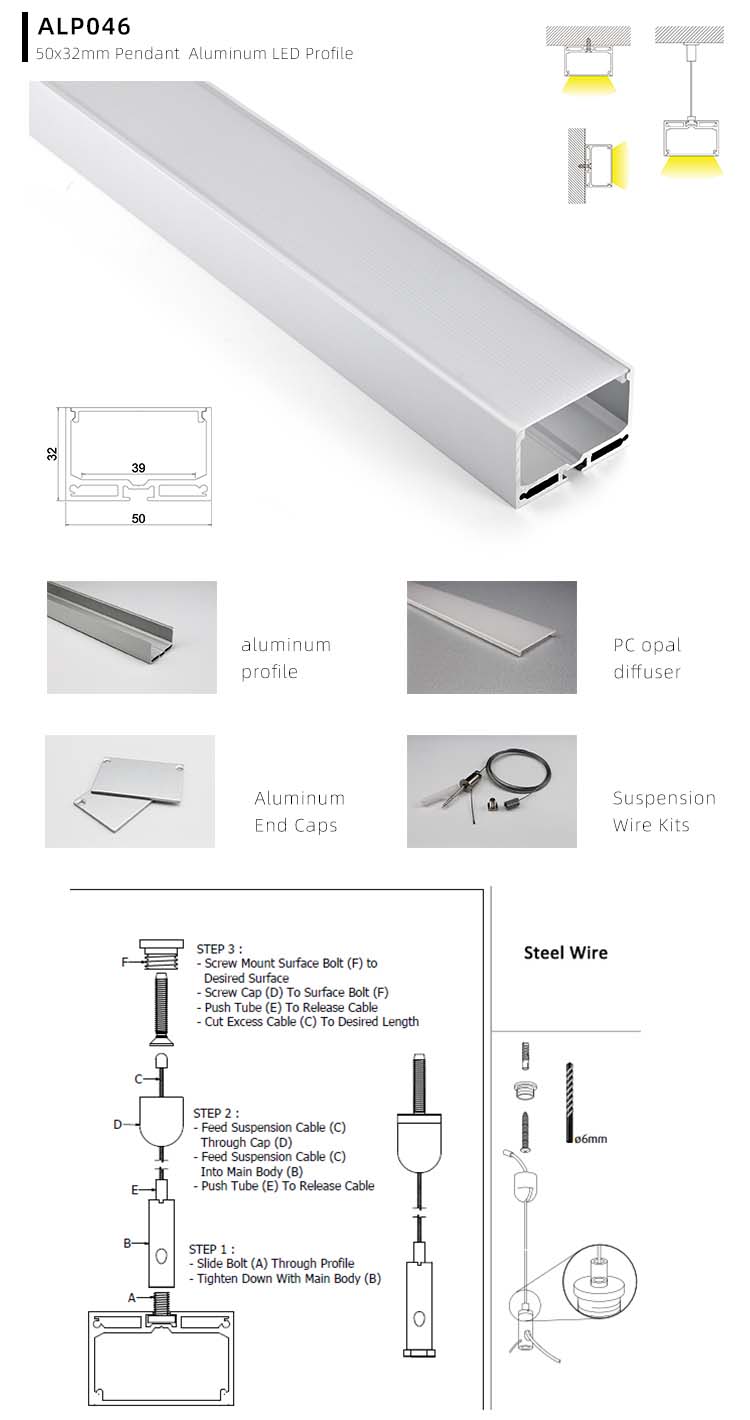

LED Strip Aluminium Extrusion Installation LED Aluminium Extrusion How To Install LED Strip Aluminium Extrusion LED Aluminium Extrusion Installation LED Strip Aluminum Extrusion
