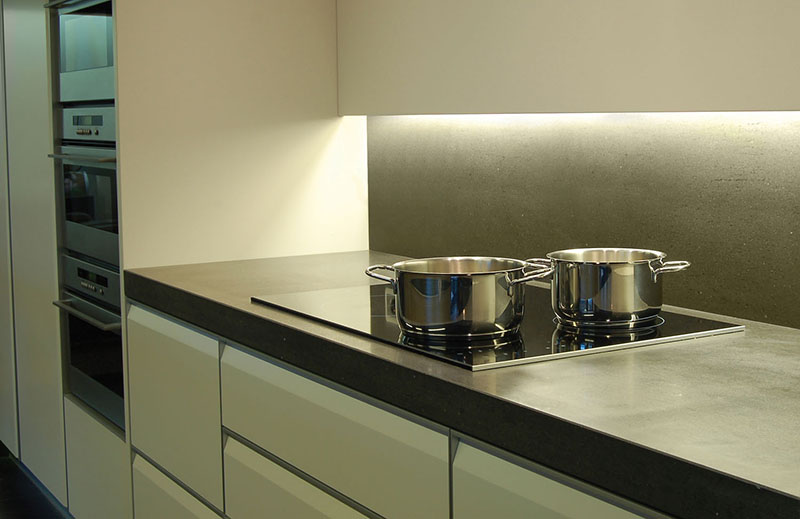

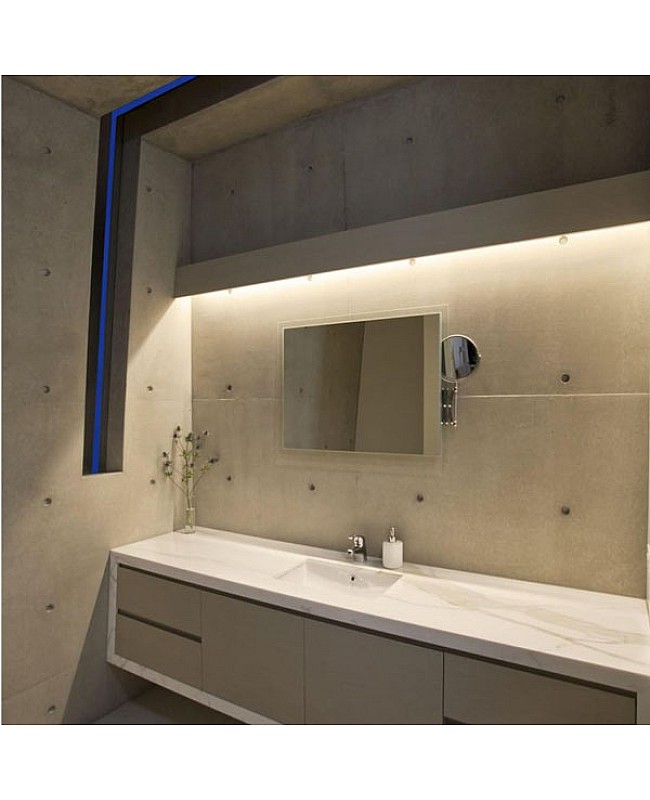

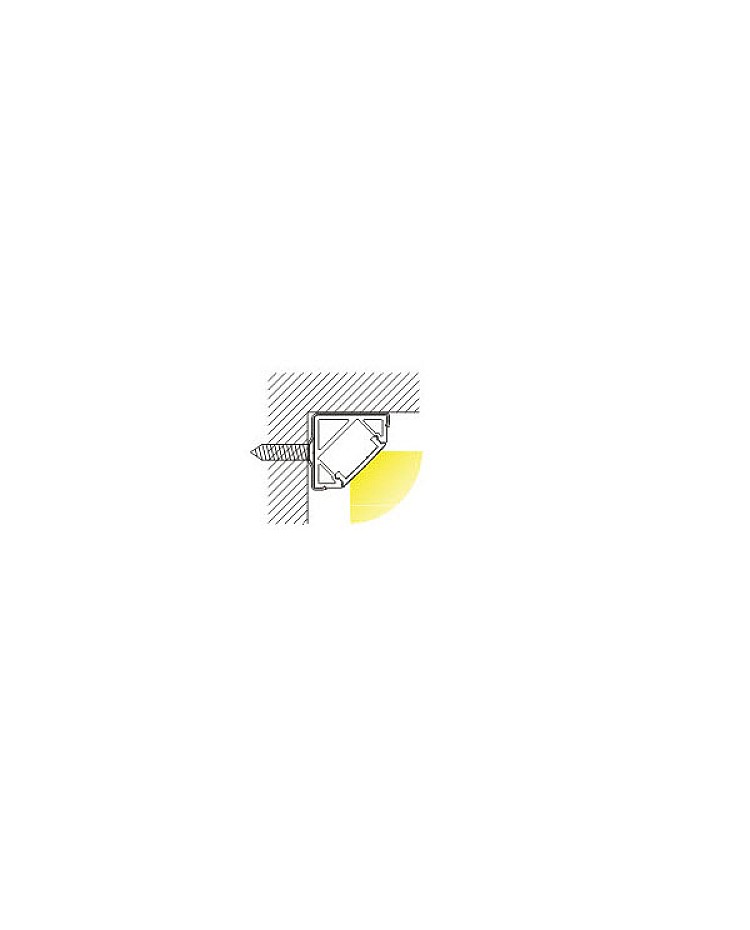

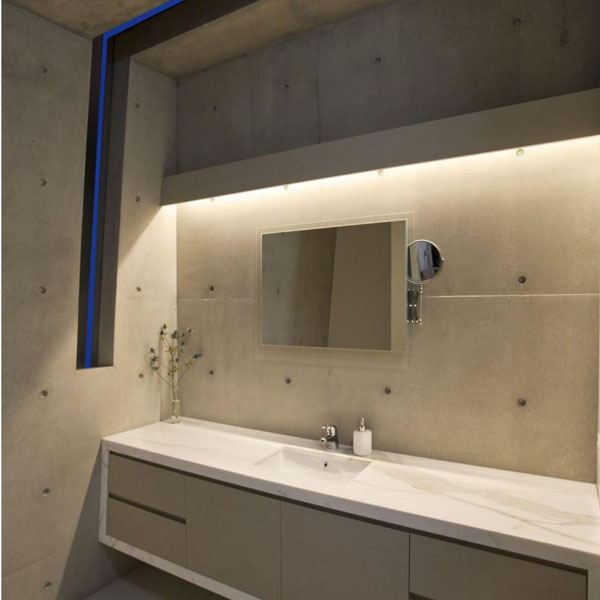

The corner mount LED profiles are engineered to nestle into inside corners, projecting light at a precise 45-degree angle for a bright, even glow with minimal glare. It's the ideal solution for under-cabinet lighting, kitchen counters, bathroom vanities, display shelving, and refined architectural accents.
With their sleek, modern design, they offer extra room for wider LED strips and better heat management, delivering a bright, even, glare-free line of light that elevates your space.
Choose from the PMMA and PC series diffusers, crafted from brand-stable, anti-yellowing material for consistent, long-lasting light distribution. With multiple light transmittance levels available, you can fine-tune the brightness and softness to suit any project, from bright task lighting to a gentle ambient glow.

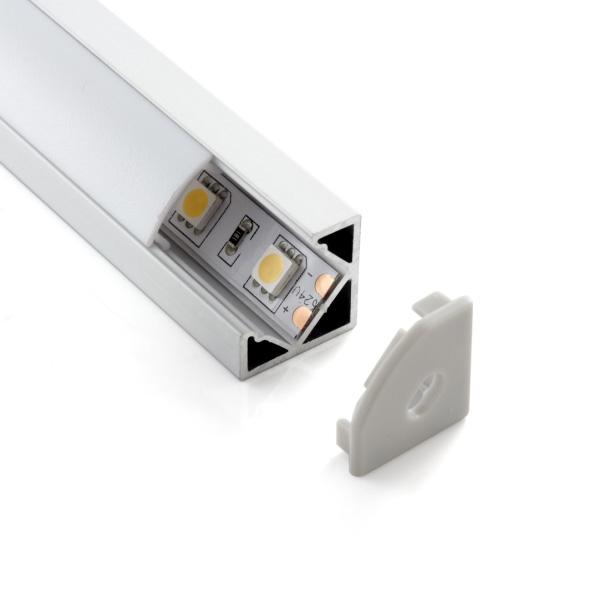

The corner LED channels are made from extruded aluminum with a professional finish for oxidation resistance. The standard lengths are 1 m and 2 m, with a maximum length of 3 m; custom lengths are supported.

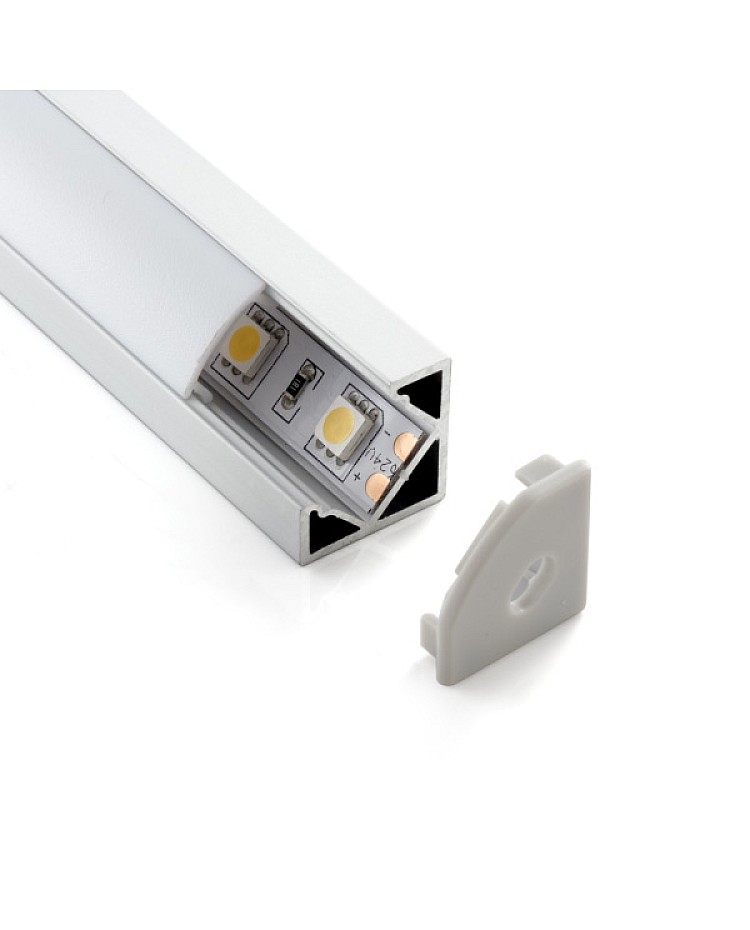

The inner width is 14.1 mm and accommodates the strip light width up to 14 mm. It's easy to install SMD or COB LED tapes as the light source, and the aluminum channels can serve as heat sinks to enhance heat dissipation, extending the lifespan of the LED lights.
For outdoor and wet environments, please add our IP67-rated waterproof LED strips.
Specifications:
- Material: Extruded aluminum 6063-T5
- Surface treatment: Anodized / powder-coating
- Colors: Silver, white, black

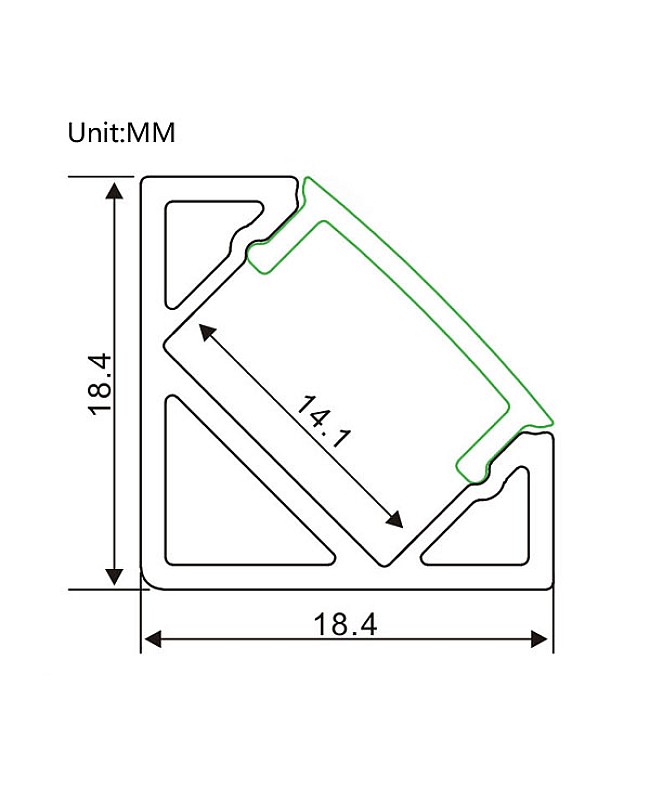

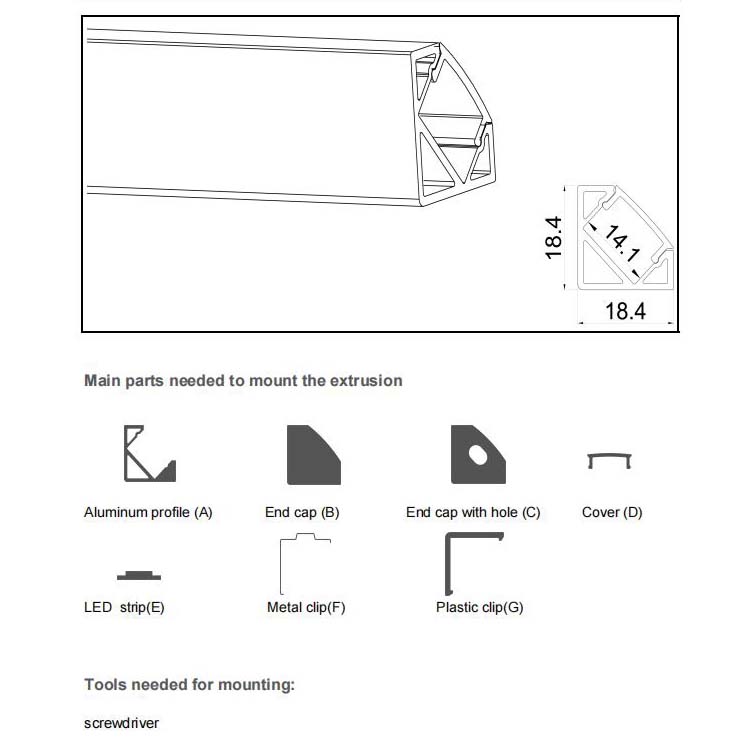

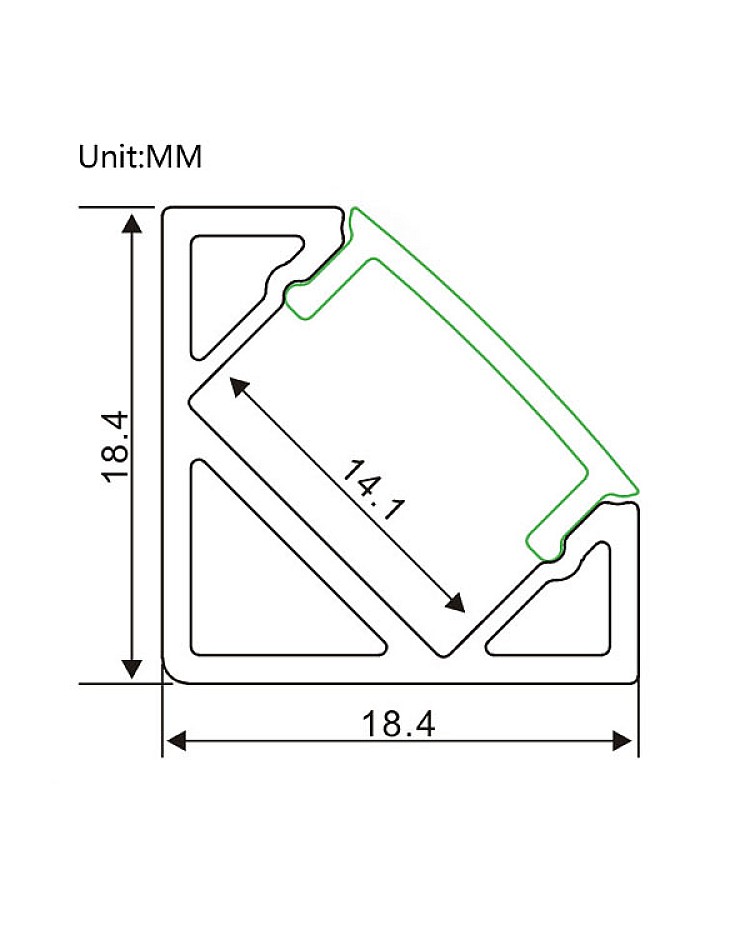

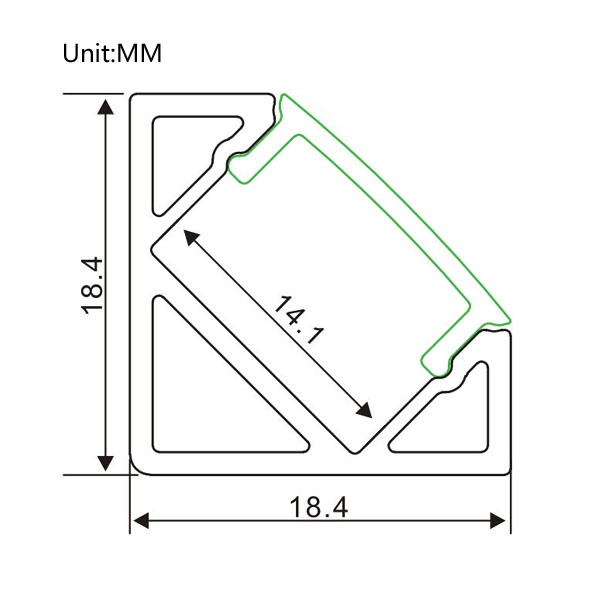

- Size ( Width x Height ): 18.5 mm x 18.4 mm ( 0.73" x 0.72" )
- Standard lengths: 1 m ( 39.37" ), 2 m ( 78.74" ), 2.5 m ( 98.42" ), 3 m ( 118.11" )
- Custom length available: YES
- Inner width: 14.1mm ( 0.56" )
- Allows the maximum width of strip lights to be 14 mm ( 0.55" )
- Max power: ≤15W/m

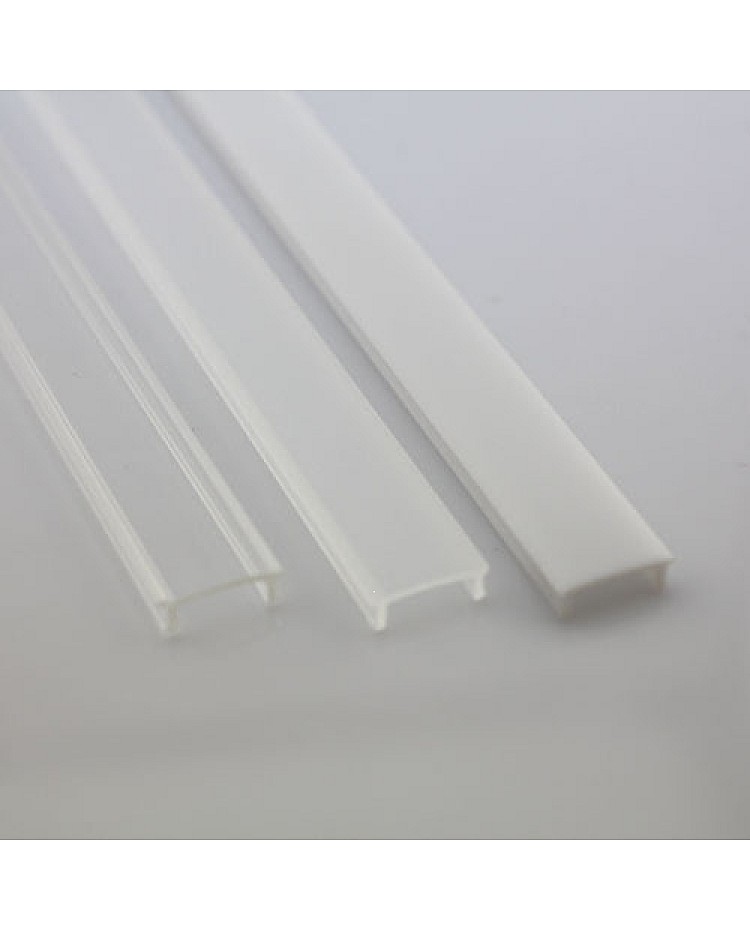

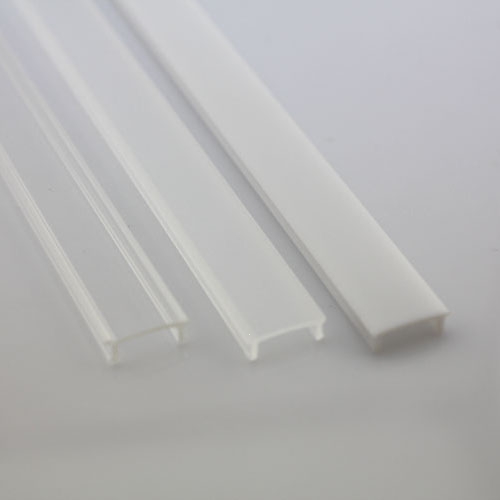

- Covers available: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC opal matte cover / PC semi-clear cover / PC clear cover / black PC cover
- Beam angle: 100°

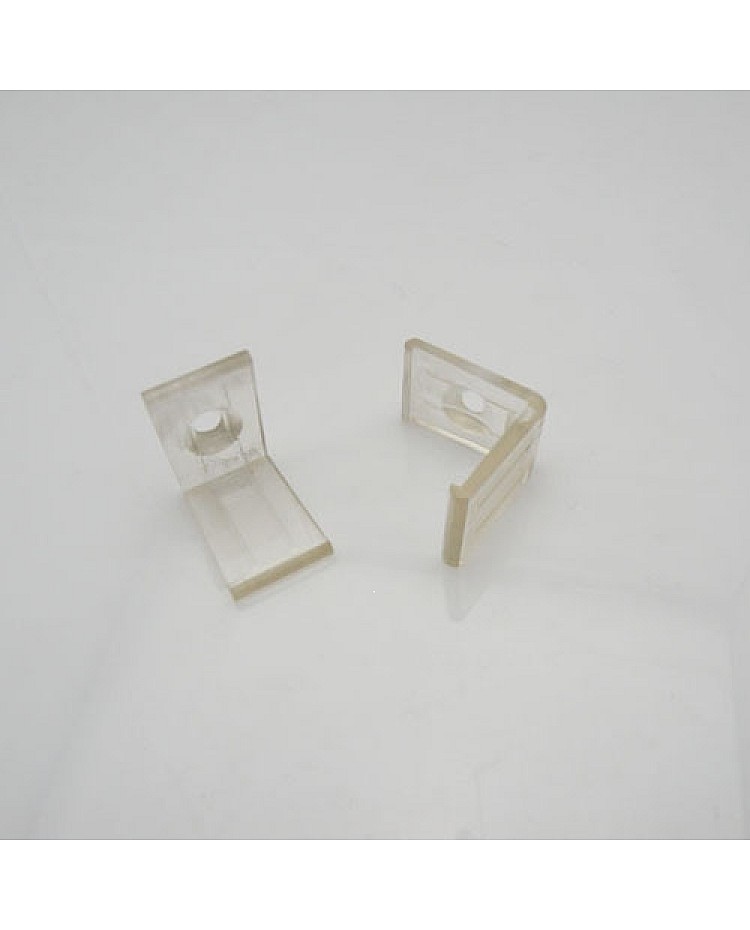

- End caps with/without wire holes and plastic mounting clips included
- LED strips are sold separately

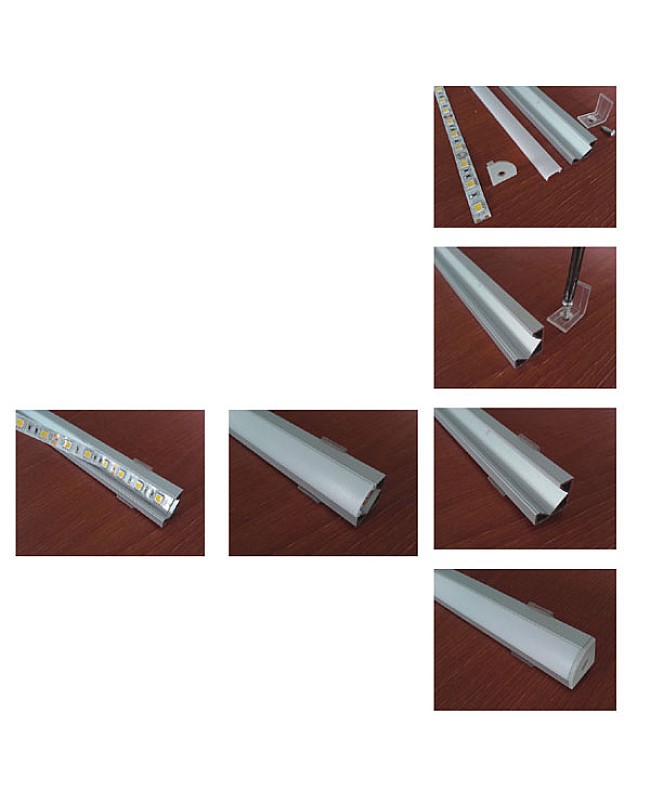

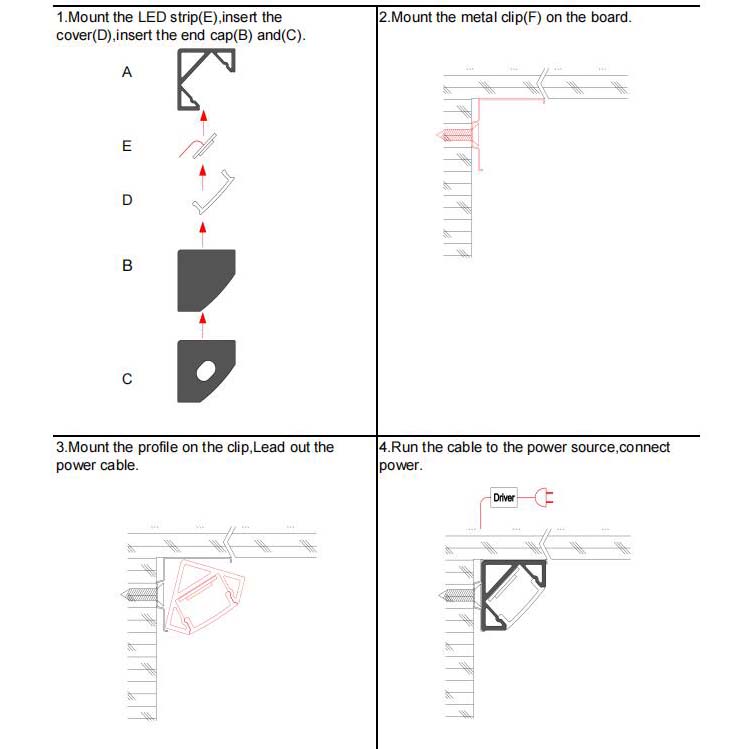

- Installation: Corner-mounted
- Certifications: CE, ROHS
- Warranty: 5 years

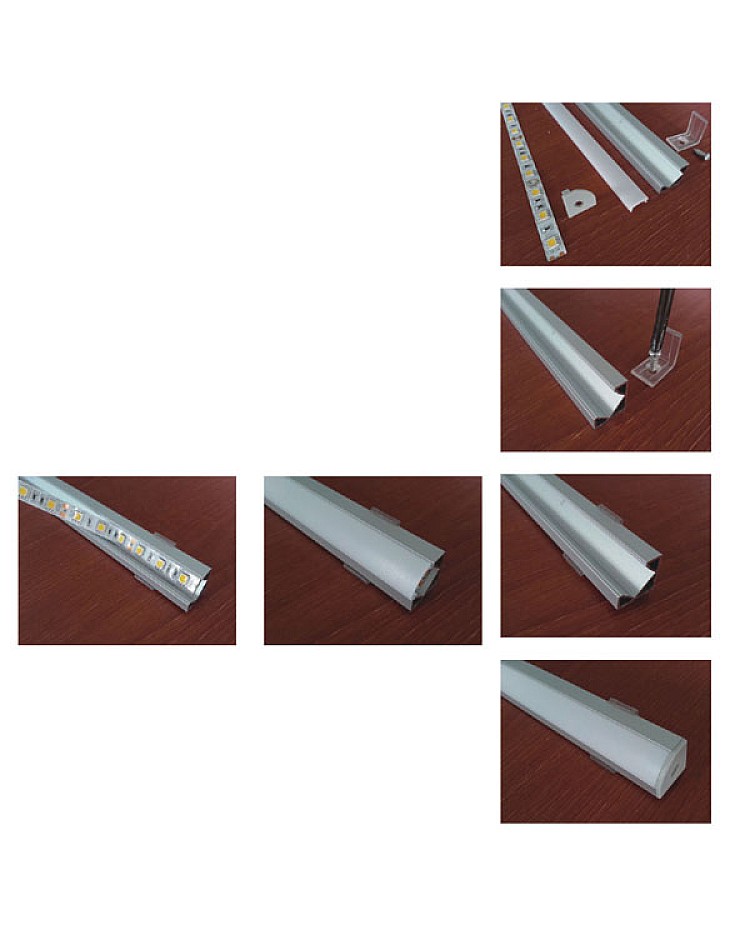

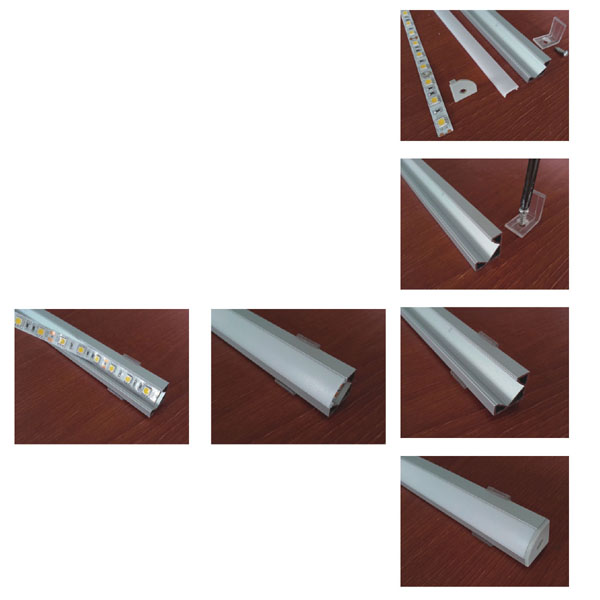

Package:

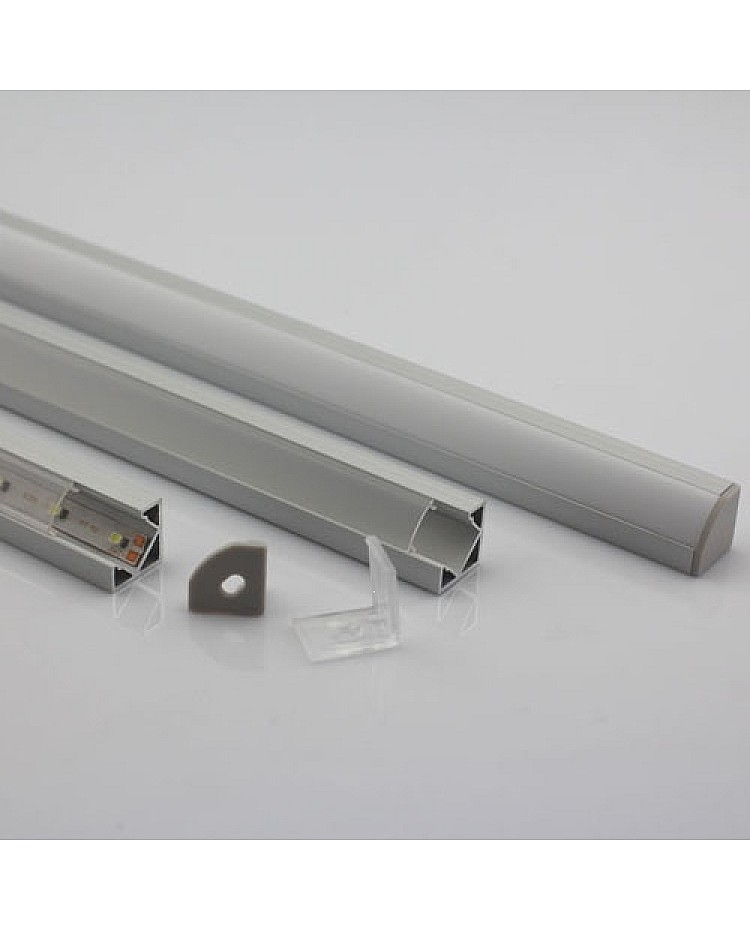

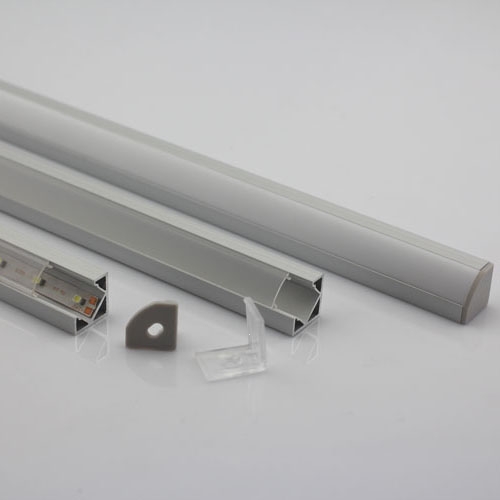

1*45 degree corner LED profile with diffuser

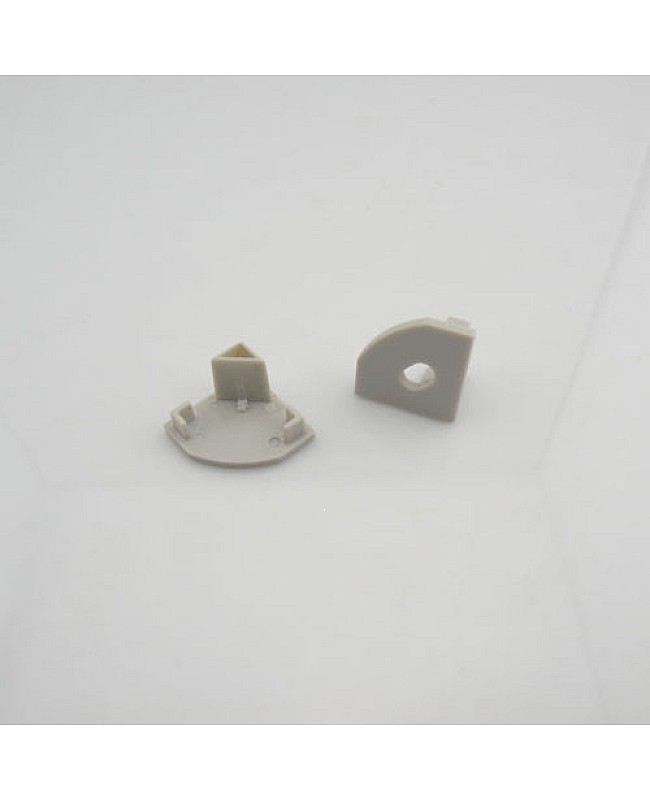

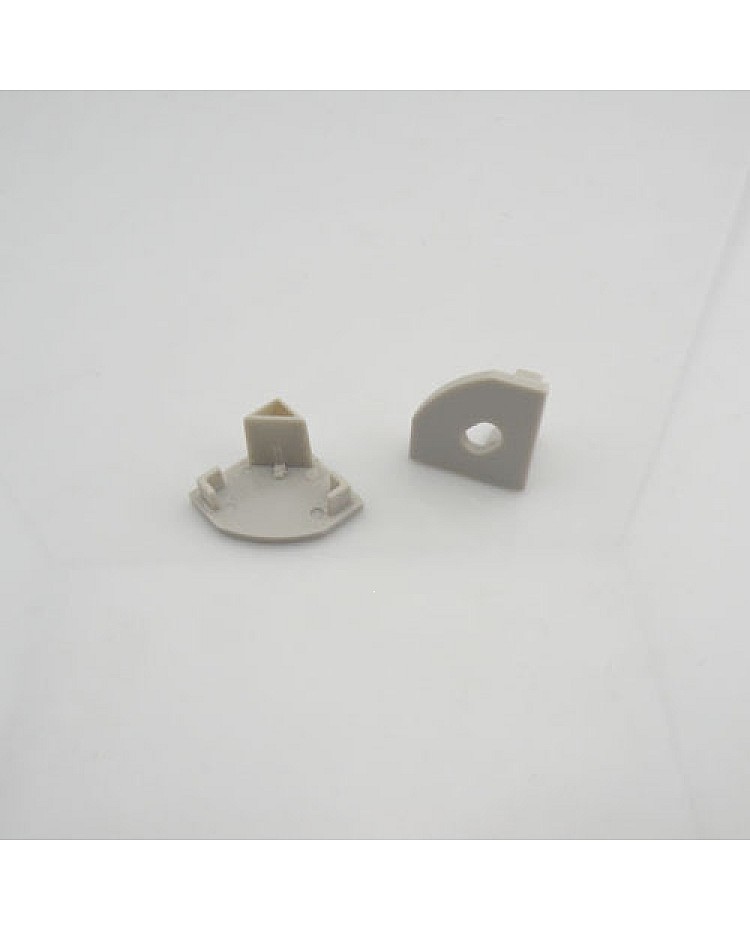

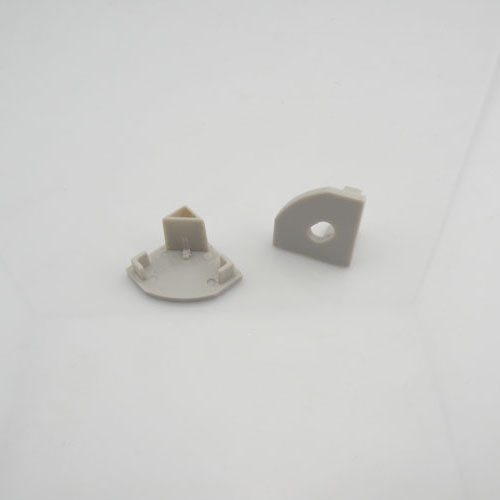

End caps(with/without wire hole)

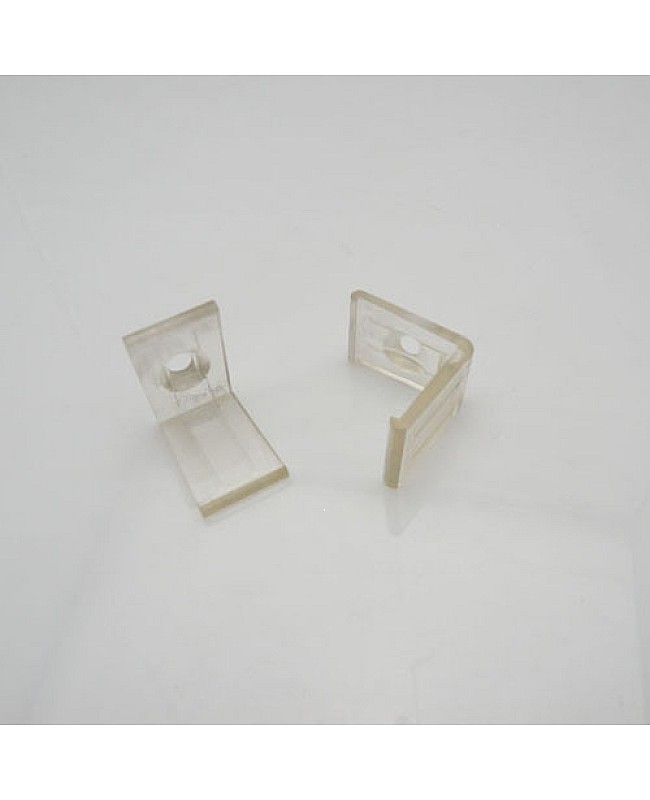

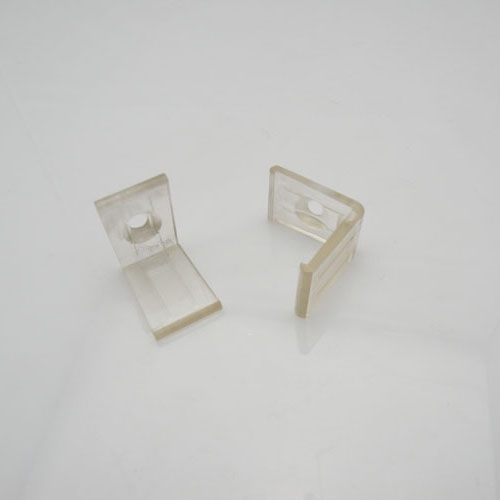

Mounting clips
Notes:
How can I pick the correct diffuser?
Please check the link to learn how to pick the correct diffuser.
What's the maximum length available?
The maximum length we stock is 3m, and we can cut them to your desired length for free.
Will I need to order the diffuser and accessories separately？
No, you do not. Our selling price includes the aluminum channel, diffuser, end caps, and mounting clips (if needed).
Where do they ship from, and how long does the shipping take?
They ship from Shenzhen, China, and the shipping time is around 5-7 days via express carriers (DHL, UPS, FedEx).
