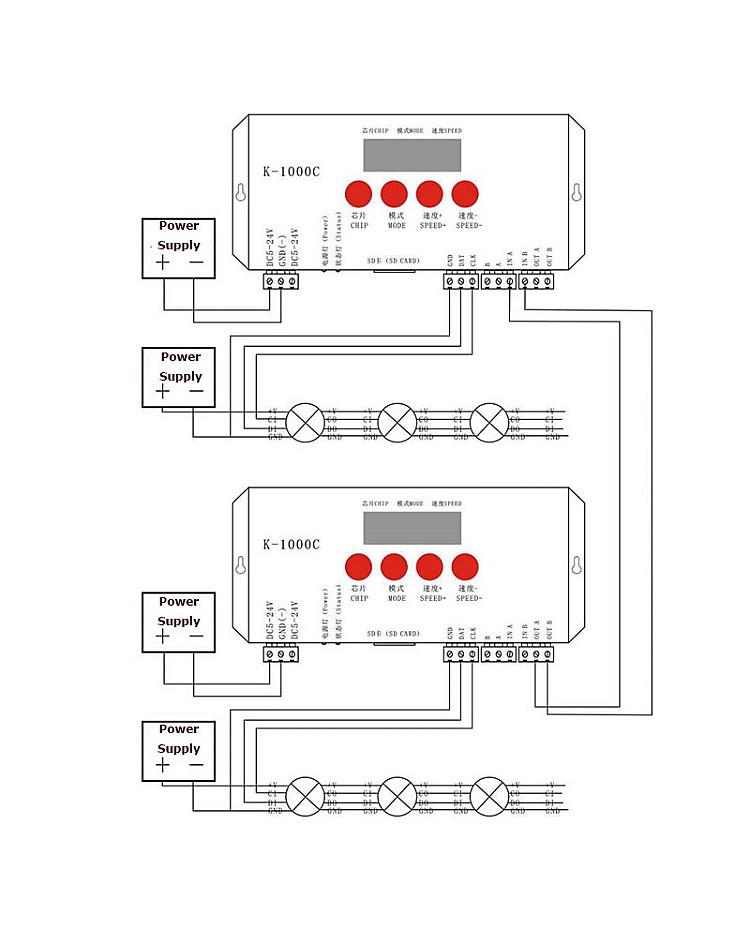

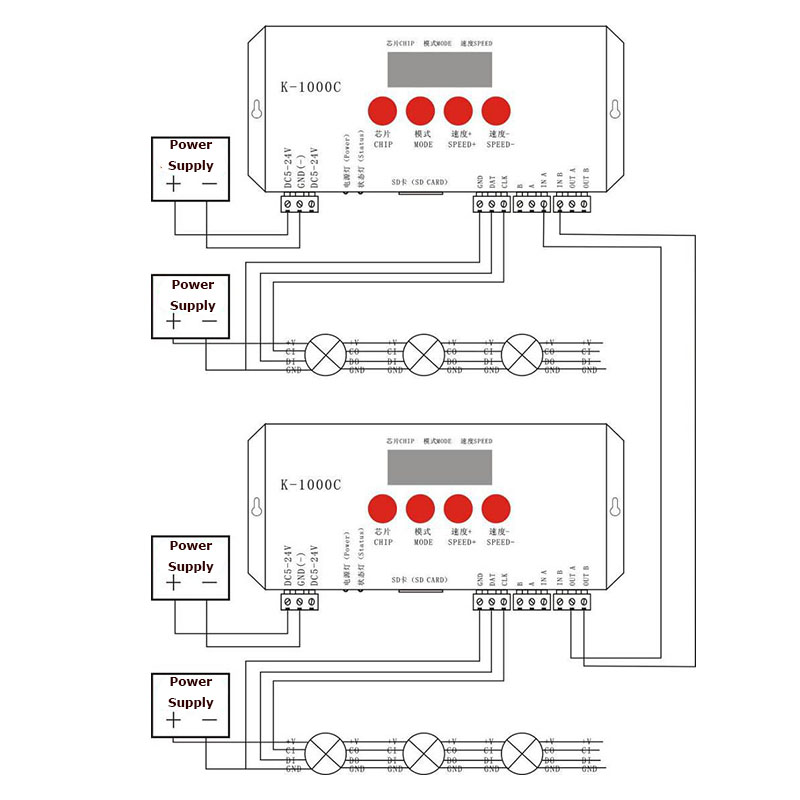

The K-1000C SPI Programmable Pixel LED Controller supports all types of intelligent ICs on the LED market. Working in DC5V to DC24V, you can program the lighting effect and save the effect on the SD card, including the SD card. It supports SD cards from 128MB to 32GB, suitable for engineering or DIY projects. You can install the software LEDEDIT on your computer, design, and save the lighting effect in the card. It supports RGBCCT Pixel LED Strips, LED Matrix Panels, Special Shaped, various special lighting effects available, fireworks, chasing, rainbow, scrolling text, single color, full color, running, etc. There is a lighting effect library in the software. You also can use some videos/pictures as your lighting effect library. The Controller has 22 kinds of built-in effects. There is only one port on the K-1000C Controller, which can support a max of 2048PCS Pixels(DMX LED 512 Pixels); the Dreamcolor Magic LED Controller can be used in multiple cascades. The cascade adopts a photoelectric isolation method: anti-interference and better stability, the cascade distance between the two units can reach 150 meters, and 0.5 square copper power cords are required. The K1000C support Chips can lock the support IC in the software or not lock the support IC in the software. You can also select the support IC through the Chip Button on the Controller, and this design is more flexible and convenient.


K-1000C User Manual


  • Type: Dream Color Magic LED Controller
  • Model: K-1000C

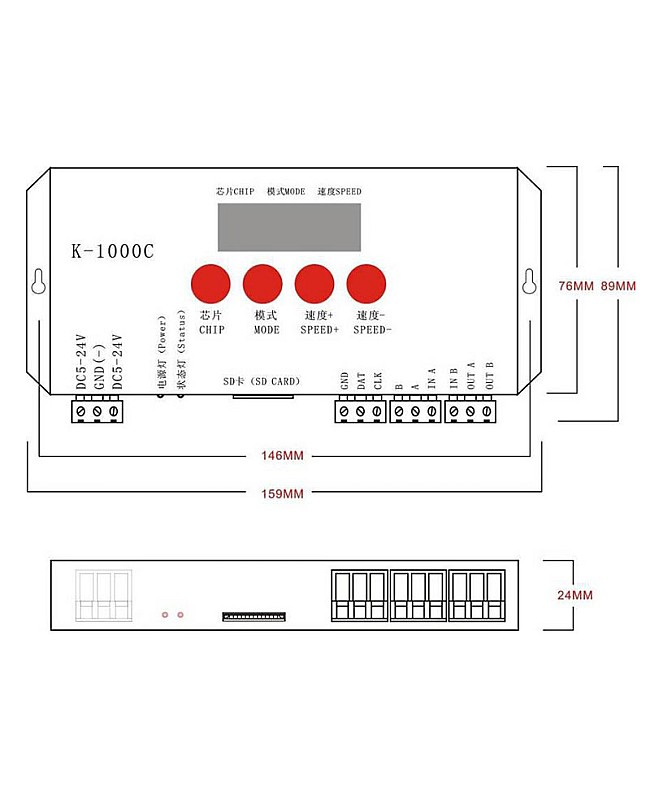

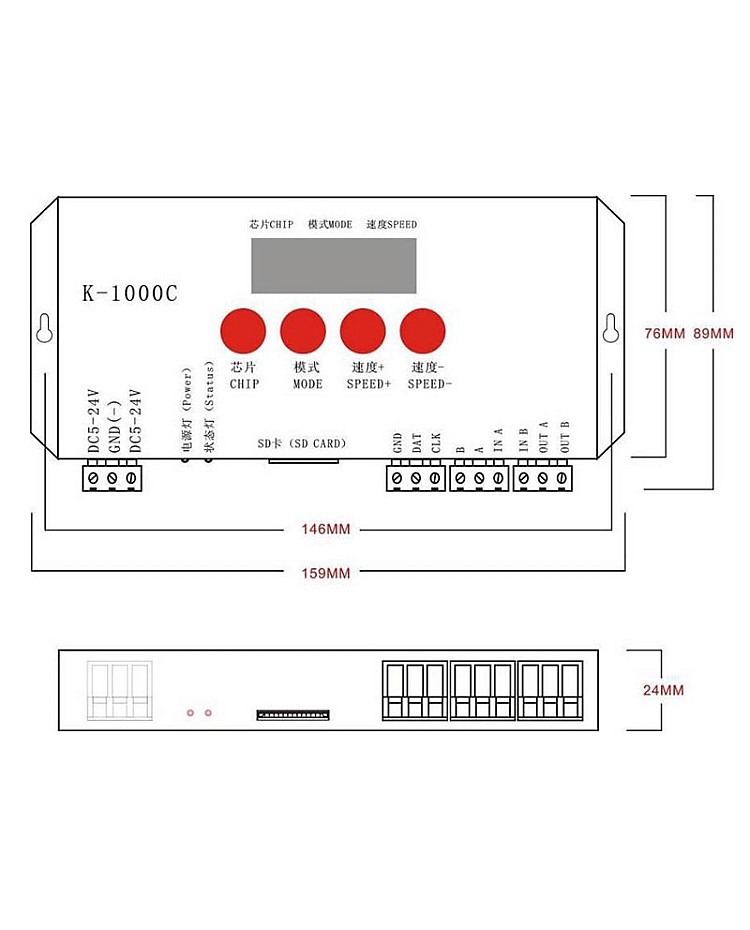

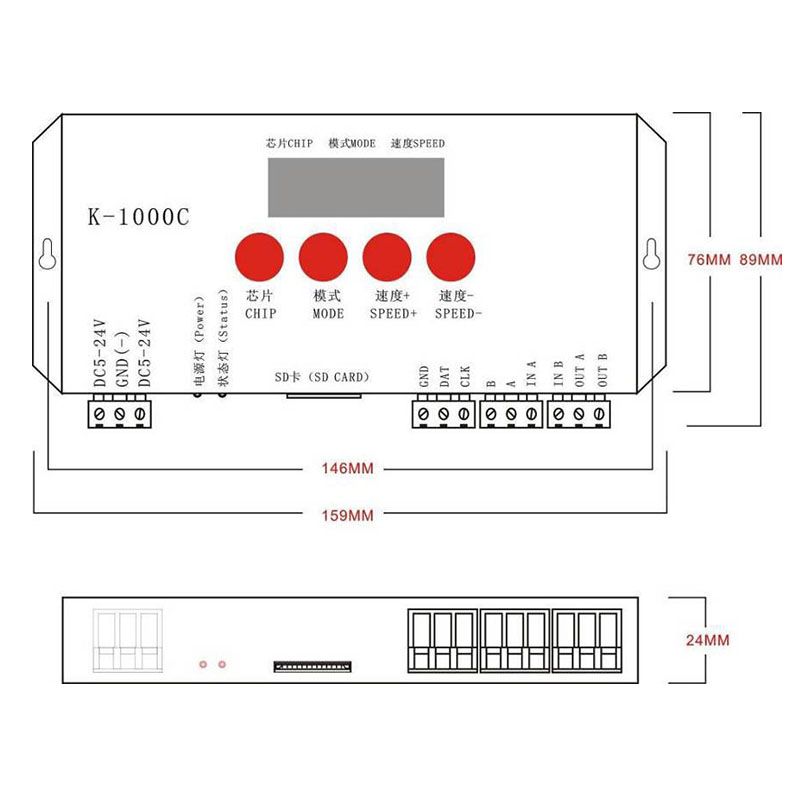

  • Size: 159*89*24mm(L*W*H)
  • Working Temperature: -30℃-+85℃
  • Working Voltage: DC5-24V
  • Power Consumption: 2W
  • Data Transmission Port: Wiring Terminal
  • Support ICs: LC8812M LC8822, LC8823, LC8808, WS2811, WS2812B, UCS1903, LC8808s, GS8208, TM1803, TM1804, TM1809, TM1812, etc
  • Built-in 22 Kinds Of Lighting Effects And Support 3 Channels And 4 Channels
  • Max Loading Pixels: 2048PCS(RGB)/768PCS(RGBW)
  • Memory Card Type: SD Card/High-Speed SD Card
  • Memory Card Capacity: 128MB-32GB
  • Memory Card Format: FAT/FAT32
  • Memory Card Store File: *.led
  • Software: LedEdit-K
  • 32 To 65536 Degree Gray Control, Software Gamma Correction Processing
  • Support Load Lamp Is 4 Channels(RGBW) Pixels Or Split Into Single Channel Point Pixels
  • Enhanced 485 TTL And 485 Differential(DMX) Signal Output
  • Support Various Point, Line And Surface Light Sources, Various Rules And Special-Shaped Processing
  • 3 Years Warranty


1*K1000C LED Controller

1*256Mb SD Card

1*E-File User Manual In SD Card

1*LEDEdit2019 Software In SD Card

1*User Manual

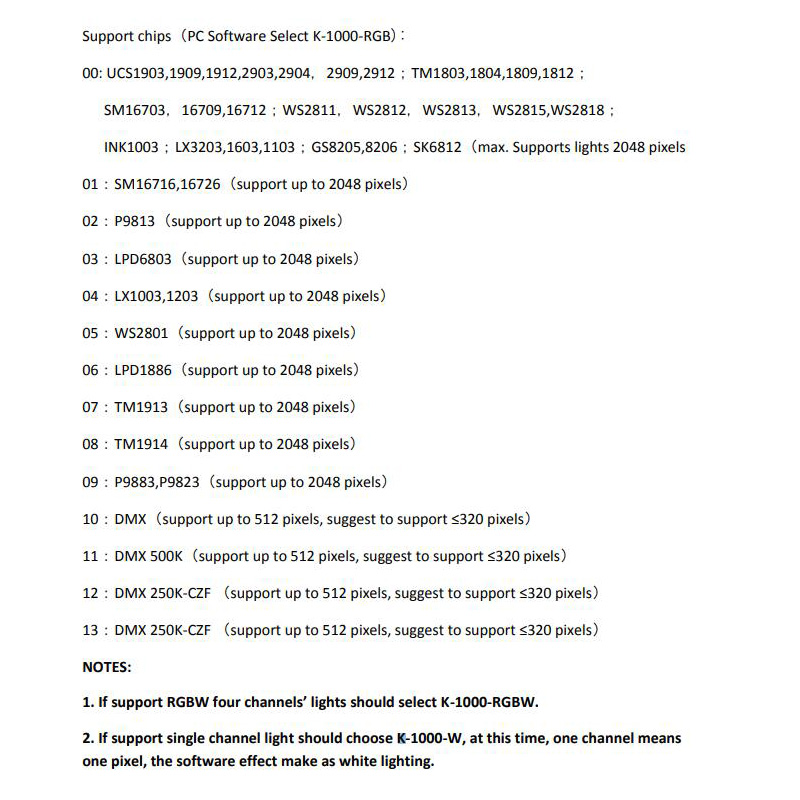

K-1000C Supports IC Types
