In Stock
$3.84
Reward Points: 4
-
+
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP137

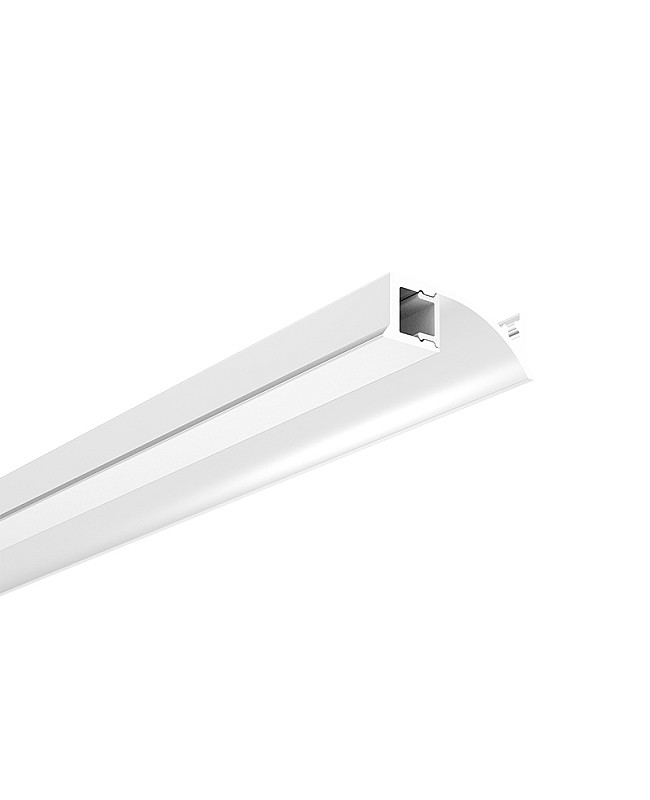

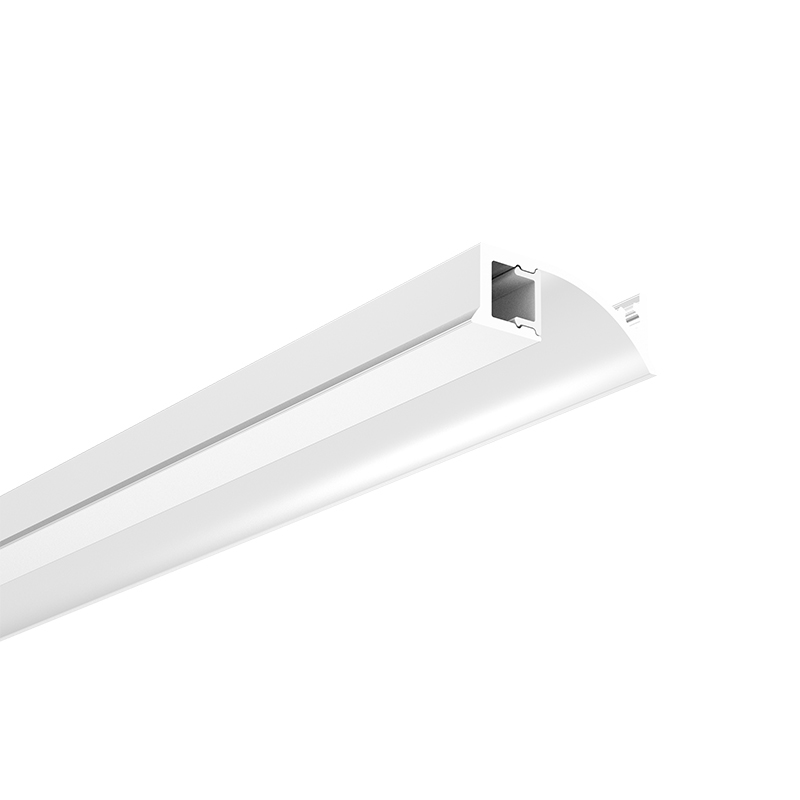

The LED strip channel diffuser is designed to help diffuse the light from LED strips, delivering soft and smooth lighting, making it the best option for under-cabinet lighting. The low profile and slim structure allow them to recess into tighter spaces in your cabinets or shelves. The inner width is 5.5mm, allowing for the accommodation of 4mm or 5mm LED strips. We recommend using our 4mm COB LED strips as the light source, which creates a uniform distribution with no light spots or dark areas. The light diffusers are made of 6063-T5 aluminum alloy with a silver anodized surface treatment, offering anti-oxidation resistance, high-temperature resistance, and a longer lifespan. The standard lengths are 1 m and 2 m, and they can be cut to any size that fits your space. One type of diffuser for strip lights is available: the PC opal matte diffuser, made of brand-stable, anti-yellowing material, which helps reduce glare and creates an even spread of light. End caps with and without wire holes are included.


Specifications:

  • Model: ALP137
  • Material: 6063-T5 aluminum alloy
  • Surface Treatment: Anodized
  • Colors: Silver

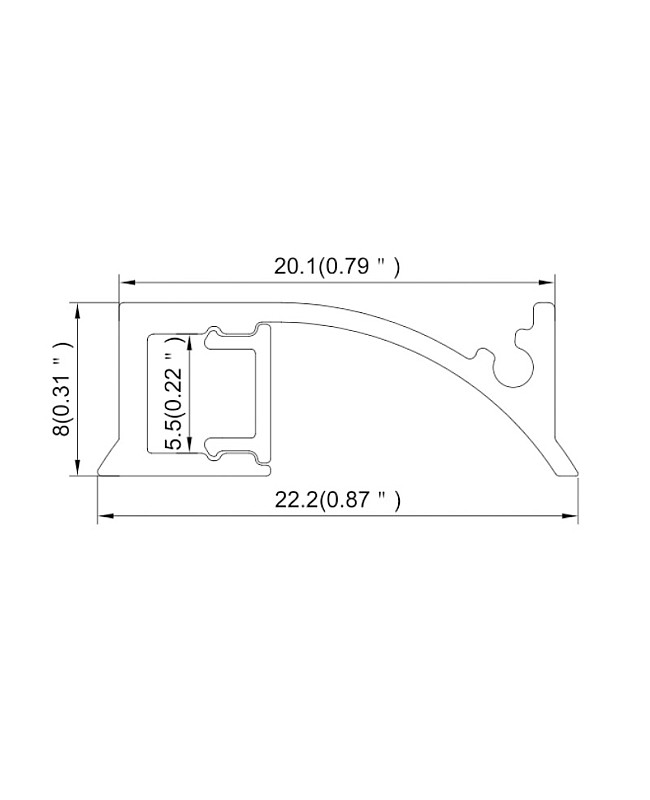

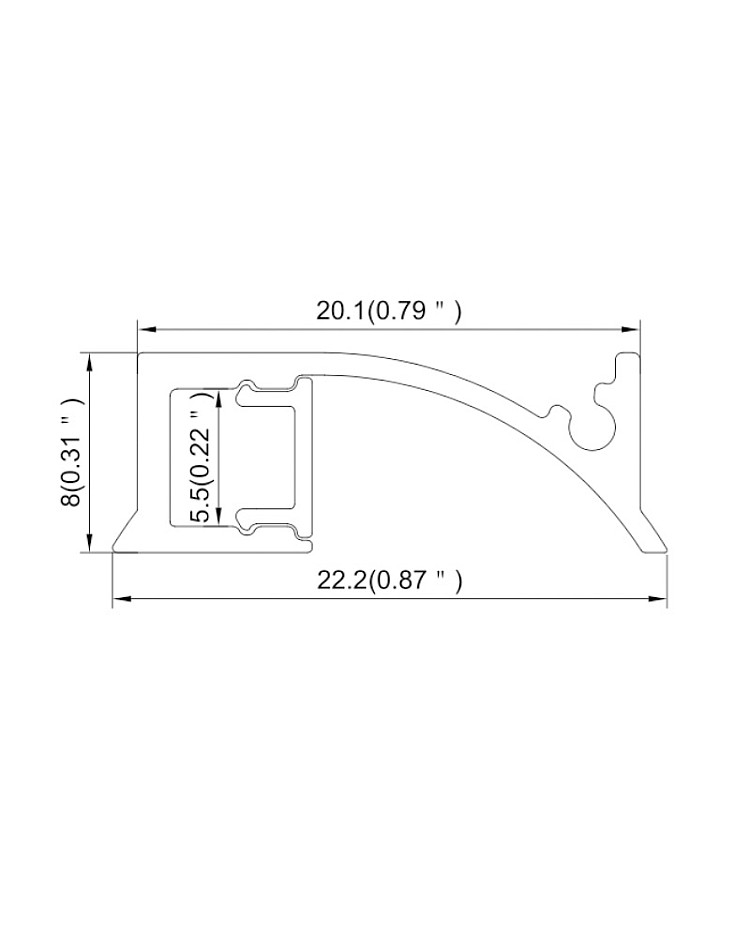

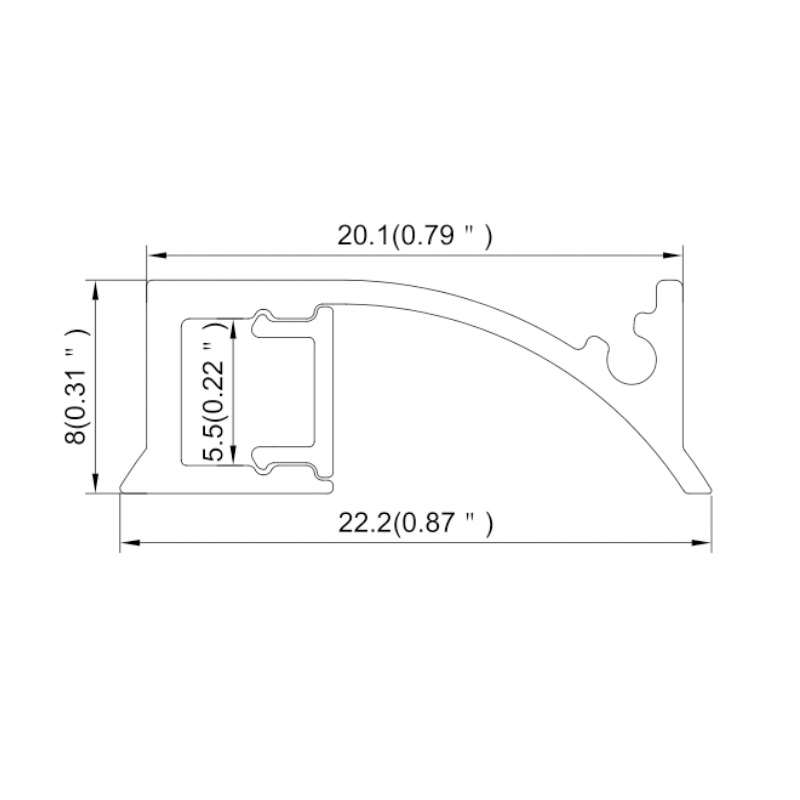

  • Size(W*H): 22.2*8mm/0.87"*0.31"
  • Inner Width: 5.5mm
  • Accommodate 4/5mm LED strip lights
  • Max Power: <10W/Meter
  • Standard Length: 2M
  • Custom Length Available: YES
  • Diffuser: PC opal matte diffuser

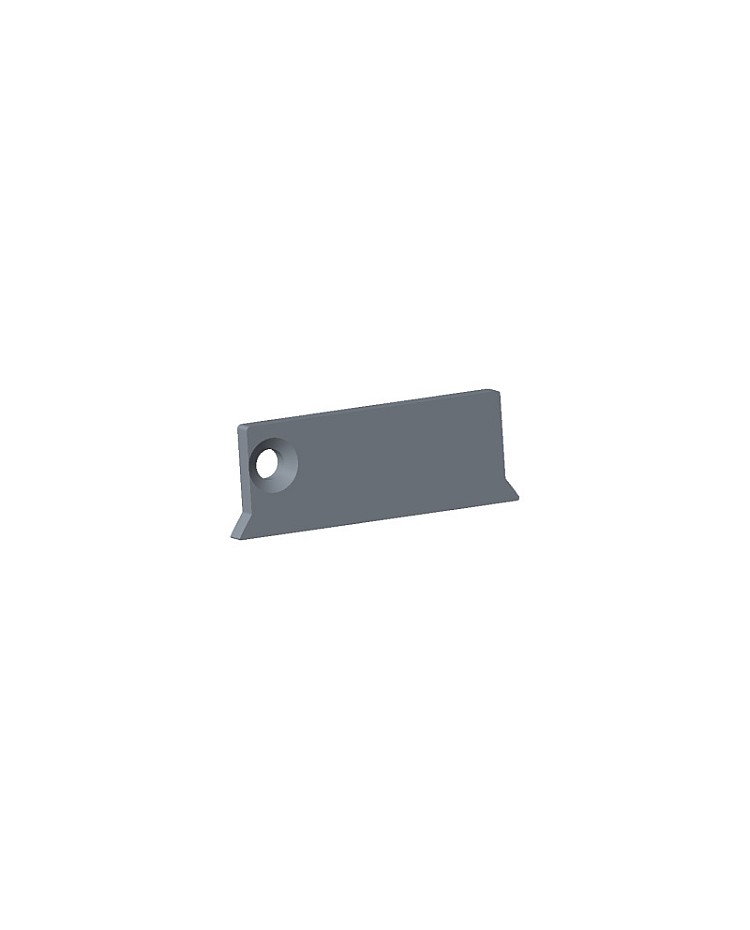

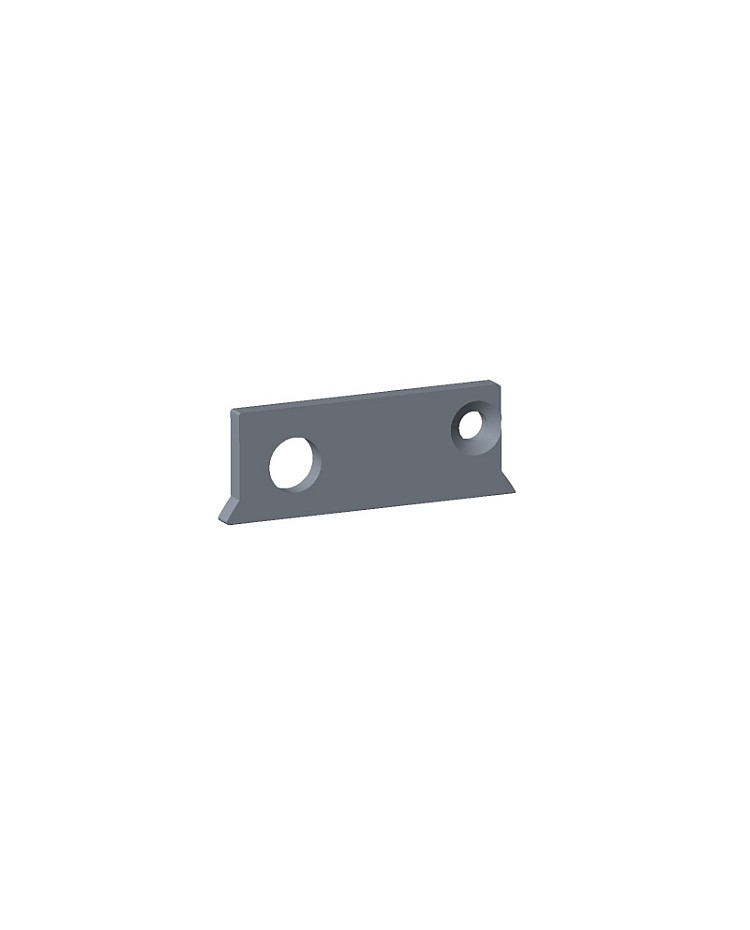

  • End caps with/without wire hole included

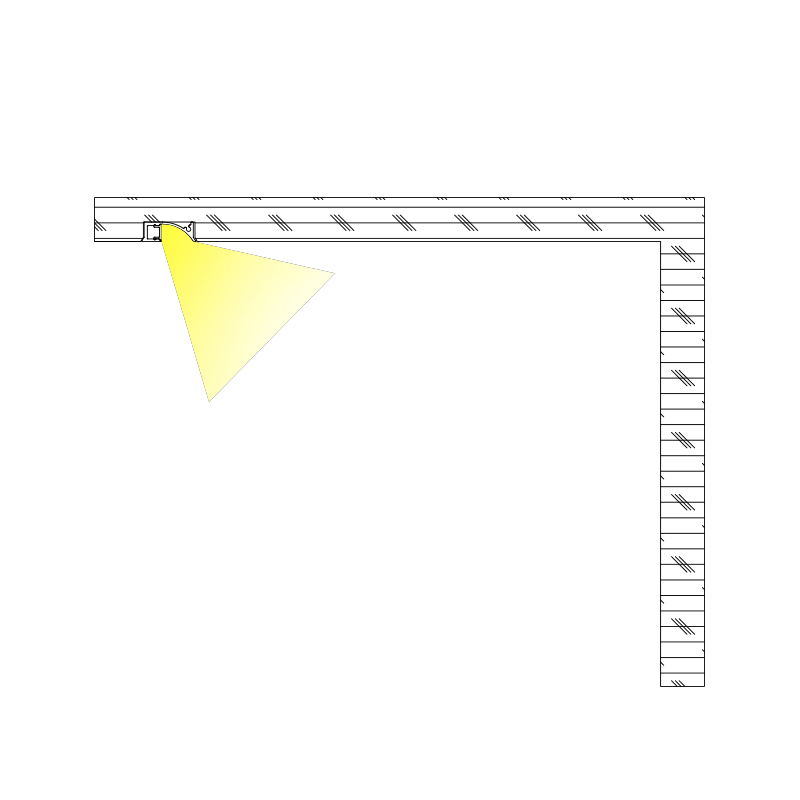

  • Installation: Recessed
  • Applications: Under-cabinet lighting
  • Certifications: CE, ROHS
  • 5-year warranty


Includes:

1 * LED Strip Channel Diffuser

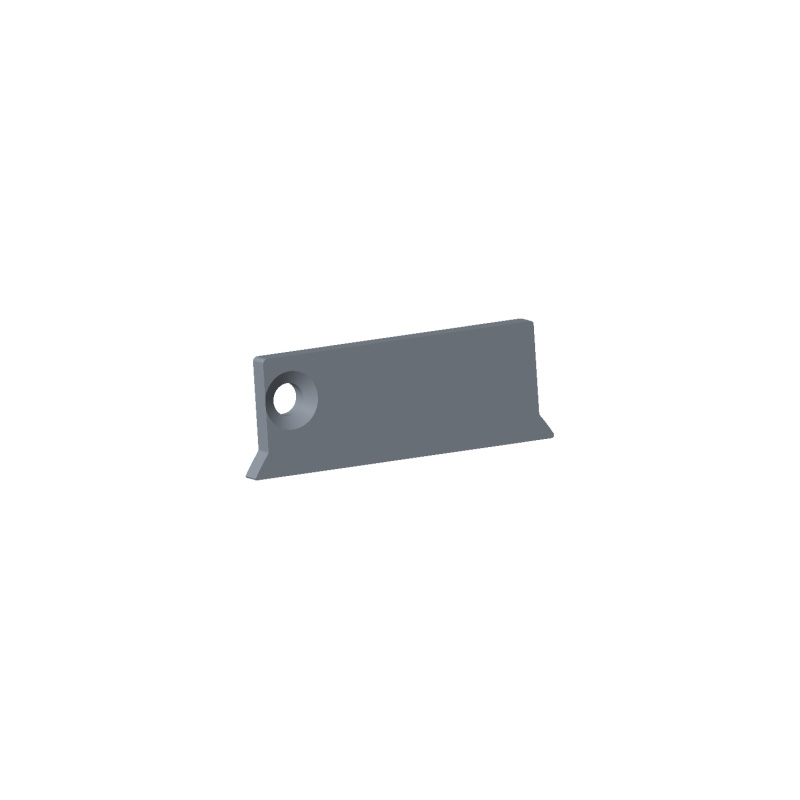

End Caps(With And Without Wire Holes)

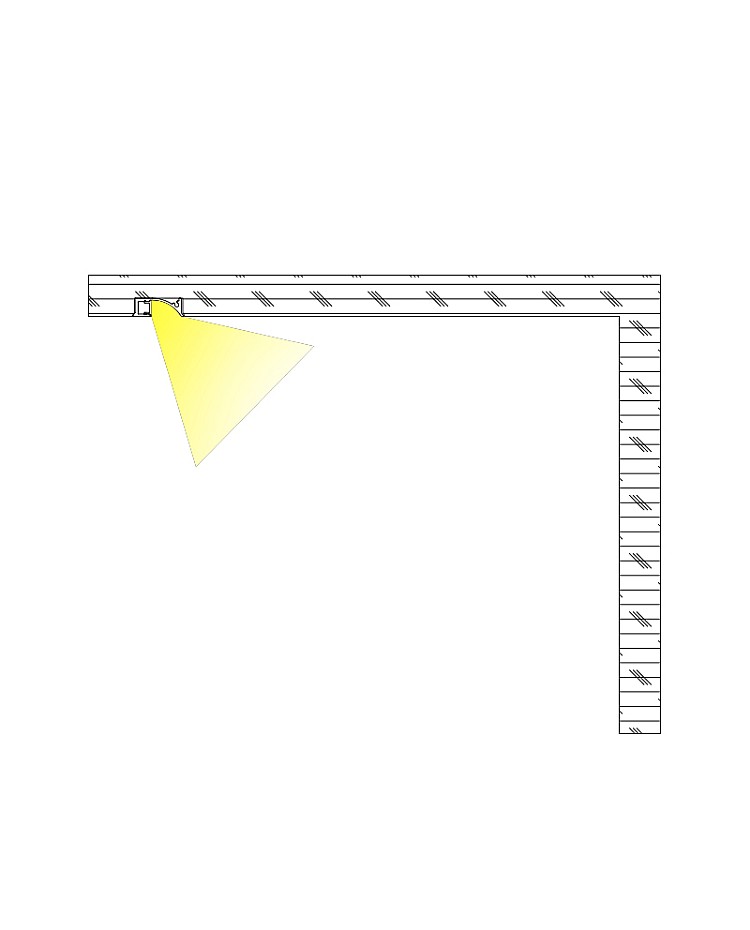

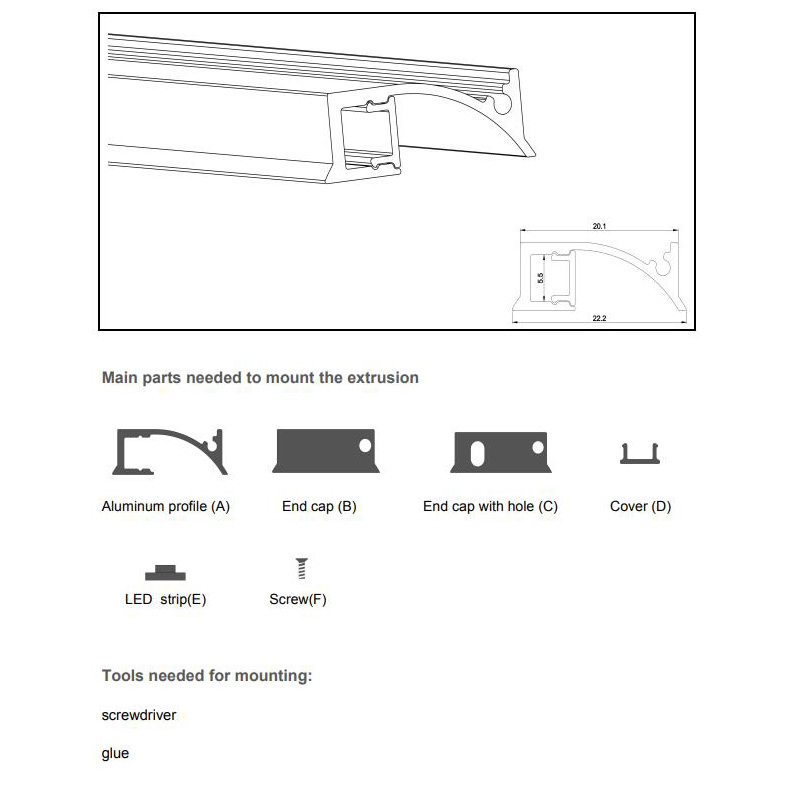

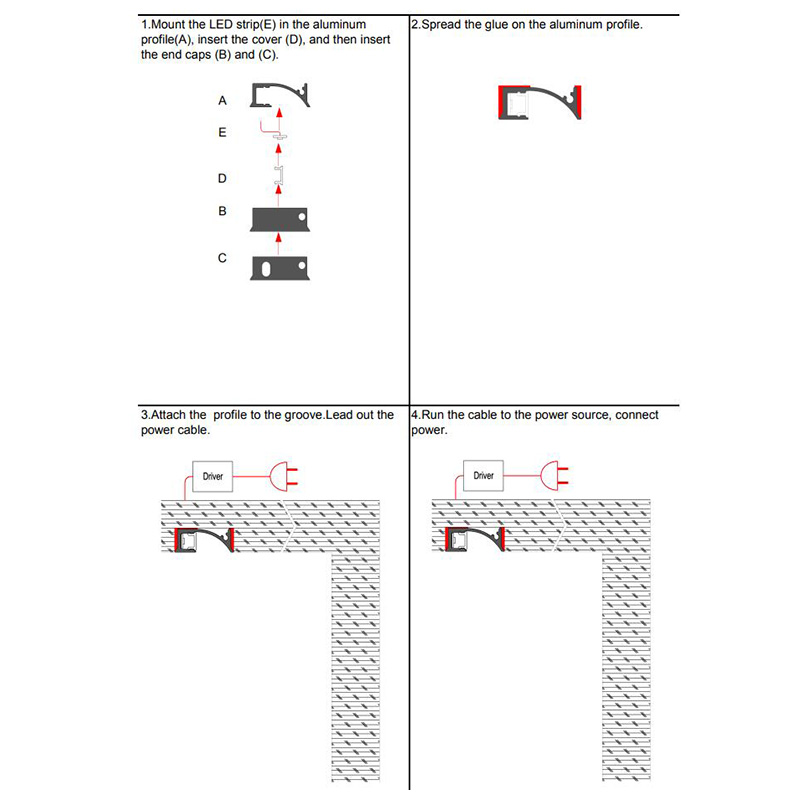

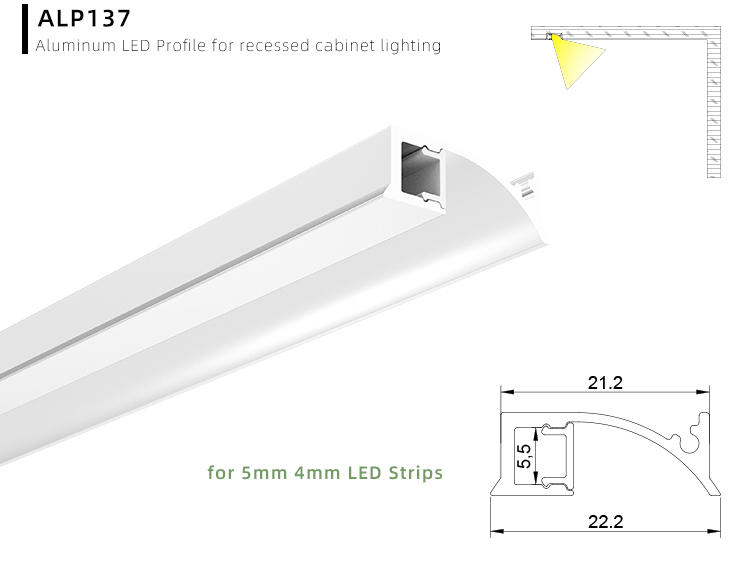

Recessed aluminum LED Channels for under-cabinet lighting The parts and accessories of the cabinet aluminum LED channels. The manual of how to install the cabinet lighting aluminum channels.
