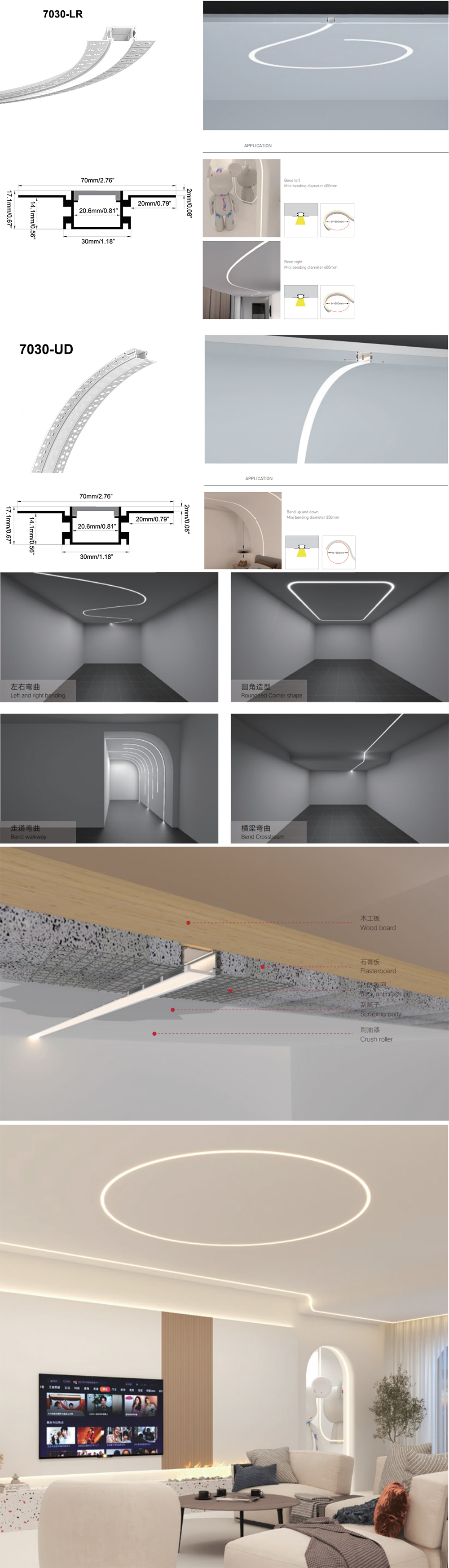

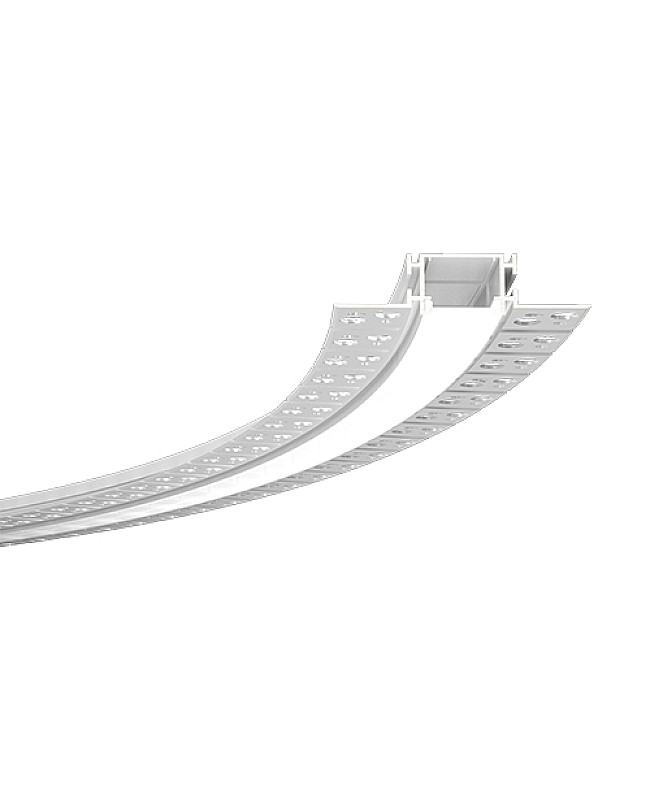

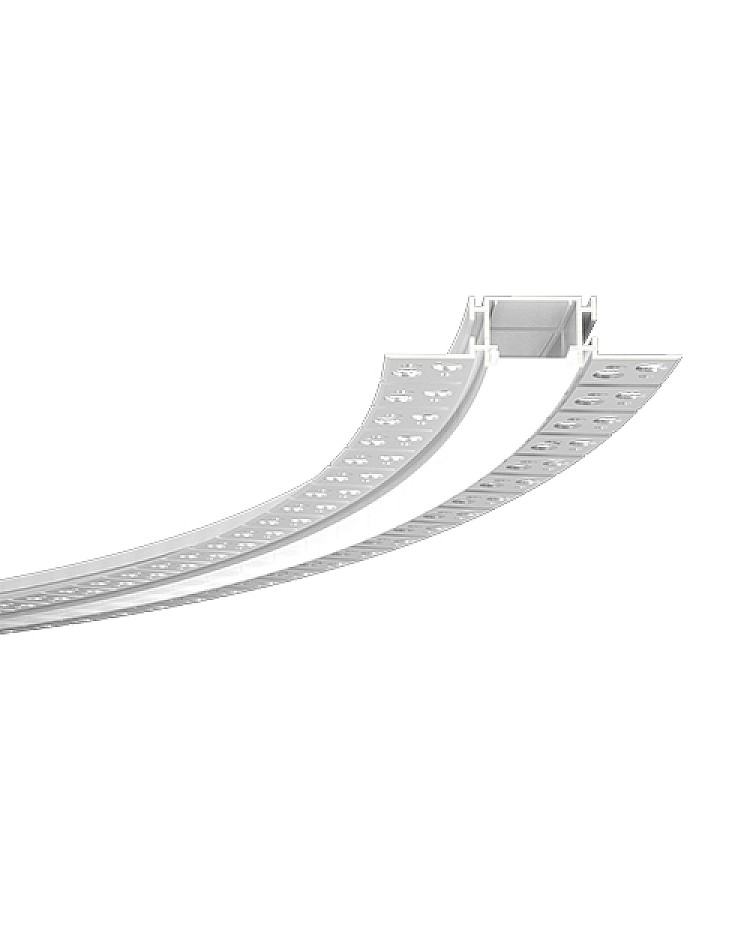

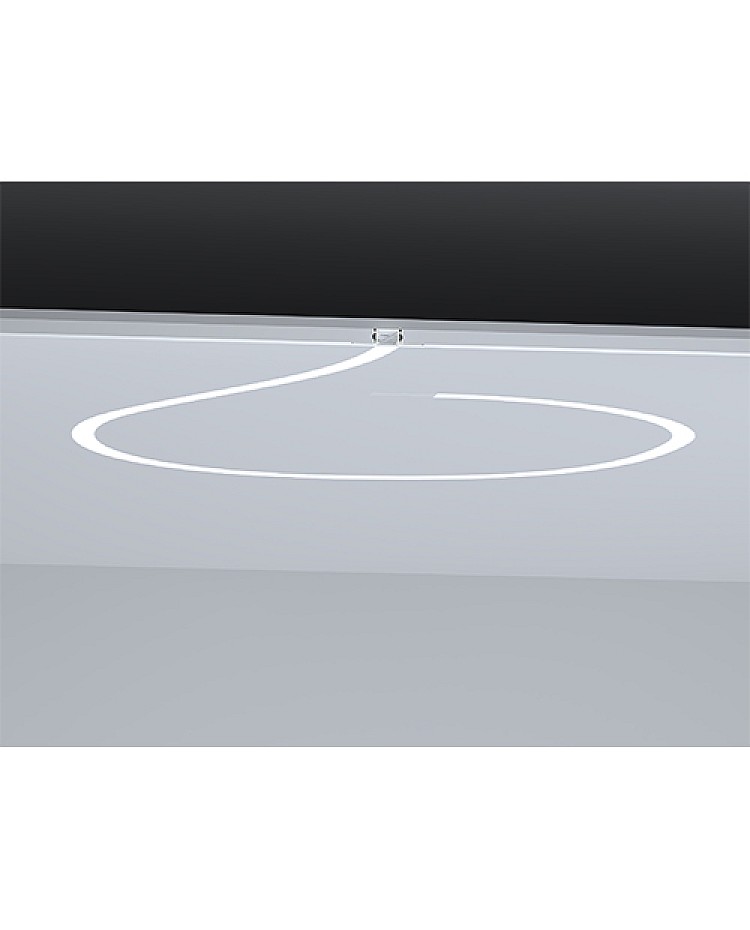

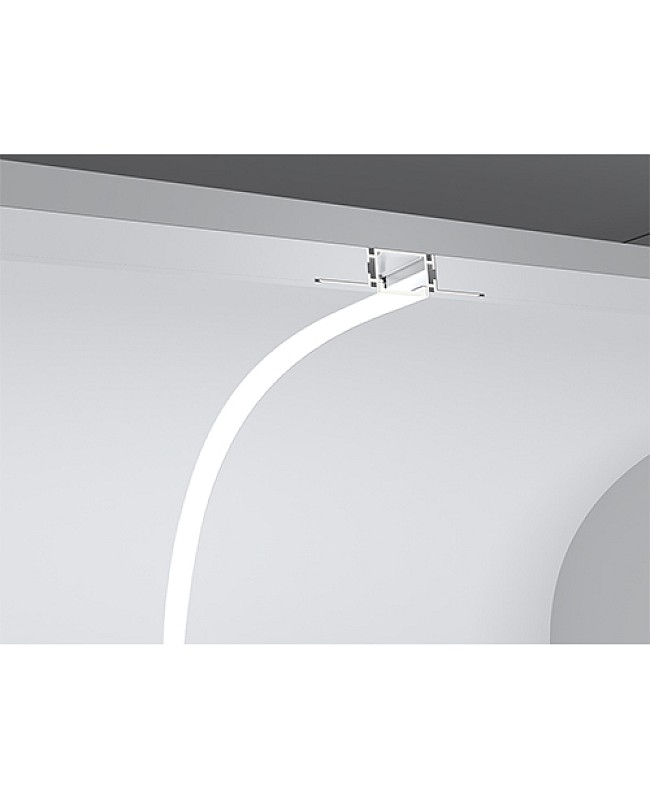

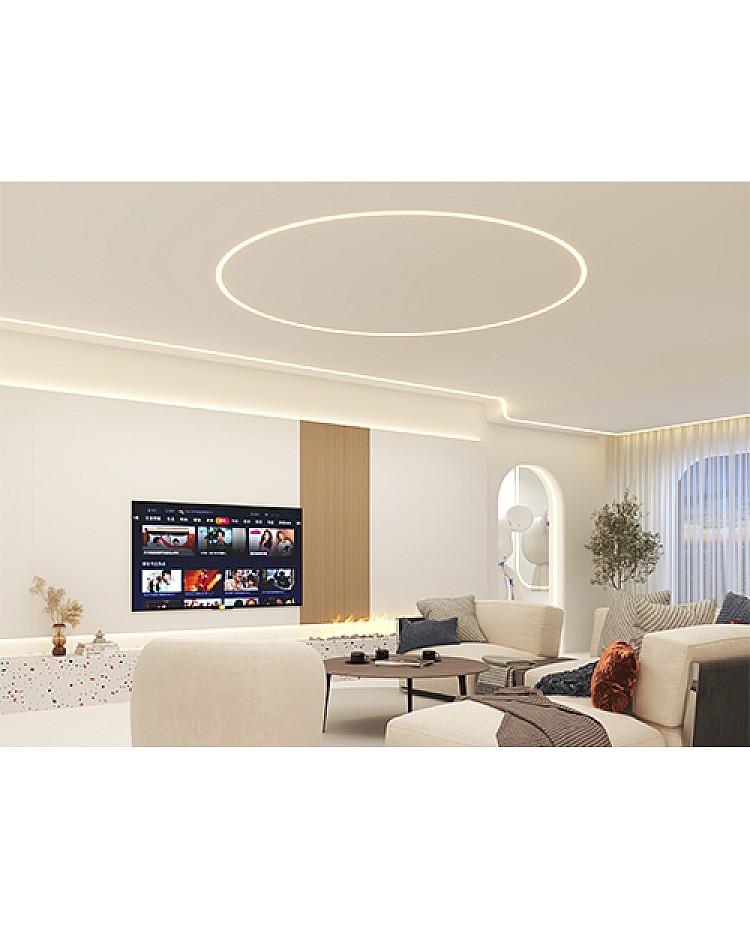

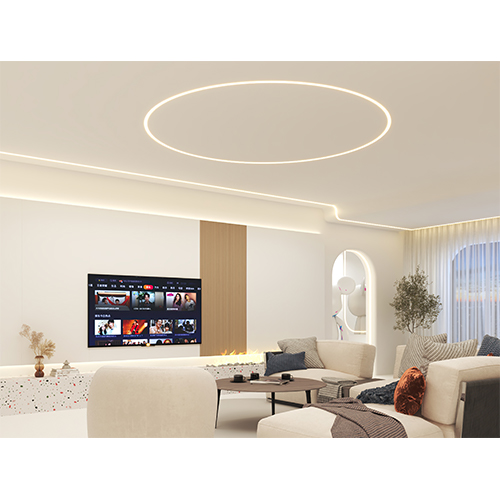

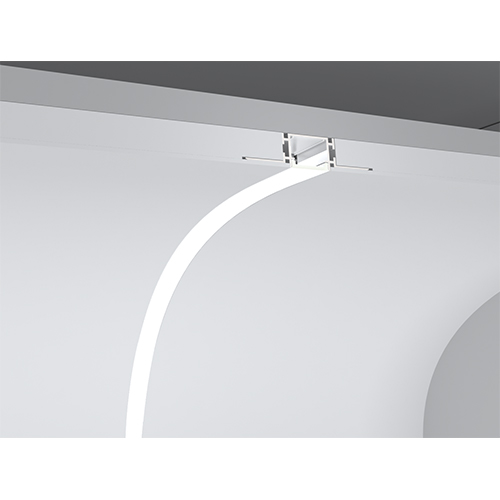

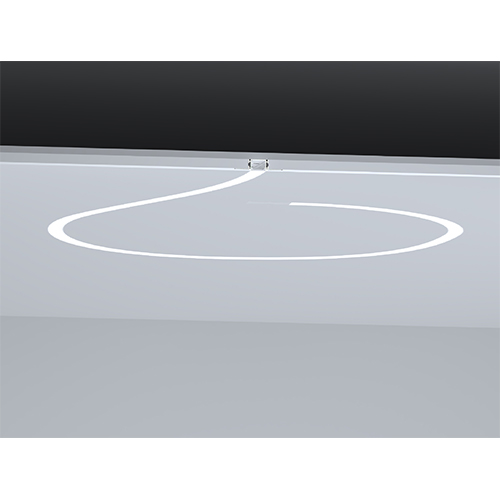

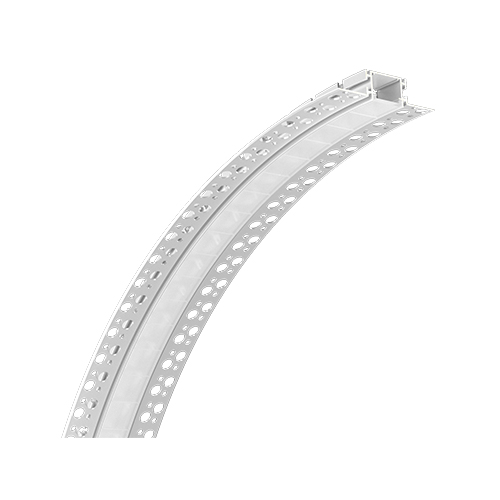

The 70mm bendable LED tape light extrusions enable seamless integration on drywalls, providing flexibility for creative lighting applications. There are side-bendable and up-down-bendable products available, allowing for bending along curved surfaces, corners, and unconventional shapes, which enables unique lighting effects and patterns, ideal for modern lighting design. These LED extrusions are designed to be mounted flush with the surface, providing a clean, unobtrusive look that seamlessly blends with any decor. They are made of 6063-T5 extruded aluminum material and feature a silver anodized finish for enhanced oxidation resistance and a longer lifespan. The stock lengths are from 1M to 3M and can be cut to any size to fulfill your needs. Only semi-clear silicone LED tape covers are available, made from high-quality silicone material for even light distribution, reduced glare, and a soft, ambient glow. The inner width is 20.6mm. For the side-bending products, you can install the LED strips on the side or the bottom; the max width of strip lights for the side mount is 12mm; you can install SMD or COB strip lights as the light source, and you can install 20mm s shape zig zag SMD LED strips on the bottom. For the up-down bendable products, the maximum width of tape lights is 20mm. End caps with and without wire holes are included.
Specifications:
- Type: Bendable LED tape extrusion

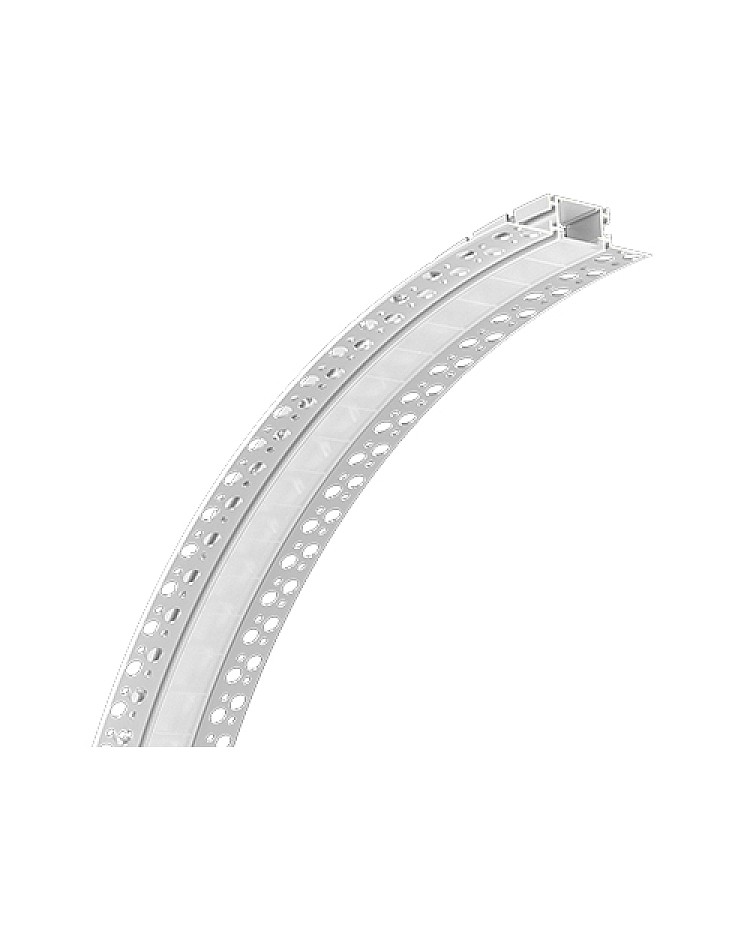

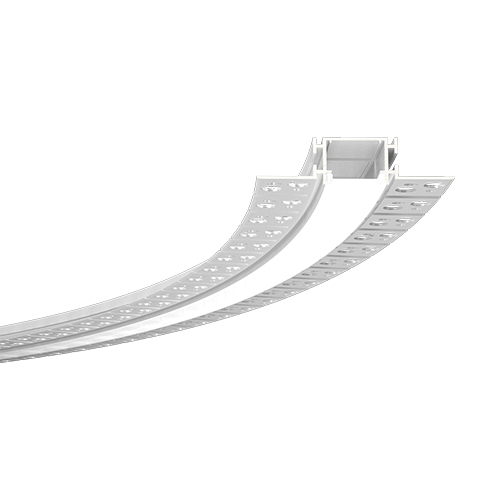

- Models: 7030-LR(side bendable) / 7030-UD(up-down bendable)
- Material: 6063-T5 extruded aluminum(LED extrusion) / silicone(diffusers)

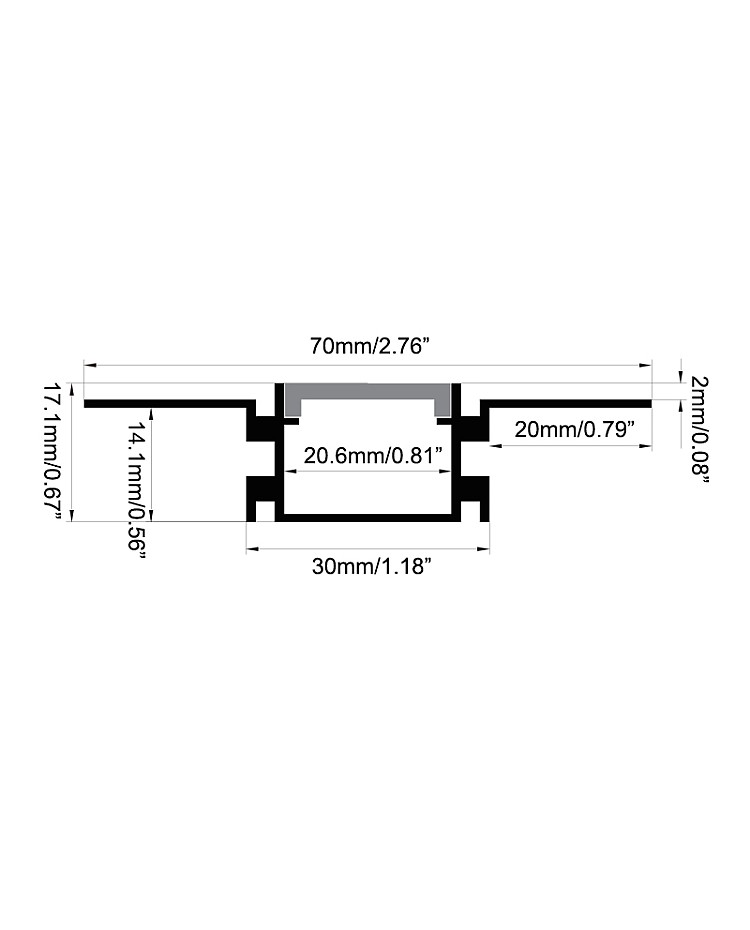

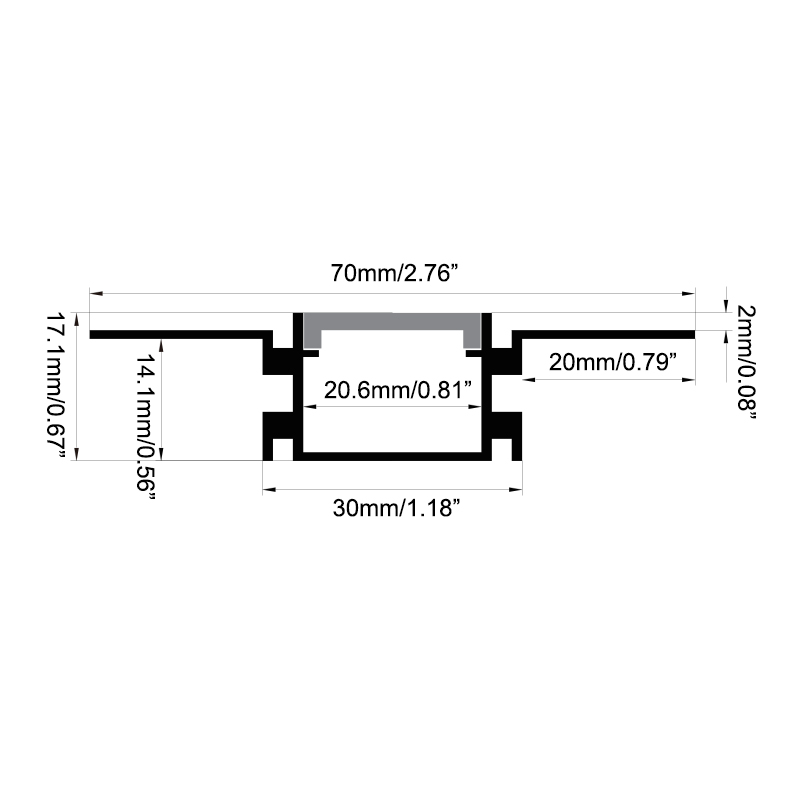

- Size(L*W): 70mm*17.1mm / 2.76"*0.67"
- Colors: Silver(aluminum LED extrusion) / Milky(silicone diffuser)
- Aluminum Extrusion Surface Treatment: Silver anodized
- Lengths Available: 1 M, 2 M, 3 M
- Custom Length: YES
- Inner Width: 20.6mm
- Max Width Strip Lights: 7030-LR: 12mm regular LED strips( side mount) or 20mm S-shaped SMD LED strips ( bottom mount ) / 7030-UD: 20mm regular LED strips
- Diffusers: Semi-clear
- Mini Bending Diameter: 600mm(left or right bending) / 350mm(up-down bending)
- End caps with /without wire hole included
- Installation: Recessed

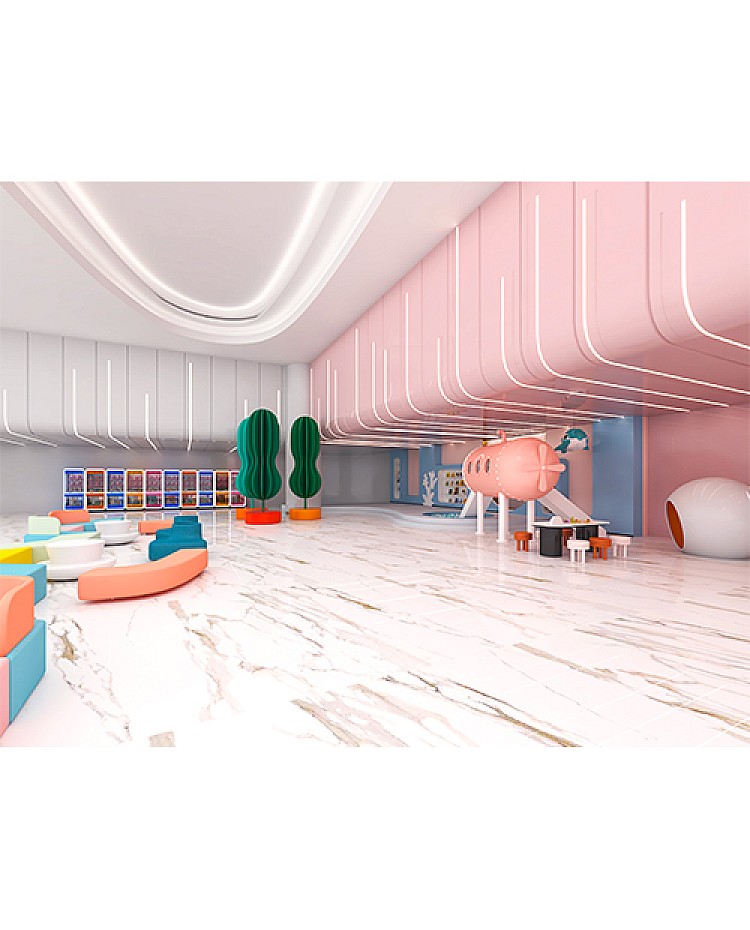

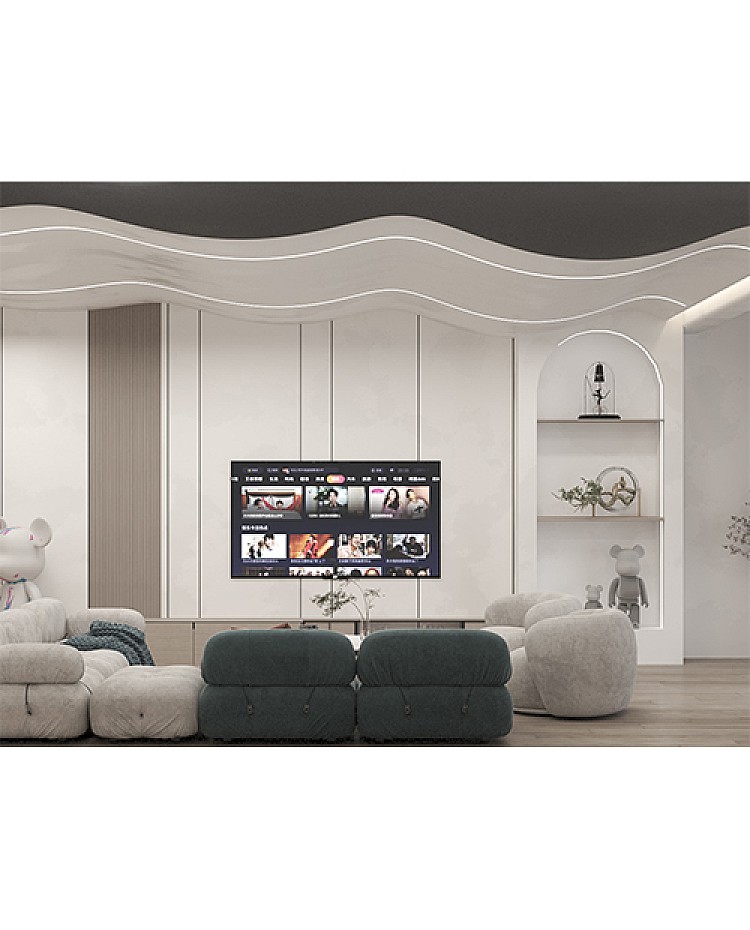

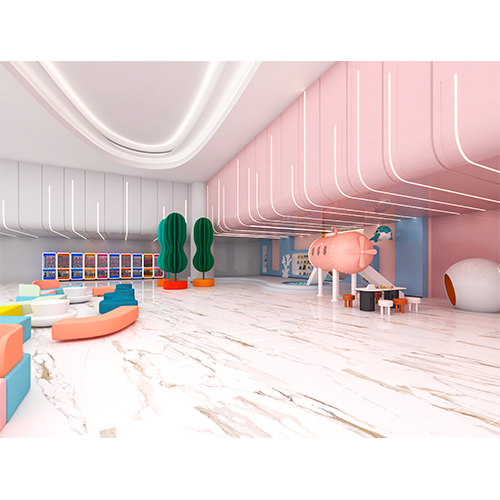

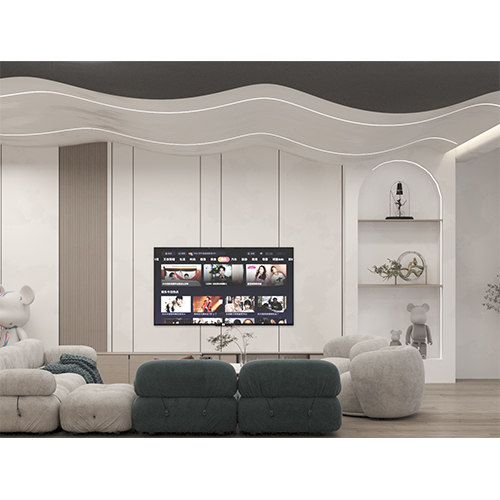

- Applications: Linear lighting for interior curved or irregular areas
- 3-year warranty
Includes:
1 * Bendable LED Tape Extrusion
1 * Silicone Diffuser
End Caps
