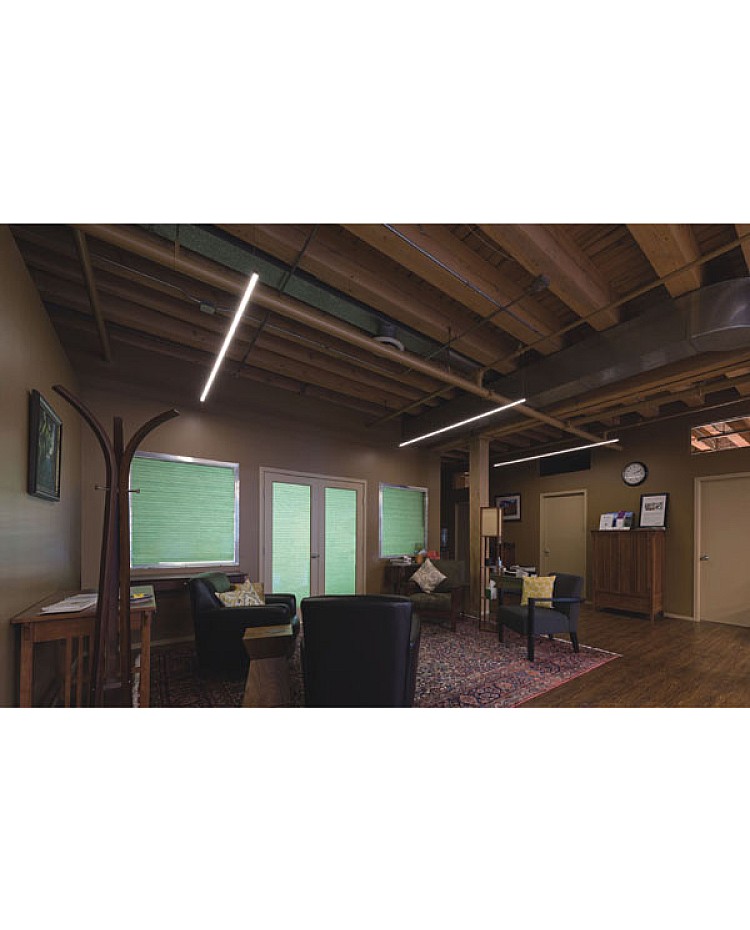

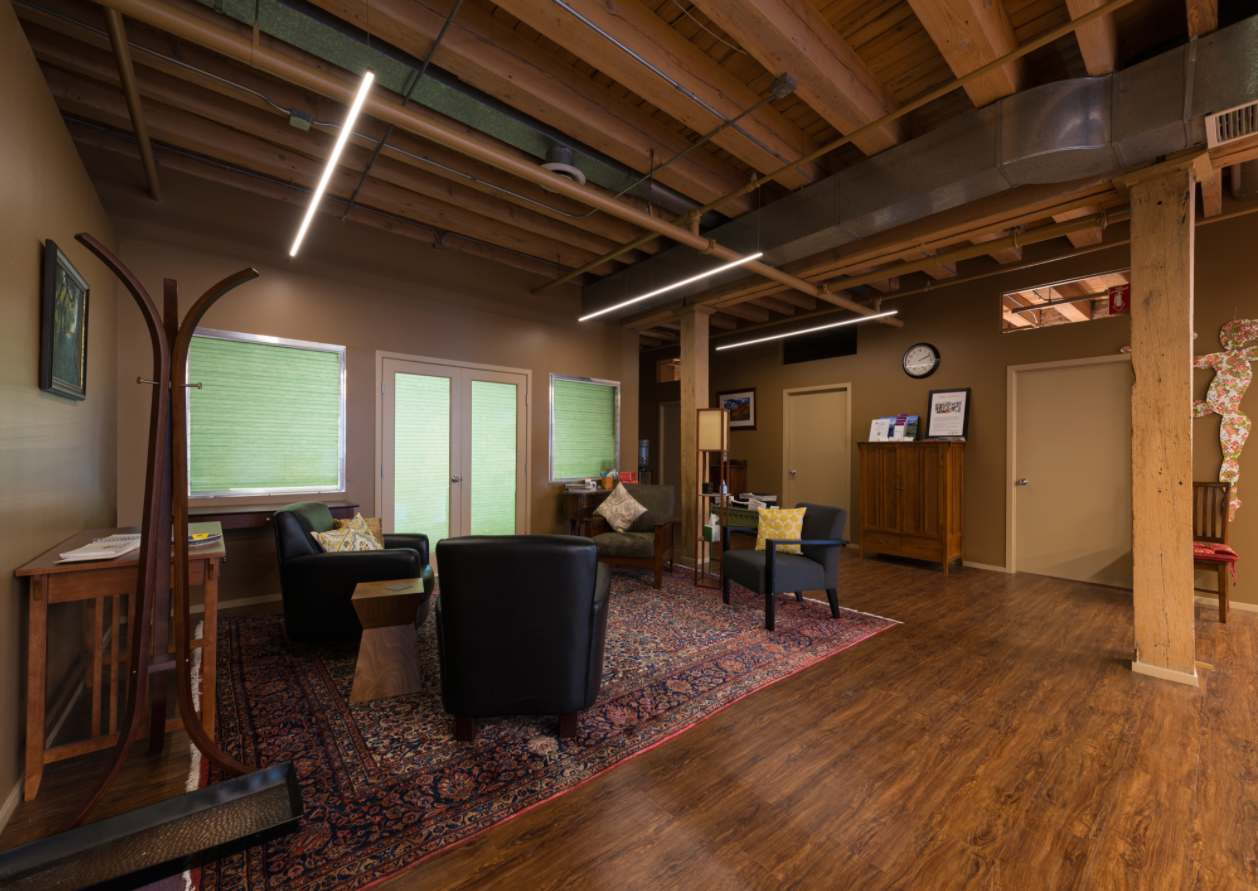

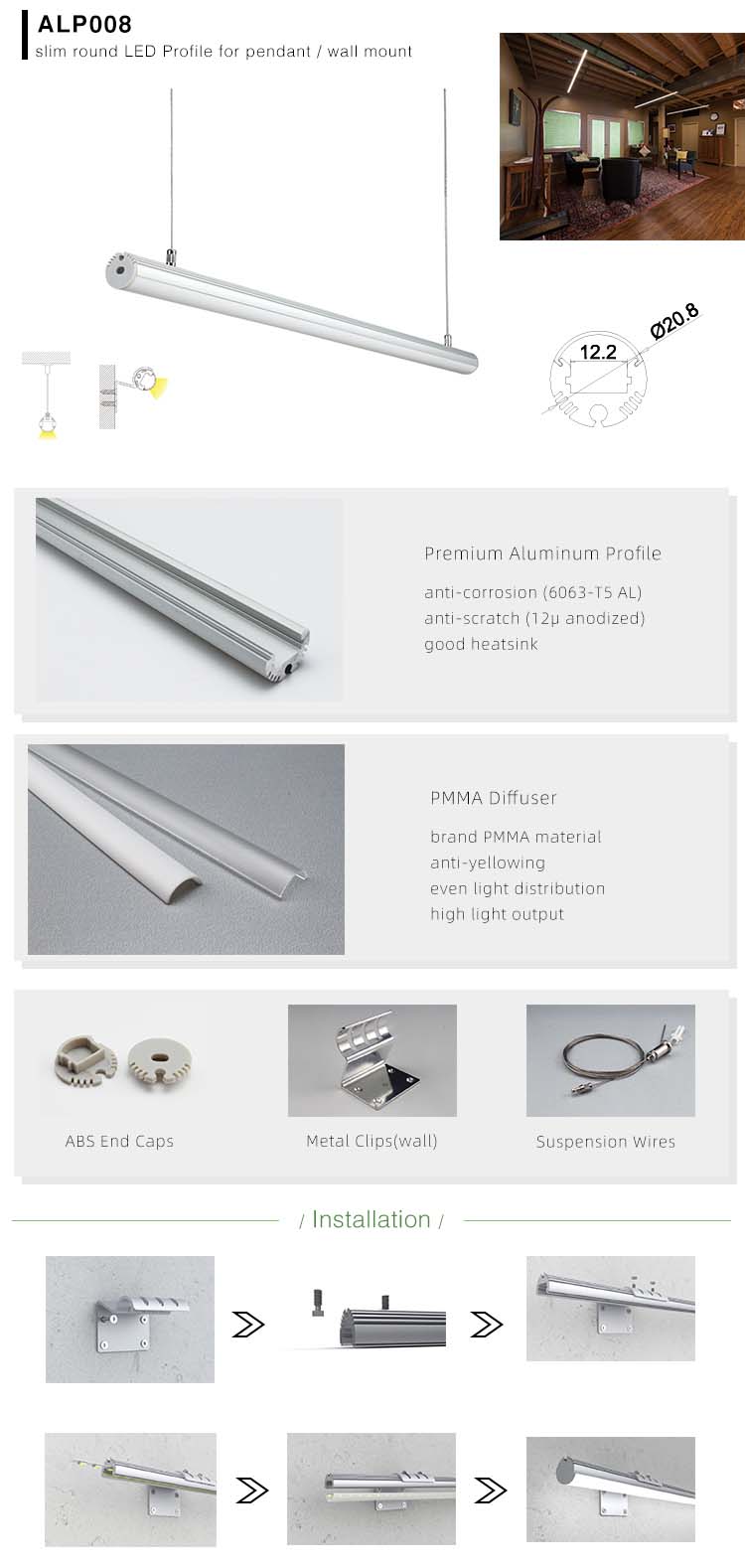

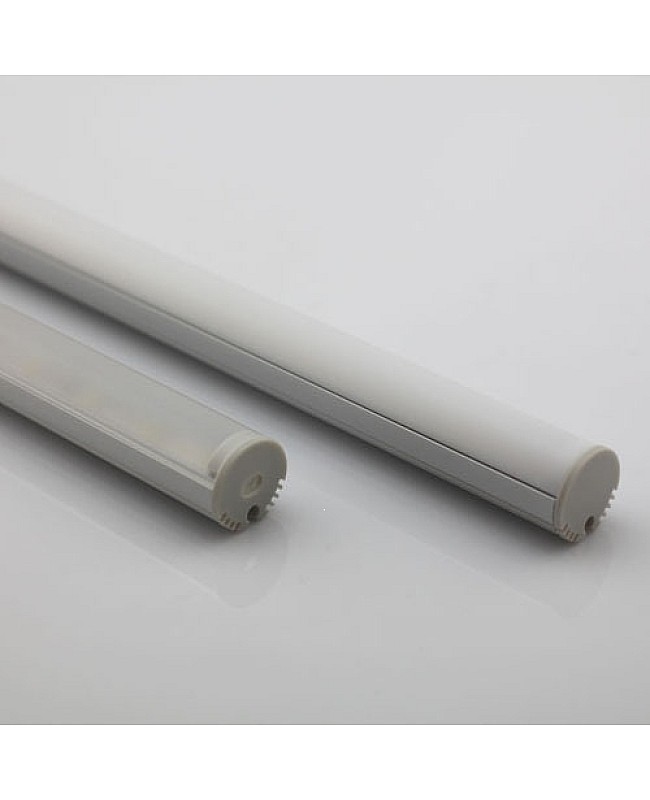

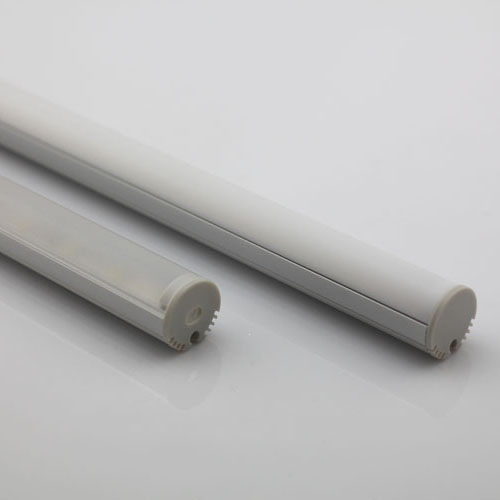

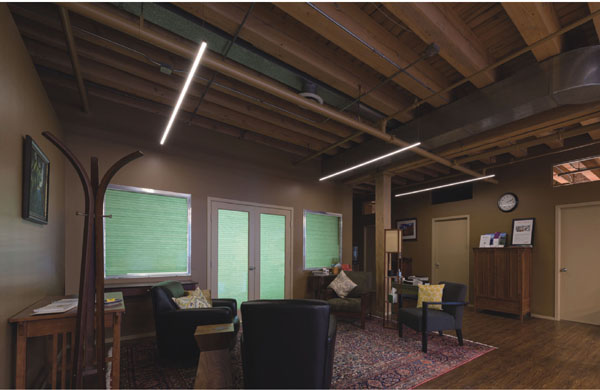

The round LED extrusions are designed to create elegant suspended lighting with a soft, continuous 270-degree visual effect. Its slim, cylindrical shape delivers a modern touch to your room, making it ideal for contemporary architectural and task lighting designs. Ideal for kitchen islands, offices, retail stores, restaurants, hotels, and modern spaces.
The slim LED profiles are constructed from 6063-T5 extruded aluminum and feature anodized or powder-coated surface treatment for a longer lifespan. They can act as heat sinks to improve heat dissipation for LED lights, enabling stable performance and extended lifespan. The standard lengths are 1m and 2m, and custom lengths are available. The inner width is 12mm, allowing a maximum LED strip width of 12mm. We recommend adding our 10mm 15W/m COB tape lights to create bright, uniform lighting.

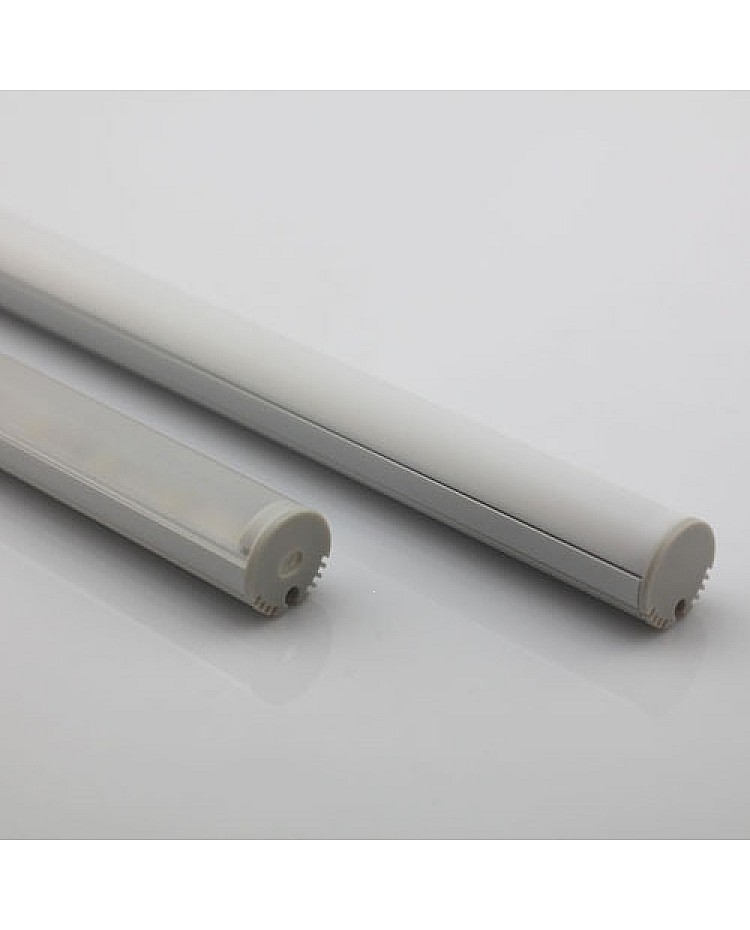

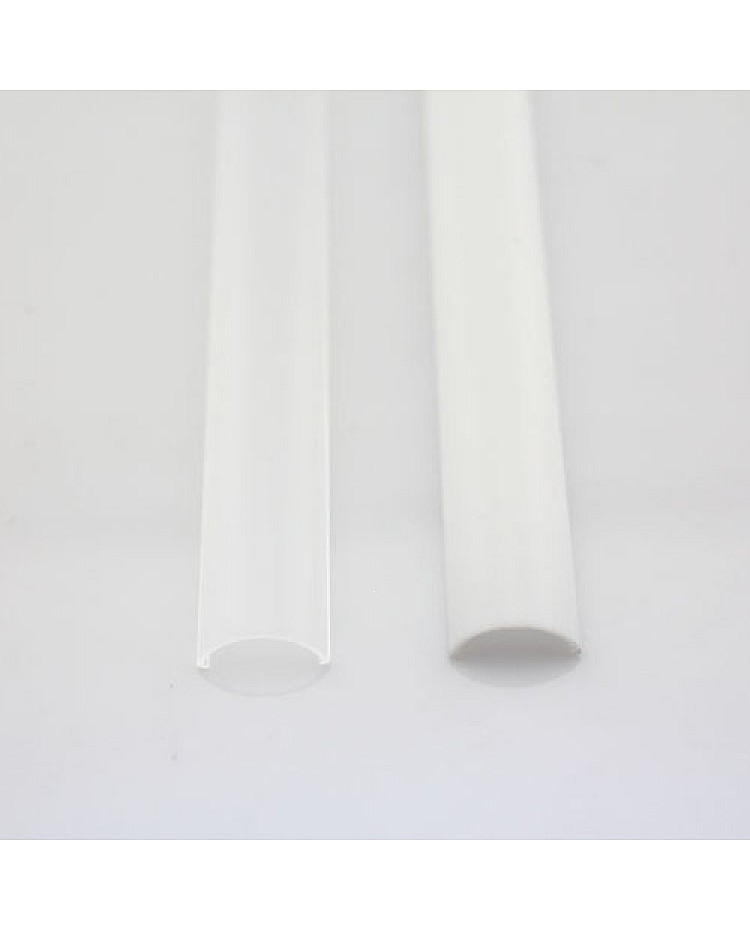

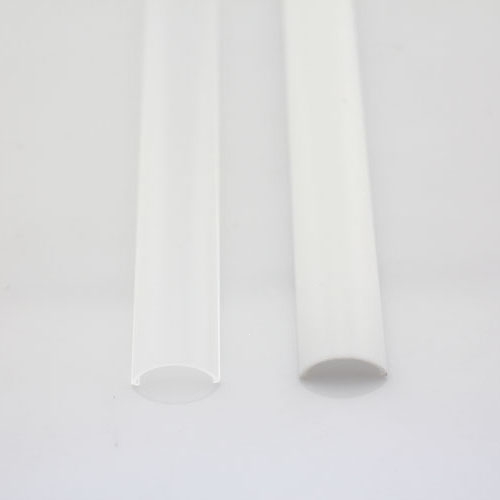

There are four types of diffusers available; you can choose the PC ones or the PMMA series. They are made of brand material, anti-yellowing, and with perfect light distribution. The diffusers have a semi-round shape and a clip-in installation design, which allows for a large lighting area and makes them easy to clip in. They diffuse the light to produce smooth, uniform illumination while reducing glare, enhancing visual comfort in both residential and commercial spaces.

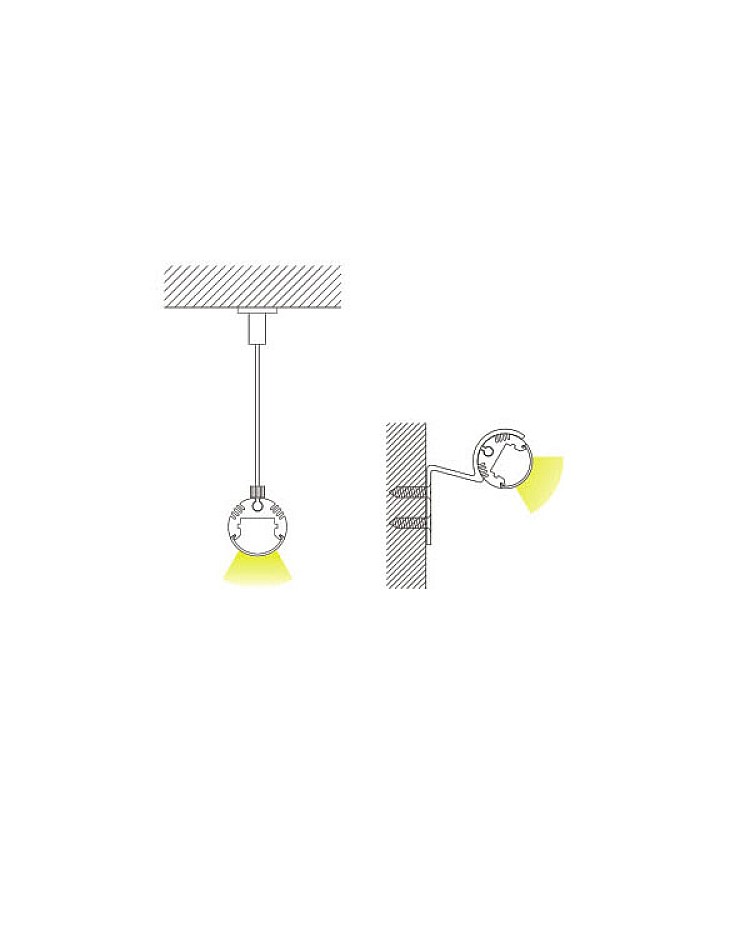

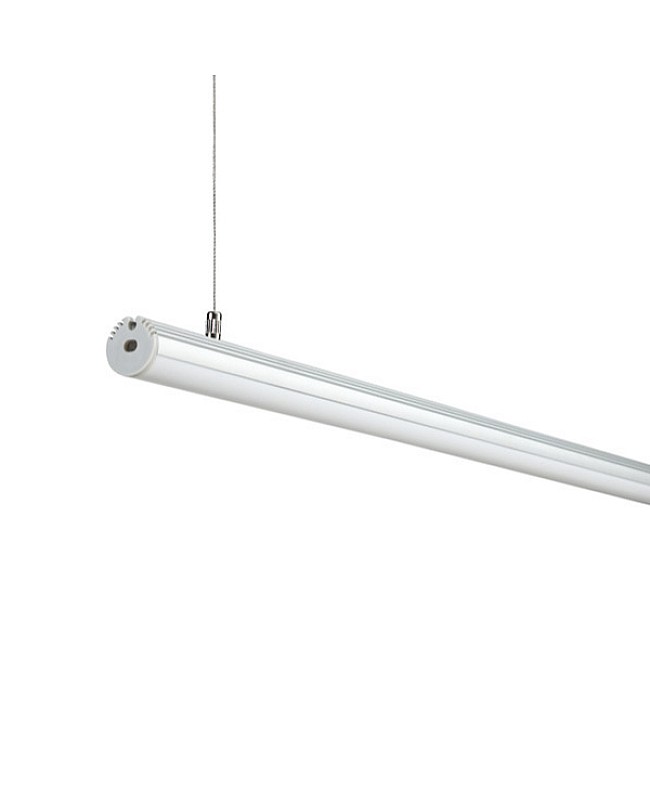

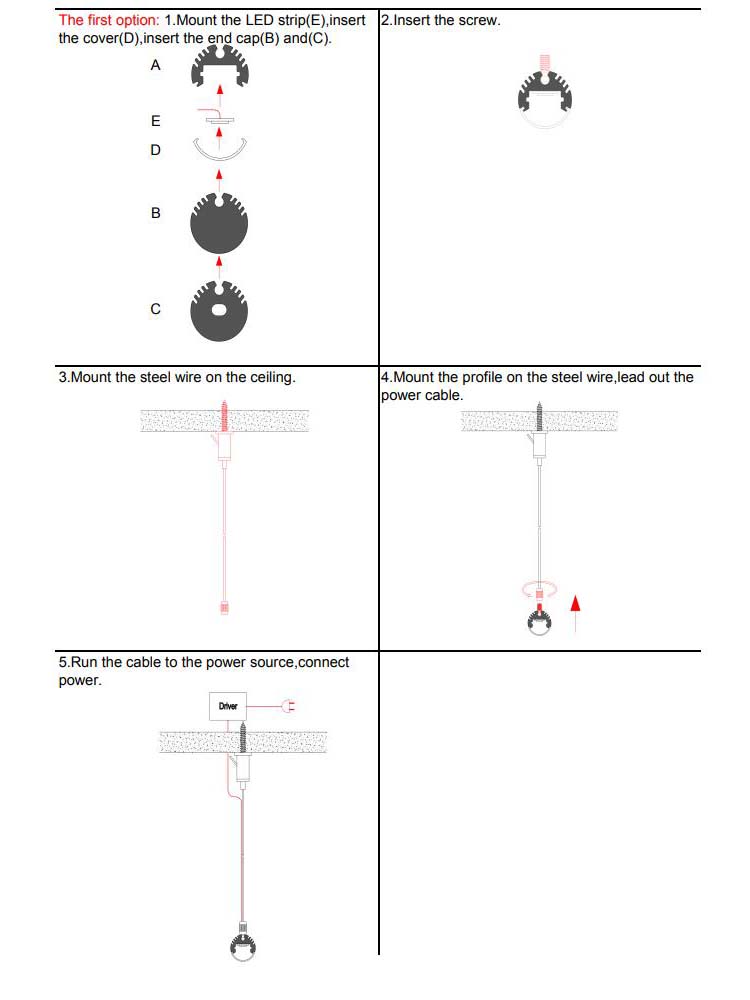

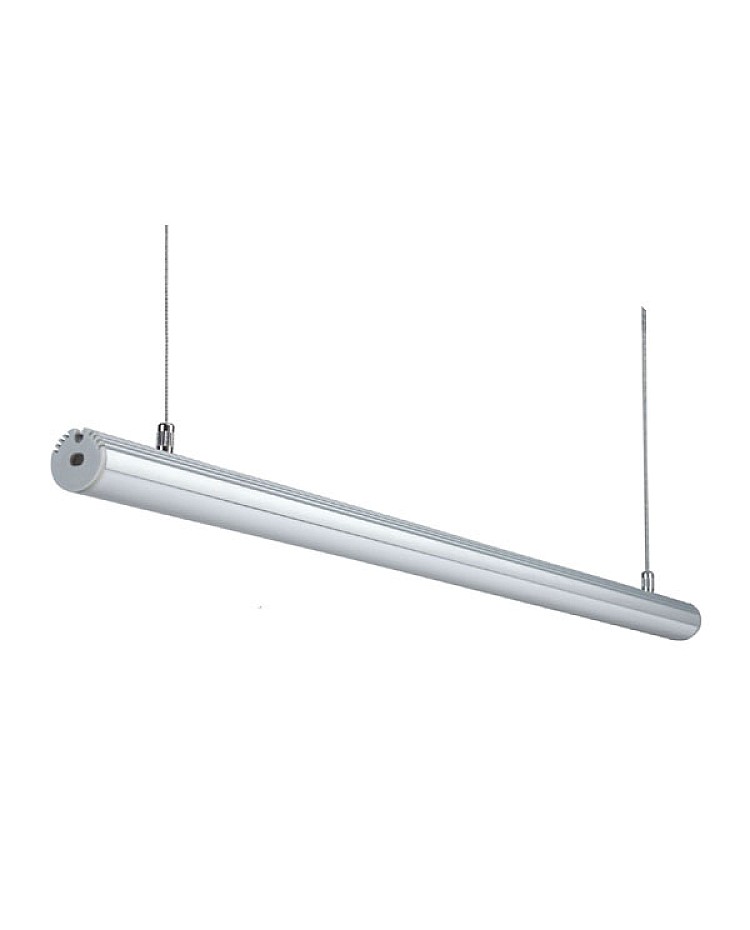

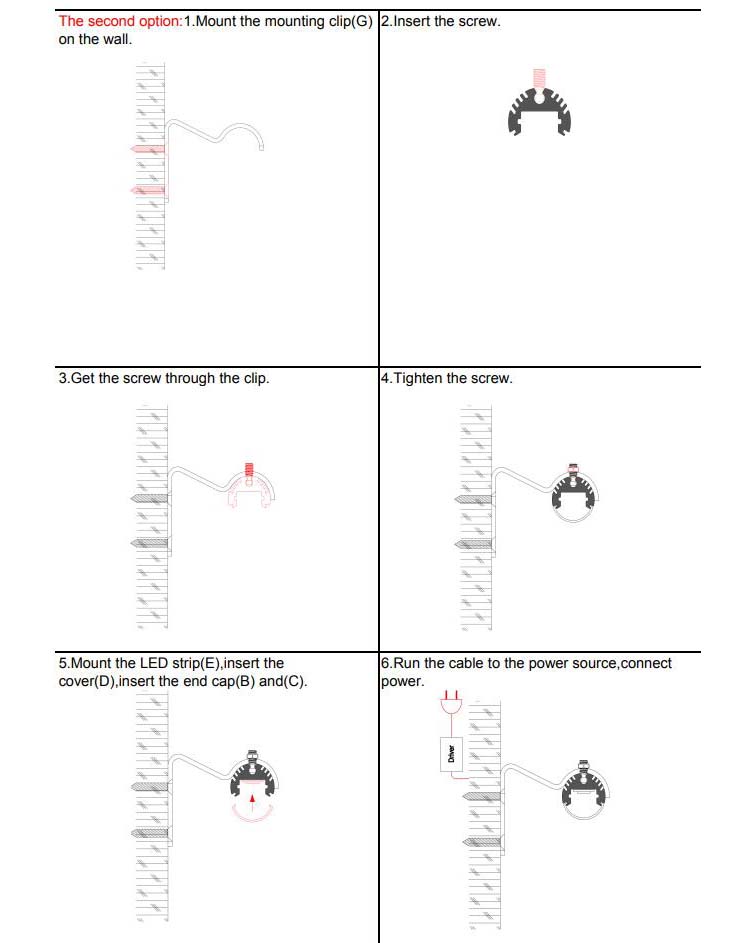

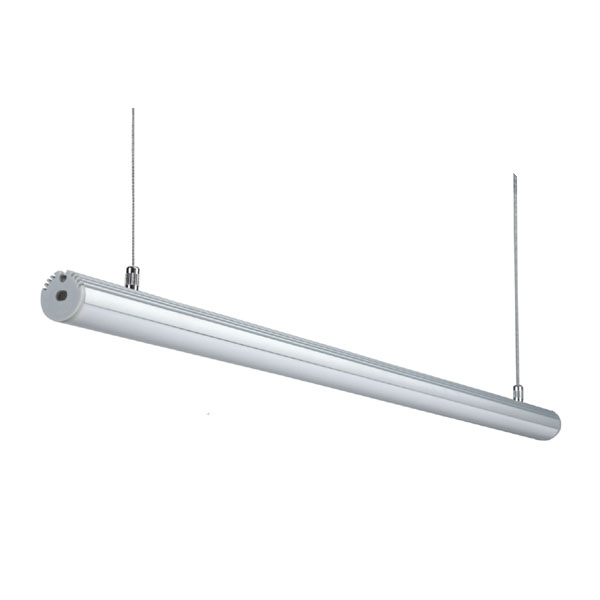

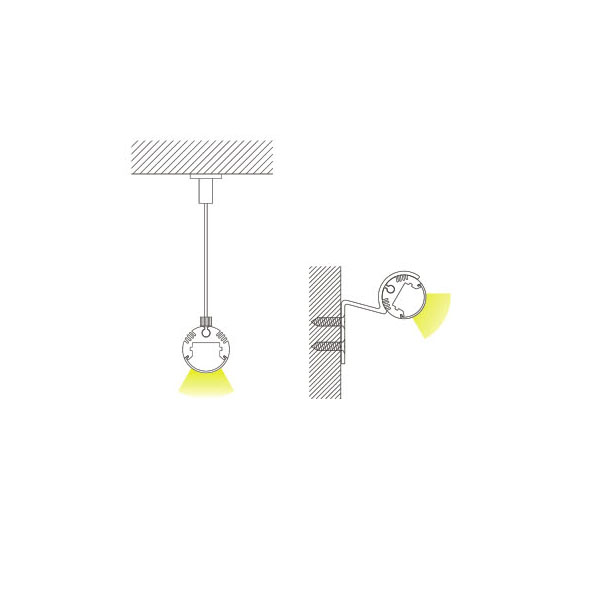

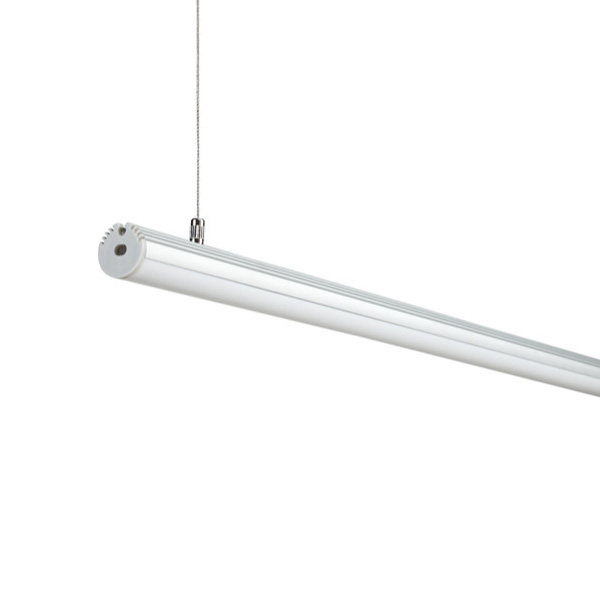

There are two mounting parts available: suspension wire kits and metal mounting clips. You can use the suspension wires to mount on the ceiling and adjust the stainless steel wires' length to achieve a perfect lighting effect. Or you can use the metal mounting clips for surface-mounting.
Specifications:
- Model: ALP008
- Material: (6063-T5) extruded aluminum
- Surface treatment: Anodized or powder-coated
- Color: Silver, white, black

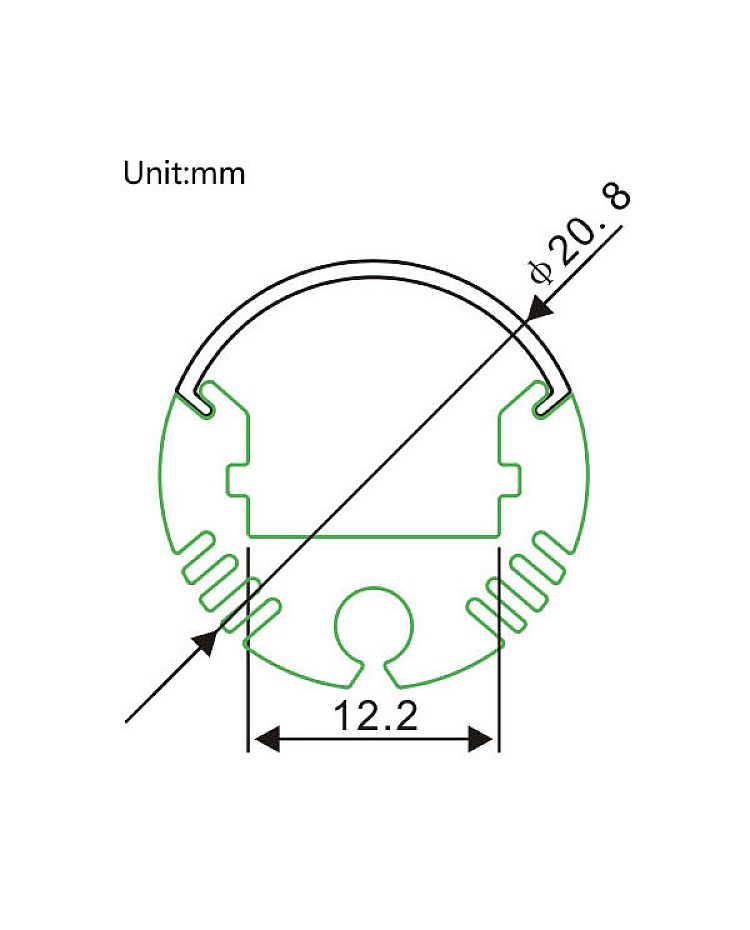

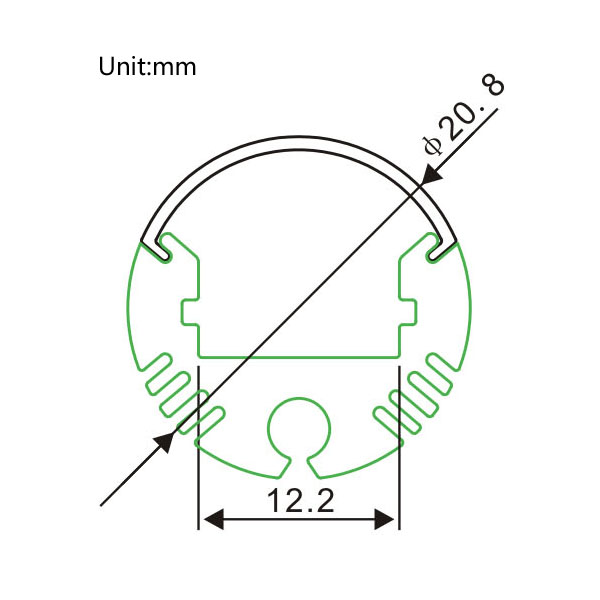

- Size: Φ=20.8mm / 0.82"
- Standard lengths: 1 m, 2 m
- Custom Length Available: YES
- Inner width: 12.2mm/0.48"
- Allows the maximum width of strip lights to be 12mm/0.47"
- Maximum power: ≤15W/m
- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear cover / PC diffused cover
- Installation: Suspended / Surface mounted
- End caps with and without wire holes are included
- Warranty: 5 Years

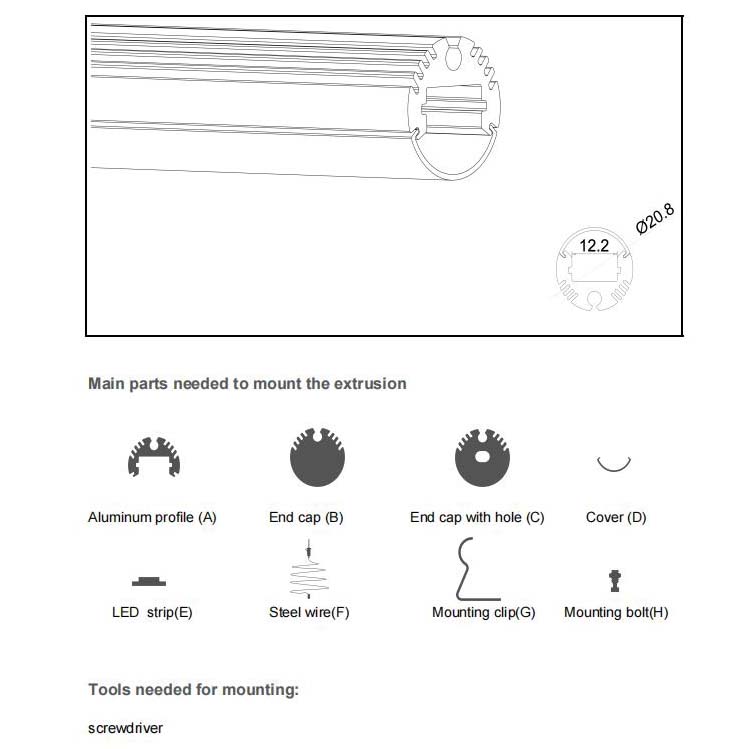

Include:
1*Round LED extrusions with diffusers
End caps (With and without wire holes)
Suspension wire kits or metal clips
