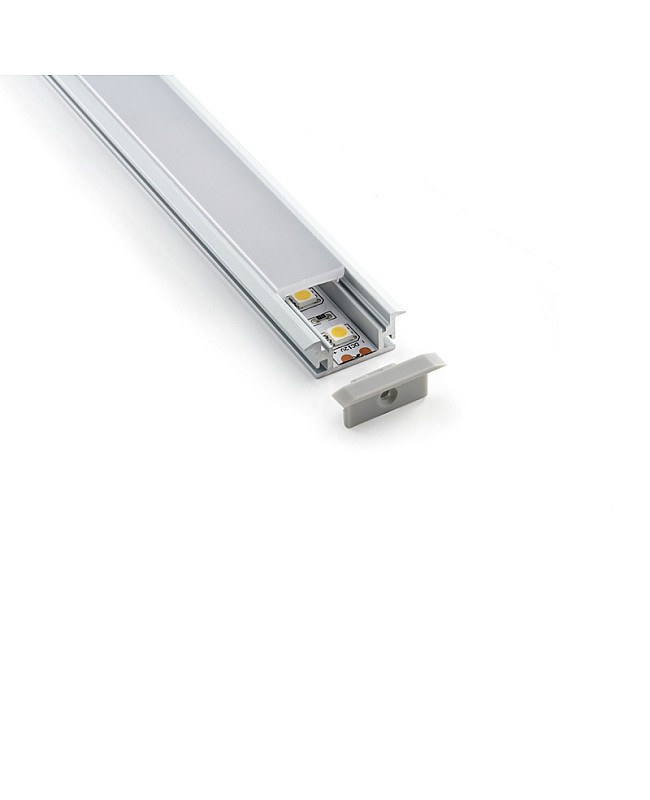

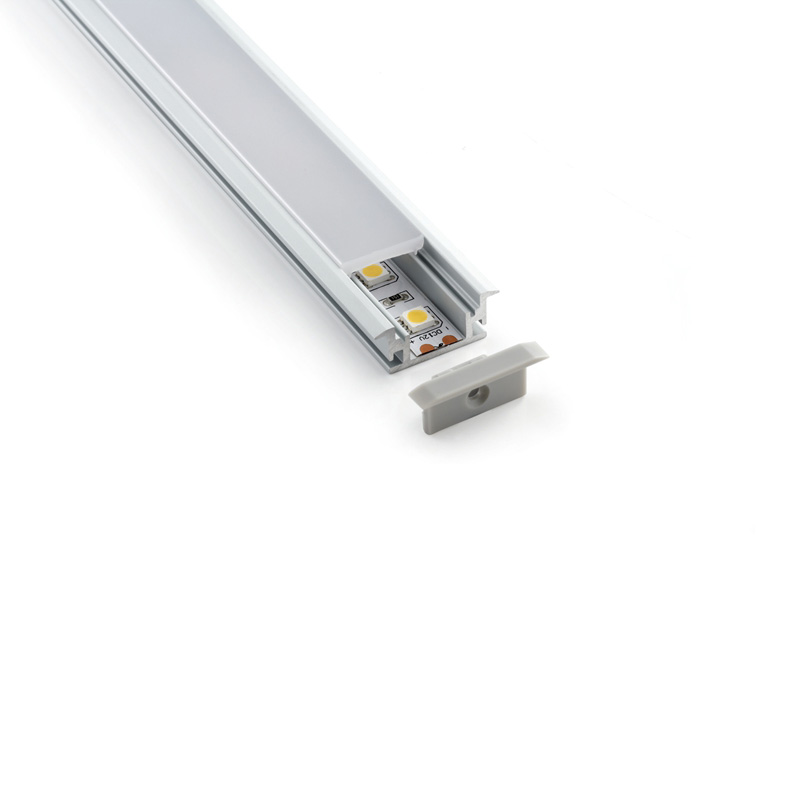

The aluminium LED strip light profiles with 3mm thick PC diffusers are designed to provide durable, low-profile illumination integrated into flooring surfaces. These slim aluminum channels fit snugly into the floor tiles, allowing the light to be dispersed evenly across the surface of the light channels. Ideal for both residential and commercial environments, they will sit flush with flooring materials such as tile, wood, laminate, and carpet. You can use them to create illuminated walkways, staircase edging, hallway guides, or ambient lighting. The 3mm thick PC diffusers not only soften the LED light to produce a uniform glow but also have sufficient durability to withstand stepping on. The recessed LED profiles are crafted from extruded aluminum and feature an anodized finish, which provides a longer lifespan. Additionally, they can serve as heat sinks to improve heat dissipation. The stock lengths are 1 m and 2 m, and can be cut to any length to meet your needs. We accept custom lengths. The inner width is 12.2 mm, allowing for a maximum strip light width of 12 mm. You can add our 10mm high-density COB strip lights for interior applications or 8mm IP67 waterproof LED strips for outdoor use. They will deliver uniform lighting without hotspots. End caps with and without wire holes are included.

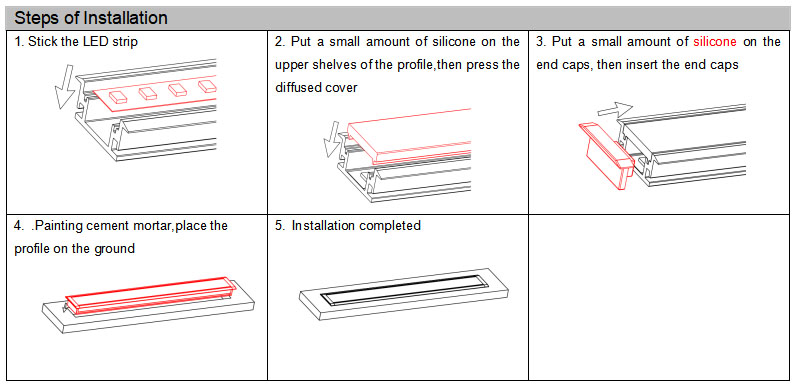

Note: For optimal waterproofing performance, use silicone glue to seal the PC diffusers and end caps.
Specifications:

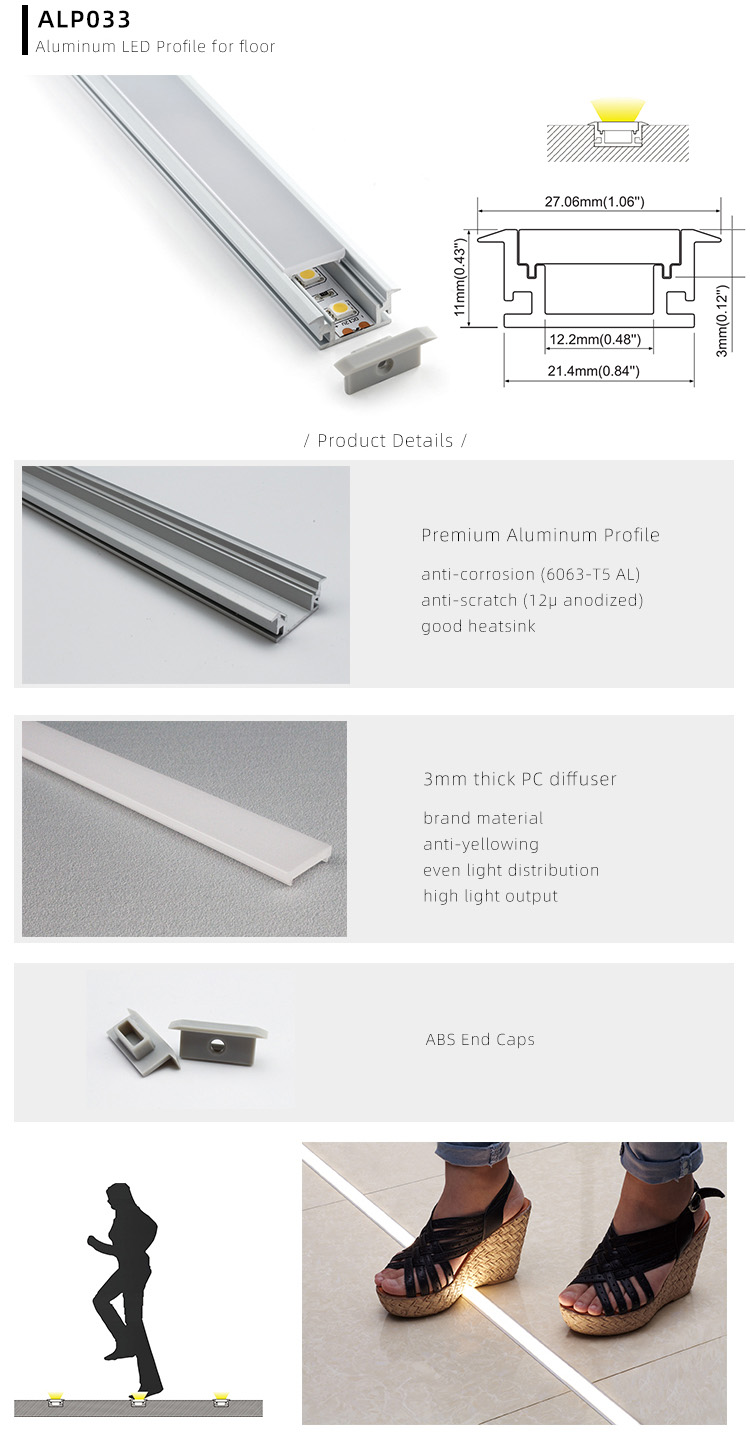

- Model: ALP033
- Material: Extruded aluminium 6063-T5
- Surface treatment: Anodized
- Color: Silver

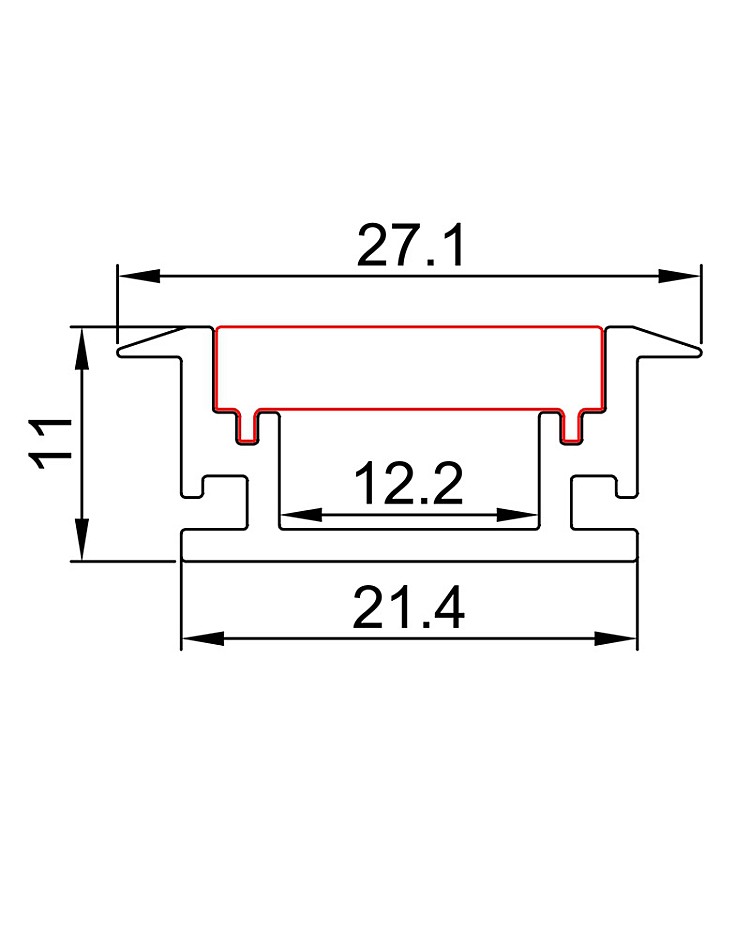

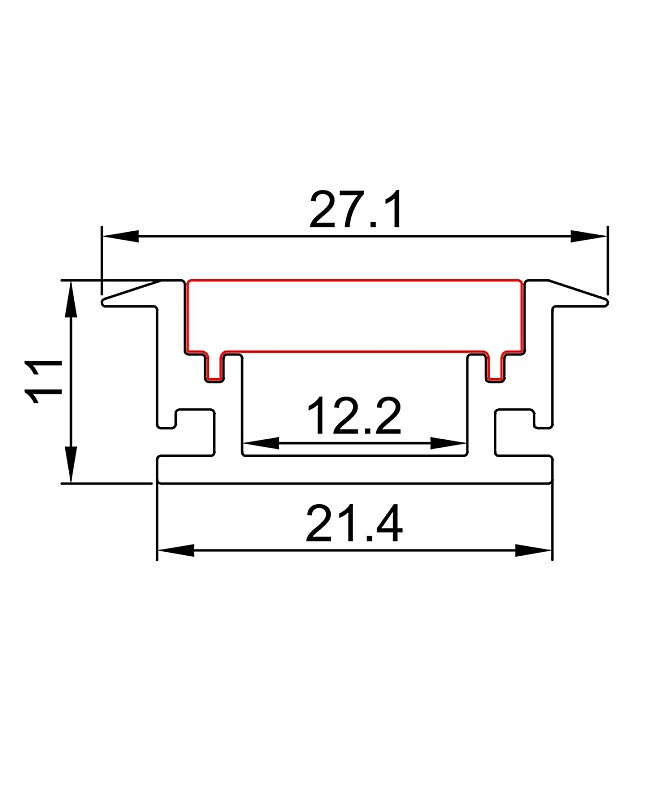

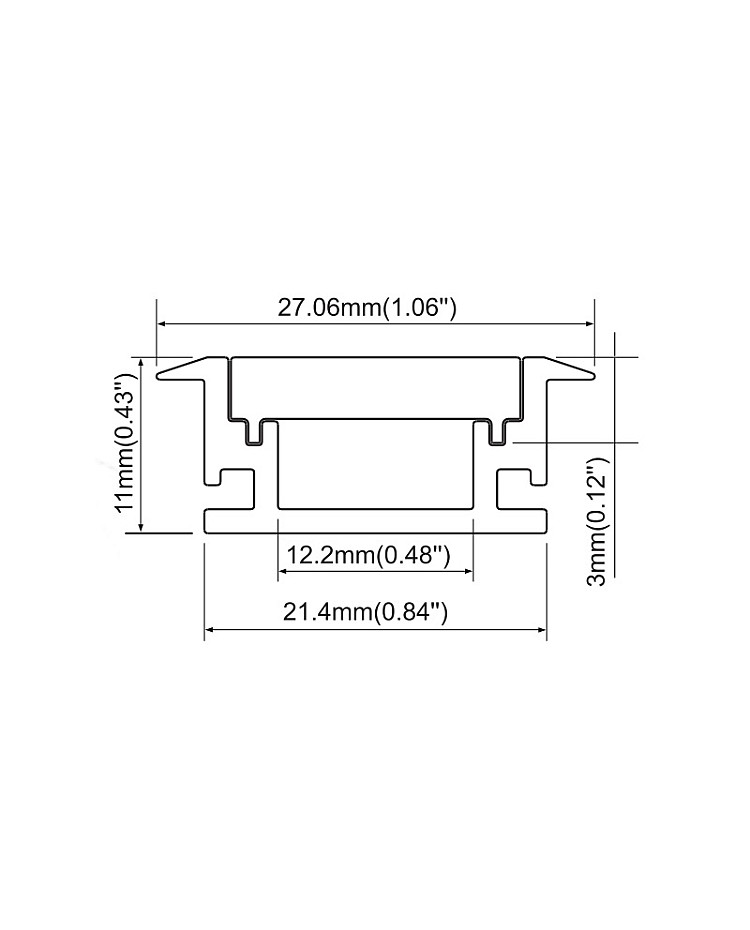

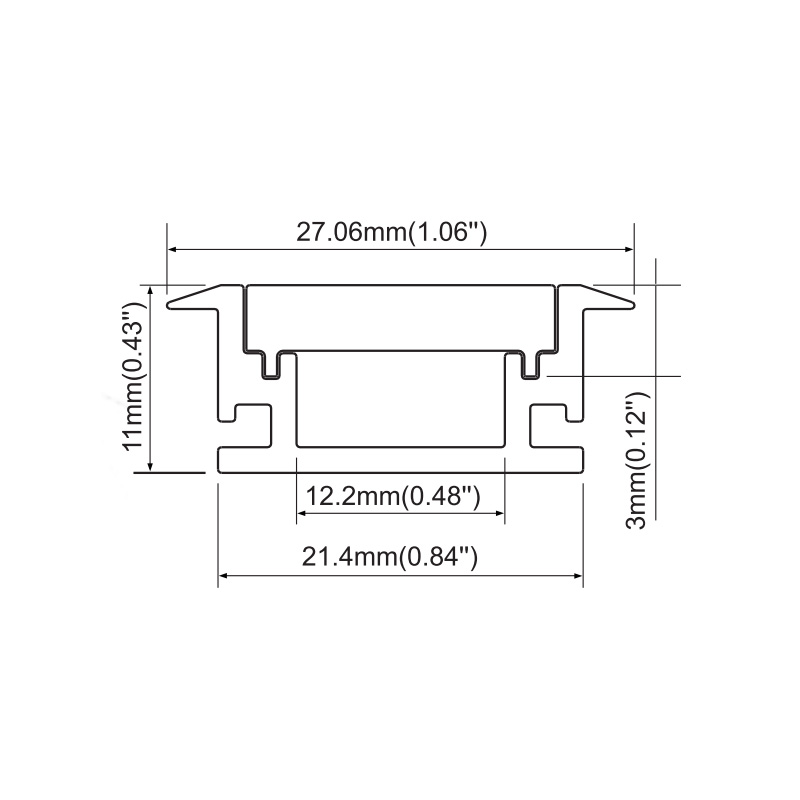

- Size ( W x H): 27.06 mm x 11 mm ( 1.06" x 0.43" )
- Lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Cover: 3 mm thick PC diffuser cover
- Inner width: 12.2 mm ( 0.48" )
- Max width of LED strips: 12 mm ( 0.47" )
- Max power: 15W/m
- Beam angle: 100°
- IP rating: IP65 waterproof
- Installation: Recessed

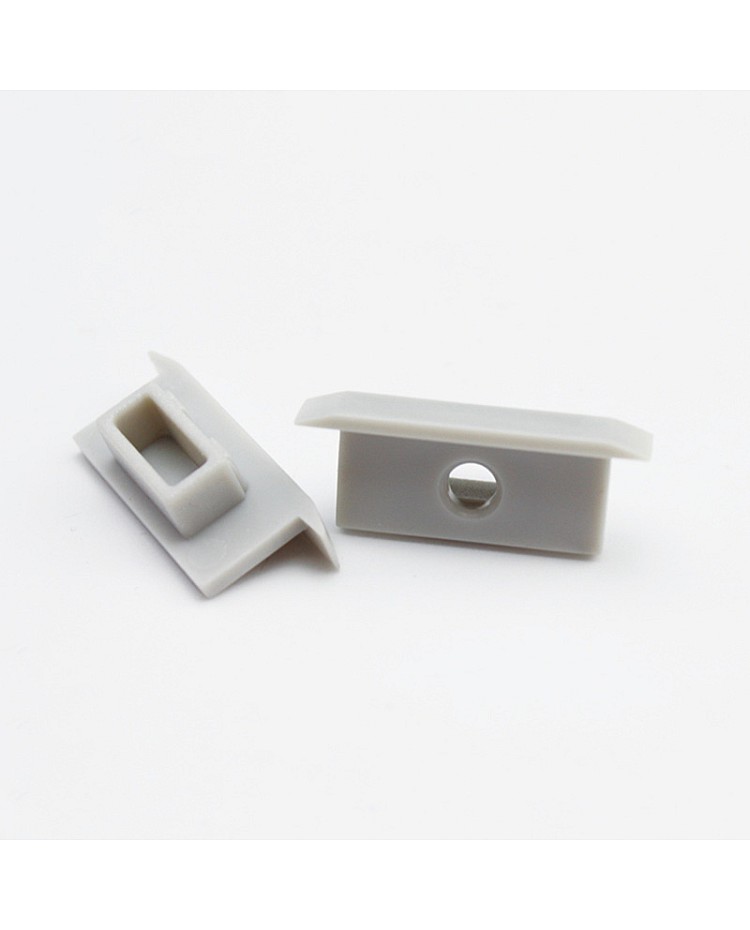

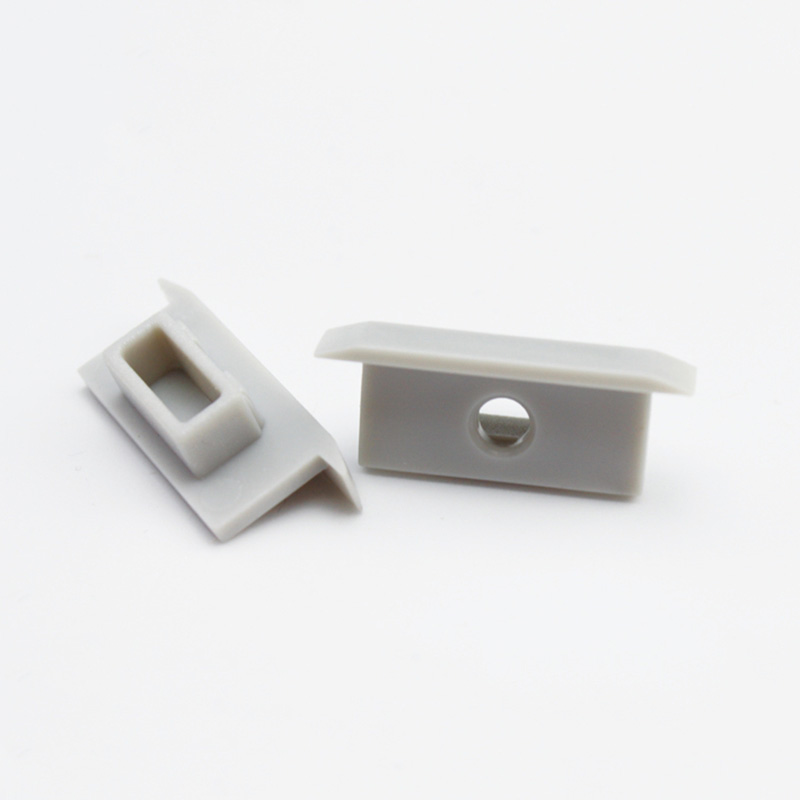

- ABS end caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

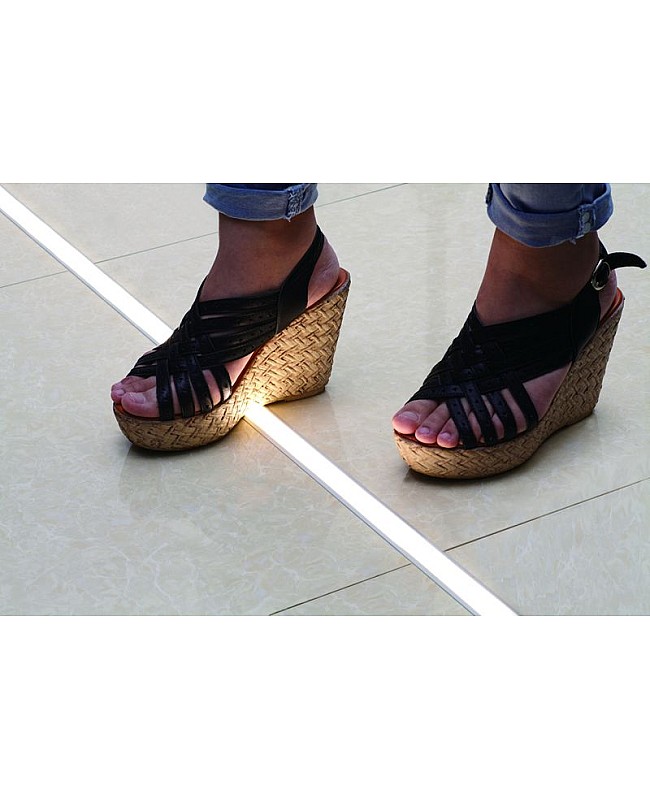

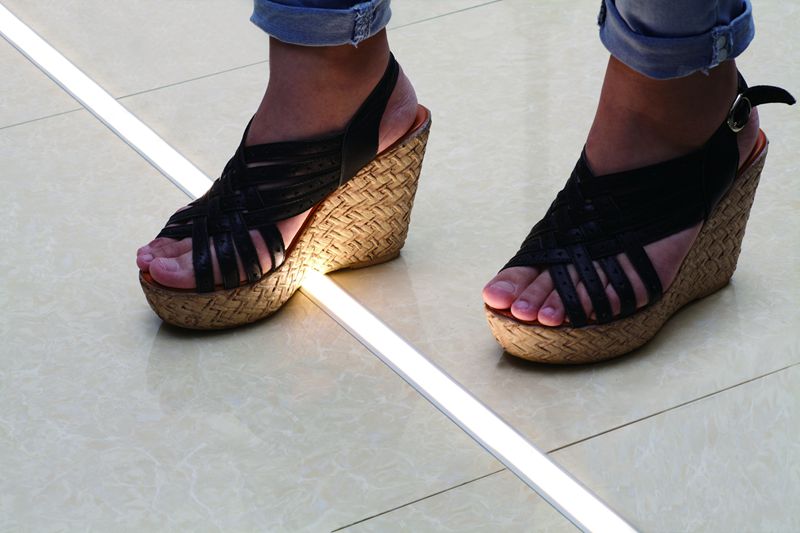

- Indoor floor accent lighting
- Illuminated floor pathways
- Edge lighting for stairs or platforms
- Safety lighting in theaters, cinemas, or public buildings
Includes:
1 * Low profile recessed lighting profile with diffuser
End caps(With/without wire hole)
