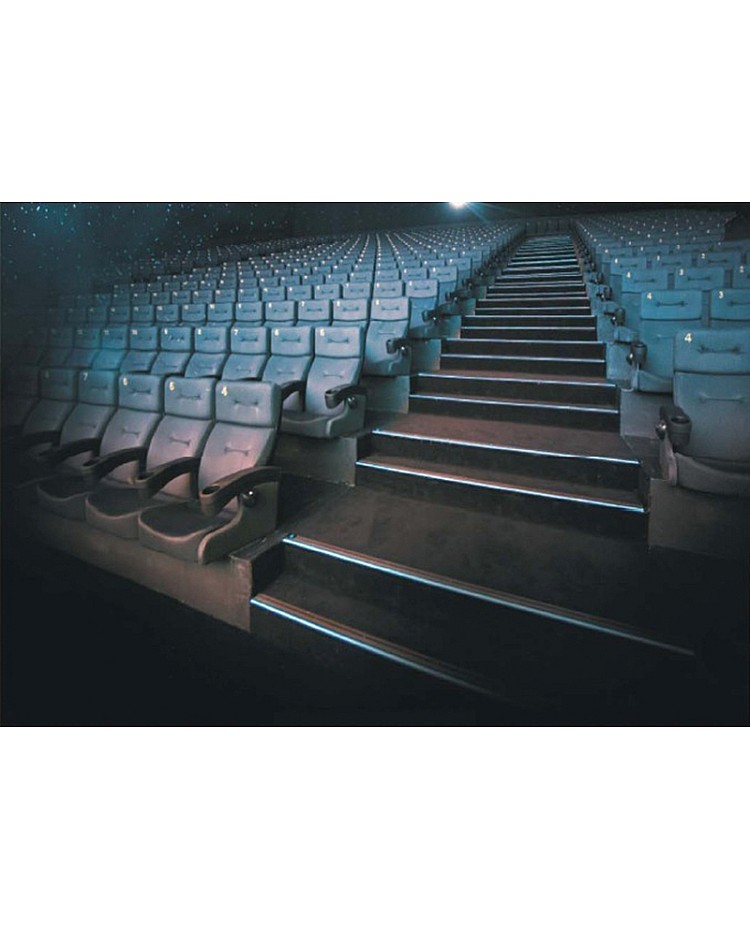

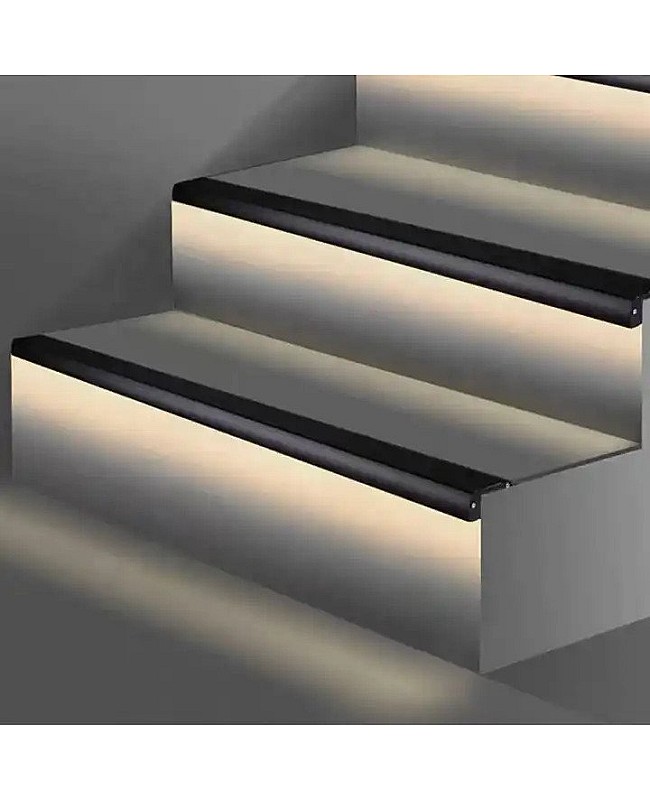

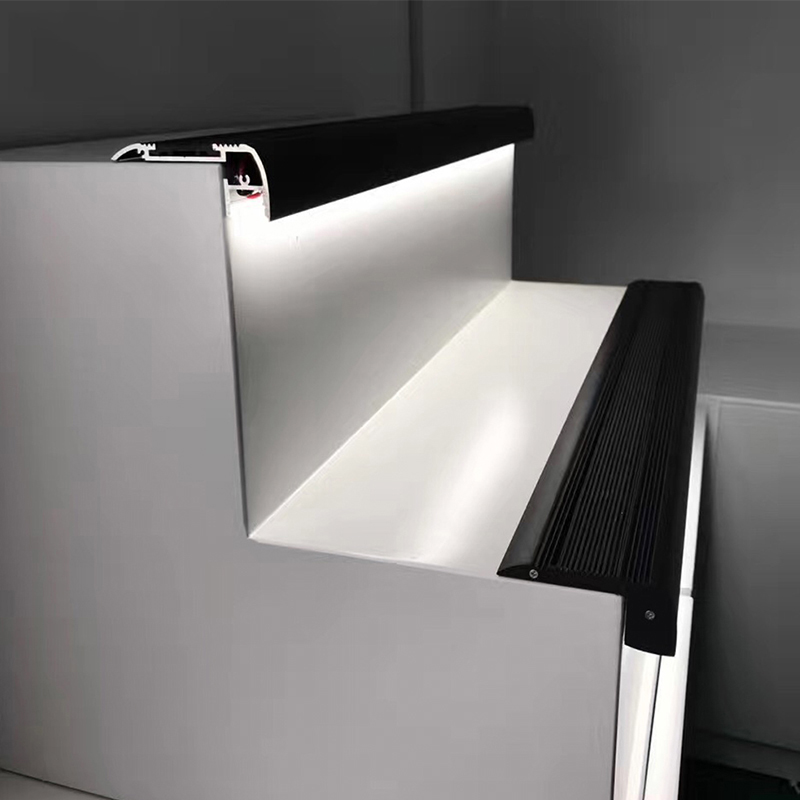

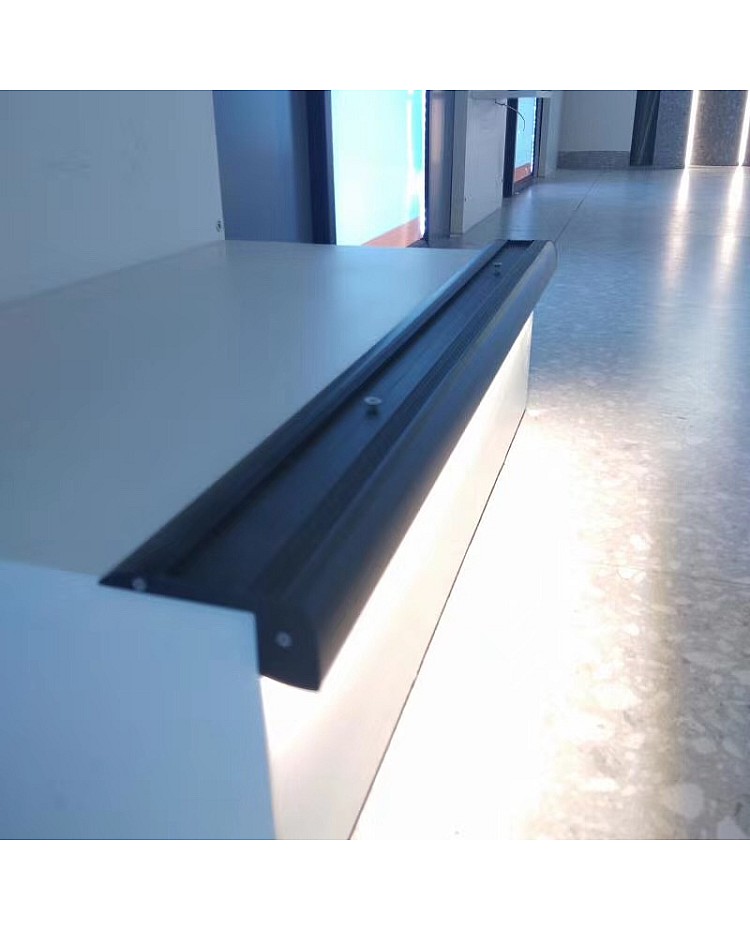

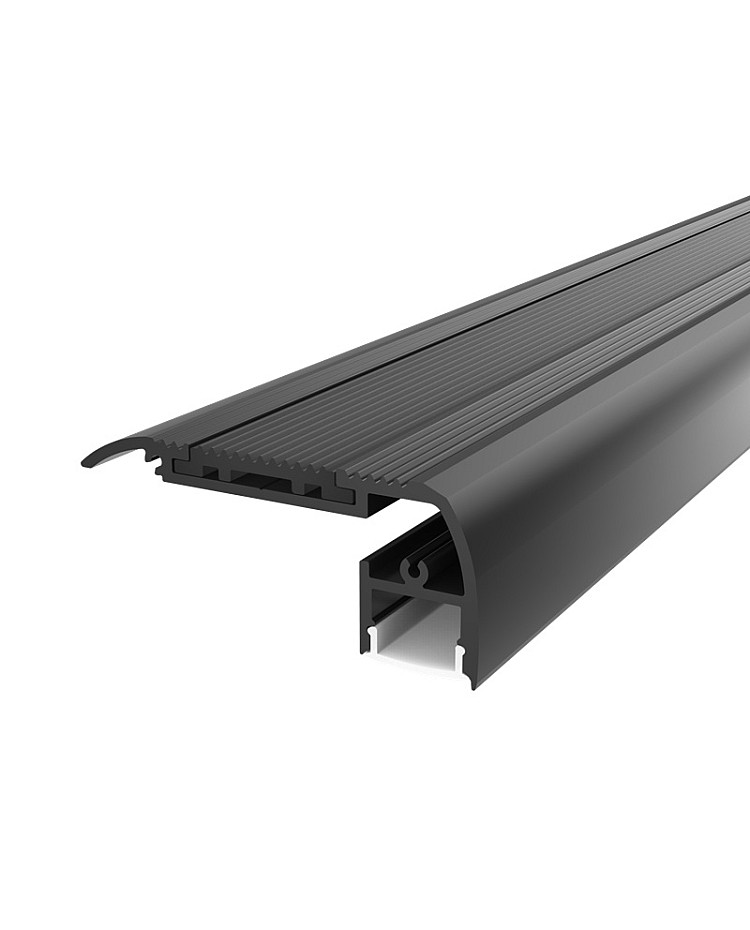

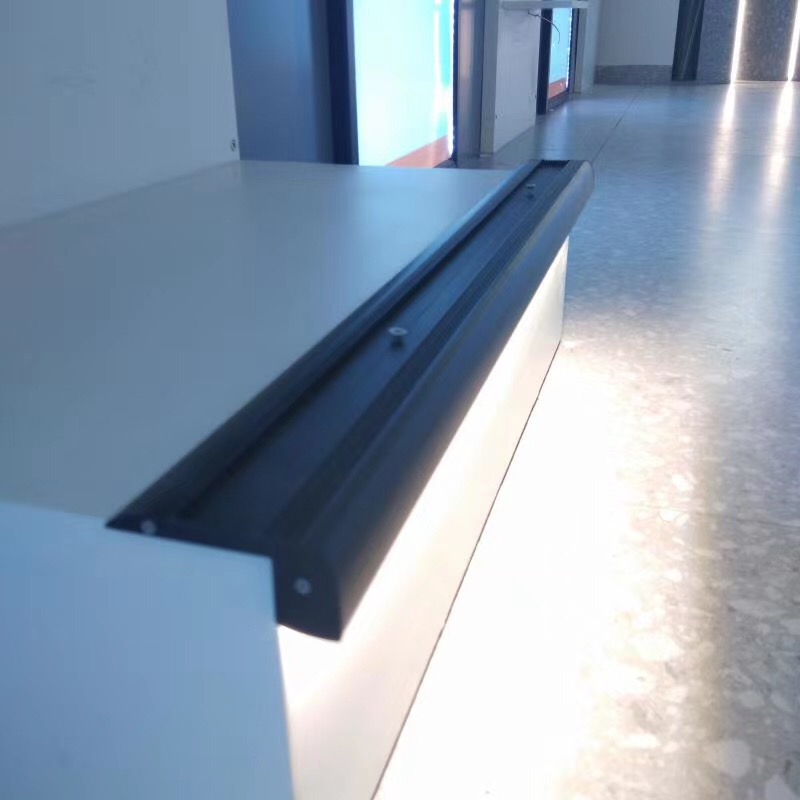

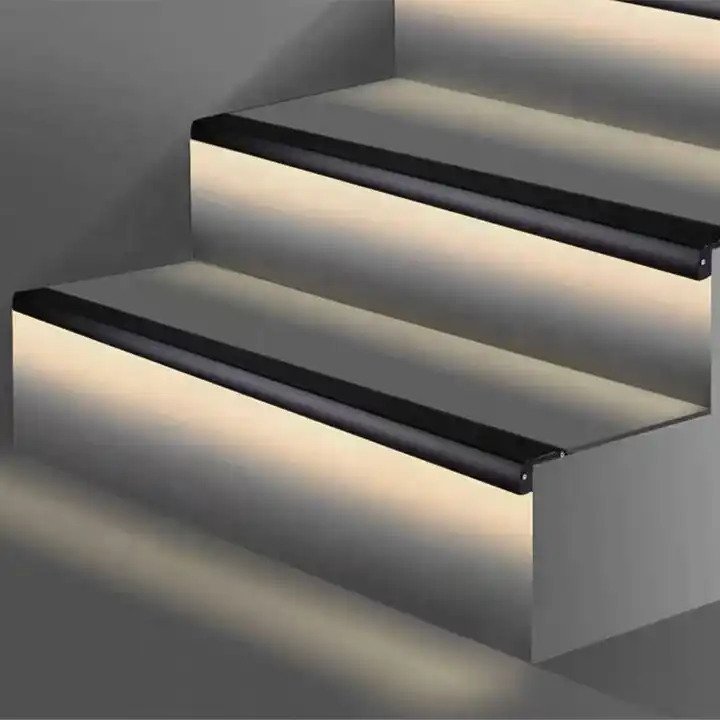

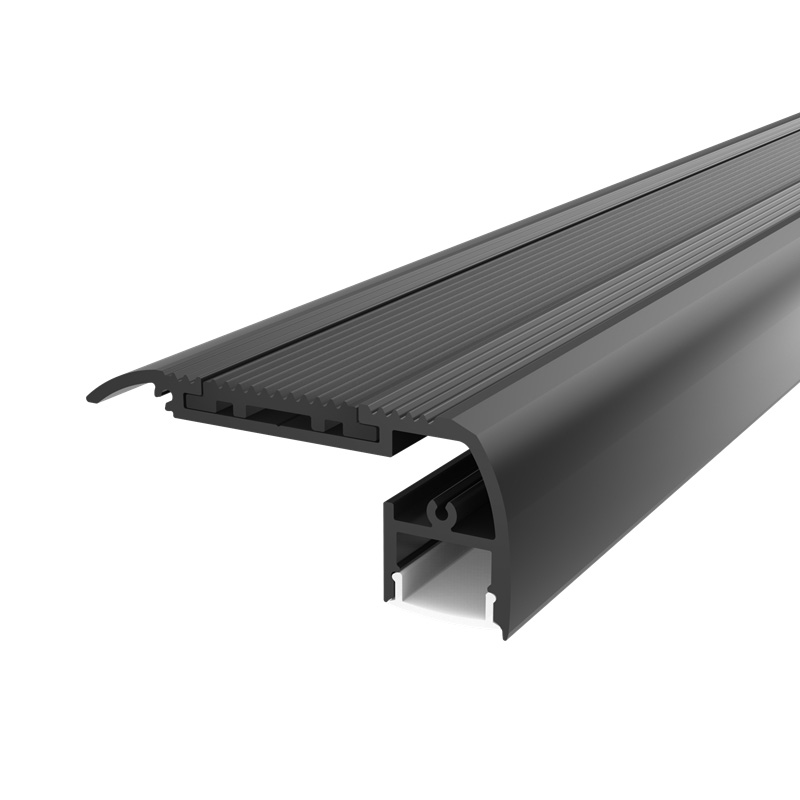

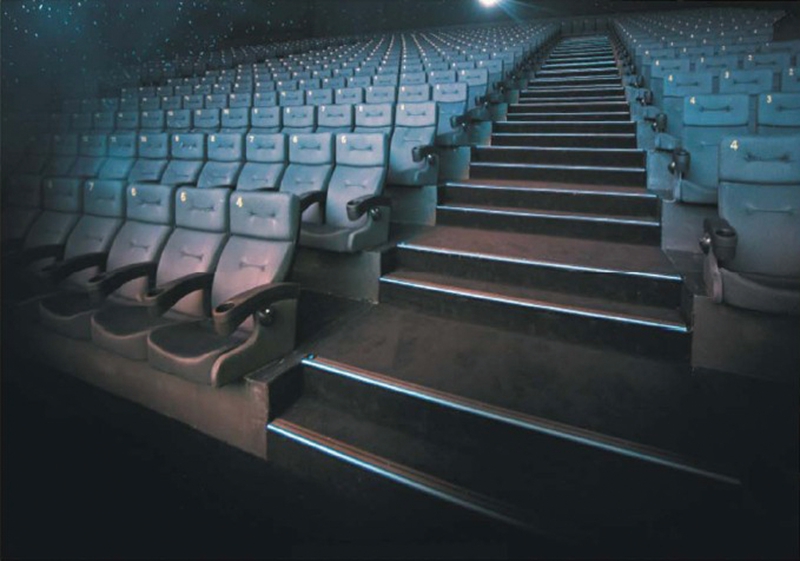

The black aluminum LED channels are purpose-built for step lighting applications. Combining rugged aluminum construction with an anti-skid surface, they deliver safety and style in one sleek profile. Mounted along stair edges with downward-facing light, they cast a soft, glare-free glow across each step to improve visibility. Rated for both indoor and outdoor use, they're the perfect fit for cinemas, hotels, theaters, lobbies, residential staircases, and exterior steps.
Extruded from quality aluminum with an anodized finish, it resists oxidation for a longer service life. The stair edge light channels can serve as heat sinks to keep your LED strips cool and stable for an extended lifespan. The standard lengths are 1 m and 2 m and can be cut to fit any stair run.
Choose from the PC and PMMA series diffusers, crafted from high-quality, brand materials with anti-yellowing properties and a range of light transmittances to fine-tune your look.
The inner width is 13.3 mm, allowing a maximum LED strip width of 13 mm. For the smoothest result, use our high-density COB LED strips to achieve uniform, dot-free illumination. For exterior steps, please add our IP67 waterproof LED strips.
Specifications:

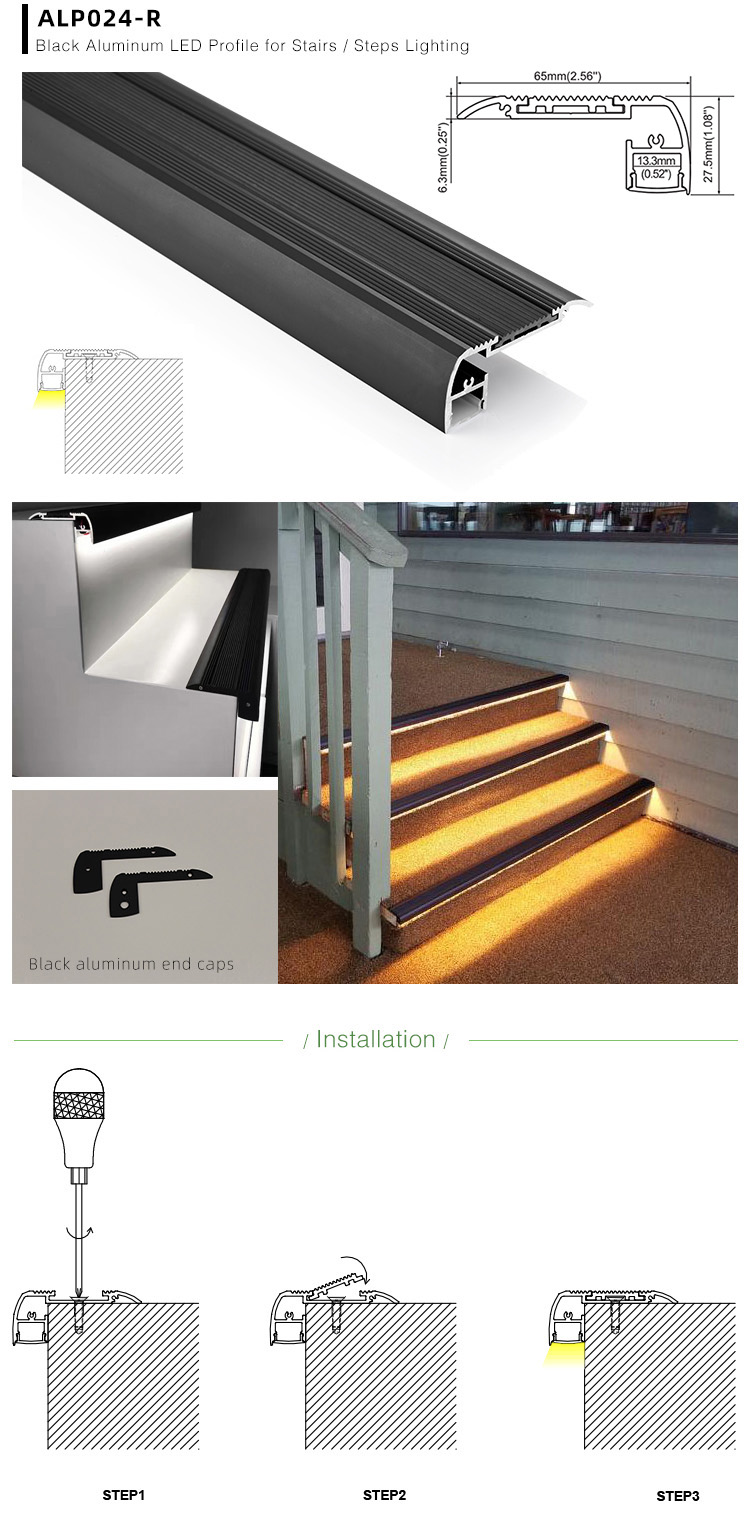

- Model: ALP024-R
- Material: Extruded aluminum
- Surface finish: Anodized

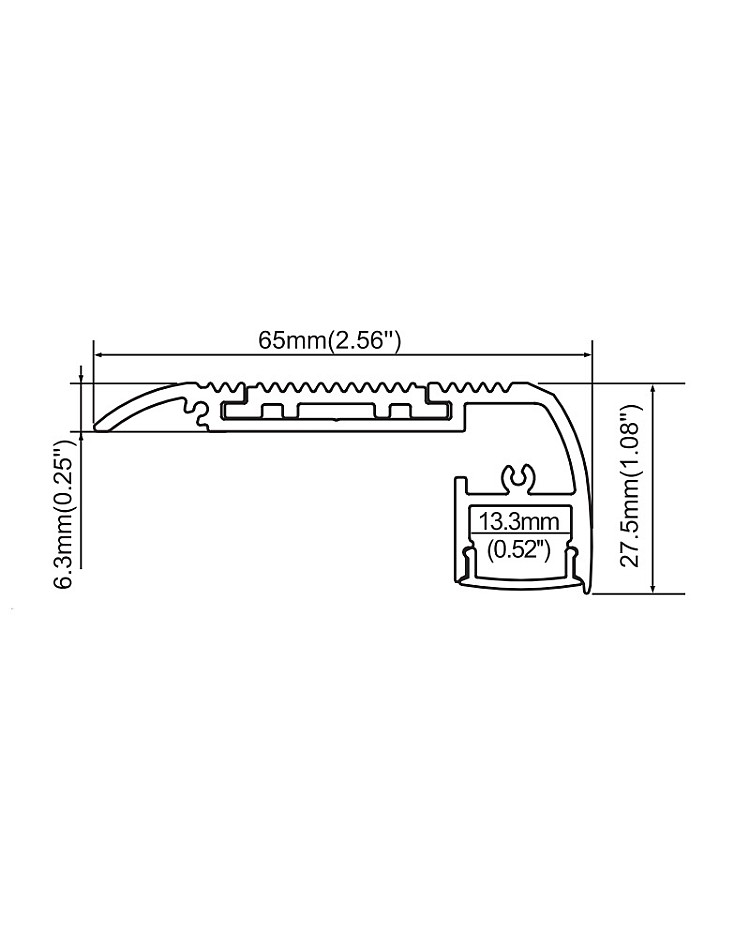

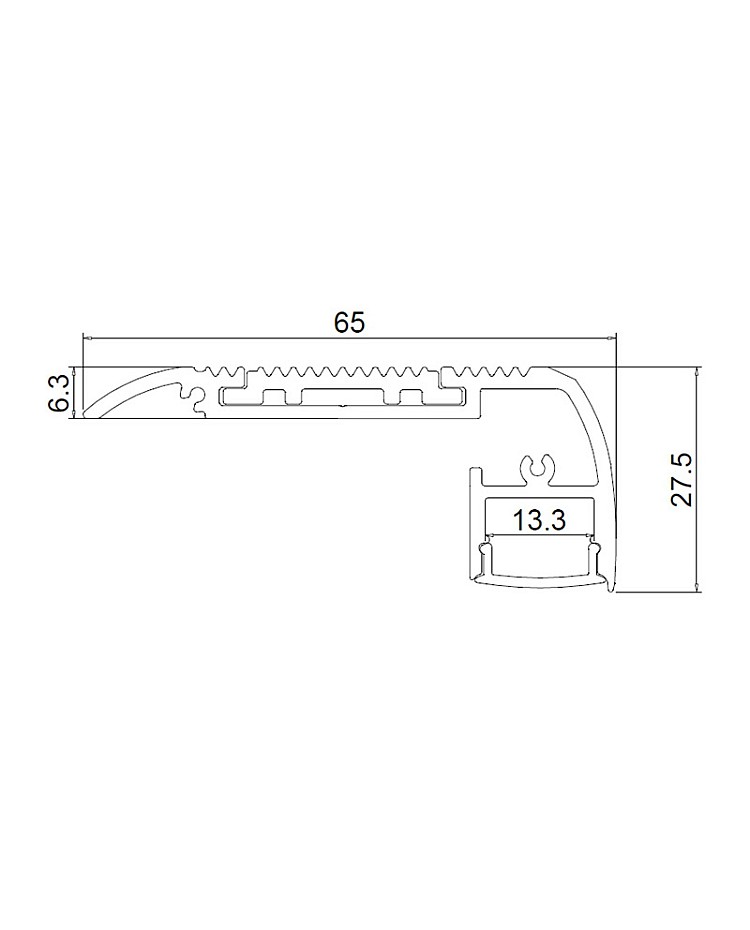

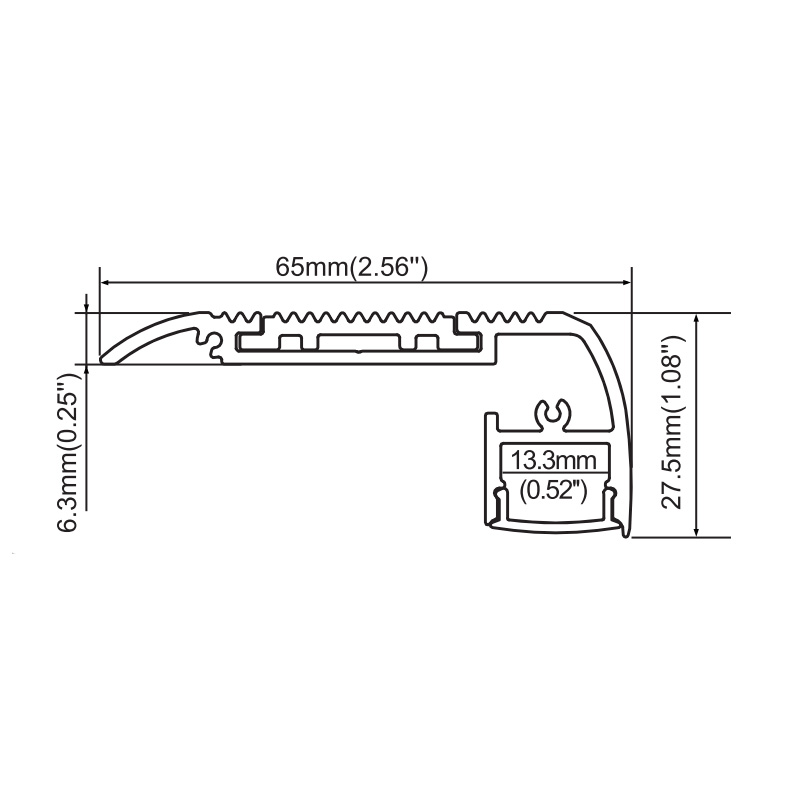

- Size (Width x Height ): 65 mm x 27.5 mm ( 2.56" x 1.08" )
- Colors: Black, silver
- Standard lengths: 1 m ( 39" ) , 2 m ( 78" )
- Custom length available: YES
- Inner width: 13.3 mm ( 0.52" )
- Maximum LED strip width: 12 mm ( 0.47" )
- Max power: 18W/m
- Diffusers: PC diffused cover, PC semi-clear cover, PC clear cover, PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover,

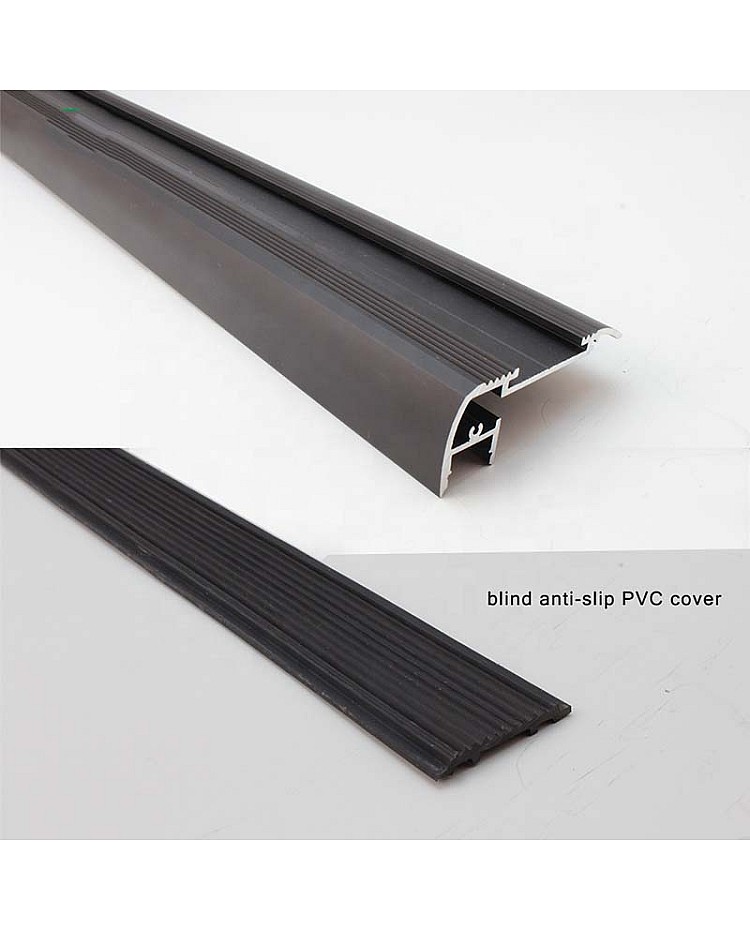

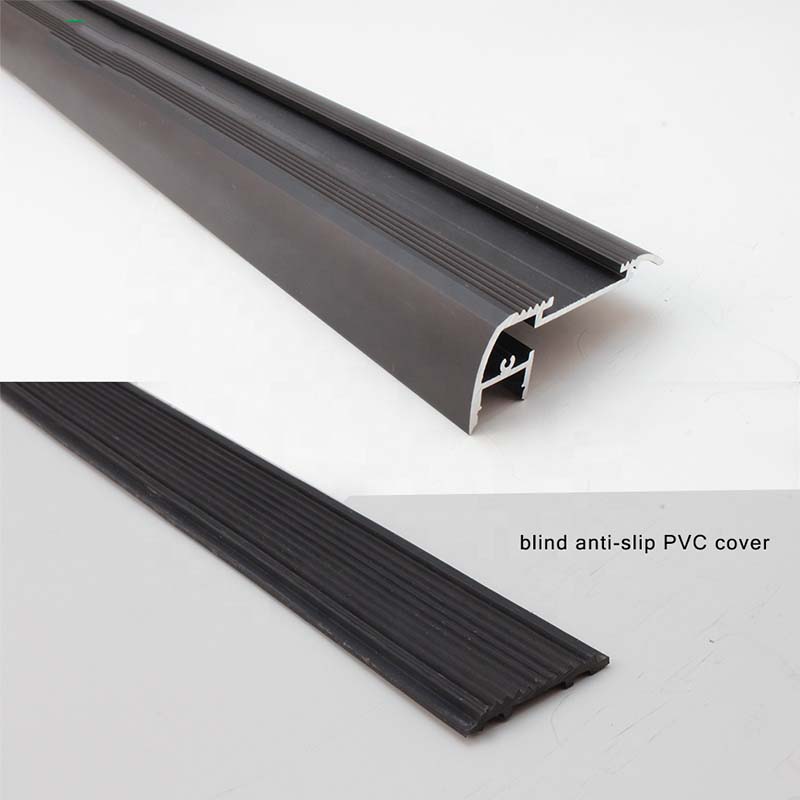

- Anti-skid PVC covers are included

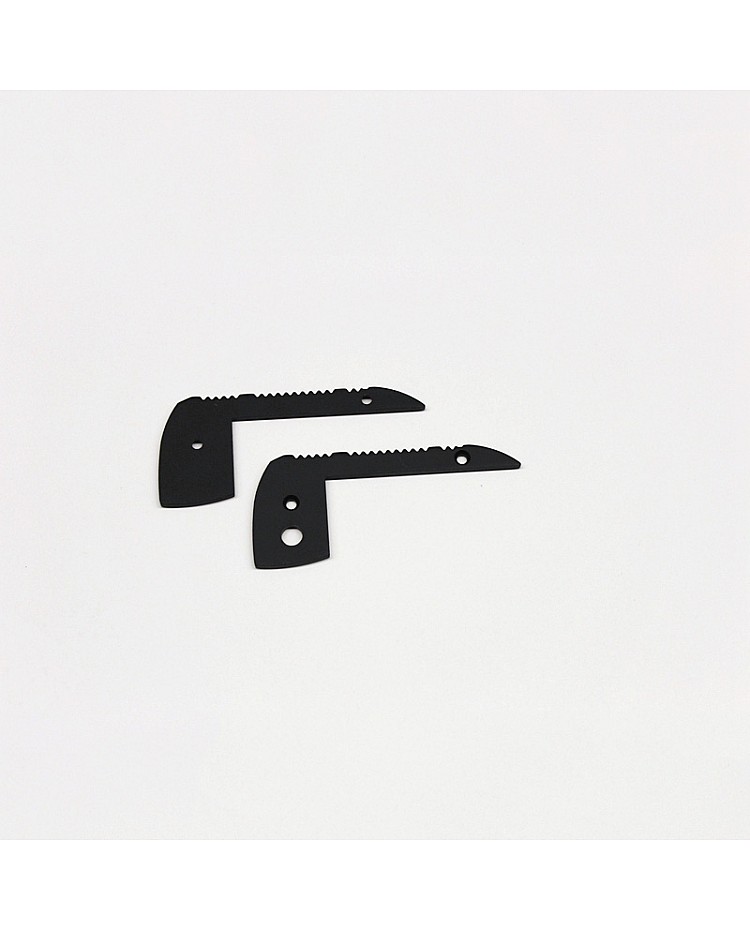

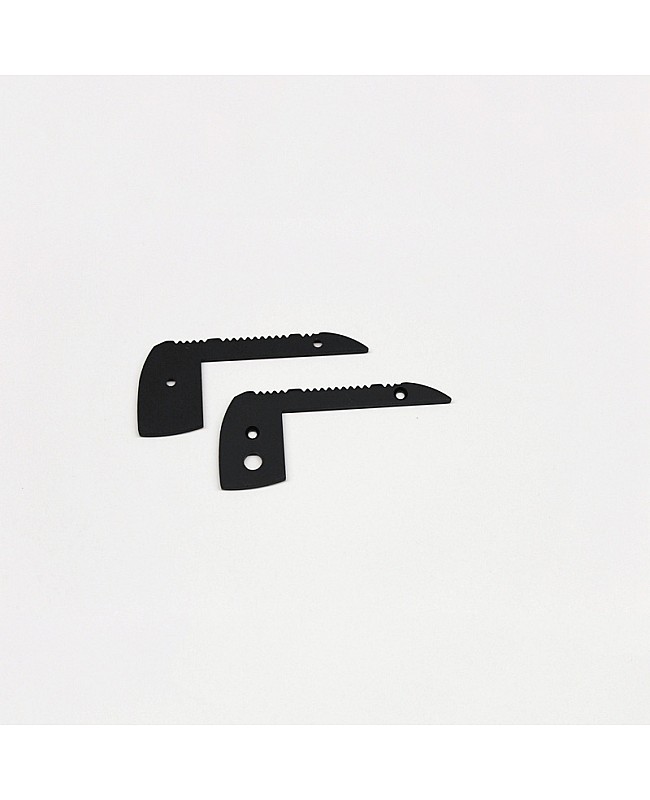

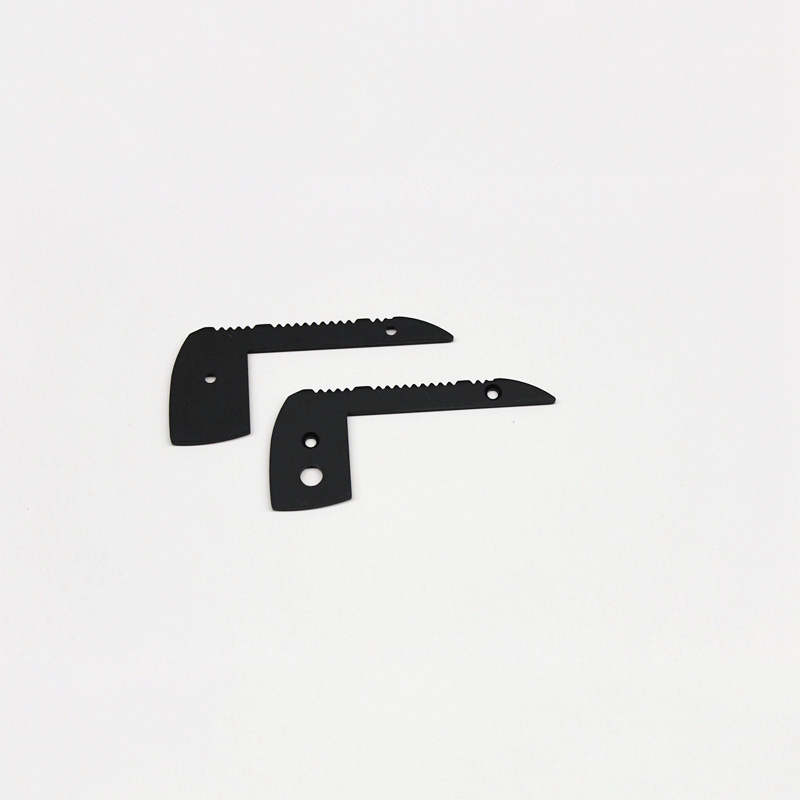

- End caps with and without wire holes are included

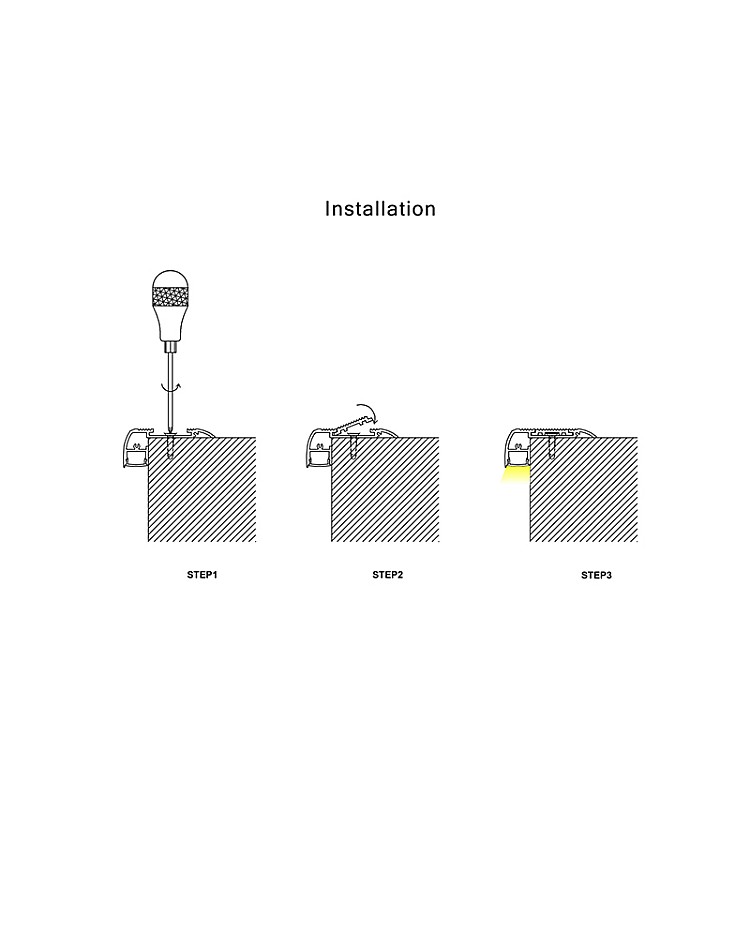

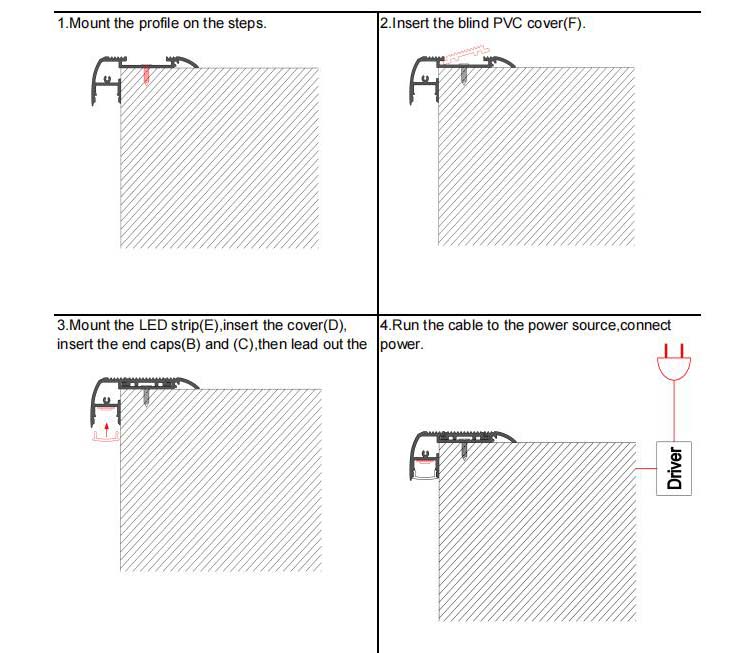

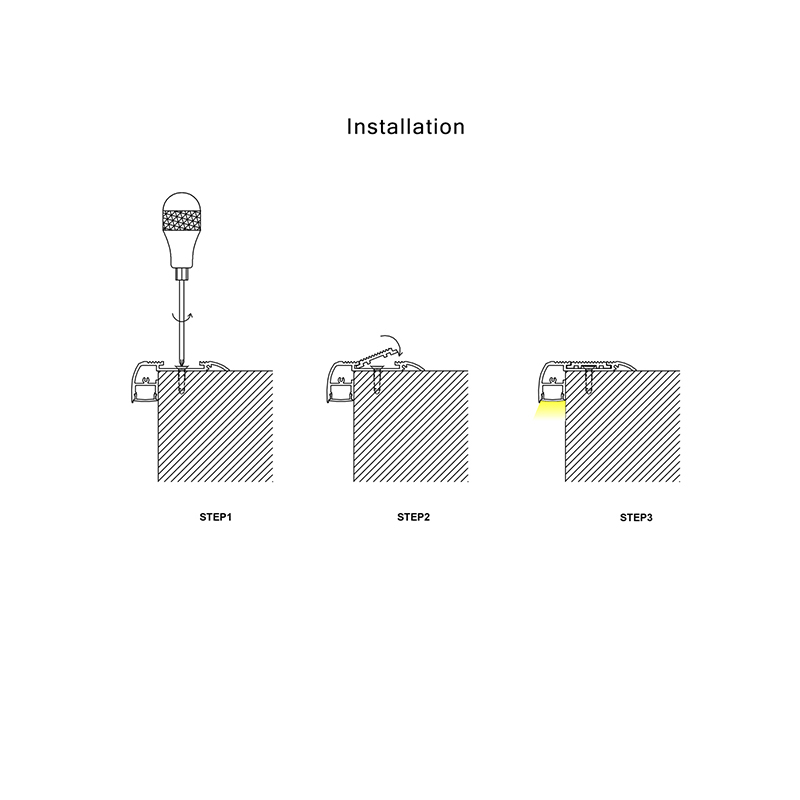

- Installation: Surface-mounted
- Warranty: 5 years

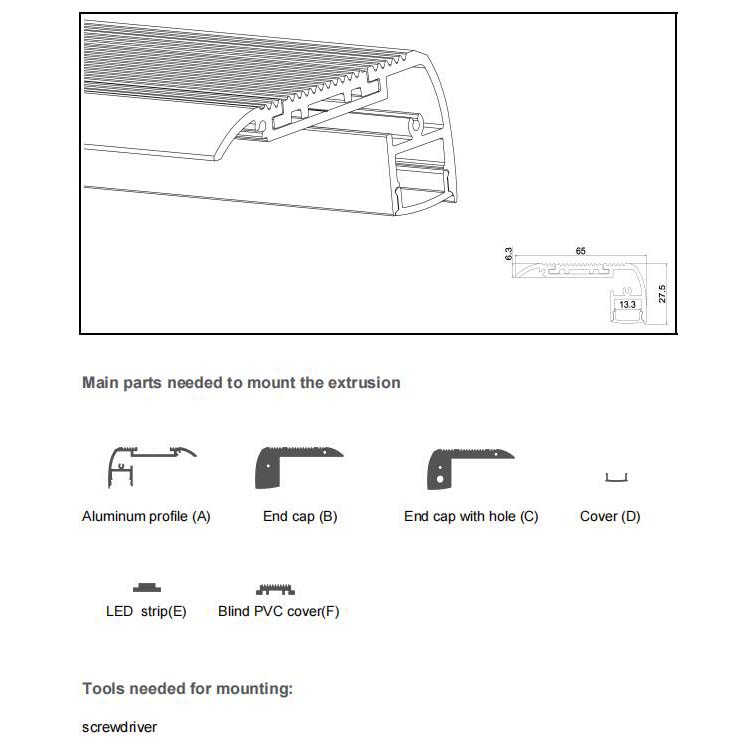

Includes:
1 * Black step lighting LED channel with diffuser
End caps(With/without wire hole)
PVC anti-skid cover
