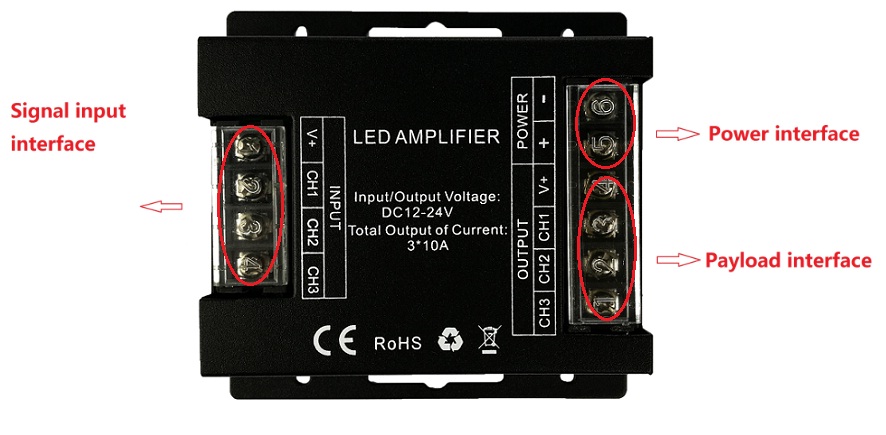

Check the RGB LED Amplifier, which can compatible with all our RGB LED Controller, adopts the PWM control technology, realize more synchronous change functions of LED constant voltage lamps, it can receive in and transmit out the PWM signal, it works in DC12V or DC24V, the LED Repeater with 3 output channels, the max output current of each channel is 10A, the max output power up to 360W working in DC12V or the max output power up to 720W when working in DC24V, in theory, the RGB Amplifier can be connected to numerous.


Features:

  • Size: L91*W88*H24mm
  • Connecting Method: Common Anode
  • Working Temperature: -20℃-60℃
  • Working Voltage: DC12V/DC24V
  • Static Consumption Power: <1W
  • Output Channels: 3
  • Output Current: <10A
  • Output Power: 360W(DC12V)/720W(DC24V)
  • Weight: 200g
  • 2 Years Warranty


Includes:

1*RGB LED Amplifier

12V RGB LED Amplifier RGB LED Amplifier
