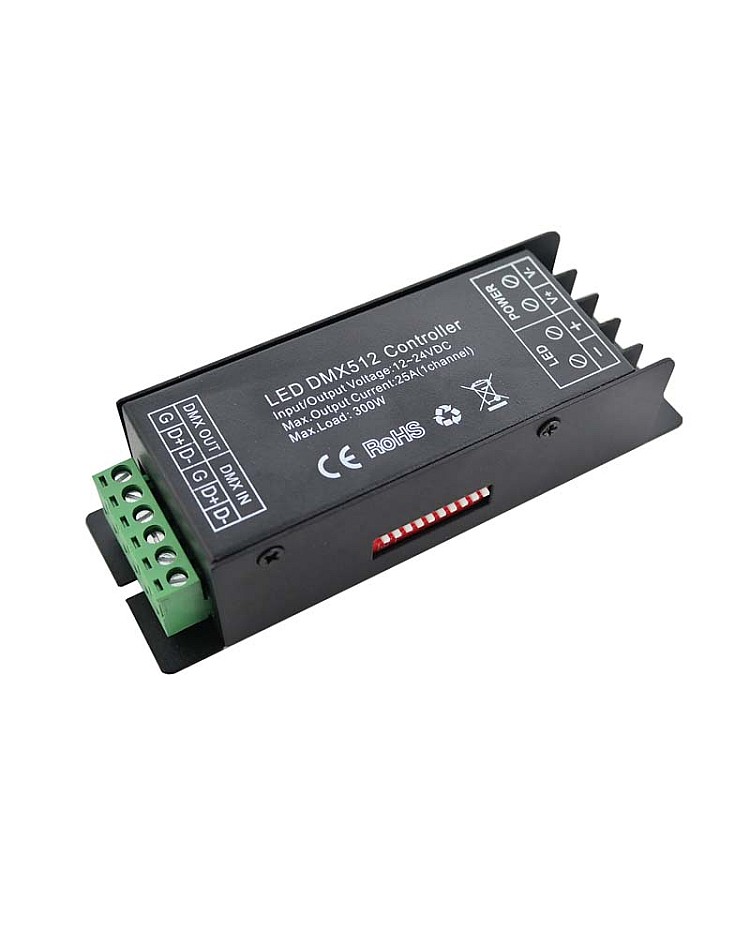

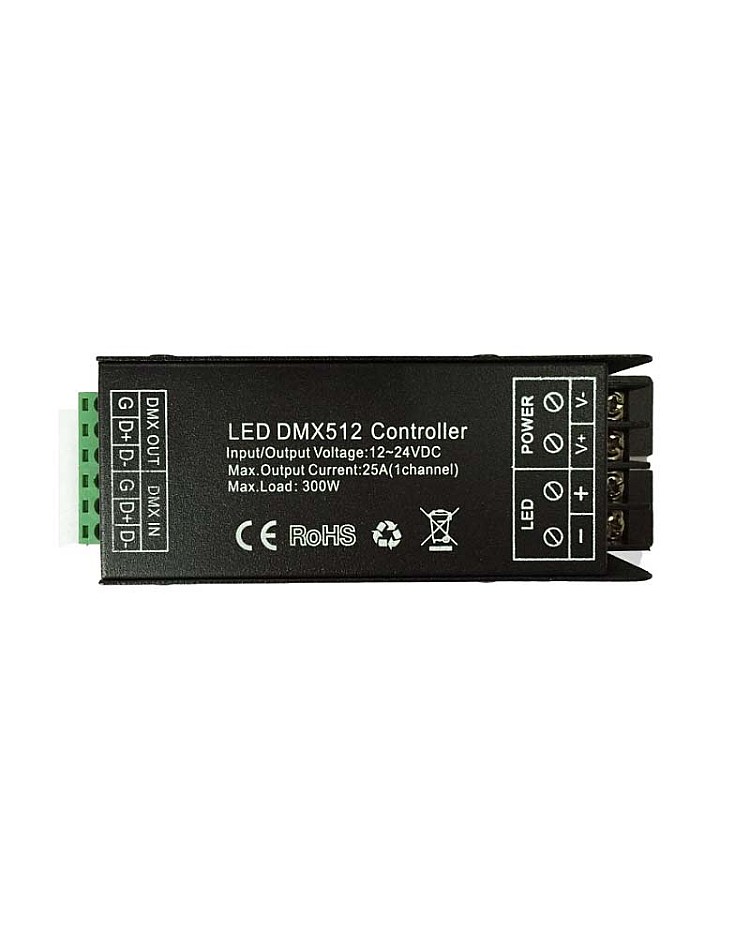

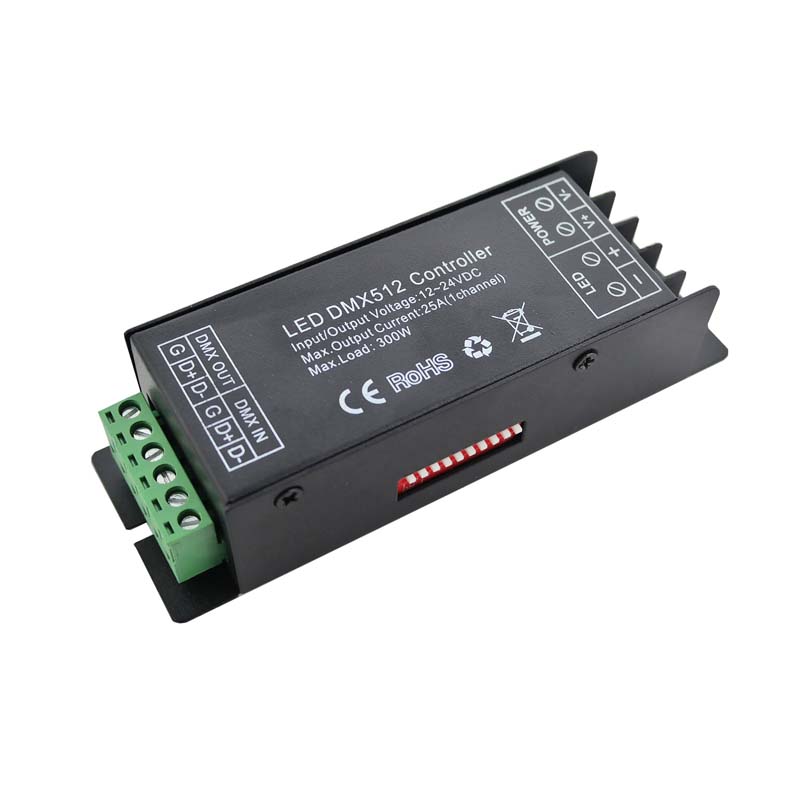

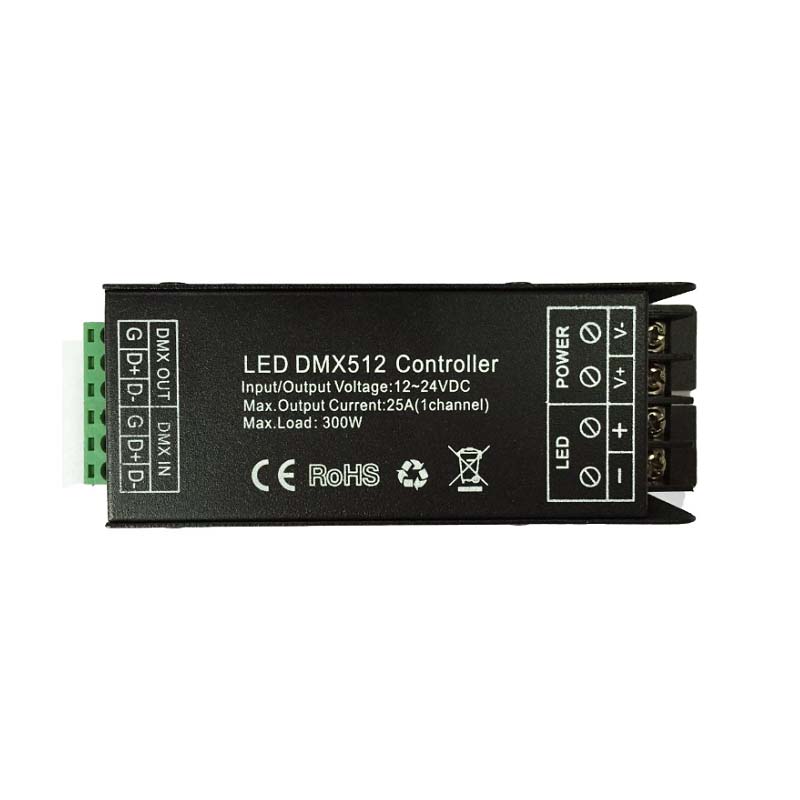

600W Single Color LED DMX Decoder

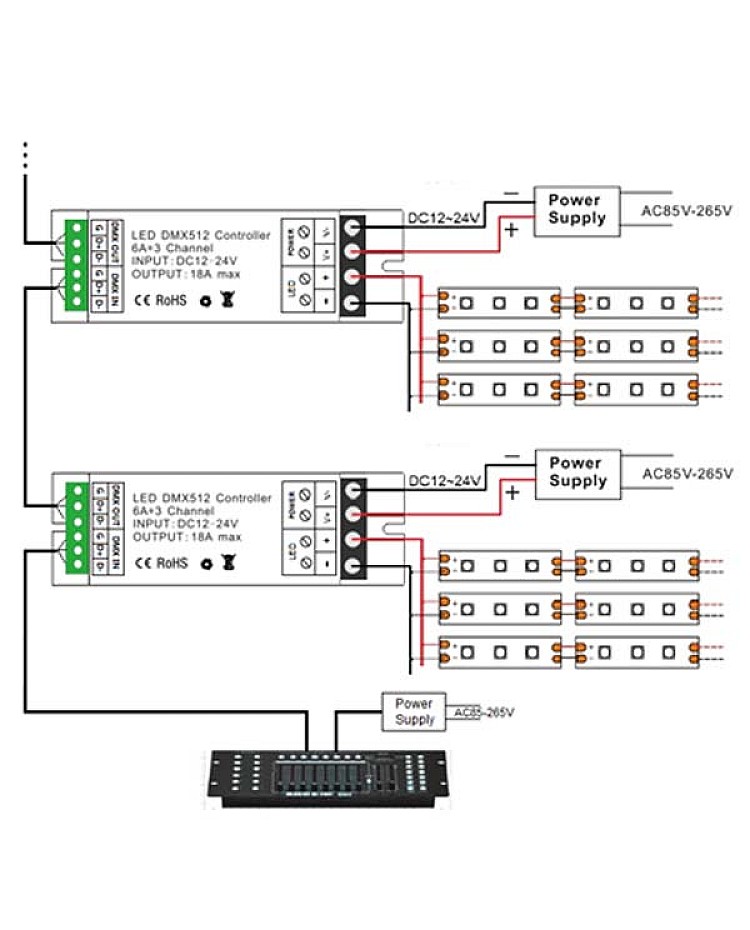

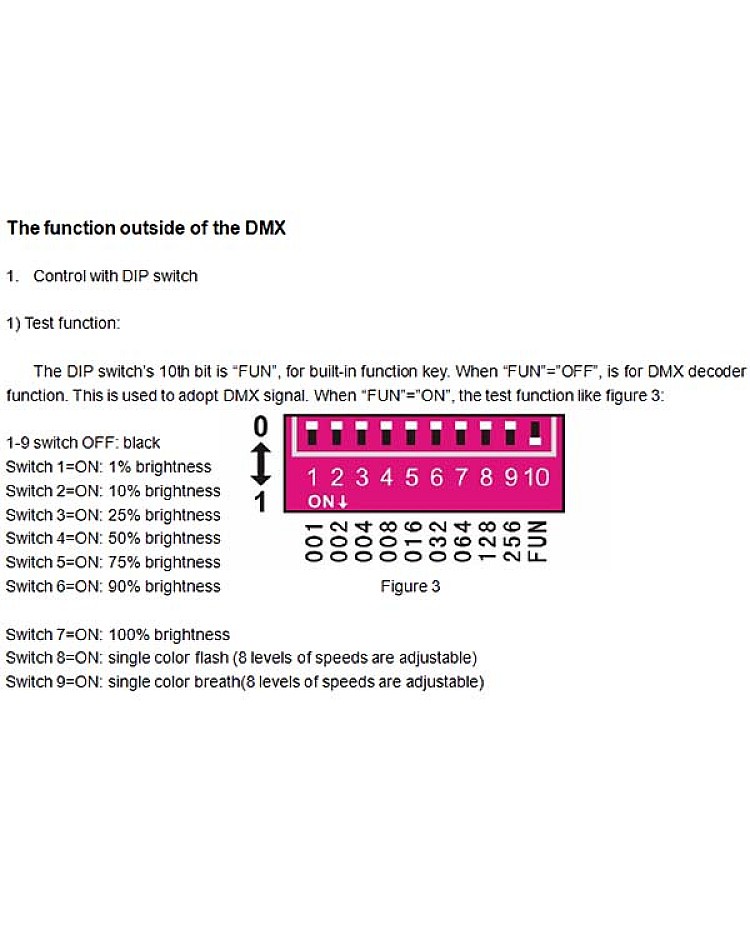

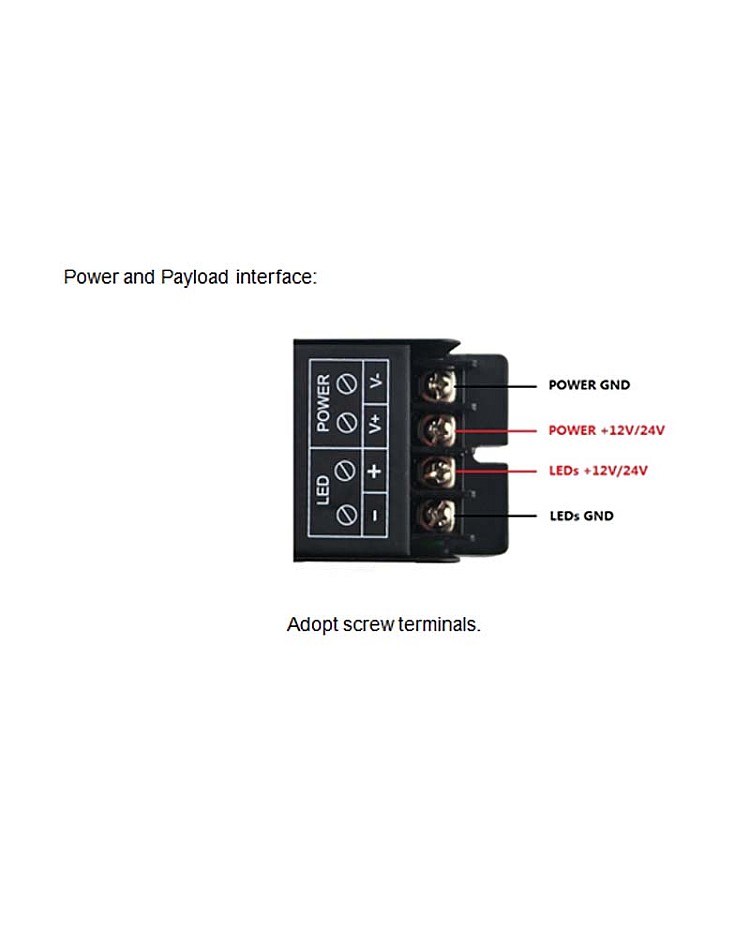

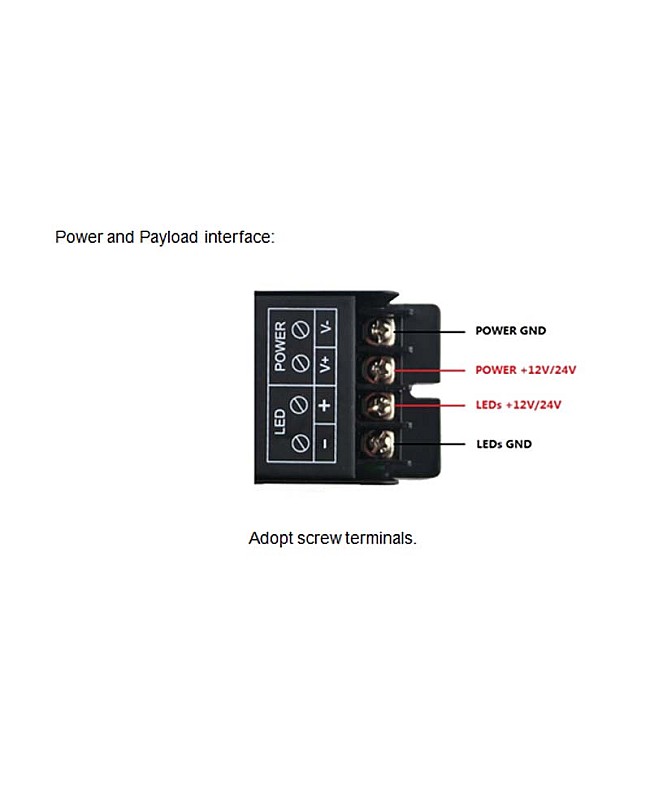

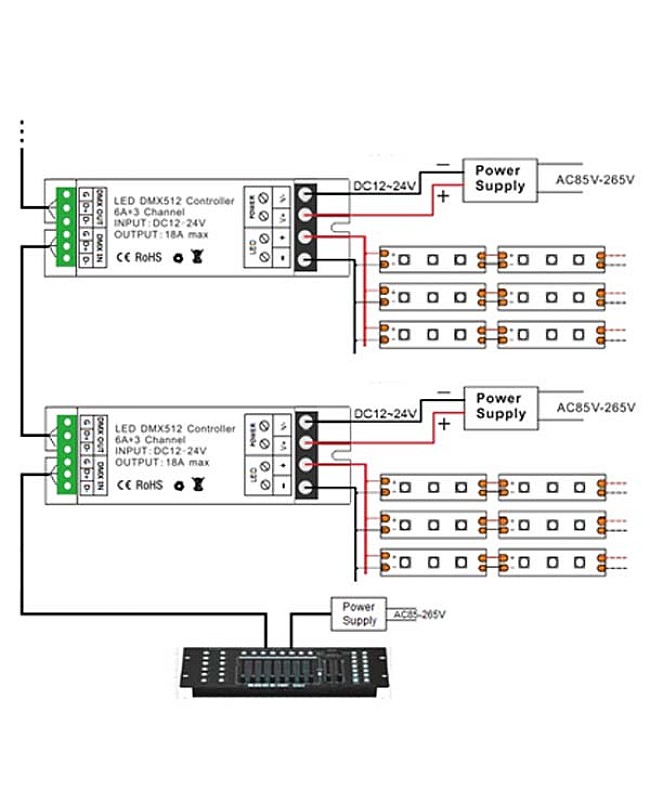

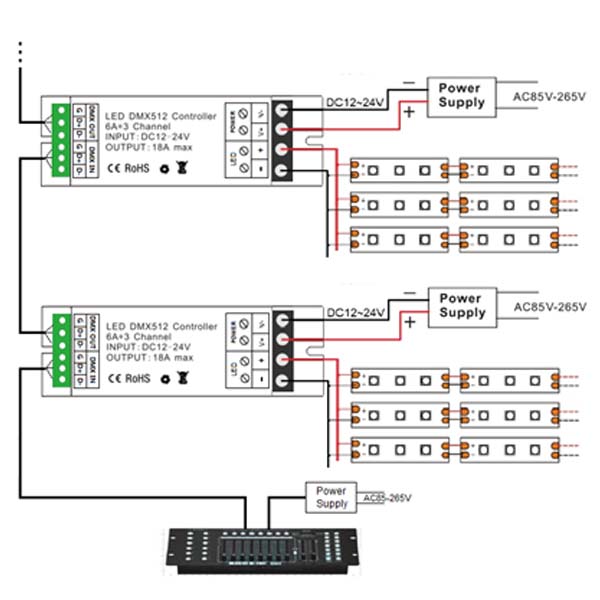

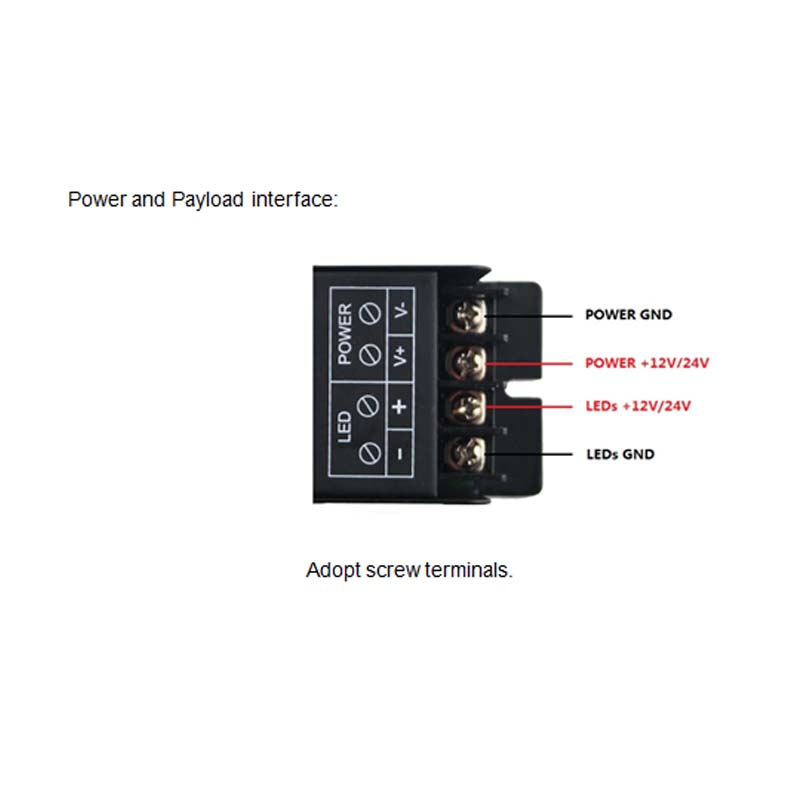

The single-channel LED DMX decoders utilize an advanced microcontroller unit for single-color and constant working voltage LED lights. It will receive the DMX-512 standard digital control signal and convert it into a PWM control signal to actuate the LED lamp, LED module, and LED strips. The digital console can also be connected to change the brightness or light effect. A DMX master can control the DMX decoder and can connect the signal line to extend the channels up to 512, ultimately achieving more effective changes. When used alone, it can be used as a normal single-color LED dimmer, with 9 modes in total. Signal repeaters can be added to achieve synchronization of more LED lights. The LED decoder with output channel design has a maximum loading power of up to 600W when operating at 24V DC. Both ends have screw terminals for easy connection to DMX controllers, LED drivers, and LED lights.

Specifications:

• Model: HX-SZ200-DECODER ( 1CH )
• Size ( L x W x H ): 127 mm x 42 mm x 33 mm ( 5.00" x 1.65" x 1.3" )
• Input/Output voltage: 12-24VDC
• Output: 1 channel
• Output current: <25A
• Maximum output power: ≤ 300W ( 12VDC ), ≤ 600W ( 24VDC )
• Control standard: DMX512
• PWM frequency: 7.8 KHz
• Output gray: 256 levels

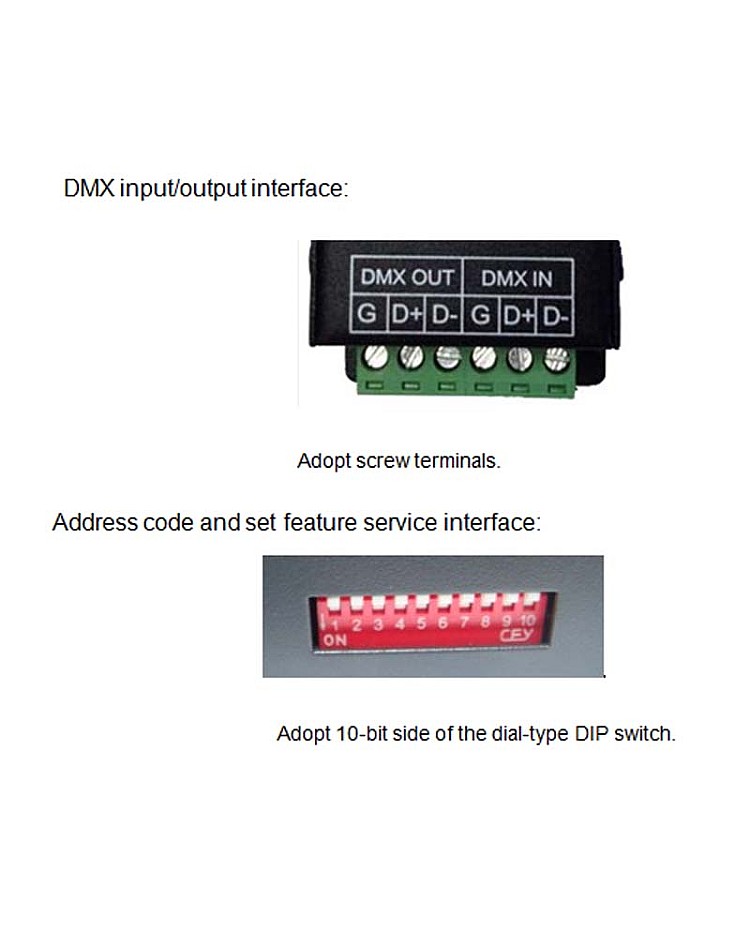

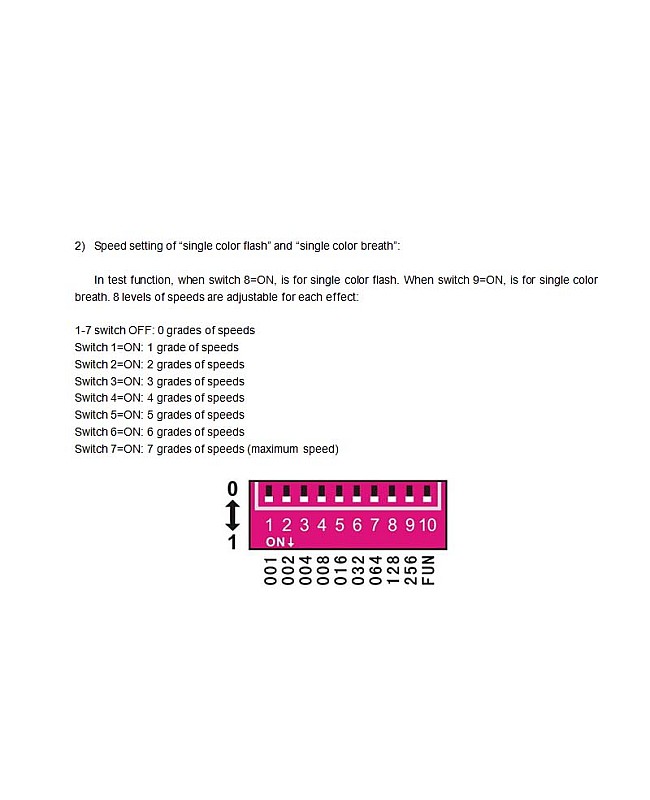

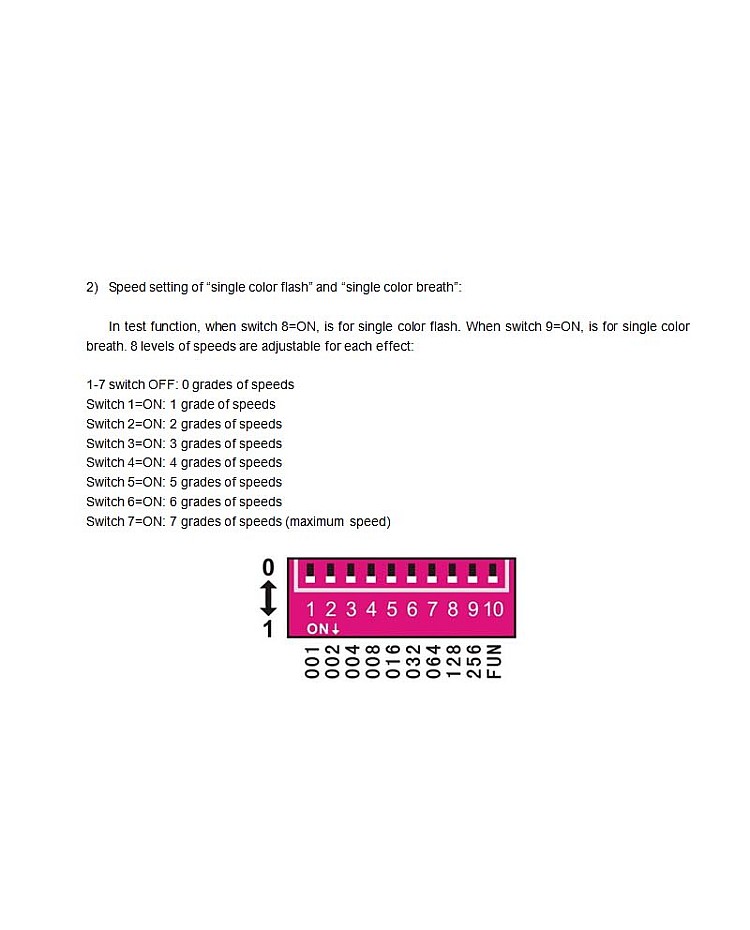

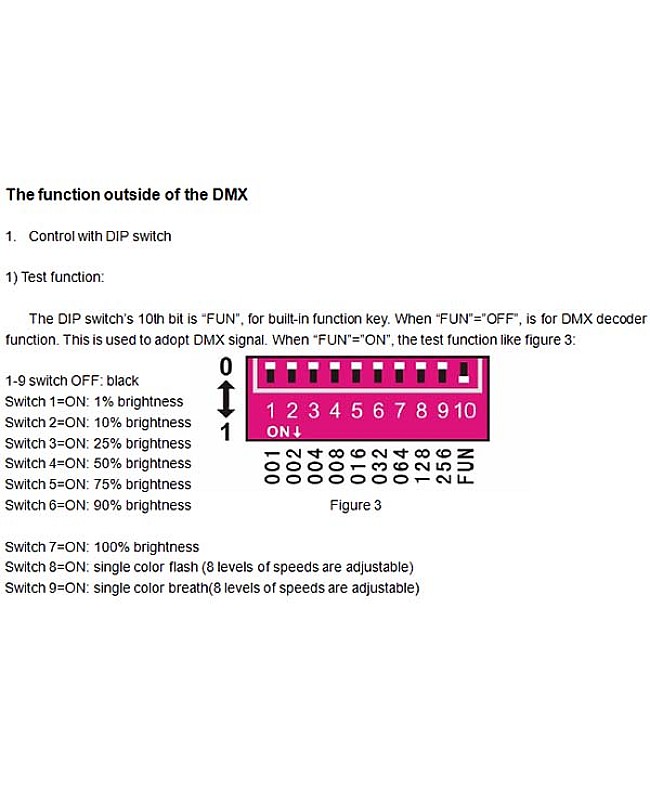

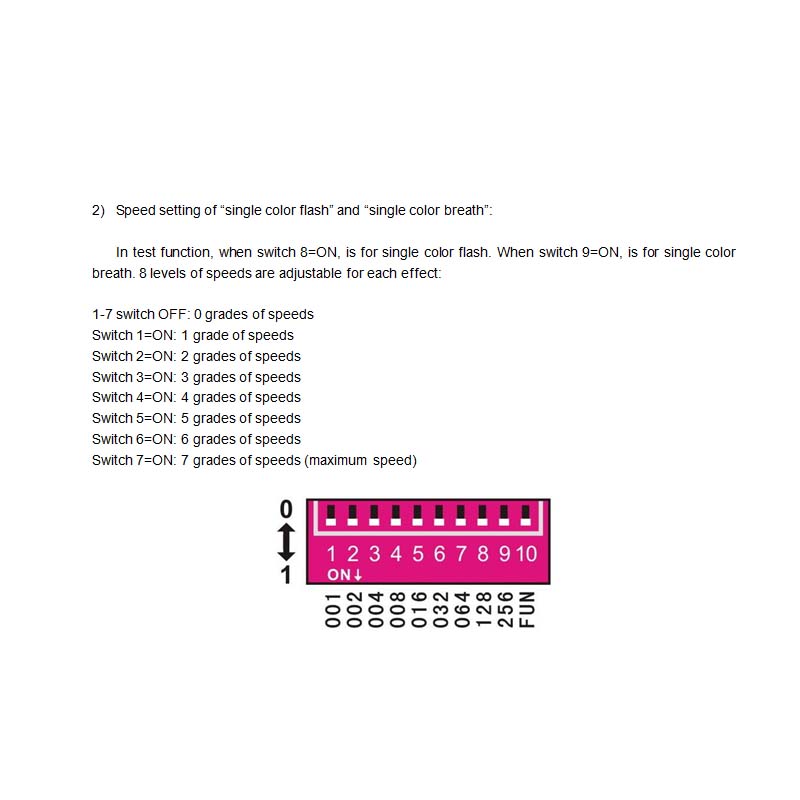

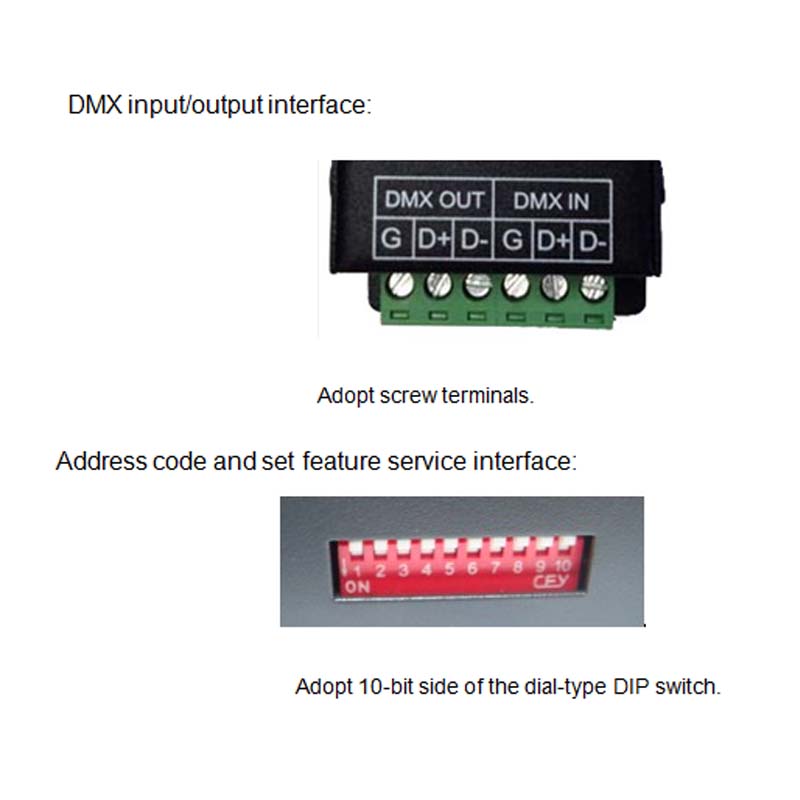

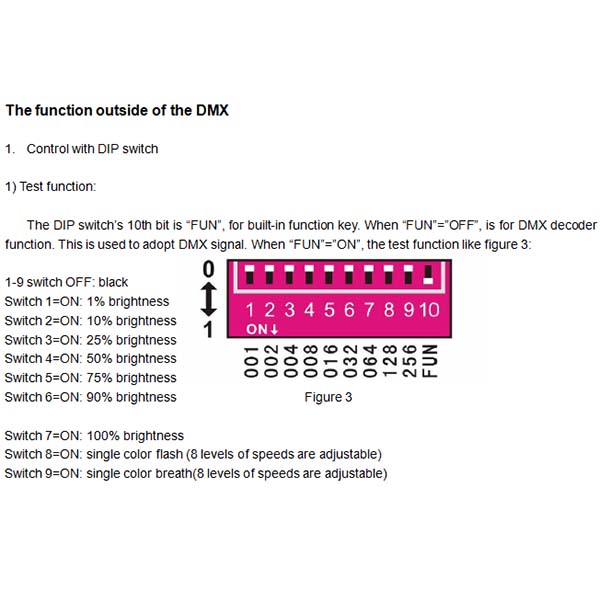

• Adopt the 10-bit side of the dial-type DIP switch
• Can work with the LED repeater to achieve synchronization function
• Weight: 200g
• Working temperature: -20℃-60℃
• Warranty: 3 years

Includes:

1 * Single color LED DMX decoder
