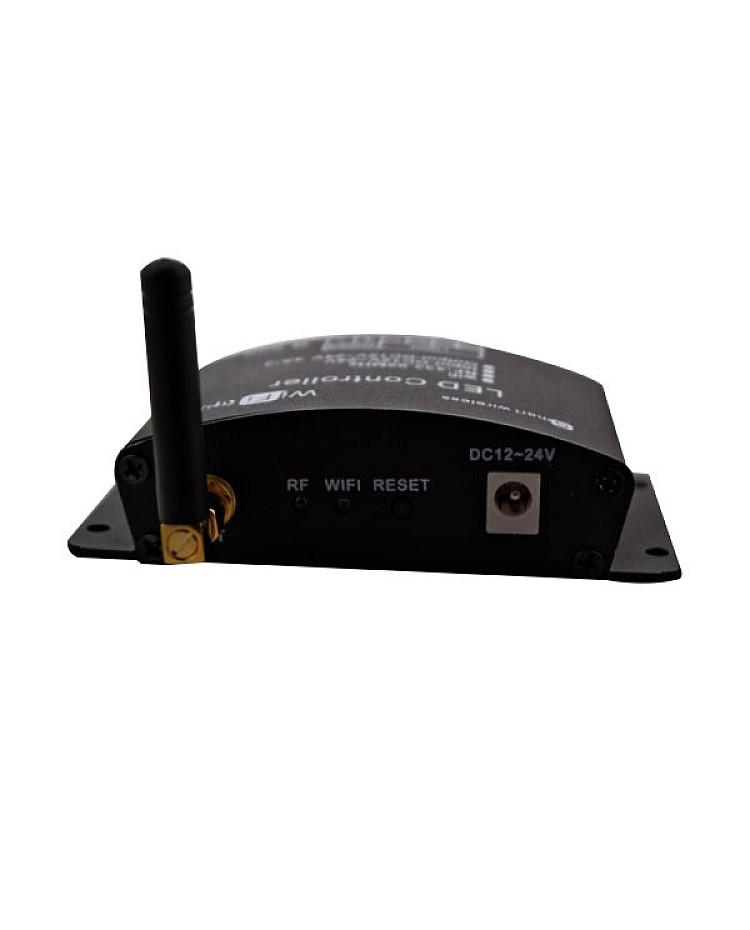

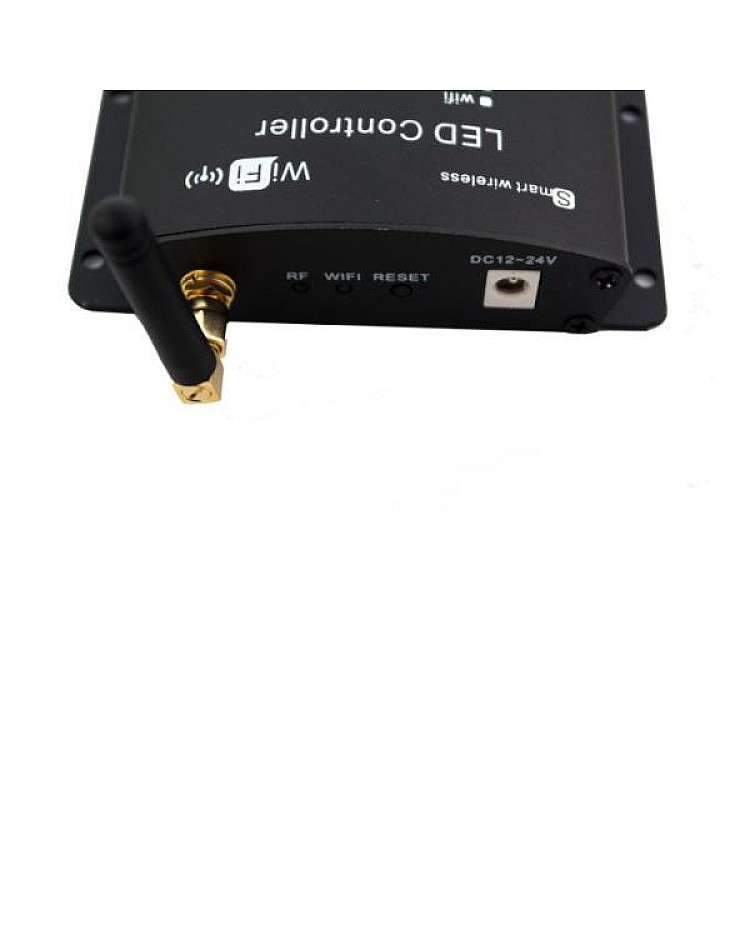

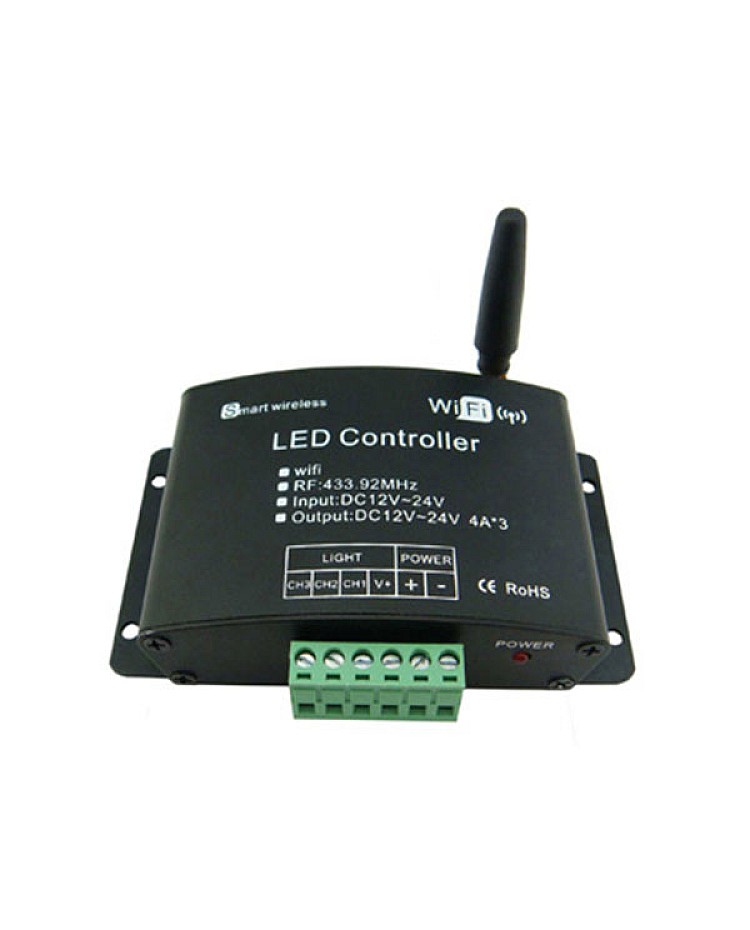

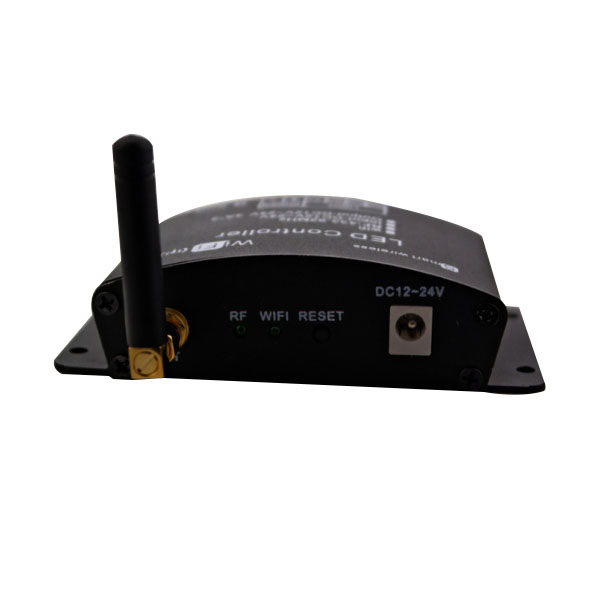

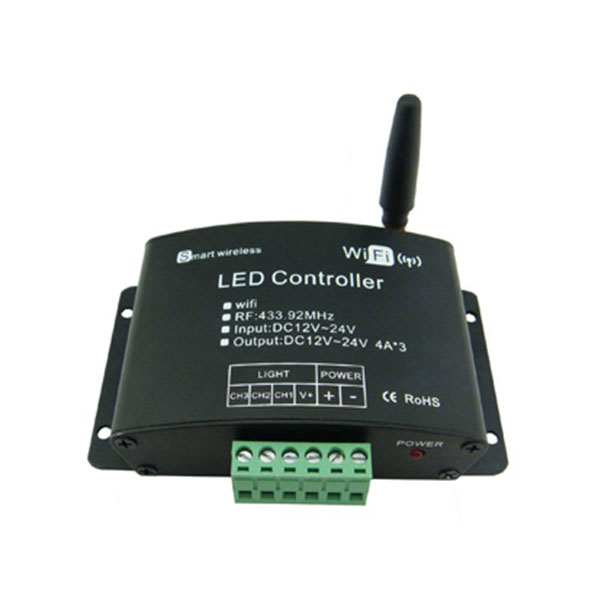

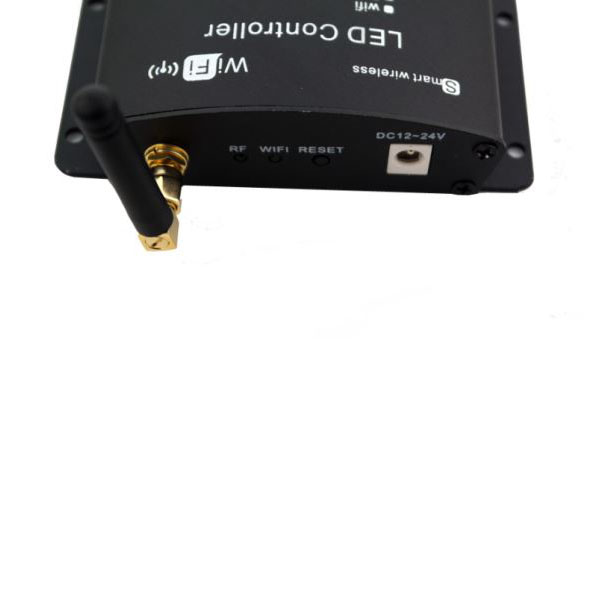

RGB LED Controller Wifi

The RGB LED controller WiFi supports most WiFi products, Apple series(iPad,iPhone), and Android mobile phones. With the 3 in 1 function app(dimming, CT, RGB), one device suits different light application scenes—memory function to save scenes anytime. The WiFi RGB LED controller works with constant voltage LED products, working between DC12V and DC24V, so connect it with LED strips, modules, and other LED products. The WiFi LED controller is based on 2.4GHz frequency, and the RF remote control is based on 433.92MHz. If you want to control more LED products, you should order the extra LED amplifier that works with this wifi controller. This LED WiFi controller provides 2 2-year warranty.

Specifications Of WIFI LED Controller:

• Working Voltage: DC12V/DC24V
• Output Wattage: 12: ≤144W(3CH) / 24V: ≤288W(3CH)
• Working Temperature: -20- 60 °C
• Power Consumption: <3W
• Connect Method: Common Anode
• WIFI Brightness Level: 100
• WIFI Speed Level: 100
• Remote Control Brightness Level: 32
• Remote Control Speed level: 100
• Size: 108*63*28mm(L*W*H)
• Output: 3Channels
• Output Current: ≤4A(Each Channel)
• WIFI Frequency: 2.4G
• RF Remote Control Frequency: 433.92 MHz
• Output Gray Scale: 256
• Memory Function: YES
• Receiving sensitivity: 802.11b:DSSS（-5dBm）802.11b:CCK(-10dBm)802.11g:OFDM(-15dBm)

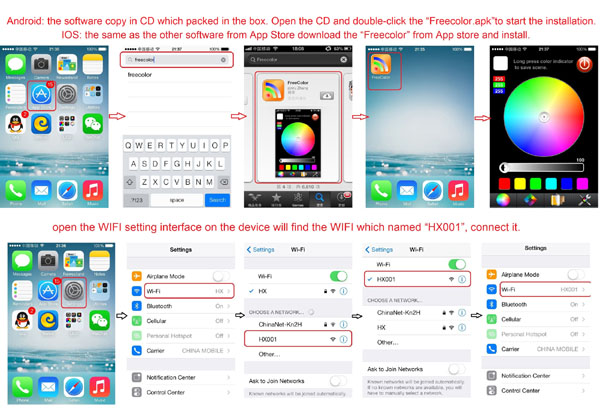

• Platform: Android 2.1 Or Above; IOS 4.3 Or Above(Support WIFI)
• Weight: 250g

Specifications Of RF Remote:

• Working Temperature: -20- 60 °C
• Battery: 3PCS AAA
• Standby Current:7uA
• Working Voltage: 1.5V*3
• Working Current: 10mA
• Remote Control Distance: Max 30 meters
• RF Frequency: 433.92 MHz
• Power Consumption: 0.04mW

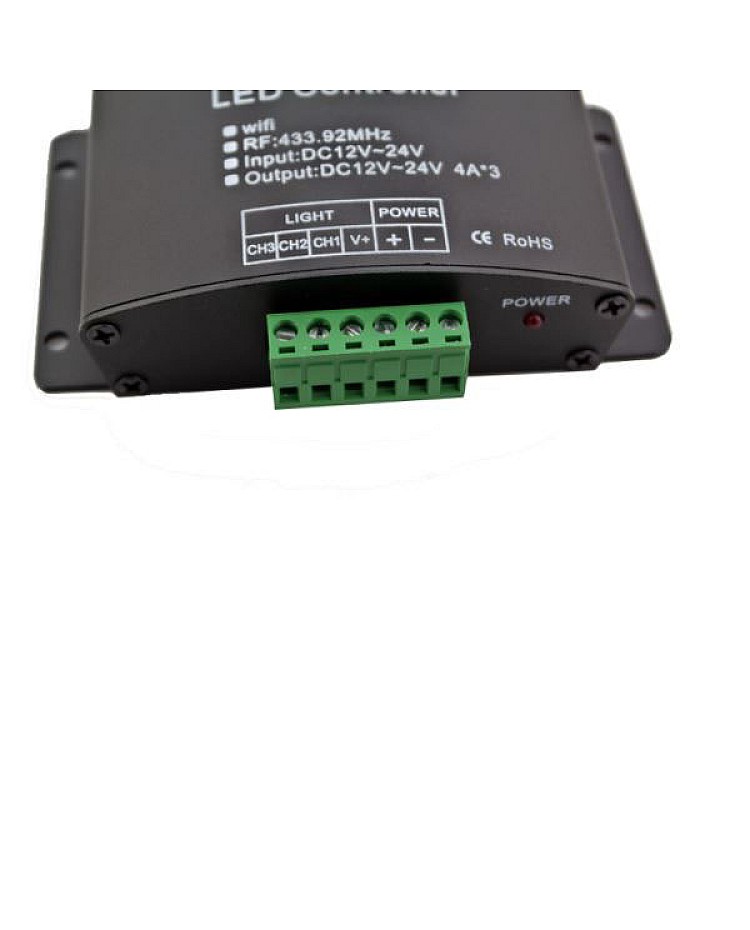

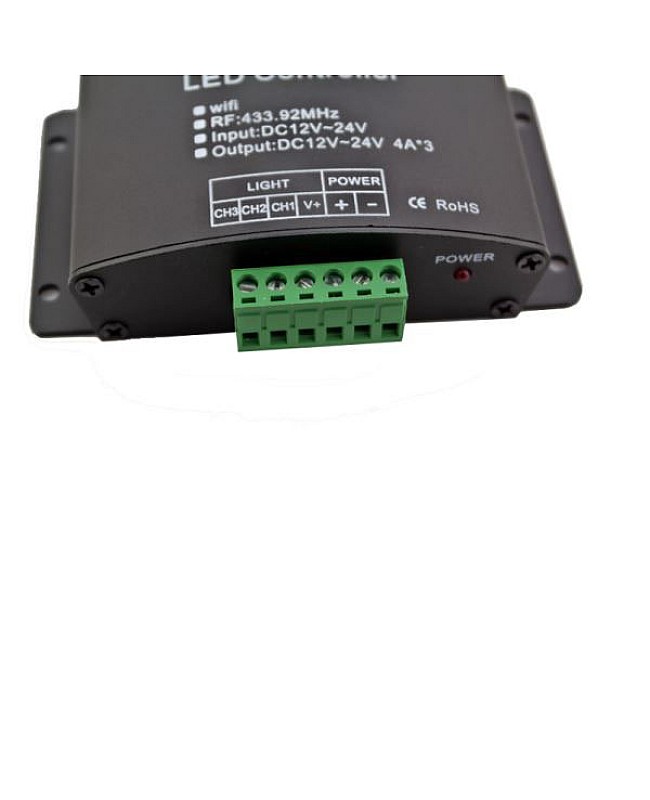

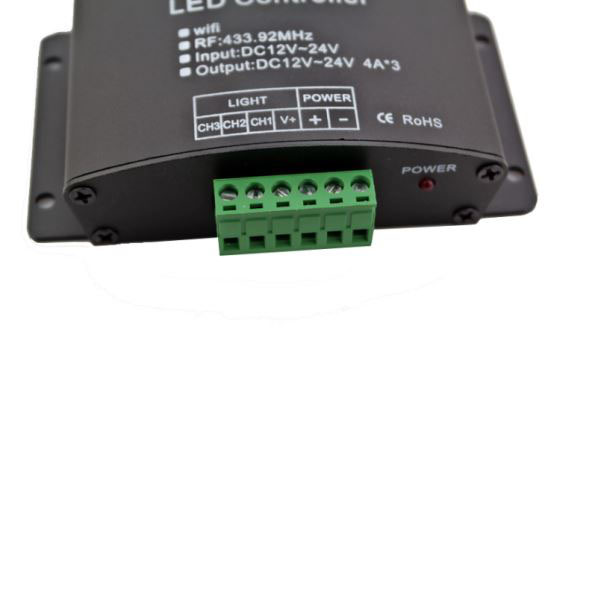

Install:

1. If work as dimmer mode： CH----V-,CH2--V-,V+--V+

2. If work as CT mode: CH--WW, CH1-CW, V+--COM

3. If work as RGB mode: CH3--Blue,CH2--Green,CH1--Red,V+--COM
