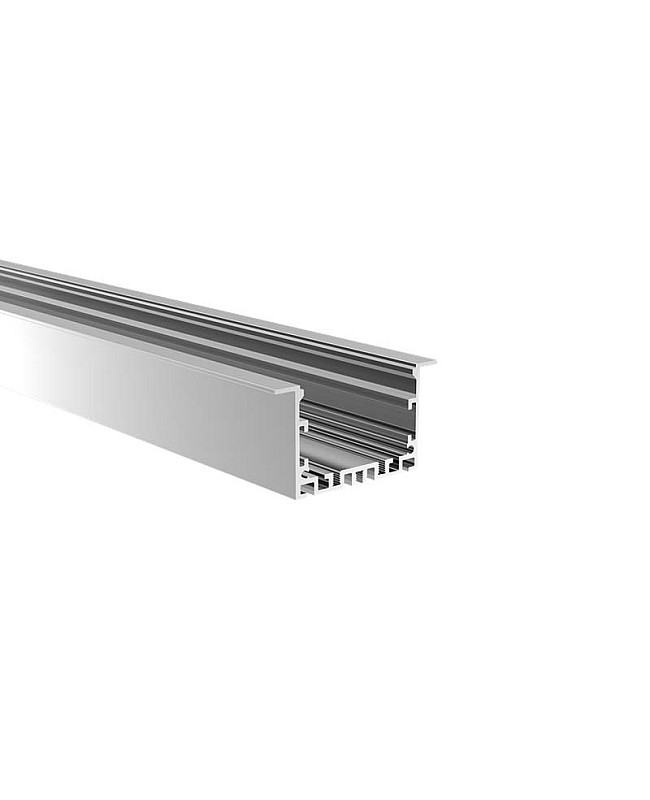

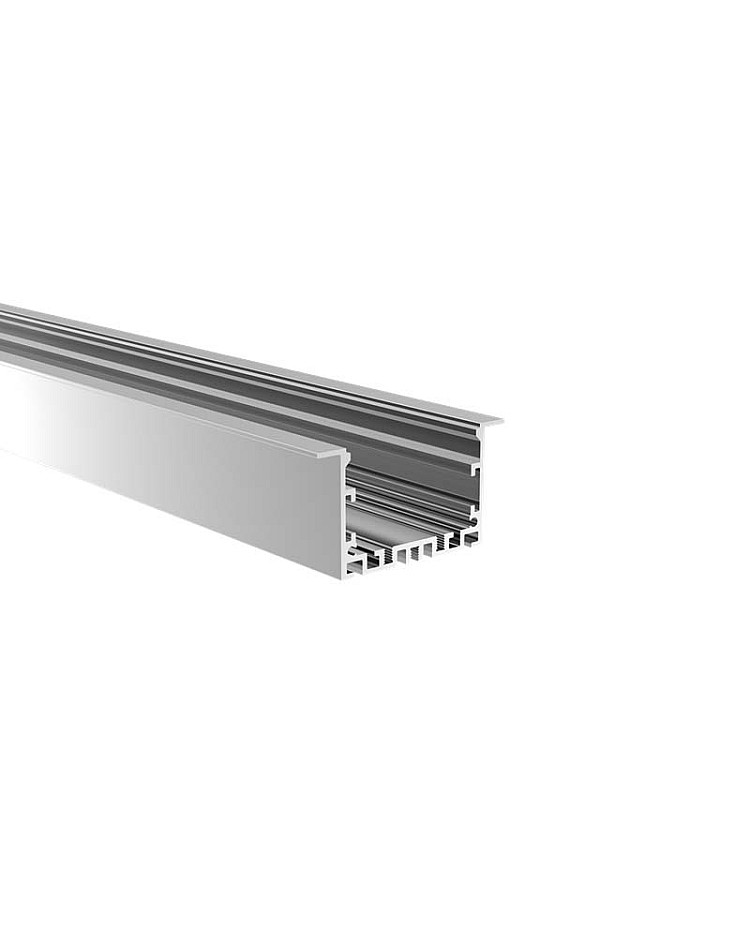

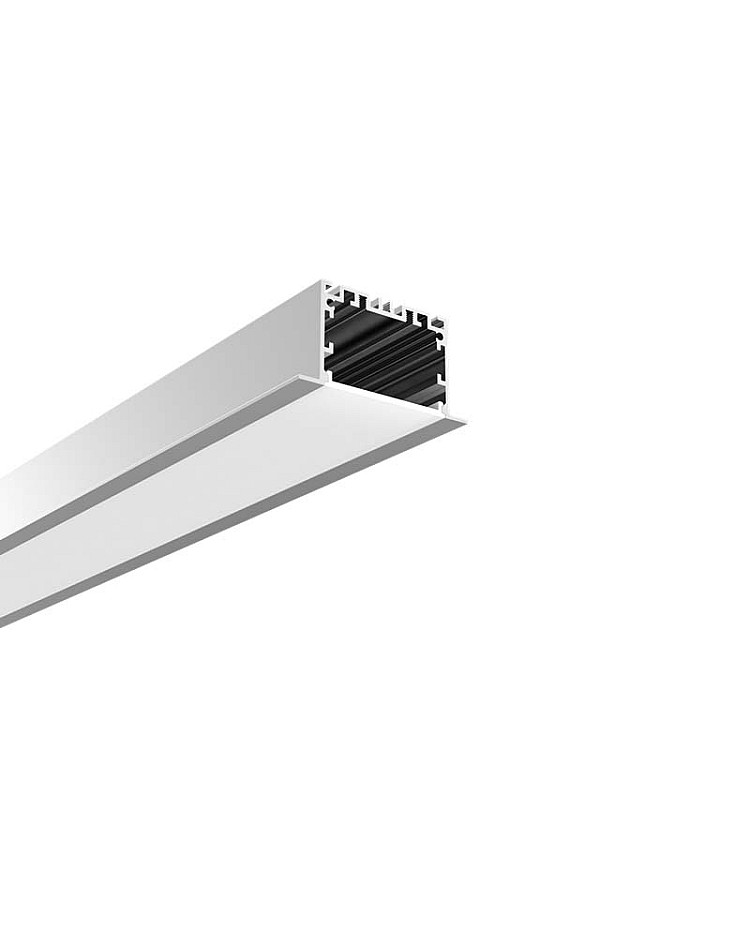

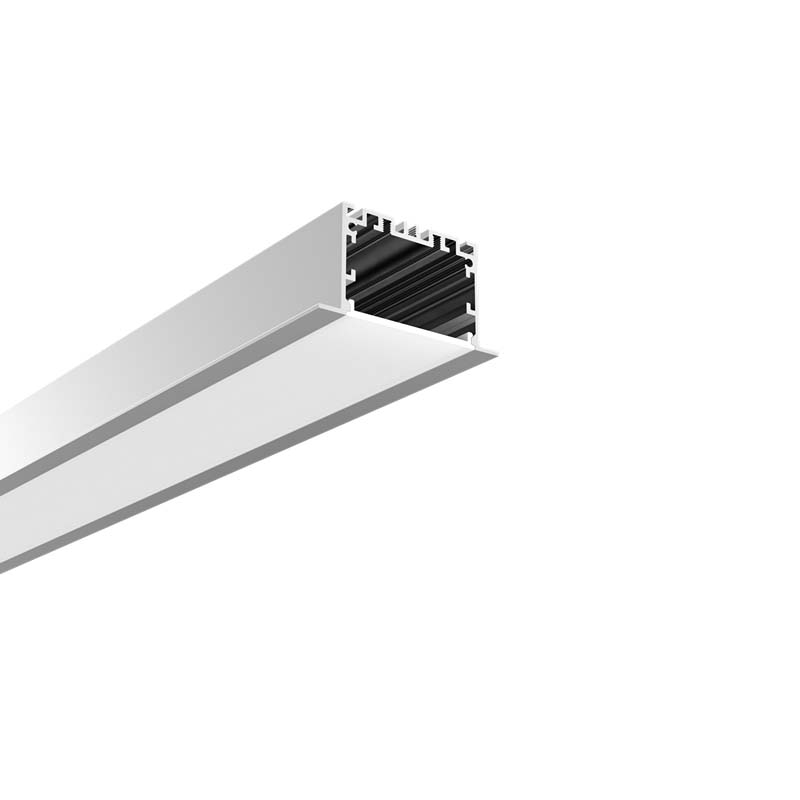

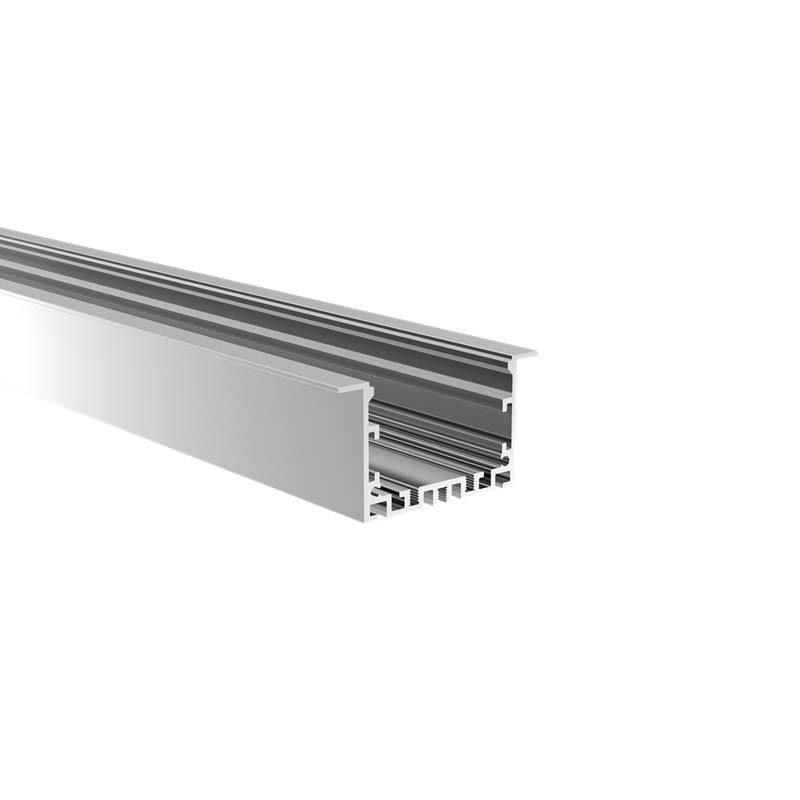

Check the 2 inches Recessed LED Linear Profiles For LED Modules, you can use the special designed LED Modules or the double rows LED Strips as the light source, comes with the spring metal clips that allow to recess into the ceiling or wall in the office, home, mall, school, etc as the main lighting. the LED Aluminum Linear Profiles are made of 6063-T5 aluminum alloy material and with silver anodized surface treatment, anti-oxidation resistance and has a longer lifespan than other similar products. the standard length is 1meter per piece and the max length is 2.5meter, can cut to any size for your lighting project, there is only one type of diffuser available, the PC opal matte diffuser, which is made of brand stable material, anti-yellowing, perfect light distribution and smooth light output, the end caps with wire holes included, can connect the LED Light Module or LED Light Strips to the LED Lighting Power Supply or LED Light Dimmer to adjust the brightness. the +(cross), L and T shape connectors are sold separately, you can purchase them and reconnect the LED Linear Profiles for your project.


  • Model: ALP6535
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

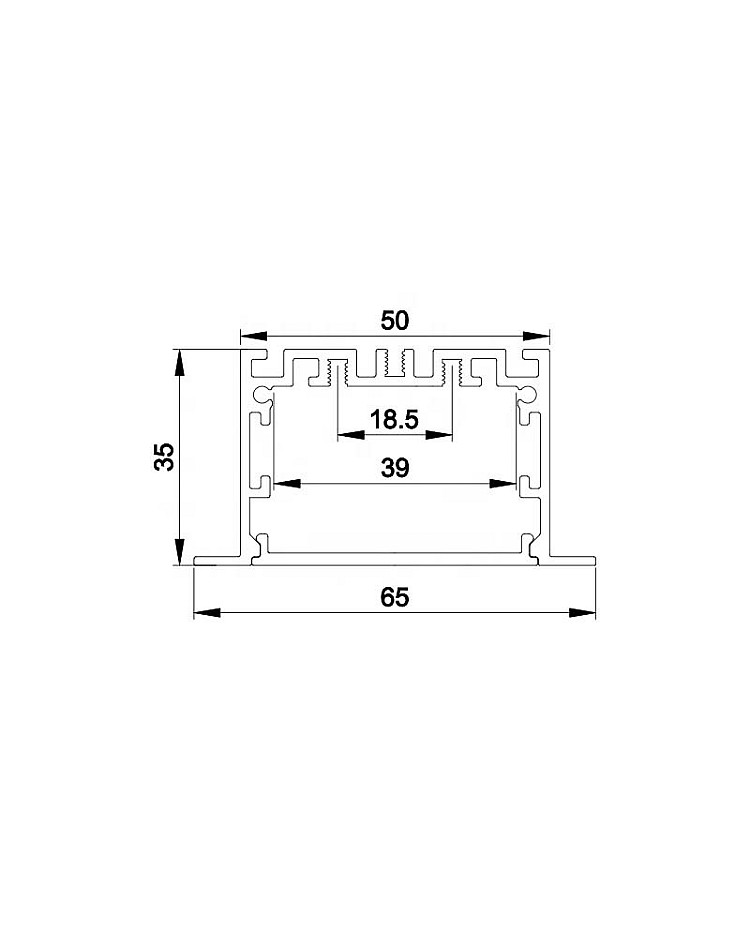

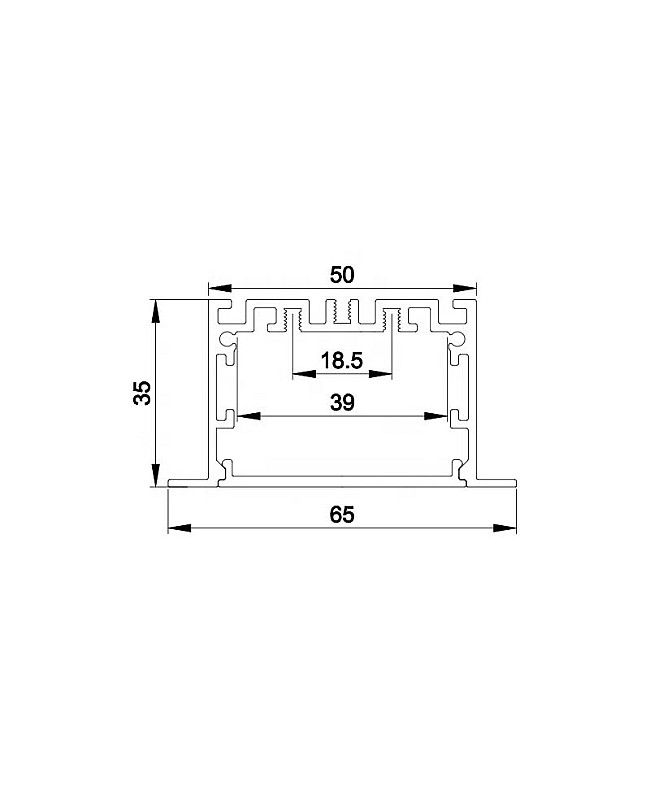

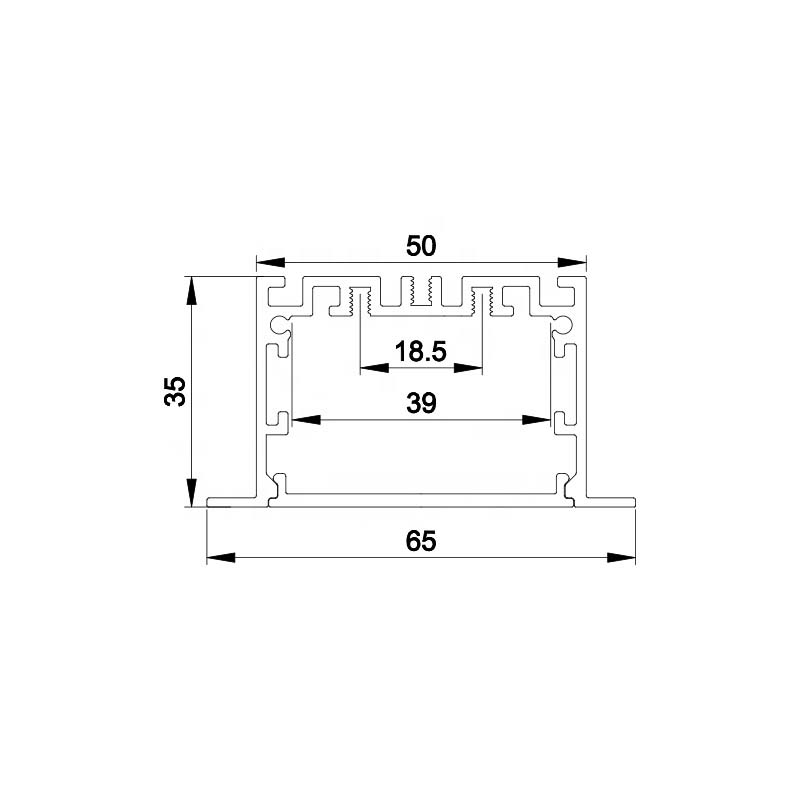

  • Size: 65*35mm(W*H)
  • Inner Width: 18.5mm
  • Compatible With 560mm/PC LED Modules
  • Max Power: <45W/Meter
  • Standard Length: 1M
  • Other Lengths Available: 2M, 2.5M
  • Custom Length Available: YES

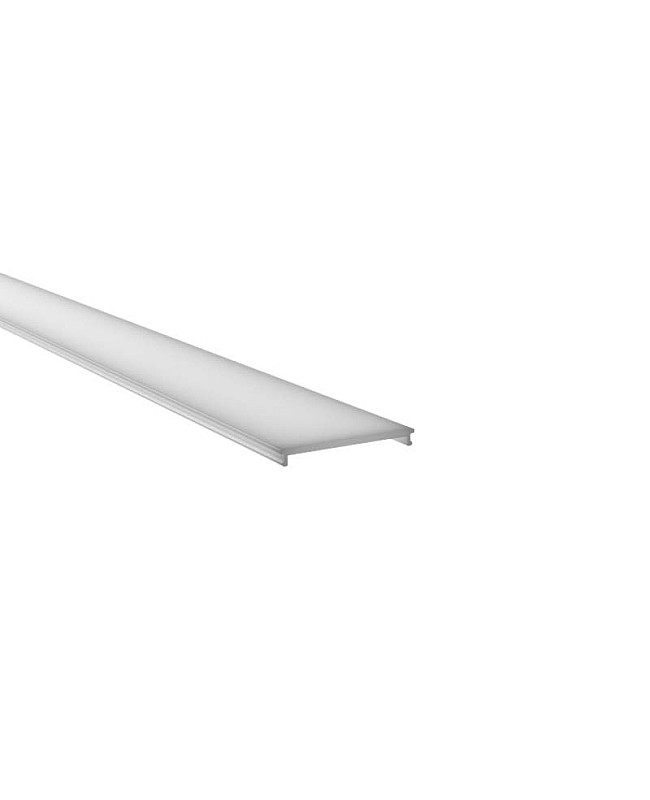

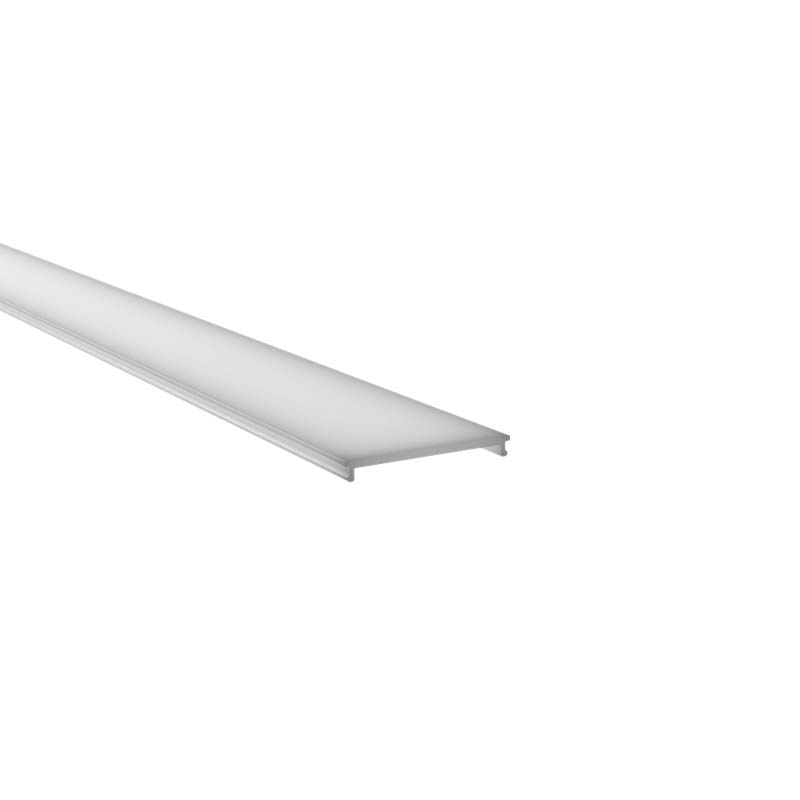

  • Diffuser: PC Opal Matte Diffuser

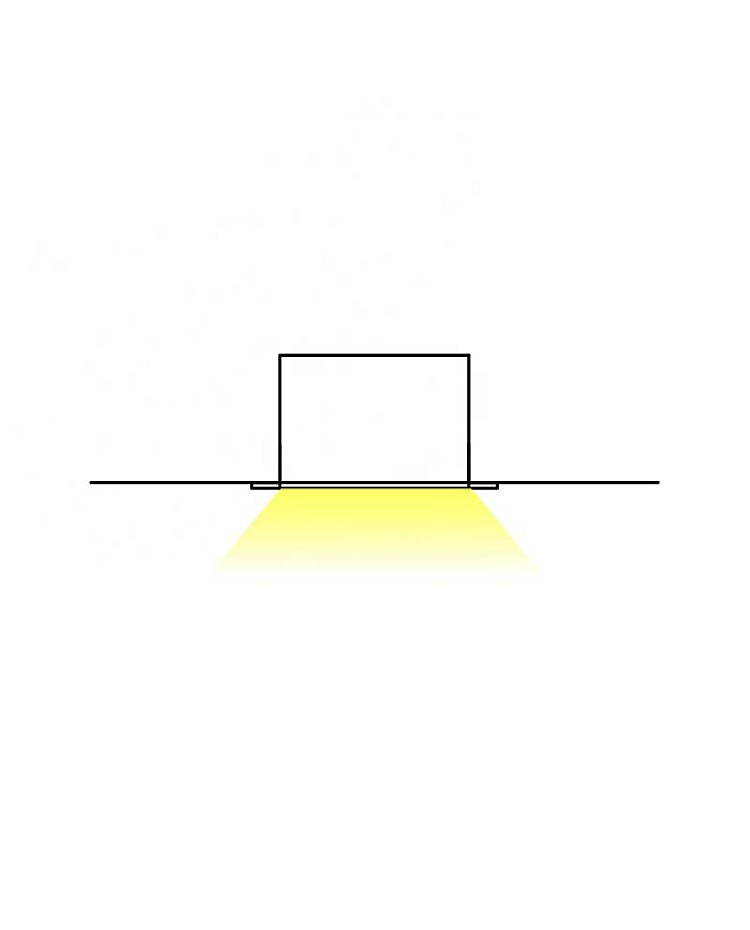

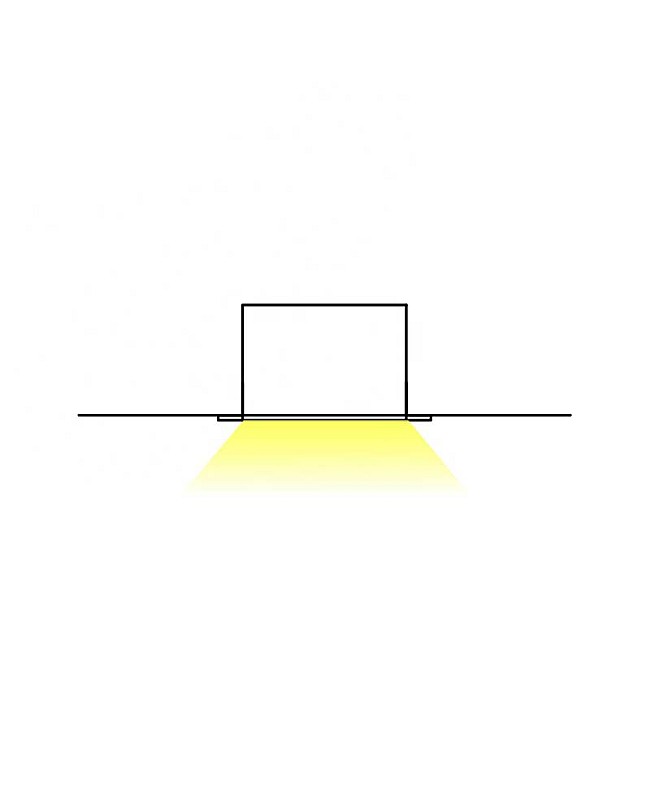

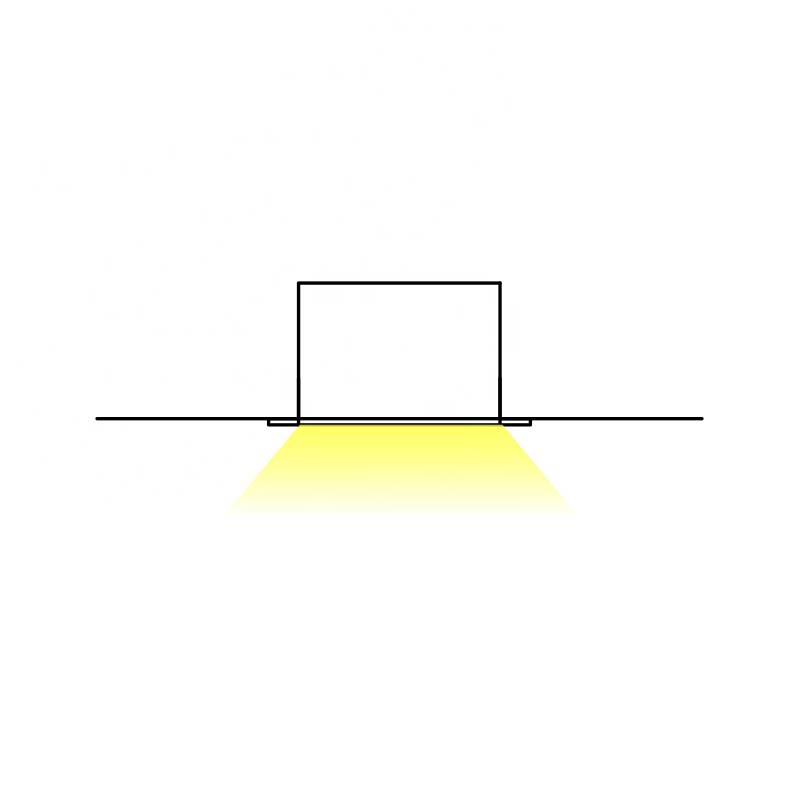

  • Installation: Recessed
  • Applications: Ceiling Or Wall In School, Store, Mall, Hospital, etc
  • End Caps With Wire Holes And Spring Metal Clips Included
  • +, L and T Connectors Optional
  •  5 Years Warranty


1*LED Linear Profile

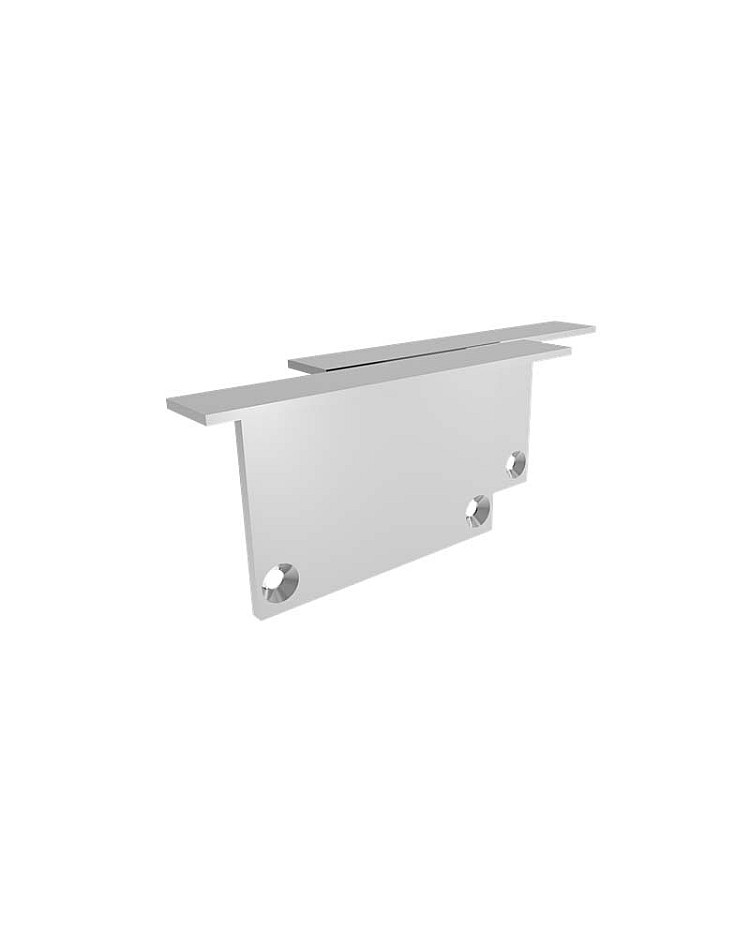

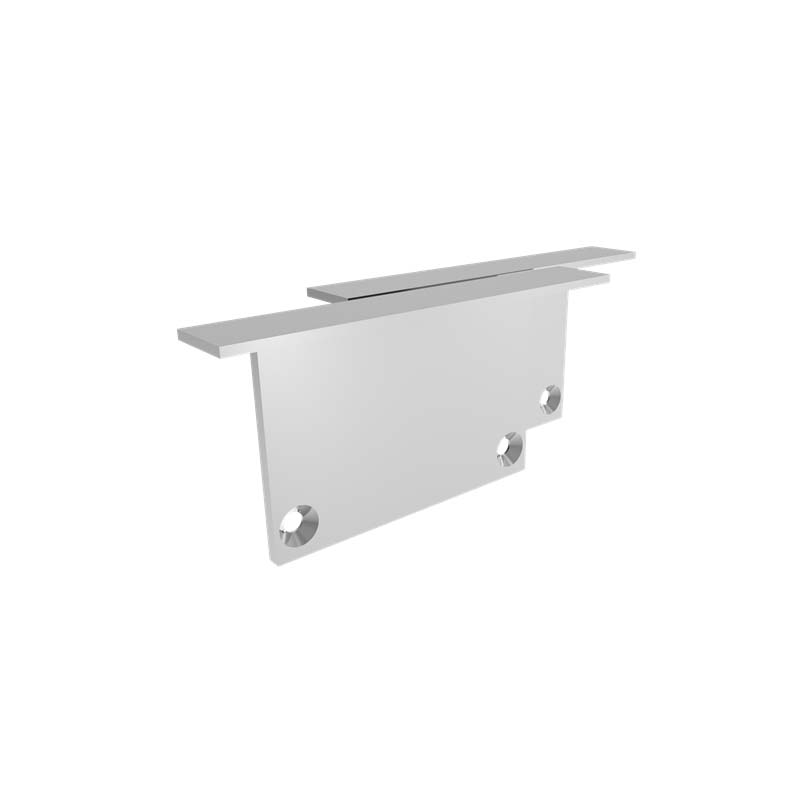

2*End Caps

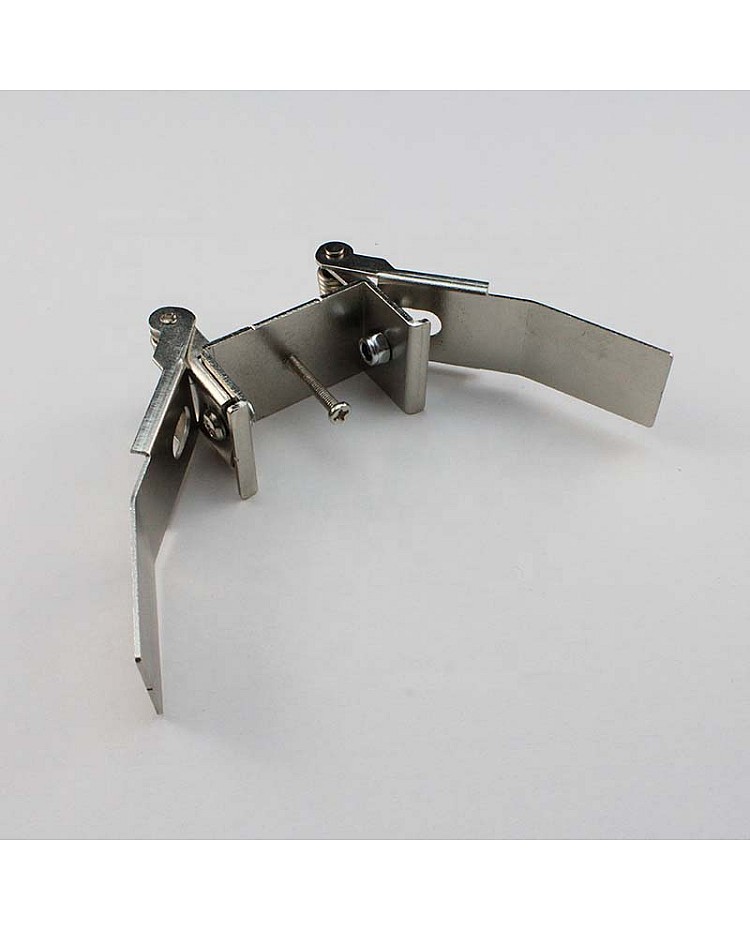

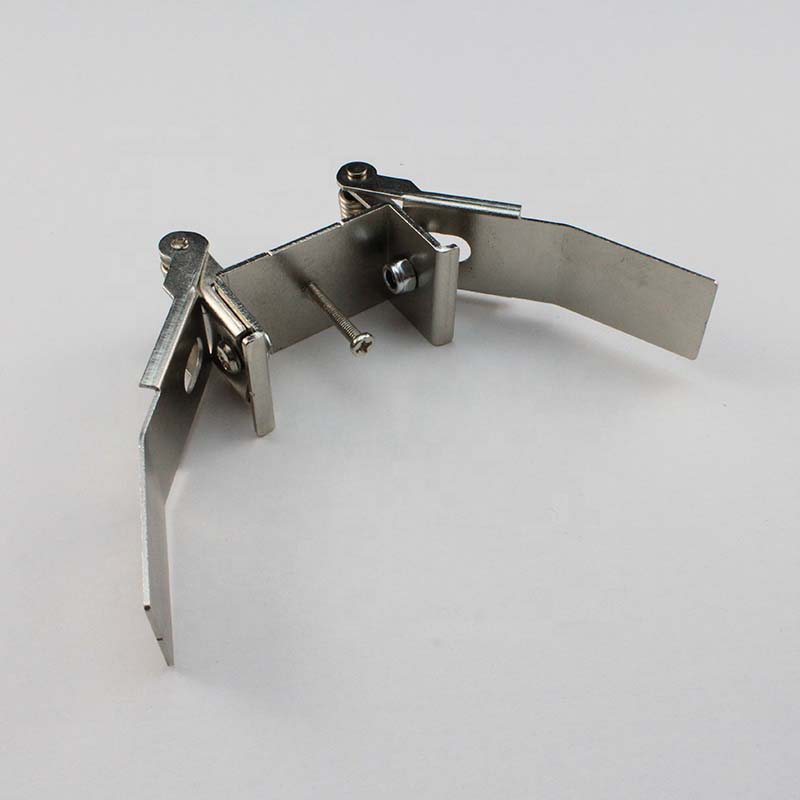

2*Metal Clips

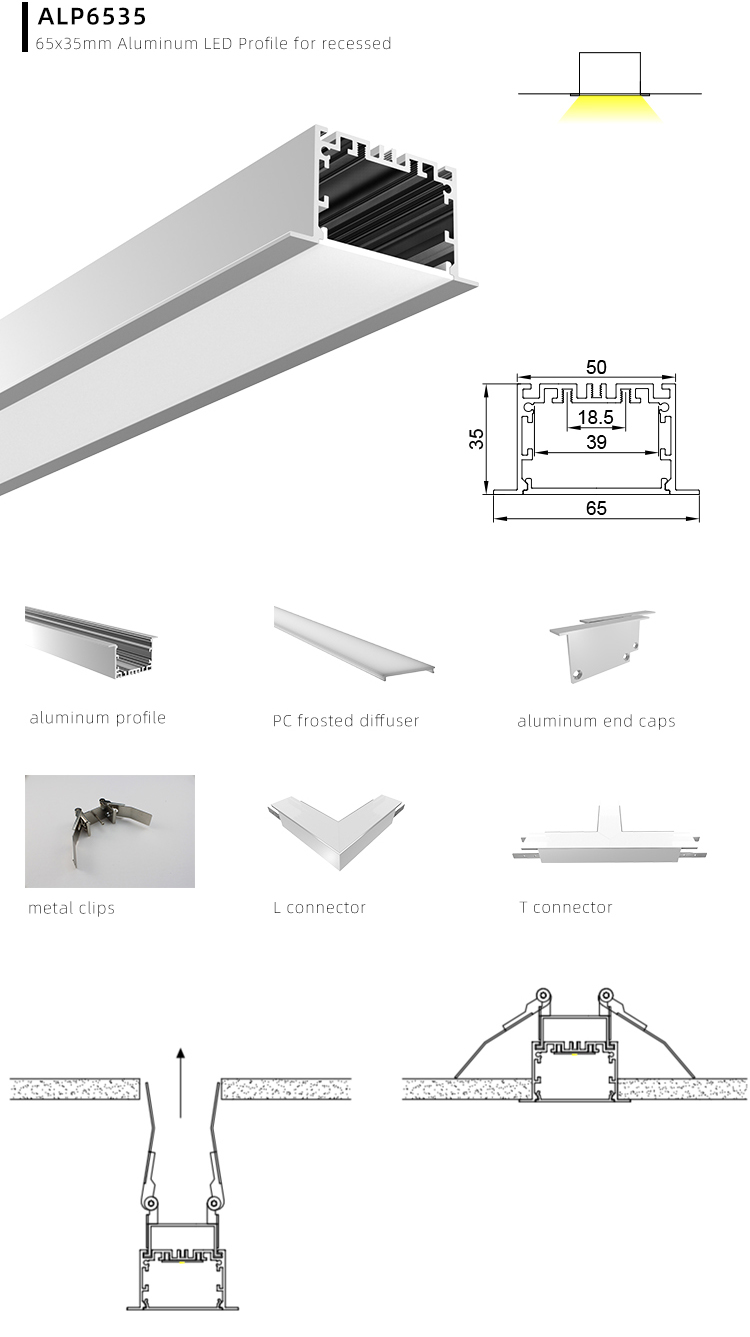

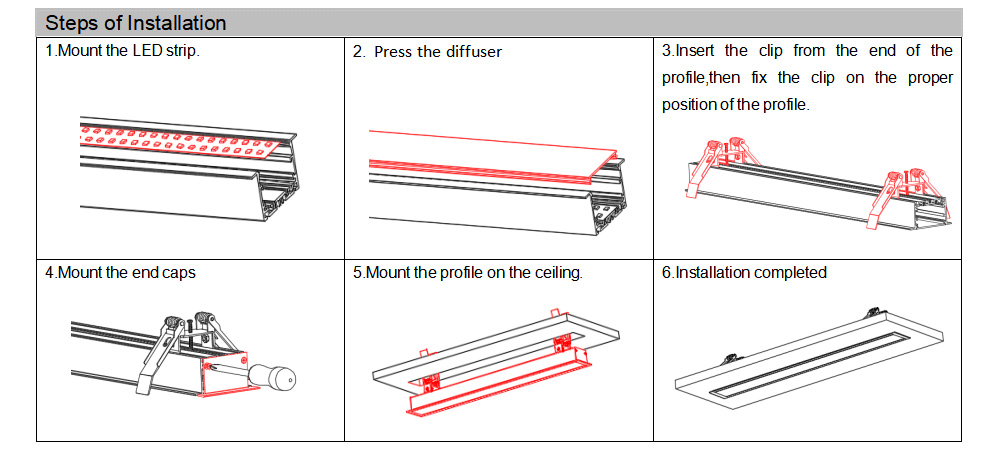

LED Linear Light Aluminum Profile Recessed LED Linear Channel Installation
