In Stock
$9.99
Reward Points: 10
-
+
  • Brand: Hoion
  • Product Code: HX-AMF-02

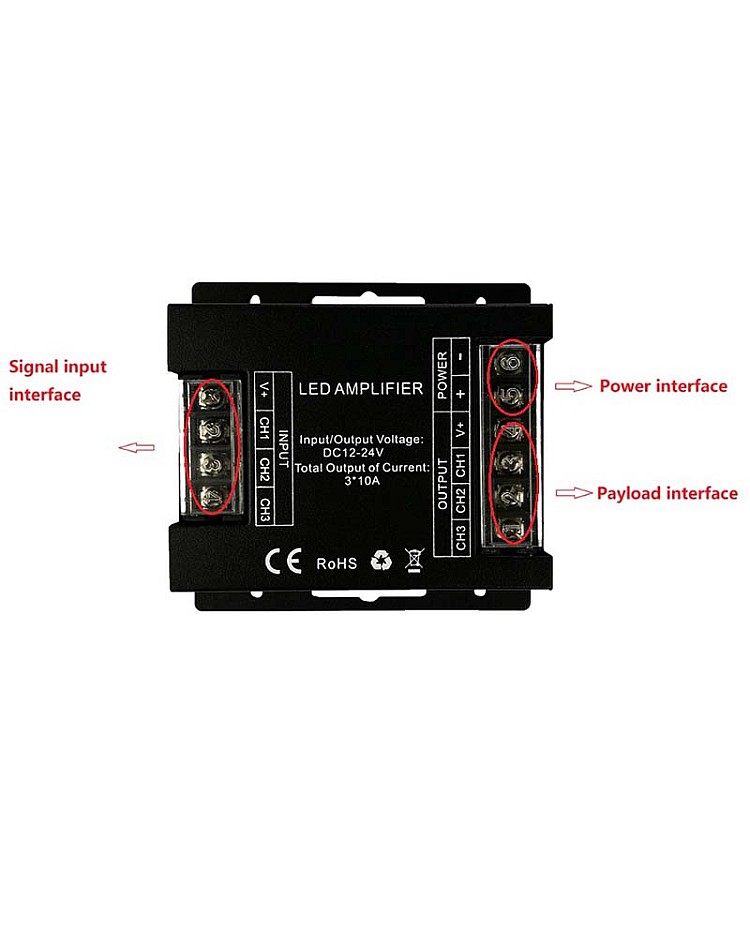

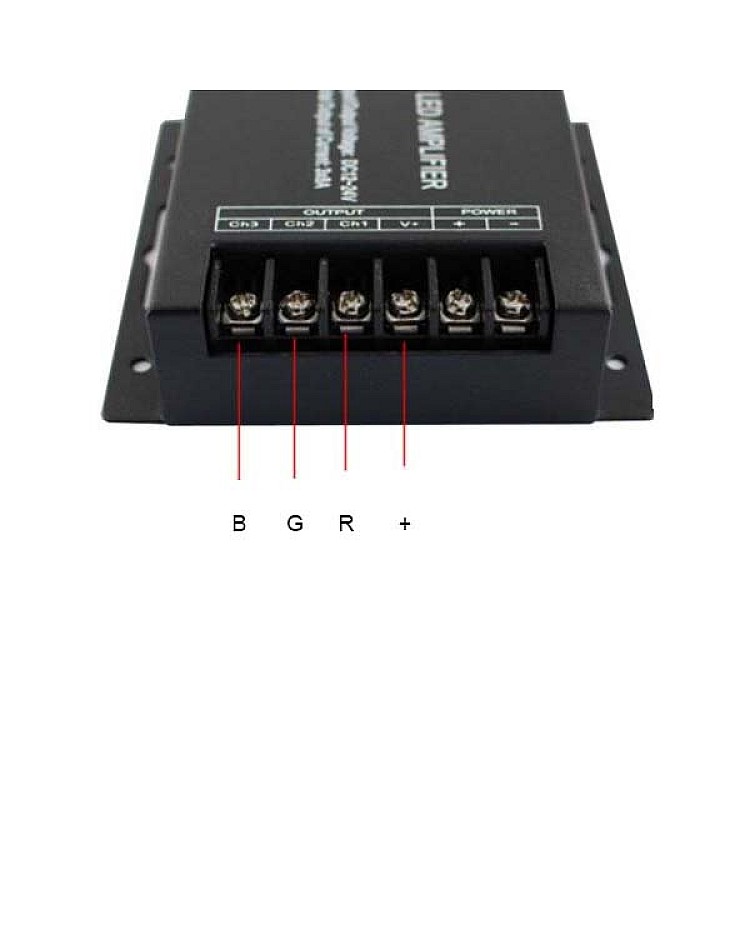

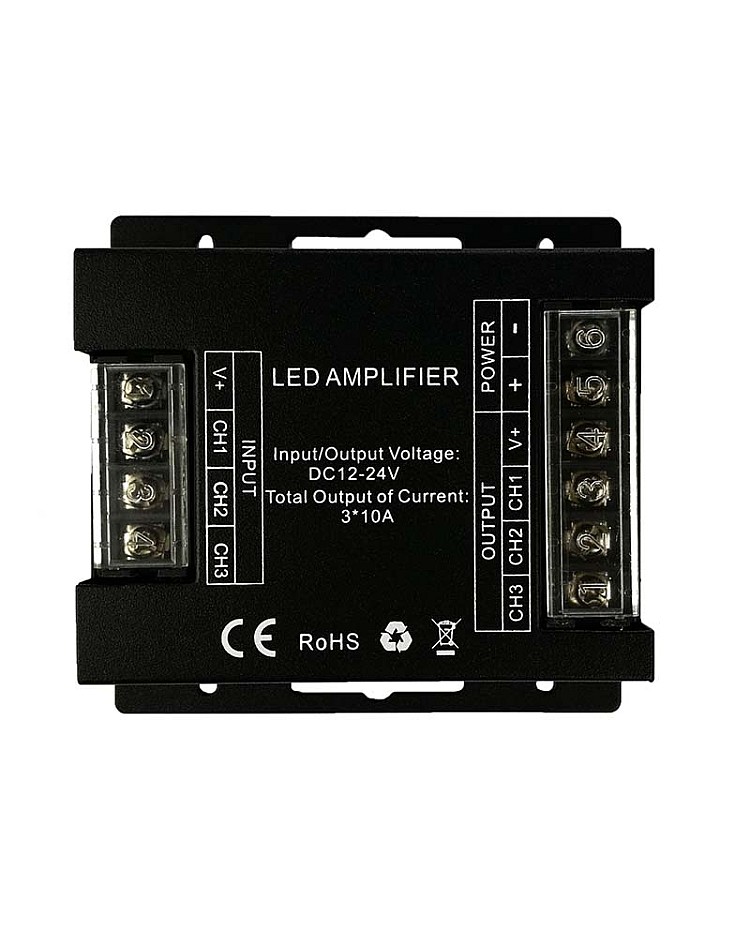

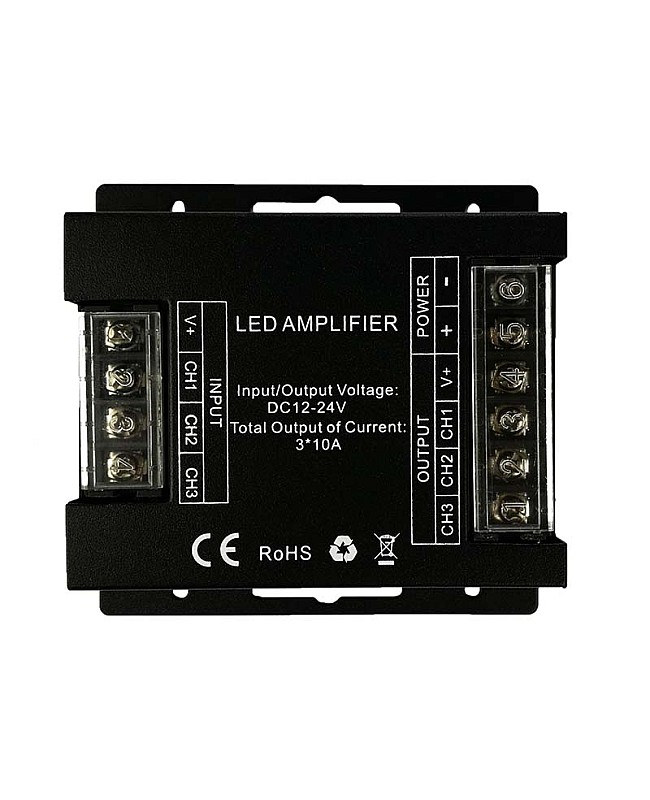

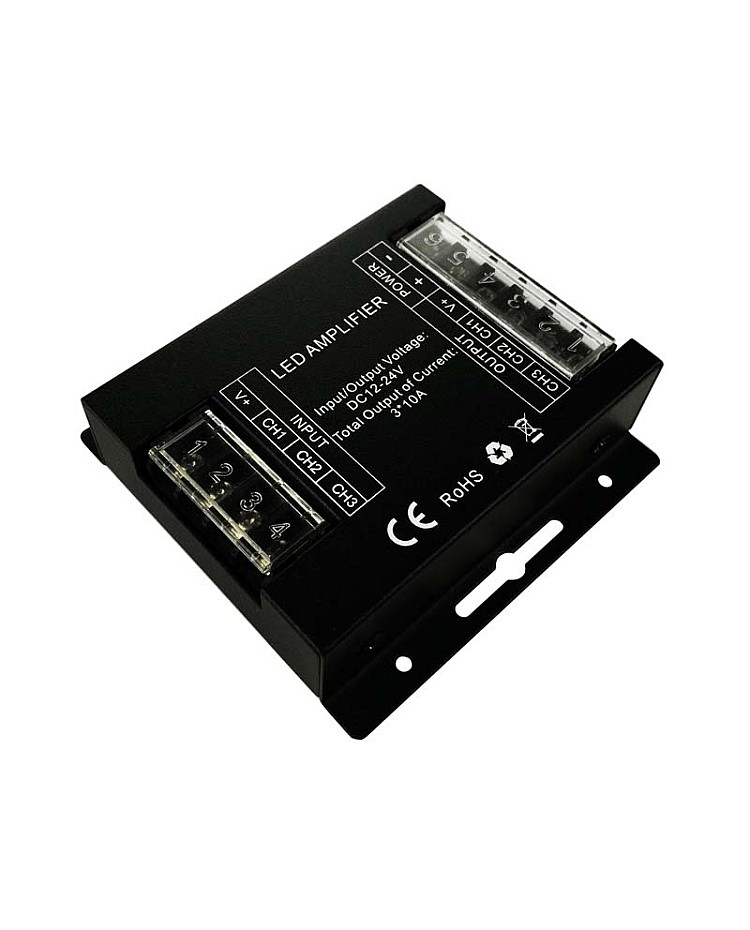

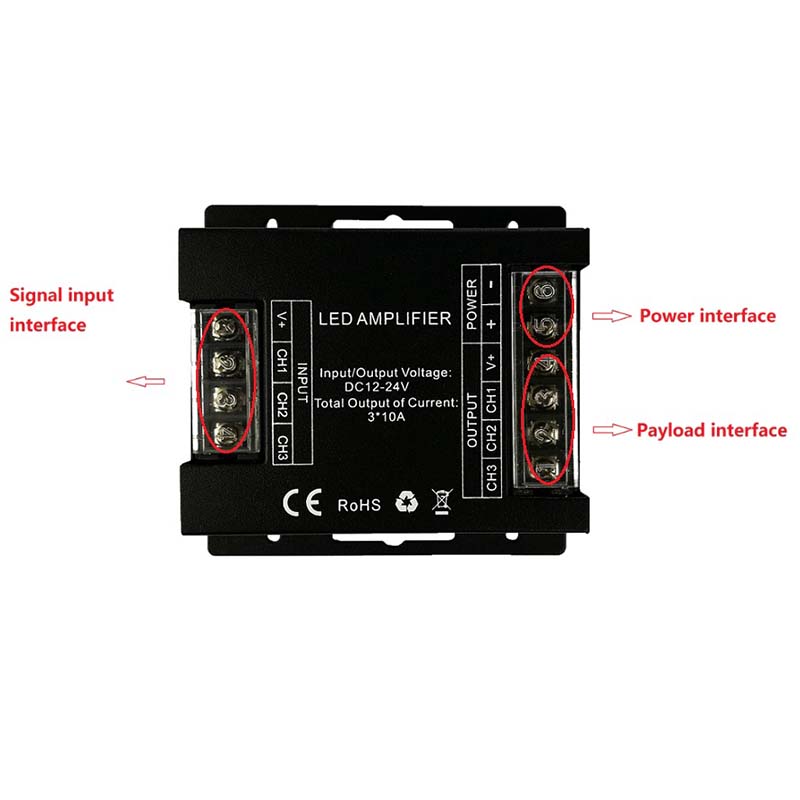

The RGB LED Strip amplifiers have a metal shell design for better heat dissipation. They work on DC12V or DC24V, with a three-output-channel design, the max output current of each channel up to 10A, and max loading power up to 720W when working in DC24V. The RGB LED amplifier is compatible with all Hoion RGB LED controllers, receives and transmits the PWM signal, allowing more RGB LED strips to be driven, and can be connected to numerous RGB amplifiers together in theory.


Specifications:

  • Item NO: HX-AMF-02
  • Manufacturer: Hoion
  • Item Type: RGB LED Amplifier
  • Working temperature: -20 ℃-60 ℃
  • Dimensions: L91 mm* W88 mm* H24 mm
  • Voltage: DC12V-24V
  • Output: 3 Channels
  • Output Current: ≤10A(Each Channel)
  • Max Output Power: 360W(DC12V), 720W(DC24V)
  • Connecting Mode: Common Anode
  • Static power consumption: <1W
  • Certificate: CE, ROHS
  • Weight: 250g
  • Warranty: 3 Years


Package:

1 * RGB LED Strip Amplifier

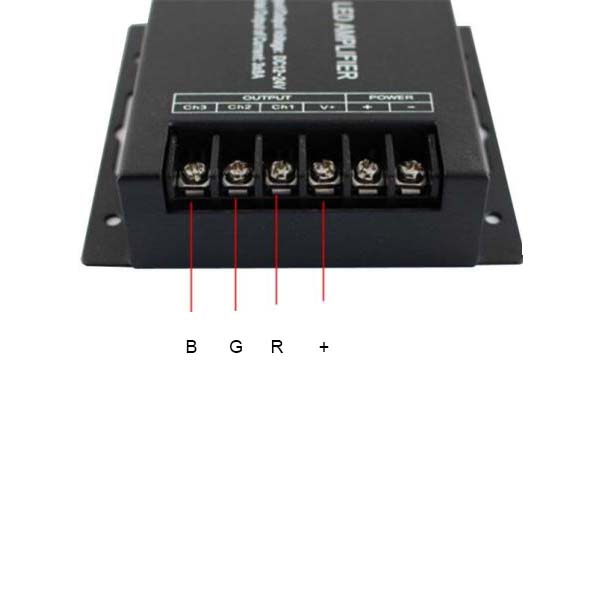

How To Install:

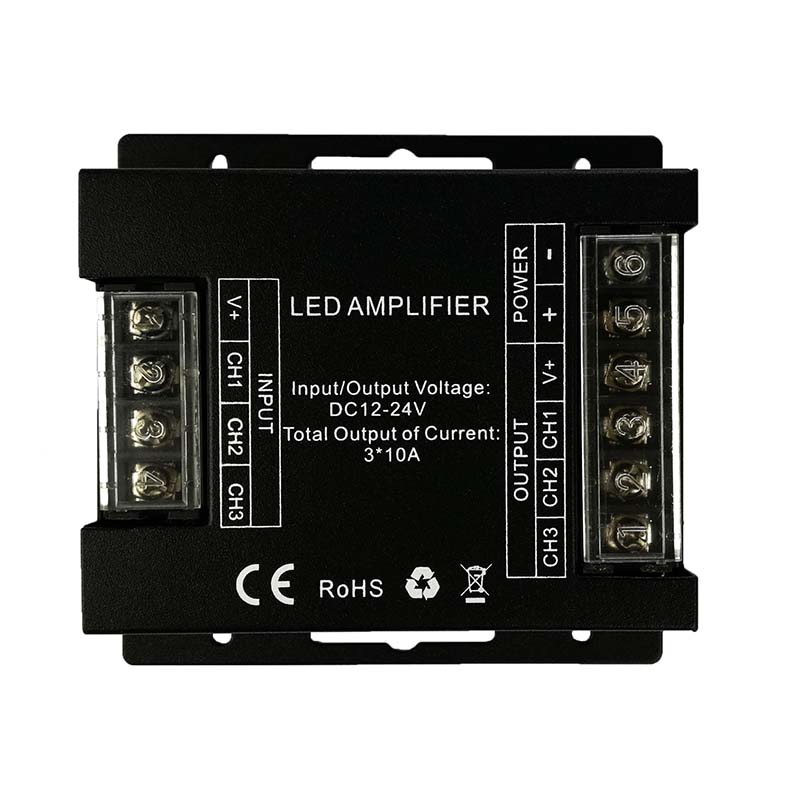

12V RGB LED Amplifier

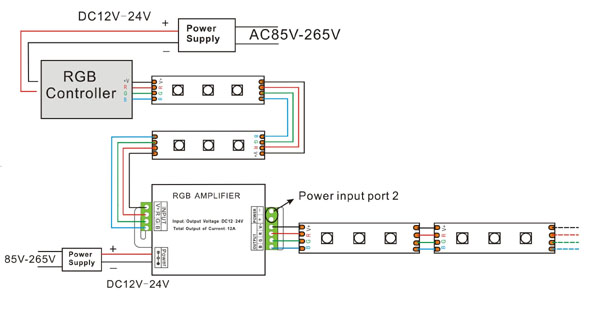

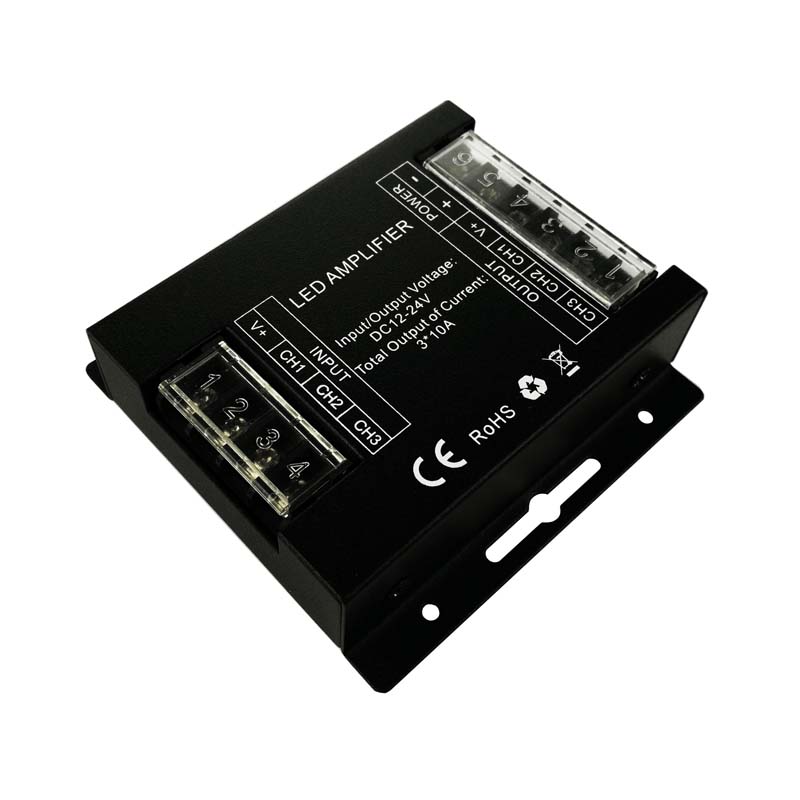

RGB LED Strip Amplifier

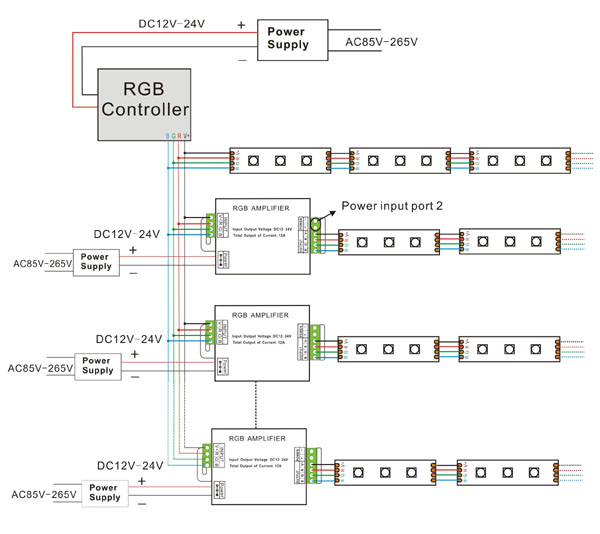

LED strip amplifier
