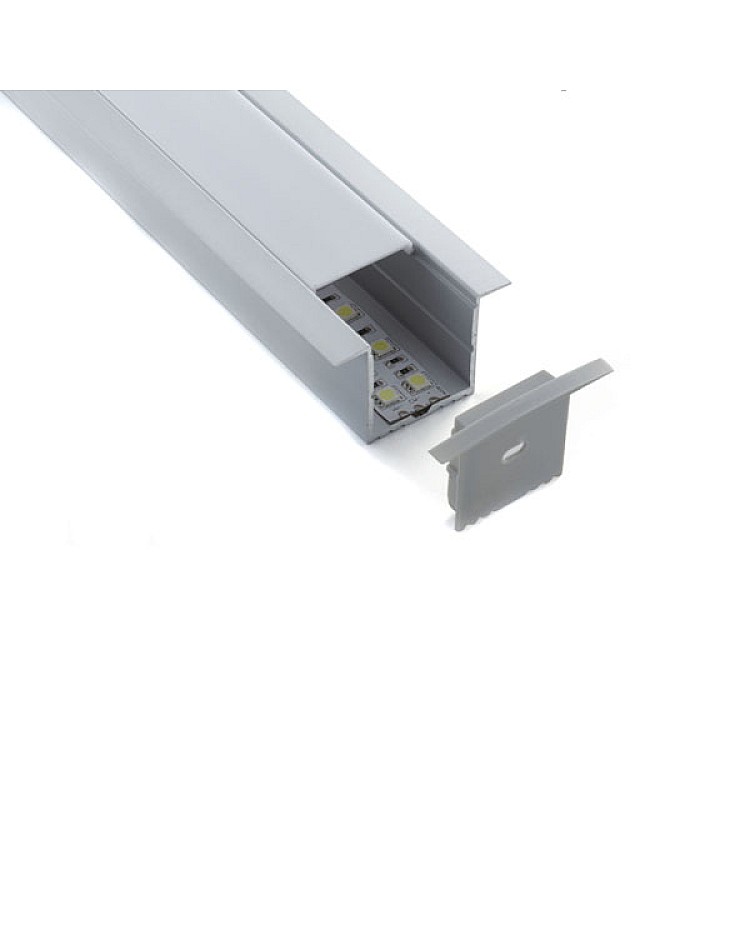

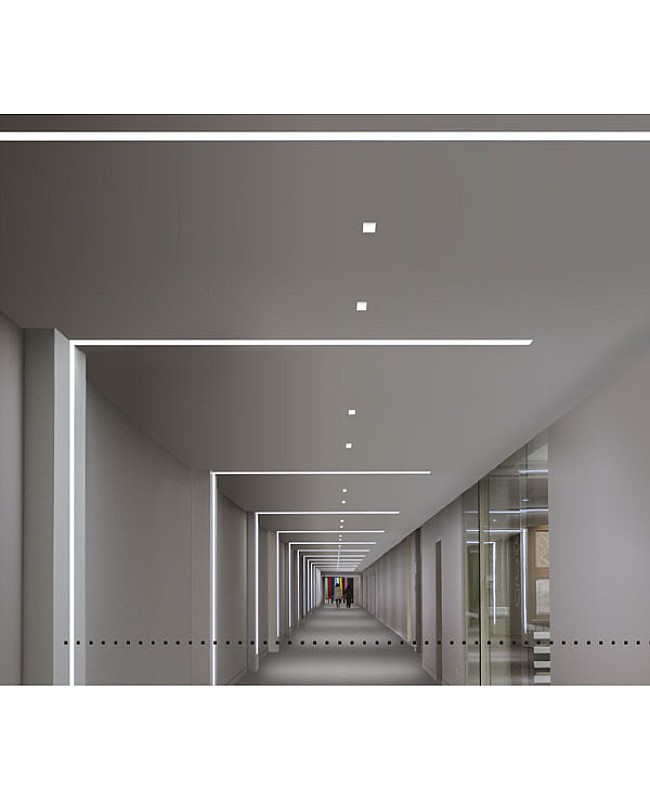

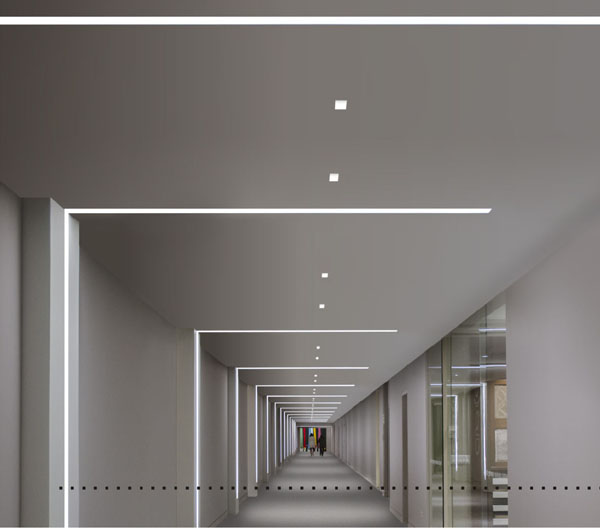

The high-performance recessed LED strip channel is engineered for seamless integration into drywall, ceilings, cabinetry, and custom millwork. Designed for a flush, minimalist finish, this recessed LED profile sits perfectly flush with the surface, creating a clean, professional appearance that disappears into the structure. You can use them to add task lighting or supplemental lighting in residential or commercial settings.
PC-series and PMMA-series diffuser covers are available. You can choose them for various levels of light transmittance. They are made from quality anti-yellowing material for a longer lifespan. The PC diffused covers create a seamless, soft light. Best for ambient lighting where you don't want to see the LEDs. PMMA opal covers are ideal for creating a soft, elegant, and uniform light with superior scratch resistance and no visible hotspots.
Crafted from premium aluminum alloy and with an anodized finish, this extrusion delivers superior thermal management, ensuring your LED lights operate at peak efficiency while extending their lifespan. The inner width is 32.2mm, allowing you to add strip lights up to 32mm wide. You can add wide-board COB strip lights or multiple lines of SMD LED strips as the light source to provide bright, uniform illumination.

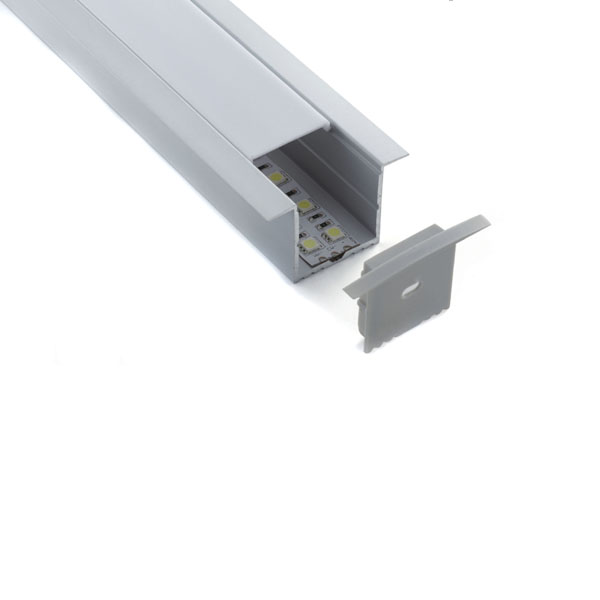

The stock lengths are 1m and 2m, and custom lengths are available. We can also help you cut them to a custom length for free. The end caps (with and without wire holes) are included for a professional end seal and to make it easy to run the power cable out. The metal clips are included for easy mounting.
Specifications:

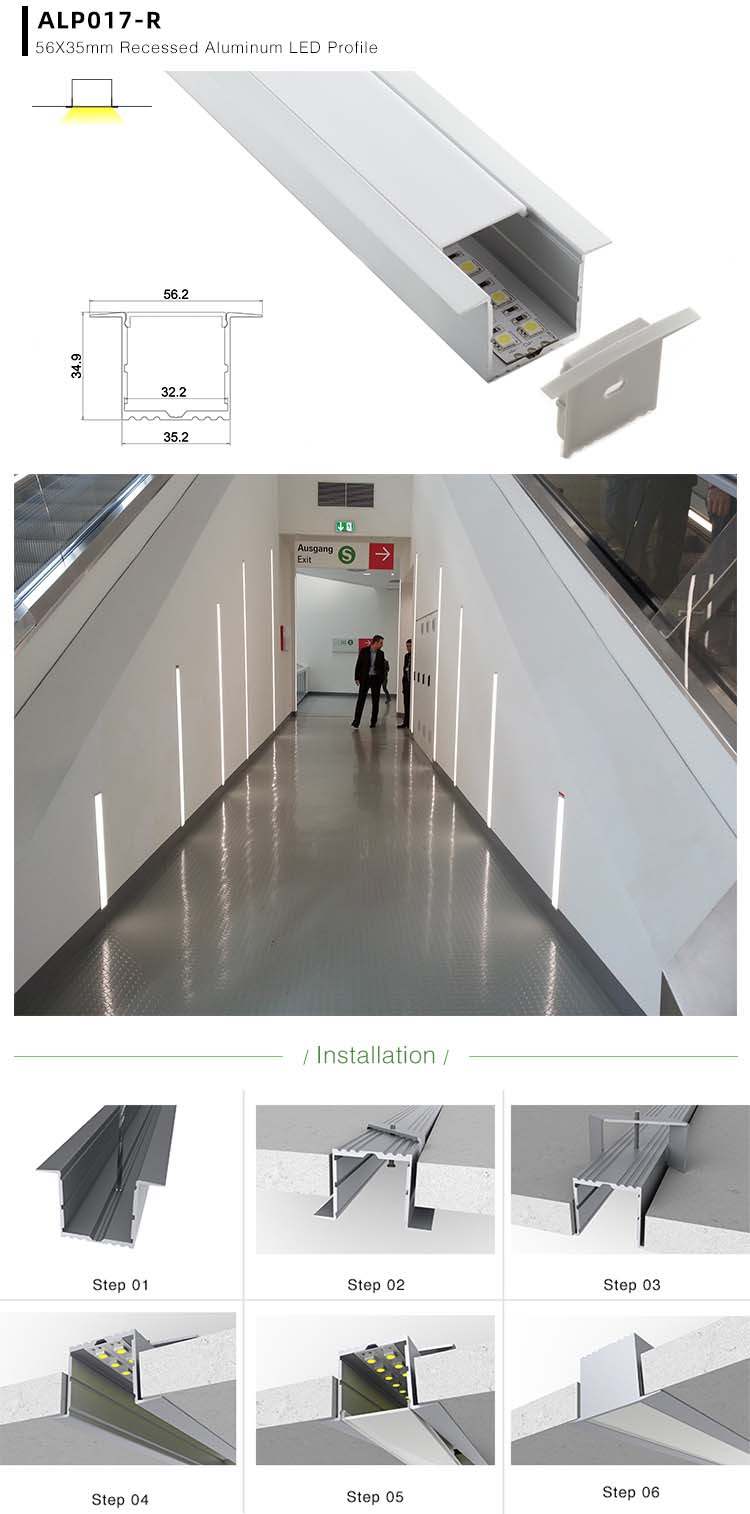

- Model: ALP017-R
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized
- Color: Silver

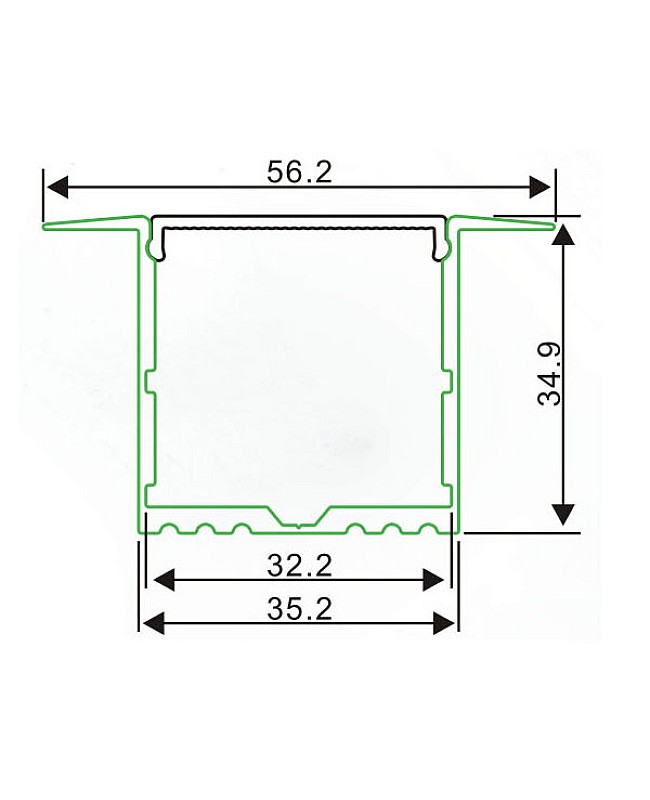

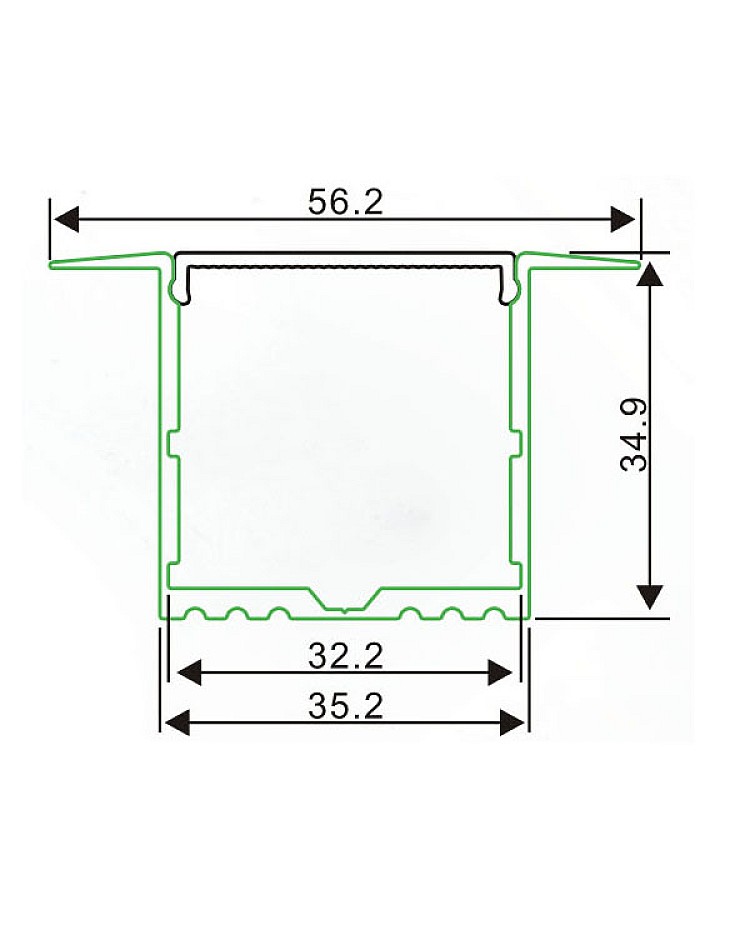

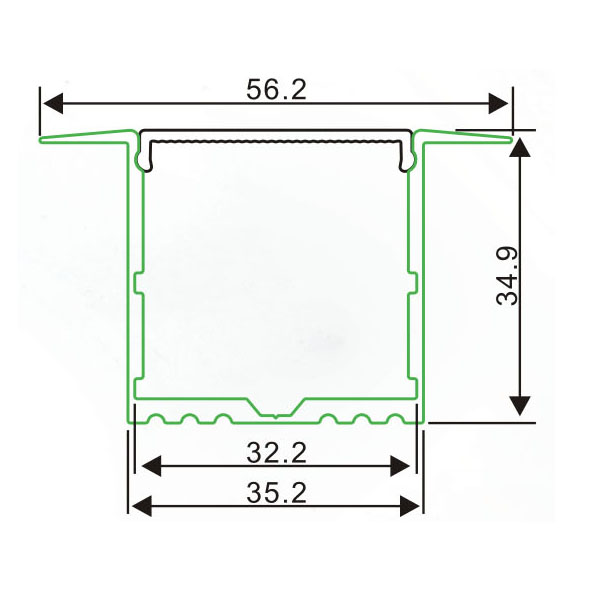

- Size ( Width x Height ): 56.2 mm x 34.9 mm / 2.21“ x 1.37"
- Covers: PC diffused cover, PC semi-clear cover; PC clear cover; PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover
- Lengths available: 1m ( 39.37" ), 2m ( 78.74" )
- Custom length Available: YES
- Inner width: 32.2mm / 1.27"
- Maximum power: <25W/m

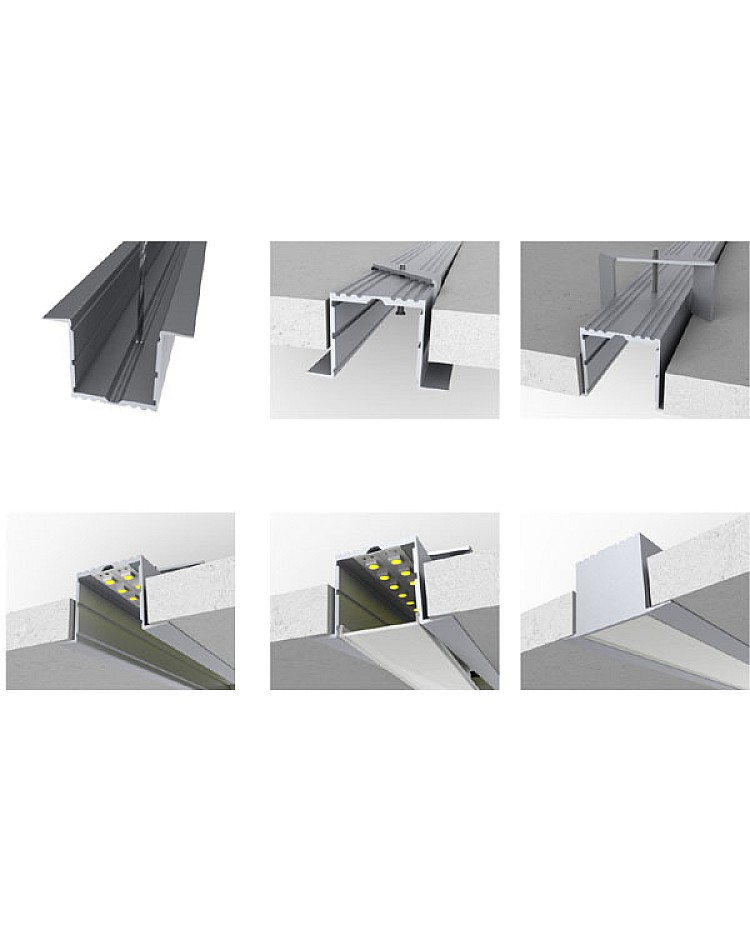

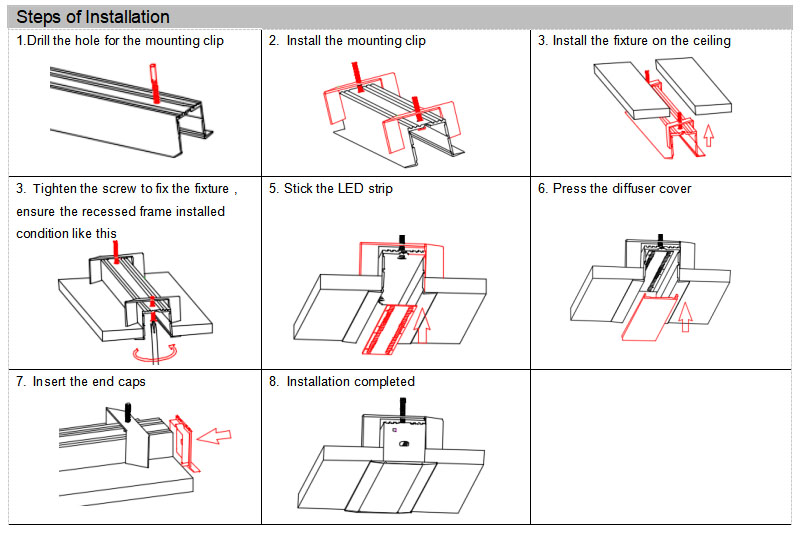

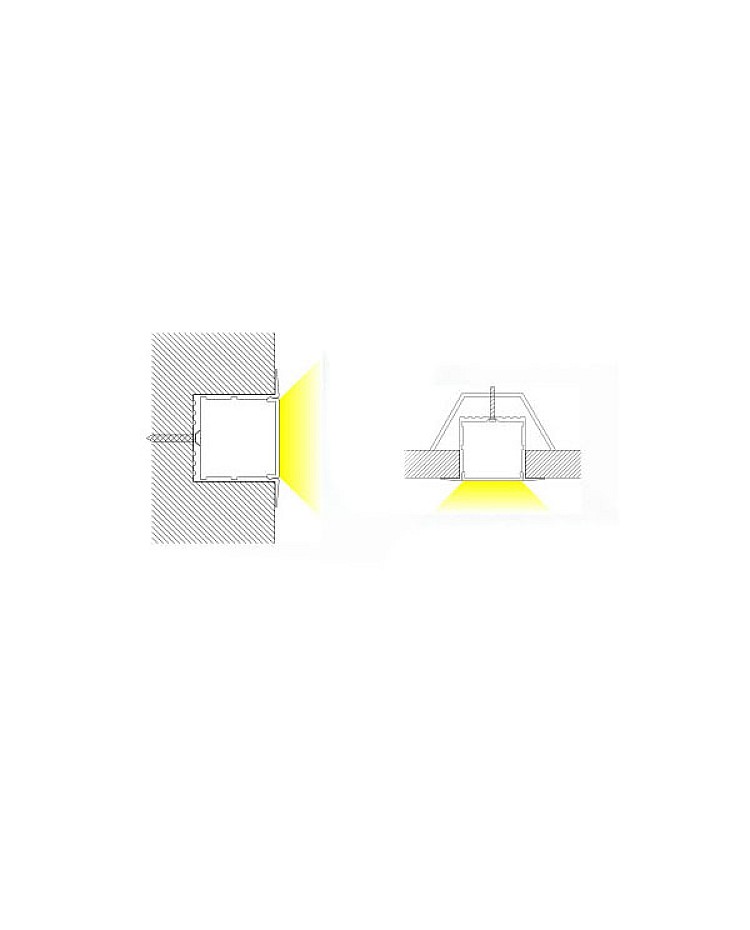

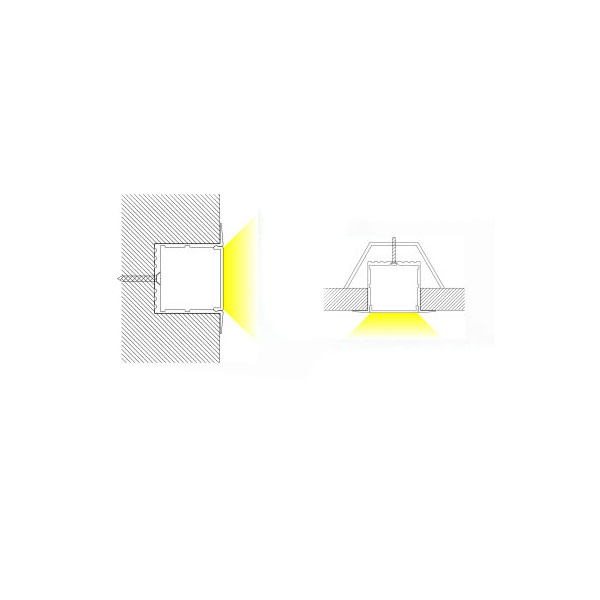

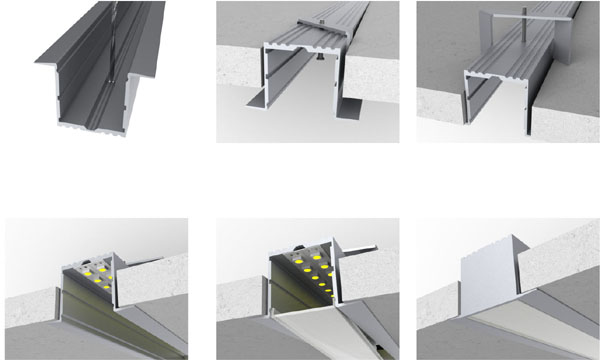

- Installation: Recessed mounted
- End caps ( with and without wire holes) and metal clips are included
- Warranty: 5 years
Package:
1 * Recessed LED light channel
End caps(With and without wire holes)
Mounting brackets
