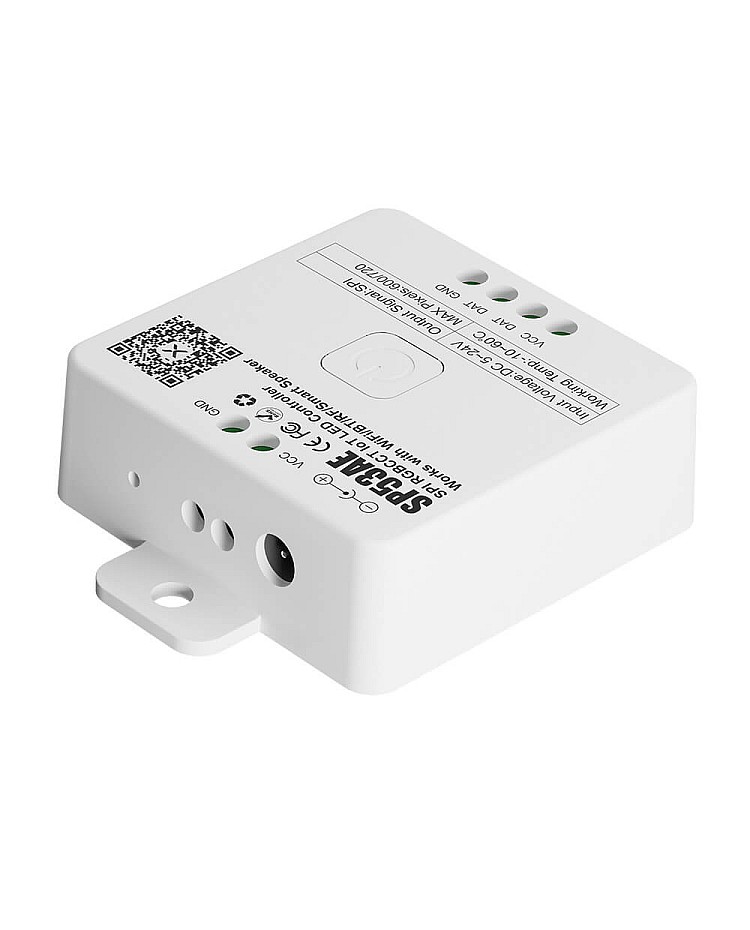

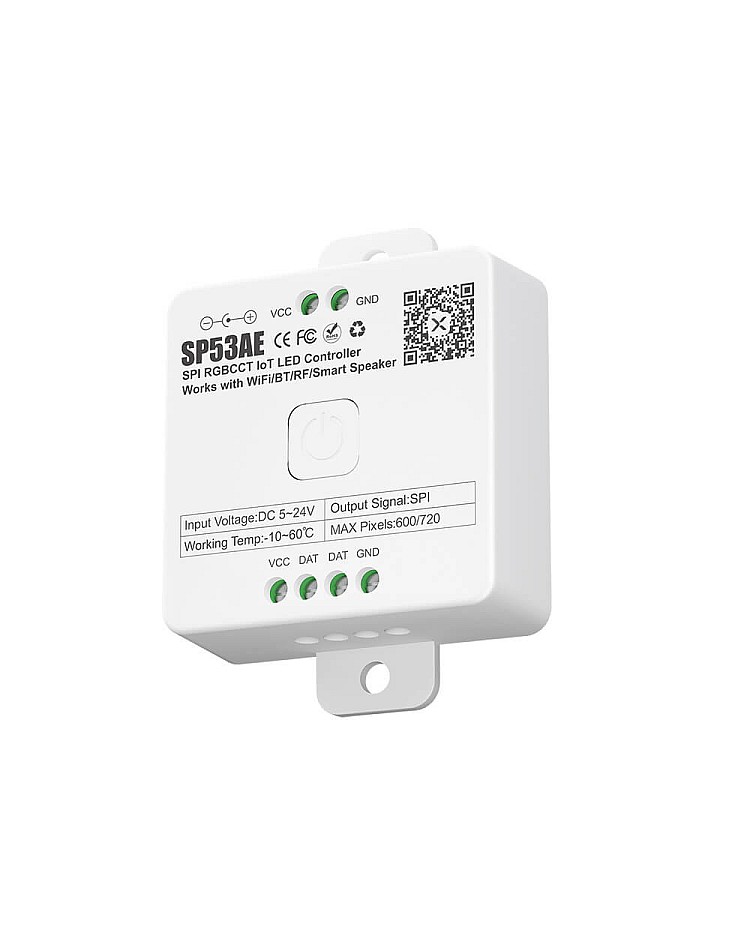

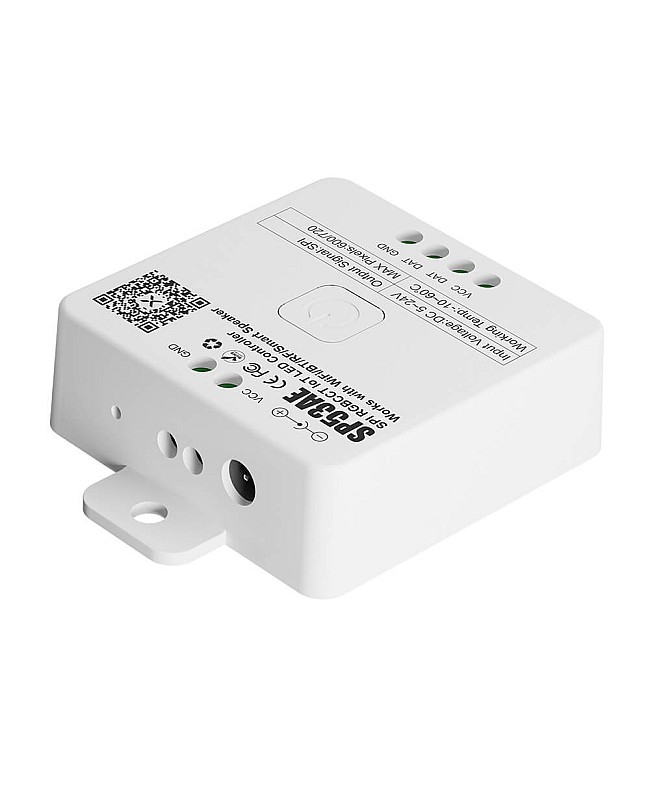

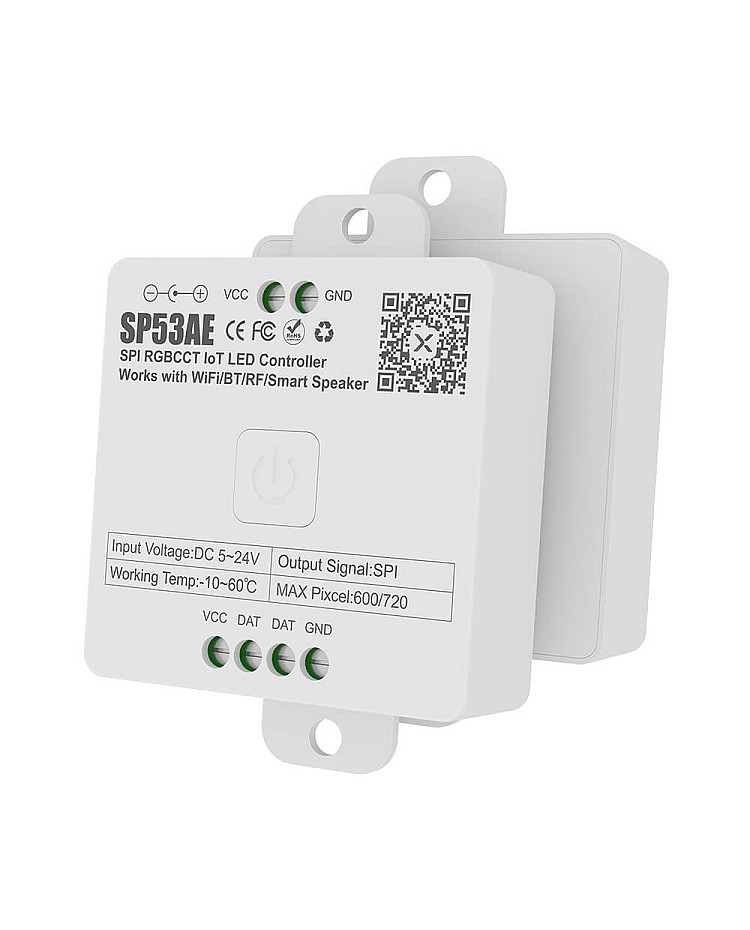

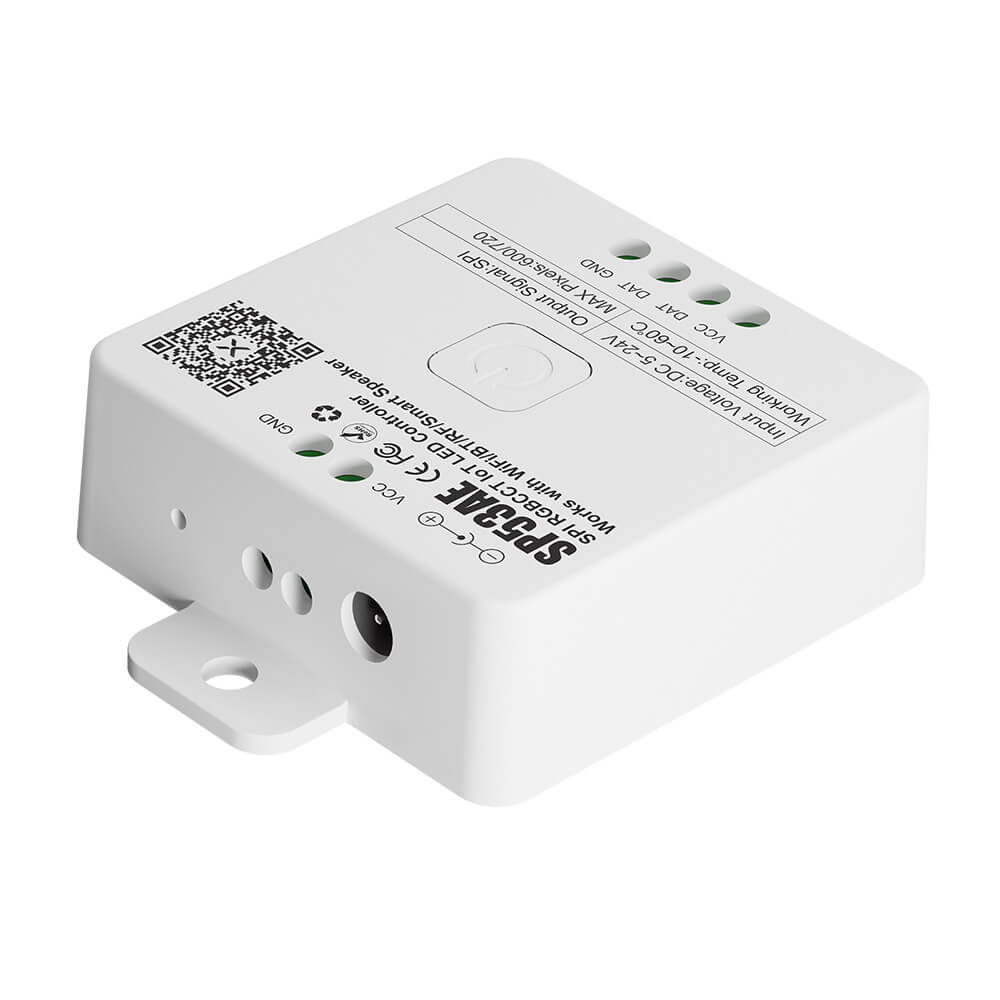

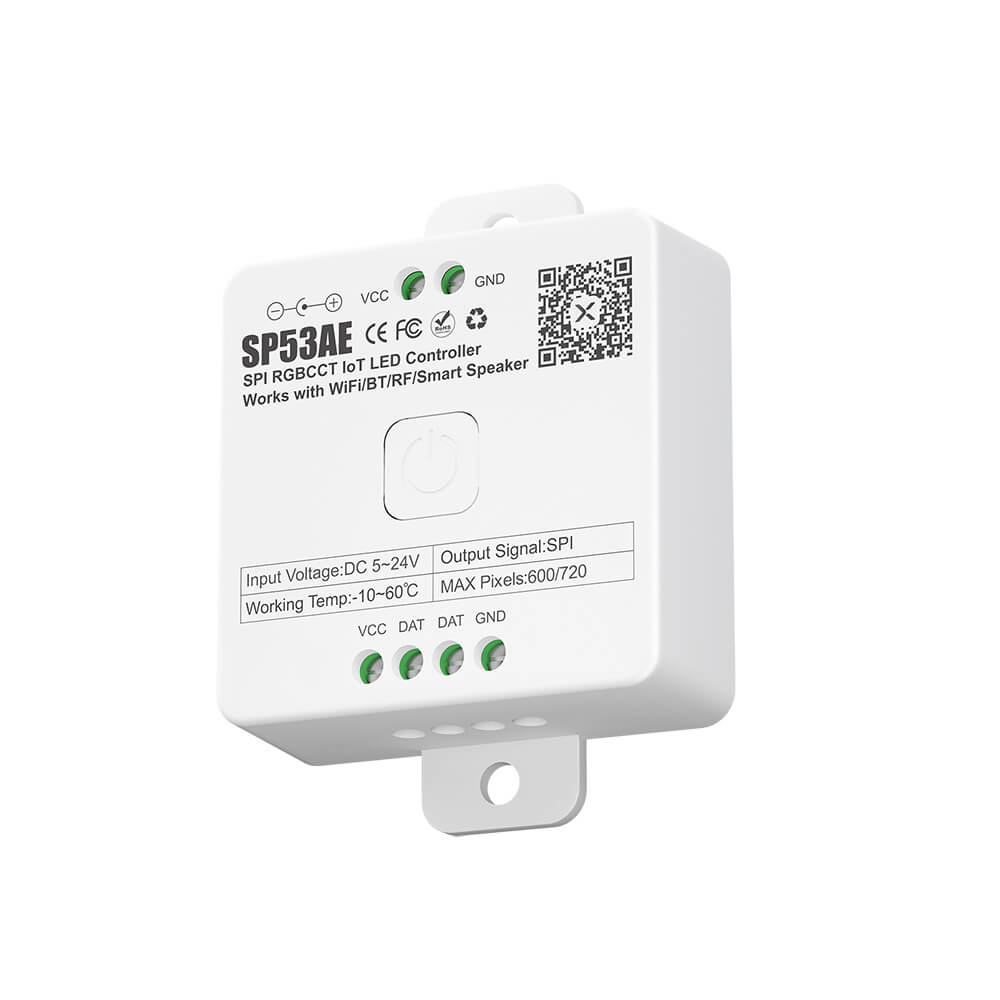

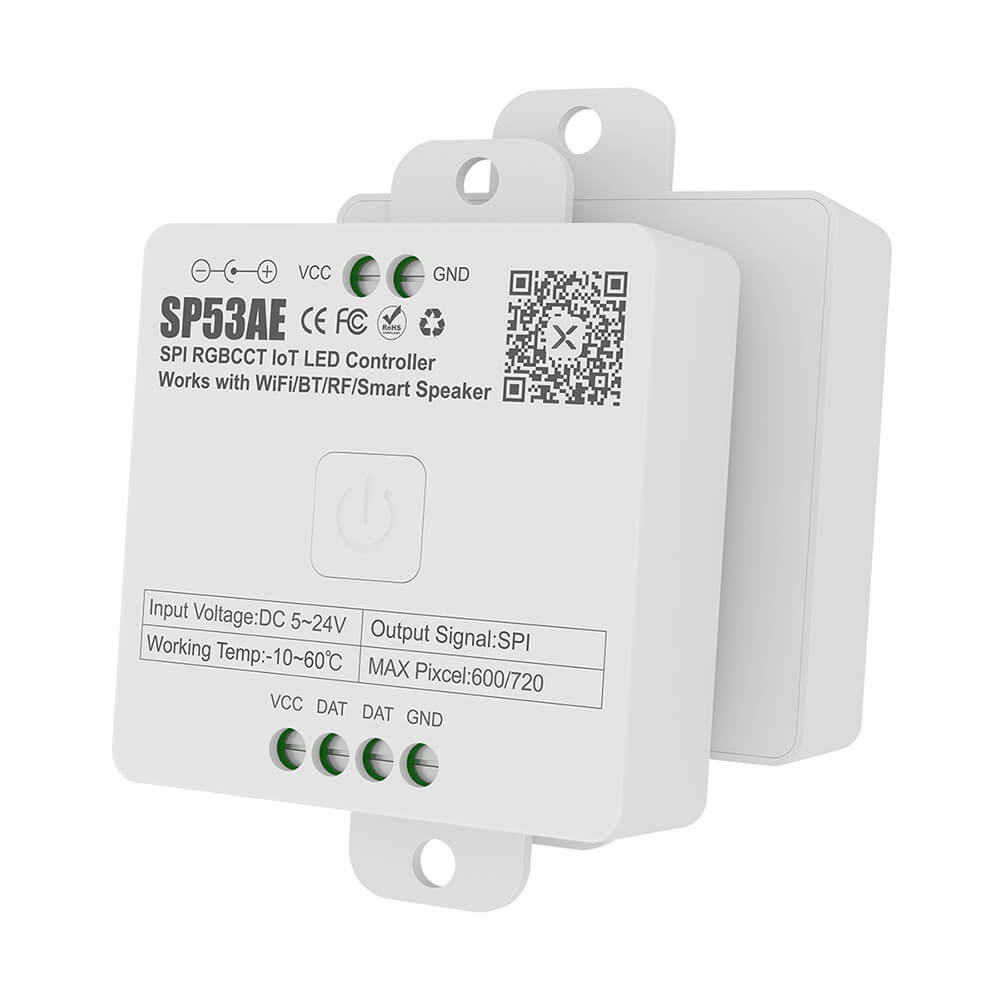

The SP53AE is an SPI RGBCC LED controller that controls five-channel or six-channel single-wire driving ICs through SPI signals. They will deliver smart lighting control with seamless integration across APP, voice, and multi-zone management. They are designed for SPI RGB+CCT SMD or COB strip lights, allowing you to customize brightness, colors, and color temperature with precision. Bluetooth, WiFi, local area network, and remote cloud connection are available via mobile app, and can also be controlled by 2.4G RF remote controls. Through the mobile app, you can access millions of colors, preset modes, dynamic effects, and scheduled lighting. It also supports voice assistants like Amazon Alexa and Google Home, enabling hands-free operation. It supports three music signal input methods: mobile phone mic, player streaming, and onboard mic. Under the music modes, the lighting will change automatically following the music beats.
Specifications:
- Model: SP53AE
- Type: SPI RGB+CCT LED controllers
- Size ( L x W x H ): 78 mm x 56 mm x 20 mm ( 3.07" x 2.2" x 0.79" )
- Input voltage: DC5V-24V
- Working current: 20mA-85mA
- Max pixels: 600 PCS
- Dynamic lighting effects: Millions of colors, adjustable CCT, brightness, and speed
- 146 RGB dynamic modes, 10 white dynamic modes, 18 RGB music modes, 5 white music modes
- APP control, 2.4G remote control ( RB4 ), voice control
- APP name: BanlanX
- Support smart speakers: Xiaodu, Xiaoai, Alexa, Google Home
- Music mode: Mobile phone mic, player streaming, onboard mic
- Working temperature: -10℃-60℃
- Warranty: 2 years
Includes:
1 x SP53AE SPI controller
1 x Screwdriver
1 x User manual
