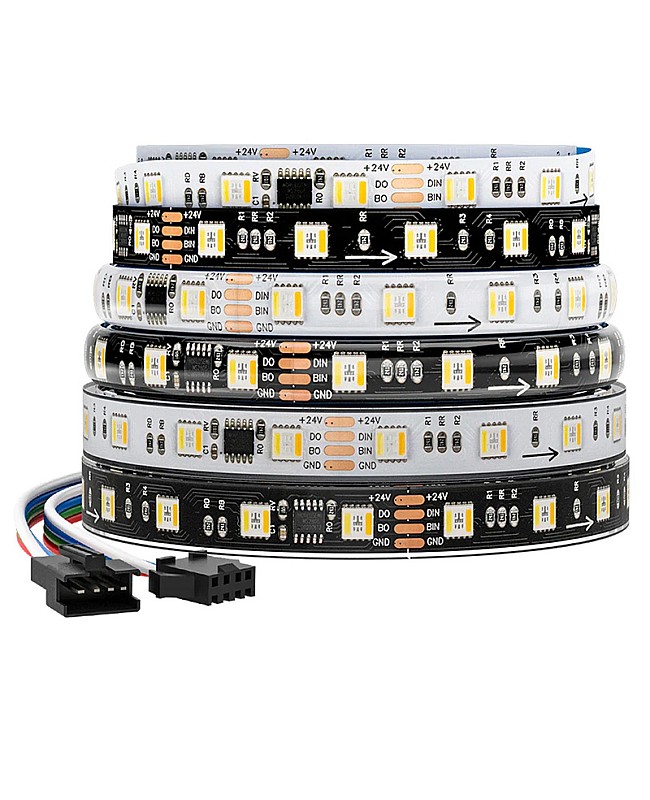

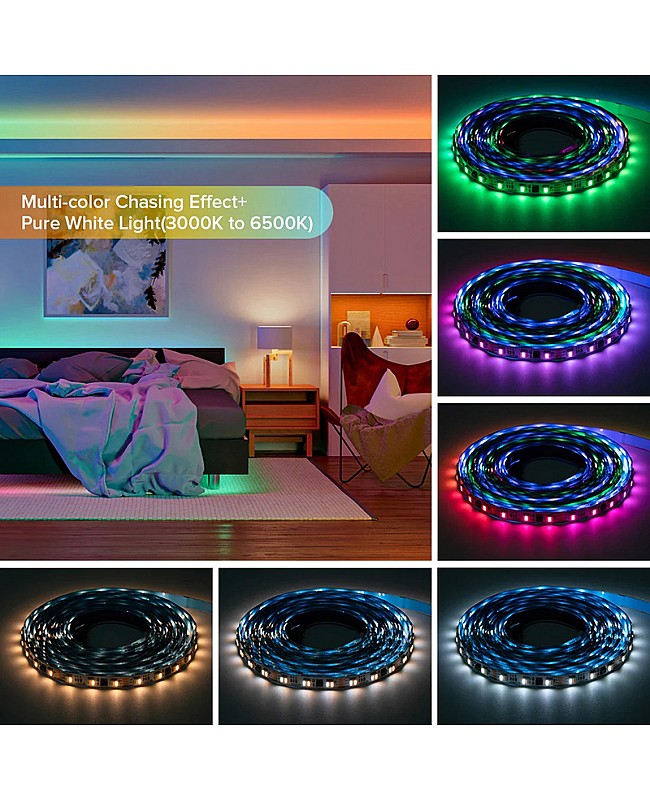

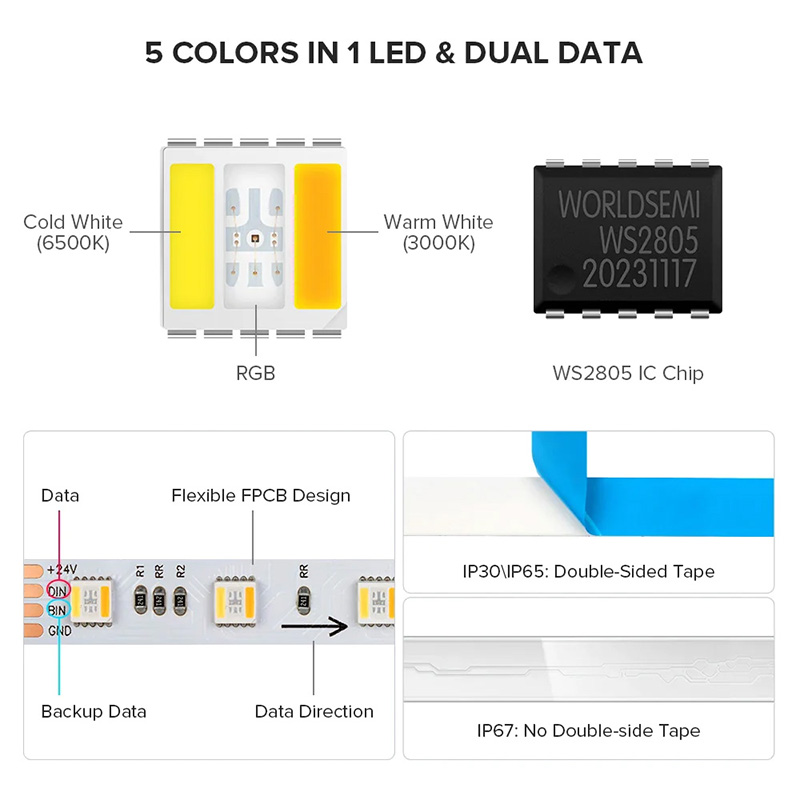

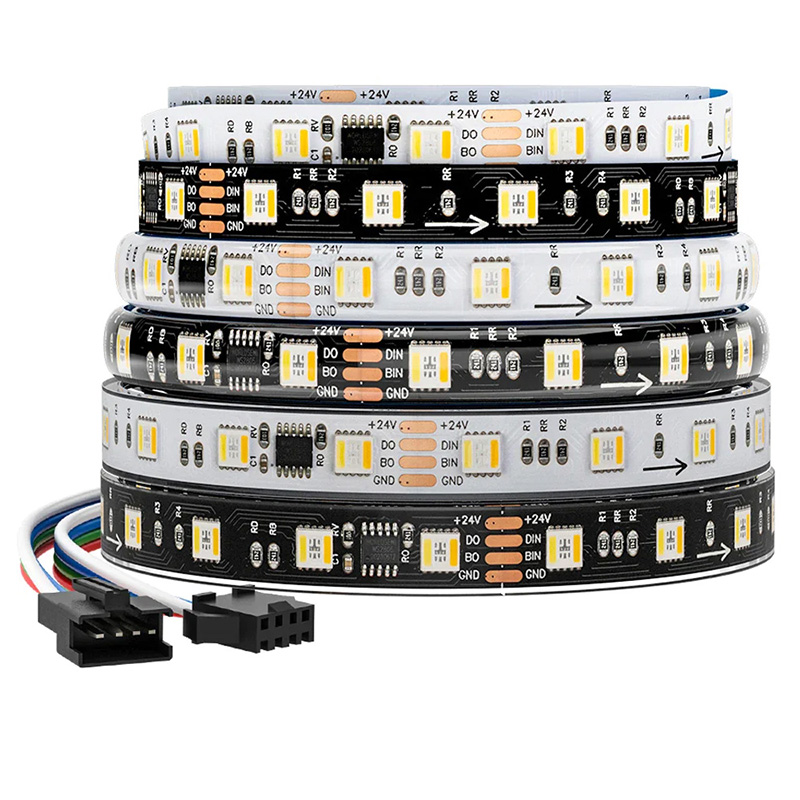

The WS2805 RGB+CCT addressable strips use high-quality 5-in-1 5050 LEDs as the light source. It not only provides impressive dynamic effects but also enhances the bright glow. They are perfect for creating unique and customizable lighting effects for various applications. The RGBCCT LED strips use WS2805 ICs to control the LEDs. Each piece of IC controls either six pieces or three pieces of SMD LEDs. They have dual signal wires designed for continuous transmission with signal break-point capability. If one IC is damaged, the others will continue to function normally, and the bright LED strip lights will remain unaffected. Each LED is built with red, green, blue, warm white (3000K), and cool white (6500K) chips, which can be mixed to create 16 million colors. The color temperature and brightness can be adjusted for various scenes. Both ends come with 4-pin JST Connectors, which are easy to connect to pixel controllers, allowing for 24-bit color and 256 brightness levels. You can achieve other dynamic effects, such as rainbow colors, pure white, chasing, waves, and jumps. Three waterproof levels of products are available: IP30 (non-waterproof), IP65 (surface-coated waterproof), and IP67 (silicone tube waterproof). The IP30 and IP65 models feature double-sided adhesive tape, making it easy to position them where you want to install them. The IP67 products come with screws and clips; you can mount them in rainy or wet locations. They are cuttable, allowing you to cut to your desired size freely. We can provide solderless SMD LED connectors, allowing you to connect them or connect them to the controller after cutting.
Note: To light up and adjust the lighting of the bright LED strips, you need to purchase the LED drivers (Mean Well LRS-350) and controllers (SP630E) separately.
Specifications:
- Type: 5 In 1 RGB+CCT Addressable LED Strips
- PCB Board Colors: White/Black
- IC Type: WS2805
- IC Quantity: 10PCS/Meter(DC24V)/20PCS/Meter(DC12V)
- LED Type: 5 In 1 5050 SMD
- LED Quantity: 60PCS/Meter
- Lengths Available: 1M, 3M, 5M

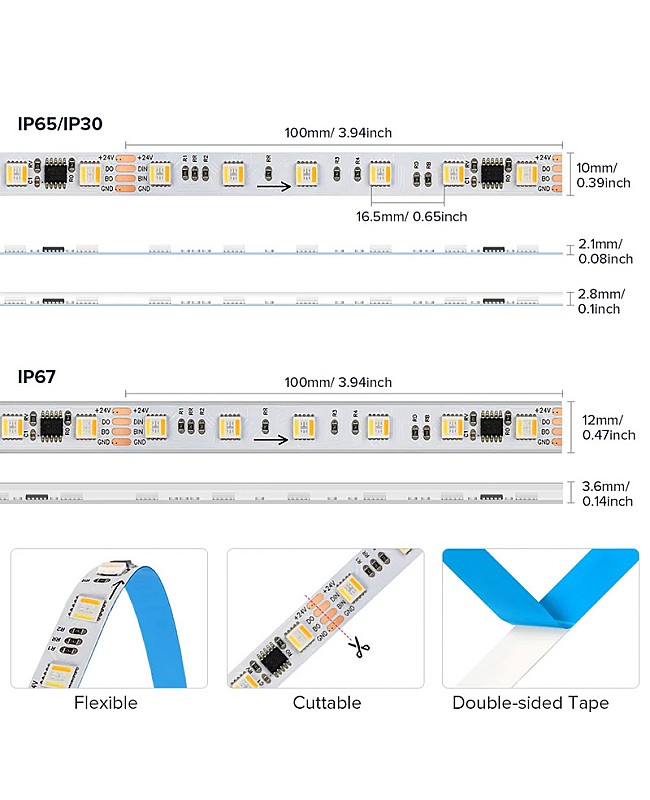

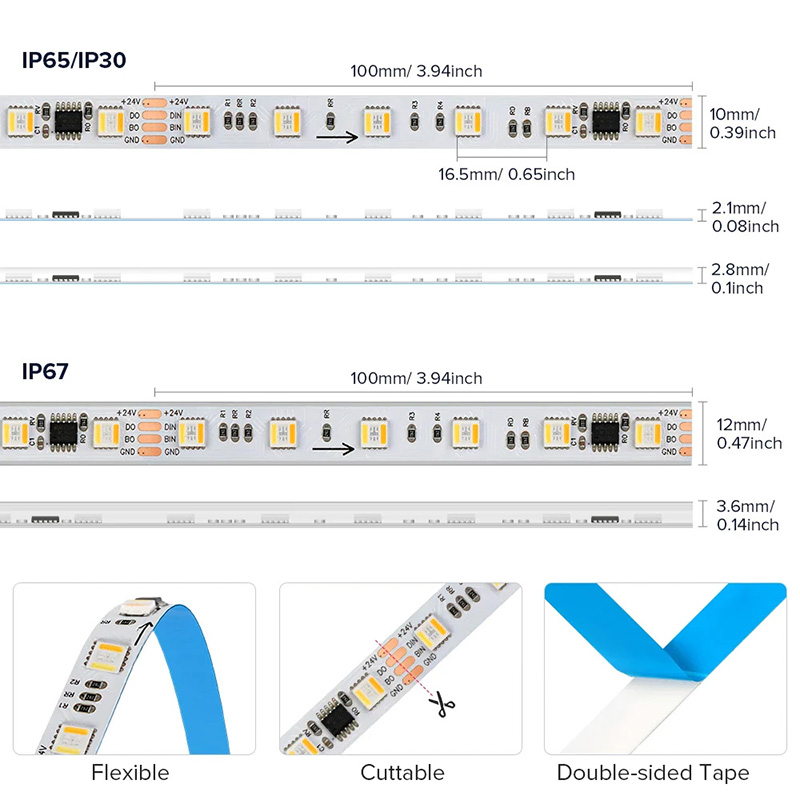

- PCB Board Width: 10mm/0.39"
- Height: 2.1mm/0.08"(IP30), 2.8mm/0.11"(IP65), 3.6mm/0.14"(IP67)
- Working Voltage: DC12V/DC24V
- Power: 15W/M
- Emitting Colors: Addressable RGBCCT(3000K-6500K)
- Gray Scale: 256 Levels

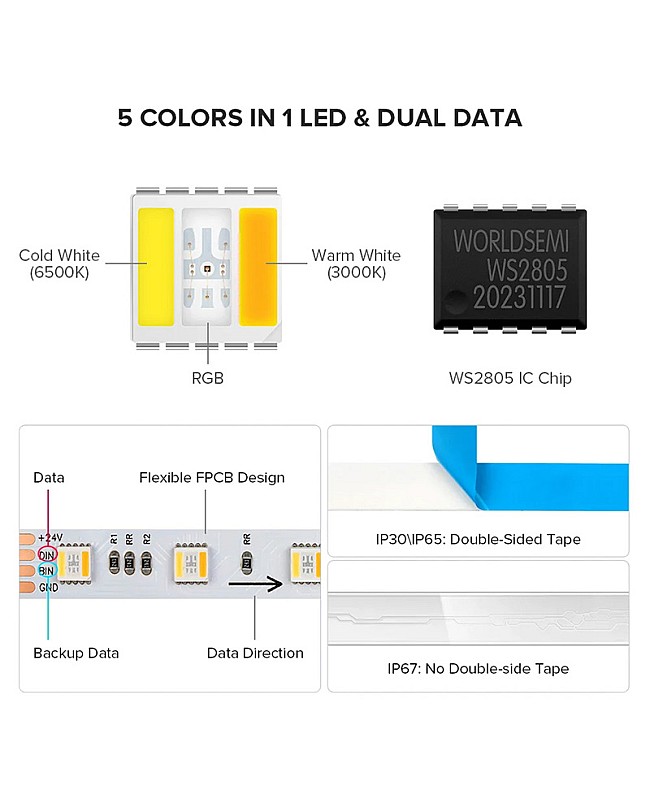

- Dual Signal Wires Design
- Waterproof Levels: IP30 Non-waterproof, IP65 Coated Waterproof, IP67 Silicone Tube Waterproof
- Beam Angle: 120°
- Minimum Cutting Length: 10cm/3.94"(DC24V)/5cm1.97"(DC12V)
- Both Ends Come With Wires(Red+Green+Blue+White)

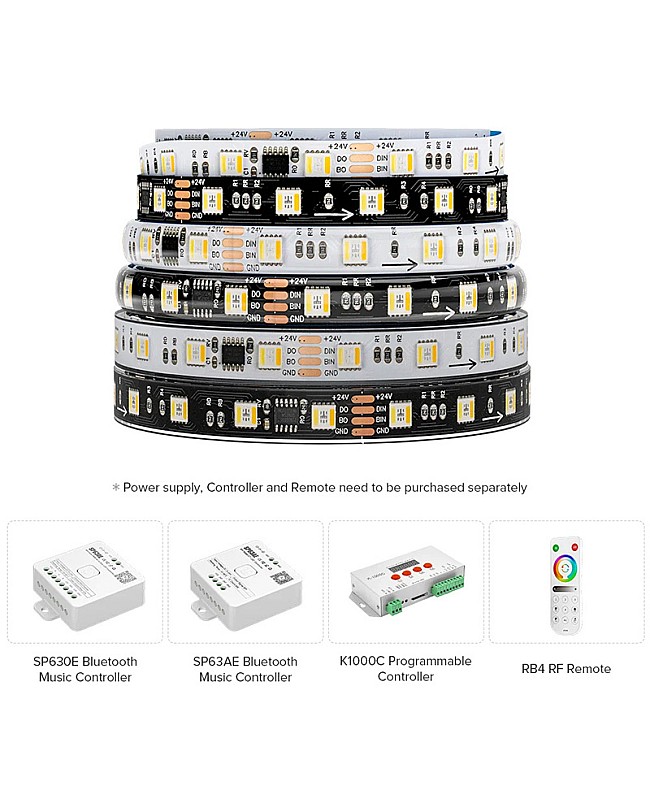

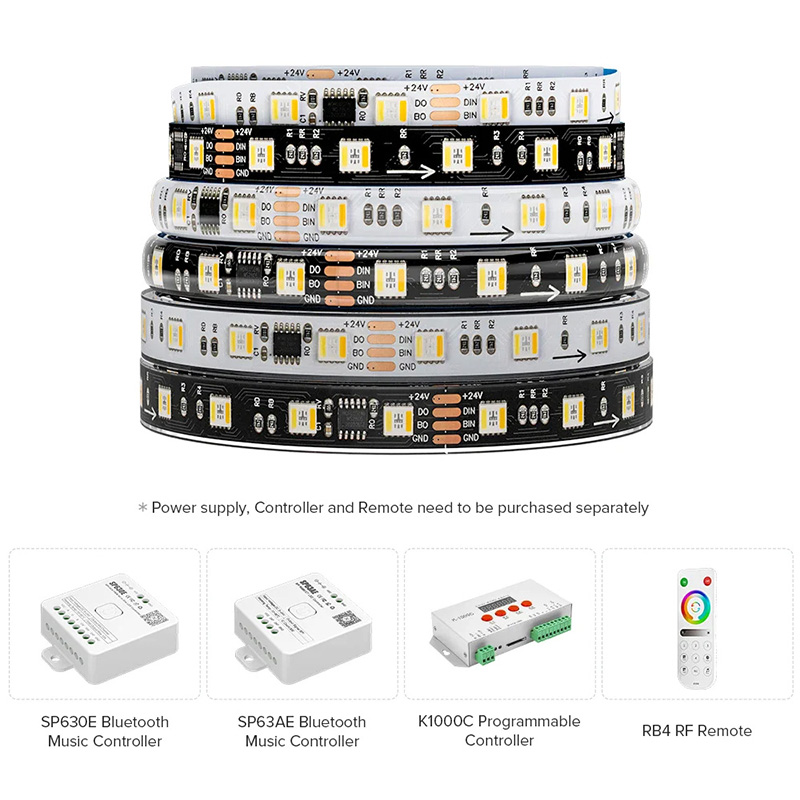

- Pixel Light Controllers Recommended: SP630E, SP63AE, k1000C, etc
- Back With Double-sided Adhesive Tape(IP30&IP65); Plastic Clips(IP67)
- Working Temperature:-20℃-+40℃
- Lifespan: 50,000 Hours
- 2 Years Warranty
Includes:
1 * WS2805 Addressable LED Strip
