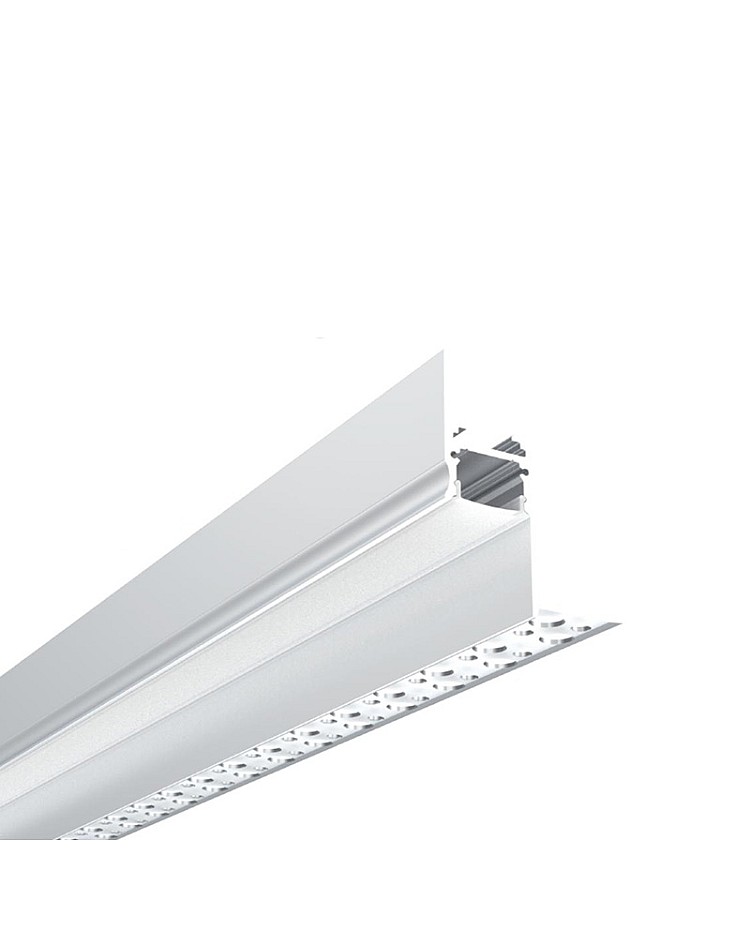

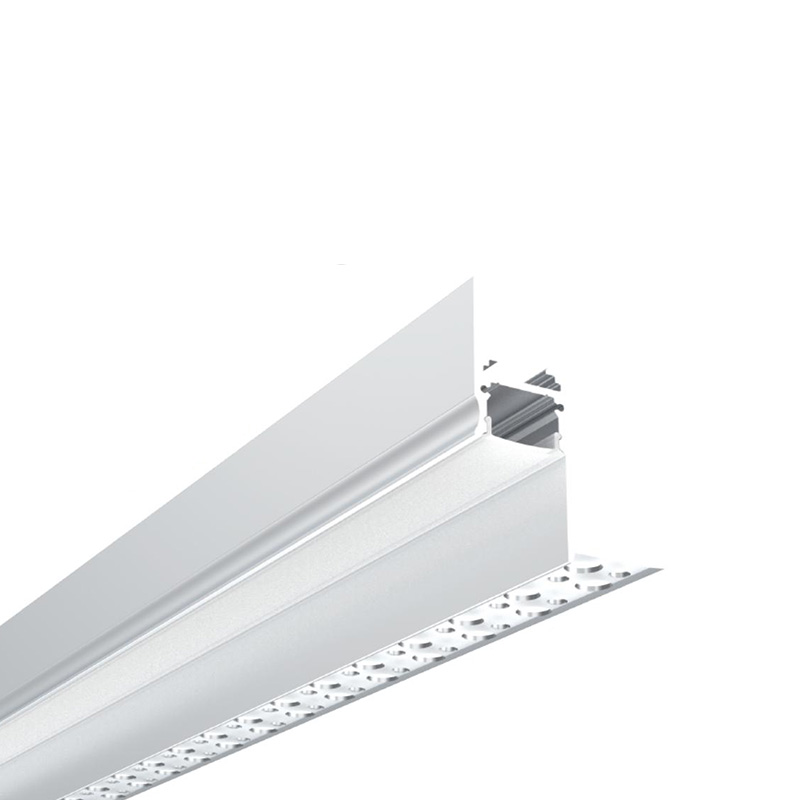

The plaster-in shadow line LED channels with low glare design ensure that the ceiling perimeter Lighting is evenly distributed without causing discomfort or glare to the eyes. You can create an elegant and smooth line of light without visible edges. This makes them perfect for spaces where a soft and diffused lighting effect is desired, such as living rooms, dining areas, bedrooms, etc. LED mounting channels are made of 6063-T5 extruded aluminum material, featuring a powder-coated treatment for enhanced oxidation resistance and a longer lifespan compared to similar products. The standard lengths are 1 m and 2 m, and it can be cut to any size for your project. Three types of diffusers are available for different lighting effects. You can choose from PC diffused covers, semi-clear covers, and prismatic covers, all made from brand-stable, anti-yellowing material with perfect light distribution and smooth light output. The inner width is 13.5mm, allowing for a maximum width of 12 mm for the LED strips. Recommend installing high-density, dotless COB LED strips as the light source, featuring no visible light dots or dark areas, high-quality color rendering, and brighter, uniform light emission. Two types of couplers are sold separately: 90° and 180° connectors. You can use the connectors for straight or angled connections. End caps with and without wire holes are included.

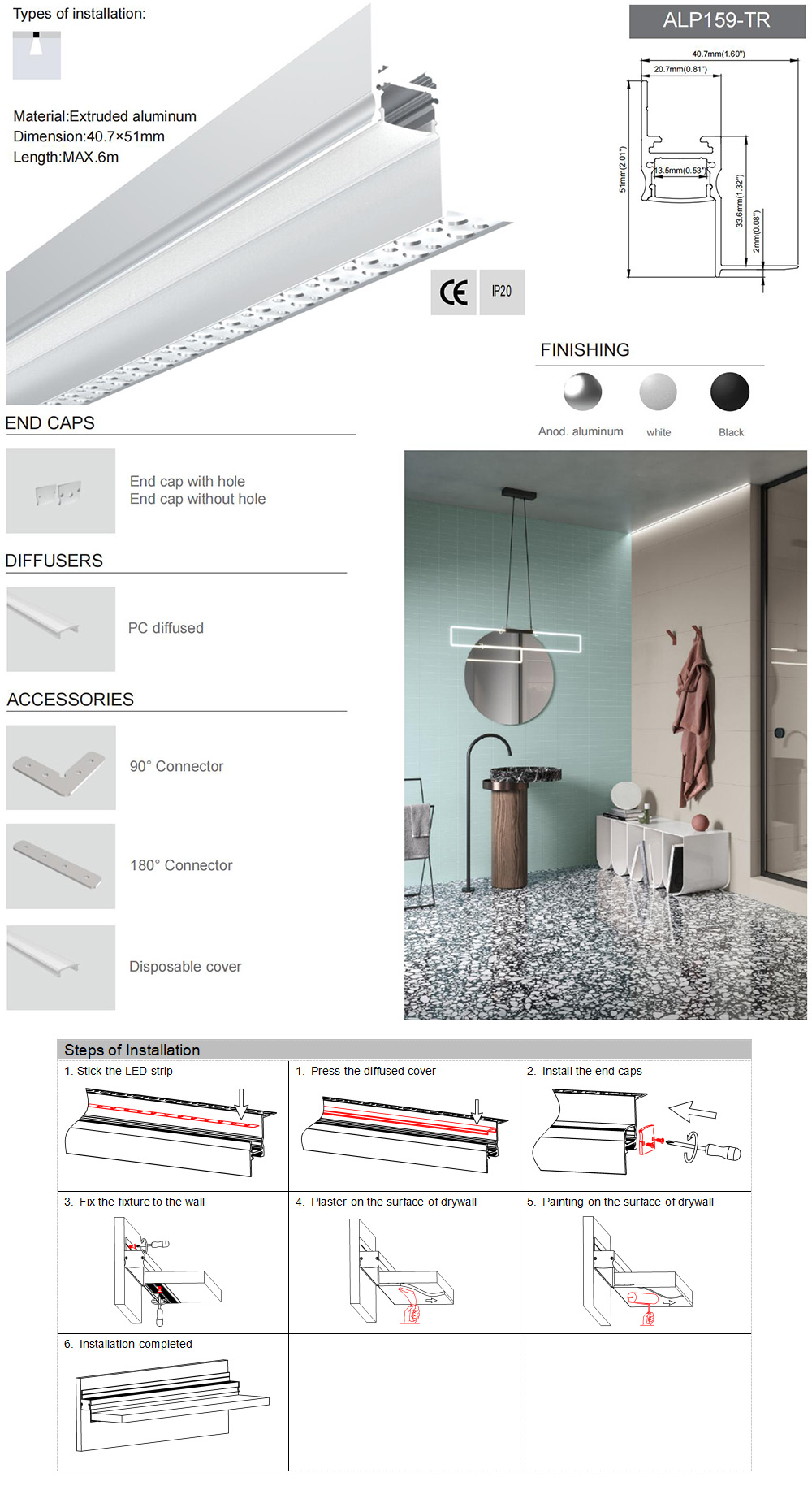

Specifications:
- Model: ALP159-TR
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coating

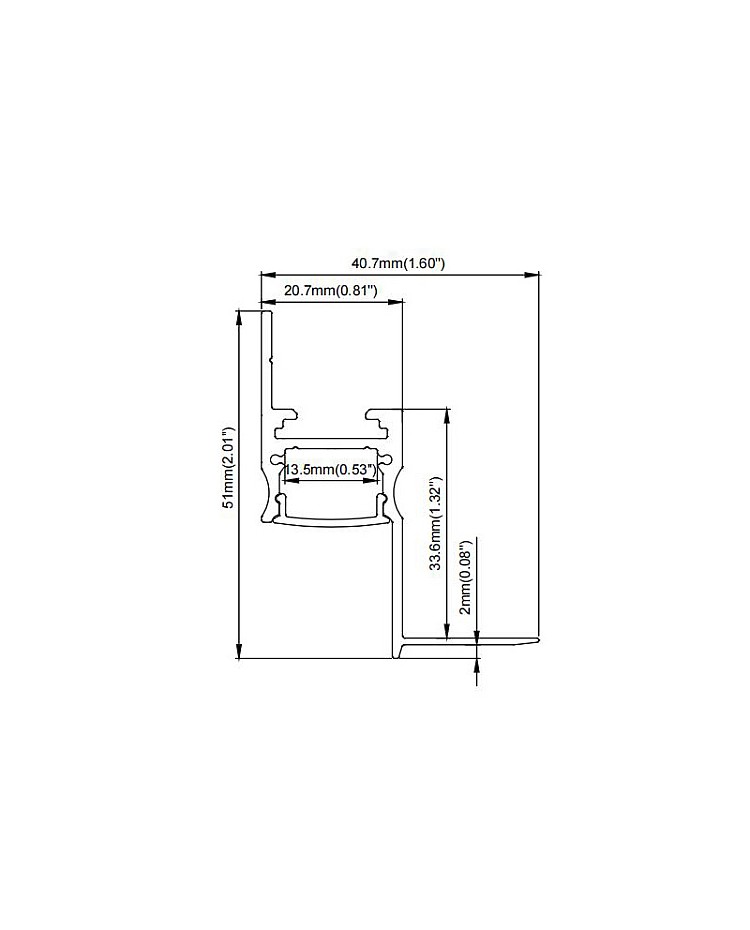

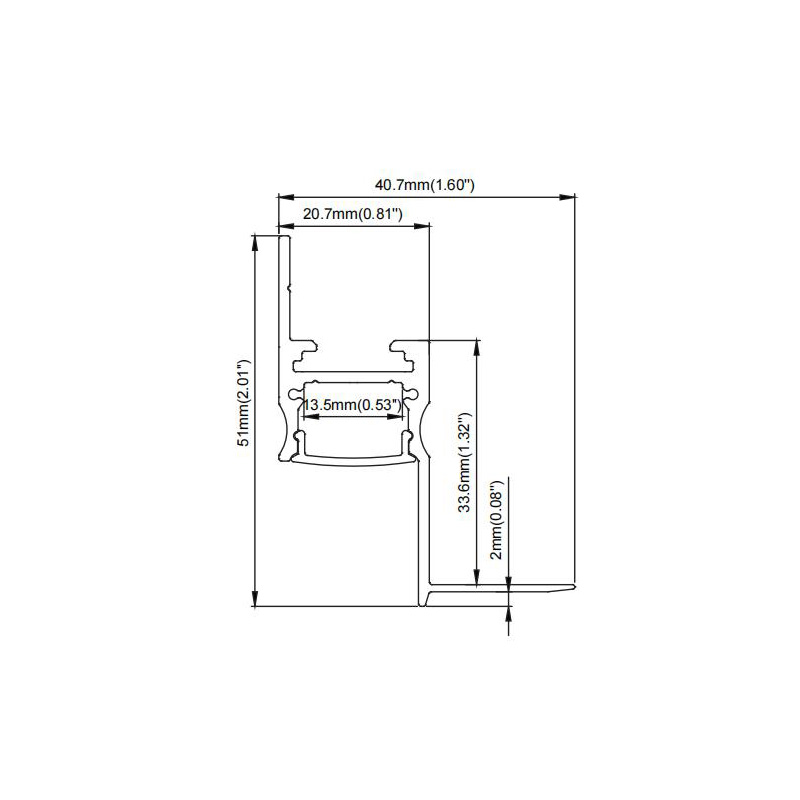

- Size( W x H): 40.7 mm x 51 mm ( 1.6" x 2.01" )
- Colors: White
- Standard length: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover, PC semi-clear cover, Prismatic Cover
- Inner width: 13.5 mm ( 0.53" )
- Max width of LED strips: 12 mm ( 0.47" )
- Max power: 18W/m
- Beam angle: 100°

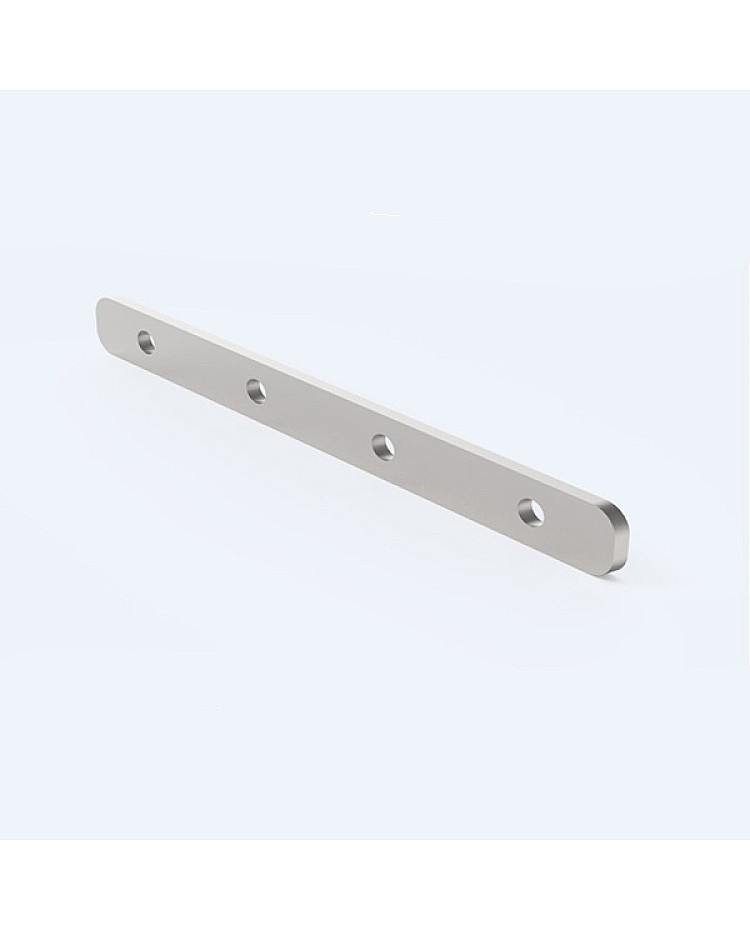

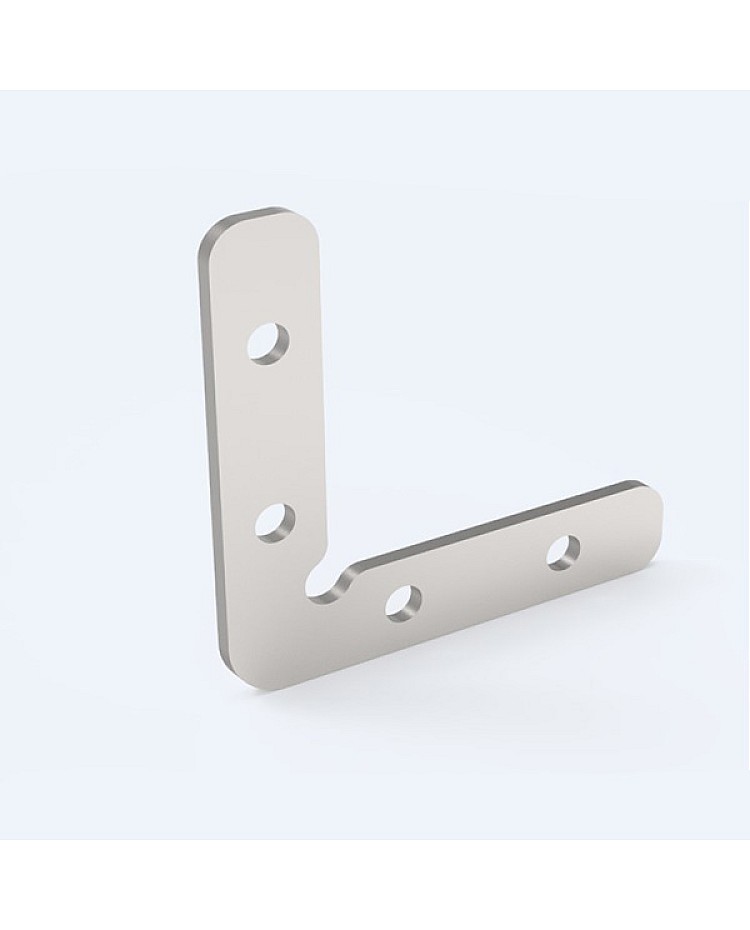

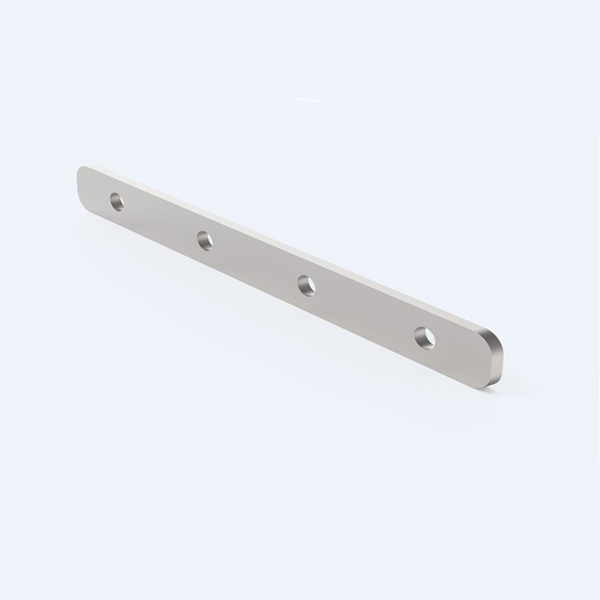

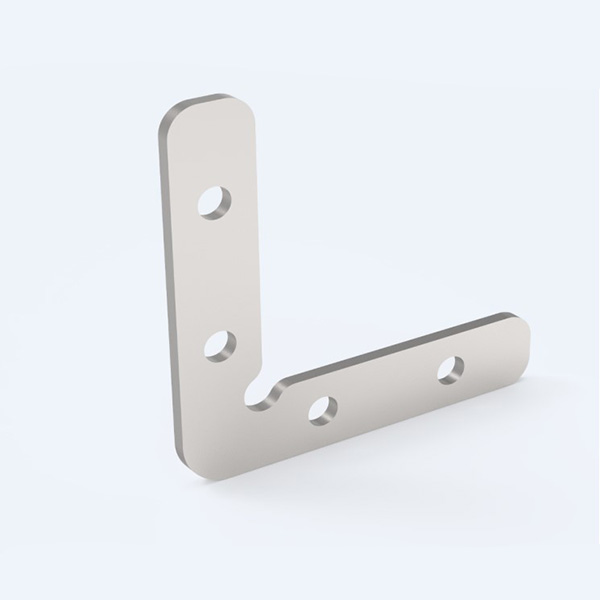

- 180° and 90° connectors sold separately

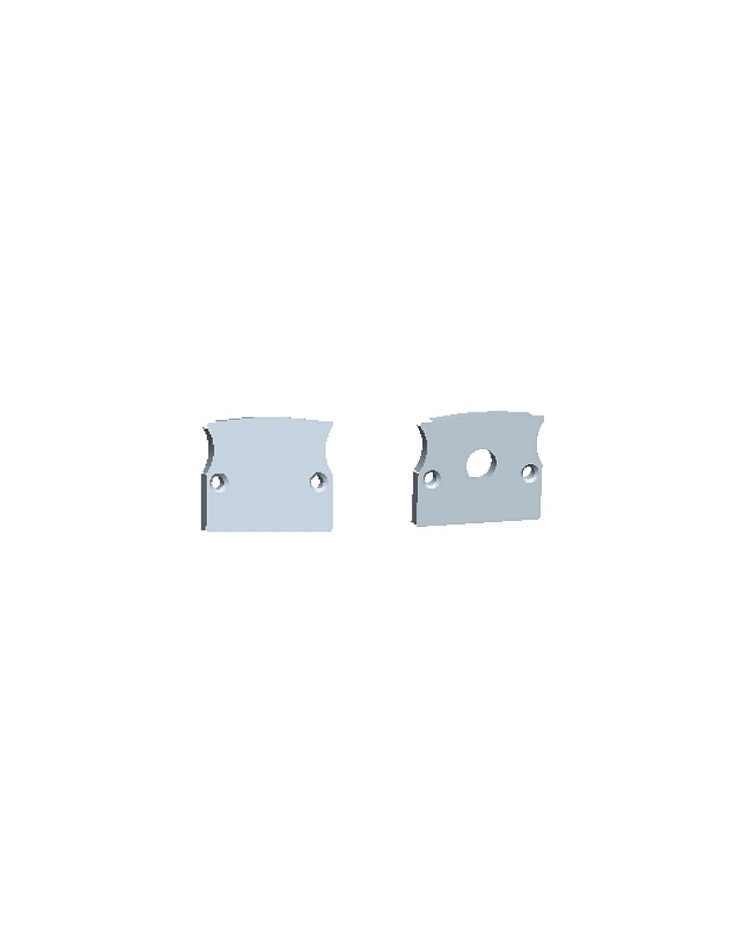

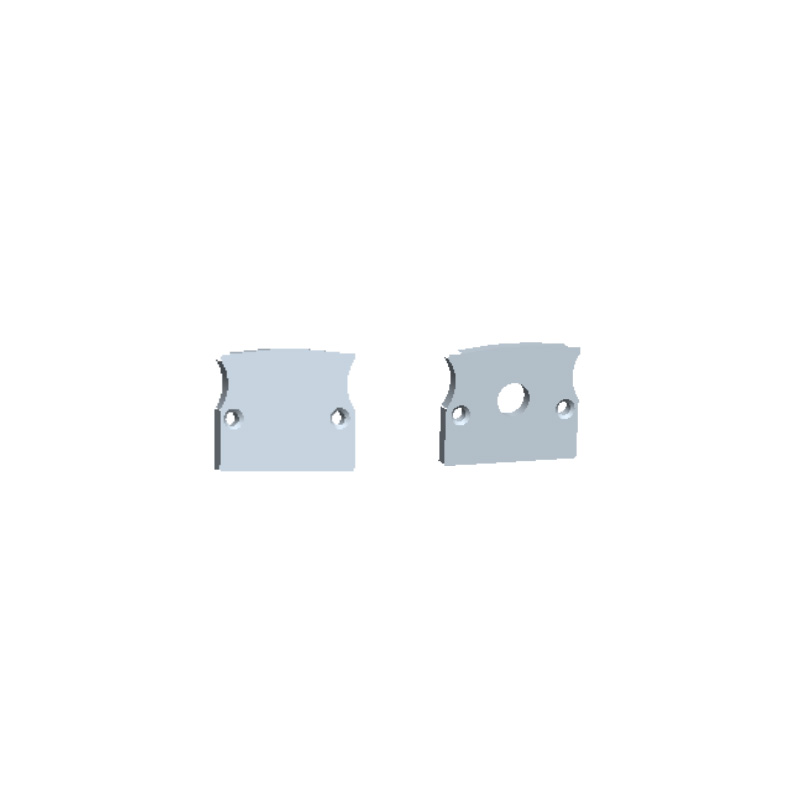

- End caps with and without wire hole included
- Installation: Plaster-in

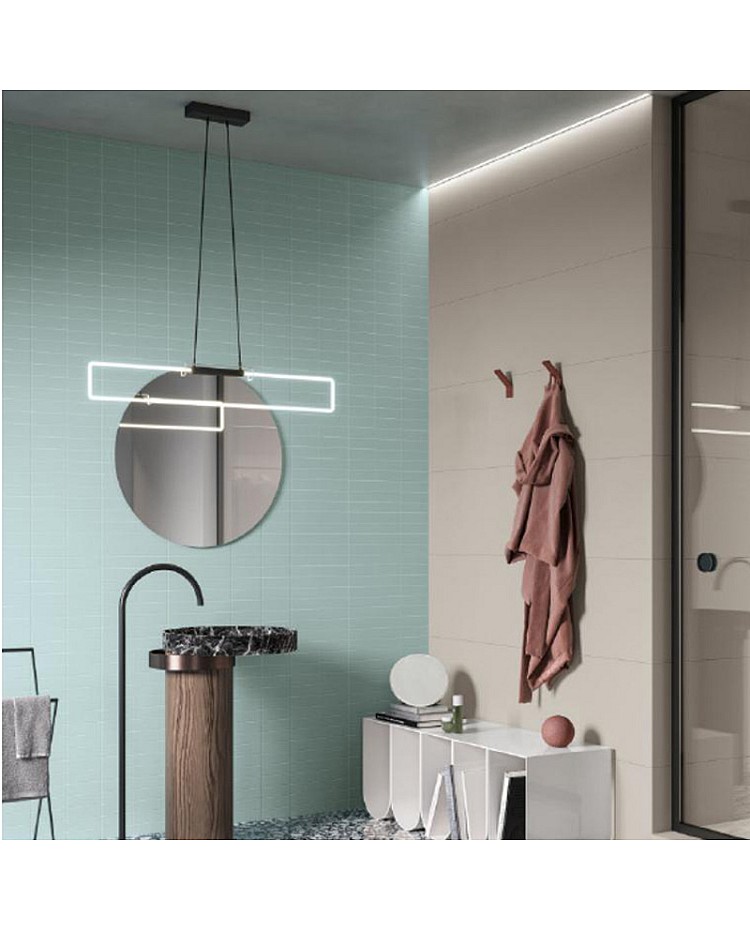

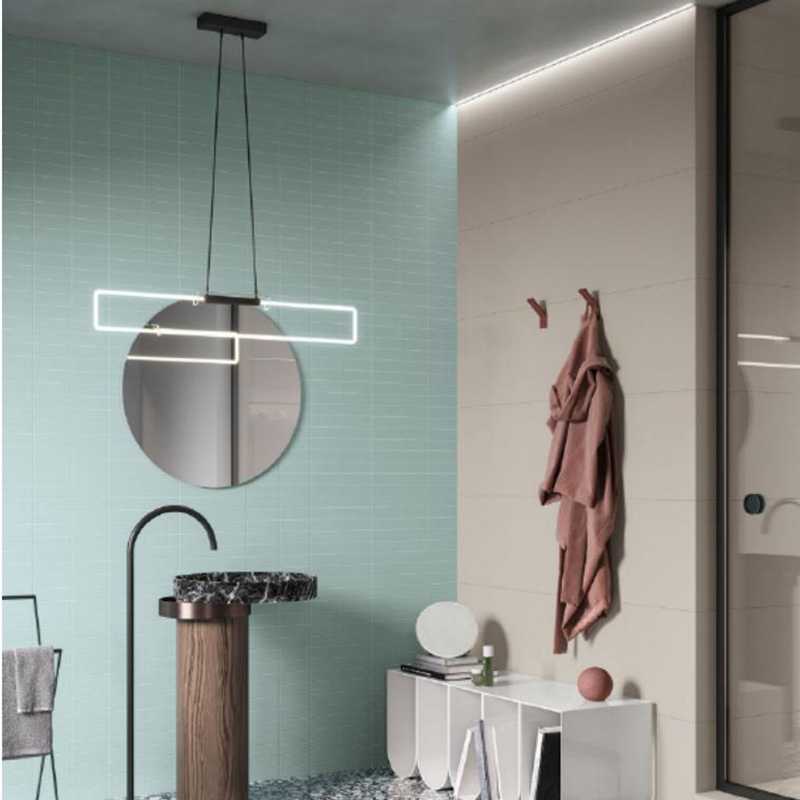

- Applications: Shadow line/perimeter lighting
- Warranty: 5 years
Includes:
1 * Shadow line lighting channel with cover
End caps ( With / without wire hole )
