The LED diffuser channels can be seamlessly integrated into 12.5mm ( 1/2" ) plasterboards on walls or ceilings for a clean and minimalist finish. Featuring dual grooves that deliver both upward and downward illumination simultaneously, delivering beautiful, layered up-and-down wall grazing or ceiling wash effects from a single, seamless fixture.

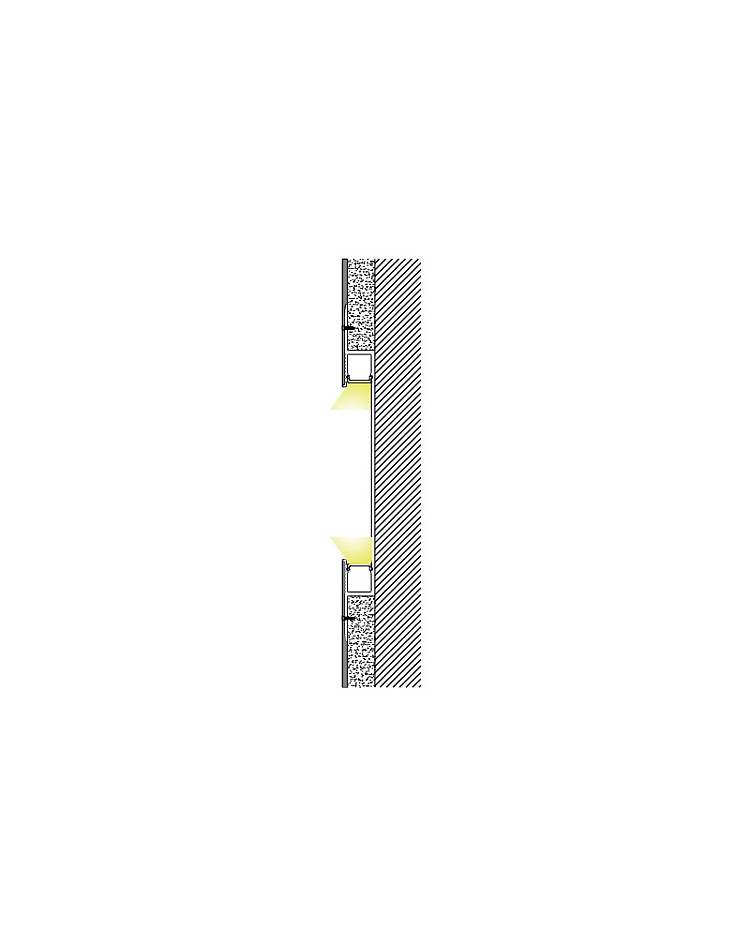

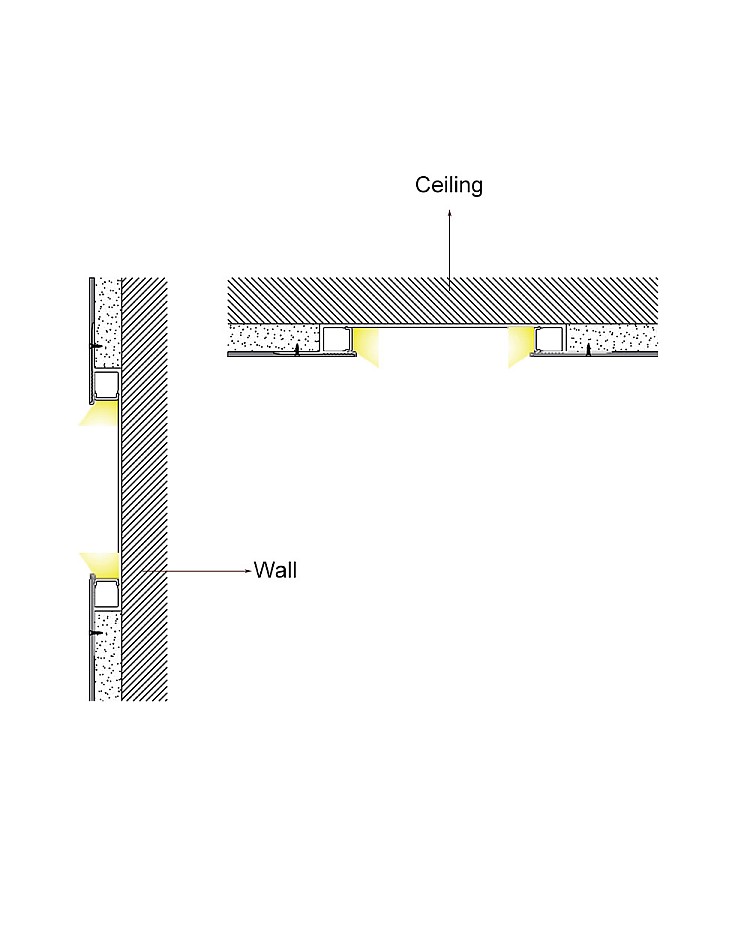

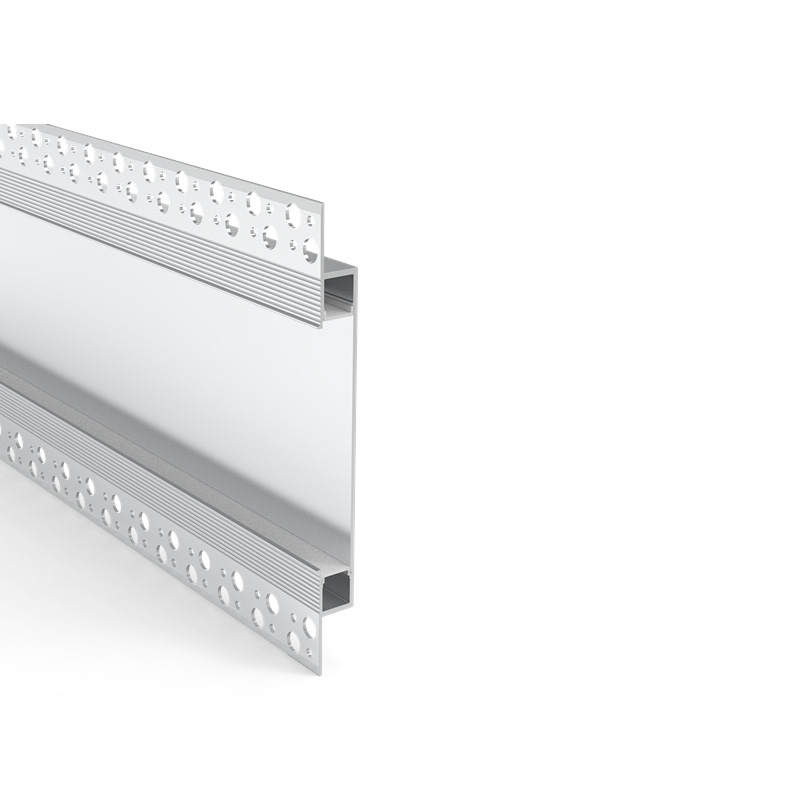

Built for a plaster-in, trimless finish, the ALP167 LED channel and diffuser is designed to recessed flush into 12.5mm ( 1/2") drywall and can be installed on either ceilings or walls, disappearing into the surface for a clean, architectural look with no visible frame. Ideal for cove lighting, feature walls, corridors, and modern architectural accents.

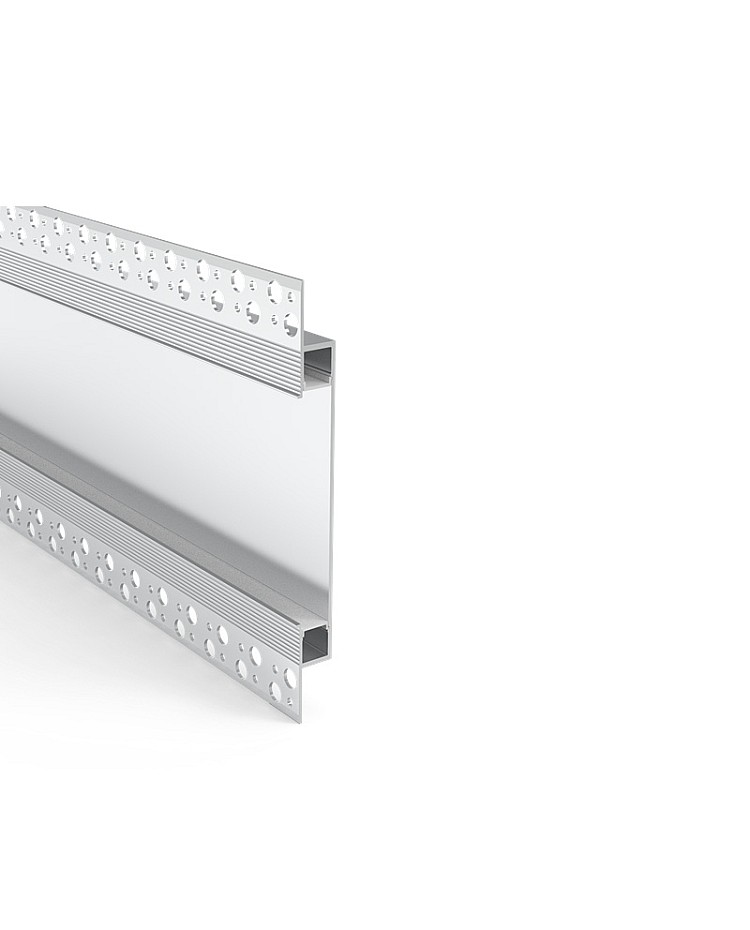

They are made of extruded aluminum with a powder-coated surface treatment for oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and custom lengths are available. Only one type of LED light diffuser is available: PC diffused cover, made of imported brand material, anti-yellowing, and perfect lighting distribution.
The inner width is 10.3 mm, allowing a maximum strip light width of 10 mm. You can add 8 mm or 10 mm single-color or color-changing COB or high-density strip lights as the light source; the diffused cover will distribute the light evenly, without hotspots. Accent wall lighting channels can serve as heat sinks, improving heat dissipation and extending the lifespan of LED lights. End caps with and without holes are included.
Whether you’re designing a luxury hotel lobby, an upscale retail space, or a contemporary living area, the ALP167 plaster-in LED profile delivers eye-catching up-and-down architectural lighting with a flawless, integrated finish.

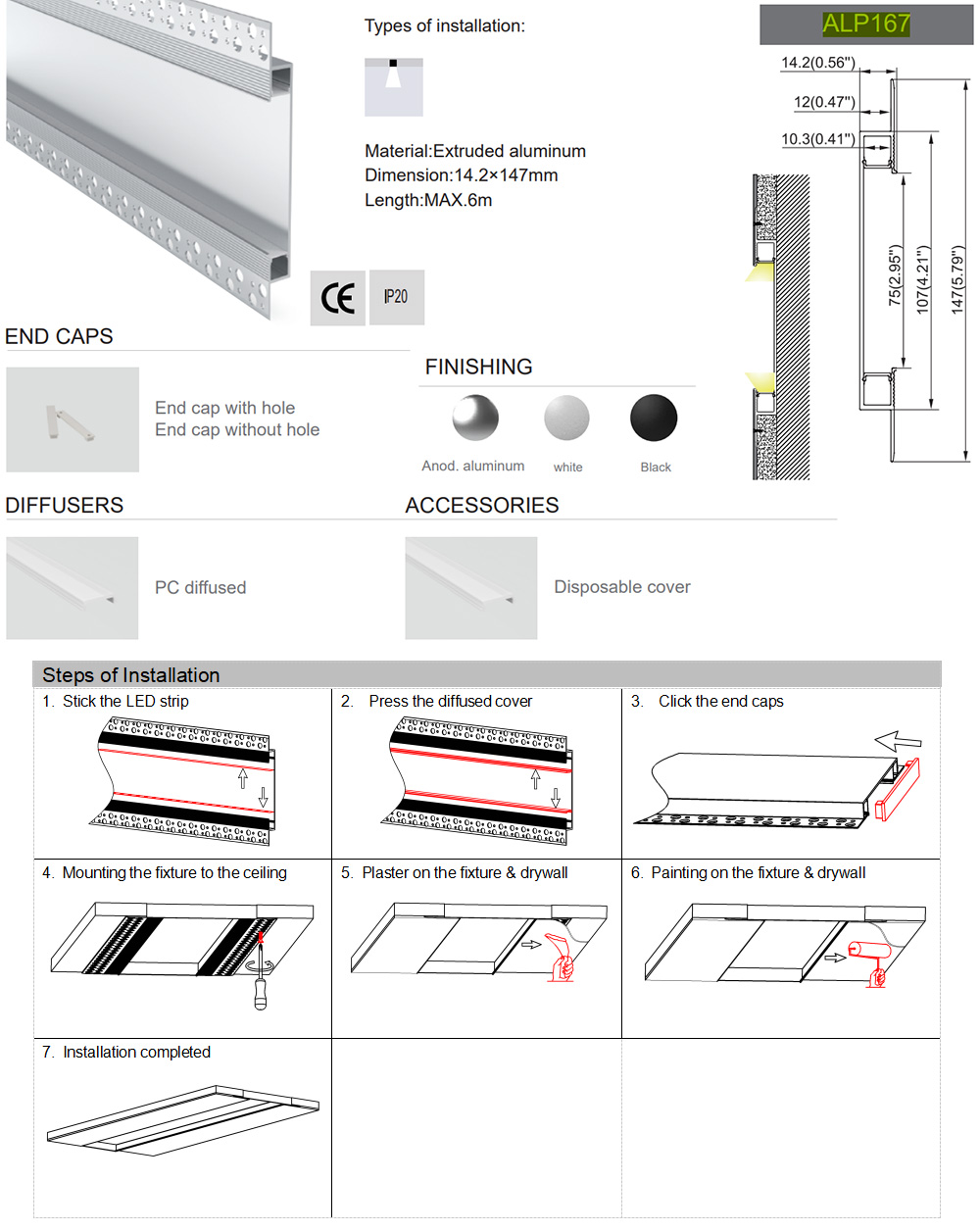

Specifications:
- Model: ALP167
- Material: Extruded aluminum
- Surface treatment: Powder-coated
- Colors: White

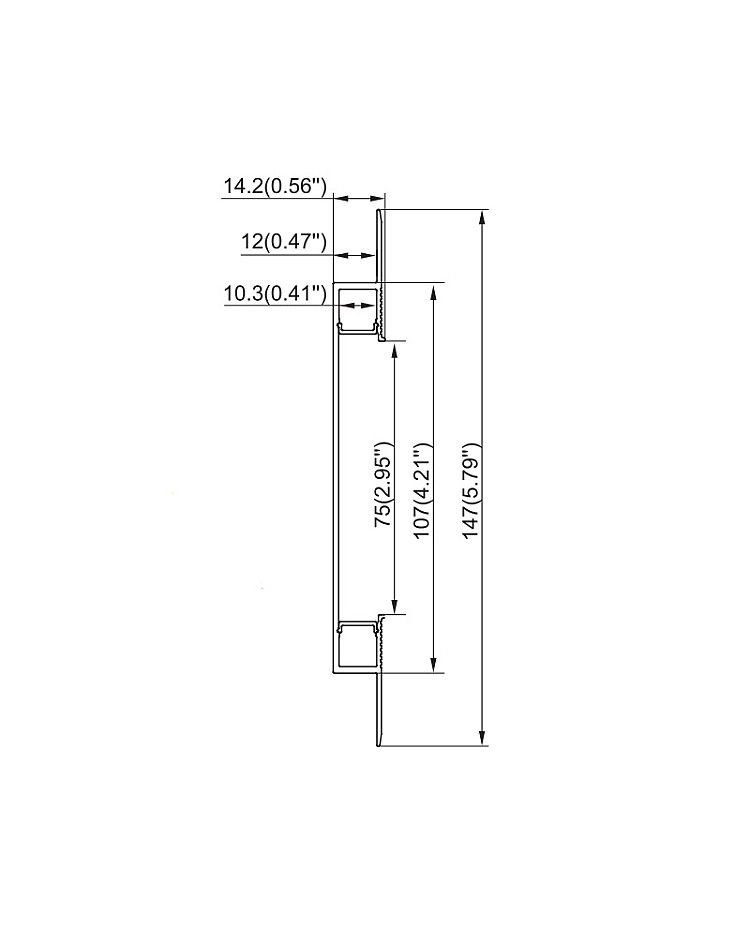

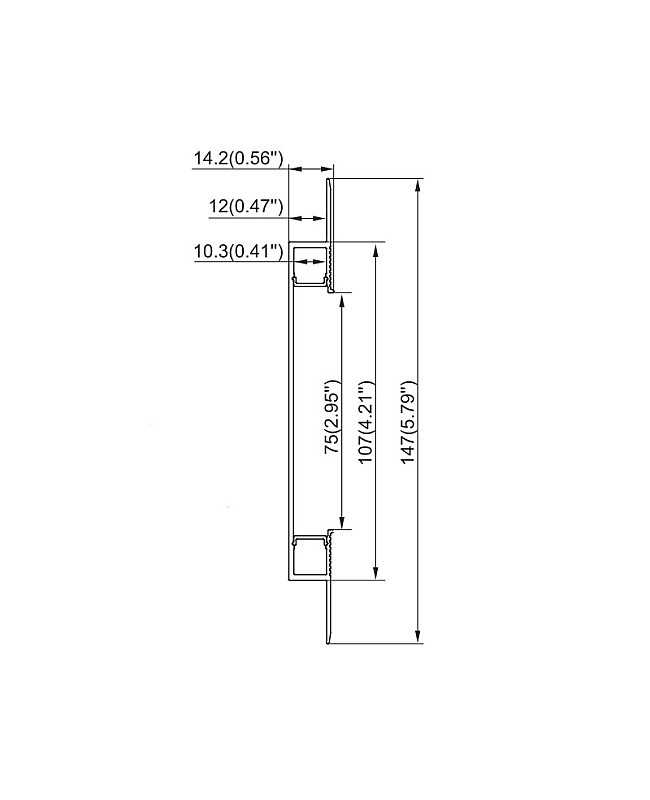

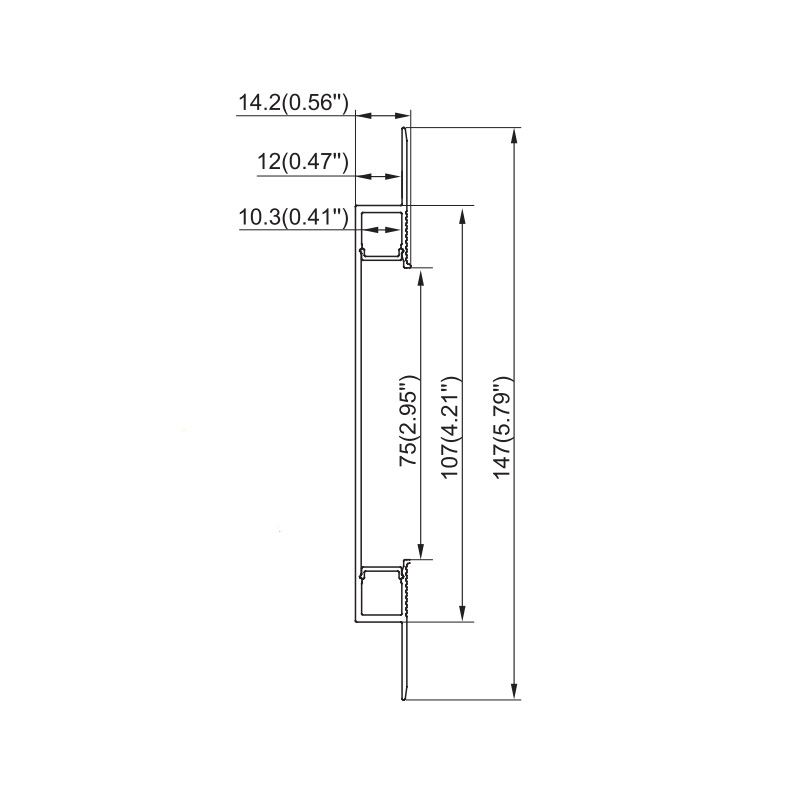

- Size( Height x Width ): 147 mm x 14.2 mm ( 5.79" x 0.56" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 10.3 mm ( 0.41" )
- Maximum width of strip lights: 10 mm ( 0.39" )
- Max power: 12 x 2W/m

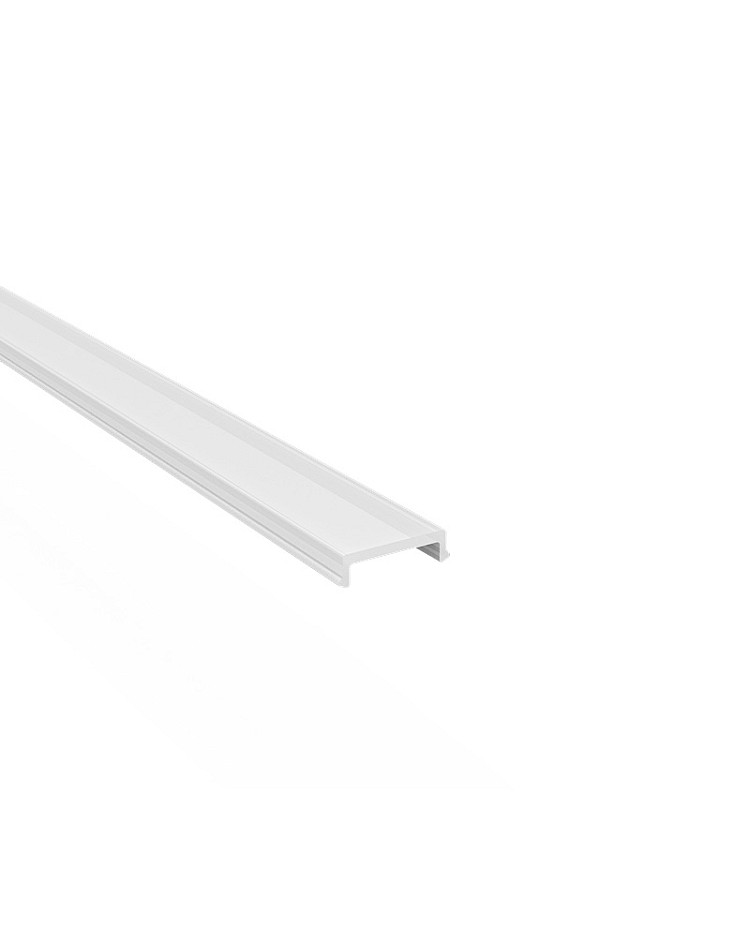

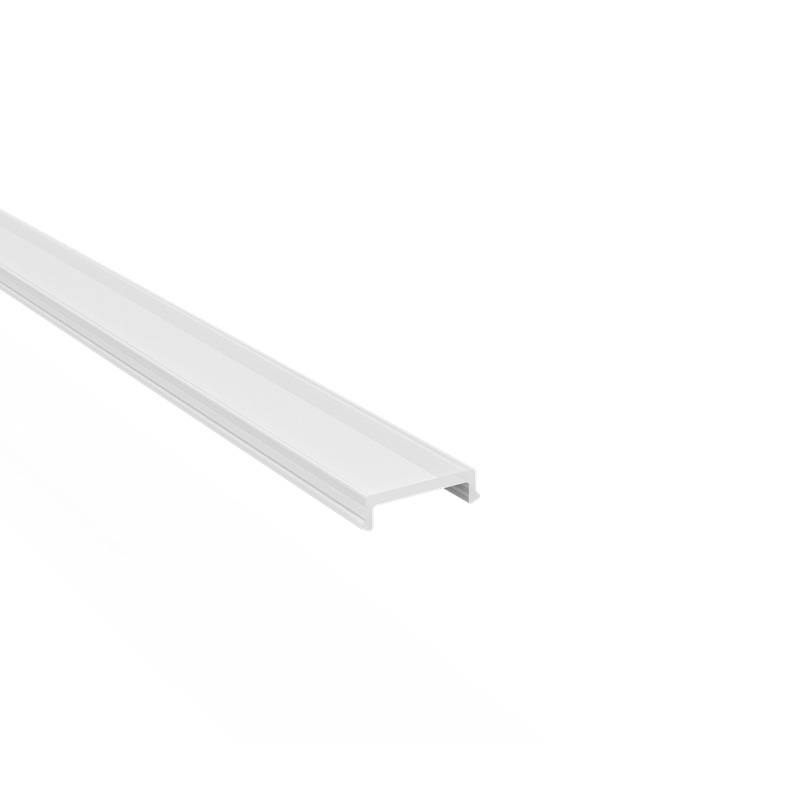

- Diffuser: PC diffused cover
- Tolerance: ±1%
- IP rating: IP20 non-waterproof
- Beam angle: 100°

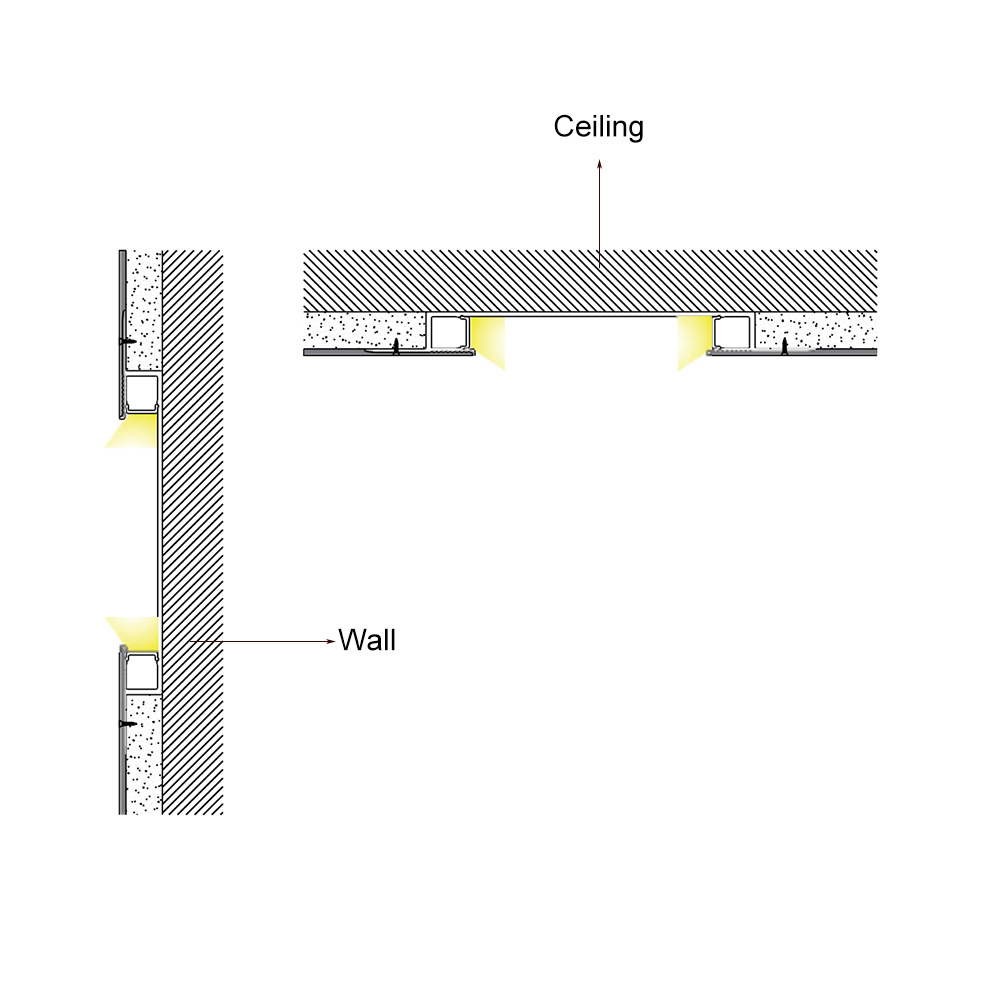

- Installation: Plaster-in 12.5 mm drywall

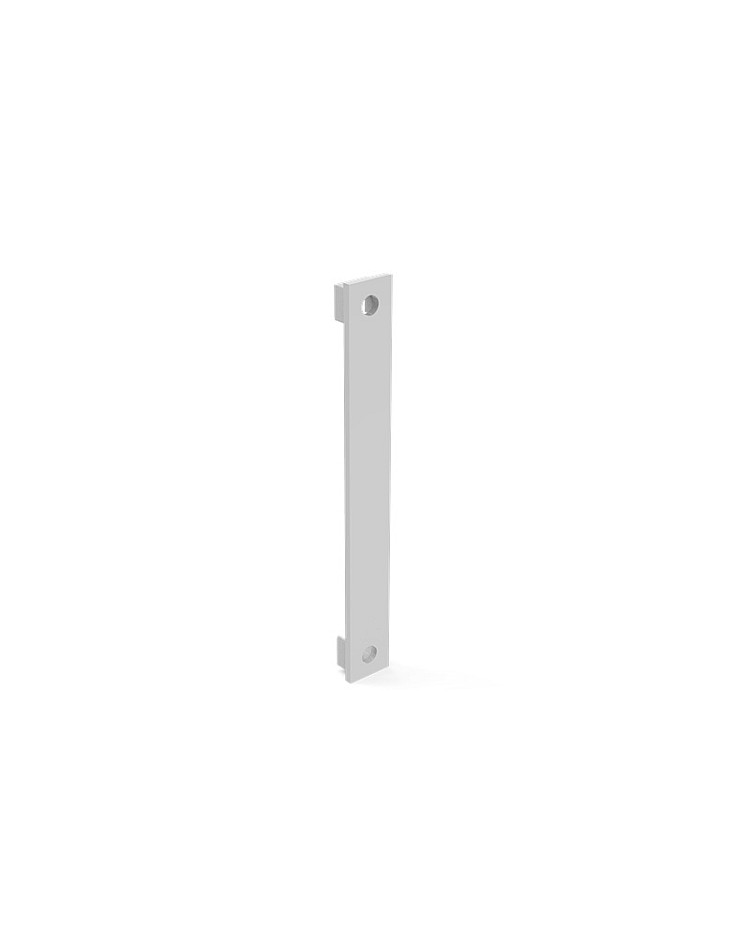

- End caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Wall recessed accent lighting
- Ceiling recessed linear lighting
- Feature lighting in hotels, offices, and retail stores
- Mood lighting in living rooms, bedrooms, and home theaters
- Staircase or hallway illumination, etc
Includes:
1 * Accent light LED channel and diffusers

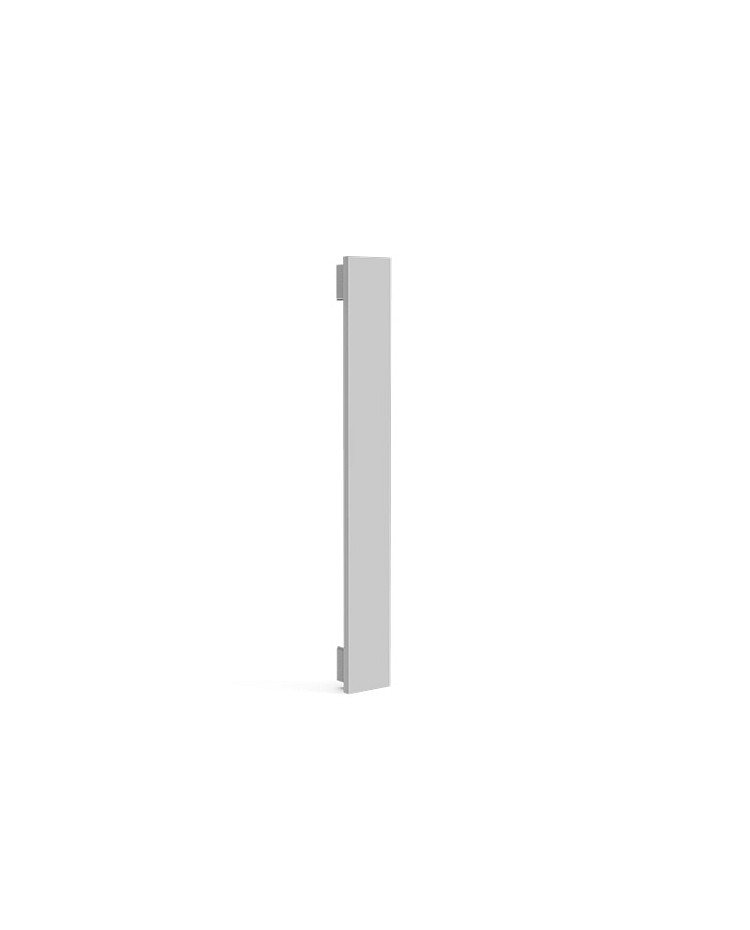

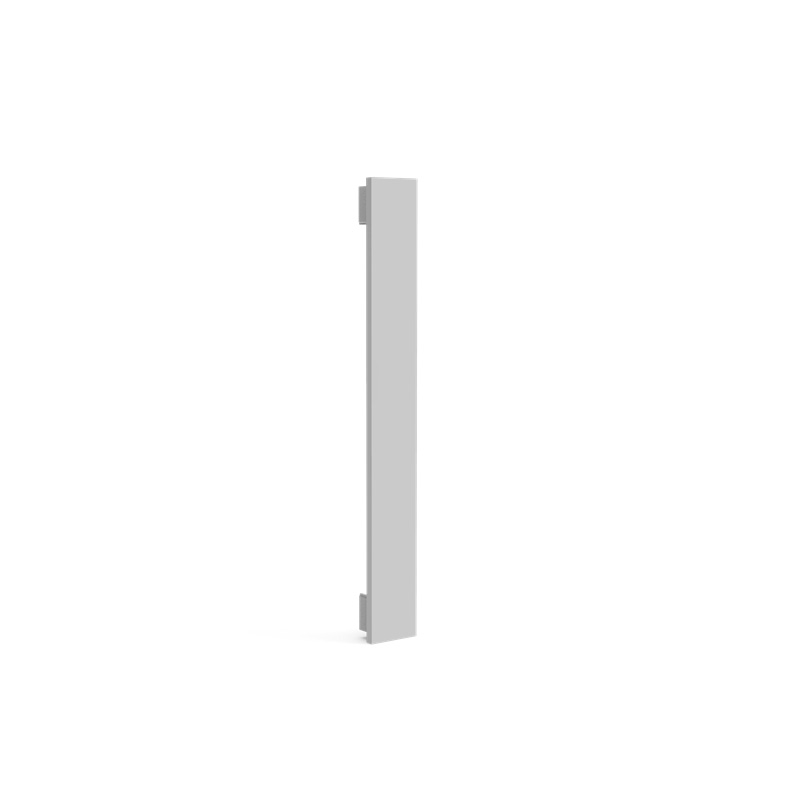

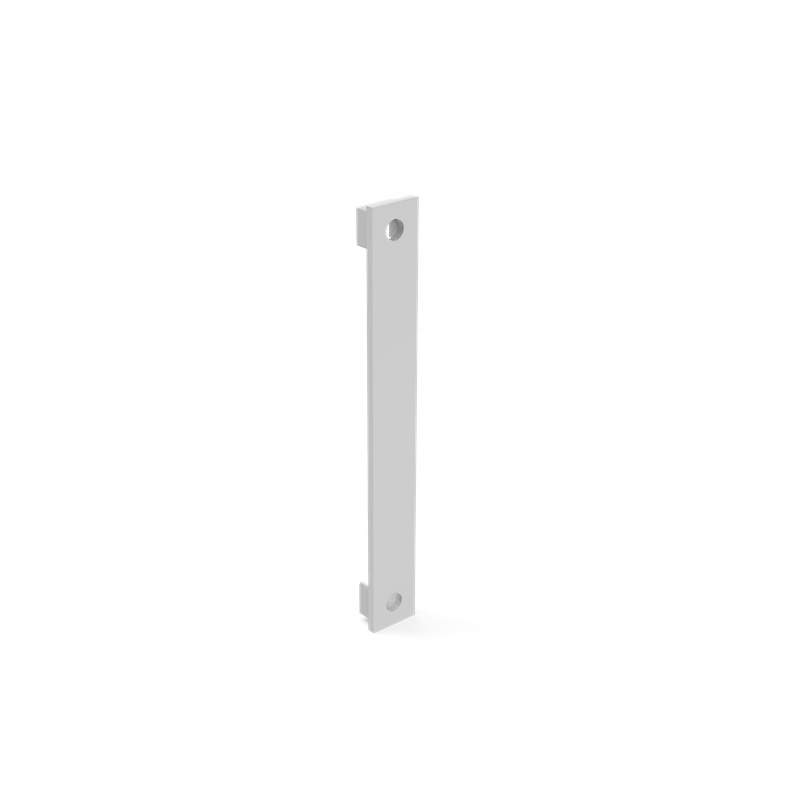

End caps (With/without wire holes)
